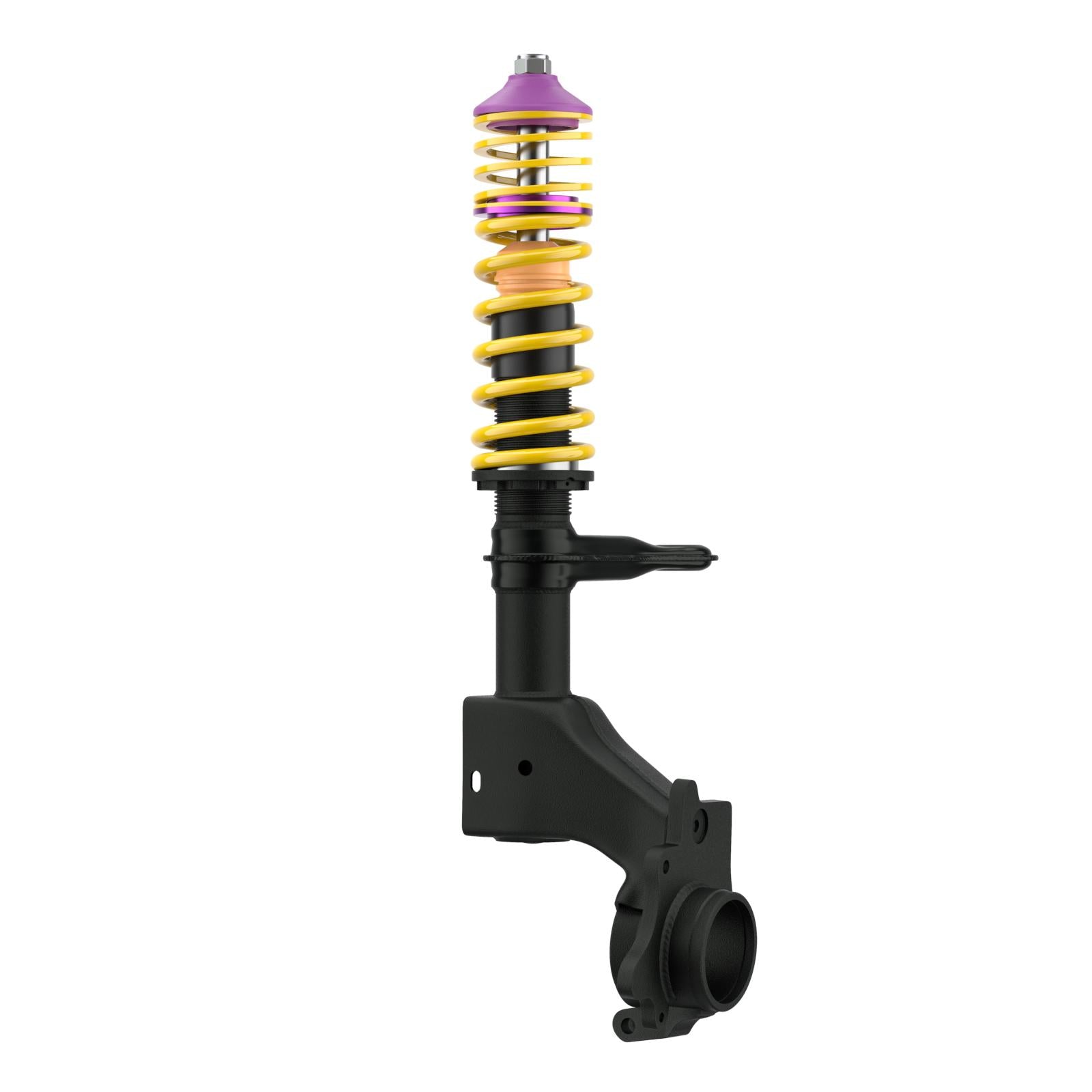

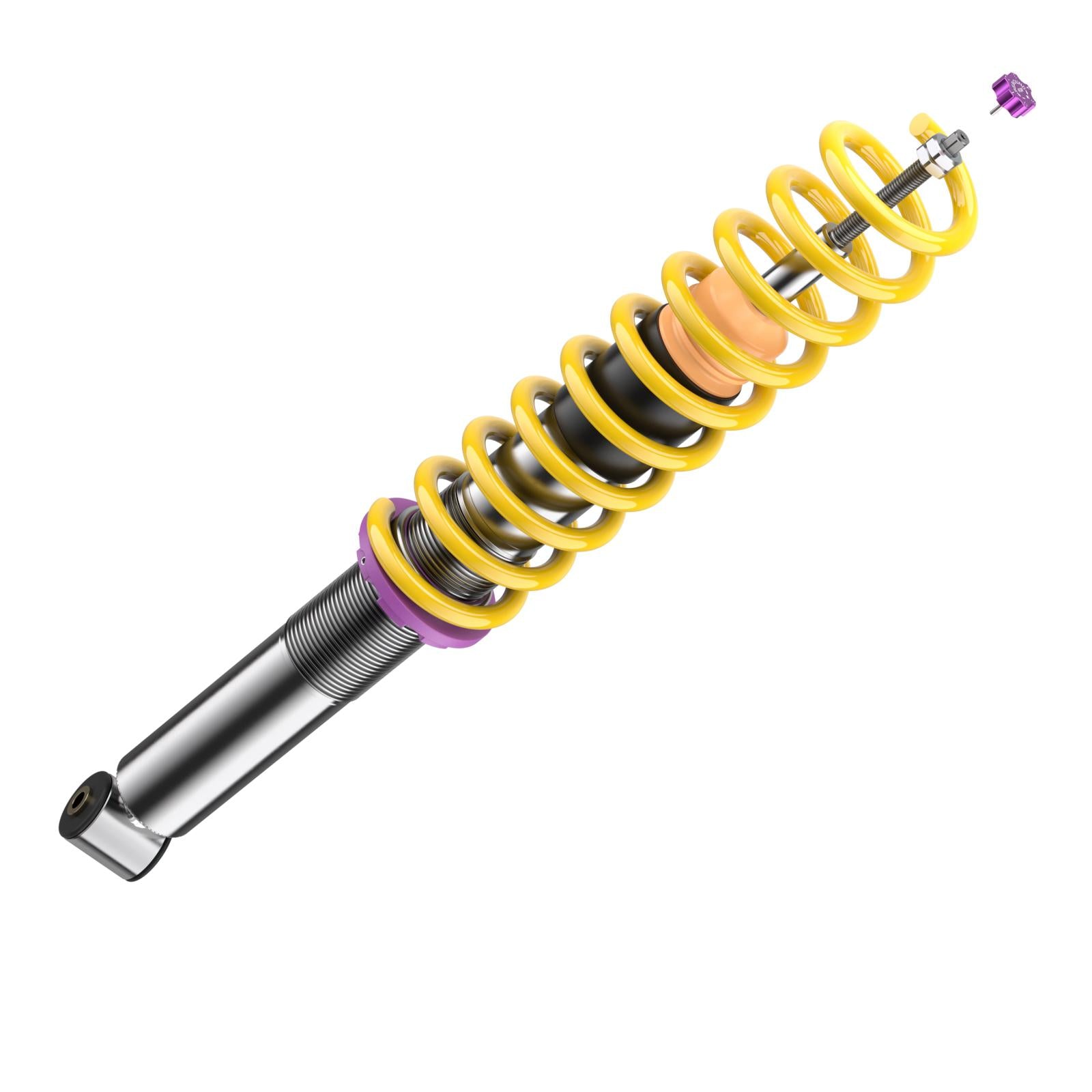

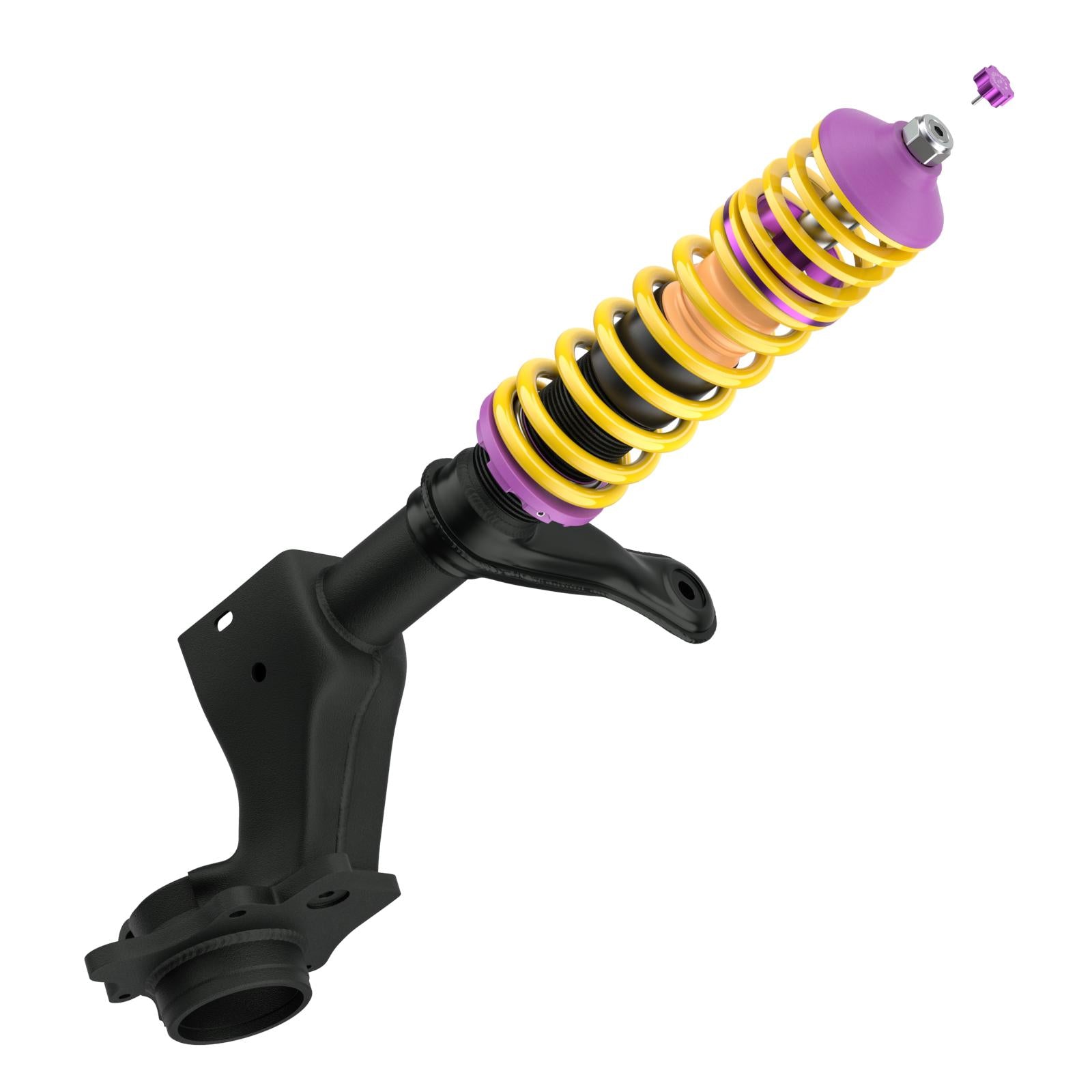

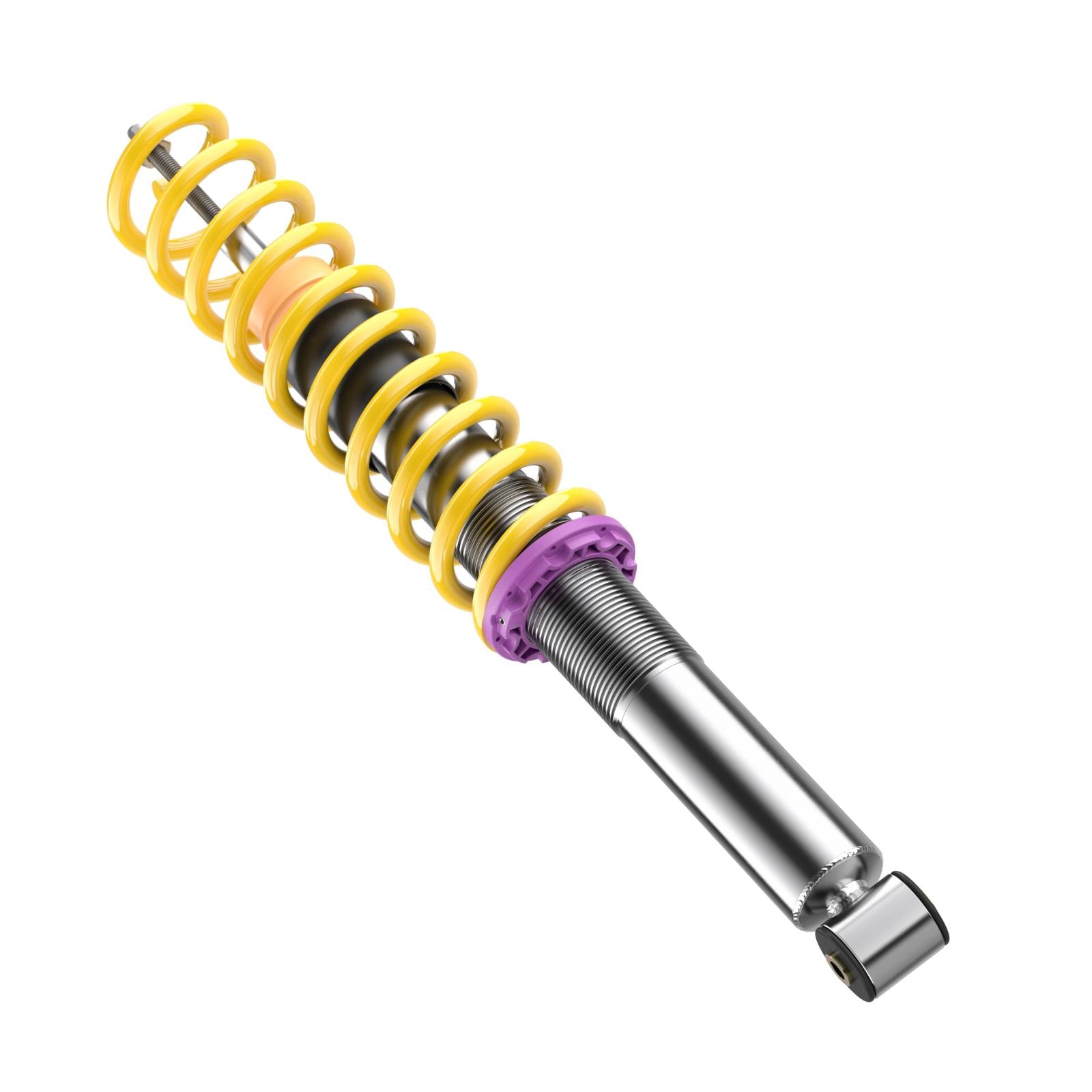

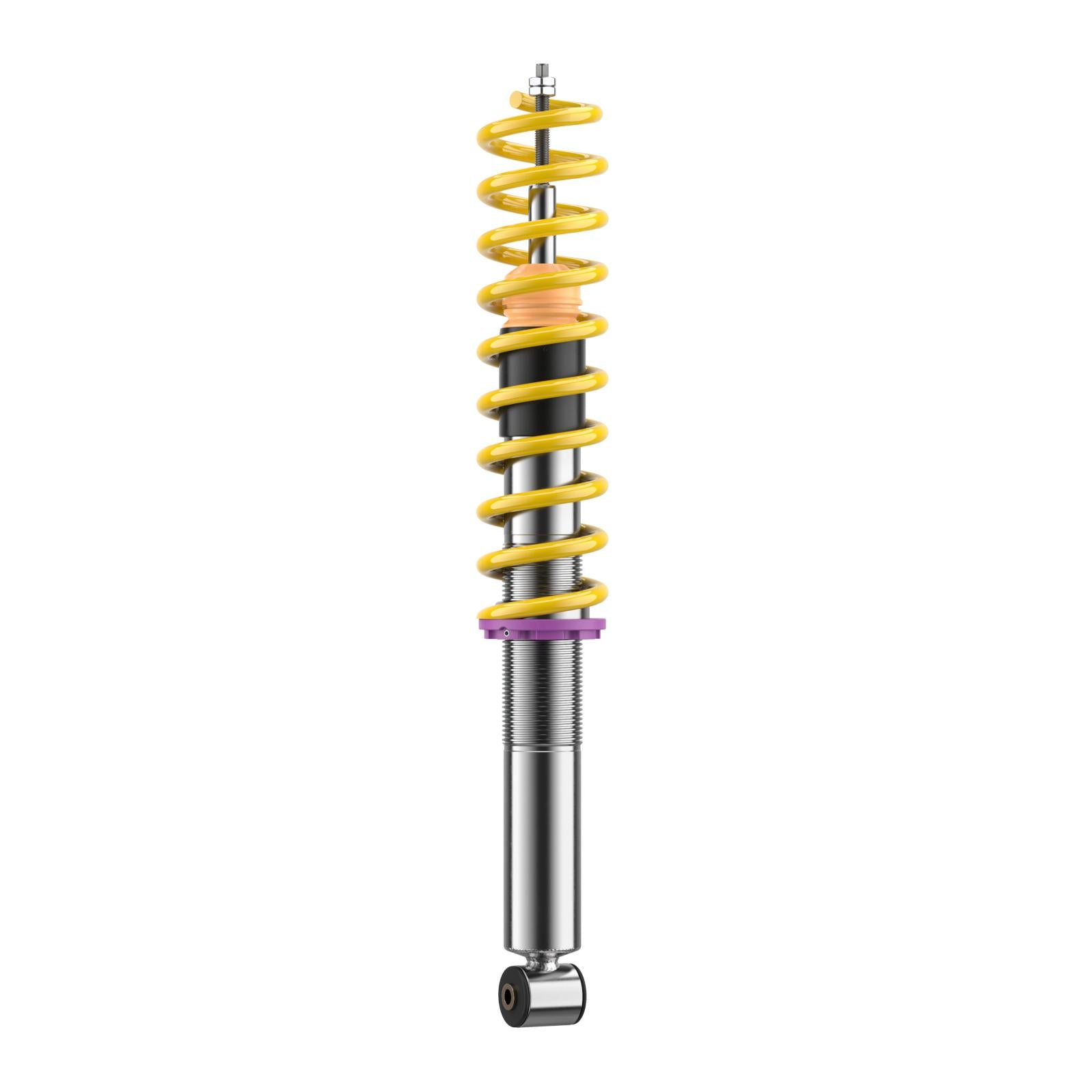

KW Coilover Kit V1 for BMW (E34) M5 - w/ EDC
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW's V1 is the entry model in its street coilover range, pairing height-adjustable struts with a damper setup that KW pre-configures for each vehicle. Ride height is continuously adjustable within the tested range using a dirt-resistant trapezoidal thread and composite collar, so it can still be changed easily years after fitting. Corrosion-resistant springs and bump stops are built for a long service life. This kit is developed for the BMW M5 (E34).
Key Features
- Vehicle-specific, factory-set damping
- Continuous ride height adjustment within the tested range
- Trapezoidal thread with composite adjuster collar
Specifications
- Version: V1
- Damping: Fixed, vehicle-specific setting
- Material: Galvanised steel
- Front lowering: 25–55 mm
- Rear lowering: 25–55 mm
- Front axle load: up to 1,050 kg
- Rear axle load: up to 1,300 kg

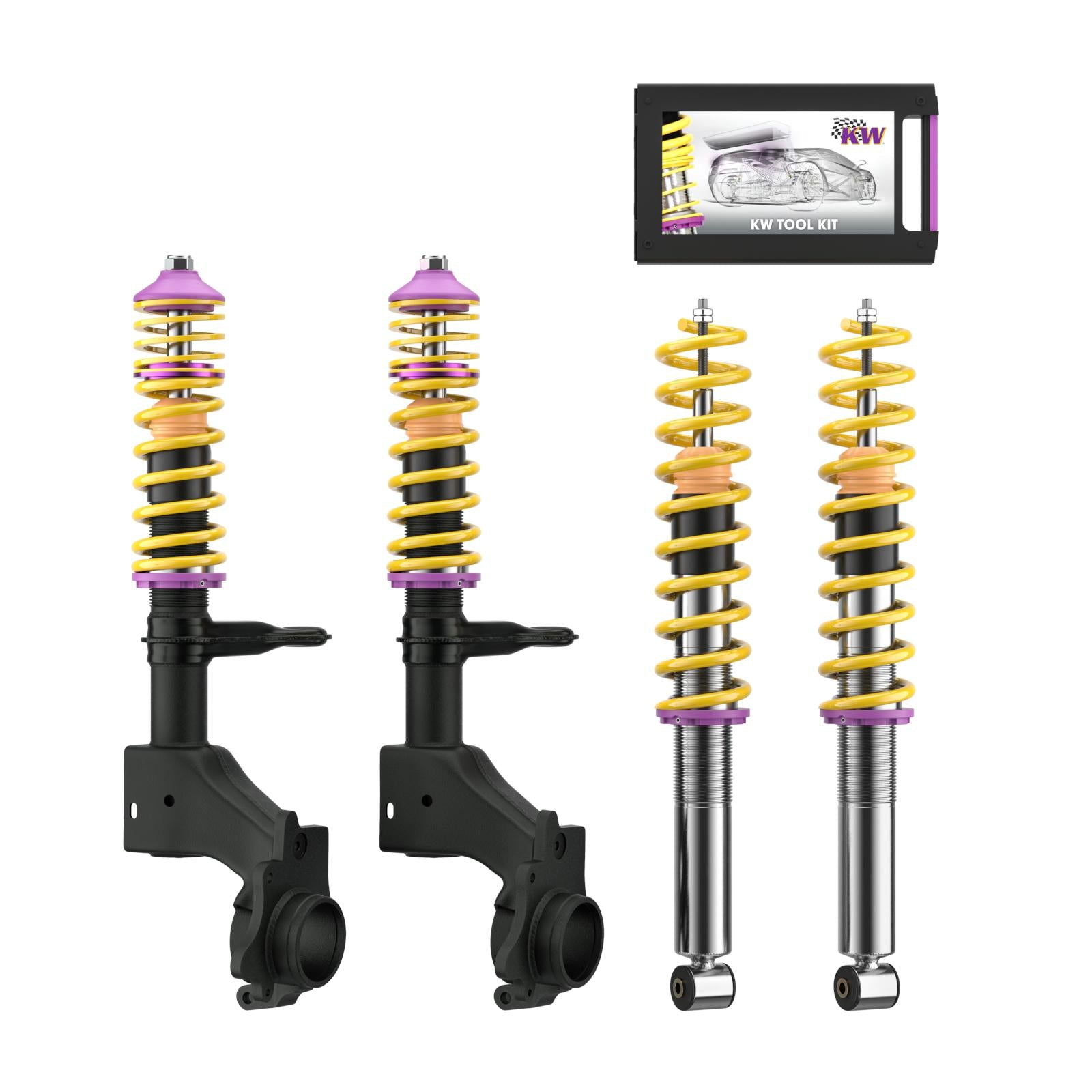

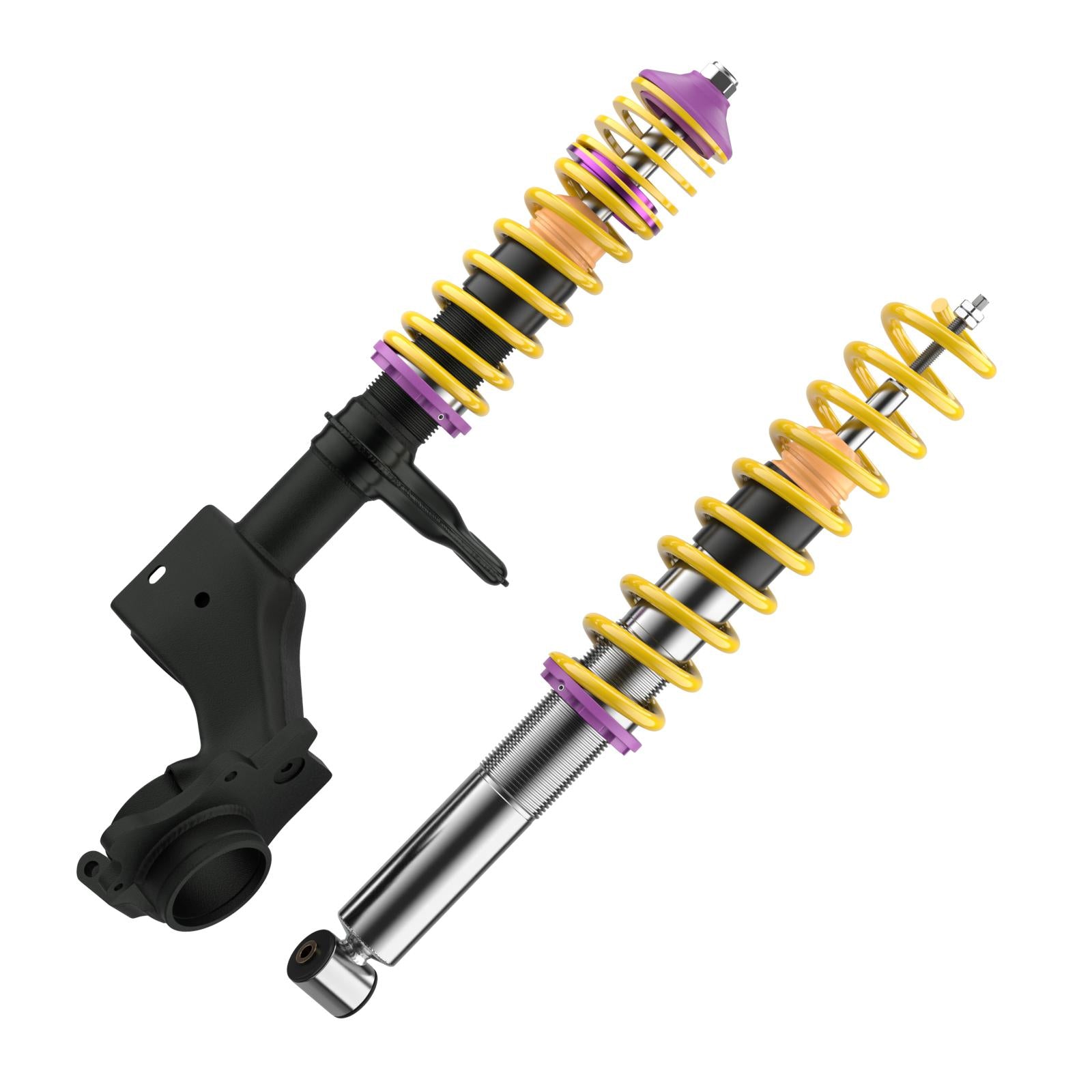

- Supplied as: Front axle + rear axle coilover struts (Original front axle strut housings modified)
Front axle load up to 1,050 kg; Rear axle load up to 1,300 kg.
For vehicles with electronic damper control.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Notes | Refs |
|---|---|---|---|---|---|---|---|
| 1987–1995 | BMW | 5 (E34) 5/H, M5/H, X5/H | M5 | Petrol · 232 kW · 3.5L · 6-cyl | Rear-Wheel Drive | For cars with electronic damping | 1, 6, 18, 38, 40, 41, 82, 421 |
| 1987–1995 | BMW | 5 (E34) 5/H, M5/H, X5/H | M5 | Petrol · 250 kW · 3.8L · 6-cyl | Rear-Wheel Drive | For cars with electronic damping | 1, 6, 18, 38, 40, 41, 82, 421 |
| 1987–1995 | BMW | 5 (E34) 5/H, M5/H, X5/H | M5 Cat | Petrol · 232 kW · 3.5L · 6-cyl | Rear-Wheel Drive | For cars with electronic damping | 1, 6, 18, 38, 40, 41, 82, 421 |
- Note 1: Height adjustable on the front and rear axles (threaded strut housings).
- Note 6: When using original tyres, wheel offset spacers may be required.
- Note 18: For front dome bearing caps with a diameter of 80 mm, new parts are required. (BMW Part No.: dome bearings 31 331 139 452 + washer 31 331 116 983 + collar 31 331 110 196).
- Note 38: If the rear axle shock absorber of the car is equipped with M12 thread - you need to modify the supporting bearing unit to M10 thread. Therefore please buy the following BMW parts from the car manufacturer: supporting bearing 33 52 1 132 270, washer disc 33 52 1 136 063, disc 33 52 1 129 565.
- Note 40: Original struts need to be sent in advance for modification.
- Note 41: Coilover kits where the strut housings are being modified are only available in galvanised finish.
- Note 82: Production on demand. Please ask for delivery time.
- Note 421: Electronic damping control has to be deactivated. Deactivation kit is not included in the delivery.
