KW Coilover Kit V1 for BMW (E39) 528i / 540i / 525tds

SKU: 10220007
Sale price$2,358.30 Regular price$3,369.00
Save $1,010.70

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

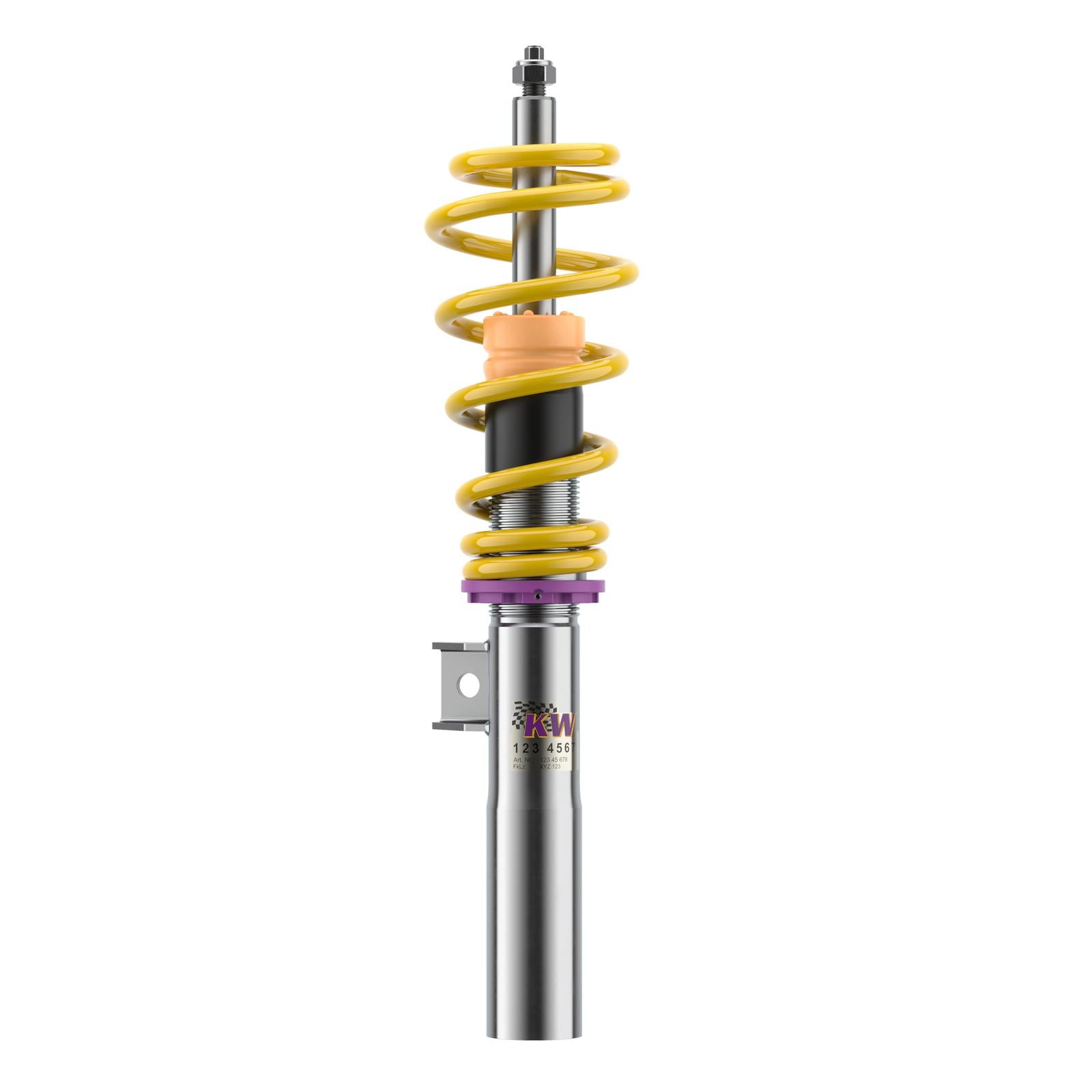

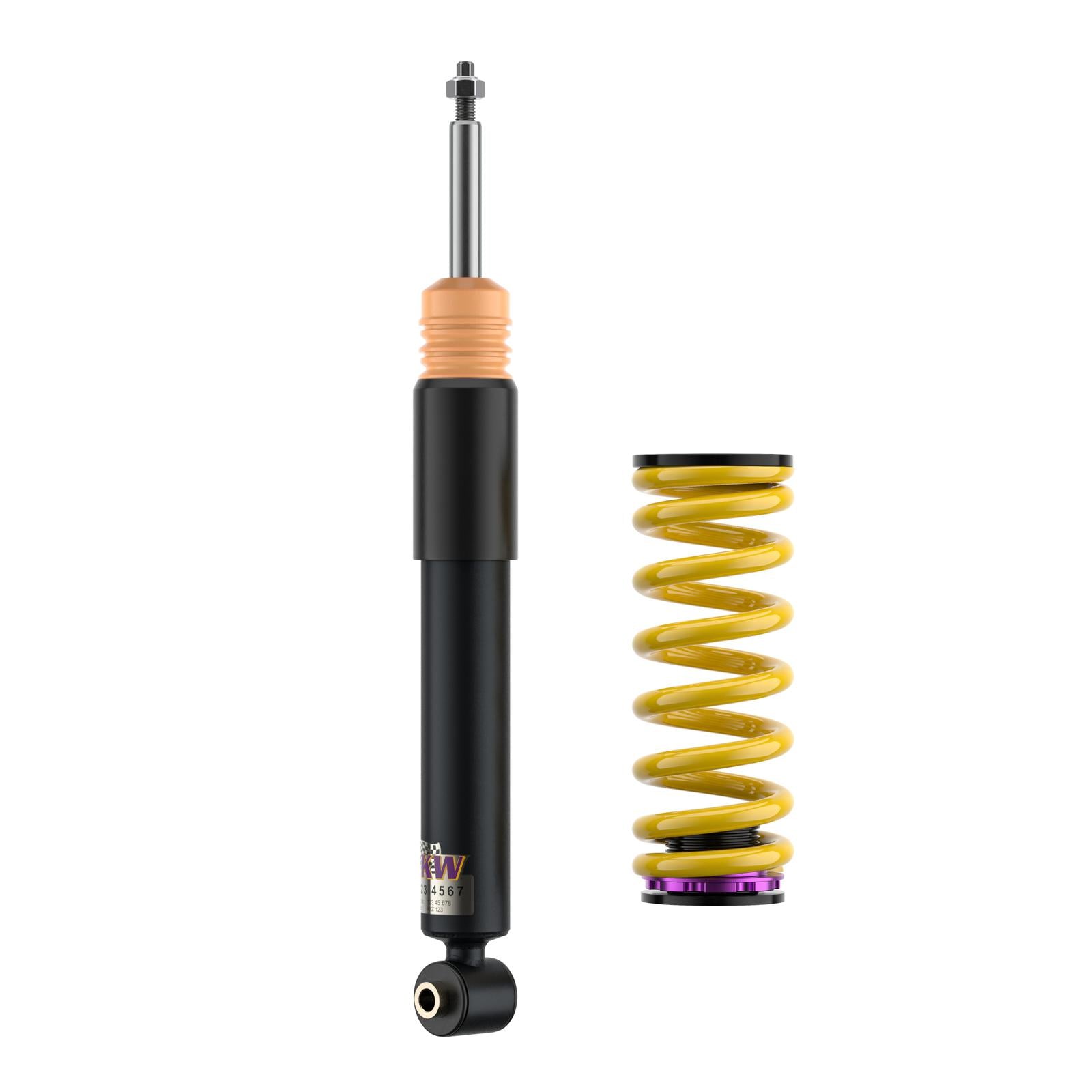

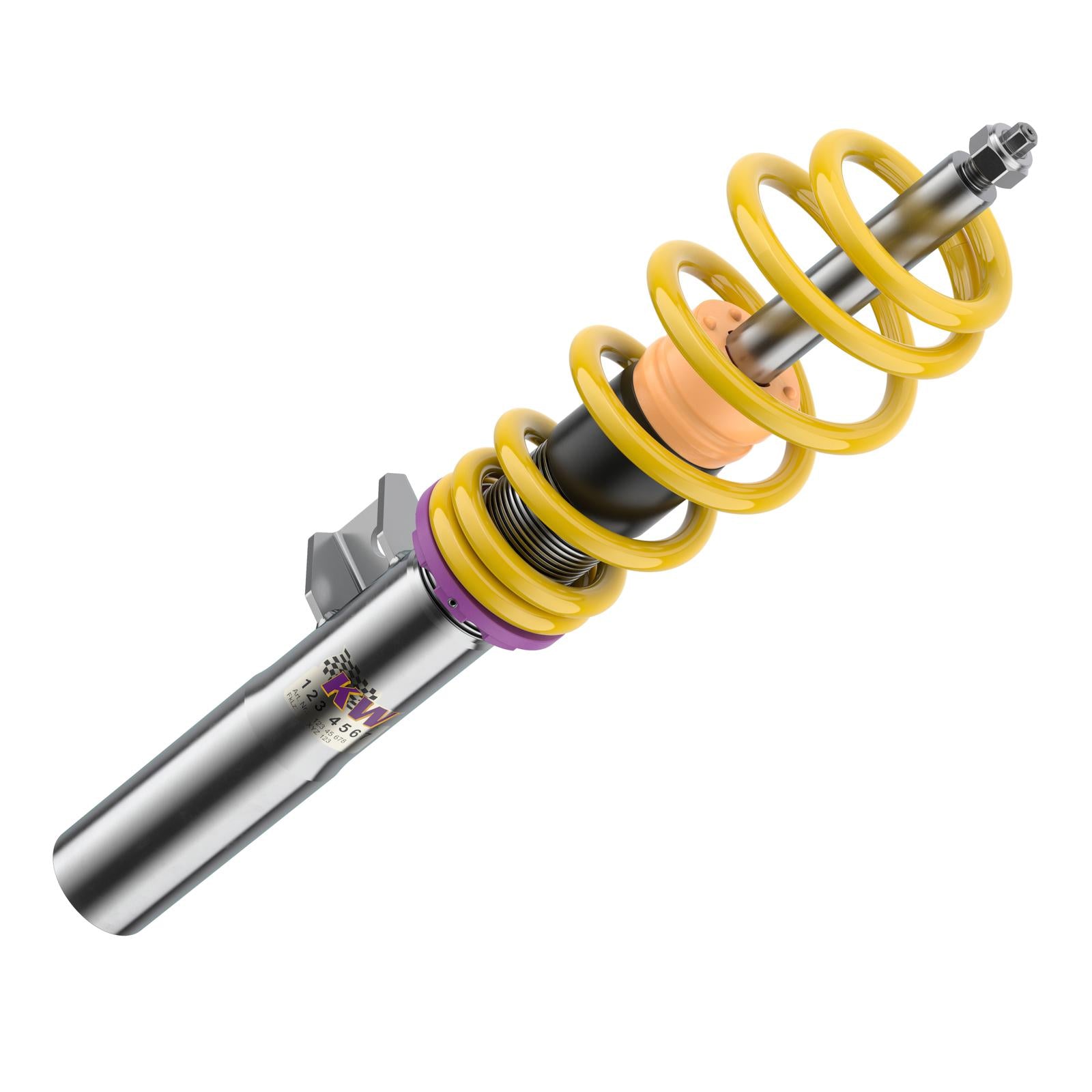

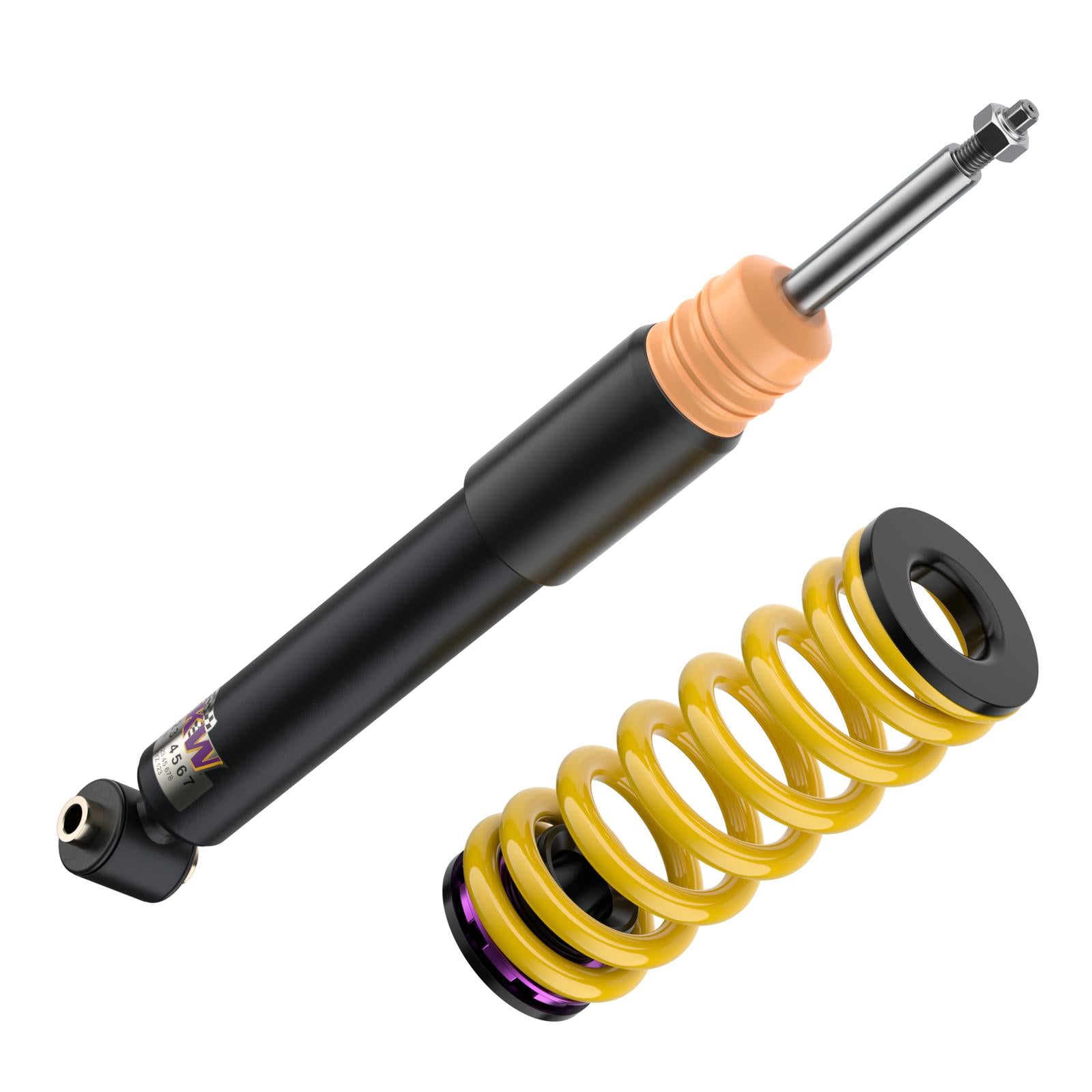

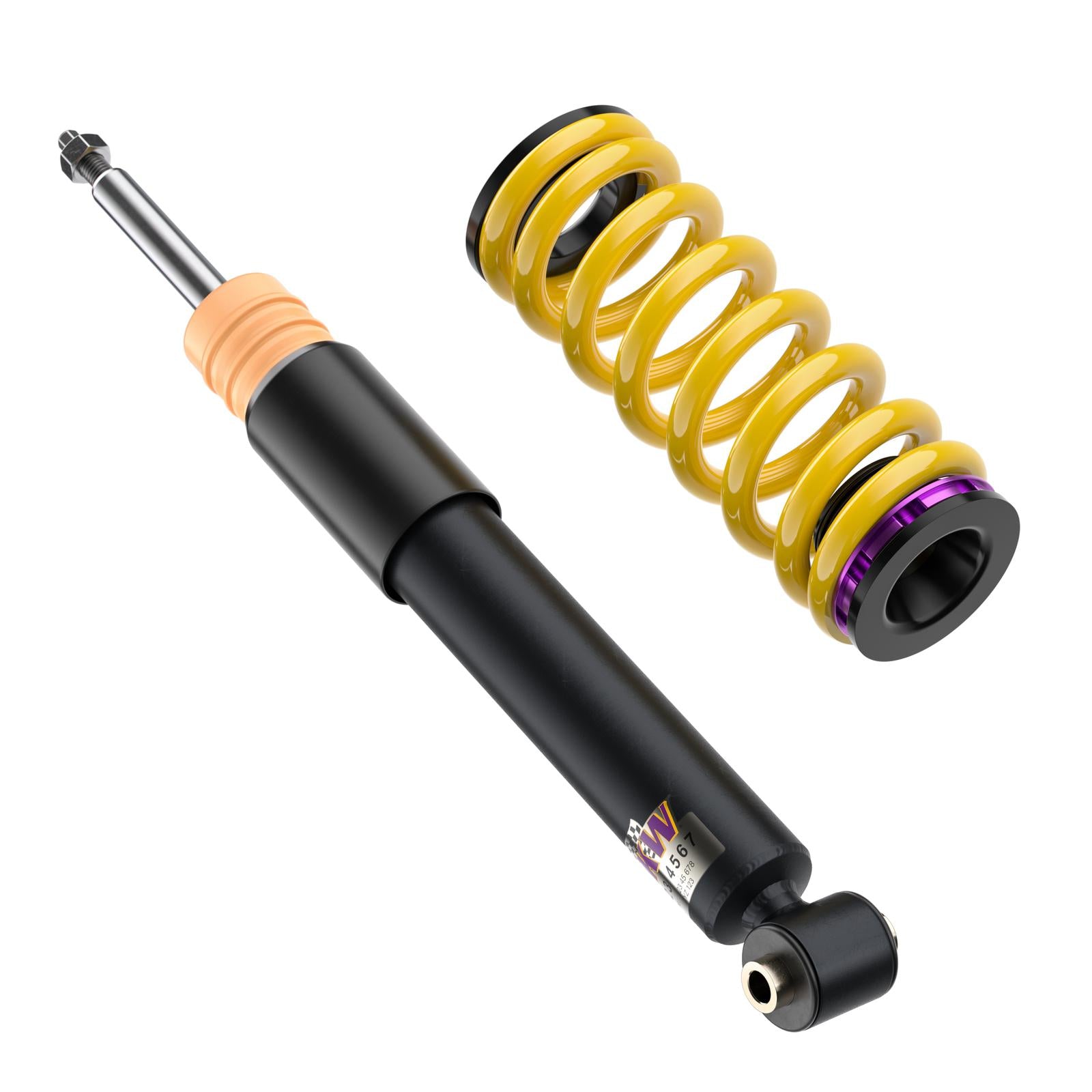

KW's V1 is the entry model in its street coilover range, pairing height-adjustable struts with a damper setup that KW pre-configures for each vehicle. Ride height is continuously adjustable within the tested range using a dirt-resistant trapezoidal thread and composite collar, so it can still be changed easily years after fitting. Corrosion-resistant springs and bump stops are built for a long service life. This kit is developed for the BMW 528i / 540i / 525tds (E39).

Key Features

  • Vehicle-specific, factory-set damping
  • Continuous ride height adjustment within the tested range
  • Trapezoidal thread with composite adjuster collar

Specifications

  • Version: V1
  • Damping: Fixed, vehicle-specific setting
  • Material: Stainless steel
  • Front lowering: 35–65 mm
  • Rear lowering: 30–60 mm
  • Front axle load: up to 1,020 kg
  • Rear axle load: up to 1,200 kg

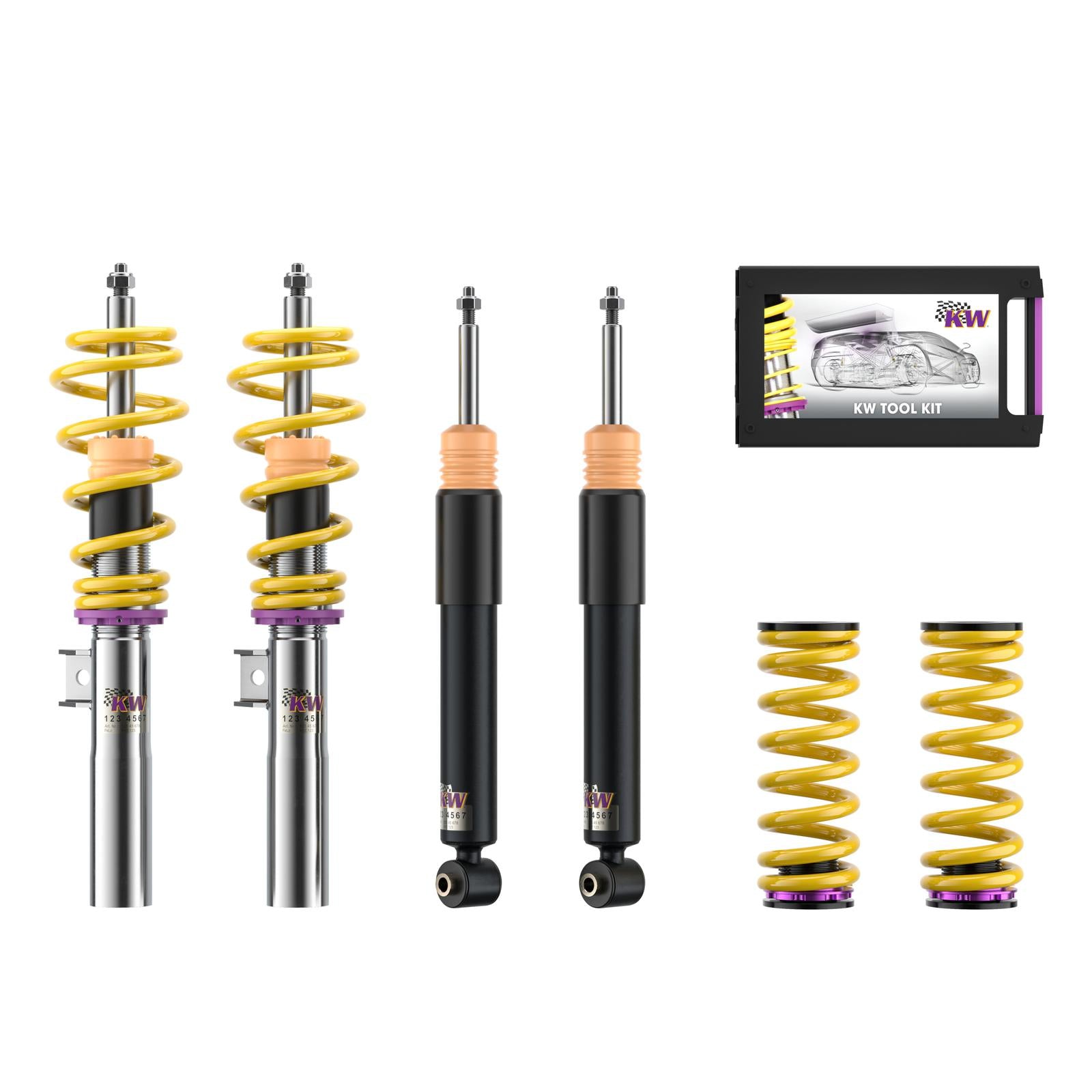

  • Supplied as: Front axle + rear axle coilover struts

Front axle load up to 1,020 kg; Rear axle load up to 1,200 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
1995–2003BMW5 (E39) 5/D, 5/DS, M539525 iPetrol · 137 kW · 2.5L · 6-cylRear-Wheel Drive1, 8, 19
1995–2003BMW5 (E39) 5/D, 5/DS, M539530 iPetrol · 168 kW · 3.0L · 6-cylRear-Wheel Drive1, 8, 19
1995–2003BMW5 (E39) 5/D, 5/DS, M539540 iPetrol · 216 kW · 4.4L · 8-cylRear-Wheel Drive1, 8, 19
1995–2003BMW5 (E39) 5/D, 5/DS, M539520 iPetrol · 120 kW · 2.2L · 6-cylRear-Wheel Drive1, 8, 19
1995–2003BMW5 (E39) 5/D, 5/DS, M539520 iPetrol · 100 kW · 2.0L · 6-cylRear-Wheel Drive1, 8, 19
1995–2003BMW5 (E39) 5/D, 5/DS, M539520 dDiesel · 100 kW · 2.0L · 4-cylRear-Wheel Drive1, 8, 19
1995–2003BMW5 (E39) 5/D, 5/DS, M539520 iPetrol · 125 kW · 2.2L · 6-cylRear-Wheel Drive1, 8, 19
1995–2003BMW5 (E39) 5/D, 5/DS, M539525 iPetrol · 141 kW · 2.5L · 6-cylRear-Wheel Drive1, 8, 19
1995–2003BMW5 (E39) 5/D, 5/DS, M539530 iPetrol · 170 kW · 3.0L · 6-cylRear-Wheel Drive1, 8, 19
1995–2003BMW5 (E39) 5/D, 5/DS, M539520 iPetrol · 110 kW · 2.0L · 6-cylRear-Wheel Drive1, 8, 19
1995–2003BMW5 (E39) 5/D, 5/DS, M539525 tdsDiesel · 105 kW · 2.5L · 6-cylRear-Wheel Drive1, 8, 19
1995–2003BMW5 (E39) 5/D, 5/DS, M539523 iPetrol · 125 kW · 2.5L · 6-cylRear-Wheel Drive1, 8, 19
1995–2003BMW5 (E39) 5/D, 5/DS, M539528 iPetrol · 142 kW · 2.8L · 6-cylRear-Wheel Drive1, 8, 19
1995–2003BMW5 (E39) 5/D, 5/DS, M539525 tdDiesel · 85 kW · 2.5L · 6-cylRear-Wheel Drive1, 8, 19
  • Note 1: Height adjustable on the front and rear axles (threaded strut housings).
  • Note 8: Not for vehicles with automatic self levelling control / air suspension.
  • Note 19: Additional front axle assembly parts for vehicles with EDC and/or 8cyl. engine are required from the automobile manufacturer: for the front: (BMW Part No.: To My. 09/97 = 31 35 2 298 910, Till My. 09/97 = 31 35 2 298 911), for the rear (only sedan): (BMW Part No.: dome bearing 33 521 091 710 + washer 33 521 092 986). On "Street comfort" kits the following parts are also required for the front axle: spring perch 31 326 769 667 + spring pad 31 331 091 867.
