KW Coilover Kit V1 for BMW (E39) 530d / 535i / 540i
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

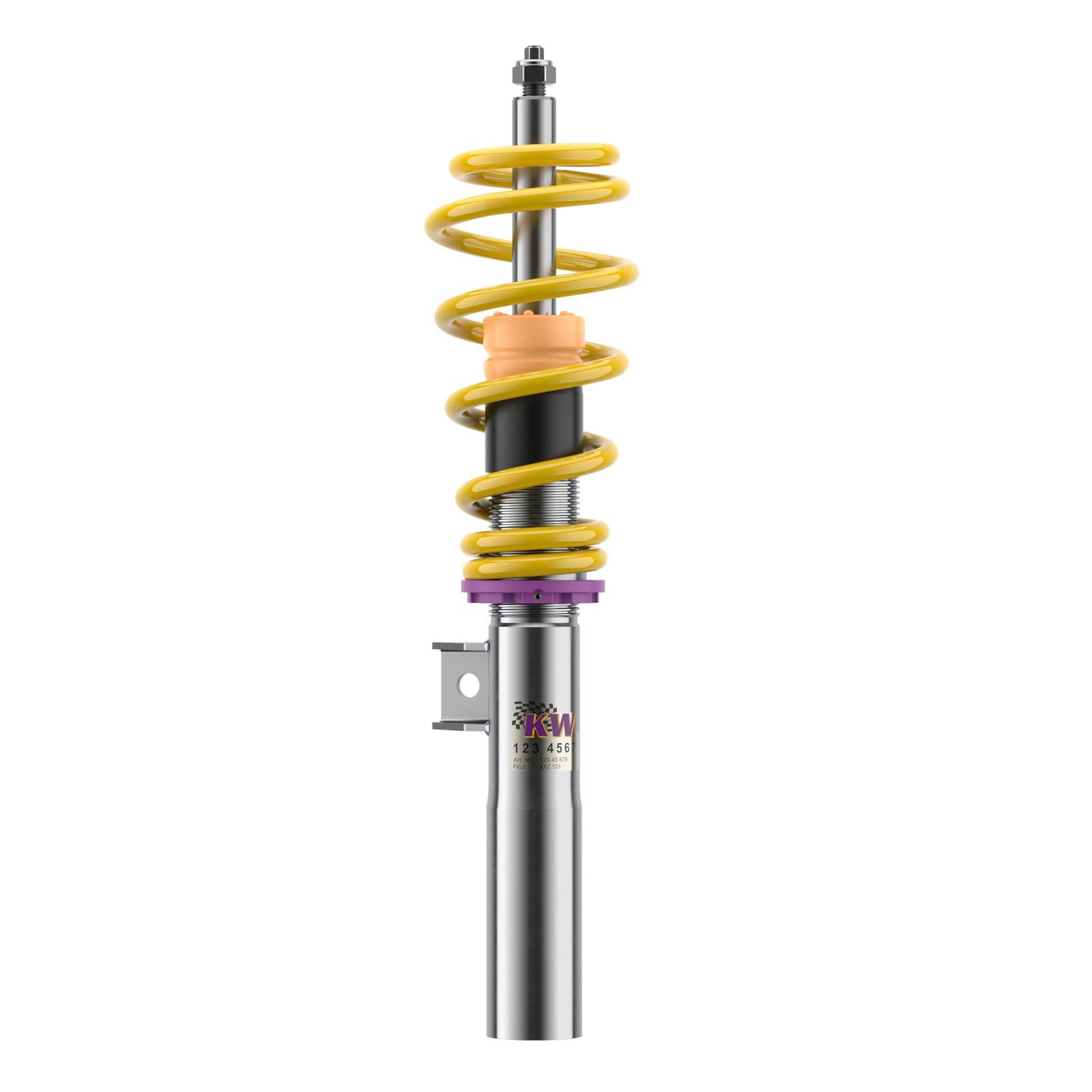

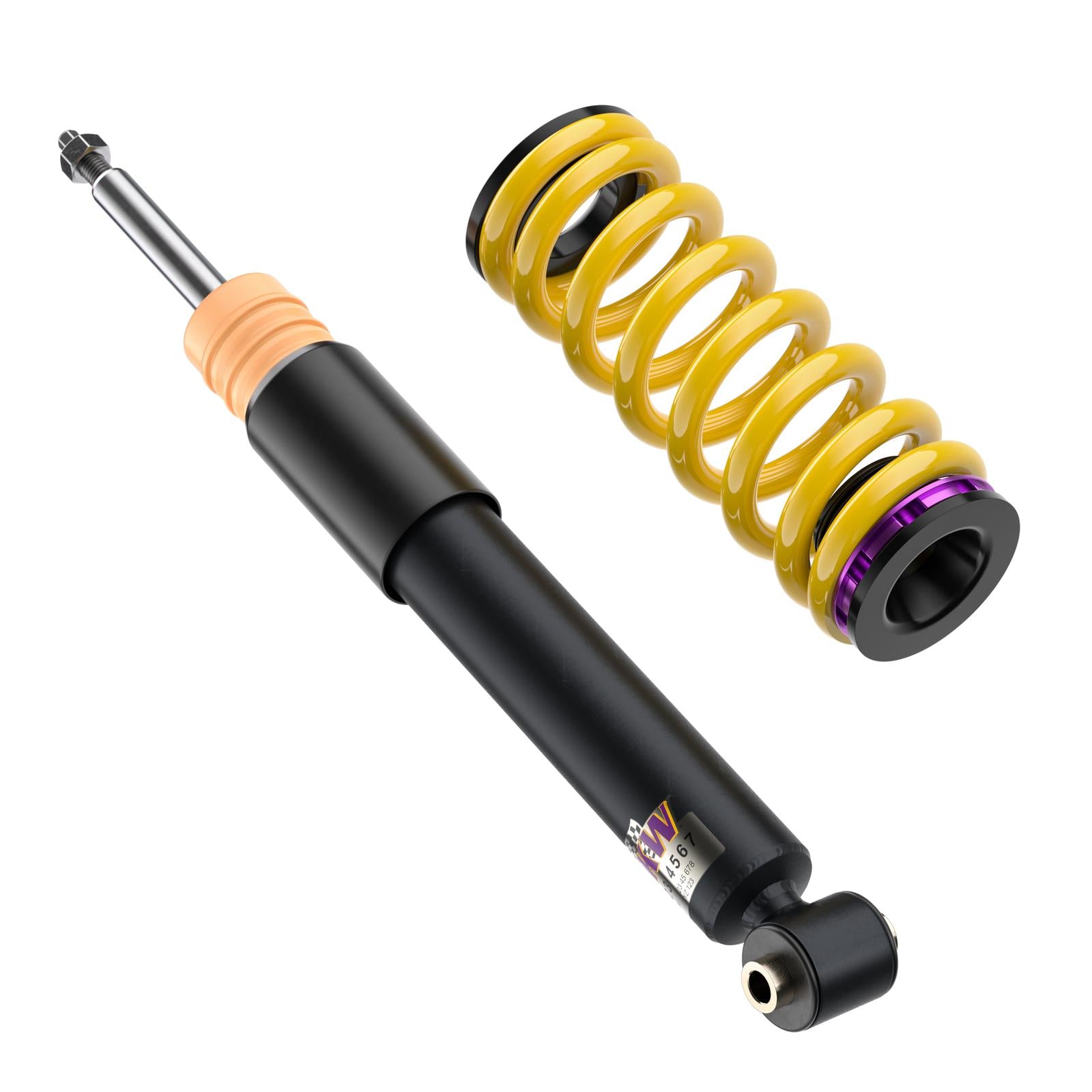

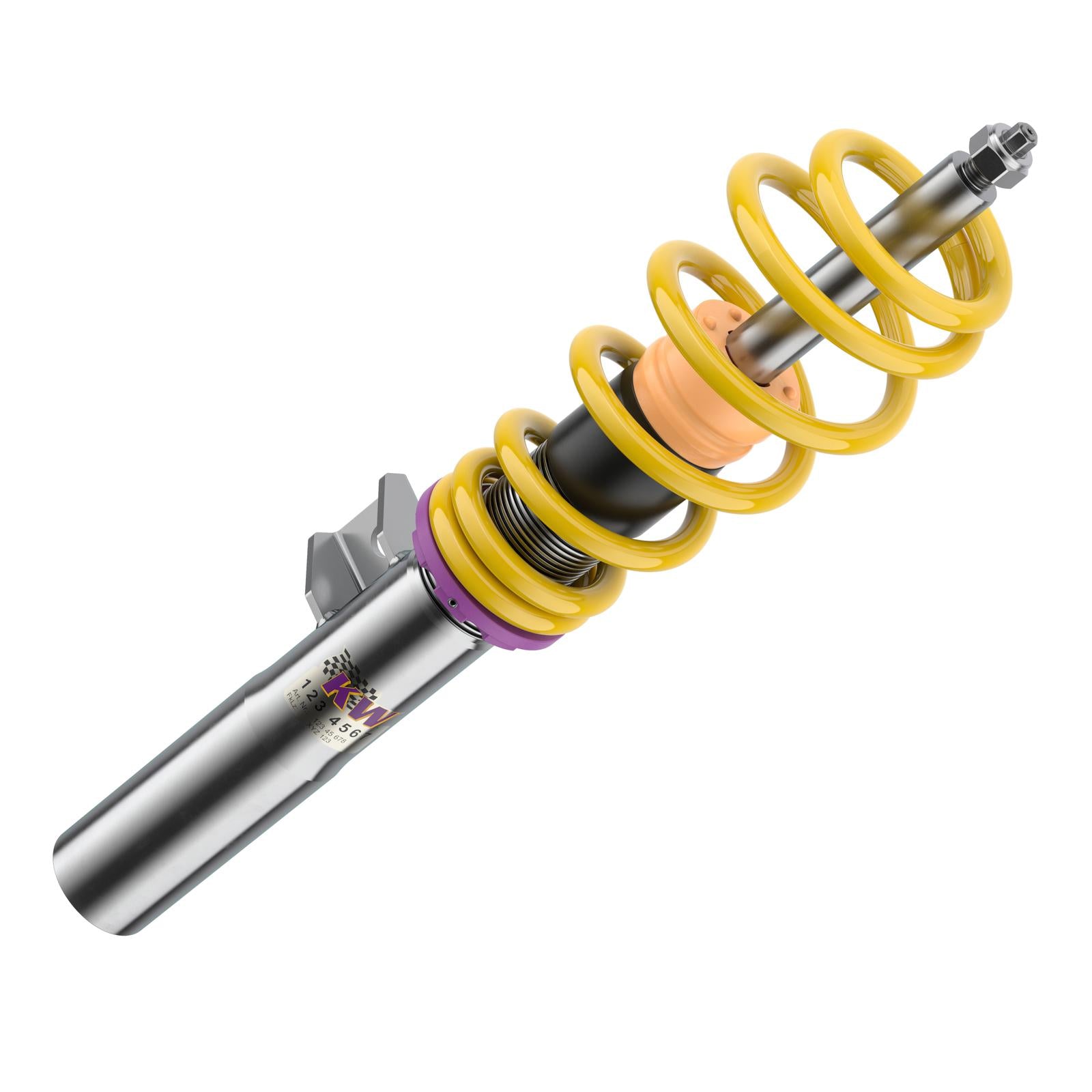

KW's V1 is the entry model in its street coilover range, pairing height-adjustable struts with a damper setup that KW pre-configures for each vehicle. Ride height is continuously adjustable within the tested range using a dirt-resistant trapezoidal thread and composite collar, so it can still be changed easily years after fitting. Corrosion-resistant springs and bump stops are built for a long service life. This kit is developed for the BMW 530d / 535i / 540i (E39).
Key Features
- Vehicle-specific, factory-set damping
- Continuous ride height adjustment within the tested range
- Trapezoidal thread with composite adjuster collar
Specifications
- Version: V1
- Damping: Fixed, vehicle-specific setting
- Material: Stainless steel
- Front lowering: 35–65 mm
- Rear lowering: 30–60 mm
- Front axle load: 1,021–1,090 kg
- Rear axle load: up to 1,200 kg
- Supplied as: Front axle + rear axle coilover struts
Front axle load 1,021–1,090 kg; Rear axle load up to 1,200 kg.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 1995–2003 | BMW | 5 (E39) 5/D, 5/DS, M539 | 530 d | Diesel · 135 kW · 2.9L · 6-cyl | Rear-Wheel Drive | 1, 8, 19 |
| 1995–2003 | BMW | 5 (E39) 5/D, 5/DS, M539 | 525 i | Petrol · 137 kW · 2.5L · 6-cyl | Rear-Wheel Drive | 1, 8, 19 |
| 1995–2003 | BMW | 5 (E39) 5/D, 5/DS, M539 | 530 i | Petrol · 168 kW · 3.0L · 6-cyl | Rear-Wheel Drive | 1, 8, 19 |
| 1995–2003 | BMW | 5 (E39) 5/D, 5/DS, M539 | 540 i | Petrol · 216 kW · 4.4L · 8-cyl | Rear-Wheel Drive | 1, 8, 19 |
| 1995–2003 | BMW | 5 (E39) 5/D, 5/DS, M539 | 535 i | Petrol · 180 kW · 3.5L · 8-cyl | Rear-Wheel Drive | 1, 8, 19 |
| 1995–2003 | BMW | 5 (E39) 5/D, 5/DS, M539 | 525 d | Diesel · 120 kW · 2.5L · 6-cyl | Rear-Wheel Drive | 1, 8, 19 |
| 1995–2003 | BMW | 5 (E39) 5/D, 5/DS, M539 | 530 d | Diesel · 142 kW · 2.9L · 6-cyl | Rear-Wheel Drive | 1, 8, 19 |
| 1995–2003 | BMW | 5 (E39) 5/D, 5/DS, M539 | 540 i | Petrol · 210 kW · 4.4L · 8-cyl | Rear-Wheel Drive | 1, 8, 19 |
| 1995–2003 | BMW | 5 (E39) 5/D, 5/DS, M539 | 535 i | Petrol · 173 kW · 3.5L · 8-cyl | Rear-Wheel Drive | 1, 8, 19 |
- Note 1: Height adjustable on the front and rear axles (threaded strut housings).
- Note 8: Not for vehicles with automatic self levelling control / air suspension.
- Note 19: Additional front axle assembly parts for vehicles with EDC and/or 8cyl. engine are required from the automobile manufacturer: for the front: (BMW Part No.: To My. 09/97 = 31 35 2 298 910, Till My. 09/97 = 31 35 2 298 911), for the rear (only sedan): (BMW Part No.: dome bearing 33 521 091 710 + washer 33 521 092 986). On "Street comfort" kits the following parts are also required for the front axle: spring perch 31 326 769 667 + spring pad 31 331 091 867.
