KW Coilover Kit V1 for Mazda (BK) 3 SP23 / 3 Sedan
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW Coilover Kit V1 for Mazda (BK) 3 SP23 / 3 Sedan
Sale price$1,959.30
Regular price$2,799.00 (/)
KW's V1 is the entry model in its street coilover range, pairing height-adjustable struts with a damper setup that KW pre-configures for each vehicle. Ride height is continuously adjustable within the tested range using a dirt-resistant trapezoidal thread and composite collar, so it can still be changed easily years after fitting. Corrosion-resistant springs and bump stops are built for a long service life. This kit is developed for the Mazda 3 SP23 / 3 Sedan (BK).
Key Features
- Vehicle-specific, factory-set damping
- Continuous ride height adjustment within the tested range
- Trapezoidal thread with composite adjuster collar
Specifications
- Version: V1
- Damping: Fixed, vehicle-specific setting
- Material: Stainless steel
- Front lowering: 30–60 mm
- Rear lowering: 30–60 mm
- Front axle load: 971–1,110 kg
- Rear axle load: up to 910 kg

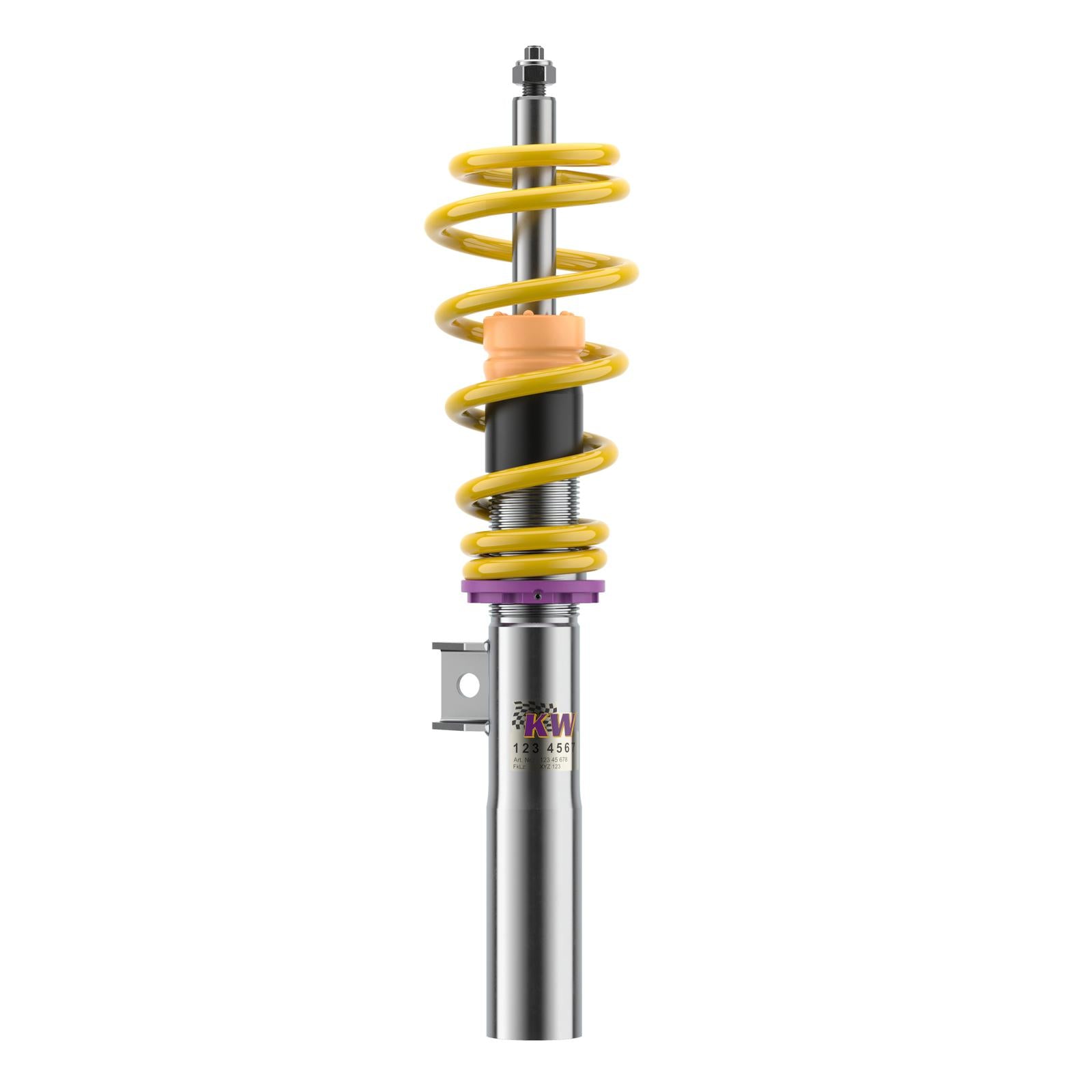

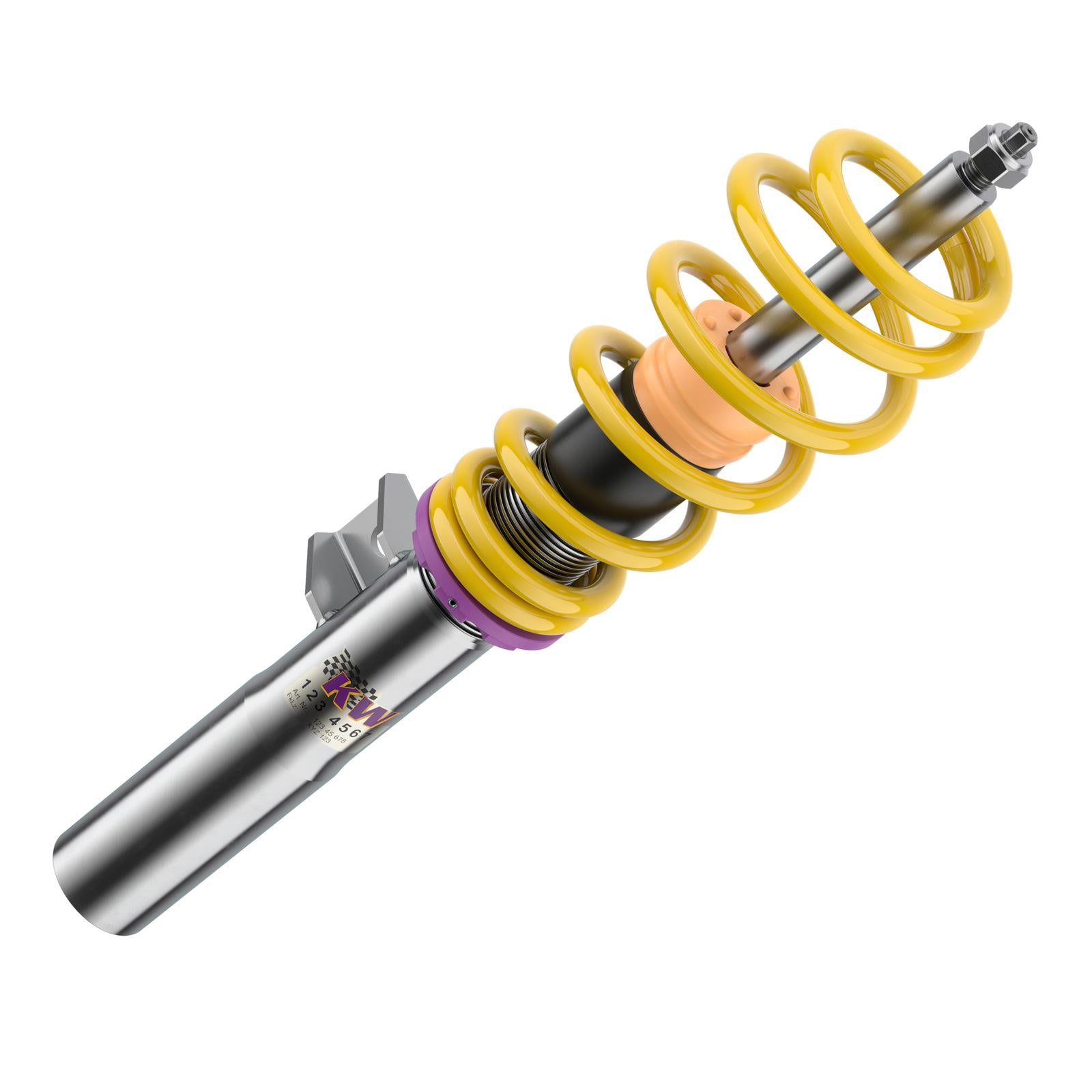

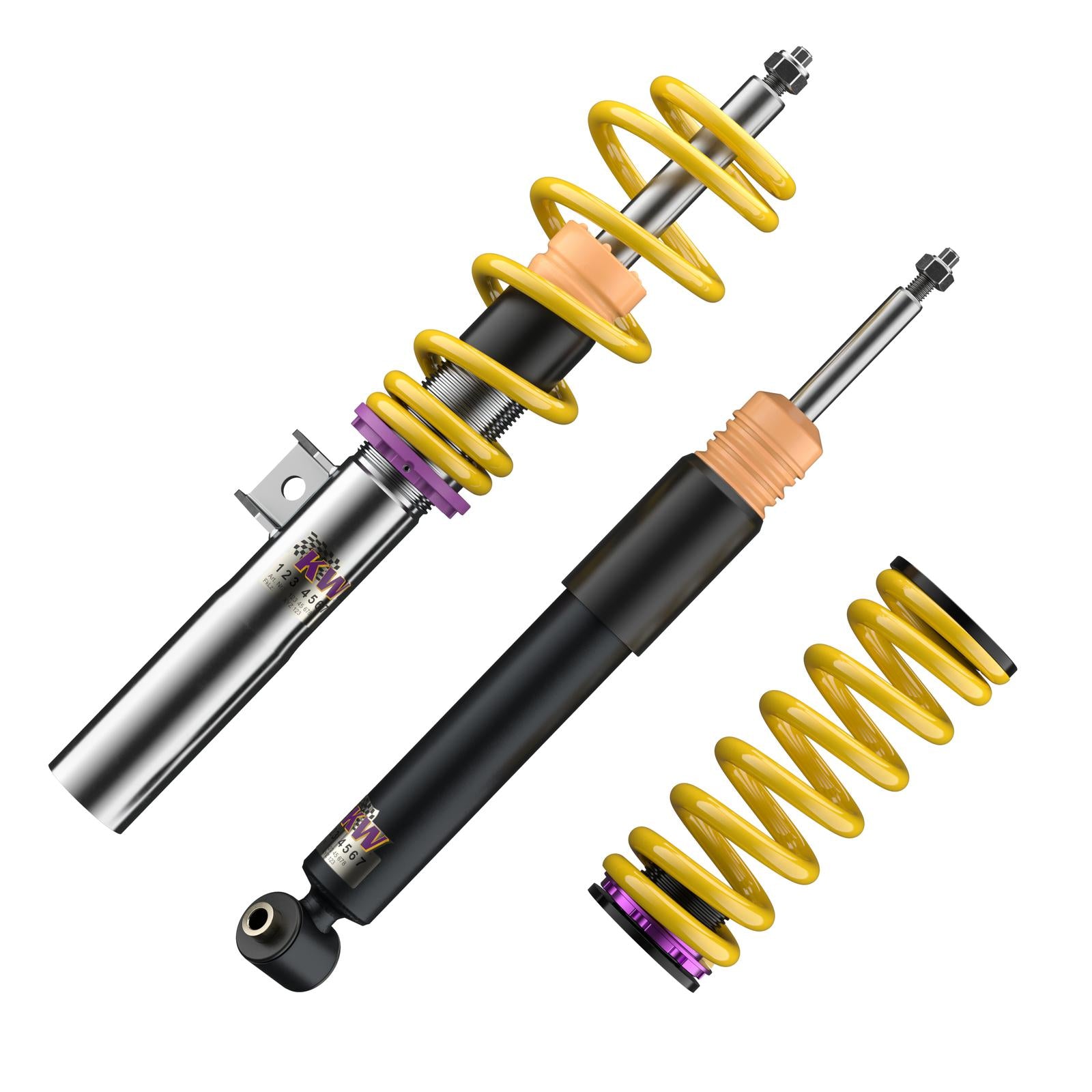

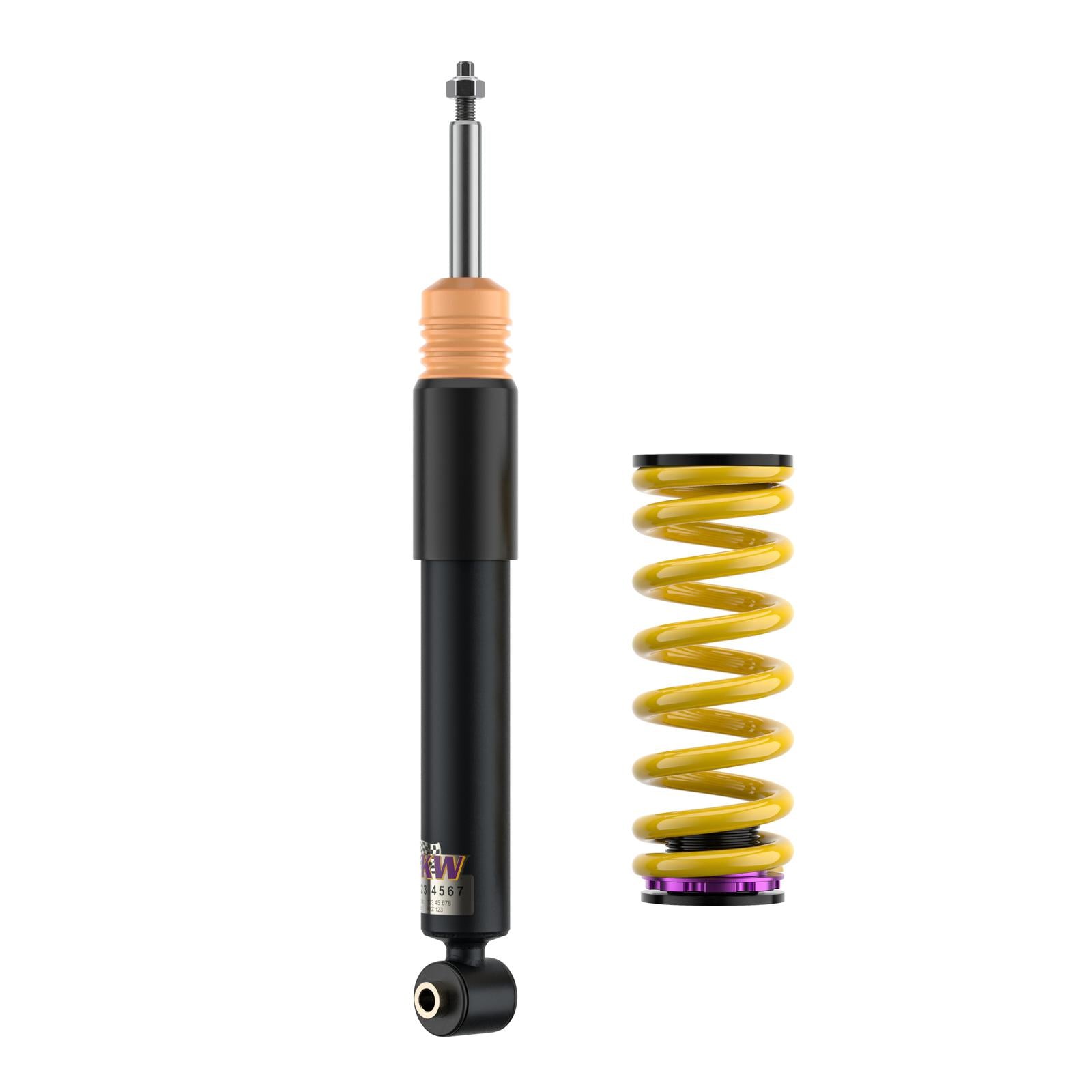

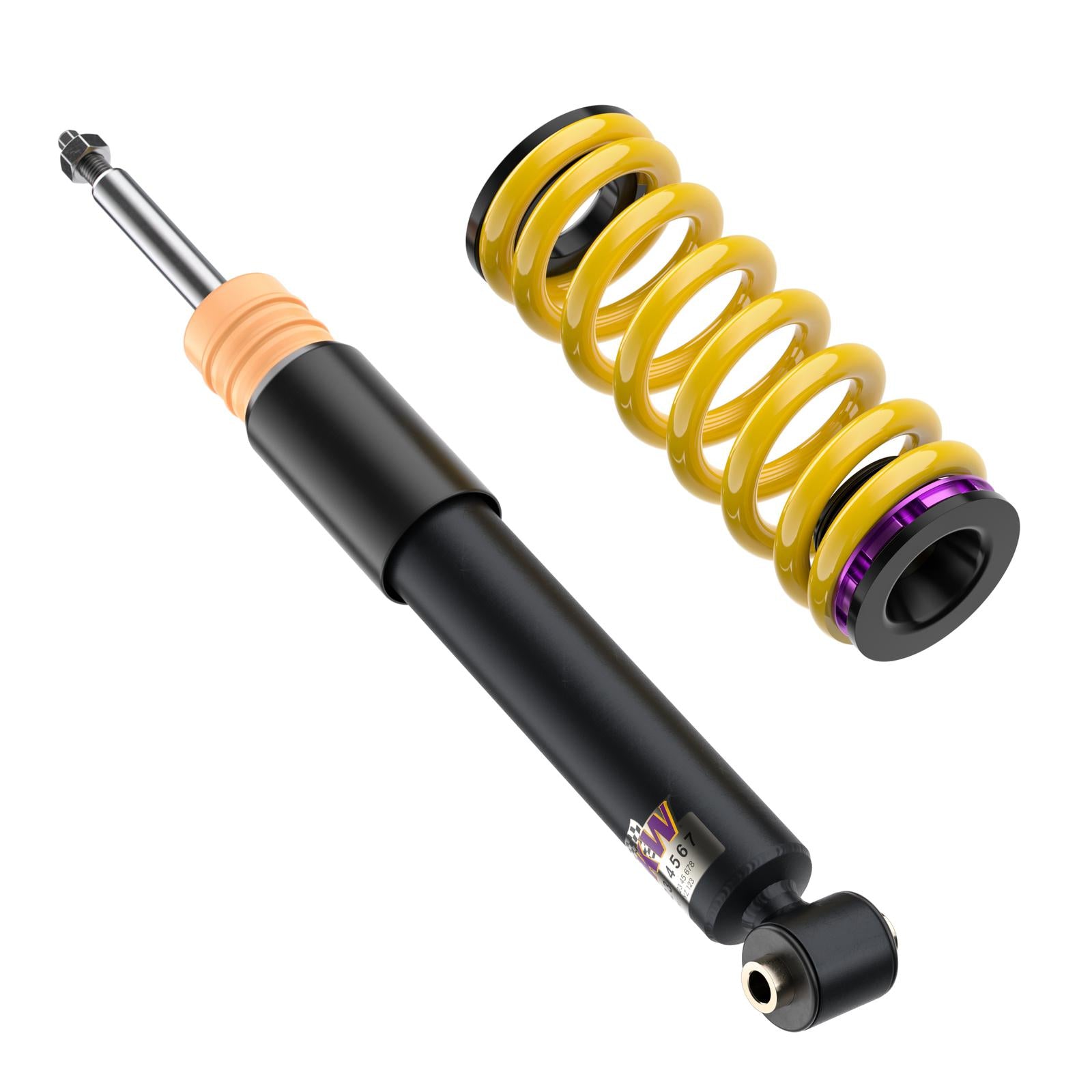

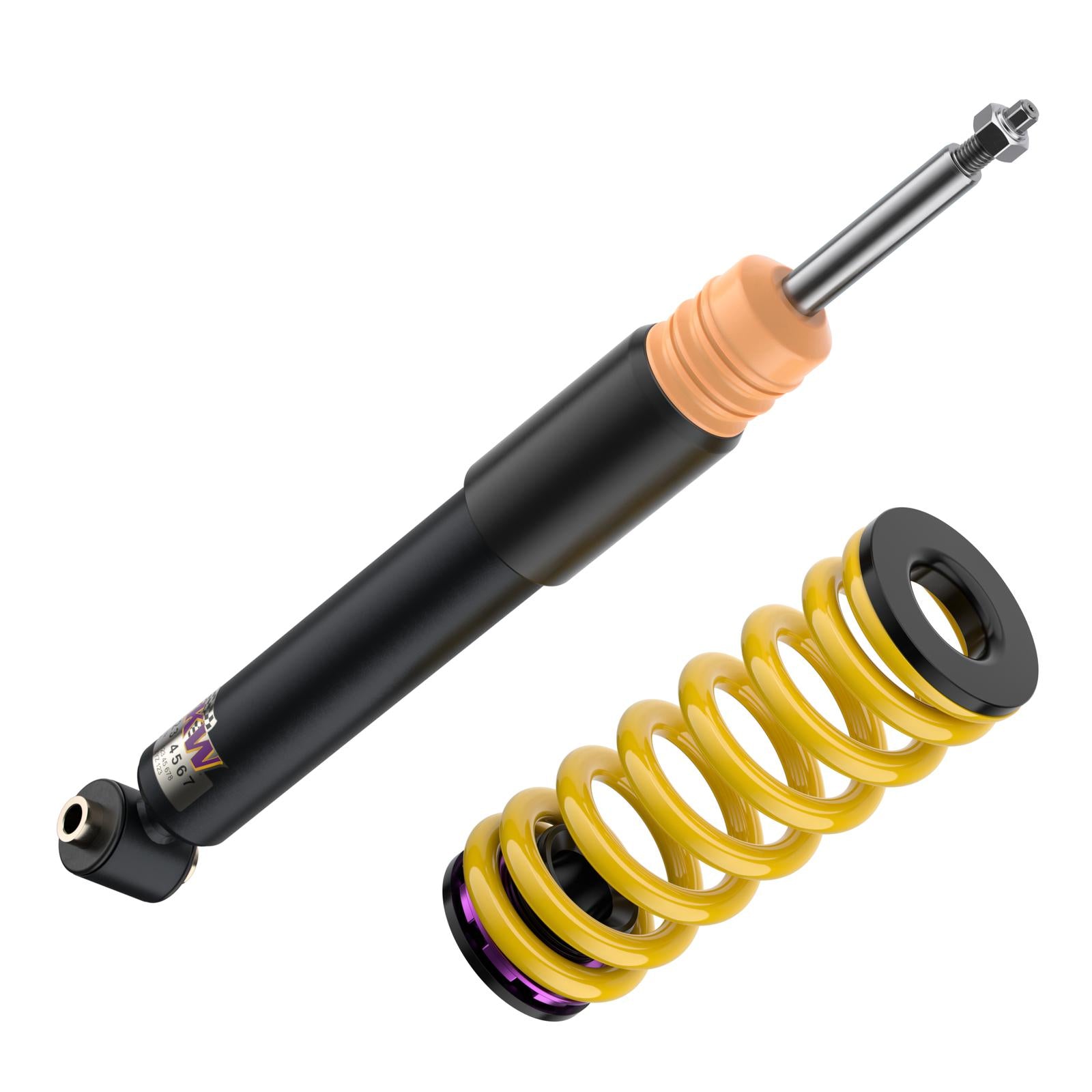

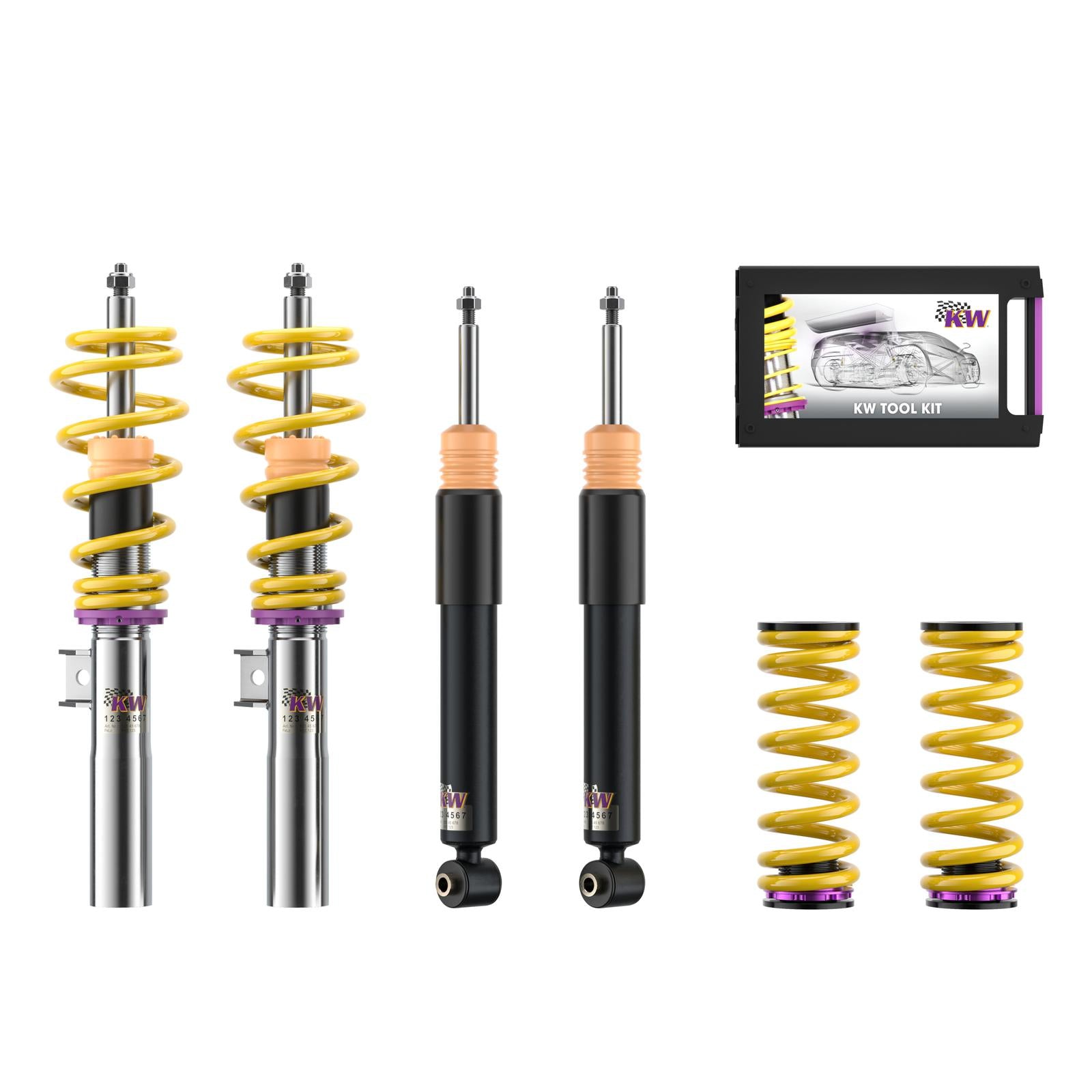

- Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Front axle load 971–1,110 kg; Rear axle load up to 910 kg.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 2003–2009 | Mazda | 3 (BK) | 2.3 | Petrol · 116 kW · 2.3L · 4-cyl | Front-Wheel Drive | 2 |
| 1999–2009 | Mazda | 3 Saloon (BK) | 1.8 | Petrol · 91 kW · 1.8L · 4-cyl | Front-Wheel Drive | 2 |
| 2003–2009 | Mazda | 3 (BK) | 1.5 (BK5P) | Petrol · 84 kW · 1.5L · 4-cyl | Front-Wheel Drive | 2 |
| 2003–2009 | Mazda | 3 (BK) | 2.0 AWD (BKEP) | Petrol · 105 kW · 2.0L · 4-cyl | All-Wheel Drive | 2 |
| 1999–2009 | Mazda | 3 Saloon (BK) | 2.3 SP23 (BK3P) | Petrol · 115 kW · 2.3L · 4-cyl | Front-Wheel Drive | 2 |
| 1999–2009 | Mazda | 3 Saloon (BK) | 1.5 (BK5P) | Petrol · 84 kW · 1.5L · 4-cyl | Front-Wheel Drive | 2 |
| 1999–2009 | Mazda | 3 Saloon (BK) | 1.6 DI Turbo (BK12Y) | Diesel · 80 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2 |
| 2003–2009 | Mazda | 3 (BK) | 1.6 DI Turbo | Diesel · 80 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2 |
| 2003–2009 | Mazda | 3 (BK) | 2.3 MZR (BK3P) | Petrol · 115 kW · 2.3L · 4-cyl | Front-Wheel Drive | 2 |
| 1999–2009 | Mazda | 3 Saloon (BK) | 2.3 (BK3P) | Petrol · 126 kW · 2.3L · 4-cyl | Front-Wheel Drive | 2 |
| 1999–2009 | Mazda | 3 Saloon (BK) | 2.3 | Petrol · 118 kW · 2.3L · 4-cyl | Front-Wheel Drive | 2 |
| 2003–2009 | Mazda | 3 (BK) | 2.0 MZR-CD (BK14) | Diesel · 105 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2 |
| 1999–2009 | Mazda | 3 Saloon (BK) | 2.0 MZR-CD (BK12) | Diesel · 105 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2 |
| 2003–2009 | Mazda | 3 (BK) | 2.0 (BK10F, BKEP) | Petrol · 104 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2 |
| 1999–2009 | Mazda | 3 Saloon (BK) | 2.0 (BK10F, BKEP) | Petrol · 104 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2 |
| 1999–2009 | Mazda | 3 Saloon (BK) | 2.3 | Petrol · 119 kW · 2.3L · 4-cyl | Front-Wheel Drive | 2 |
| 2003–2009 | Mazda | 3 (BK) | 2.3 | Petrol · 118 kW · 2.3L · 4-cyl | Front-Wheel Drive | 2 |
| 1999–2009 | Mazda | 3 Saloon (BK) | 2.3 | Petrol · 116 kW · 2.3L · 4-cyl | Front-Wheel Drive | 2 |
- Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
