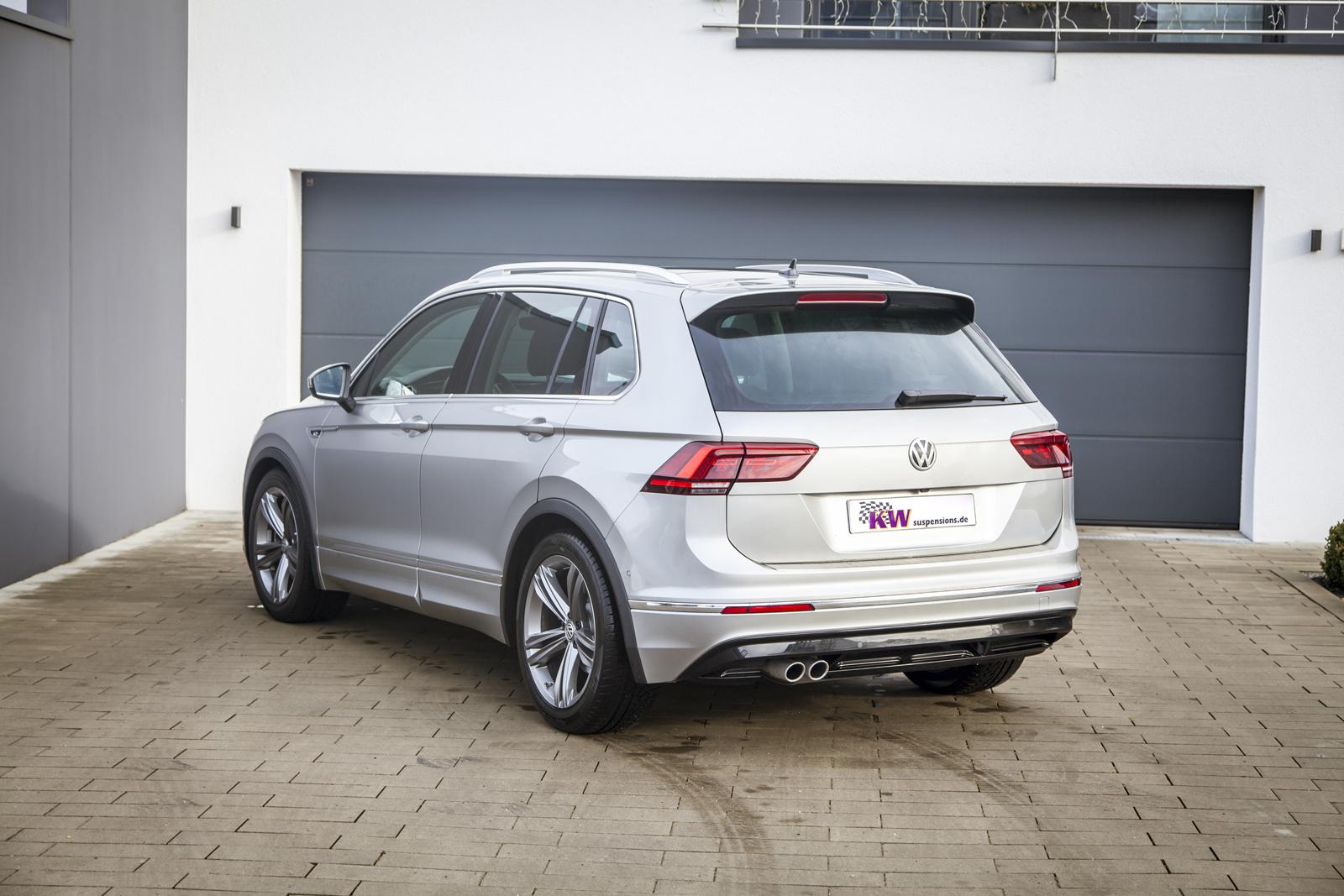

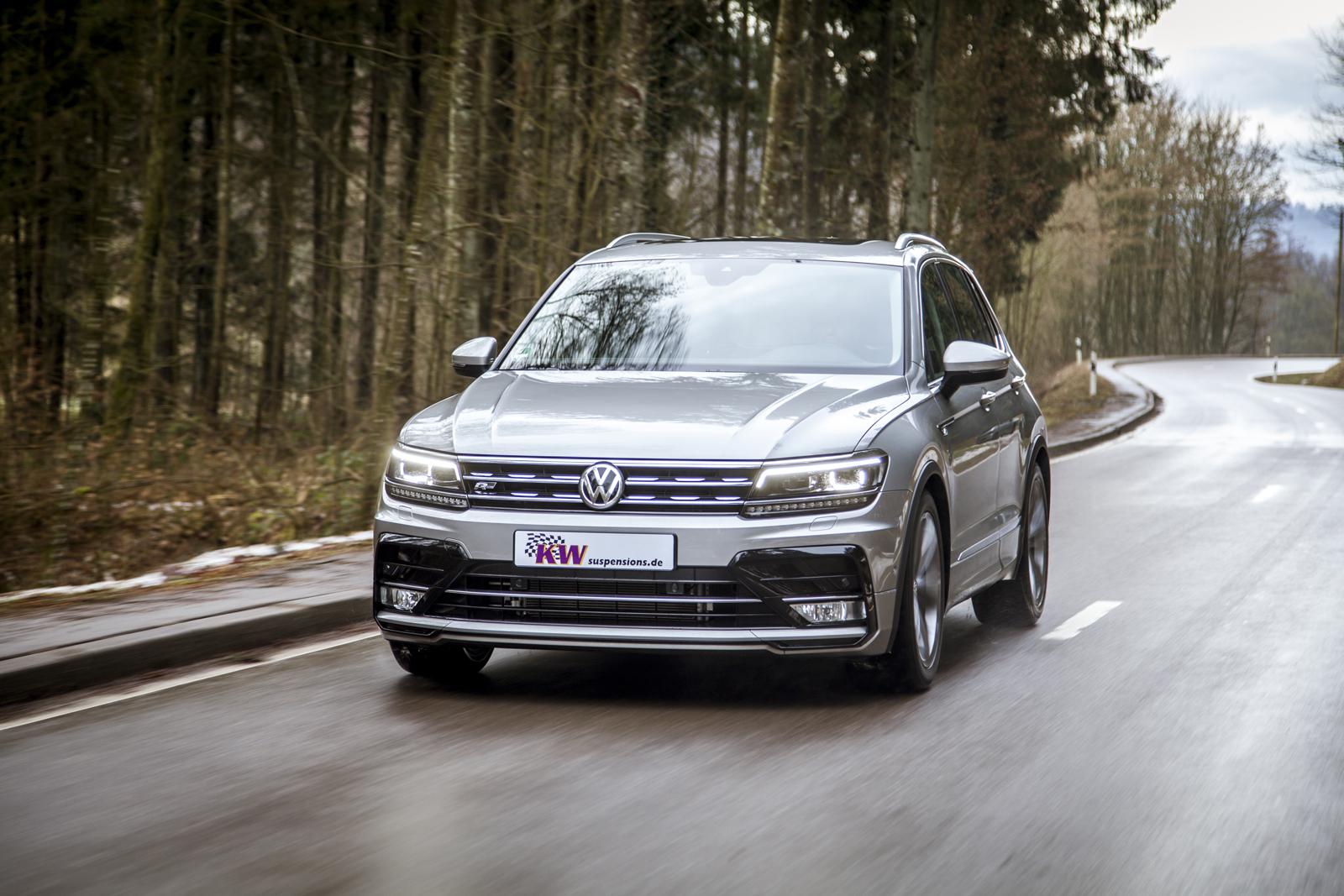

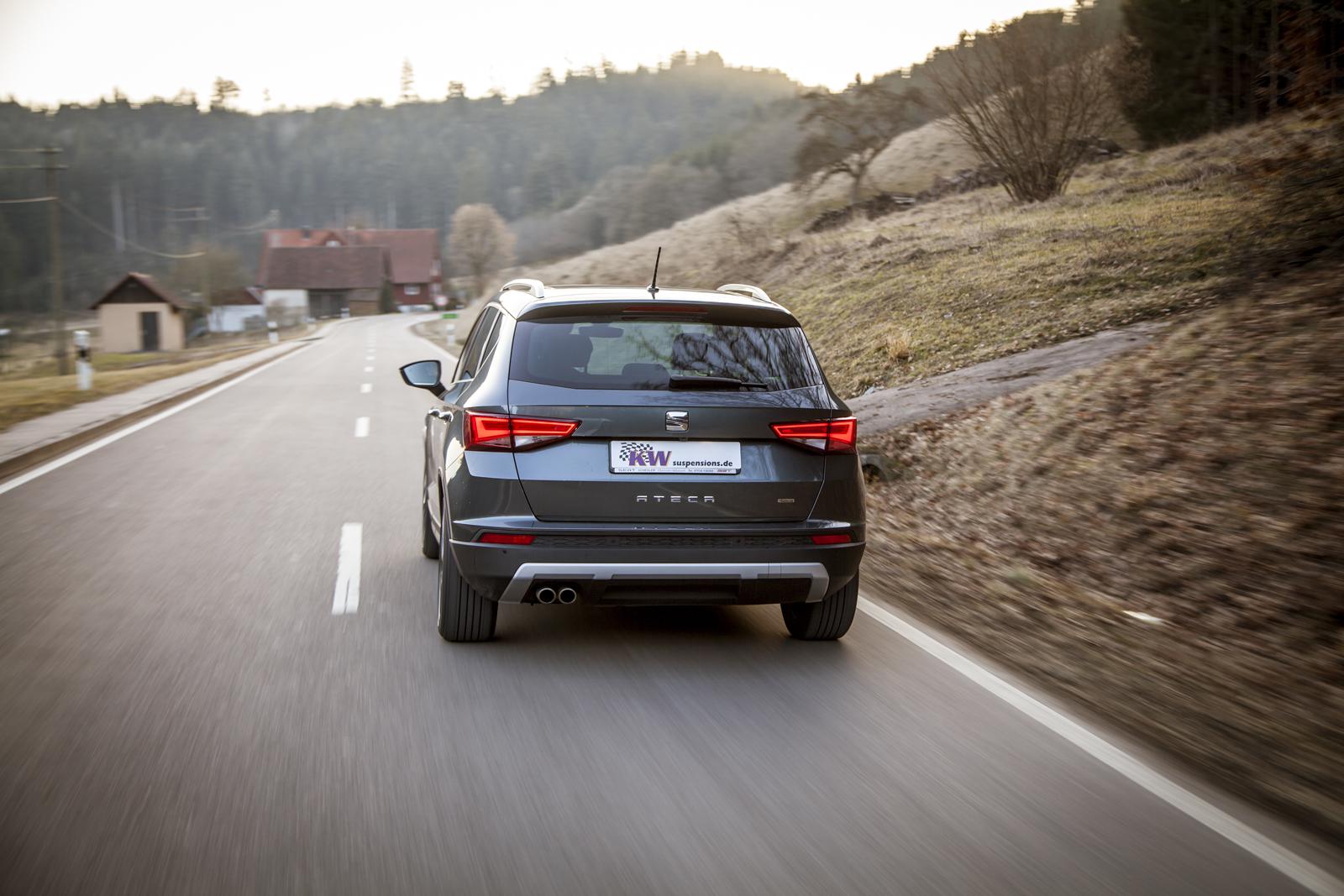

KW Coilover Kit V1 for VW (AD) Tiguan / Seat (5FP) Ateca / Skoda (NS) Kodiaq
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

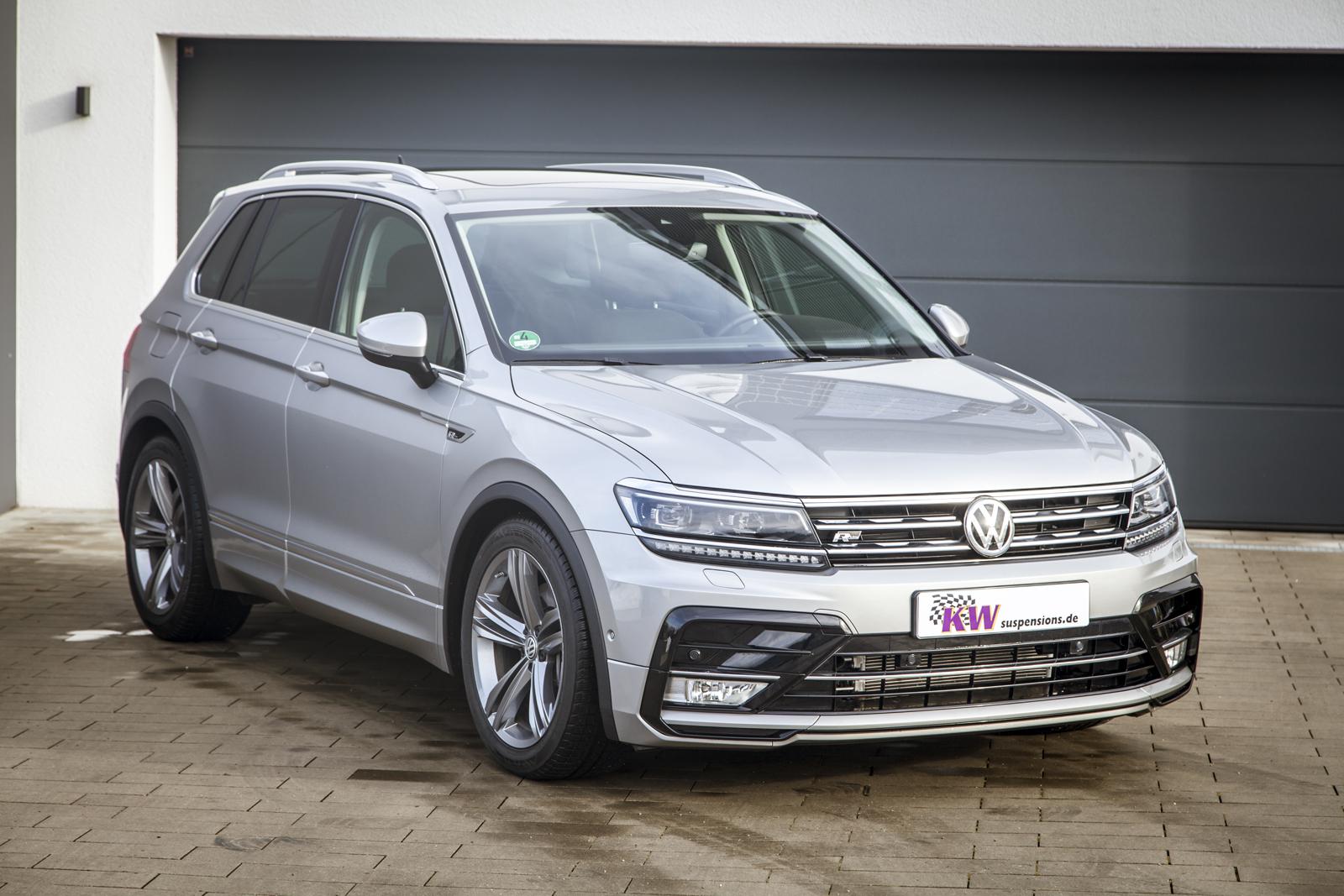

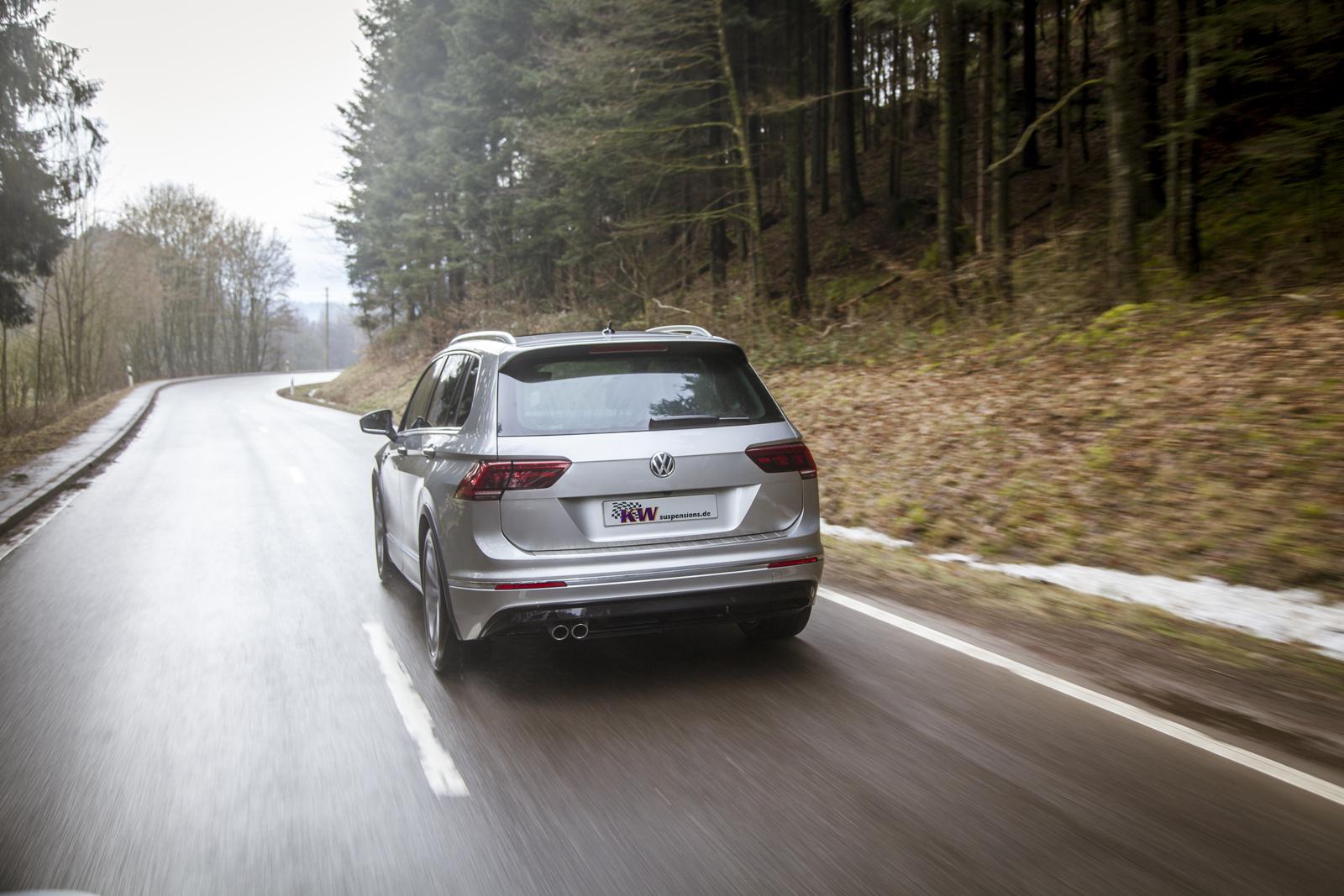

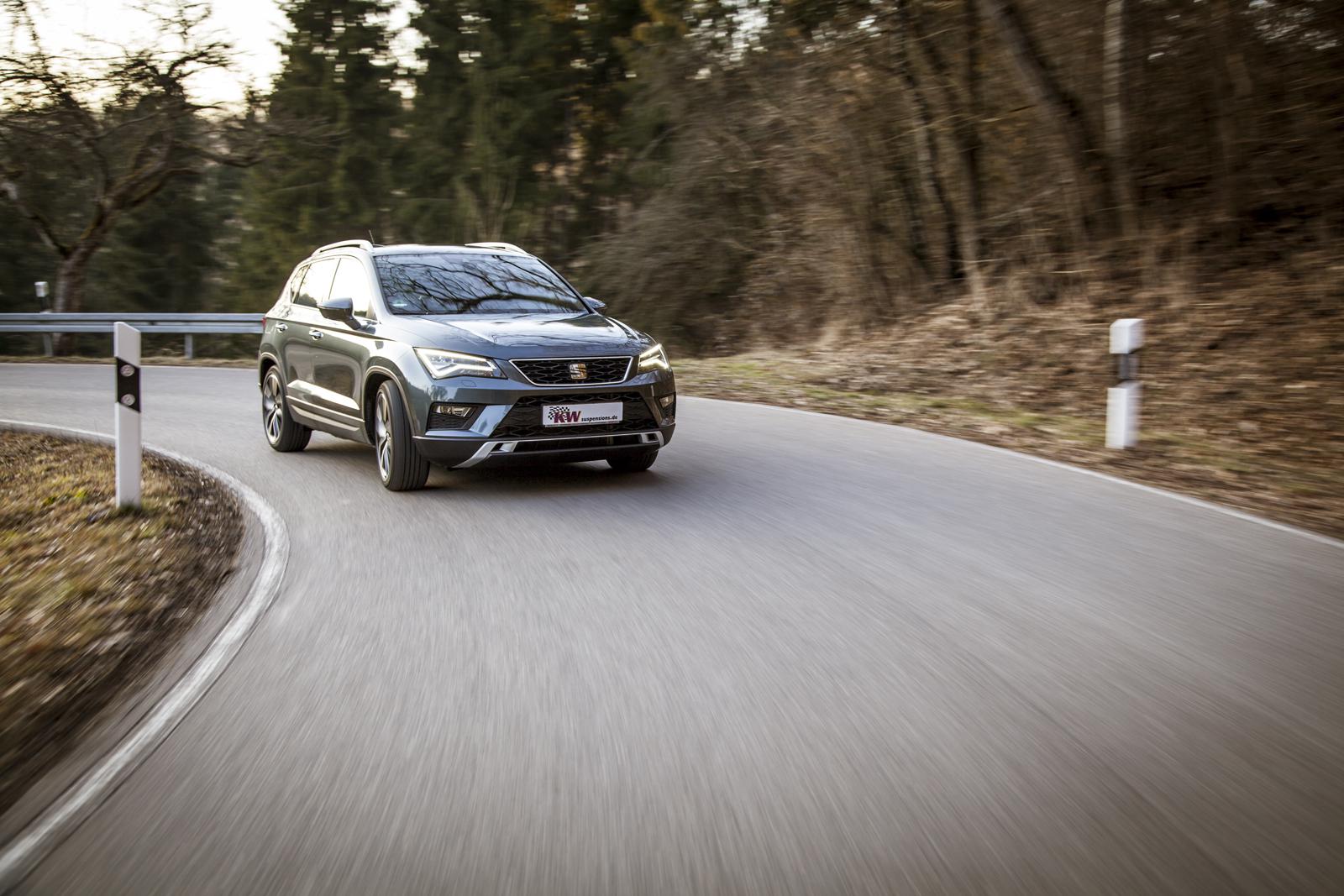

KW's V1 is the entry model in its street coilover range, pairing height-adjustable struts with a damper setup that KW pre-configures for each vehicle. Ride height is continuously adjustable within the tested range using a dirt-resistant trapezoidal thread and composite collar, so it can still be changed easily years after fitting. Corrosion-resistant springs and bump stops are built for a long service life. This kit is developed for the VW Tiguan (AD) / Seat Ateca (5FP) / Skoda Kodiaq (NS) AWD.
Key Features
- Vehicle-specific, factory-set damping
- Continuous ride height adjustment within the tested range
- Trapezoidal thread with composite adjuster collar
Specifications
- Version: V1
- Damping: Fixed, vehicle-specific setting
- Material: Stainless steel
- Front lowering: 35–55 mm
- Rear lowering: 20–45 mm
- Front axle load: up to 1,050 kg
- Rear axle load: up to 1,400 kg
- Front strut diameter (vehicle): 55 mm
- Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Front axle load up to 1,050 kg; Rear axle load up to 1,400 kg.
For vehicles without electronic damper control.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 2016+ | Seat | Ateca (5FP, KH7) | 1.4 TSI 4Drive | Petrol · 110 kW · 1.4L · 4-cyl | All-Wheel Drive | 2, 37, 57, 424 |
| 2016–2024 | VW | Tiguan II (AD1, 5N) | 1.4 TSI 4motion | Petrol · 110 kW · 1.4L · 4-cyl | All-Wheel Drive | 2, 37, 57, 424 |
| 2016+ | Skoda | Kodiaq I (NS6, NS7, NV7) | 1.4 TSI 4x4 | Petrol · 110 kW · 1.4L · 4-cyl | All-Wheel Drive | 2, 37, 57, 424 |
| 2016–2024 | VW | Tiguan II (AD1, 5N) | 2.0 TDI 4motion | Diesel · 105 kW · 2.0L · 4-cyl | All-Wheel Drive | 2, 37, 57, 424 |
| 2016–2024 | VW | Tiguan II (AD1, 5N) | 2.0 TDI 4motion | Diesel · 130 kW · 2.0L · 4-cyl | All-Wheel Drive | 2, 37, 57, 424 |
| 2016+ | Seat | Ateca (5FP, KH7) | 1.5 TSI 4Drive | Petrol · 110 kW · 1.5L · 4-cyl | All-Wheel Drive | 2, 37, 57, 424 |
- Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
- Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
- Note 57: Only for cars with a clamp diameter of 55mm on the front axle.
- Note 424: Vehicles in car classification M1G / N1G (1.5 times the towing capacity of the permitted total mass of the towing vehicle) are reclassified to car classification M1 / N1 after lowering (towing capacity corresponds to the permitted total mass of the towing vehicle).
