KW Coilover Kit V1 for Toyota (ZN8) GR86 / (ZN6) GT86 / Subaru (ZC6) BRZ / (ZD8) BRZ
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW's V1 is the entry model in its street coilover range, pairing height-adjustable struts with a damper setup that KW pre-configures for each vehicle. Ride height is continuously adjustable within the tested range using a dirt-resistant trapezoidal thread and composite collar, so it can still be changed easily years after fitting. Corrosion-resistant springs and bump stops are built for a long service life. This kit is developed for the Toyota GR86 (ZN8) / GT86 (ZN6) / Subaru BRZ (ZC6) / BRZ (ZD8).
Key Features
- Vehicle-specific, factory-set damping
- Continuous ride height adjustment within the tested range
- Trapezoidal thread with composite adjuster collar
Specifications
- Version: V1
- Damping: Fixed, vehicle-specific setting
- Material: Stainless steel
- Front lowering: 20–50 mm
- Rear lowering: 25–55 mm
- Front axle load: up to 876 kg
- Rear axle load: up to 943 kg

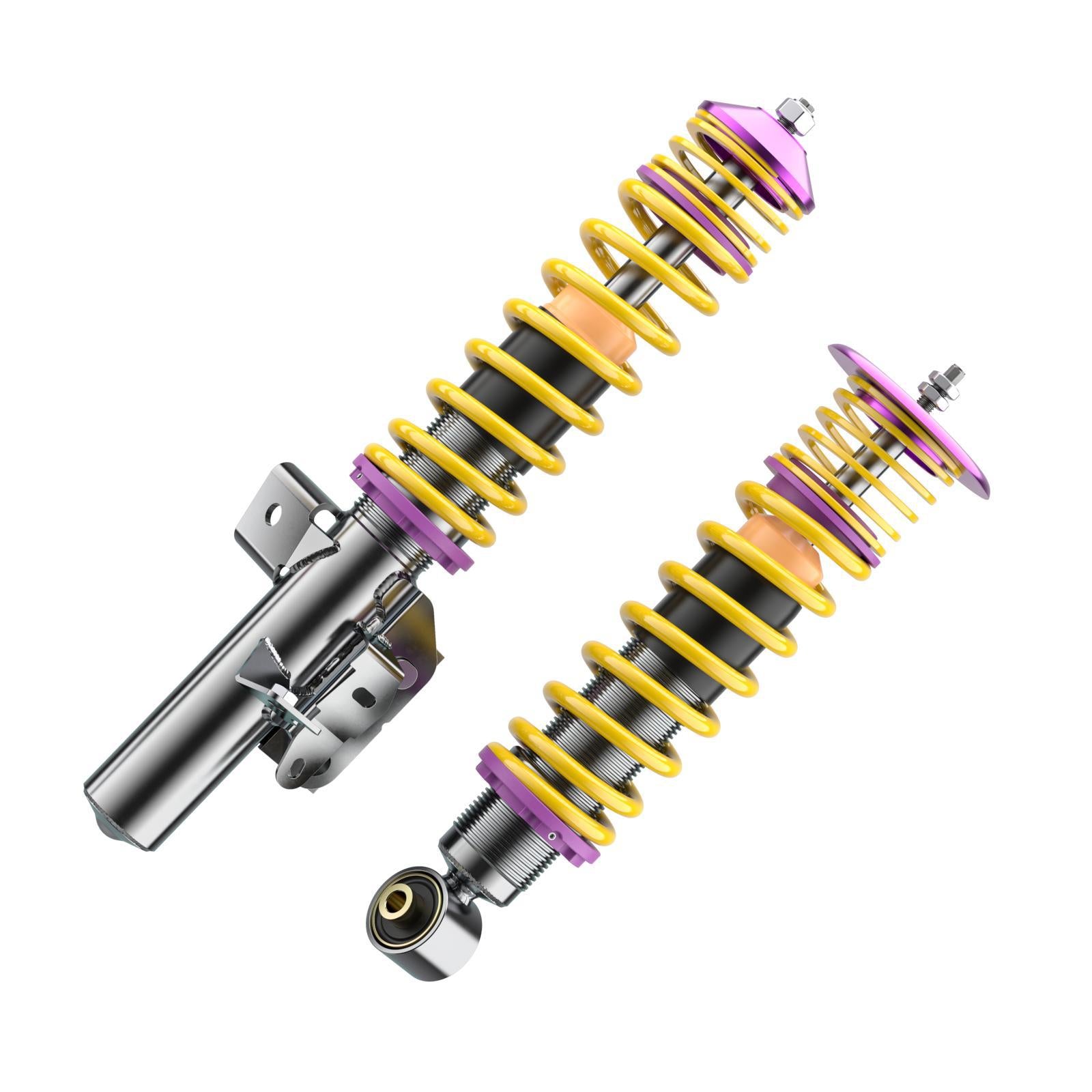

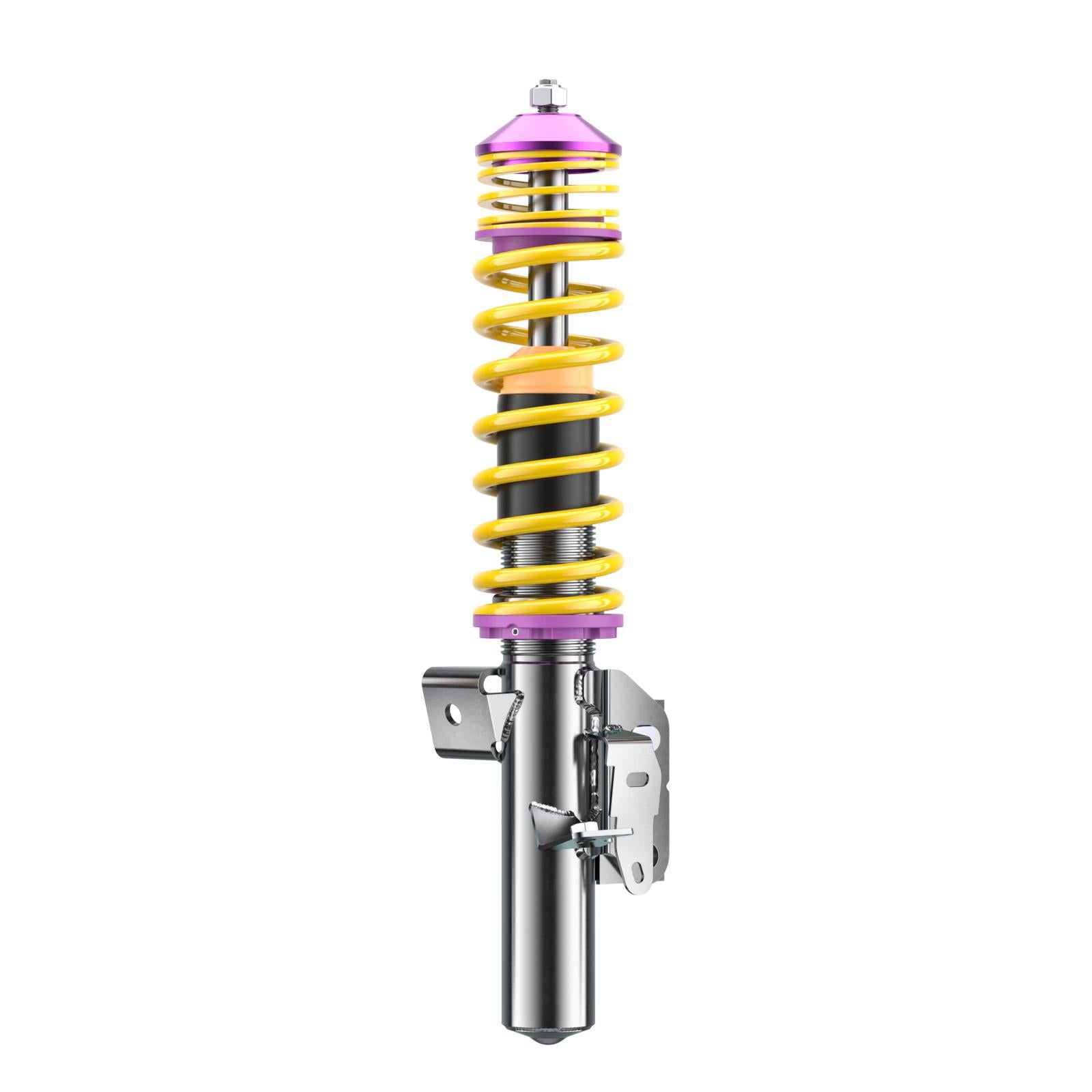

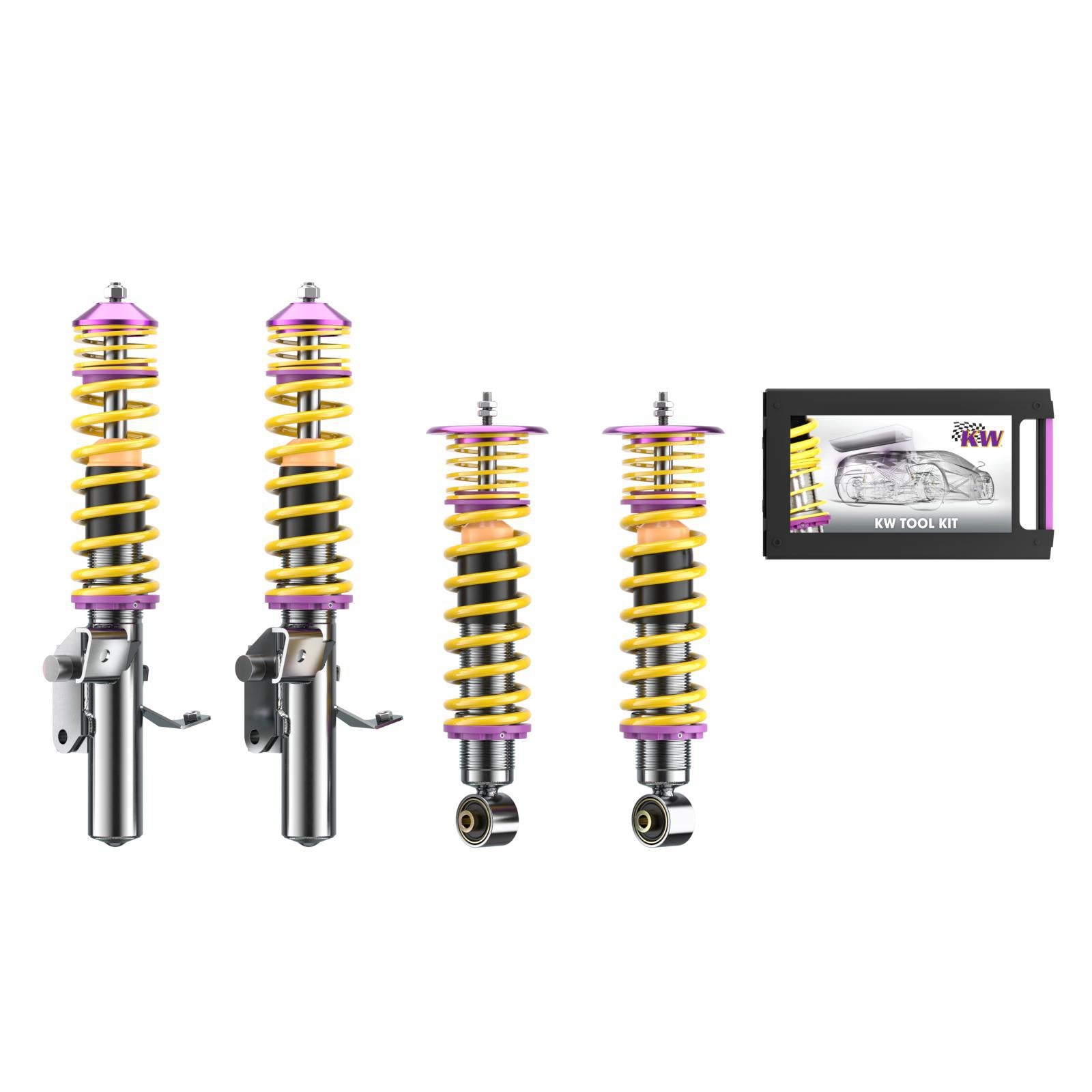

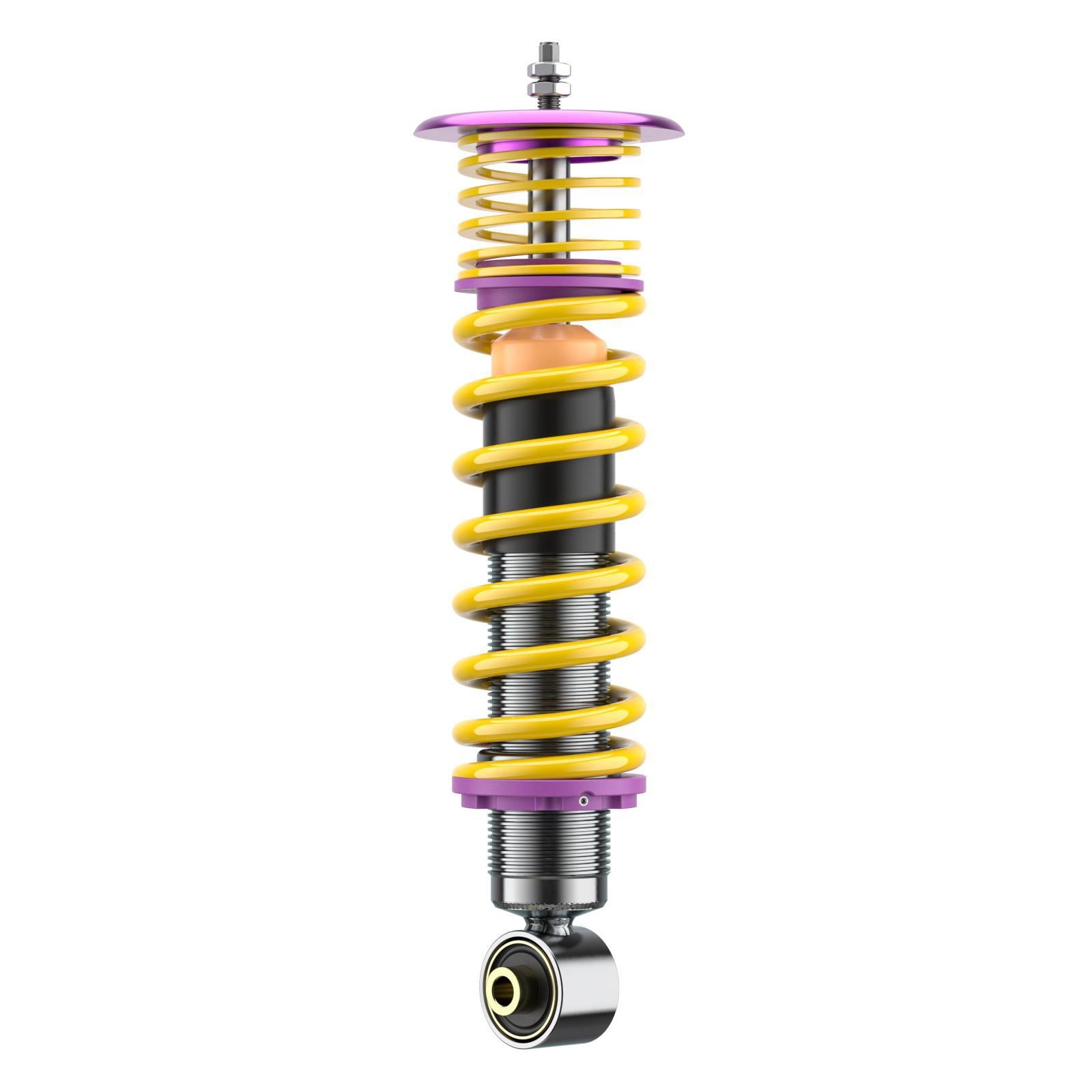

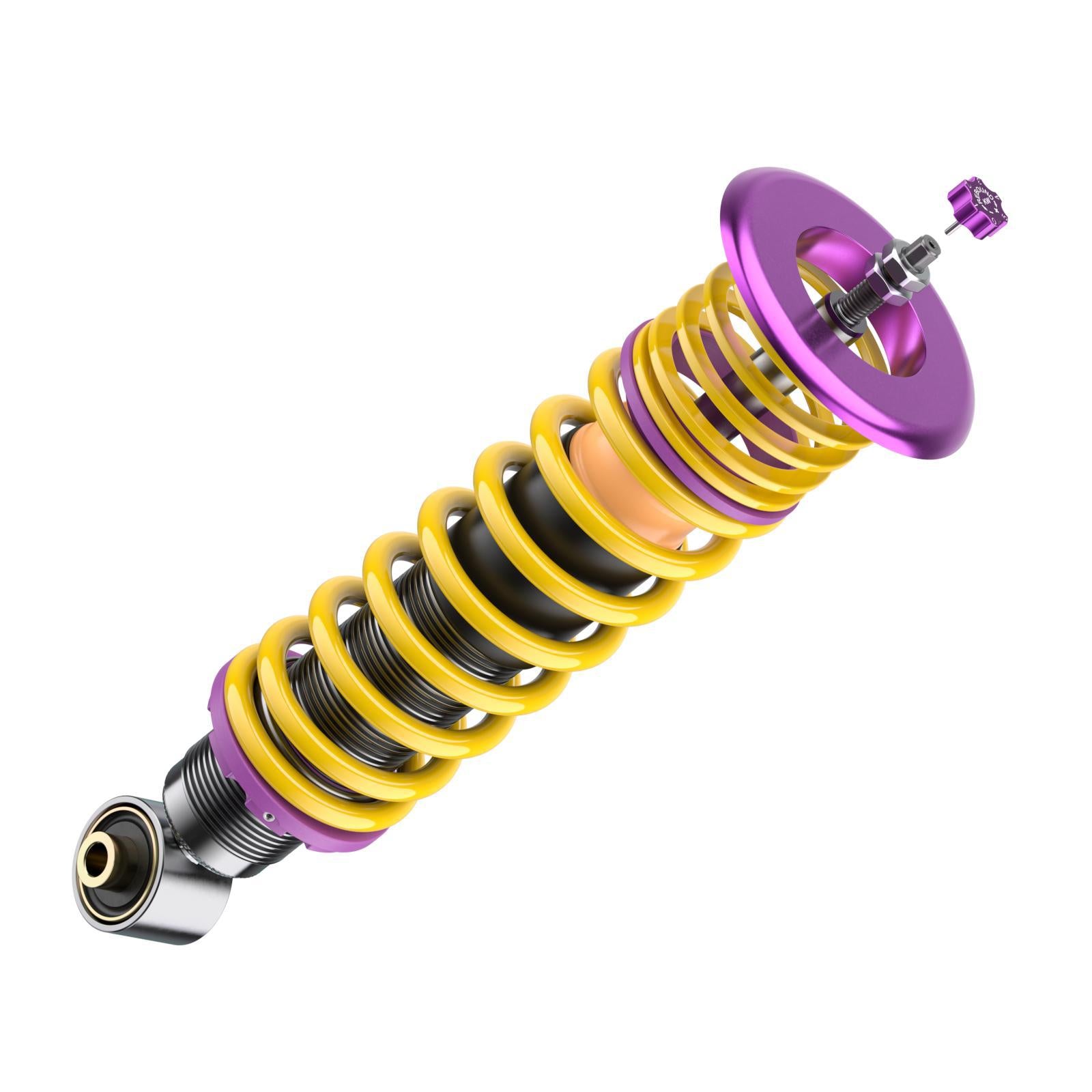

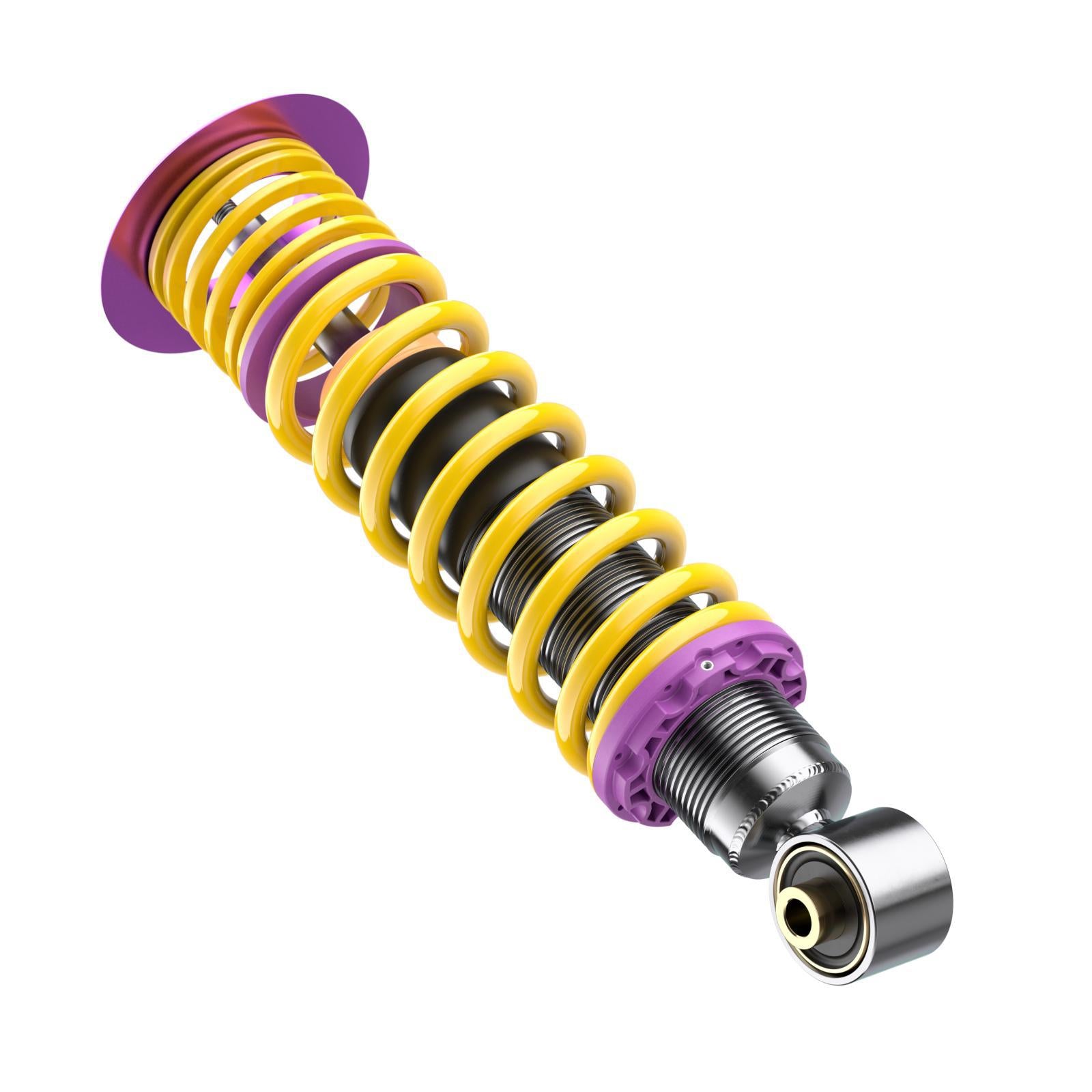

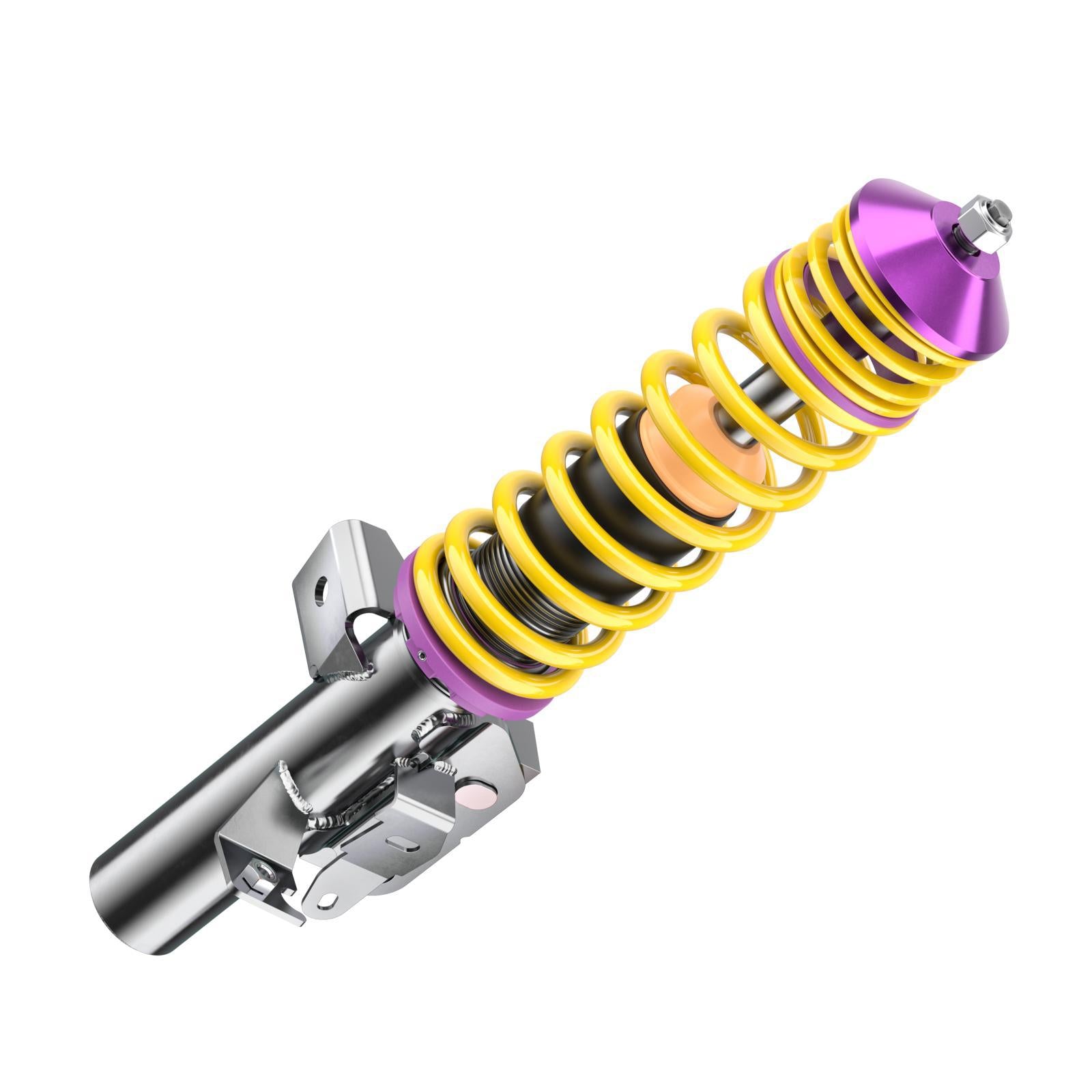

- Supplied as: Front axle + rear axle coilover struts
Front axle load up to 876 kg; Rear axle load up to 943 kg.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 2012+ | Subaru | BRZ (ZC) | 2 | Petrol · 153 kW · 2.0L · 4-cyl | Rear-Wheel Drive | 1 |
| 2012+ | Toyota | GT 86 Coupe (ZN6_, GC/GF) | 2.0 (ZN6EY_, ZN6K) | Petrol · 152 kW · 2.0L · 4-cyl | Rear-Wheel Drive | 1 |
| 2012+ | Subaru | BRZ (ZC) | 2 | Petrol · 152 kW · 2.0L · 4-cyl | Rear-Wheel Drive | 1 |
| 2012+ | Toyota | GT 86 Coupe (ZN6_, GC/GF) | 2.0 (ZN6) | Petrol · 149 kW · 2.0L · 4-cyl | Rear-Wheel Drive | 1 |
| 2021+ | Subaru | BRZ (Z2) | 2.4 | Petrol · 172 kW · 2.4L · 4-cyl | Rear-Wheel Drive | 1 |
| 2021+ | Toyota | GR 86 Coupe (ZN8) | 2.4 (ZN8BKE8) | Petrol · 172 kW · 2.4L · 4-cyl | Rear-Wheel Drive | 1 |
| 2012+ | Toyota | GT 86 Coupe (ZN6_, GC/GF) | 2.0 (ZN6AC_, ZN6BC_, ZN6K) | Petrol · 147 kW · 2.0L · 4-cyl | Rear-Wheel Drive | 1 |
| 2011+ | Scion | FR-S Coupe | 2.0 S | Petrol · 149 kW · 2.0L · 4-cyl | Rear-Wheel Drive | 1 |
| 2012+ | Subaru | BRZ (ZC) | 2.0 (ZC6) | Petrol · 147 kW · 2.0L · 4-cyl | Rear-Wheel Drive | 1 |
- Note 1: Height adjustable on the front and rear axles (threaded strut housings).
