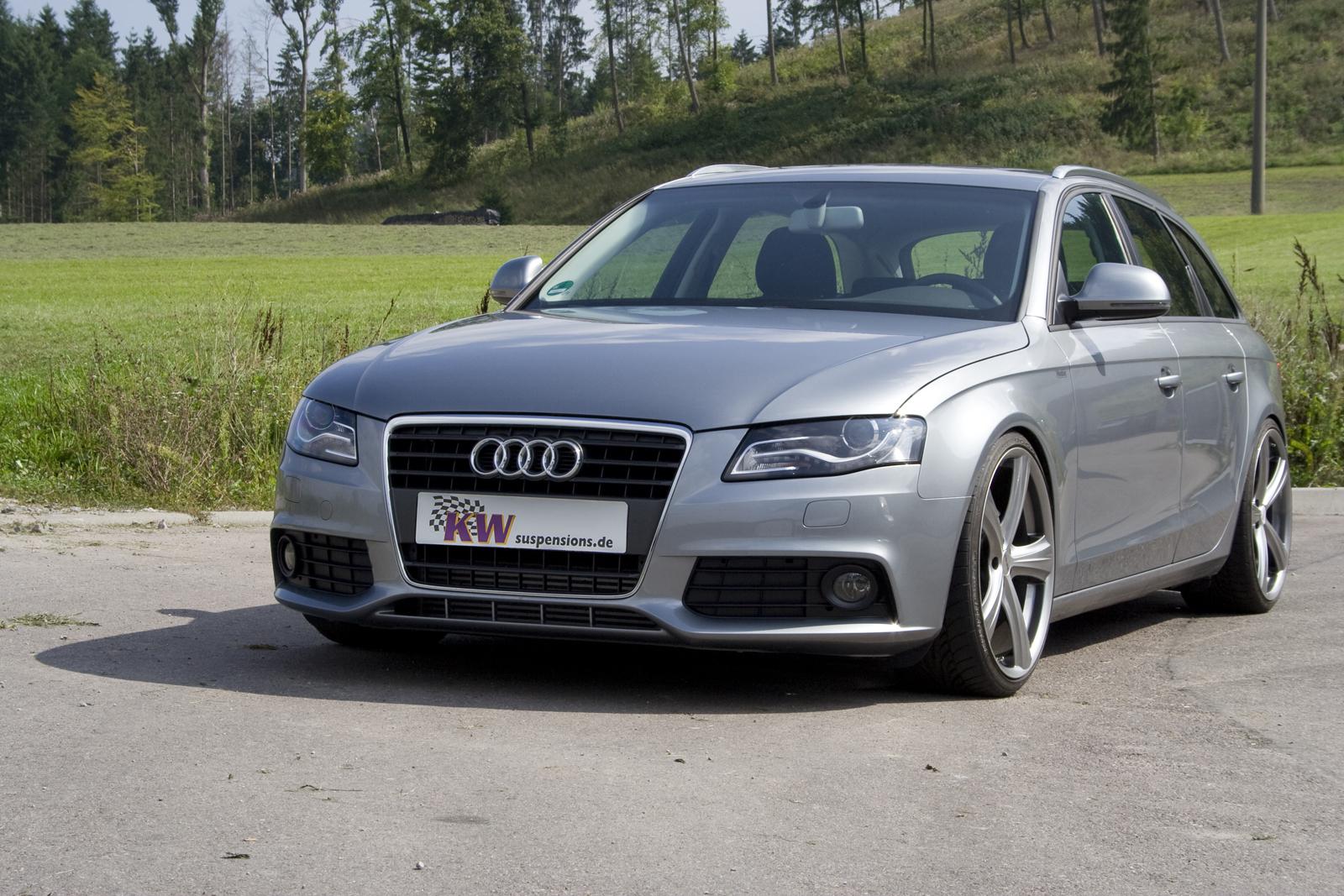

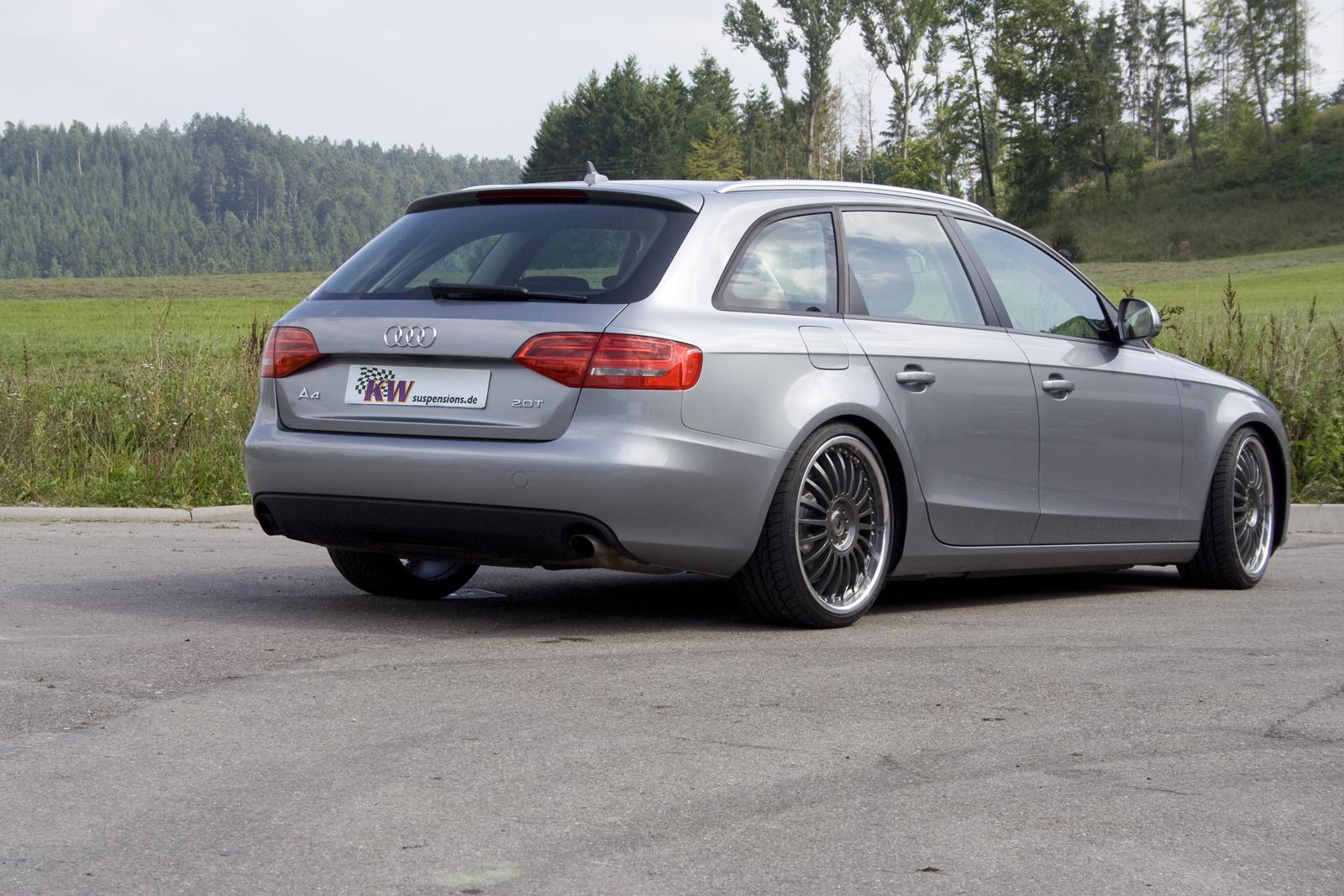

KW Coilover Kit V2 Comfort for Audi (B8) A4 Avant / A4 Allroad TDI

SKU: 18010077
Sale price$3,371.56 Regular price$3,549.00
Save $177.44

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


The KW V2 Comfort combines a moderate lowering with comfort-oriented spring and damper characteristics, aimed at drivers who find a factory or aftermarket suspension too firm for everyday use. Shorter KW damper housings allow a comfortable setup despite the lowering, and rebound damping can be adjusted in 16 clicks to suit the driver. This kit is developed for the Audi A4 Avant / A4 Allroad TDI (B8).

Key Features

  • Comfort-oriented spring and damper tuning
  • Rebound damping adjustable in 16 clicks
  • Height adjustable within the tested range

Specifications

  • Version: V2 Comfort
  • Damping: Adjustable rebound
  • Material: Stainless steel
  • Front lowering: 20–45 mm
  • Rear lowering: 20–45 mm
  • Front axle load: up to 1,080 kg
  • Rear axle load: up to 1,215 kg

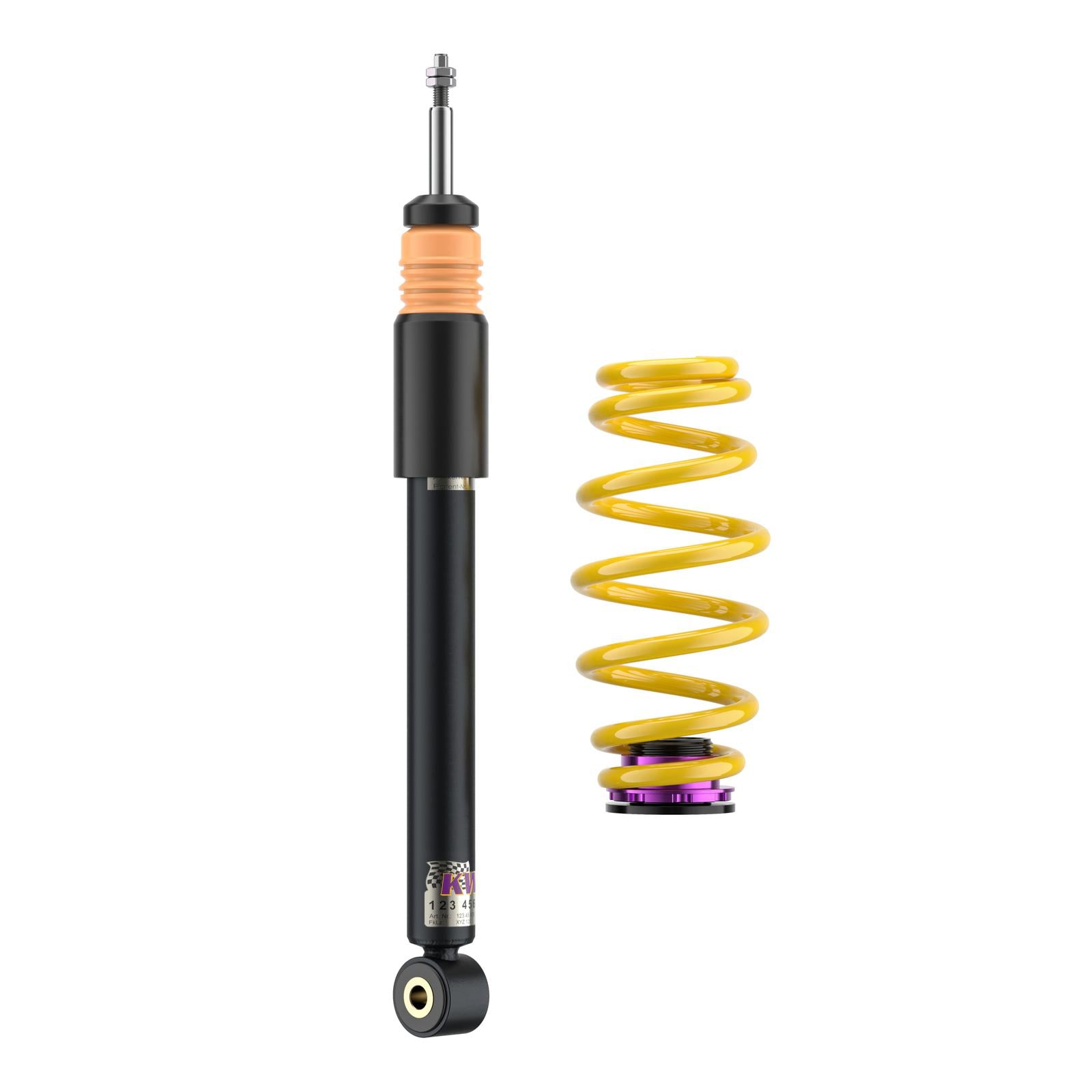

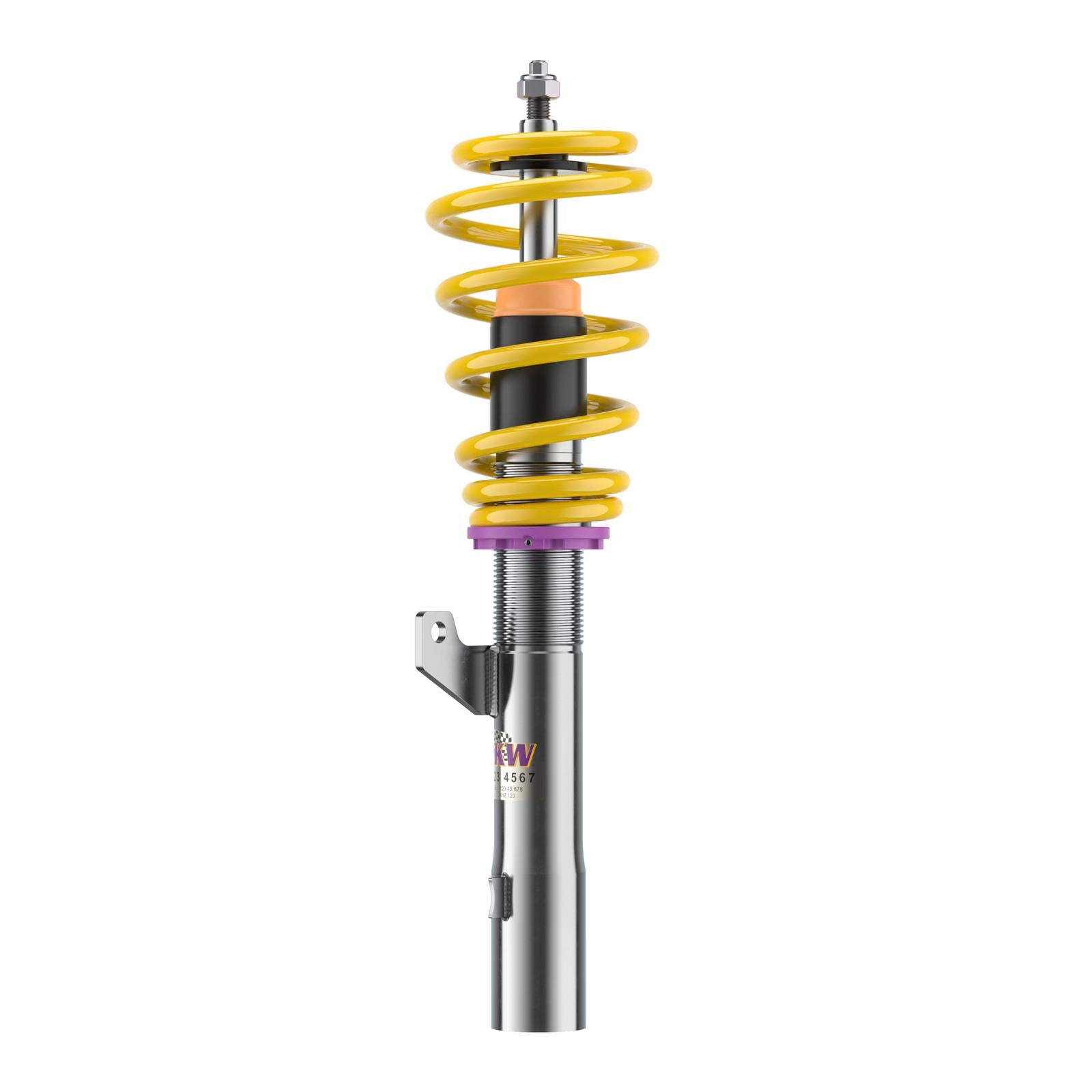

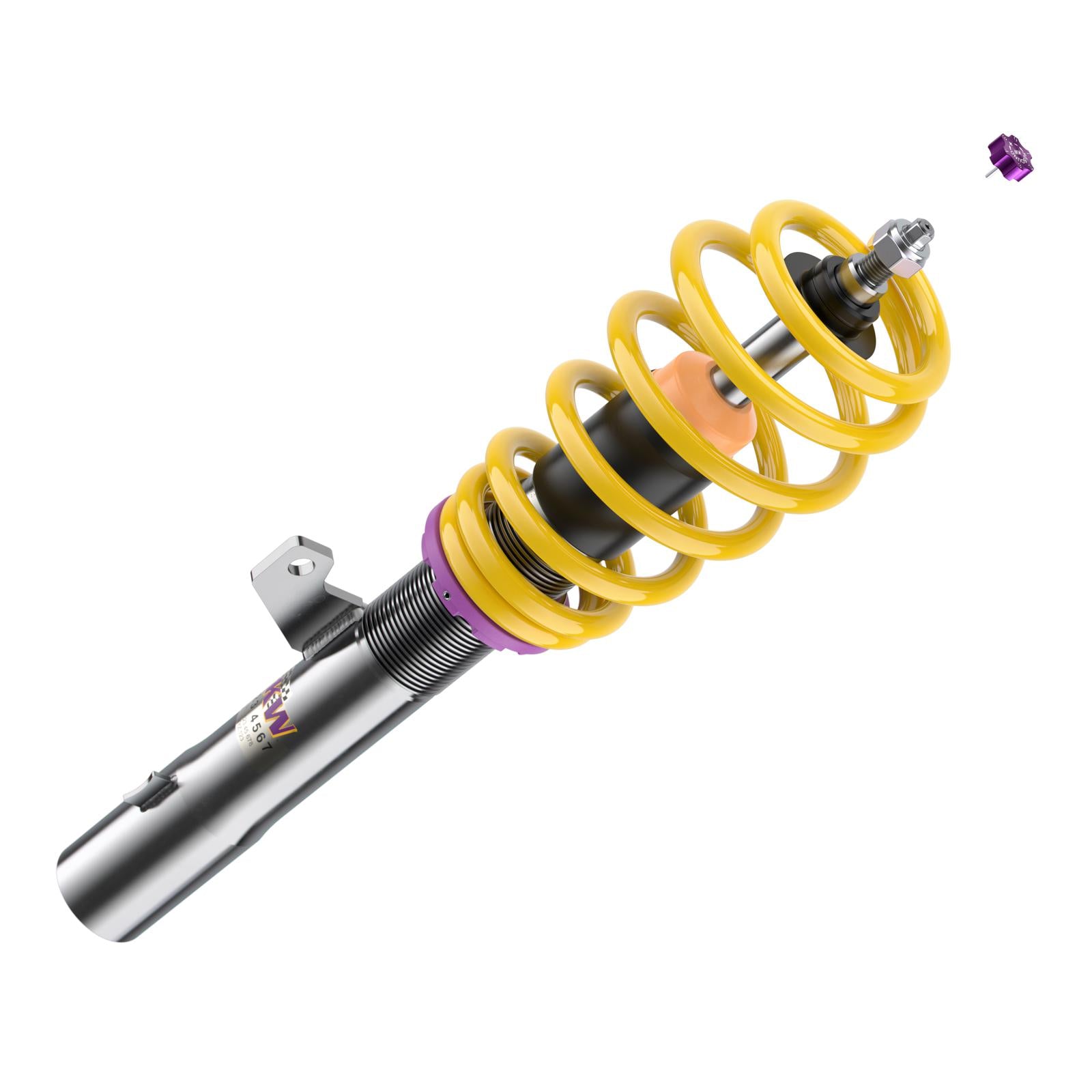

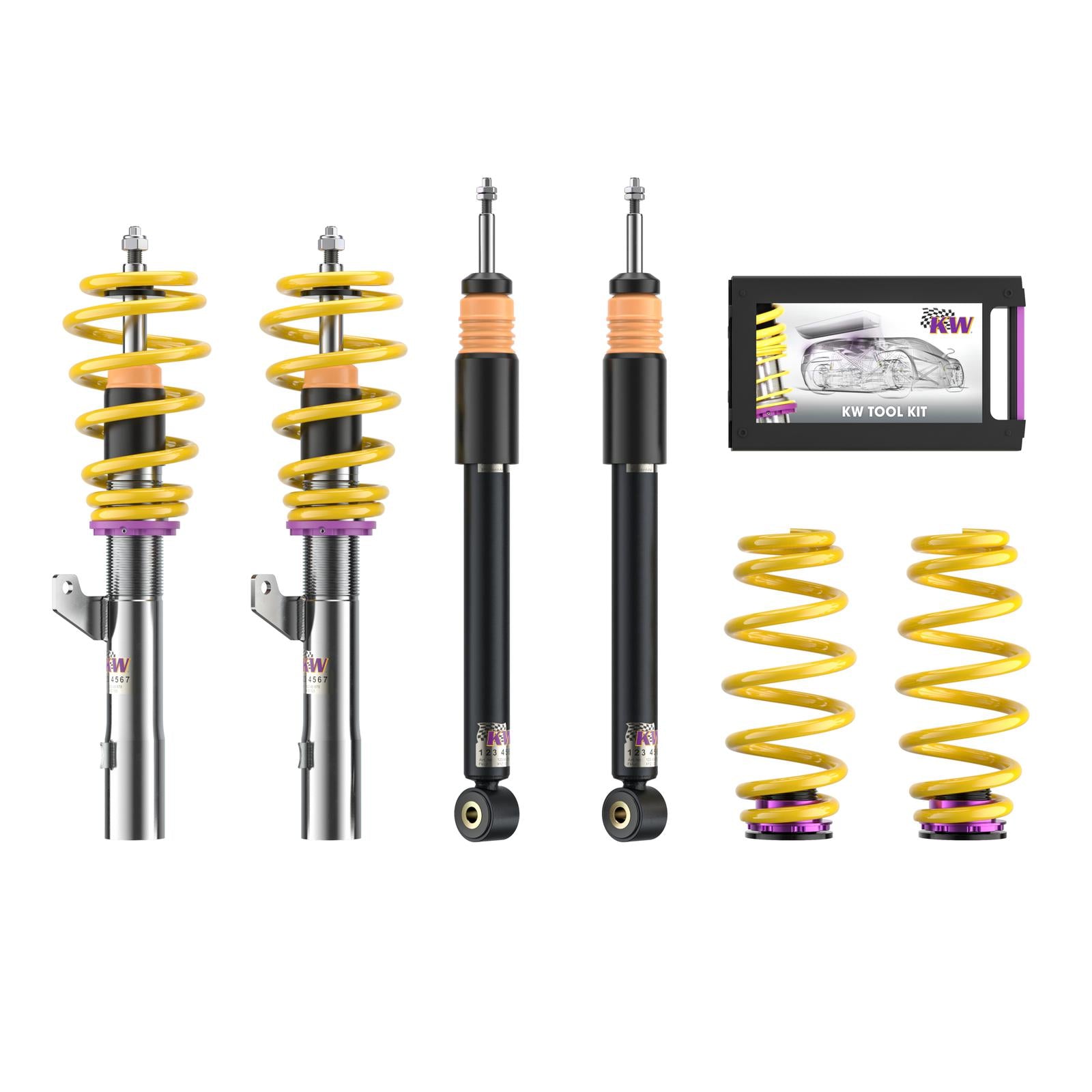

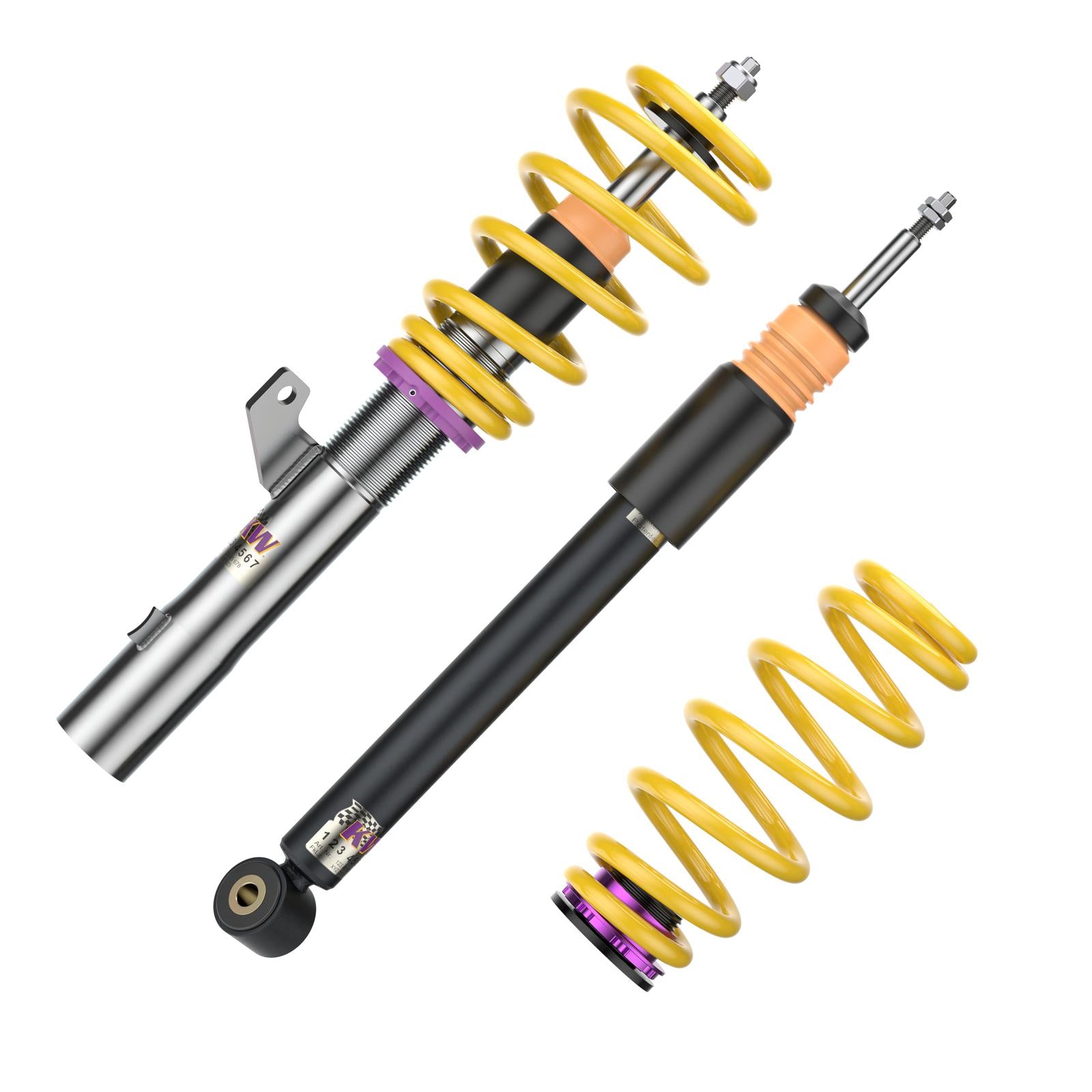

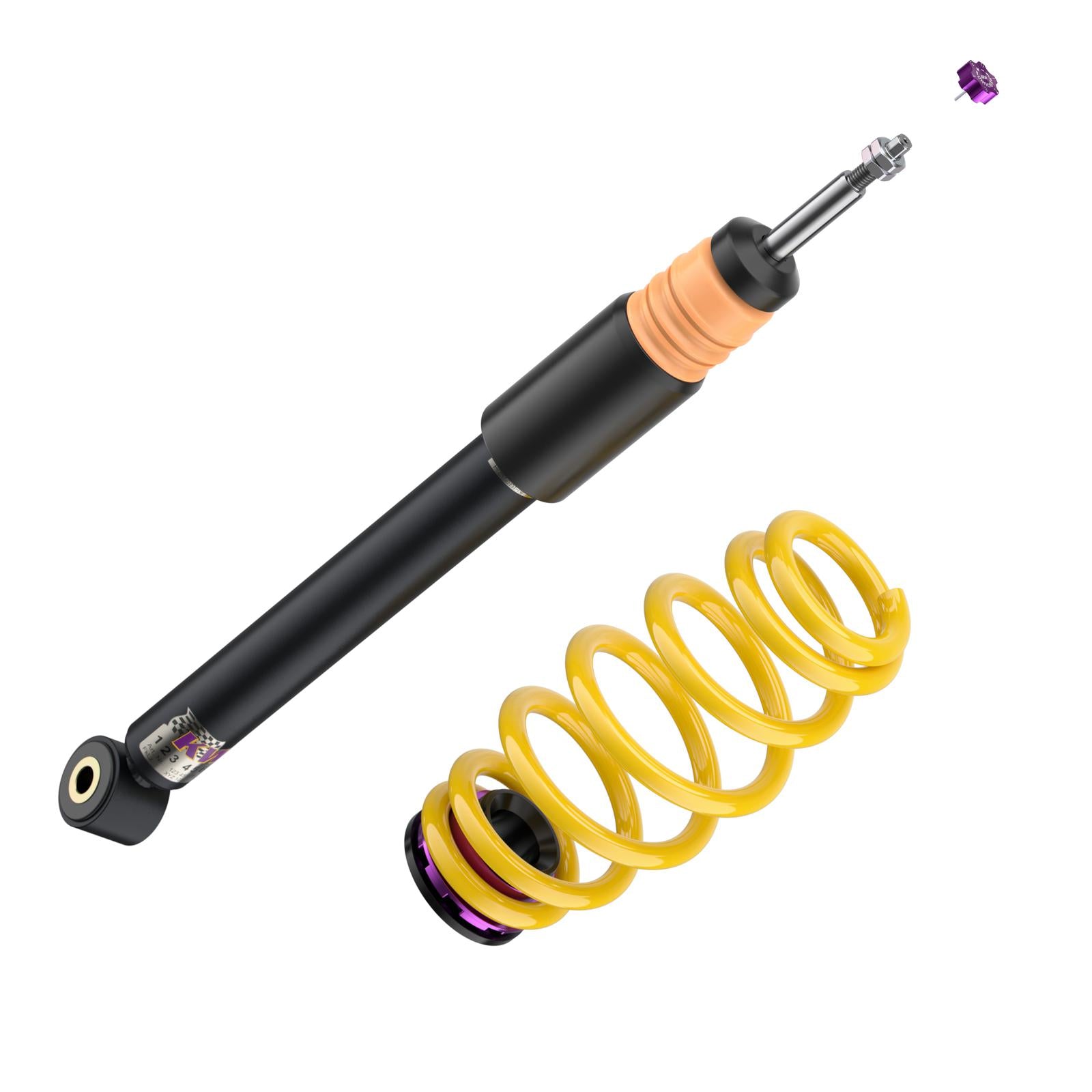

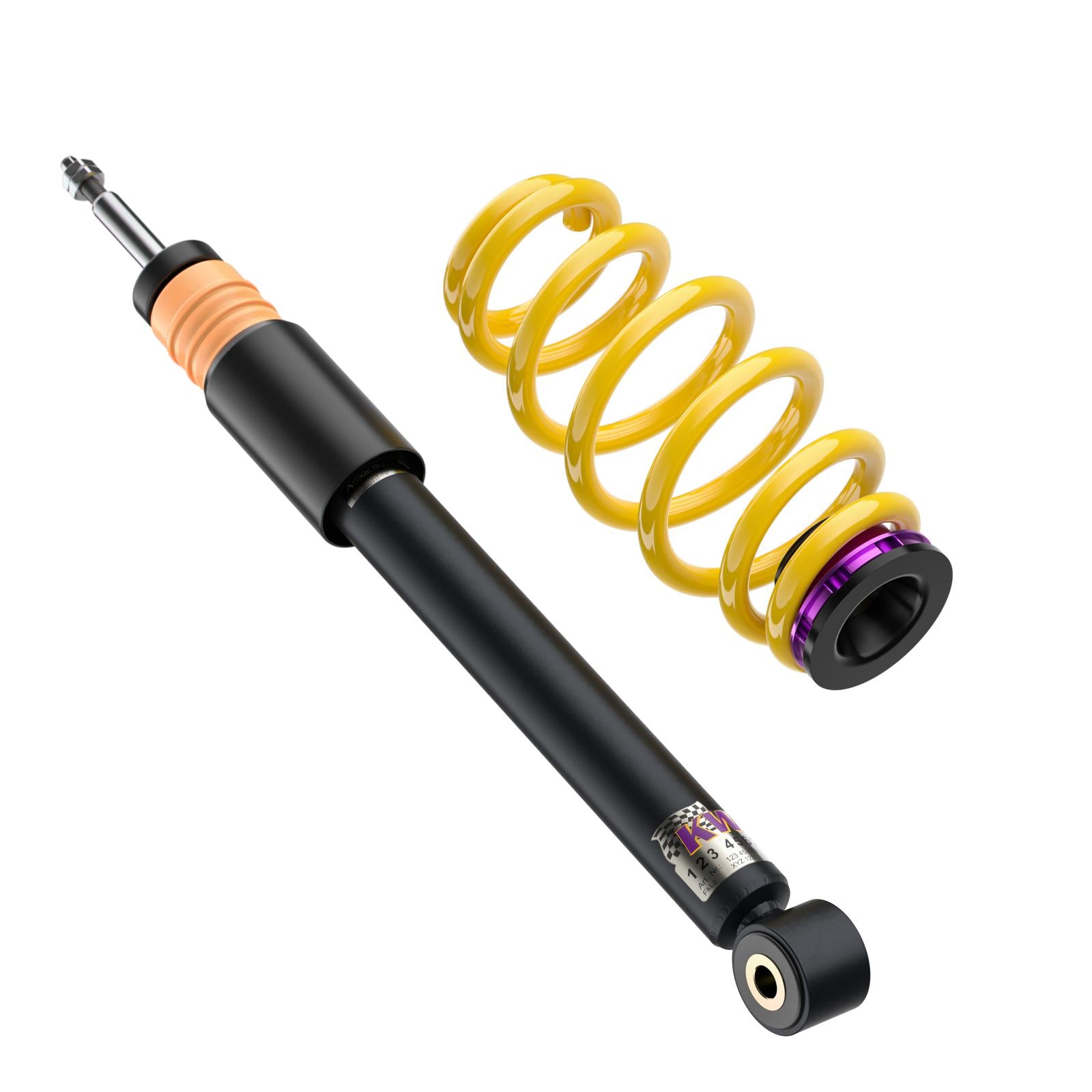

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 1,080 kg; Rear axle load up to 1,215 kg.

For vehicles without electronic damper control.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2009–2017AudiA4 Allroad (B8) 8KH2.0 TDI quattroDiesel · 105 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37
2009–2017AudiA4 Allroad (B8) 8KH2.0 TFSI quattroPetrol · 155 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37
2009–2017AudiA4 Allroad (B8) 8KH2.0 TFSI quattroPetrol · 162 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37
2009–2017AudiA4 Allroad (B8) 8KH2.0 TFSI quattroPetrol · 165 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37
2007–2017AudiA4 Avant (B8) 8K51.8 TFSIPetrol · 88 kW · 1.8L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA4 Avant (B8) 8K51.8 TFSIPetrol · 118 kW · 1.8L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA4 Avant (B8) 8K51.8 TFSIPetrol · 125 kW · 1.8L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA4 Avant (B8) 8K51.8 TFSI quattroPetrol · 118 kW · 1.8L · 4-cylAll-Wheel Drive2, 10, 37
2007–2017AudiA4 Avant (B8) 8K51.8 TFSI quattroPetrol · 125 kW · 1.8L · 4-cylAll-Wheel Drive2, 10, 37
2007–2017AudiA4 Avant (B8) 8K52.0 TDIDiesel · 88 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA4 Avant (B8) 8K52.0 TDIDiesel · 100 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA4 Avant (B8) 8K52.0 TDIDiesel · 105 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA4 Avant (B8) 8K52.0 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA4 Avant (B8) 8K52.0 TDIDiesel · 120 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA4 Avant (B8) 8K52.0 TDIDiesel · 125 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA4 Avant (B8) 8K52.0 TDIDiesel · 130 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA4 Avant (B8) 8K52.0 TFSIPetrol · 132 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA4 Avant (B8) 8K52.0 TFSIPetrol · 155 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA4 Avant (B8) 8K52.0 TFSIPetrol · 165 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37
2007–2017AudiA4 Avant (B8) 8K52.0 TFSI quattroPetrol · 155 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37
2007–2017AudiA4 Avant (B8) 8K52.0 TFSI quattroPetrol · 165 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 10: In Variant 2, hardness adjustment for front axle only in not installed condition possible.
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
