KW Coilover Kit V2 Comfort for Seat (1M) Leon Cupra R / VW (MK4) Golf GTI / Audi (8N) TT

SKU: 18010005
Sale price$2,868.05 Regular price$3,019.00
Save $150.95

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


The KW V2 Comfort combines a moderate lowering with comfort-oriented spring and damper characteristics, aimed at drivers who find a factory or aftermarket suspension too firm for everyday use. Shorter KW damper housings allow a comfortable setup despite the lowering, and rebound damping can be adjusted in 16 clicks to suit the driver. This kit is developed for the Seat Leon Cupra R (1M) / VW Golf GTI (MK4) / Audi TT (8N).

Key Features

  • Comfort-oriented spring and damper tuning

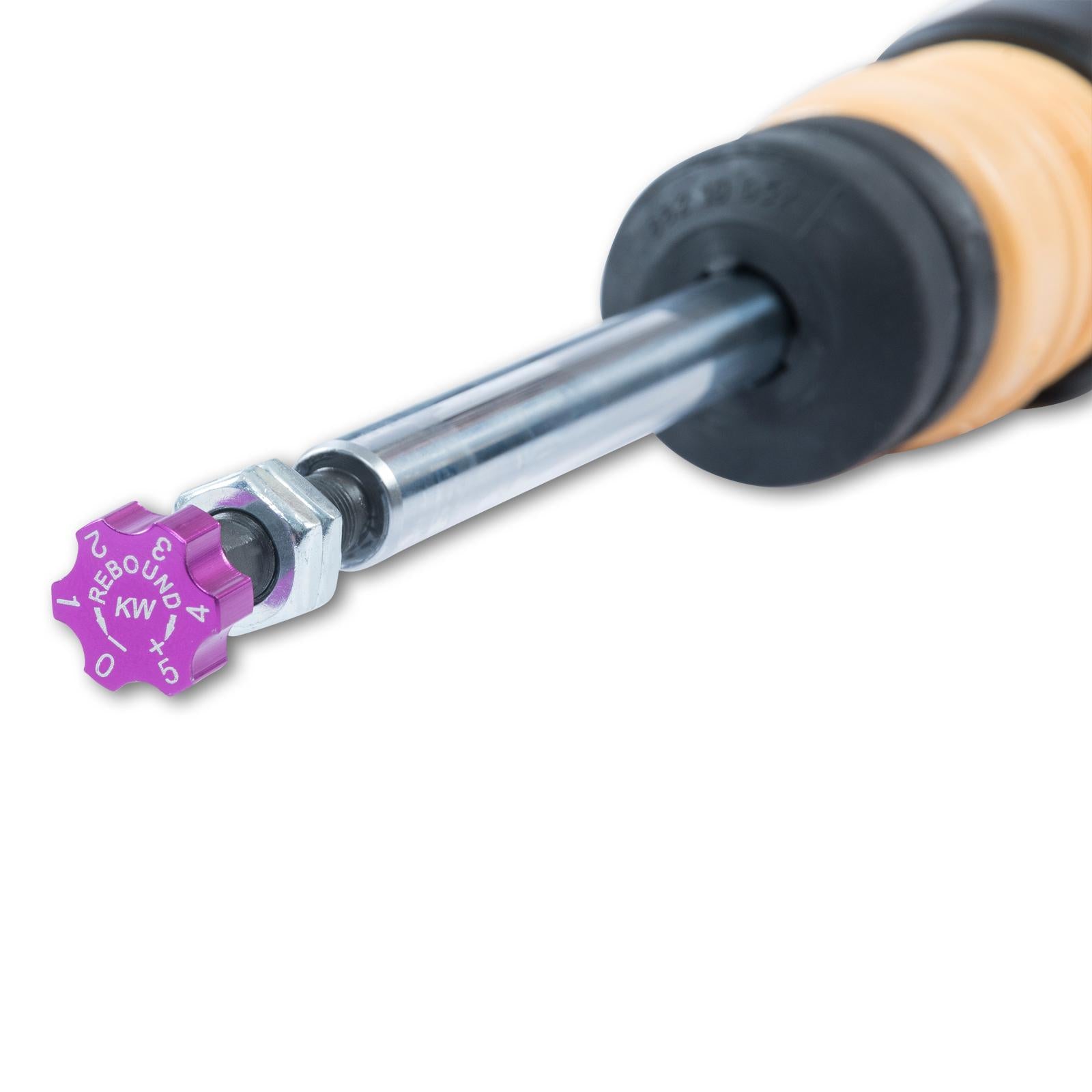

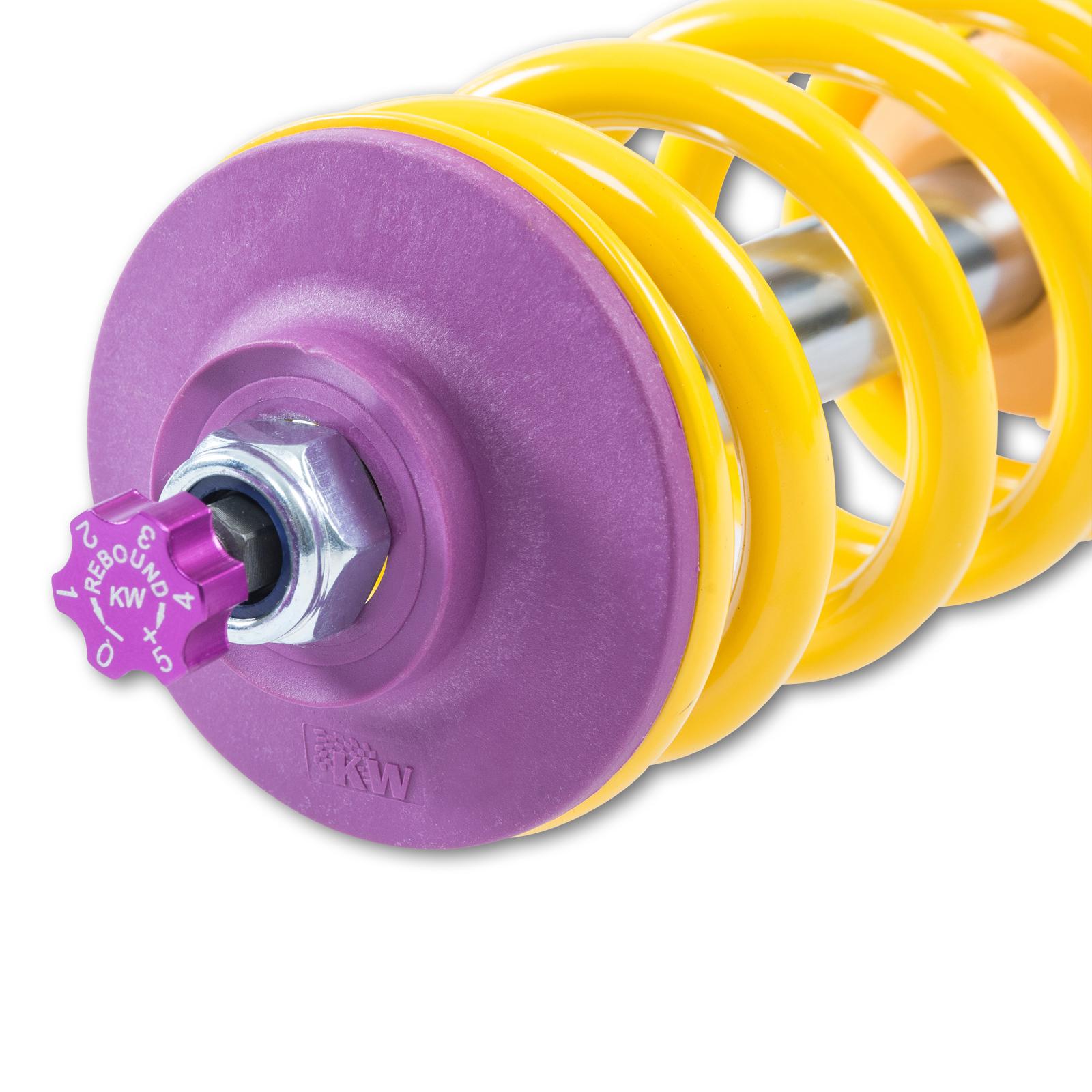

  • Rebound damping adjustable in 16 clicks
  • Height adjustable within the tested range

Specifications

  • Version: V2 Comfort
  • Damping: Adjustable rebound
  • Material: Stainless steel
  • Front lowering: 20–45 mm
  • Rear lowering: 20–45 mm
  • Front axle load: up to 1,020 kg
  • Rear axle load: up to 1,020 kg

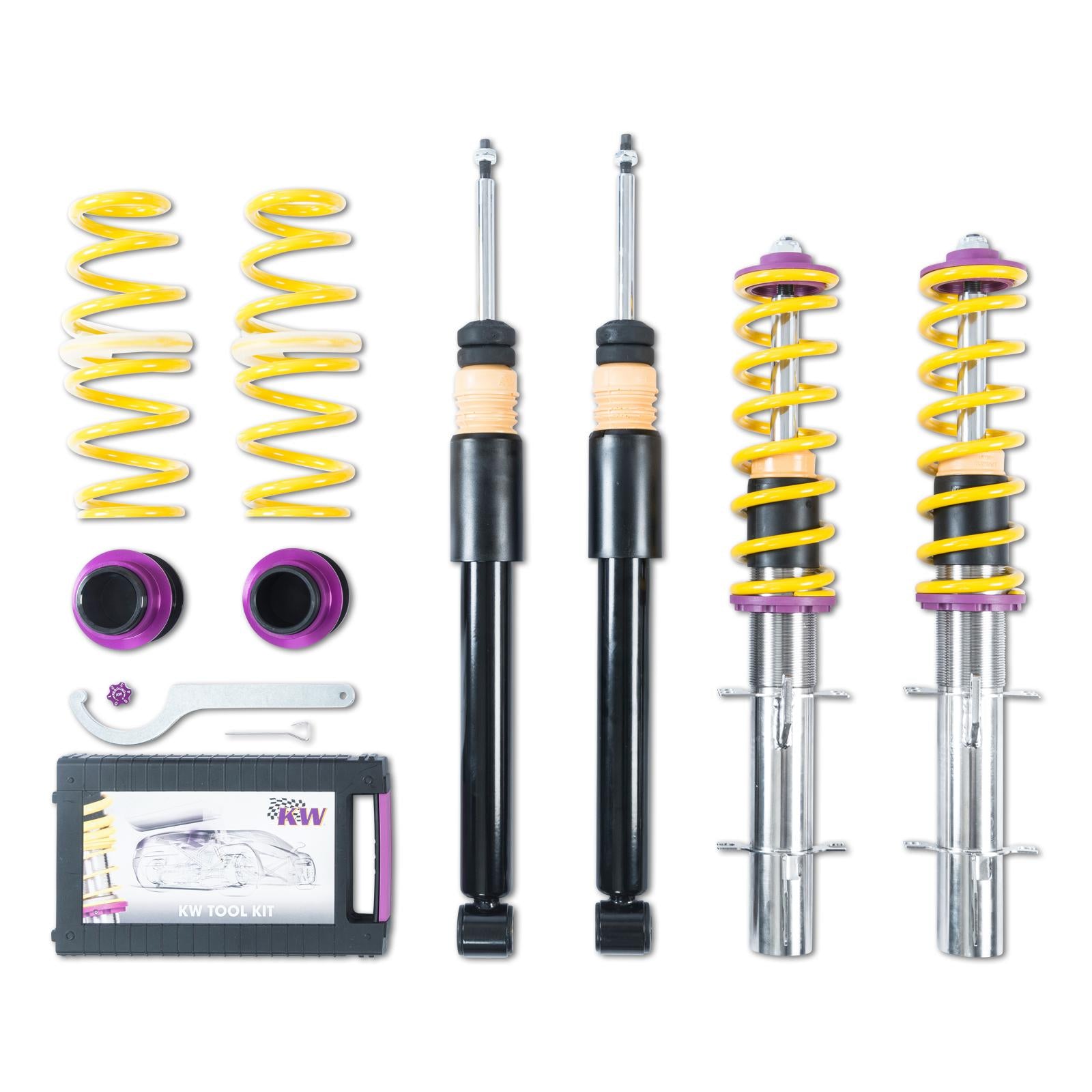

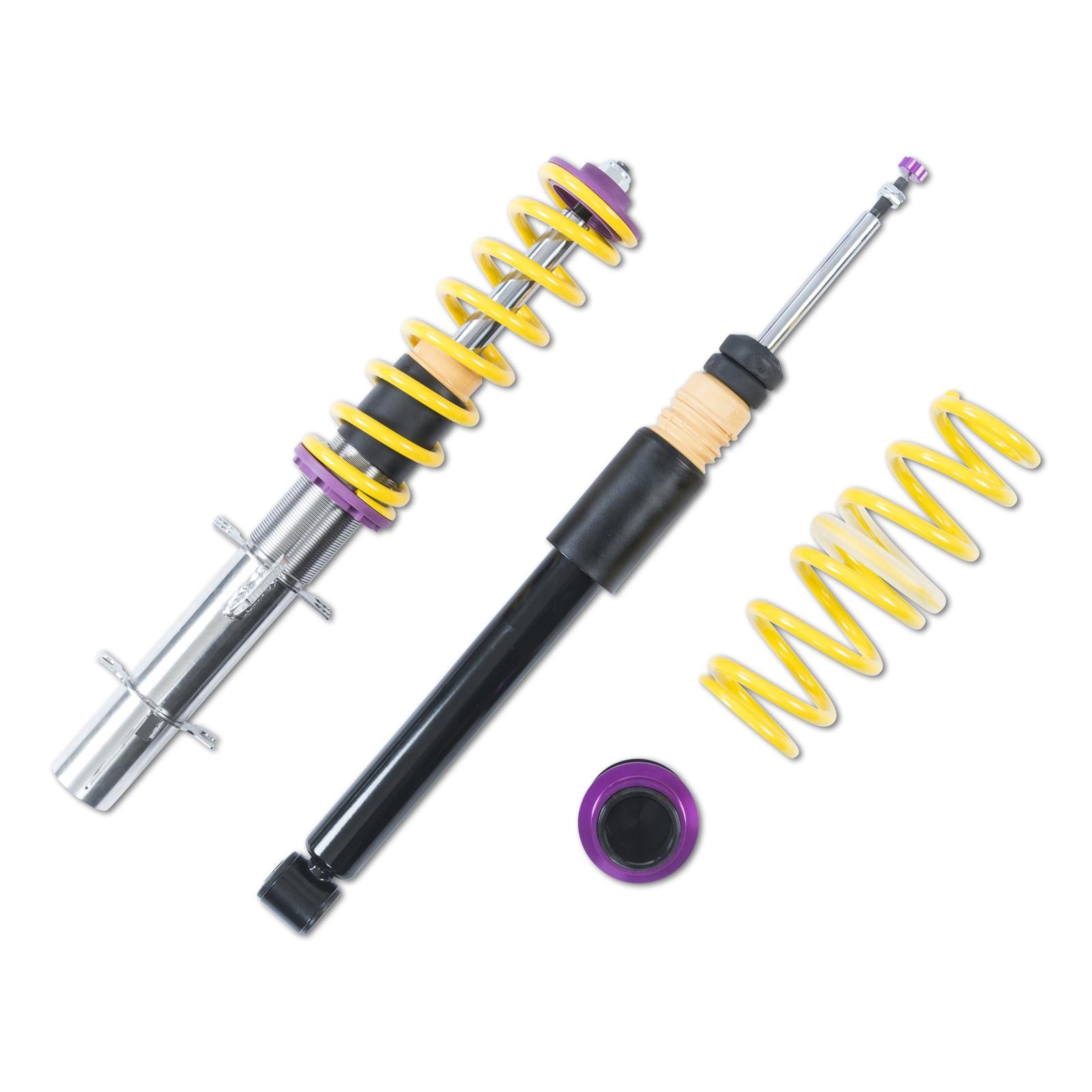

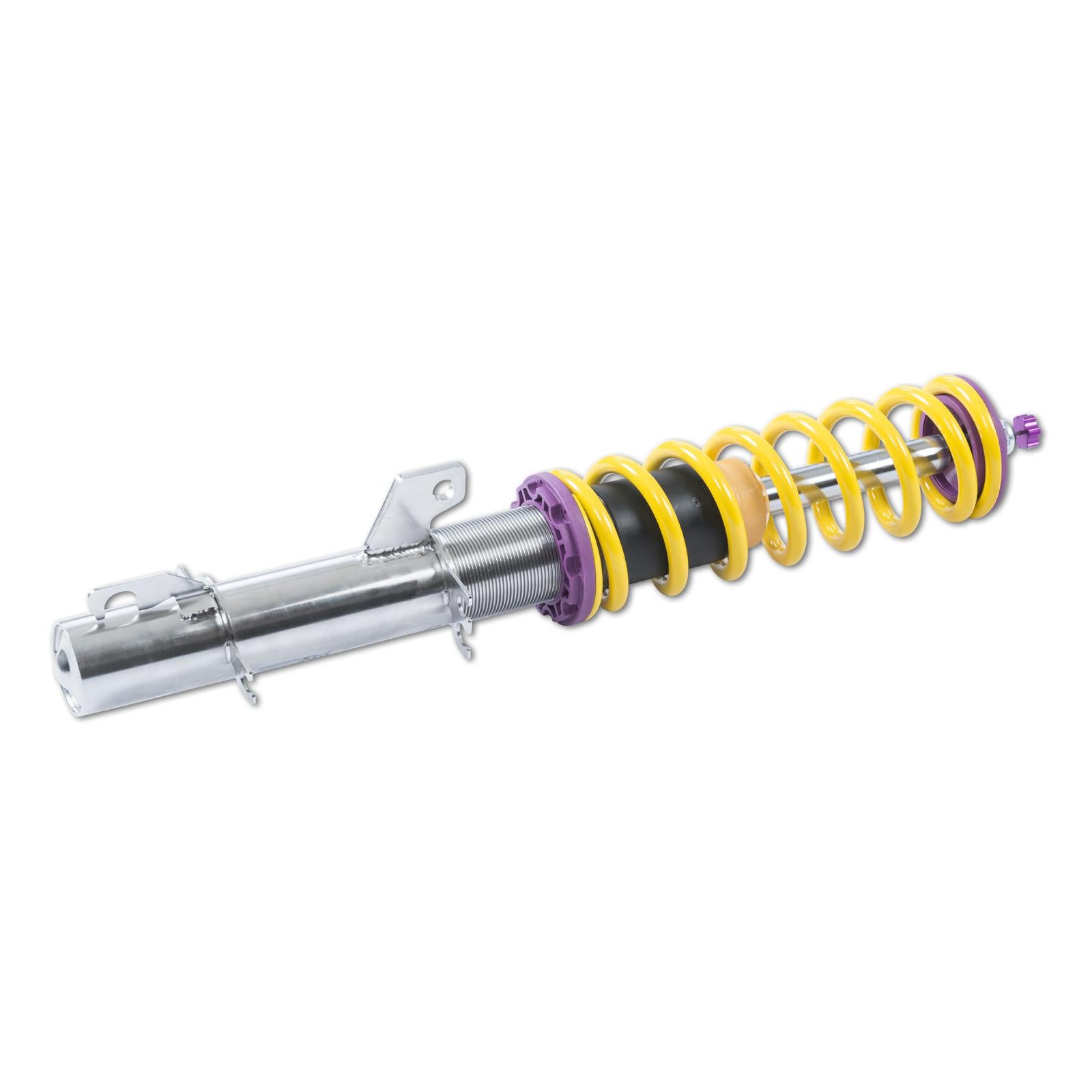

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 1,020 kg; Rear axle load up to 1,020 kg.

References 2, 6, 86. See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
1997–2008VWGolf IV (1J_)2.8 VR6Petrol · 130 kW · 2.8L · 6-cylFront-Wheel Drive2, 6, 86
1996–2006AudiA3 (8L) 8L11.8 TPetrol · 132 kW · 1.8L · 4-cylFront-Wheel Drive2, 6, 86
1999–2007AudiTT Roadster (8N) 8N91.8 TPetrol · 132 kW · 1.8L · 4-cylFront-Wheel Drive2, 6
1997–2008VWGolf IV (1J_)2.0Petrol · 85 kW · 2.0L · 4-cylFront-Wheel Drive2, 6, 86
1998–2012VWNew Beetle (9C_, 1C1)1.6Petrol · 74 kW · 1.6L · 4-cylFront-Wheel Drive2, 6, 86
1998–2007AudiTT (8N) 8N31.8 TPetrol · 134 kW · 1.8L · 4-cylFront-Wheel Drive2, 6
1999–2007AudiTT Roadster (8N) 8N91.8 TPetrol · 134 kW · 1.8L · 4-cylFront-Wheel Drive2, 6
1997–2008VWGolf IV (1J_)1.9 TDIDiesel · 85 kW · 1.9L · 4-cylFront-Wheel Drive2, 6, 86
1999–2006SeatLeon (1M1)1.6Petrol · 74 kW · 1.6L · 4-cylFront-Wheel Drive2, 6, 86
1999–2006SeatLeon (1M1)1.8 20VPetrol · 92 kW · 1.8L · 4-cylFront-Wheel Drive2, 6, 86
1999–2006SeatLeon (1M1)1.9 TDIDiesel · 66 kW · 1.9L · 4-cylFront-Wheel Drive2, 6, 86
1999–2006SeatLeon (1M1)1.9 TDIDiesel · 81 kW · 1.9L · 4-cylFront-Wheel Drive2, 6, 86
1998–2012VWNew Beetle (9C_, 1C1)1.8 TPetrol · 110 kW · 1.8L · 4-cylFront-Wheel Drive2, 6, 86
1999–2006SeatLeon (1M1)1.4 16VPetrol · 55 kW · 1.4L · 4-cylFront-Wheel Drive2, 6, 86
1999–2006SeatLeon (1M1)1.8 20V TPetrol · 132 kW · 1.8L · 4-cylFront-Wheel Drive2, 6, 86
1999–2006SeatLeon (1M1)1.9 SDIDiesel · 50 kW · 1.9L · 4-cylFront-Wheel Drive2, 6, 86
1997–2008VWGolf IV (1J_)1.6 16VPetrol · 77 kW · 1.6L · 4-cylFront-Wheel Drive2, 6, 86
1996–2006AudiA3 (8L) 8L11.9 TDIDiesel · 96 kW · 1.9L · 4-cylFront-Wheel Drive2, 6, 86
1996–2006AudiA3 (8L) 8L11.6Petrol · 75 kW · 1.6L · 4-cylFront-Wheel Drive2, 6, 86
1998–2012VWNew Beetle (9C_, 1C1)1.6Petrol · 75 kW · 1.6L · 4-cylFront-Wheel Drive2, 6, 86
1997–2008VWGolf IV (1J_)1.9 TDIDiesel · 74 kW · 1.9L · 4-cylFront-Wheel Drive2, 6, 86
1997–2008VWGolf IV (1J_)1.9 TDIDiesel · 110 kW · 1.9L · 4-cylFront-Wheel Drive2, 6, 86
1997–2008VWGolf IV (1J_)1.6Petrol · 75 kW · 1.6L · 4-cylFront-Wheel Drive2, 6, 86
1997–2008VWGolf IV (1J_)2.3 V5Petrol · 125 kW · 2.3L · 5-cylFront-Wheel Drive2, 6, 86
1998–2012VWNew Beetle (9C_, 1C1)2.3 V5Petrol · 125 kW · 2.3L · 5-cylFront-Wheel Drive2, 6, 86
1999–2006SeatLeon (1M1)1.6 16 VPetrol · 77 kW · 1.6L · 4-cylFront-Wheel Drive2, 6, 86
1999–2007AudiTT Roadster (8N) 8N91.8 TPetrol · 110 kW · 1.8L · 4-cylFront-Wheel Drive2, 6
1999–2006SeatLeon (1M1)1.9 TDIDiesel · 110 kW · 1.9L · 4-cylFront-Wheel Drive2, 6, 86
1996–2006AudiA3 (8L) 8L11.9 TDIDiesel · 74 kW · 1.9L · 4-cylFront-Wheel Drive2, 6, 86
1998–2012VWNew Beetle (9C_, 1C1)1.9 TDIDiesel · 74 kW · 1.9L · 4-cylFront-Wheel Drive2, 6, 86
1997–2008VWGolf IV (1J_)1.9 TDIDiesel · 96 kW · 1.9L · 4-cylFront-Wheel Drive2, 6, 86
1997–2008VWGolf IV (1J_)1.8 T GTIPetrol · 132 kW · 1.8L · 4-cylFront-Wheel Drive2, 6, 86
1998–2012VWNew Beetle (9C_, 1C1)1.4Petrol · 55 kW · 1.4L · 4-cylFront-Wheel Drive2, 6, 86
1997–2008VWGolf IV (1J_)1.6 FSIPetrol · 81 kW · 1.6L · 4-cylFront-Wheel Drive2, 6, 86
1999–2006SeatLeon (1M1)1.8 T Cupra RPetrol · 154 kW · 1.8L · 4-cylFront-Wheel Drive2, 6, 86
2002–2012VWNew Beetle Convertible (1Y_)1.6Petrol · 75 kW · 1.6L · 4-cylFront-Wheel Drive2, 6, 86
2002–2012VWNew Beetle Convertible (1Y_)2.0Petrol · 85 kW · 2.0L · 4-cylFront-Wheel Drive2, 6, 86
2002–2012VWNew Beetle Convertible (1Y_)1.9 TDIDiesel · 74 kW · 1.9L · 4-cylFront-Wheel Drive2, 6, 86
2002–2012VWNew Beetle Convertible (1Y_)1.4Petrol · 55 kW · 1.4L · 4-cylFront-Wheel Drive2, 6, 86
1998–2007AudiTT (8N) 8N31.8 TPetrol · 110 kW · 1.8L · 4-cylFront-Wheel Drive2, 6
1999–2006SeatLeon (1M1)1.8 T Cupra RPetrol · 165 kW · 1.8L · 4-cylFront-Wheel Drive2, 6, 86
1999–2006SeatLeon (1M1)1.9 TDIDiesel · 96 kW · 1.9L · 4-cylFront-Wheel Drive2, 6, 86
2002–2012VWNew Beetle Convertible (1Y_)1.8 TPetrol · 110 kW · 1.8L · 4-cylFront-Wheel Drive2, 6, 86
1998–2007AudiTT (8N) 8N31.8 TPetrol · 120 kW · 1.8L · 4-cylFront-Wheel Drive2, 6
1998–2007AudiTT (8N) 8N31.8 TPetrol · 140 kW · 1.8L · 4-cylFront-Wheel Drive2, 6
1999–2007AudiTT Roadster (8N) 8N91.8 TPetrol · 140 kW · 1.8L · 4-cylFront-Wheel Drive2, 6
1999–2006SeatLeon (1M1)1.9 TDIDiesel · 74 kW · 1.9L · 4-cylFront-Wheel Drive2, 6, 86
1998–2012VWNew Beetle (9C_, 1C1)1.9 TDIDiesel · 77 kW · 1.9L · 4-cylFront-Wheel Drive2, 6, 86
2002–2012VWNew Beetle Convertible (1Y_)1.9 TDIDiesel · 77 kW · 1.9L · 4-cylFront-Wheel Drive2, 6, 86
1999–2007AudiTT Roadster (8N) 8N91.8 TPetrol · 120 kW · 1.8L · 4-cylFront-Wheel Drive2, 6
1998–2012VWNew Beetle (9C_, 1C1)1.8 TPetrol · 132 kW · 1.8L · 4-cylFront-Wheel Drive2, 6, 86
1998–2012VWNew Beetle (9C_, 1C1)2.5Petrol · 110 kW · 2.5L · 5-cylFront-Wheel Drive2, 6, 86
2002–2012VWNew Beetle Convertible (1Y_)2.5Petrol · 110 kW · 2.5L · 5-cylFront-Wheel Drive2, 6, 86
1997–2008VWGolf IV (1J_)1.6Petrol · 74 kW · 1.6L · 4-cylFront-Wheel Drive2, 6, 86
1997–2008VWGolf IV (1J_)2.8 VR6Petrol · 147 kW · 2.8L · 6-cylFront-Wheel Drive2, 6, 86
1999–2006SeatLeon (1M1)2.8Petrol · 150 kW · 2.8L · 6-cylFront-Wheel Drive2, 6, 86
1999–2006SeatLeon (1M1)1.6Petrol · 75 kW · 1.6L · 4-cylFront-Wheel Drive2, 6, 86
2002–2012VWNew Beetle Convertible (1Y_)1.9 TDIDiesel · 66 kW · 1.9L · 4-cylFront-Wheel Drive2, 6, 86
1997–2008VWGolf IV (1J_)1.8Petrol · 127 kW · 1.8L · 4-cylFront-Wheel Drive2, 6, 86
1996–2006AudiA3 (8L) 8L11.6Petrol · 74 kW · 1.6L · 4-cylFront-Wheel Drive2, 6, 86
1996–2006AudiA3 (8L) 8L11.8Petrol · 92 kW · 1.8L · 4-cylFront-Wheel Drive2, 6, 86
1996–2006AudiA3 (8L) 8L11.8 TPetrol · 110 kW · 1.8L · 4-cylFront-Wheel Drive2, 6, 86
1996–2006AudiA3 (8L) 8L11.9 TDIDiesel · 66 kW · 1.9L · 4-cylFront-Wheel Drive2, 6, 86
1996–2006AudiA3 (8L) 8L11.9 TDIDiesel · 81 kW · 1.9L · 4-cylFront-Wheel Drive2, 6, 86
1997–2008VWGolf IV (1J_)1.9 TDIDiesel · 66 kW · 1.9L · 4-cylFront-Wheel Drive2, 6, 86
1997–2008VWGolf IV (1J_)1.9 TDIDiesel · 81 kW · 1.9L · 4-cylFront-Wheel Drive2, 6, 86
1997–2008VWGolf IV (1J_)1.9 SDIDiesel · 50 kW · 1.9L · 4-cylFront-Wheel Drive2, 6, 86
1997–2008VWGolf IV (1J_)1.4 16VPetrol · 55 kW · 1.4L · 4-cylFront-Wheel Drive2, 6, 86
1997–2008VWGolf IV (1J_)1.8Petrol · 92 kW · 1.8L · 4-cylFront-Wheel Drive2, 6, 86
1997–2008VWGolf IV (1J_)1.8 TPetrol · 110 kW · 1.8L · 4-cylFront-Wheel Drive2, 6, 86
1997–2008VWGolf IV (1J_)2.3 V5Petrol · 110 kW · 2.3L · 5-cylFront-Wheel Drive2, 6, 86
1998–2012VWNew Beetle (9C_, 1C1)2.0Petrol · 85 kW · 2.0L · 4-cylFront-Wheel Drive2, 6, 86
1998–2012VWNew Beetle (9C_, 1C1)1.9 TDIDiesel · 66 kW · 1.9L · 4-cylFront-Wheel Drive2, 6, 86
1998–2007AudiTT (8N) 8N31.8 TPetrol · 132 kW · 1.8L · 4-cylFront-Wheel Drive2, 6
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 6: When using original tyres, wheel offset spacers may be required.
  • Note 14: Only for vehicles with ESP.
  • Note 86: We recommend to replace the anti-sway bar for more spring travel and comfort. KW Part No. 685 50 000 Anti-sway bar conversion set for vehicles with Xenon headlights: KW Part No. 685 50 005.
