KW Coilover Kit V2 for Audi (8R) SQ5 / Q5
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW's V2 adds adjustable rebound damping to KW's height-adjustable coilover platform. The twin-tube dampers offer 16 clicks of rebound adjustment, so the setup can be made firmer or more comfortable without changing the compression damping. As with all KW coilovers, the base setting is developed for each vehicle on KW's 7-post rig and in road testing, including the Nürburgring Nordschleife. This kit is developed for the Audi SQ5 / Q5 (8R).
Key Features
- Rebound damping adjustable in 16 clicks
- Vehicle-specific base damper setting
- Continuous ride height adjustment within the tested range
Specifications
- Version: V2
- Damping: Adjustable rebound
- Material: Stainless steel
- Front lowering: 40–80 mm
- Rear lowering: 45–85 mm
- Front axle load: 1,221–1,325 kg
- Rear axle load: up to 1,360 kg

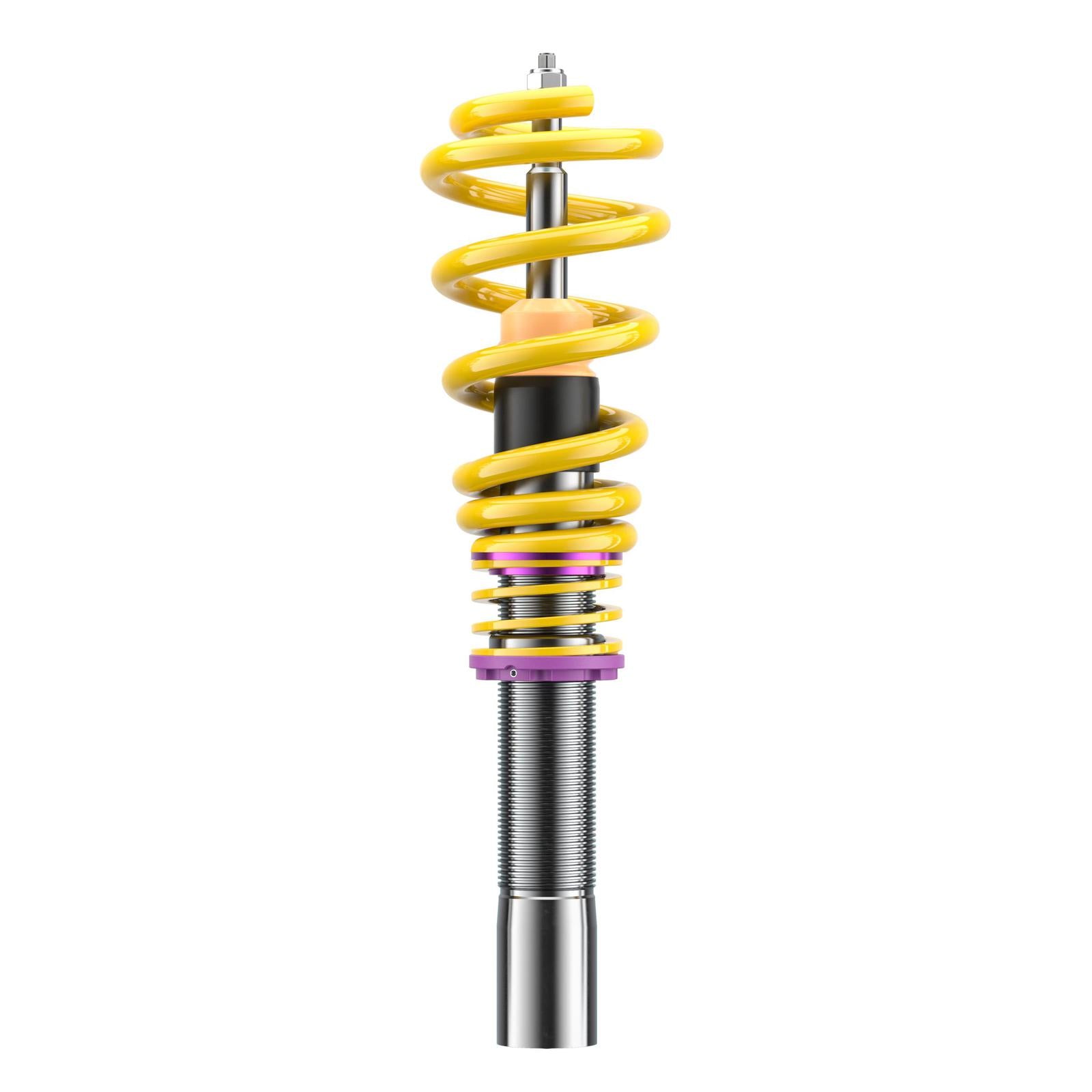

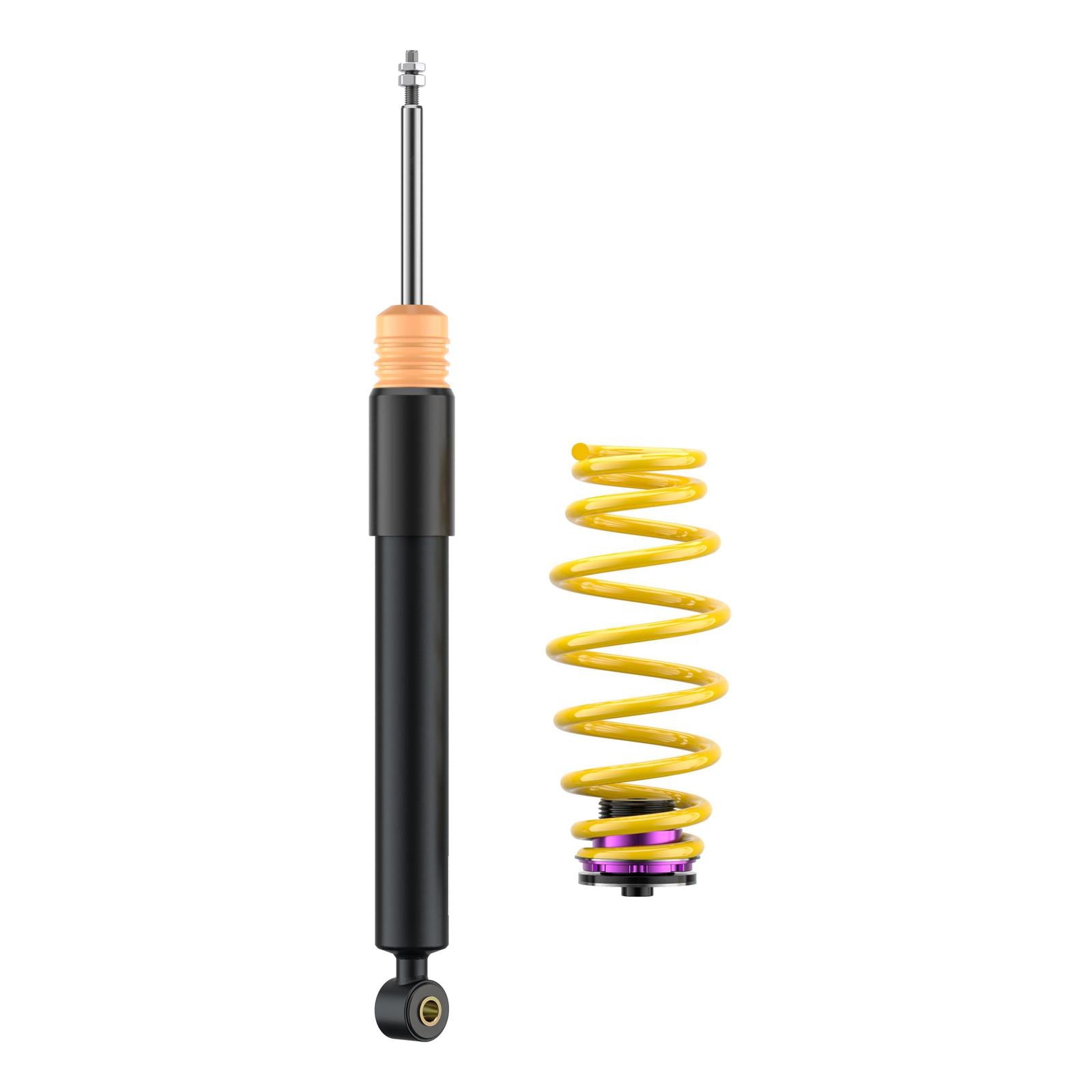

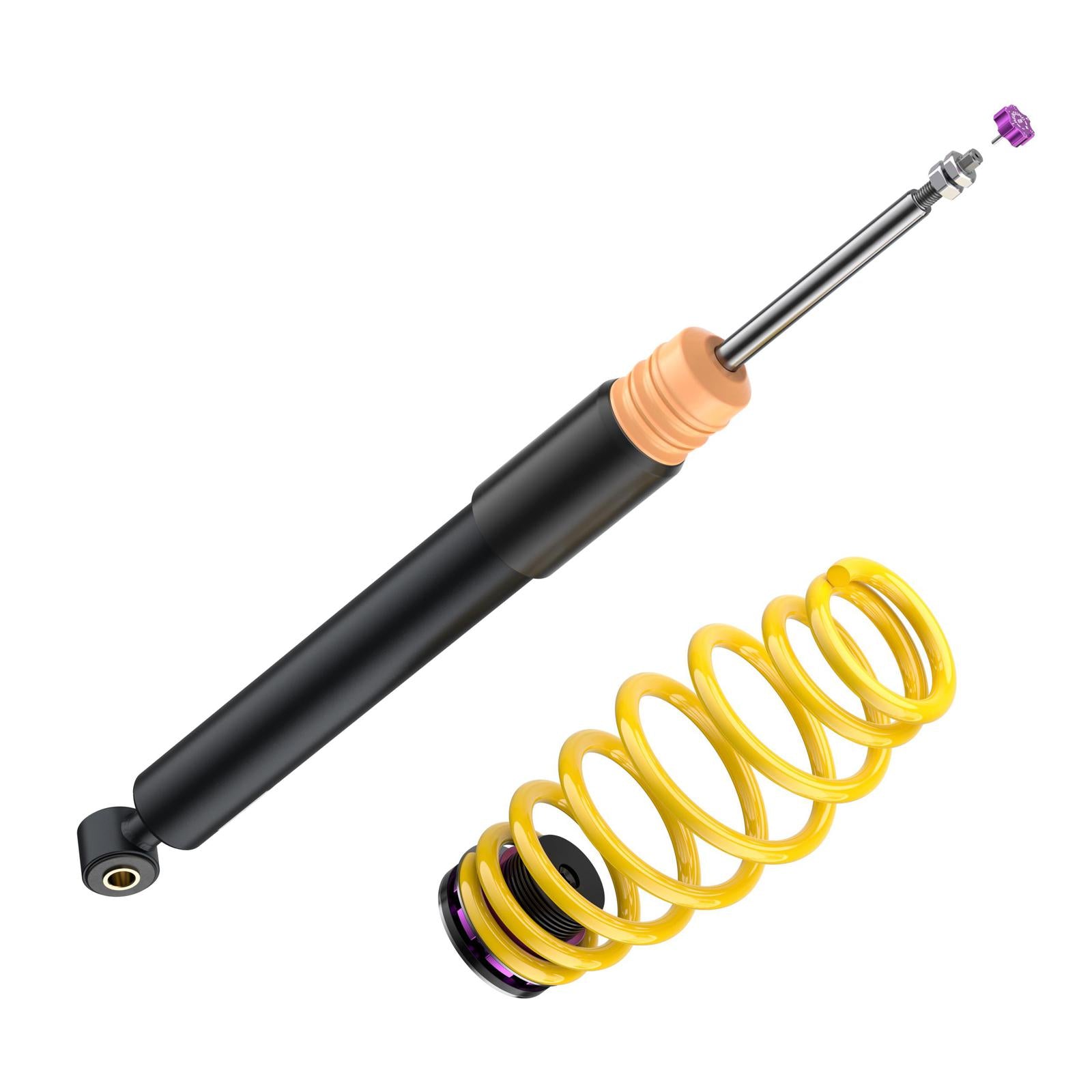

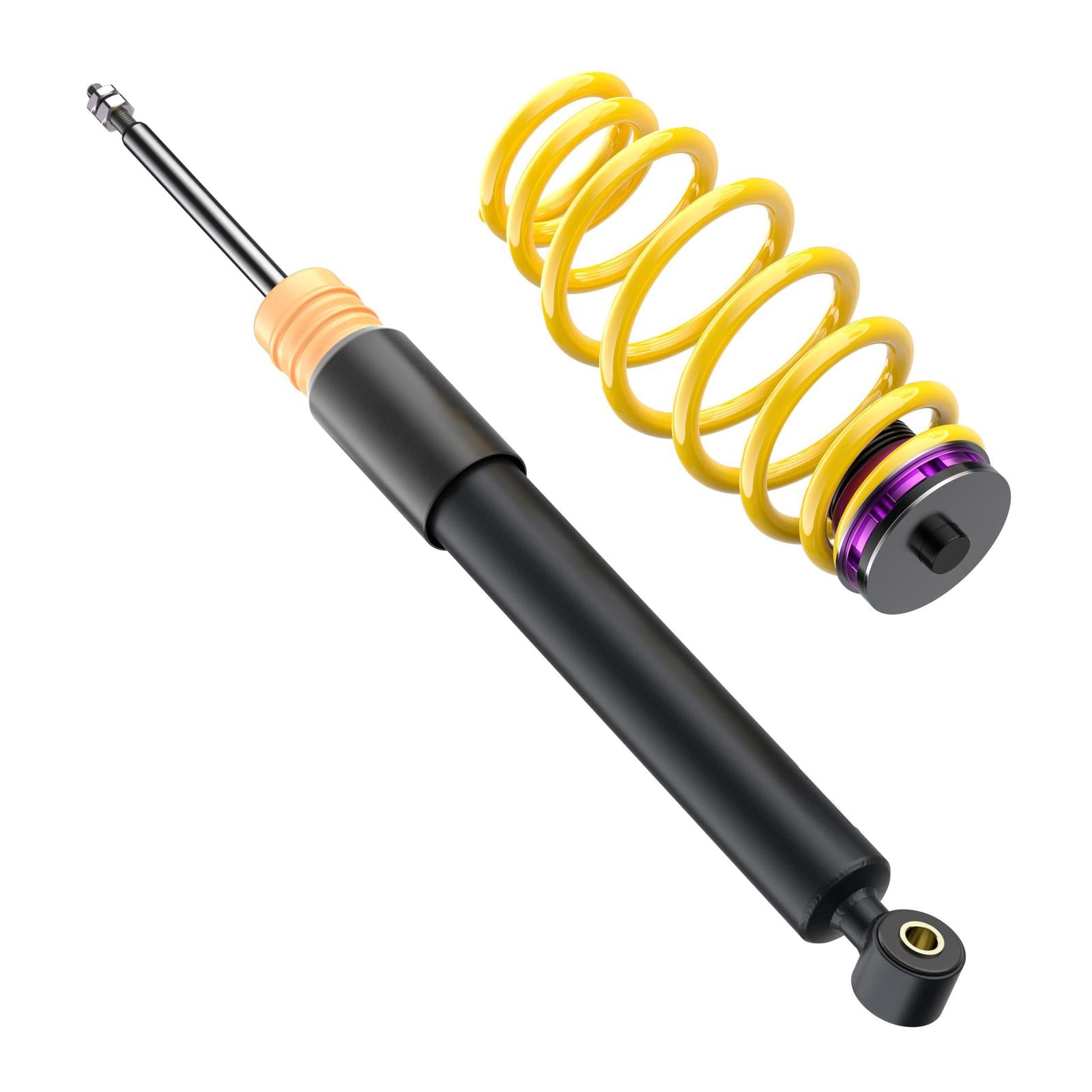

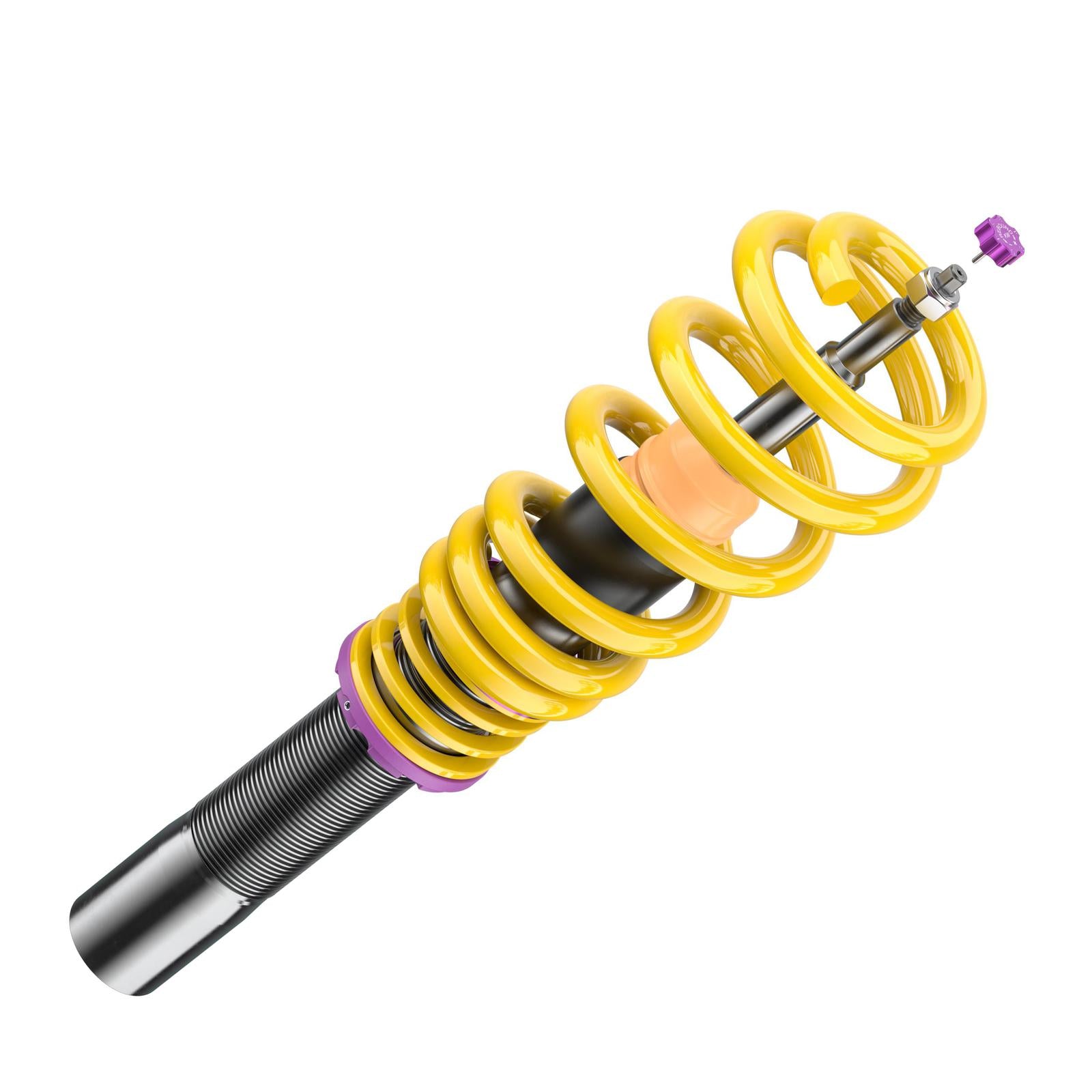

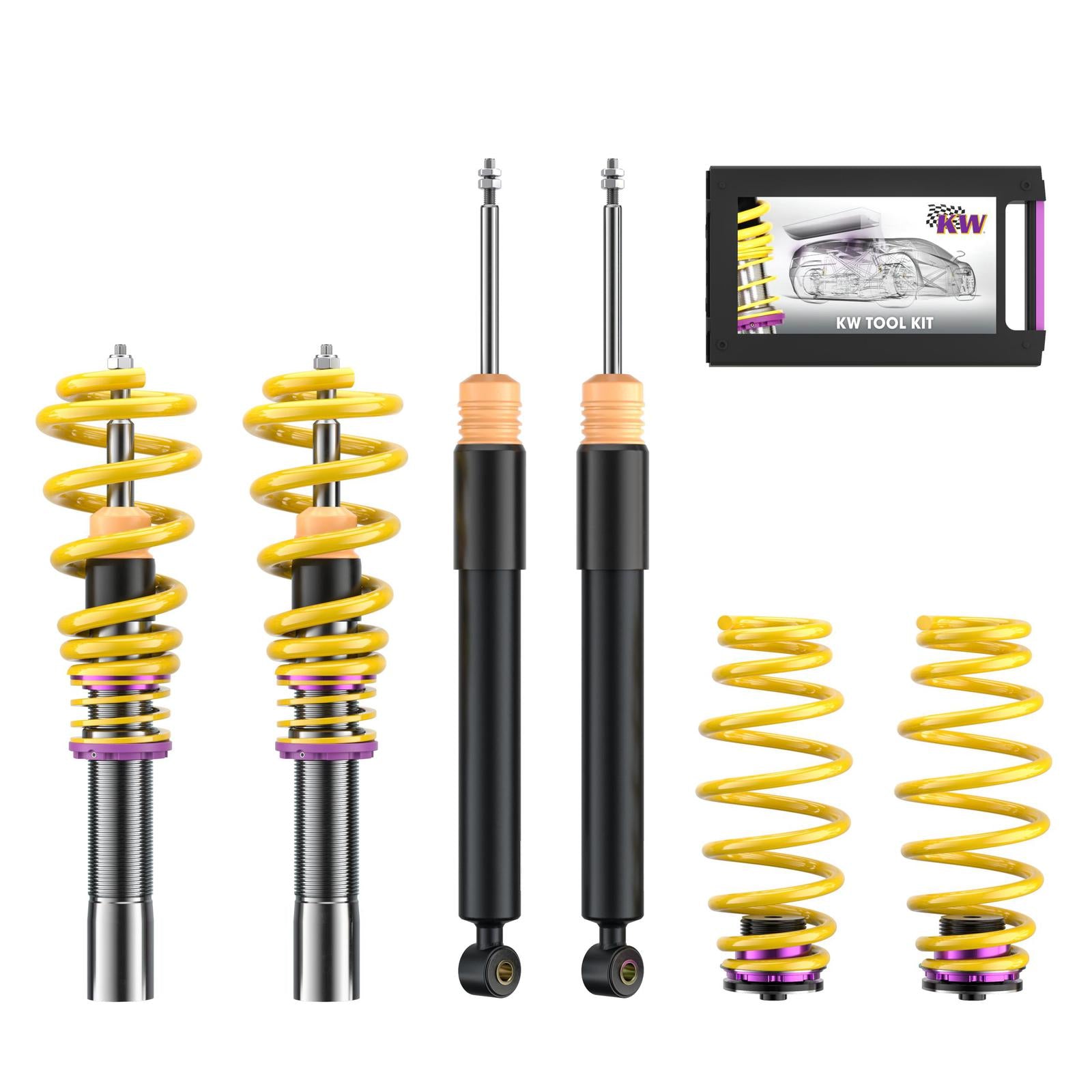

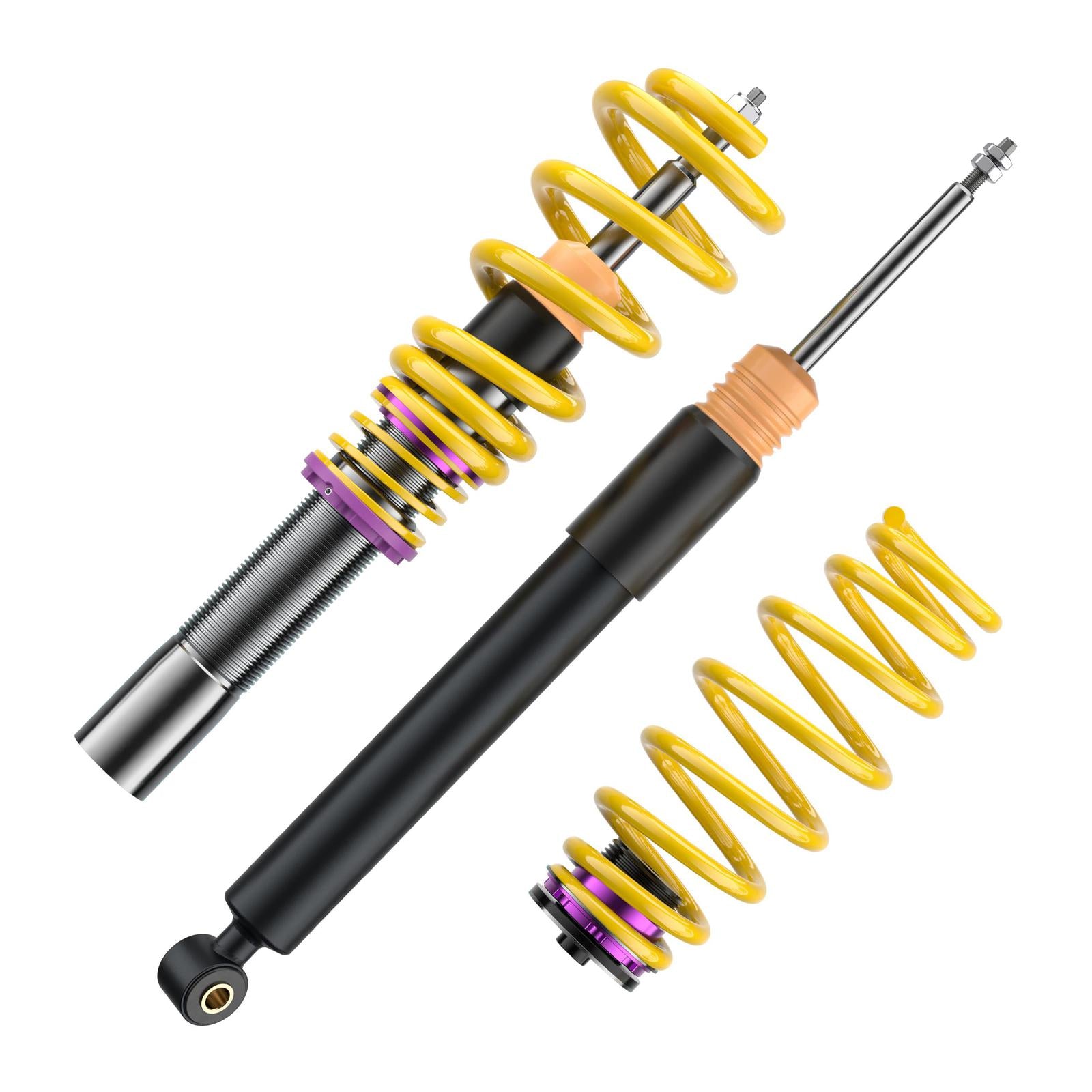

- Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Front axle load 1,221–1,325 kg; Rear axle load up to 1,360 kg.
For vehicles without electronic damper control.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Notes | Refs |
|---|---|---|---|---|---|---|---|
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | 2.0 TDI | Diesel · 140 kW · 2.0L · 4-cyl | Front-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | 2.0 TDI quattro | Diesel · 120 kW · 2.0L · 4-cyl | All-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | 2.0 TDI quattro | Diesel · 125 kW · 2.0L · 4-cyl | All-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | 2.0 TDI quattro | Diesel · 130 kW · 2.0L · 4-cyl | All-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | 2.0 TDI quattro | Diesel · 140 kW · 2.0L · 4-cyl | All-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | 2.0 TFSI quattro | Petrol · 162 kW · 2.0L · 4-cyl | All-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | 3.0 TDI quattro | Diesel · 155 kW · 3.0L · 6-cyl | All-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | 3.0 TDI quattro | Diesel · 176 kW · 3.0L · 6-cyl | All-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | 3.0 TDI quattro | Diesel · 180 kW · 3.0L · 6-cyl | All-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | 3.0 TDI quattro | Diesel · 184 kW · 3.0L · 6-cyl | All-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | 3.0 TDI quattro | Diesel · 190 kW · 3.0L · 6-cyl | All-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | 3.0 TFSI quattro | Petrol · 200 kW · 3.0L · 6-cyl | All-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | 3.2 FSI quattro | Petrol · 199 kW · 3.2L · 6-cyl | All-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | SQ5 TDI quattro | Diesel · 230 kW · 3.0L · 6-cyl | All-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | SQ5 TDI quattro | Diesel · 240 kW · 3.0L · 6-cyl | All-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | SQ5 TDI quattro | Diesel · 250 kW · 3.0L · 6-cyl | All-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | SQ5 TFSI quattro | Petrol · 260 kW · 3.0L · 6-cyl | All-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
- Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
- Note 10: In Variant 2, hardness adjustment for front axle only in not installed condition possible.
- Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
- Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
