KW Coilover Kit V2 for Chrysler (ZH) Crossfire SRT-6 / Crossfire

SKU: 15227009
Sale price$3,761.05 Regular price$3,959.00
Save $197.95

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

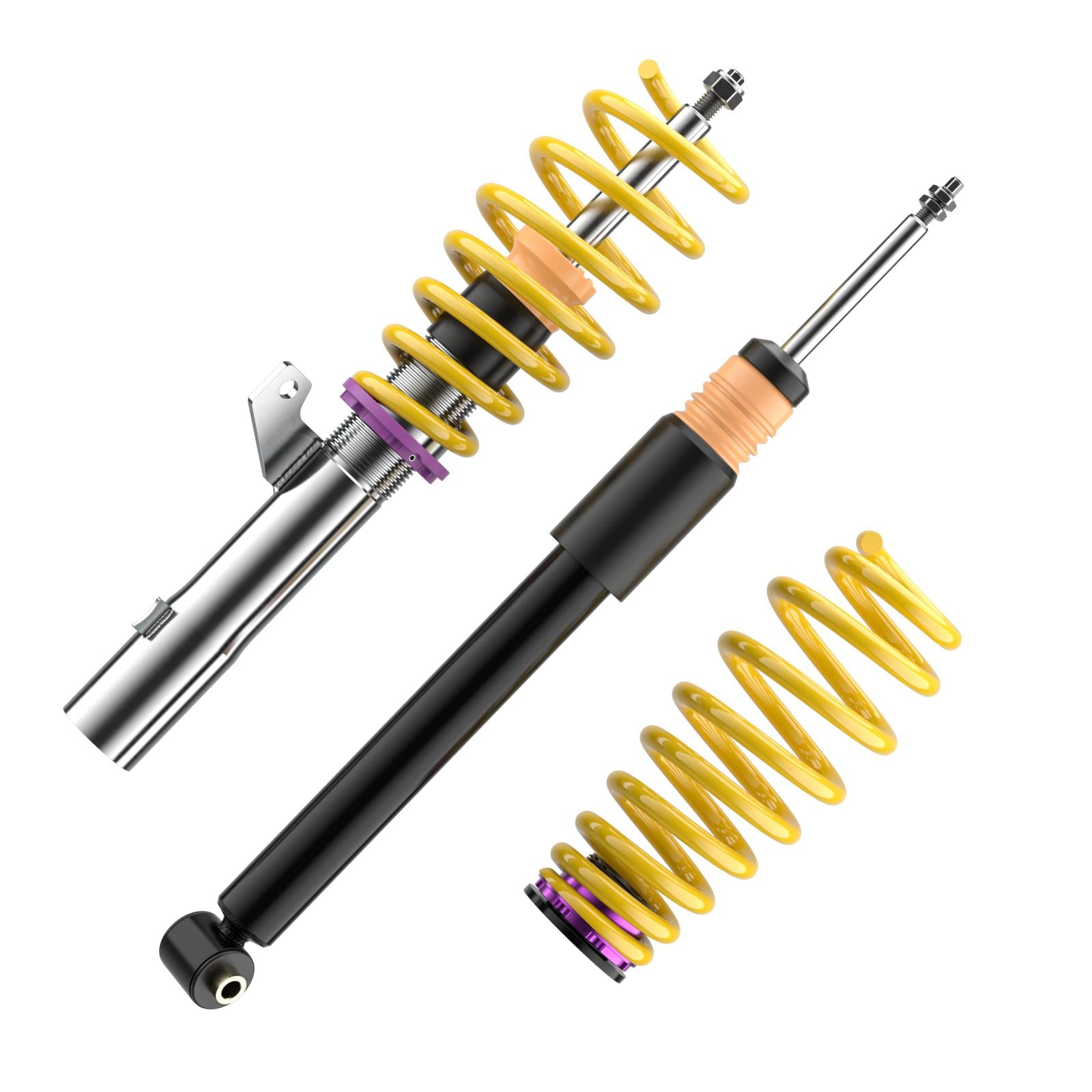

KW's V2 adds adjustable rebound damping to KW's height-adjustable coilover platform. The twin-tube dampers offer 16 clicks of rebound adjustment, so the setup can be made firmer or more comfortable without changing the compression damping. As with all KW coilovers, the base setting is developed for each vehicle on KW's 7-post rig and in road testing, including the Nürburgring Nordschleife. This kit is developed for the Chrysler Crossfire SRT-6 / Crossfire (ZH).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Vehicle-specific base damper setting
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V2
  • Damping: Adjustable rebound
  • Material: Stainless steel
  • Front lowering: 25–50 mm
  • Rear lowering: 25–50 mm
  • Front axle load: up to 905 kg
  • Rear axle load: up to 850 kg

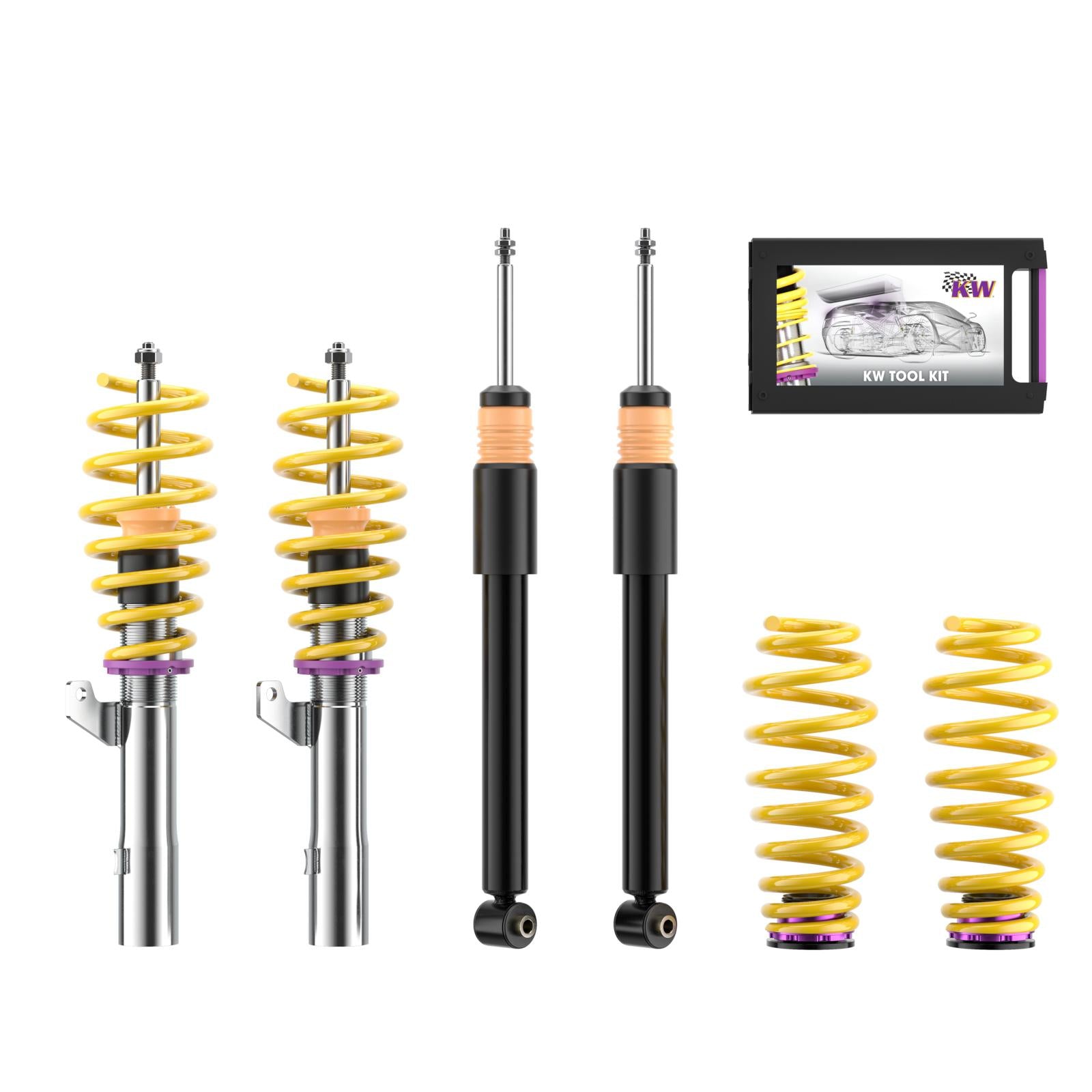

  • Supplied as: Front and rear height-adjustable (front and rear springs with height adjustment + shock absorbers)

Front axle load up to 905 kg; Rear axle load up to 850 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2003–2008ChryslerCrossfire (ZH)3.2Petrol · 160 kW · 3.2L · 6-cylRear-Wheel Drive0, 63, 94
2004–2008ChryslerCrossfire Roadster (ZH)3.2Petrol · 160 kW · 3.2L · 6-cylRear-Wheel Drive0, 63, 94
2003–2008ChryslerCrossfire (ZH)SRT-6Petrol · 246 kW · 3.2L · 6-cylRear-Wheel Drive0, 63, 94
2004–2008ChryslerCrossfire Roadster (ZH)SRT-6Petrol · 246 kW · 3.2L · 6-cylRear-Wheel Drive0, 63, 94
  • Note 0: Front and rear height-adjustable (front and rear springs with height adjustment + shock absorbers).
  • Note 63: To achieve the necessary clearance of the wheels on the front axle, significant modifications are necessary at the inside of the fender (at the front side of the wheel arch) (only Chrysler Crossfire). On the rear axle you have to modify the chassis fold in the area of the stabilizer for achieving a sufficient clearance of the stabilizer.
  • Note 94: Specific damping variants only available while stocks last. For further information please send an email to sales@scuderia-autoart.com.
