KW Coilover Kit V2 for Citroen (N) DS4 / DS4 Crossback
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW Coilover Kit V2 for Citroen (N) DS4 / DS4 Crossback
Sale price$3,286.05
Regular price$3,459.00 (/)
KW's V2 adds adjustable rebound damping to KW's height-adjustable coilover platform. The twin-tube dampers offer 16 clicks of rebound adjustment, so the setup can be made firmer or more comfortable without changing the compression damping. As with all KW coilovers, the base setting is developed for each vehicle on KW's 7-post rig and in road testing, including the Nürburgring Nordschleife. This kit is developed for the Citroen DS4 / DS 4 Crossback (N).
Key Features

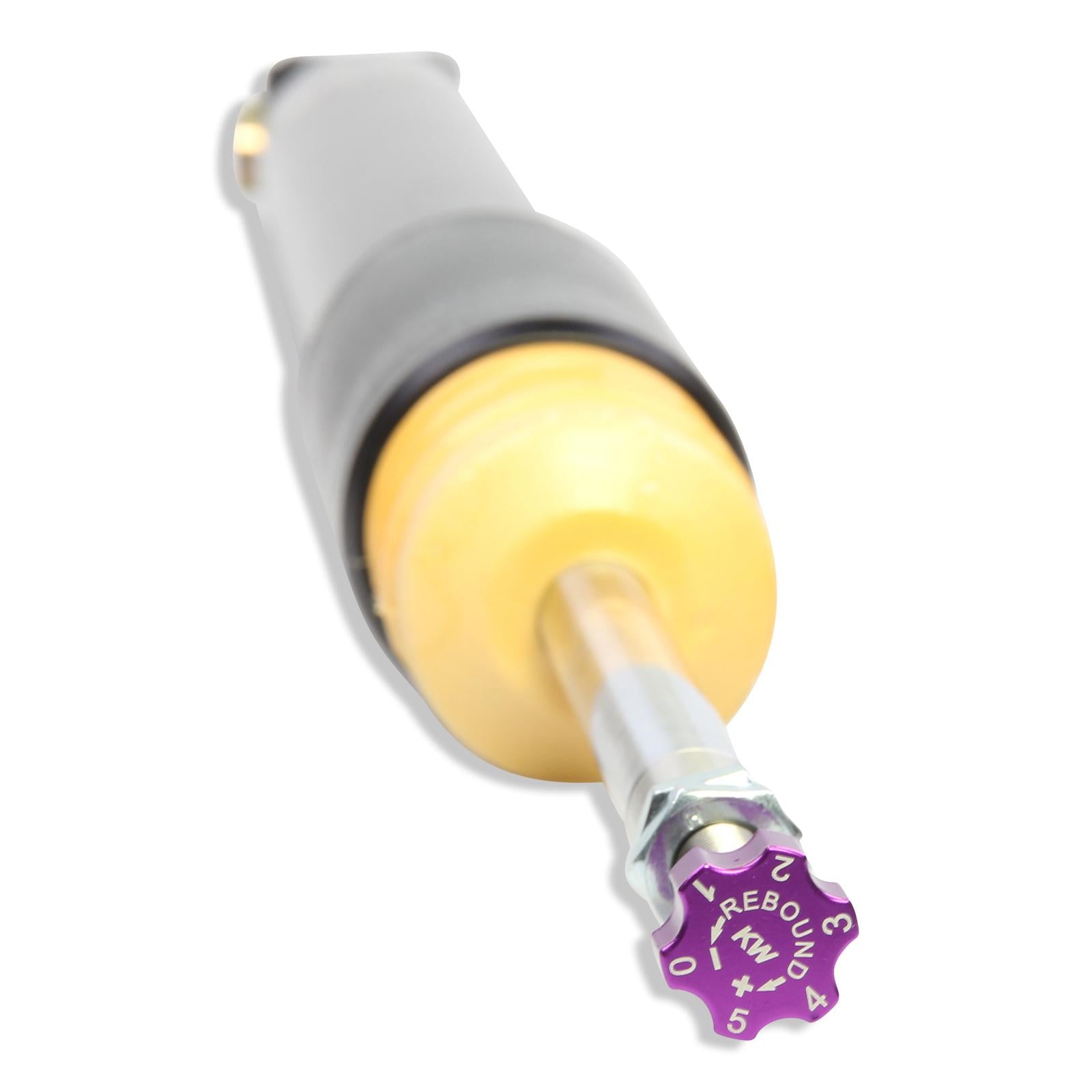

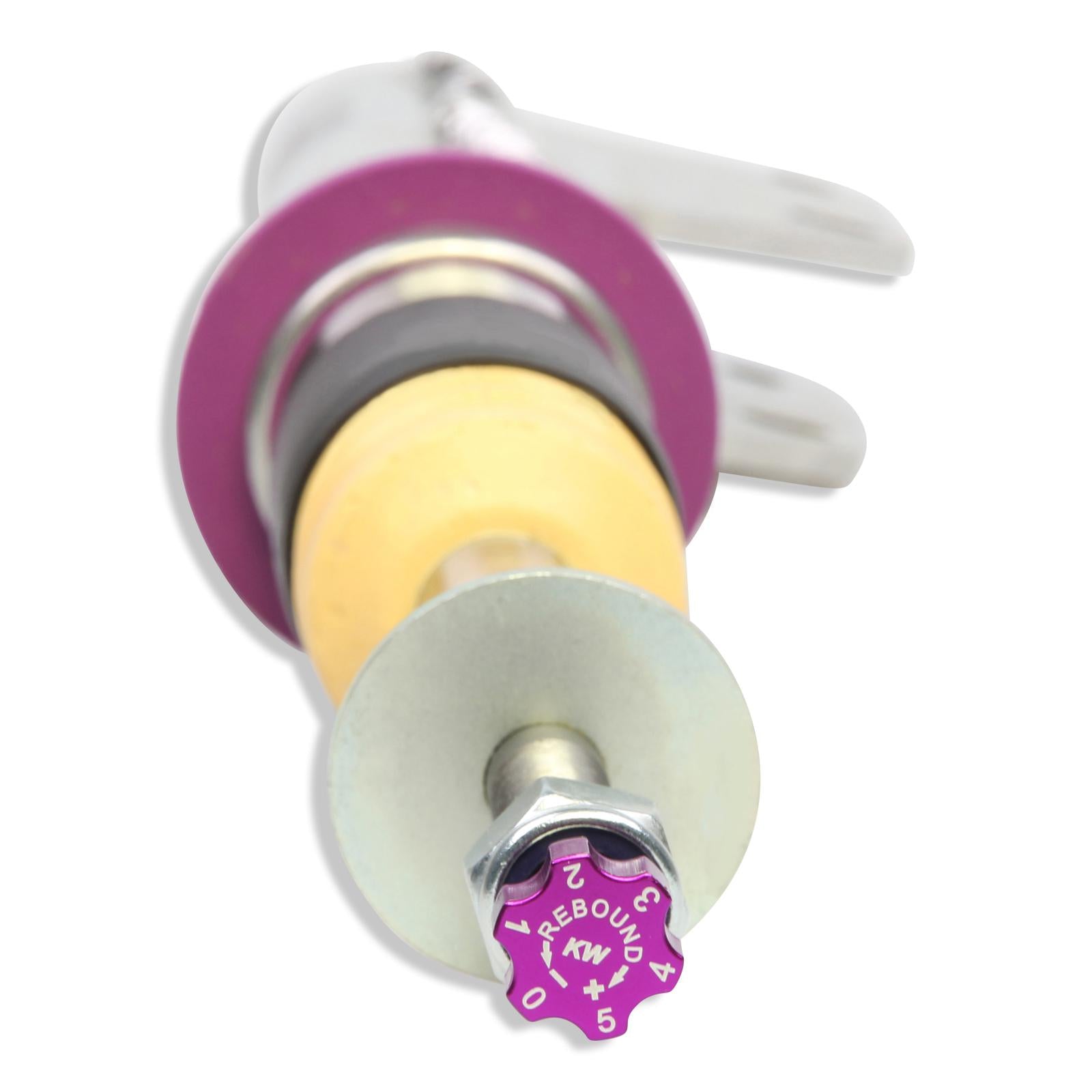

- Rebound damping adjustable in 16 clicks
- Vehicle-specific base damper setting
- Continuous ride height adjustment within the tested range
Specifications
- Version: V2
- Damping: Adjustable rebound
- Material: Stainless steel
- Front lowering: 30–60 mm
- Rear lowering: 50–75 mm
- Front axle load: up to 1,100 kg
- Rear axle load: up to 920 kg

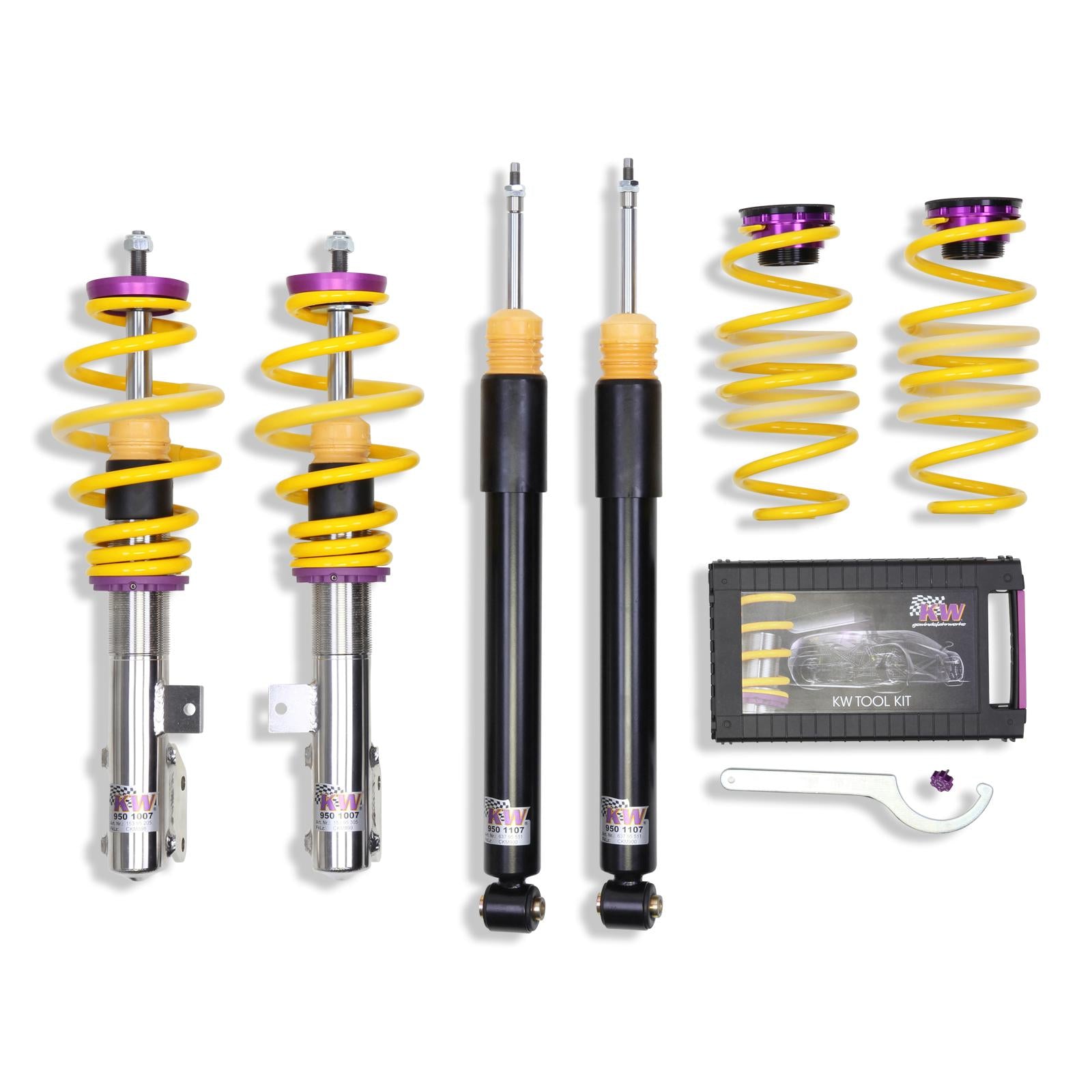

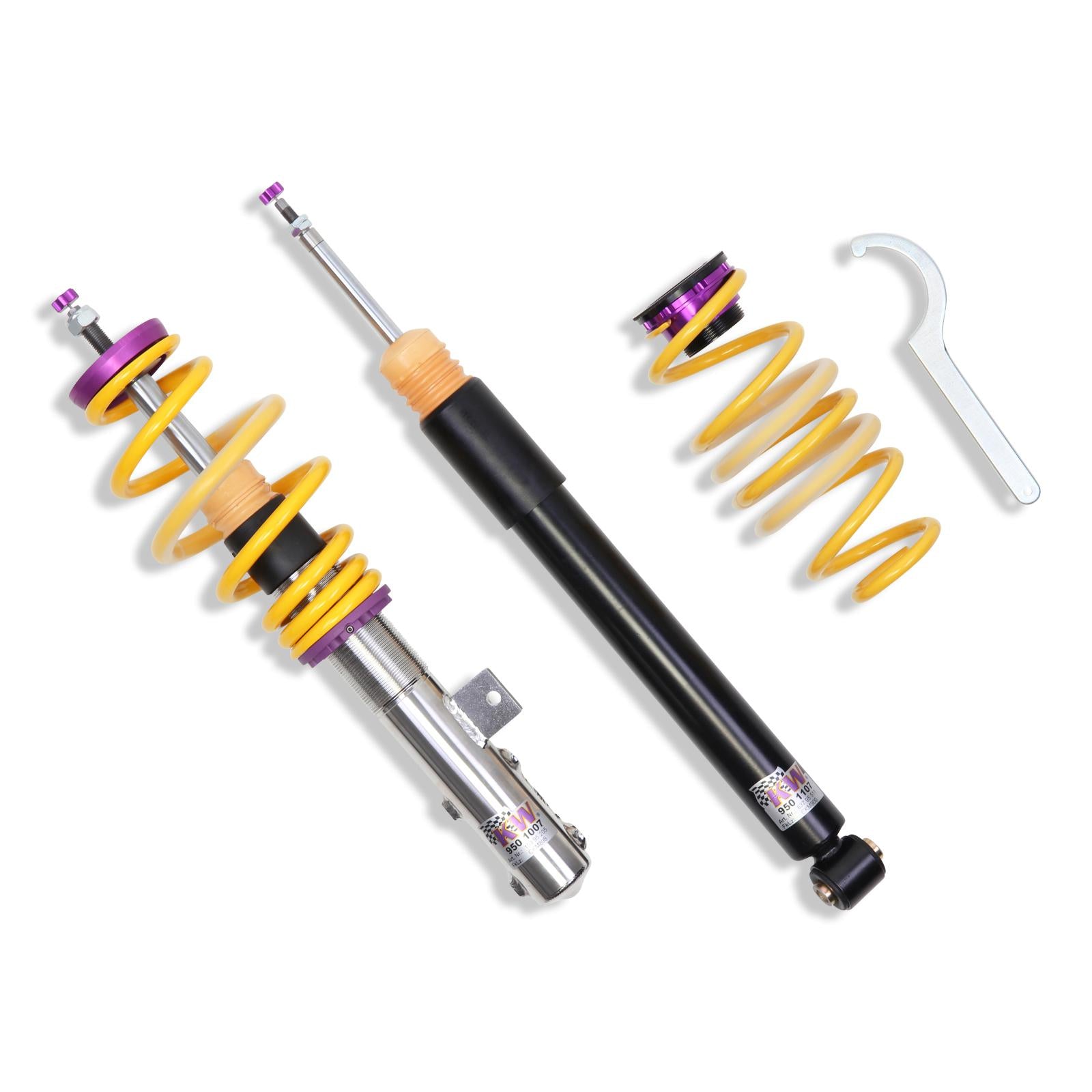

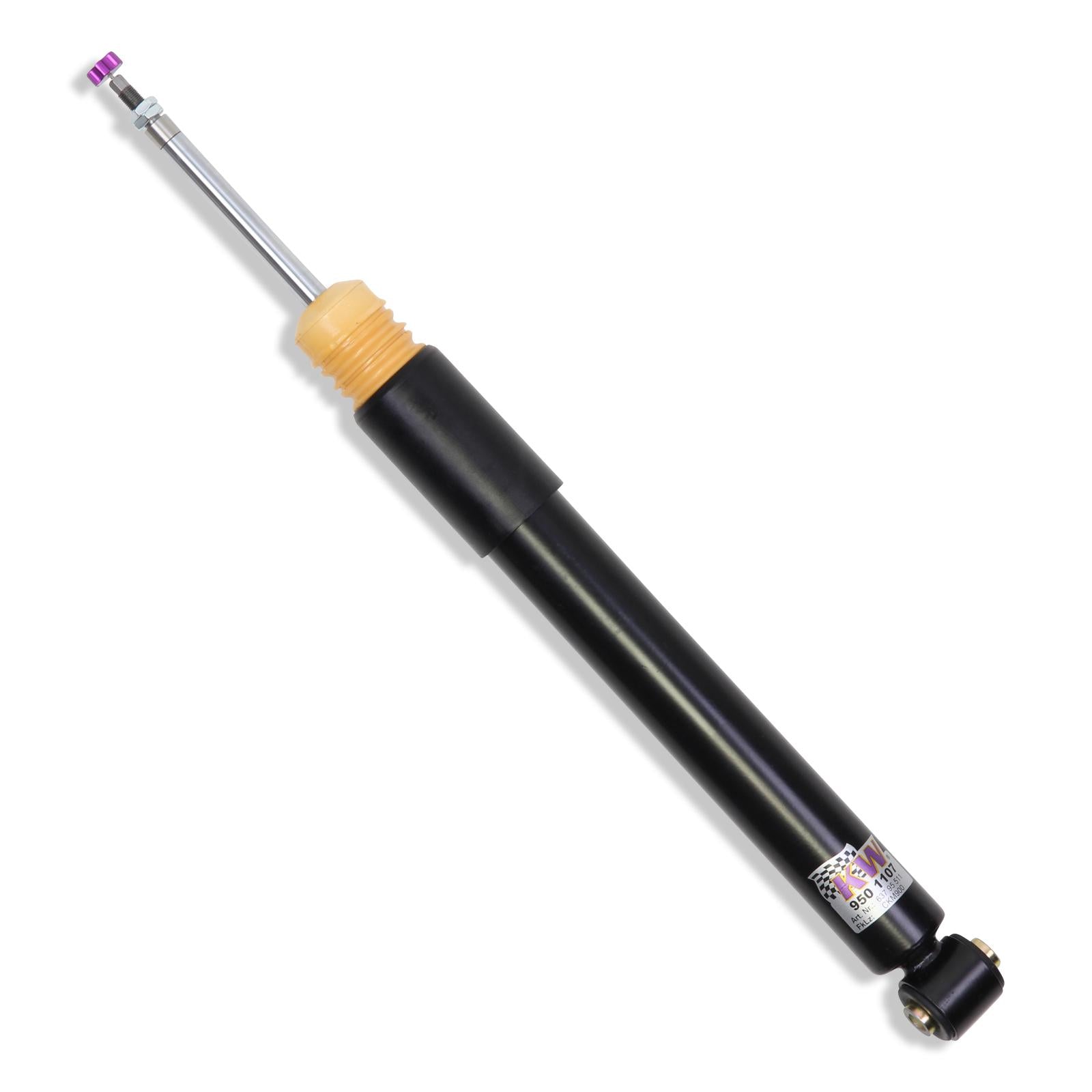

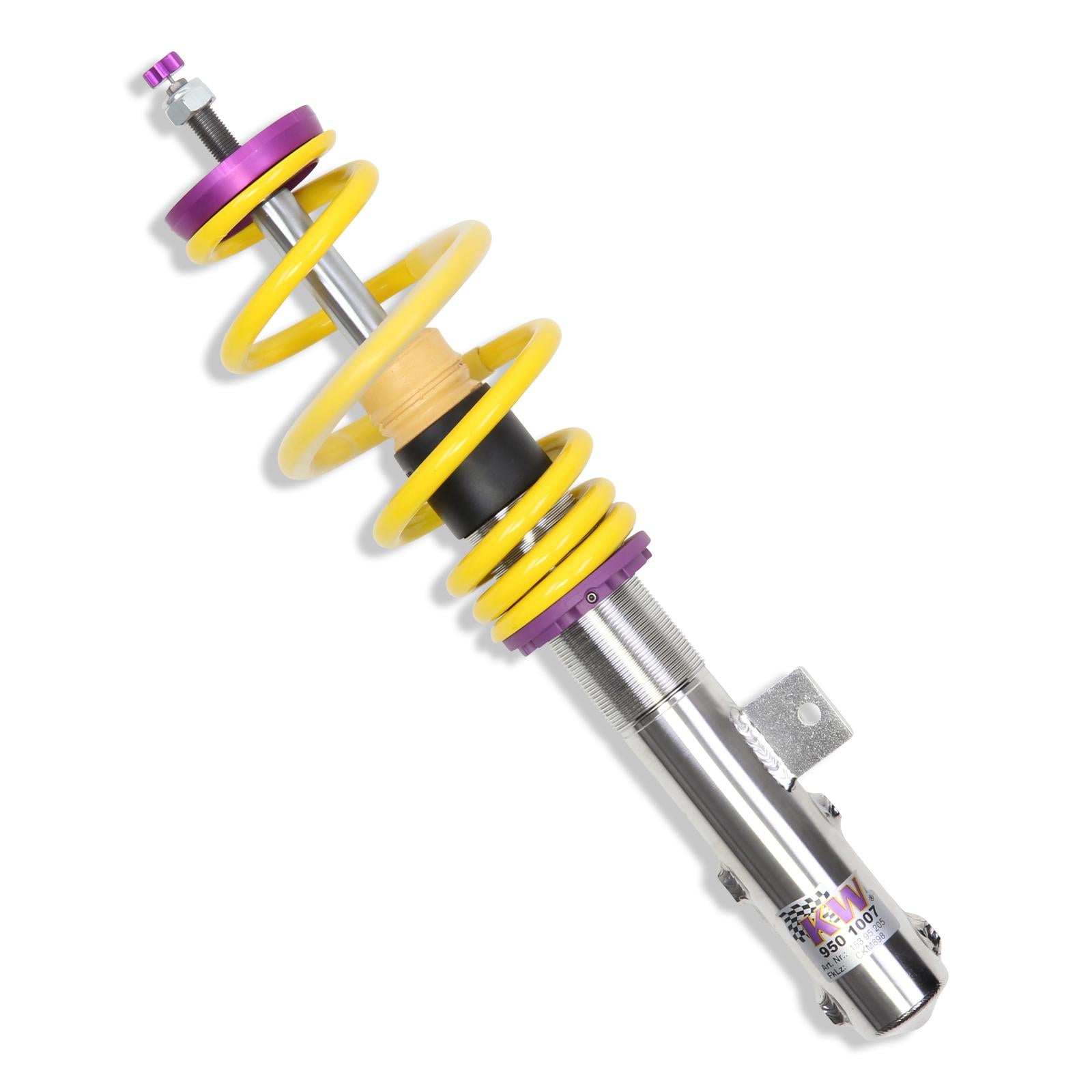

- Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Front axle load up to 1,100 kg; Rear axle load up to 920 kg.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 2011–2015 | Citroën | DS4 (N) | 1.6 BlueHDi 120 | Diesel · 88 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 6, 87 |
| 2011–2015 | Citroën | DS4 (N) | 2.0 BlueHDi 180 | Diesel · 133 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 6, 87 |
| 2011–2015 | Citroën | DS4 (N) | 2.0 BlueHDi 150 | Diesel · 110 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 6, 87 |
| 2011–2015 | Citroën | DS4 (N) | 1.2 THP 130 | Petrol · 96 kW · 1.2L · 3-cyl | Front-Wheel Drive | 2, 6, 87 |
| 2011–2015 | Citroën | DS4 (N) | 1.6 THP 210 | Petrol · 155 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 6, 87 |
| 2011–2015 | Citroën | DS4 (N) | 1.6 BlueHDi 115 | Diesel · 85 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 6, 87 |
| 2015–2018 | DS | DS 4 / DS 4 Crossback (N) | 1.2 THP 130 (NXHNYM) | Petrol · 96 kW · 1.2L · 3-cyl | Front-Wheel Drive | 2, 6, 87 |
| 2015–2018 | DS | DS 4 / DS 4 Crossback (N) | 1.6 THP 165 | Petrol · 121 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 6, 87 |
| 2015–2018 | DS | DS 4 / DS 4 Crossback (N) | 1.6 THP 210 | Petrol · 155 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 6, 87 |
| 2015–2018 | DS | DS 4 / DS 4 Crossback (N) | 1.6 BlueHDi 120 | Diesel · 88 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 6, 87 |
| 2015–2018 | DS | DS 4 / DS 4 Crossback (N) | 2.0 BlueHDi 150 | Diesel · 110 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 6, 87 |
| 2015–2018 | DS | DS 4 / DS 4 Crossback (N) | 2.0 BlueHDi 180 | Diesel · 133 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 6, 87 |
| 2015–2018 | DS | DS 4 / DS 4 Crossback (N) | 1.6 BlueHDi 100 | Diesel · 73 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 6, 87 |
| 2015–2018 | DS | DS 4 / DS 4 Crossback (N) | 1.6 THP 160 | Petrol · 120 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 6, 87 |
| 2015–2018 | DS | DS 4 / DS 4 Crossback (N) | 1.6 THP 150 | Petrol · 110 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 6, 87 |
| 2015–2018 | DS | DS 4 / DS 4 Crossback (N) | 1.6 BlueHDi 115 | Diesel · 85 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 6, 87 |
| 2011–2015 | Citroën | DS4 (N) | 1.6 THP 165 | Petrol · 121 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 6, 87 |
| 2011–2015 | Citroën | DS4 (N) | 1.6 THP 160 | Petrol · 120 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 6, 87 |
| 2011–2015 | Citroën | DS4 (N) | 1.6 HDi 115 | Diesel · 84 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 6, 87 |
| 2011–2015 | Citroën | DS4 (N) | 2.0 HDi / BlueHDi 135 | Diesel · 100 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 6, 87 |
| 2011–2015 | Citroën | DS4 (N) | 1.6 HDi 90 | Diesel · 68 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 6, 87 |
| 2011–2015 | Citroën | DS4 (N) | 1.6 THP 150 | Petrol · 110 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 6, 87 |
| 2011–2015 | Citroën | DS4 (N) | 1.6 VTi 120 | Petrol · 88 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 6, 87 |
| 2011–2015 | Citroën | DS4 (N) | 1.6 THP 155 | Petrol · 115 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 6, 87 |
| 2011–2015 | Citroën | DS4 (N) | 1.6 THP 200 | Petrol · 147 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 6, 87 |
| 2011–2015 | Citroën | DS4 (N) | 1.6 HDi 110 | Diesel · 82 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 6, 87 |
| 2011–2015 | Citroën | DS4 (N) | 2.0 HDi 165 | Diesel · 120 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 6, 87 |
- Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
- Note 6: When using original tyres, wheel offset spacers may be required.
- Note 87: For ensuring the minimum necessary head light height of 350mm from the ground, the maximum lowering range could be reduced up to 20mm.
