KW Coilover Kit V2 for VW (1F) Eos V6
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW's V2 adds adjustable rebound damping to KW's height-adjustable coilover platform. The twin-tube dampers offer 16 clicks of rebound adjustment, so the setup can be made firmer or more comfortable without changing the compression damping. As with all KW coilovers, the base setting is developed for each vehicle on KW's 7-post rig and in road testing, including the Nürburgring Nordschleife. This kit is developed for the VW Eos V6 (1F).
Key Features
- Rebound damping adjustable in 16 clicks
- Vehicle-specific base damper setting
- Continuous ride height adjustment within the tested range
Specifications
- Version: V2
- Damping: Adjustable rebound
- Material: Stainless steel
- Front lowering: 35–65 mm
- Rear lowering: 35–65 mm
- Front axle load: 1,106–1,150 kg
- Rear axle load: up to 1,000 kg
- Front strut diameter (vehicle): 55 mm

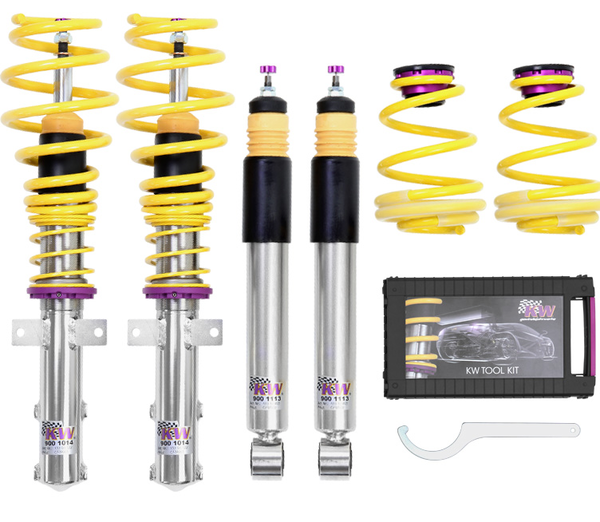

- Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Front axle load 1,106–1,150 kg; Rear axle load up to 1,000 kg.
For vehicles without electronic damper control.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 2006–2015 | VW | Eos (1F, 1F7, 1F8) | 2.0 TDI | Diesel · 100 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 23, 37, 57 |
| 2006–2015 | VW | Eos (1F, 1F7, 1F8) | 2.0 TDI | Diesel · 103 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 23, 37, 57 |
| 2006–2015 | VW | Eos (1F, 1F7, 1F8) | 2.0 TDI 16V | Diesel · 103 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 23, 37, 57 |
| 2006–2015 | VW | Eos (1F, 1F7, 1F8) | 2.0 TFSI | Petrol · 162 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 23, 37, 57 |
| 2006–2015 | VW | Eos (1F, 1F7, 1F8) | 3.2 V6 | Petrol · 184 kW · 3.2L · 6-cyl | Front-Wheel Drive | 2, 23, 37, 57 |
| 2006–2015 | VW | Eos (1F, 1F7, 1F8) | 3.6 V6 | Petrol · 191 kW · 3.6L · 6-cyl | Front-Wheel Drive | 2, 23, 37, 57 |
- Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
- Note 23: For Variant 2: Rear axle shock does not offer hardness adjustment.
- Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
- Note 57: Only for cars with a clamp diameter of 55mm on the front axle.
