KW Coilover Kit V2 for VW (A1) T-Roc R / T-Roc / T-Roc Cabriolet

SKU: 152800CM
Sale price$3,267.06 Regular price$3,439.00
Save $171.94

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V2 adds adjustable rebound damping to KW's height-adjustable coilover platform. The twin-tube dampers offer 16 clicks of rebound adjustment, so the setup can be made firmer or more comfortable without changing the compression damping. As with all KW coilovers, the base setting is developed for each vehicle on KW's 7-post rig and in road testing, including the Nürburgring Nordschleife. This kit is developed for the VW T-Roc R / T-Roc 4Motion (A1) / T-Roc Cabriolet.

Key Features

  • Rebound damping adjustable in 16 clicks
  • Vehicle-specific base damper setting
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V2
  • Damping: Adjustable rebound
  • Material: Stainless steel
  • Front lowering: 40–60 mm
  • Rear lowering: 35–60 mm
  • Front axle load: up to 1,100 kg
  • Rear axle load: up to 1,050 kg
  • Front strut diameter (vehicle): 55 mm

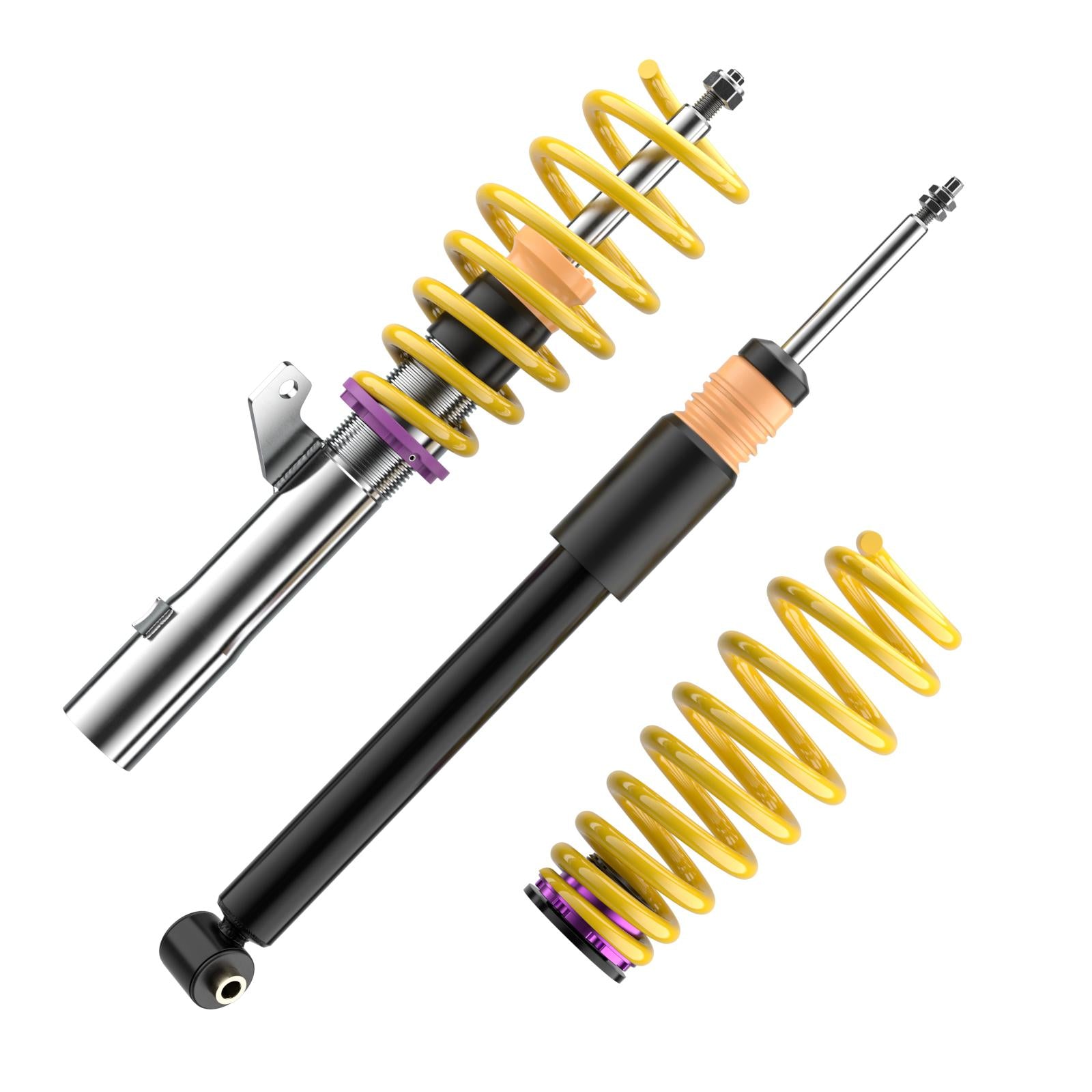

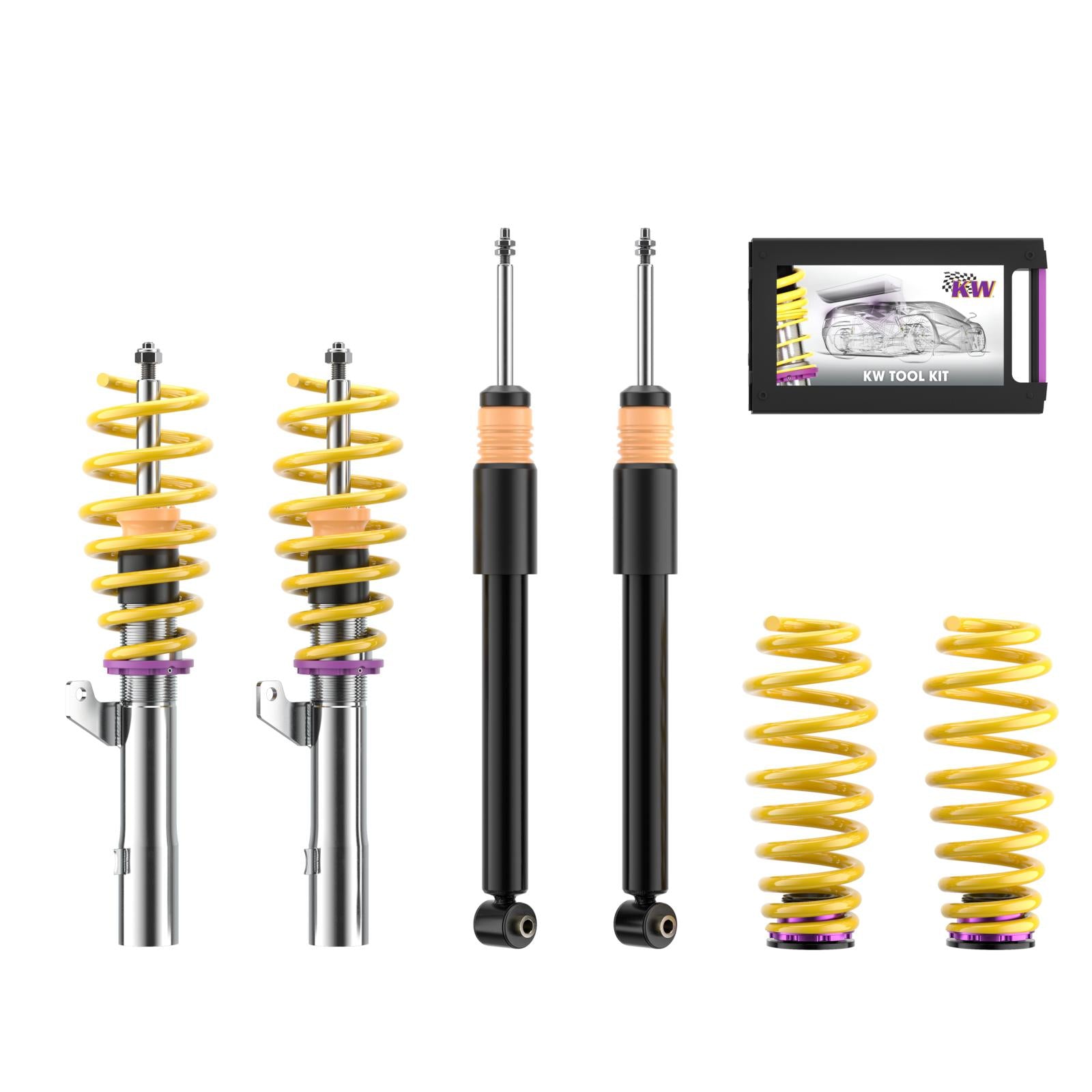

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Note For cars without DCC.

Front axle load up to 1,100 kg; Rear axle load up to 1,050 kg.

For vehicles without electronic damper control.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveNotesRefs
2017+VWT-Roc (A1, A11)1.5 TSI 4motionPetrol · 110 kW · 1.5L · 4-cylAll-Wheel DriveFor cars without DCC2, 37, 57, 67
2017+VWT-Roc (A1, A11)2.0 R 4motionPetrol · 221 kW · 2.0L · 4-cylAll-Wheel DriveFor cars without DCC2, 37, 57, 67
2017+VWT-Roc (A1, A11)2.0 TDI 4motionDiesel · 110 kW · 2.0L · 4-cylAll-Wheel DriveFor cars without DCC2, 37, 57, 67
2017+VWT-Roc (A1, A11)2.0 TDI 4motionDiesel · 140 kW · 2.0L · 4-cylAll-Wheel DriveFor cars without DCC2, 37, 57, 67
2017+VWT-Roc (A1, A11)2.0 TSI 4motionPetrol · 140 kW · 2.0L · 4-cylAll-Wheel DriveFor cars without DCC2, 37, 57, 67
2019+VWT-Roc Convertible (AC7, AC8)1.0 TSIPetrol · 81 kW · 1.0L · 3-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2019+VWT-Roc Convertible (AC7, AC8)1.0 TSIPetrol · 85 kW · 1.0L · 3-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
2019+VWT-Roc Convertible (AC7, AC8)1.5 TSIPetrol · 110 kW · 1.5L · 4-cylFront-Wheel DriveFor cars without DCC2, 37, 57, 67
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
  • Note 57: Only for cars with a clamp diameter of 55mm on the front axle.
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
