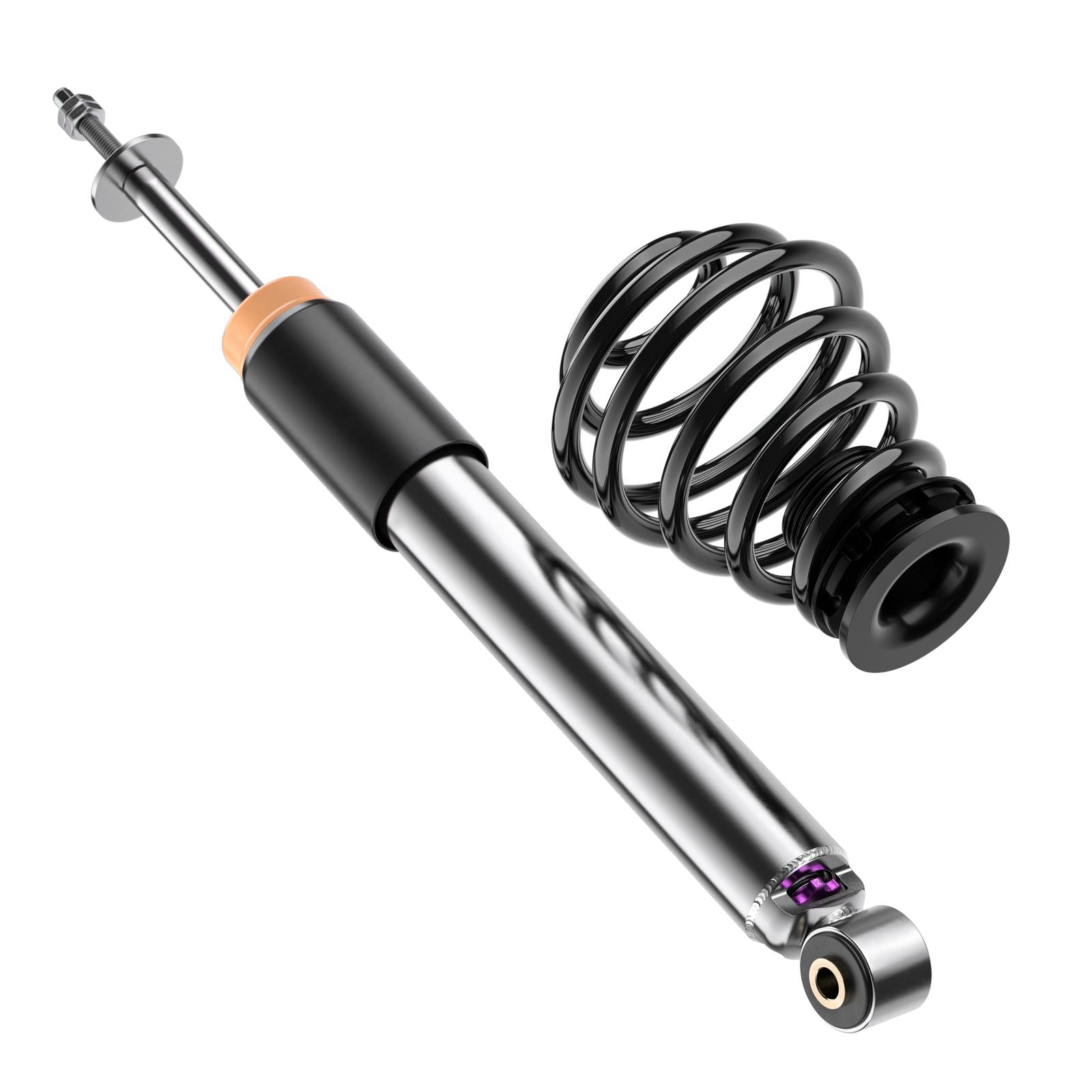

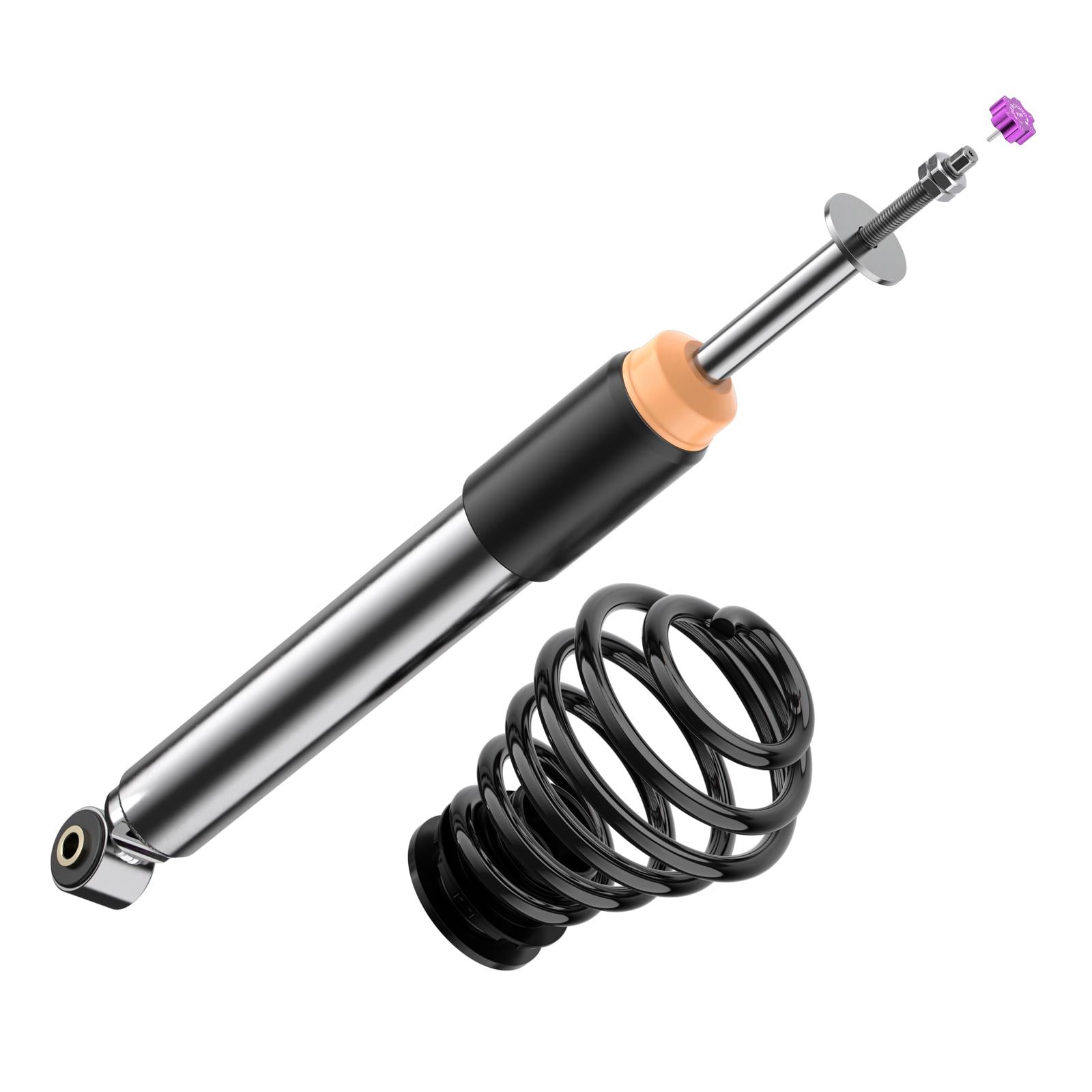

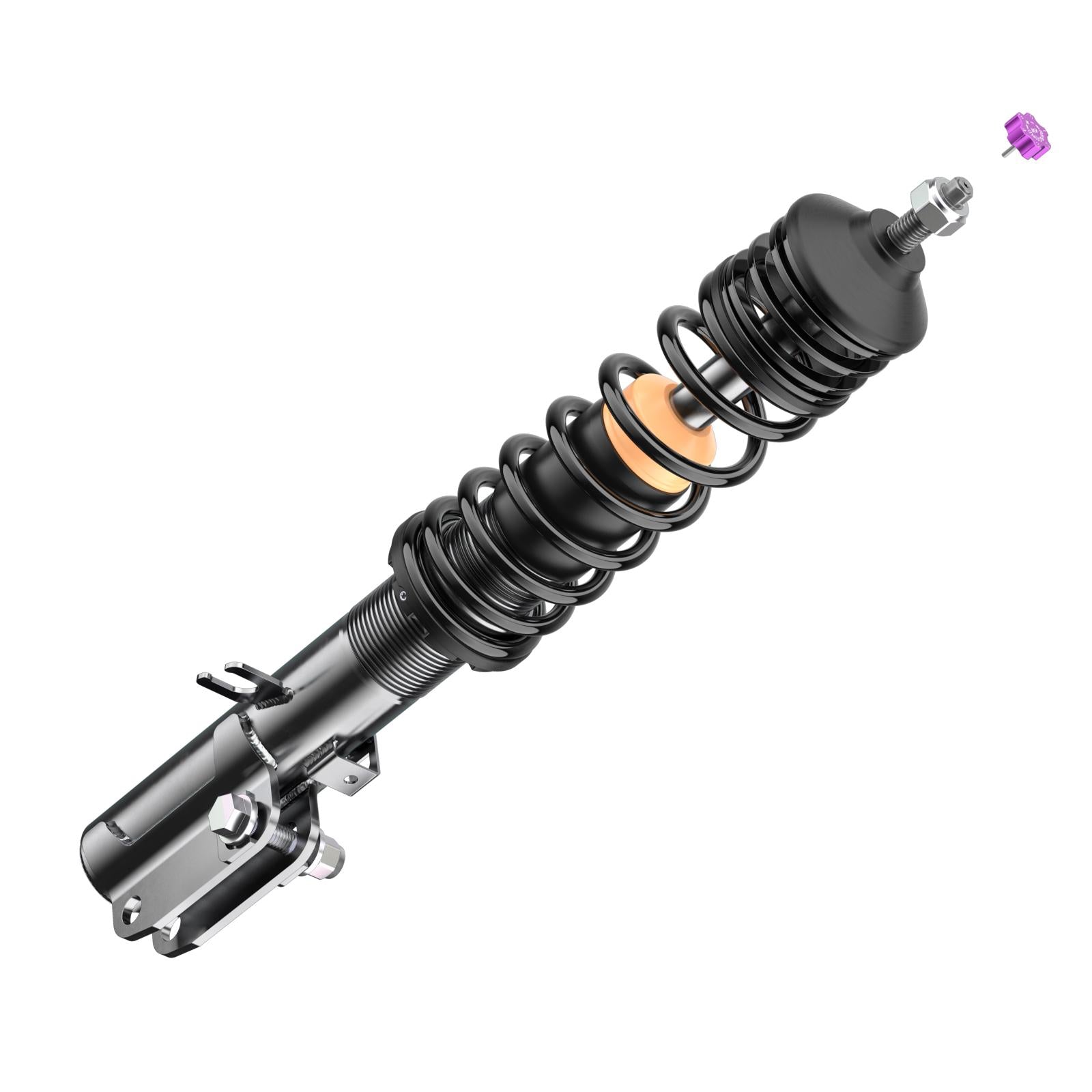

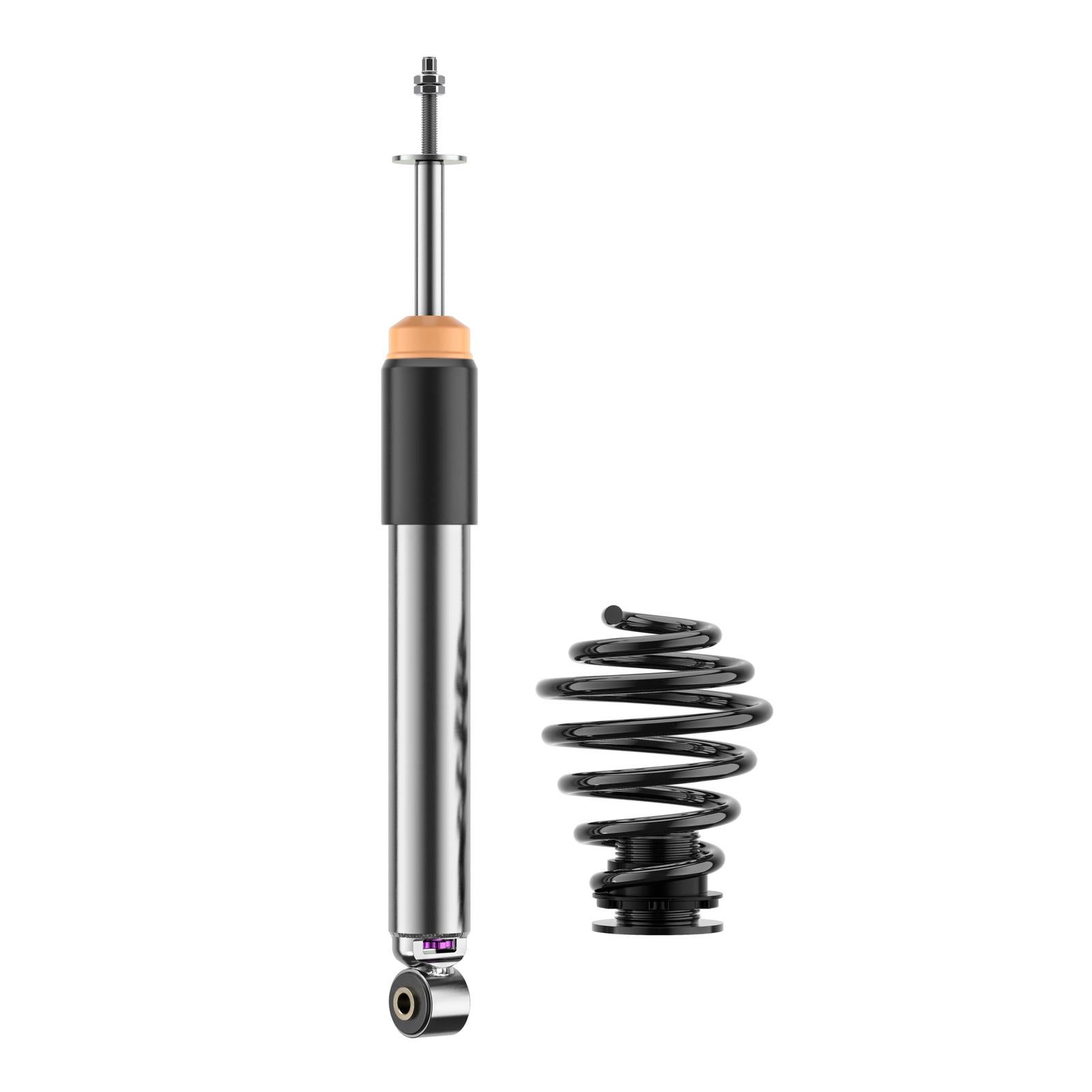

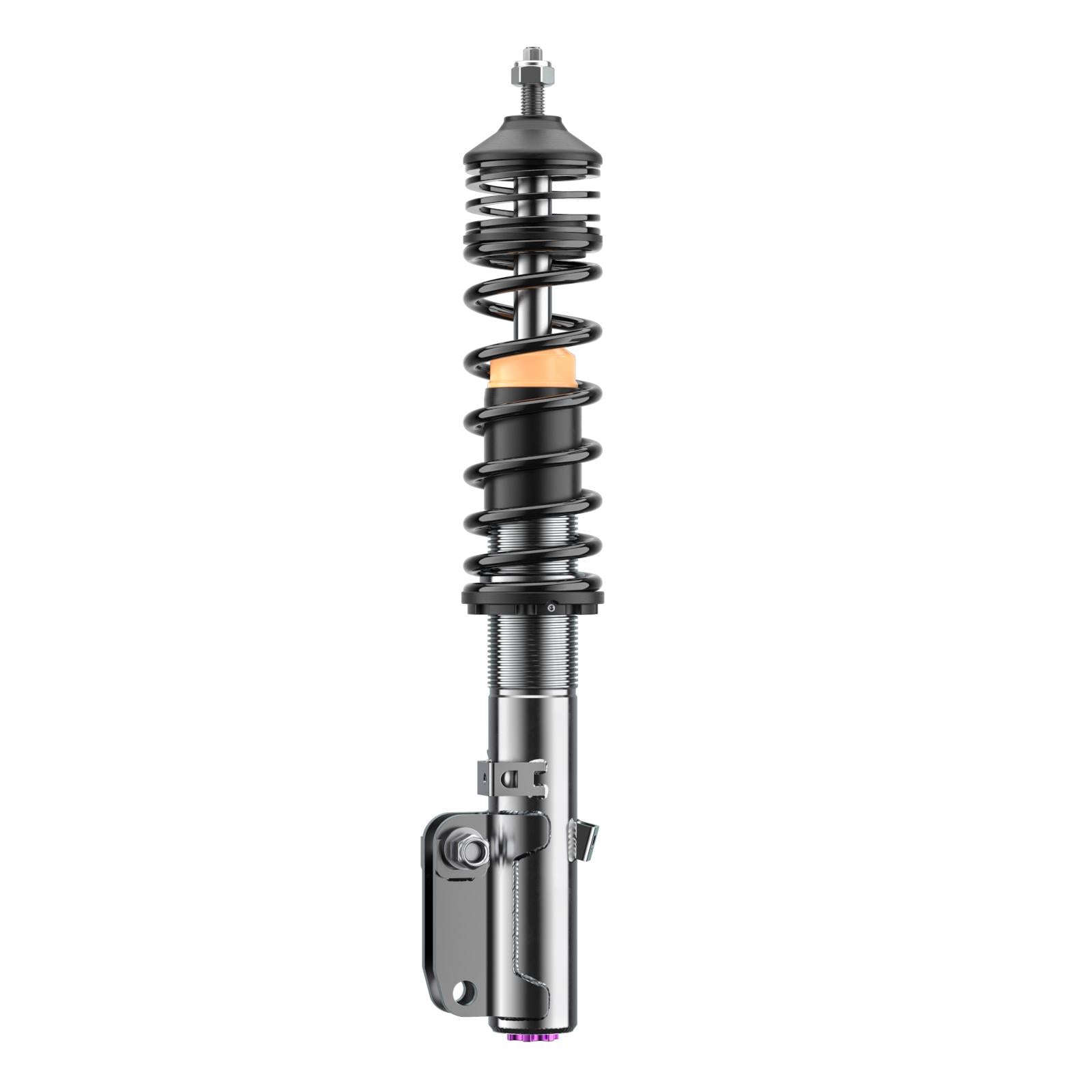

KW Coilover Kit V3 Classic Line for Audi (B4) Convertible - M12 Front Strut Bolt

SKU: 35210923-B
Sale price$4,967.55 Regular price$5,229.00
Save $261.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Audi Convertible (B4).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3 classic line
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 40–80 mm
  • Rear lowering: 40–80 mm
  • Front axle load: 951–1,100 kg
  • Rear axle load: up to 870 kg
  • Supplied as: Front axle + rear axle coilover struts
Note For cars with M12 screw at the front axle strut down below.

Front axle load 951–1,100 kg; Rear axle load up to 870 kg.

For cars with M12 screw at the FA strut down below.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
1991–2000AudiConvertible (89) 8G7, B42.0 EPetrol · 85 kW · 2.0L · 4-cylFront-Wheel Drive1, 6, 12
1991–2000AudiConvertible (89) 8G7, B42.3 EPetrol · 98 kW · 2.3L · 5-cylFront-Wheel Drive1, 6, 12
1991–2000AudiConvertible (89) 8G7, B42.6Petrol · 110 kW · 2.6L · 6-cylFront-Wheel Drive1, 6, 12
1991–2000AudiConvertible (89) 8G7, B42.8Petrol · 128 kW · 2.8L · 6-cylFront-Wheel Drive1, 6, 12
1991–2000AudiConvertible (89) 8G7, B42.0 16VPetrol · 103 kW · 2.0L · 4-cylFront-Wheel Drive1, 6, 12
1991–2000AudiConvertible (89) 8G7, B41.9 TDIDiesel · 66 kW · 1.9L · 4-cylFront-Wheel Drive1, 6, 12
1991–2000AudiConvertible (89) 8G7, B41.8Petrol · 92 kW · 1.8L · 4-cylFront-Wheel Drive1, 6, 12
  • Note 1: Height adjustable on the front and rear axles (threaded strut housings).
  • Note 6: When using original tyres, wheel offset spacers may be required.
  • Note 12: To identify the suspension struts, measure the diameter of the strut mounting screw at the steering knuckle. Screw diameter either M12 or M14.
