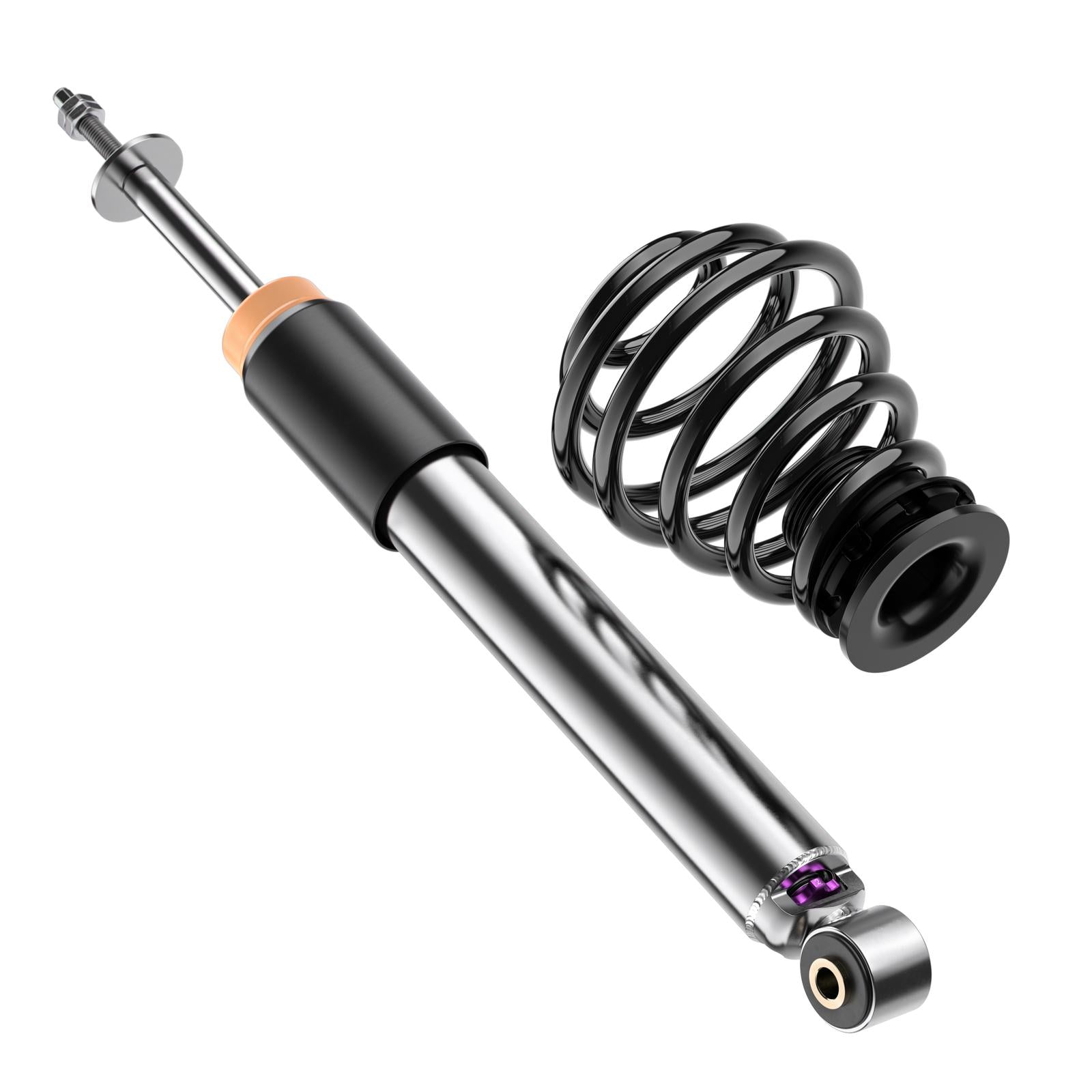

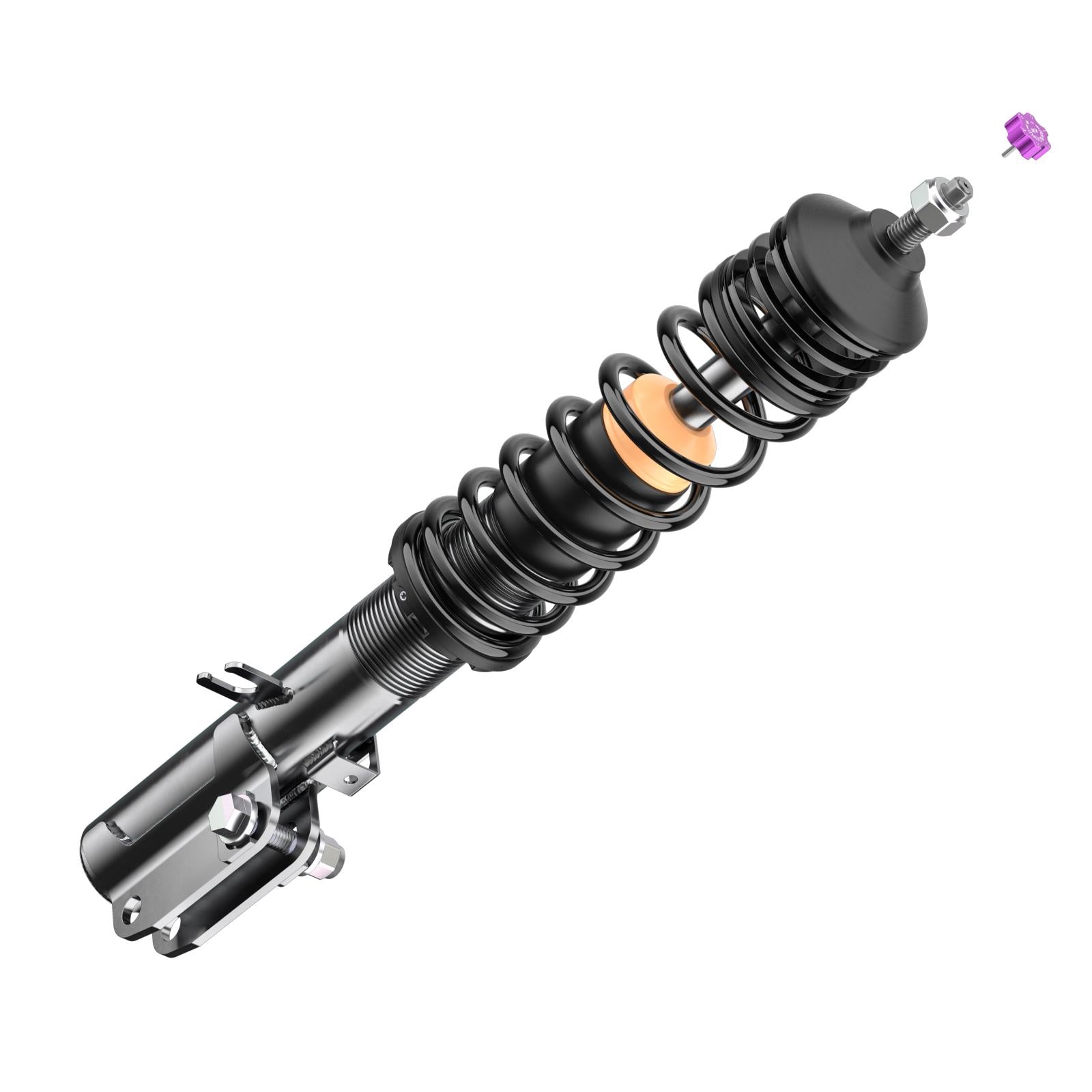

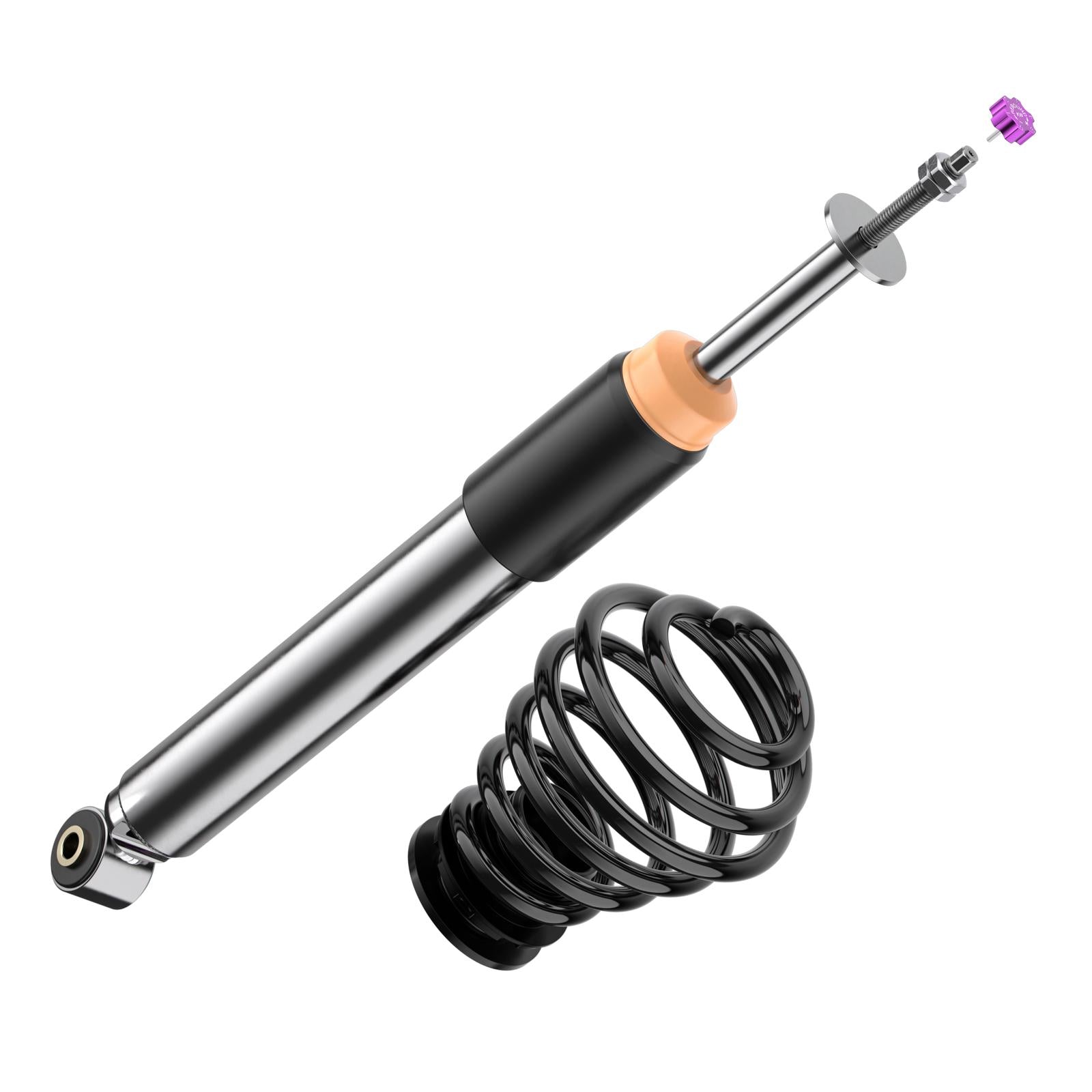

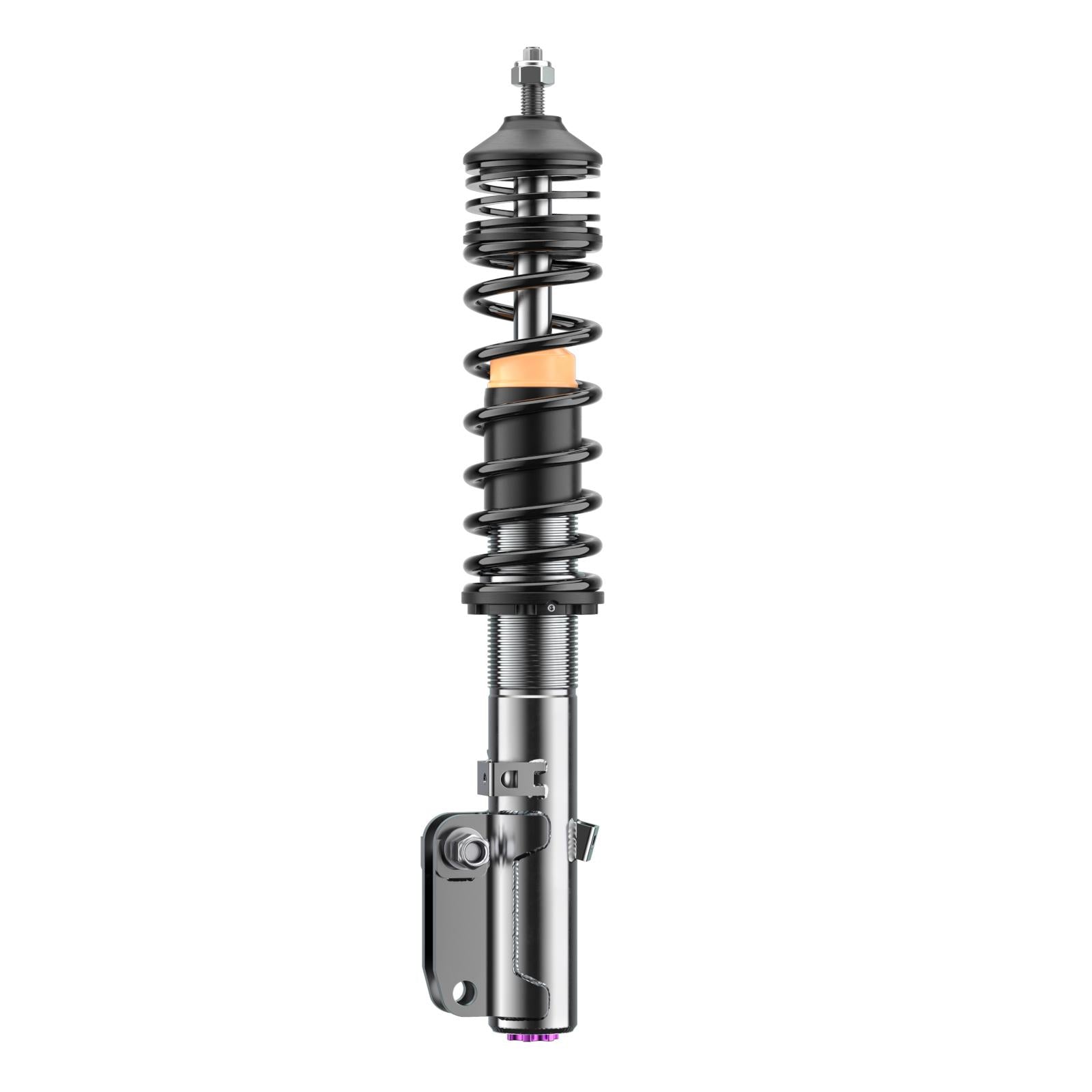

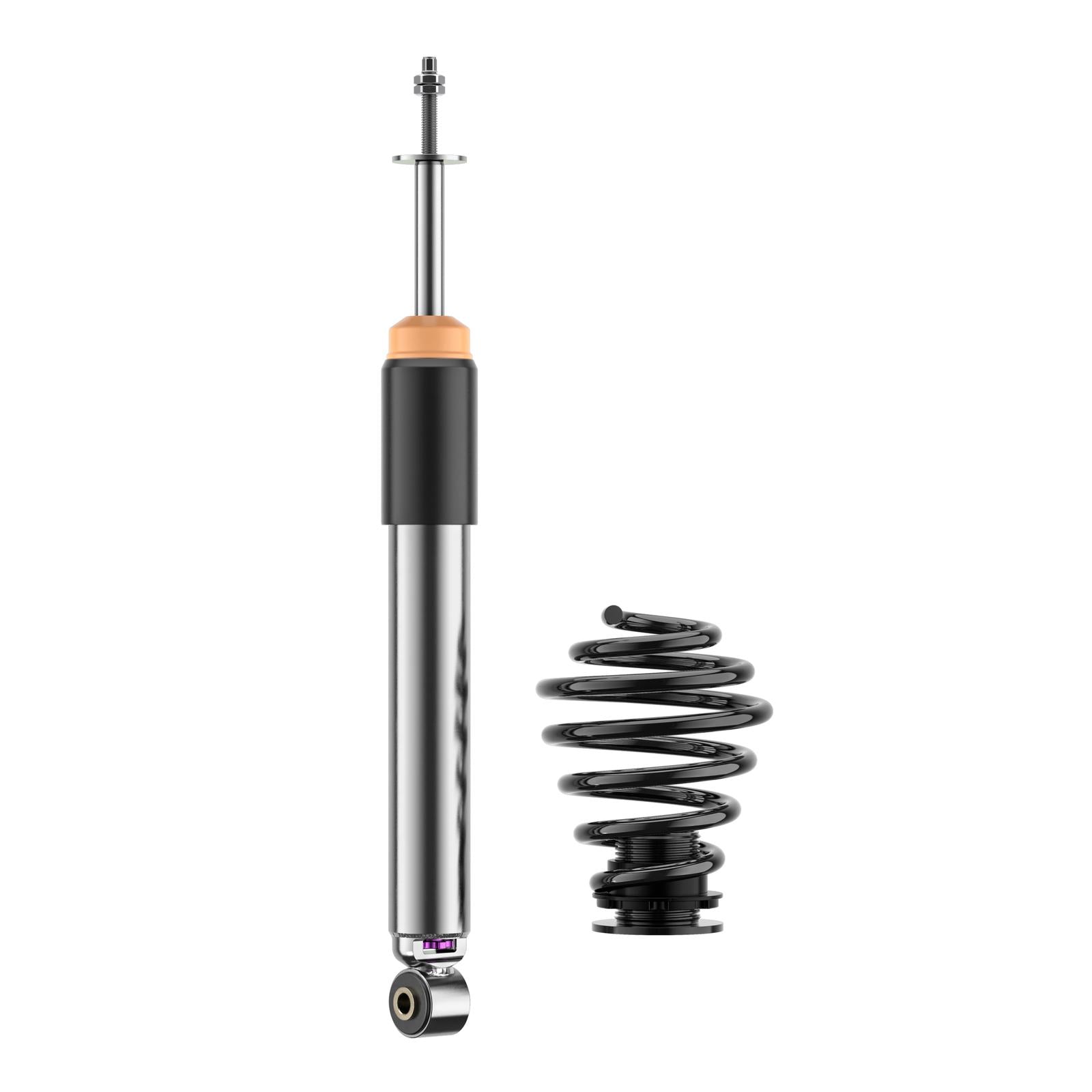

KW Coilover Kit V3 Classic Line for BMW (E36) 323ti Compact

SKU: 35220013-B
Sale price$4,065.05 Regular price$4,279.00
Save $213.95

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the BMW 323ti Compact (E36).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3 classic line
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 40–80 mm
  • Rear lowering: 30–60 mm
  • Front axle load: up to 850 kg
  • Rear axle load: up to 1,040 kg
  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 850 kg; Rear axle load up to 1,040 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
1994–2000BMW3 Compact (E36) 3C, 3/CG, 3/CNG316 iPetrol · 77 kW · 1.9L · 4-cylRear-Wheel Drive2, 6
1994–2000BMW3 Compact (E36) 3C, 3/CG, 3/CNG323 tiPetrol · 120 kW · 2.5L · 6-cylRear-Wheel Drive2, 6
1994–2000BMW3 Compact (E36) 3C, 3/CG, 3/CNG316 iPetrol · 75 kW · 1.6L · 4-cylRear-Wheel Drive2, 6
1994–2000BMW3 Compact (E36) 3C, 3/CG, 3/CNG318 tdsDiesel · 66 kW · 1.7L · 4-cylRear-Wheel Drive2, 6
1994–2000BMW3 Compact (E36) 3C, 3/CG, 3/CNG318 tiPetrol · 103 kW · 1.8L · 4-cylRear-Wheel Drive2, 6
1994–2000BMW3 Compact (E36) 3C, 3/CG, 3/CNG318 tiPetrol · 103 kW · 1.9L · 4-cylRear-Wheel Drive2, 6
1994–2000BMW3 Compact (E36) 3C, 3/CG, 3/CNG323 tiPetrol · 125 kW · 2.5L · 6-cylRear-Wheel Drive2, 6
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 6: When using original tyres, wheel offset spacers may be required.
