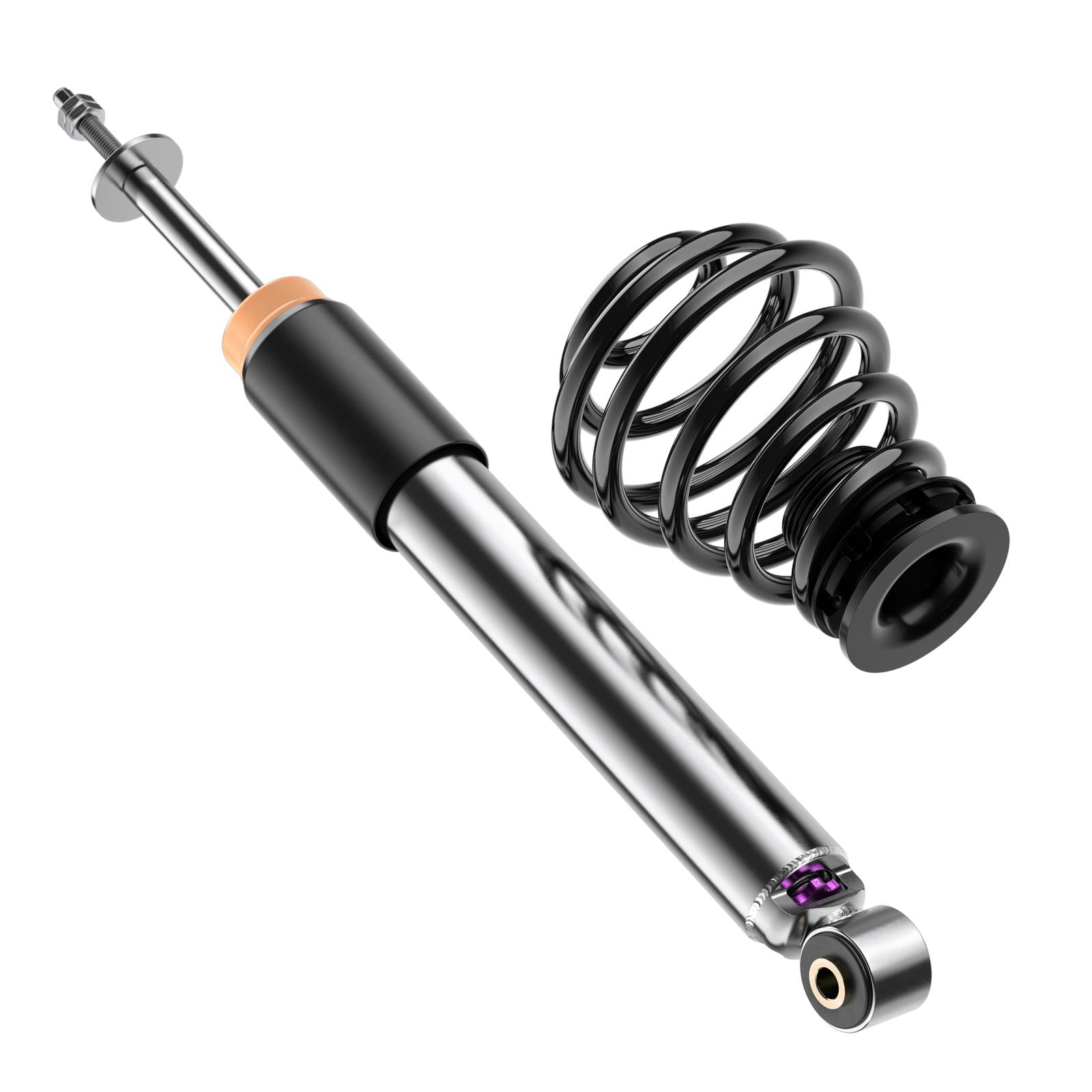

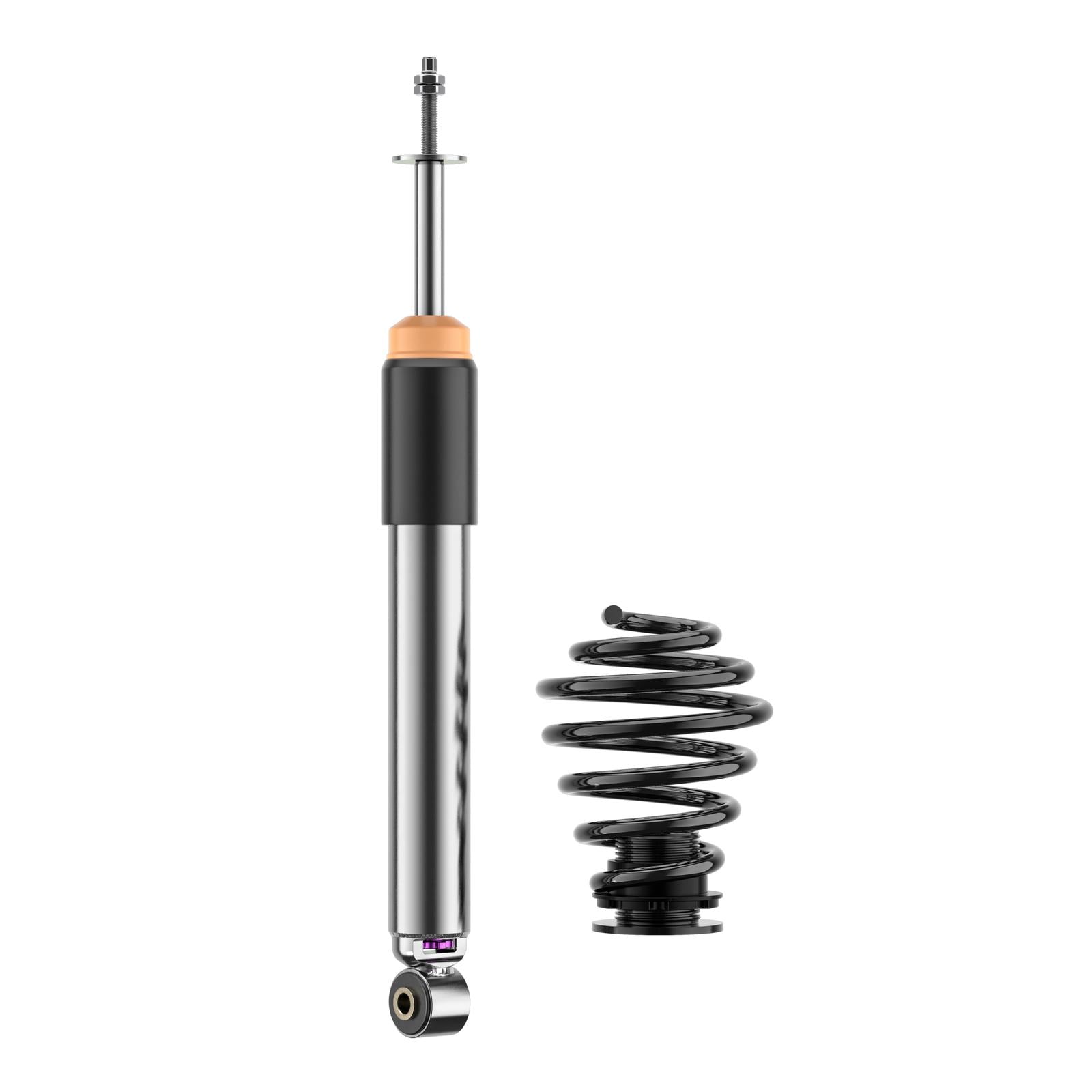

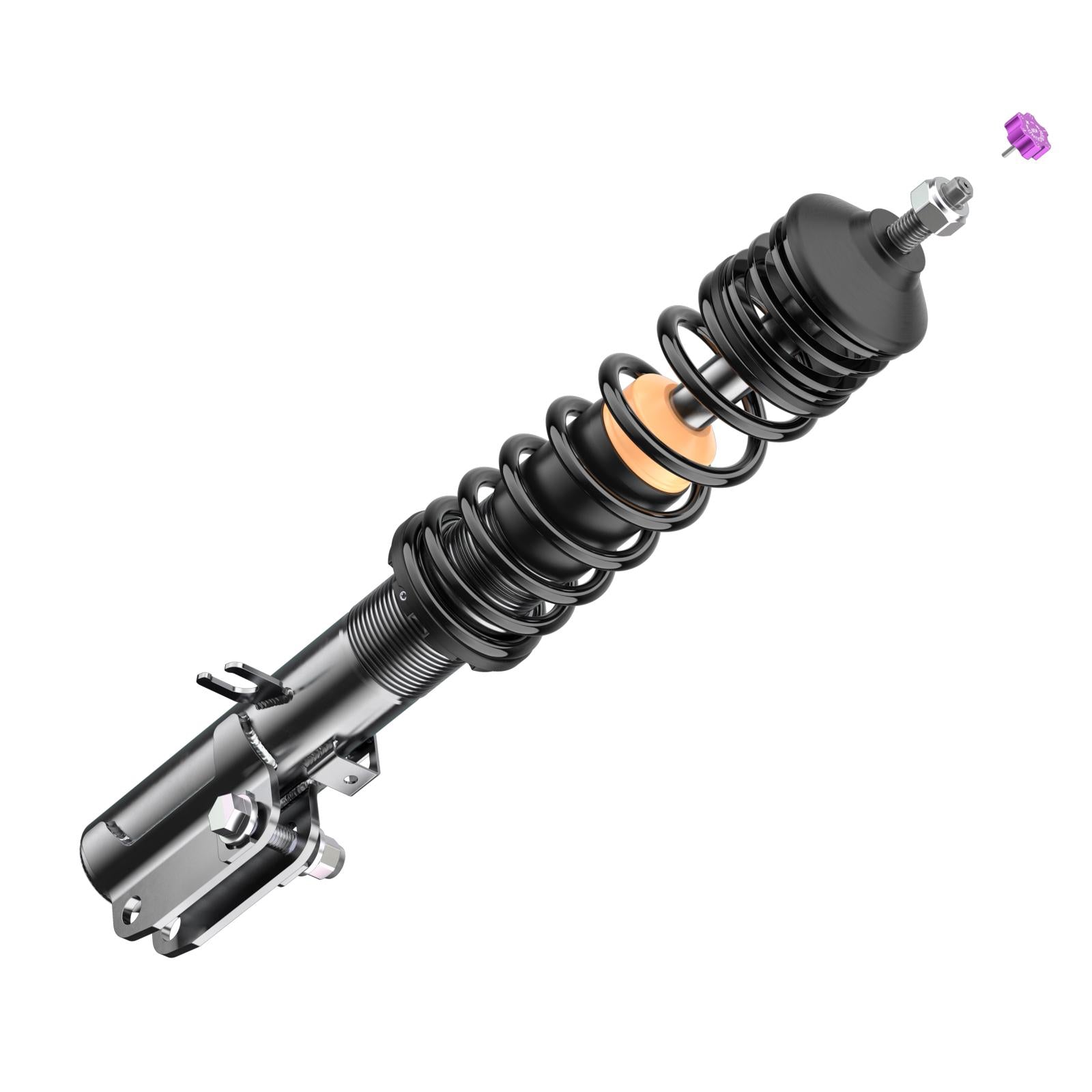

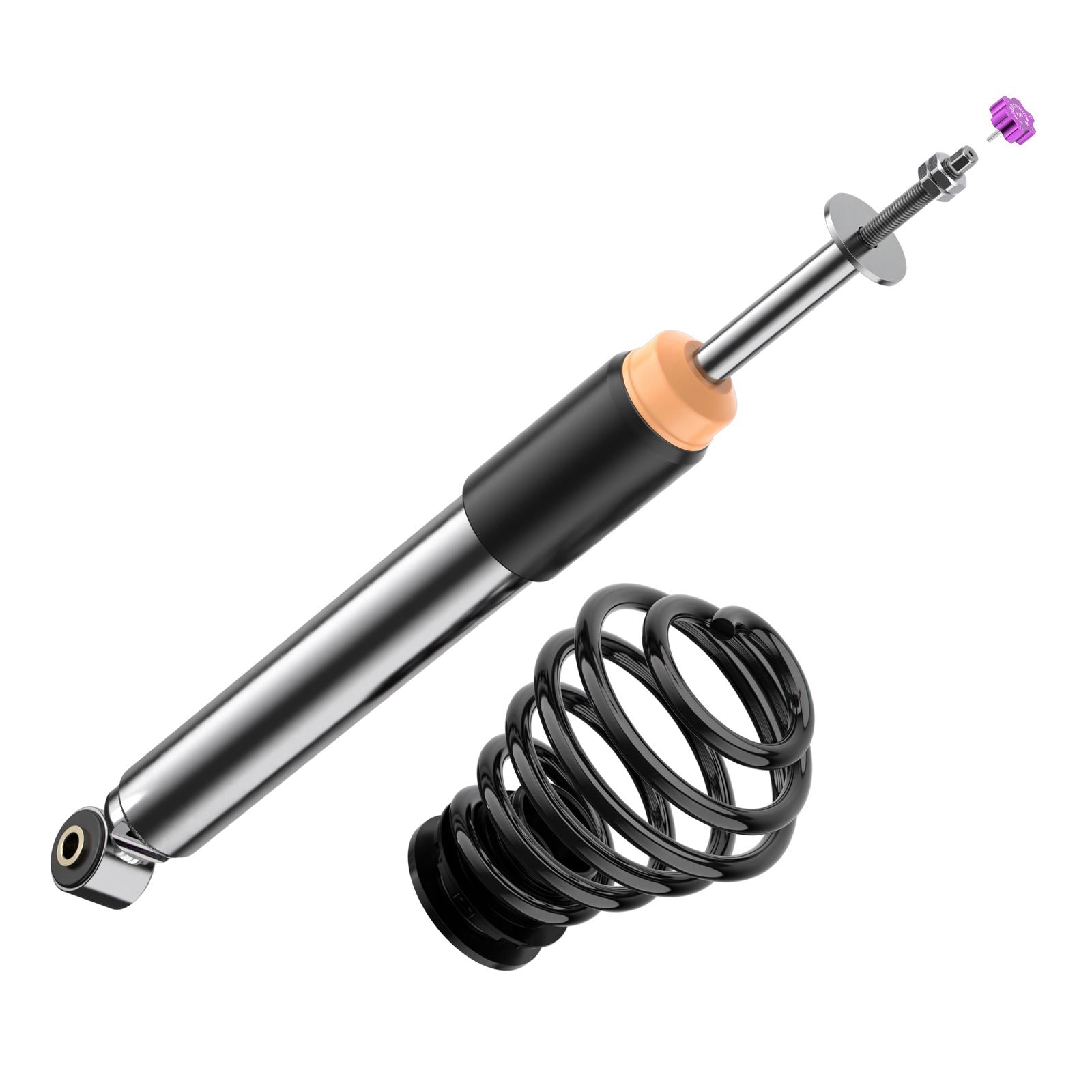

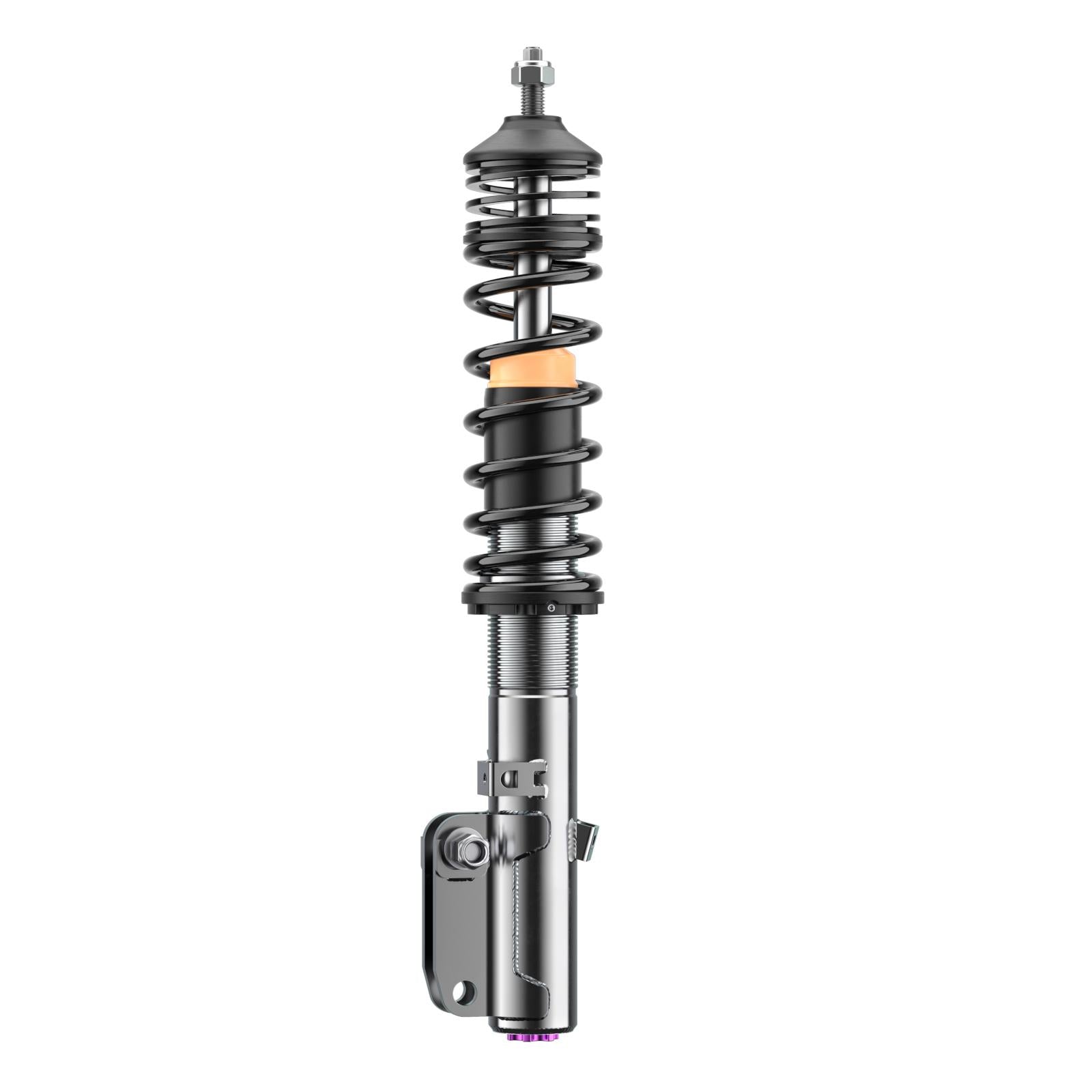

KW Coilover Kit V3 Classic Line for Mercedes (W124) 500E / E500
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW Coilover Kit V3 Classic Line for Mercedes (W124) 500E / E500
Sale price$5,433.05
Regular price$5,719.00 (/)
KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Mercedes 500 E / E 500 (W124).
Key Features
- Rebound damping adjustable in 16 clicks
- Compression damping adjustable in 12 clicks
- Continuous ride height adjustment within the tested range
Specifications
- Version: V3 classic line
- Damping: Adjustable rebound and compression
- Material: Stainless steel
- Front lowering: 20–45 mm
- Rear lowering: 20–40 mm
- Front axle load: up to 1,180 kg
- Rear axle load: up to 1,280 kg
- Supplied as: Front and rear height-adjustable (front and rear springs with height adjustment + shock absorbers)
Front axle load up to 1,180 kg; Rear axle load up to 1,280 kg.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 1993–1996 | Mercedes | E-Class (W124) | E 500 (124.036) | Petrol · 235 kW · 5.0L · 8-cyl | Rear-Wheel Drive | 0, 67 |
| 1984–1993 | Mercedes | 124 Saloon (W124) | 500 E (124.036) | Petrol · 240 kW · 5.0L · 8-cyl | Rear-Wheel Drive | 0, 67 |
- Note 0: Front and rear height-adjustable (front and rear springs with height adjustment + shock absorbers).
- Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
