KW Coilover Kit V3 Classic Line for Lancia (831) Delta HF Integrale
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW Coilover Kit V3 Classic Line for Lancia (831) Delta HF Integrale
Sale price$4,920.05
Regular price$5,179.00 (/)

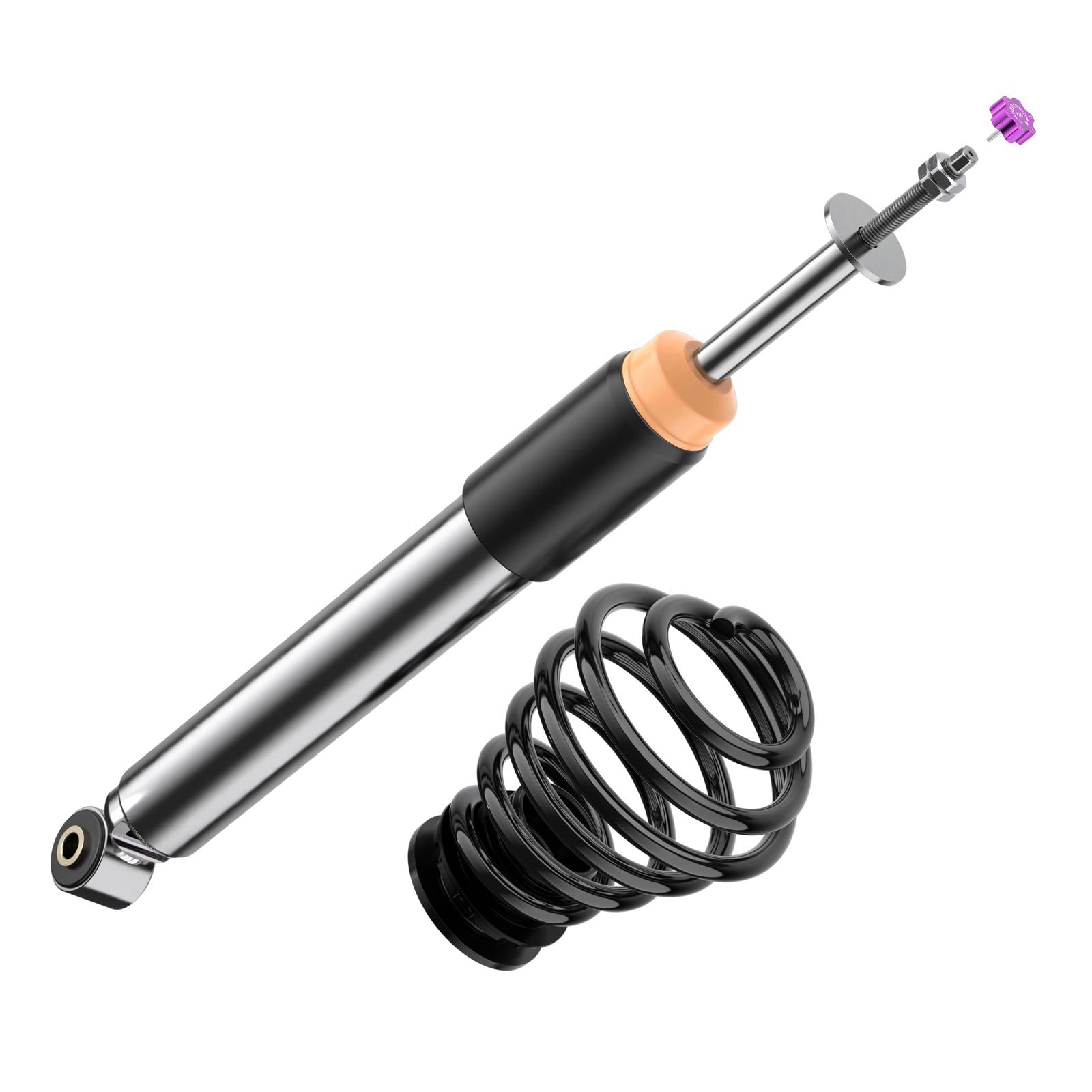

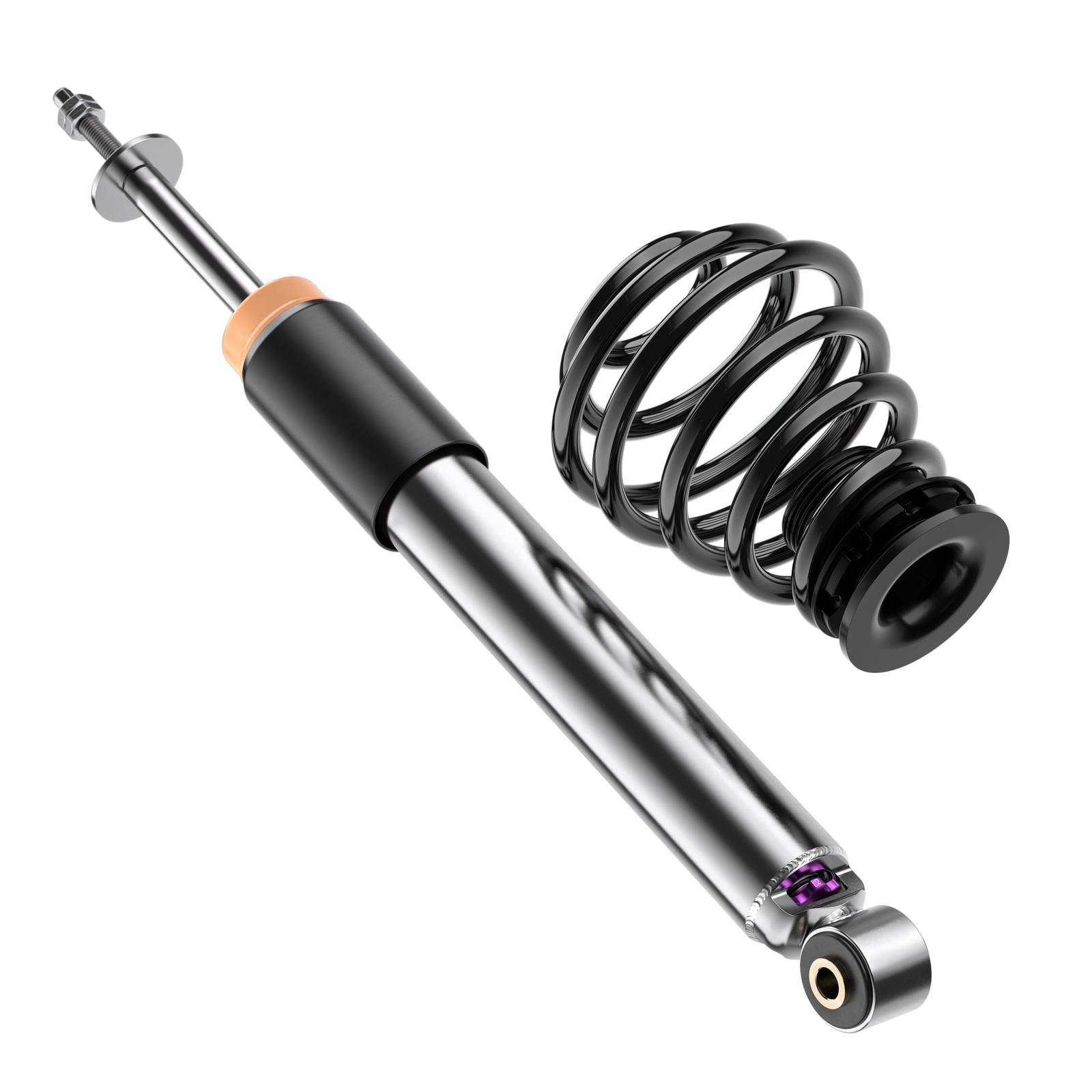

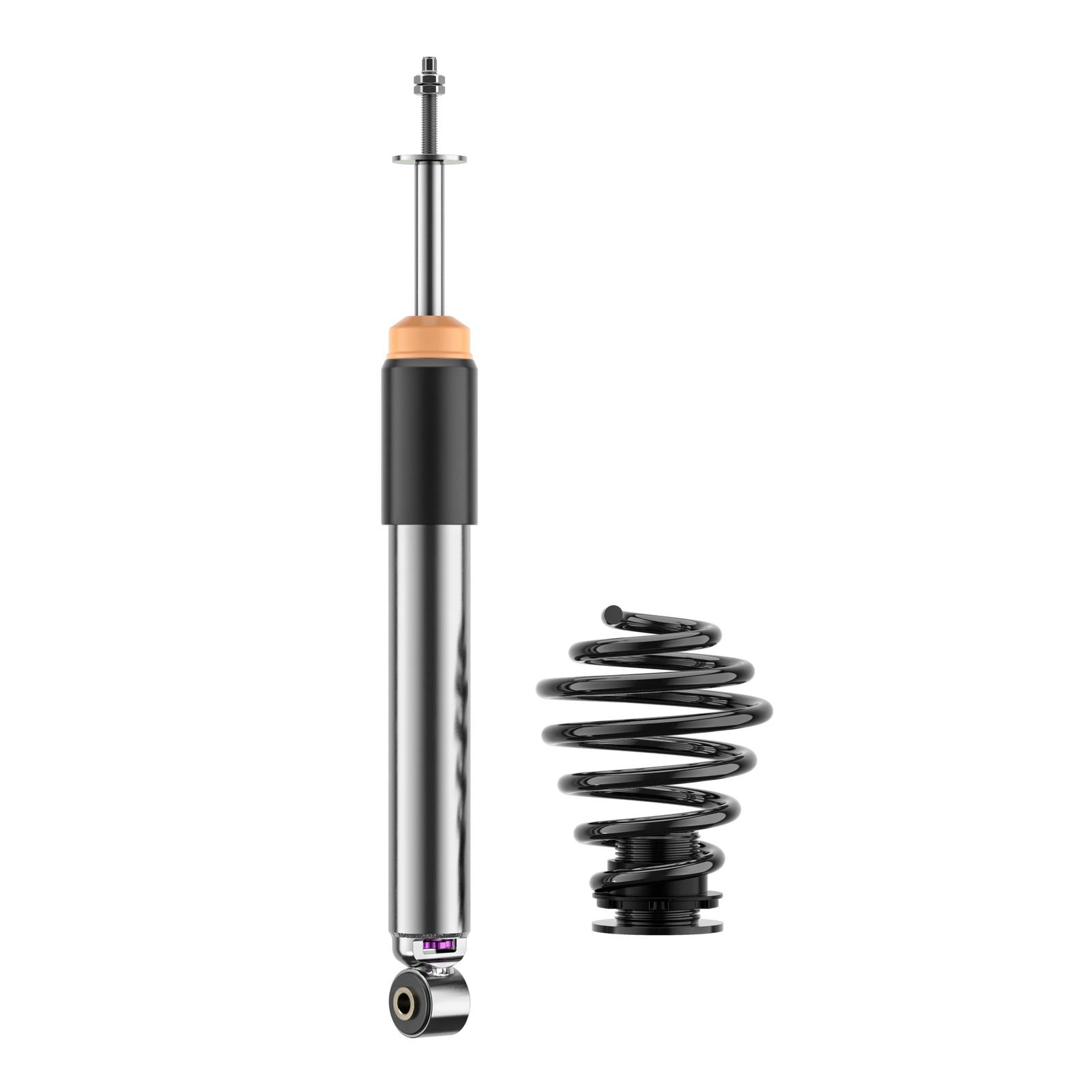

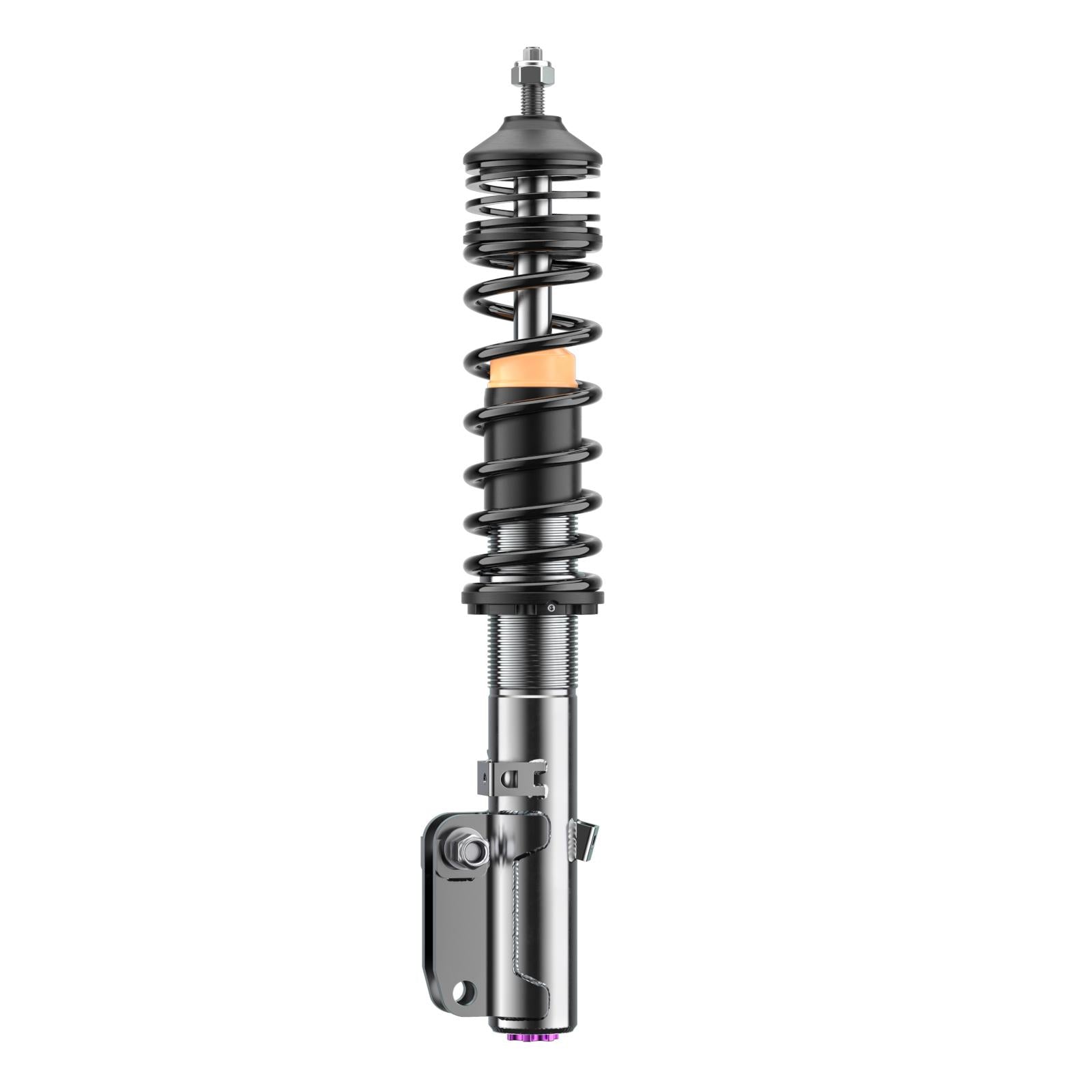

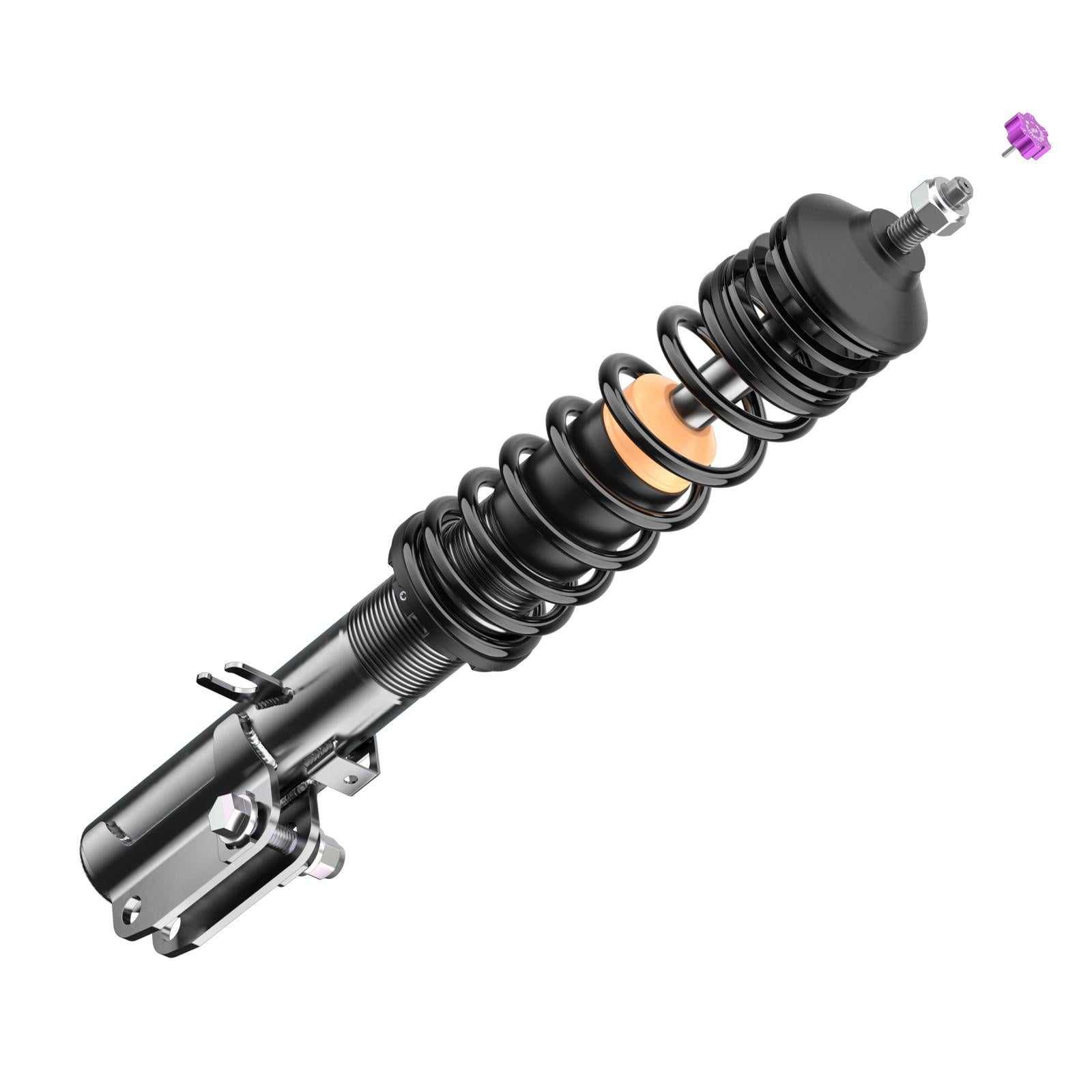

KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Lancia Delta HF Integrale (831).
Key Features
- Rebound damping adjustable in 16 clicks
- Compression damping adjustable in 12 clicks
- Continuous ride height adjustment within the tested range
Specifications
- Version: V3 classic line
- Damping: Adjustable rebound and compression
- Material: Stainless steel
- Front lowering: 30–60 mm
- Rear lowering: 25–55 mm
- Front axle load: up to 930 kg
- Rear axle load: up to 930 kg
- Supplied as: Front axle + rear axle coilover struts
Note Not for Evo models.
Front axle load up to 930 kg; Rear axle load up to 930 kg.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Notes | Refs |
|---|---|---|---|---|---|---|---|
| 1979–1994 | Lancia | Delta (831_) | 2.0 HF Integrale (831AB.024) | Petrol · 133 kW · 2.0L · 4-cyl | All-Wheel Drive | Not for Evo models | 1 |
| 1979–1994 | Lancia | Delta (831_) | 2.0 16V HF Integrale (831AB.026) | Petrol · 144 kW · 2.0L · 4-cyl | All-Wheel Drive | Not for Evo models | 1 |
| 1979–1994 | Lancia | Delta (831_) | 2.0 HF Integrale (831AB.024S, 831AB.028) | Petrol · 130 kW · 2.0L · 4-cyl | All-Wheel Drive | Not for Evo models | 1 |
| 1979–1994 | Lancia | Delta (831_) | 2.0 HF Integrale (831AB.019) | Petrol · 122 kW · 2.0L · 4-cyl | All-Wheel Drive | Not for Evo models | 1 |
- Note 1: Height adjustable on the front and rear axles (threaded strut housings).
