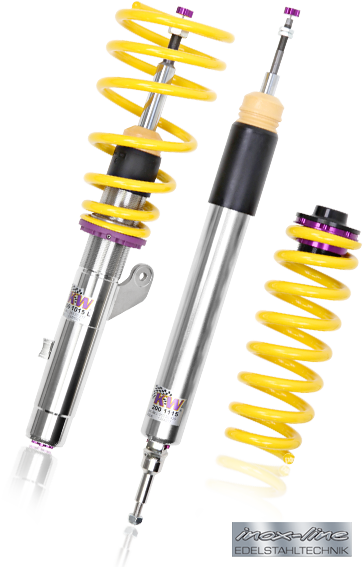

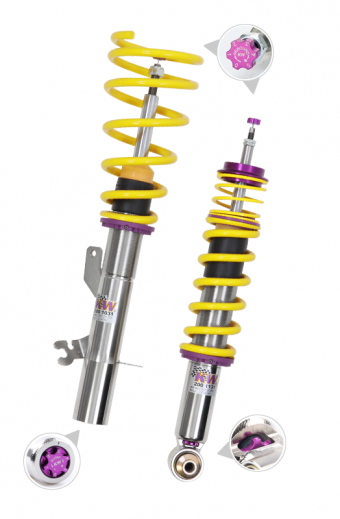

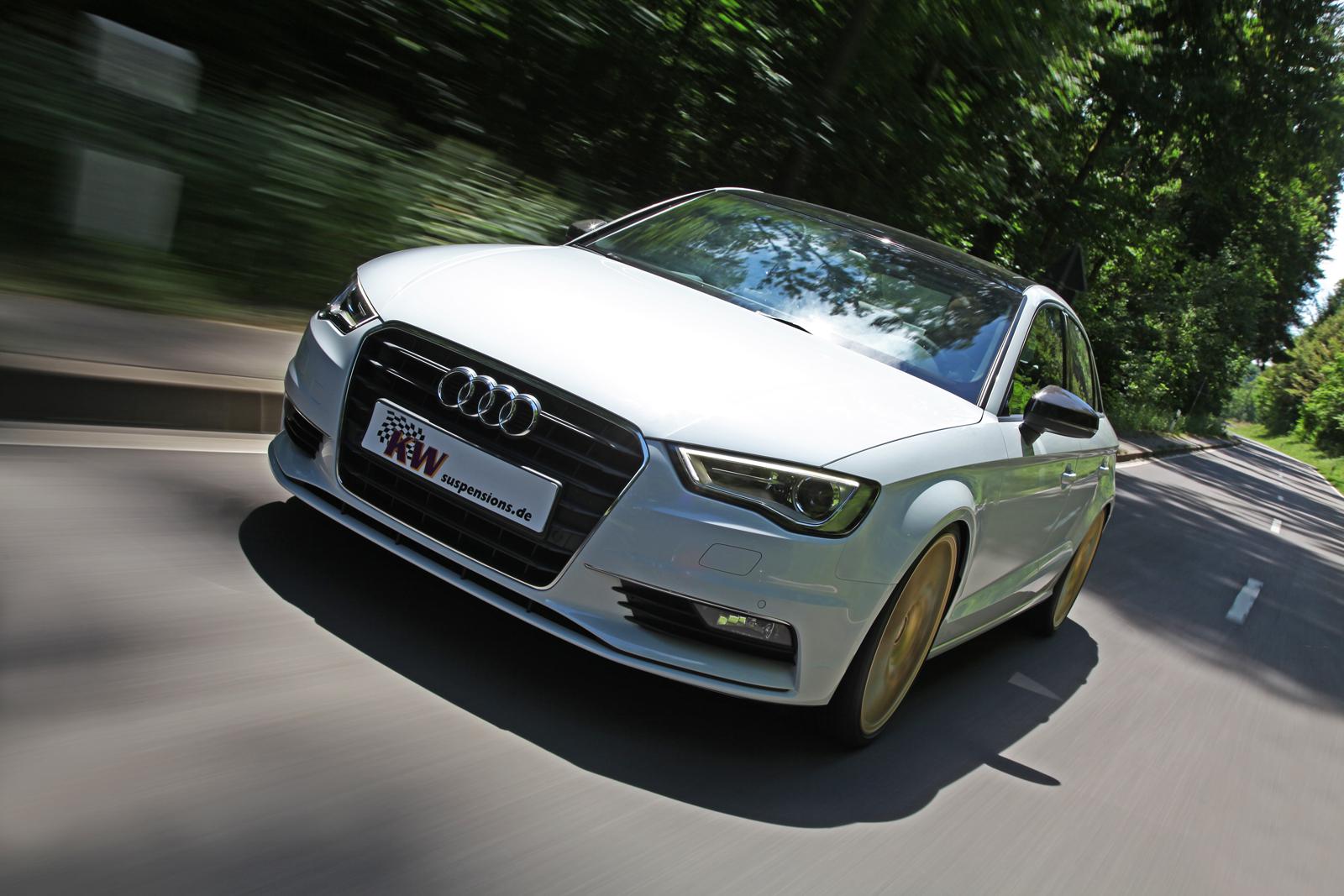

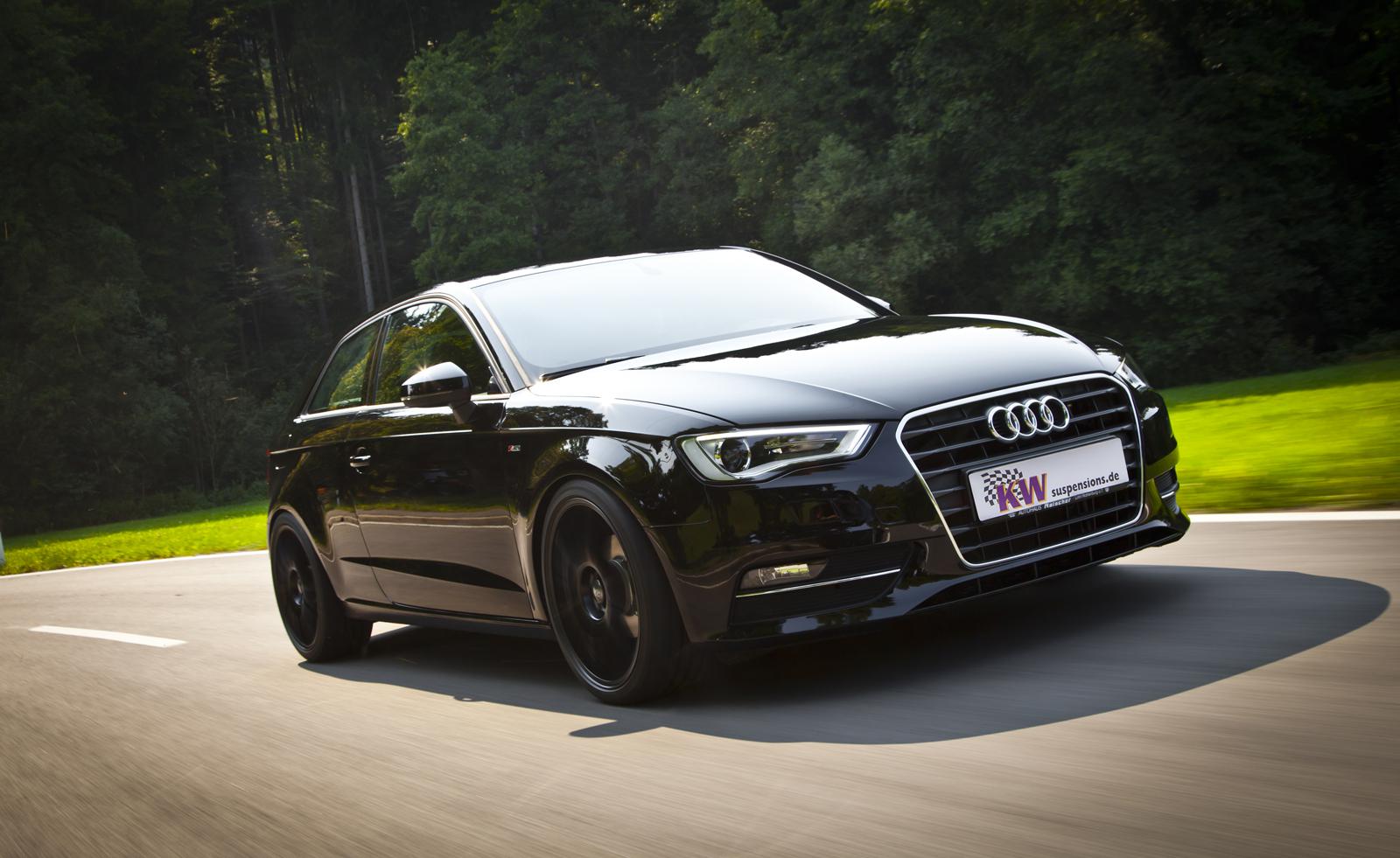

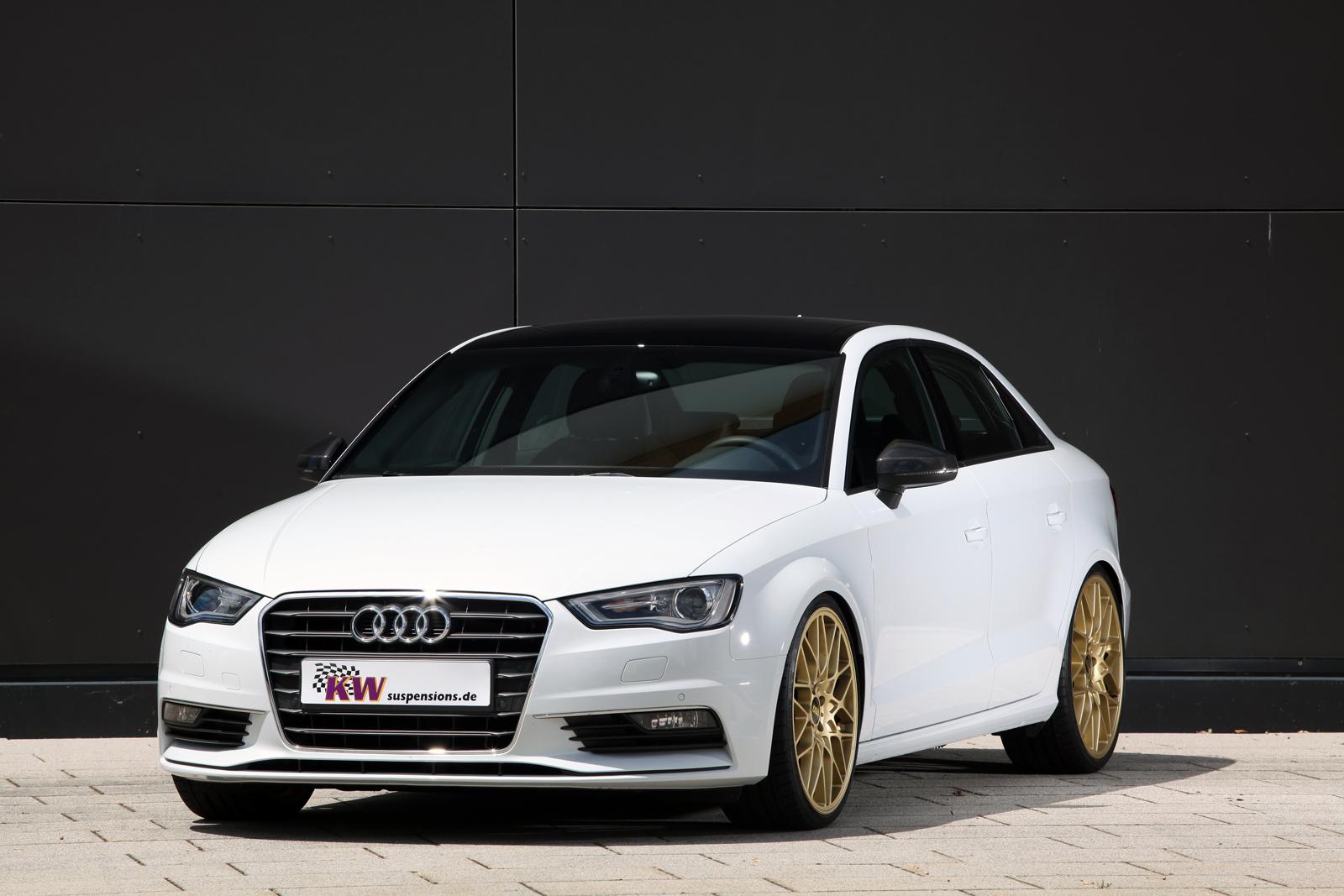

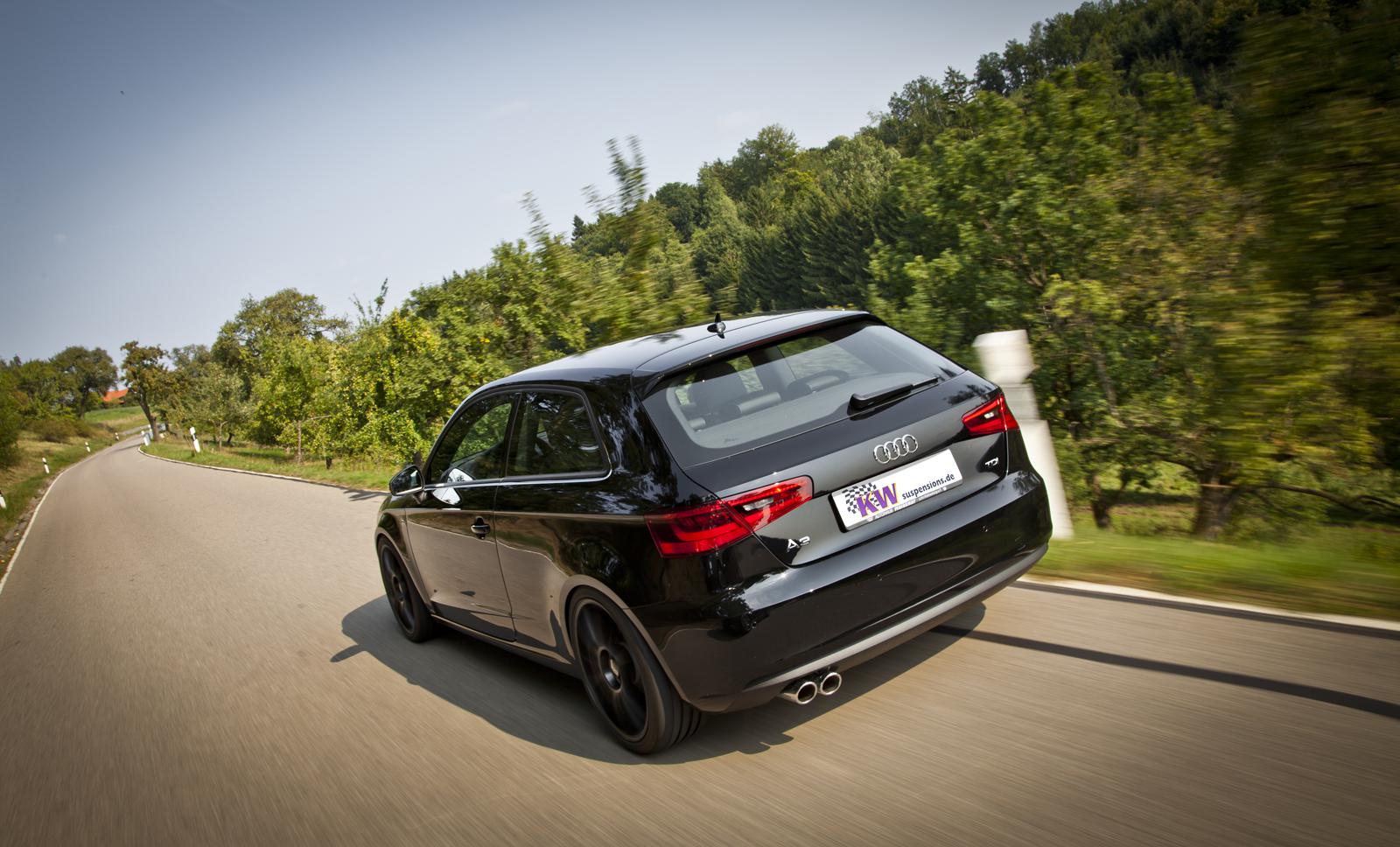

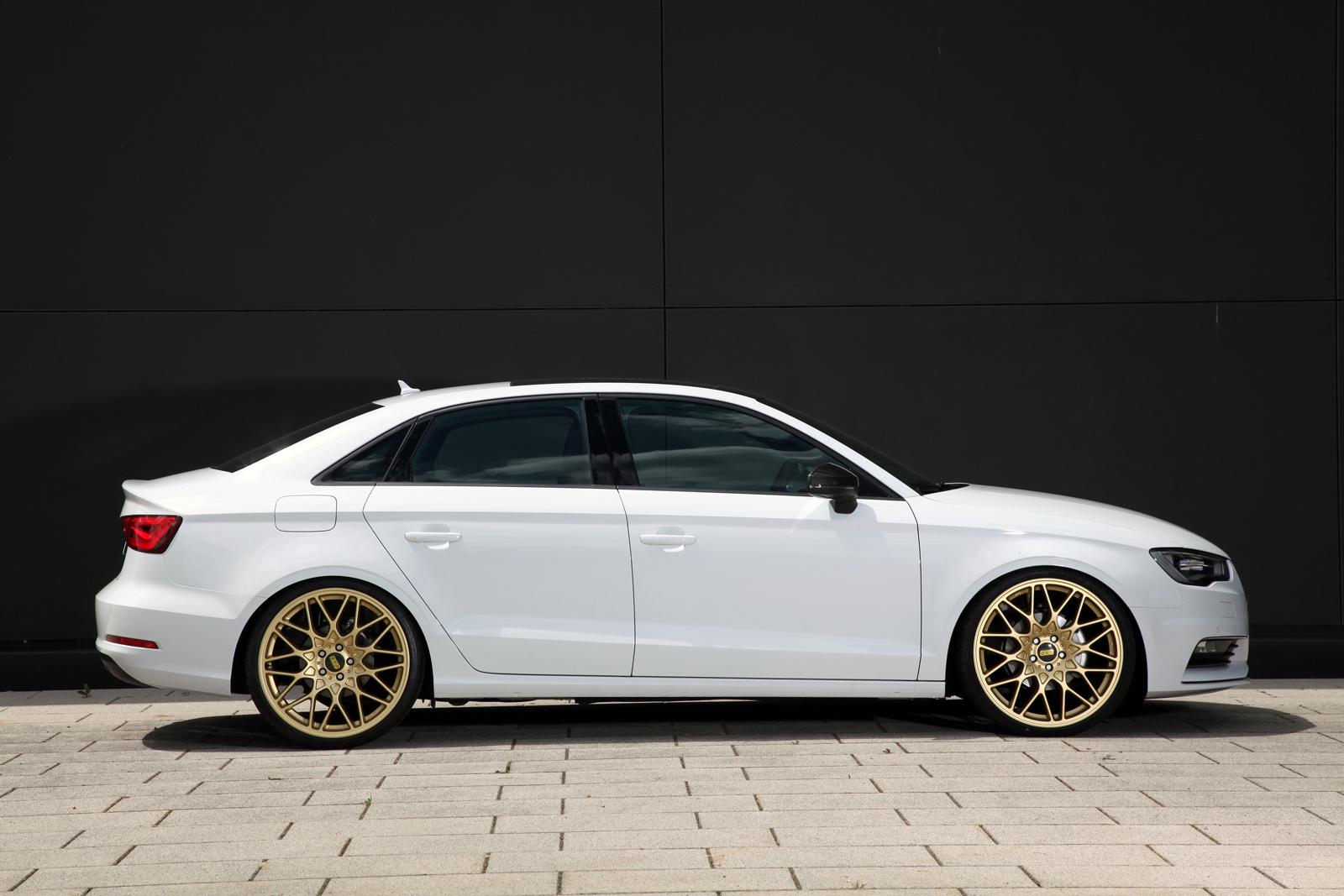

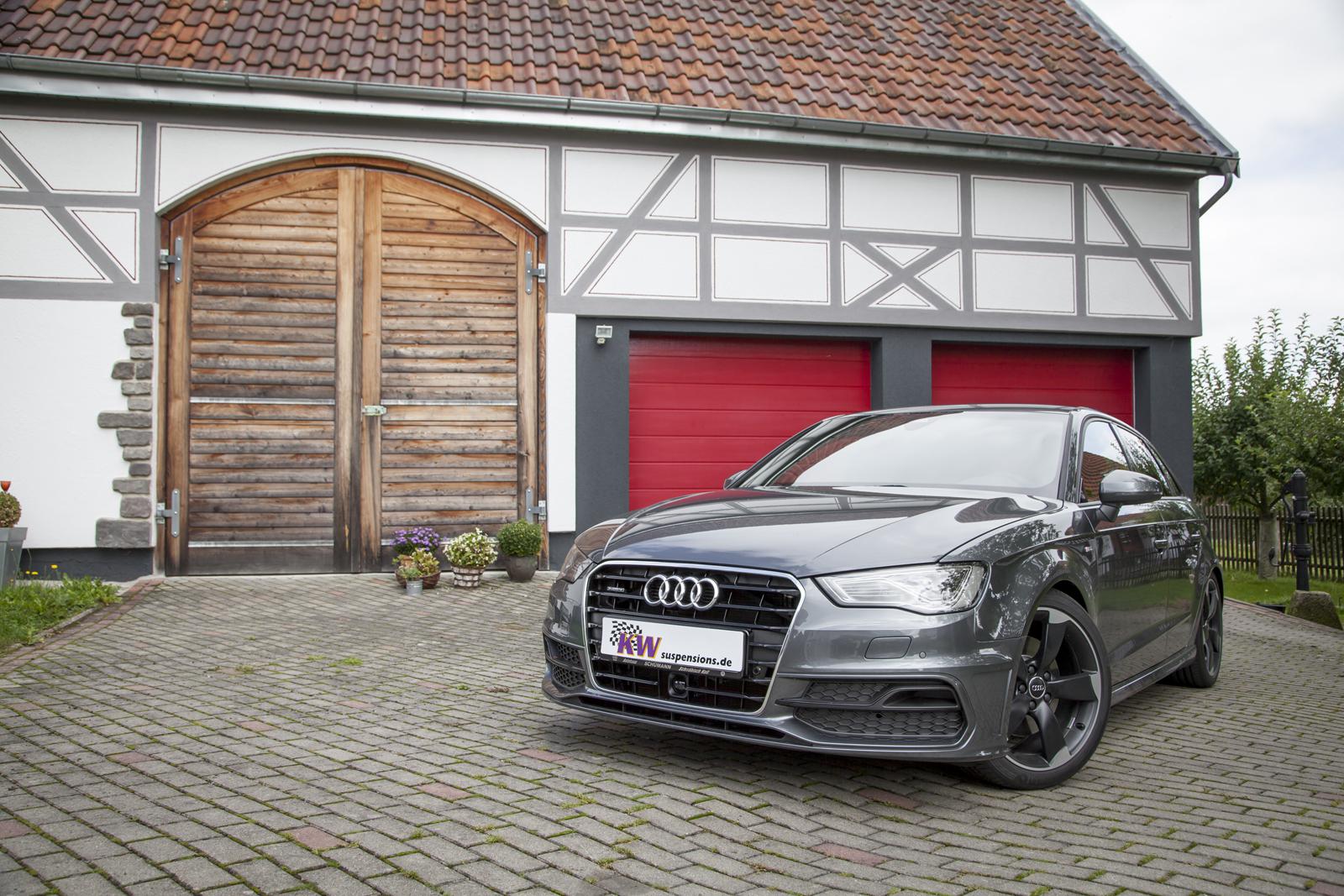

KW Coilover Kit V3 for Audi (8V) A3 1.8L TFSI / A3 2.0L TDI / A3 Sportback - 55mm Front Strut

SKU: 3521000P
Sale price$4,340.55 Regular price$4,569.00
Save $228.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Audi A3 1.8 TFSI / A3 2.0 TDI / A3 Sportback (8V).

Key Features

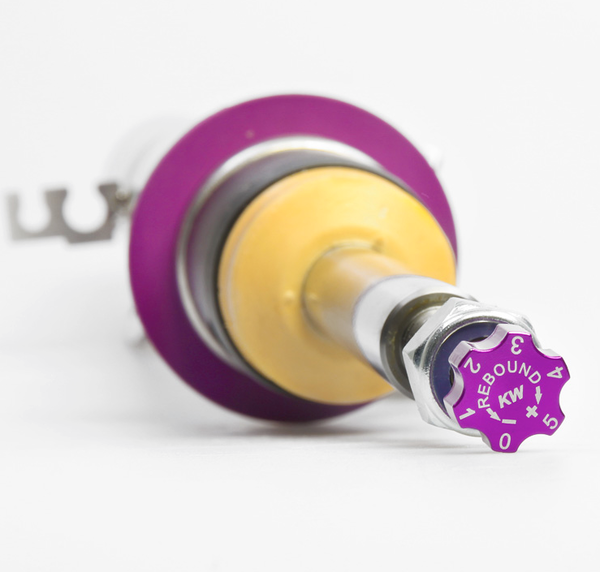

  • Rebound damping adjustable in 16 clicks

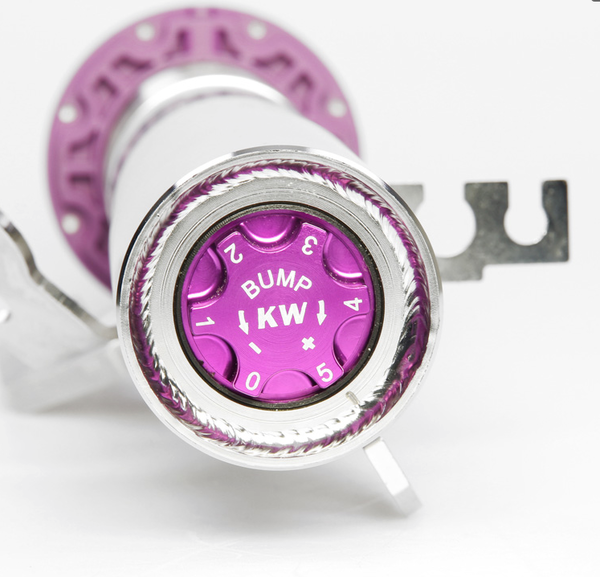

  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 30–60 mm
  • Rear lowering: 30–55 mm
  • Front axle load: 981–1,080 kg
  • Rear axle load: up to 990 kg
  • Front strut diameter (vehicle): 55 mm

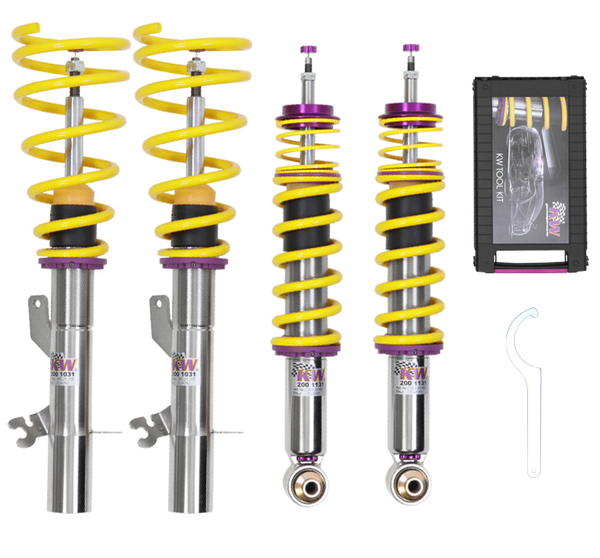

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Note For cars without electronic damping.

Front axle load 981–1,080 kg; Rear axle load up to 990 kg.

For vehicles without electronic damper control.

References 2, 37, 57, 67. See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveNotesRefs
2012–2020AudiA3 (8V) 8V1, 8VK1.6 TDIDiesel · 77 kW · 1.6L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2012–2020AudiA3 (8V) 8V1, 8VK1.6 TDIDiesel · 81 kW · 1.6L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2012–2020AudiA3 (8V) 8V1, 8VK1.6 TDIDiesel · 85 kW · 1.6L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2012–2020AudiA3 (8V) 8V1, 8VK1.8 TFSIPetrol · 132 kW · 1.8L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2012–2020AudiA3 (8V) 8V1, 8VK2.0 TDIDiesel · 81 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2012–2020AudiA3 (8V) 8V1, 8VK2.0 TDIDiesel · 100 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2012–2020AudiA3 (8V) 8V1, 8VK2.0 TDIDiesel · 105 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2012–2020AudiA3 (8V) 8V1, 8VK2.0 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2012–2020AudiA3 (8V) 8V1, 8VK2.0 TDIDiesel · 135 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2012–2020AudiA3 (8V) 8V1, 8VK2.0 TFSIPetrol · 140 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2013–2021AudiA3 Saloon (8V) 8VS, 8VM1.2 TFSIPetrol · 77 kW · 1.2L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2013–2021AudiA3 Saloon (8V) 8VS, 8VM1.6 TDIDiesel · 77 kW · 1.6L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2013–2021AudiA3 Saloon (8V) 8VS, 8VM1.6 TDIDiesel · 81 kW · 1.6L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2013–2021AudiA3 Saloon (8V) 8VS, 8VM1.6 TDIDiesel · 85 kW · 1.6L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2013–2021AudiA3 Saloon (8V) 8VS, 8VM1.8 TFSIPetrol · 125 kW · 1.8L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2013–2021AudiA3 Saloon (8V) 8VS, 8VM1.8 TFSIPetrol · 132 kW · 1.8L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2013–2021AudiA3 Saloon (8V) 8VS, 8VM2.0 TDIDiesel · 81 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2013–2021AudiA3 Saloon (8V) 8VS, 8VM2.0 TDIDiesel · 100 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2013–2021AudiA3 Saloon (8V) 8VS, 8VM2.0 TDIDiesel · 105 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2013–2021AudiA3 Saloon (8V) 8VS, 8VM2.0 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2013–2021AudiA3 Saloon (8V) 8VS, 8VM2.0 TDIDiesel · 135 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2013–2021AudiA3 Saloon (8V) 8VS, 8VM2.0 TFSIPetrol · 137 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2013–2021AudiA3 Saloon (8V) 8VS, 8VM2.0 TFSIPetrol · 140 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2013–2021AudiA3 Saloon (8V) 8VS, 8VM2.0 TFSIPetrol · 162 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2013–2021AudiA3 Saloon (8V) 8VS, 8VM30 TDIDiesel · 85 kW · 1.6L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2013–2021AudiA3 Saloon (8V) 8VS, 8VM30 TFSIPetrol · 85 kW · 1.0L · 3-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2013–2021AudiA3 Saloon (8V) 8VS, 8VM35 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2013–2021AudiA3 Saloon (8V) 8VS, 8VM35 TFSIPetrol · 110 kW · 1.5L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2013–2021AudiA3 Saloon (8V) 8VS, 8VM40 TFSIPetrol · 140 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2012–2021AudiA3 Sportback (8V) 8VA, 8VF1.6 TDIDiesel · 77 kW · 1.6L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2012–2021AudiA3 Sportback (8V) 8VA, 8VF1.6 TDIDiesel · 81 kW · 1.6L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2012–2021AudiA3 Sportback (8V) 8VA, 8VF1.6 TDIDiesel · 85 kW · 1.6L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2012–2021AudiA3 Sportback (8V) 8VA, 8VF1.8 TFSIPetrol · 132 kW · 1.8L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2012–2021AudiA3 Sportback (8V) 8VA, 8VF2.0 TDIDiesel · 81 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2012–2021AudiA3 Sportback (8V) 8VA, 8VF2.0 TDIDiesel · 100 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2012–2021AudiA3 Sportback (8V) 8VA, 8VF2.0 TDIDiesel · 105 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2012–2021AudiA3 Sportback (8V) 8VA, 8VF2.0 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2012–2021AudiA3 Sportback (8V) 8VA, 8VF2.0 TDIDiesel · 135 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2012–2021AudiA3 Sportback (8V) 8VA, 8VF2.0 TFSIPetrol · 140 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2012–2021AudiA3 Sportback (8V) 8VA, 8VF30 TDIDiesel · 85 kW · 1.6L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2012–2021AudiA3 Sportback (8V) 8VA, 8VF30 TFSIPetrol · 85 kW · 1.0L · 3-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2012–2021AudiA3 Sportback (8V) 8VA, 8VF35 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2012–2021AudiA3 Sportback (8V) 8VA, 8VF35 TFSIPetrol · 110 kW · 1.5L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
2012–2021AudiA3 Sportback (8V) 8VA, 8VF40 TFSIPetrol · 140 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 37, 57, 67
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
  • Note 57: Only for cars with a clamp diameter of 55mm on the front axle.
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
