KW Coilover Kit V3 for VW (MK7) Golf R Estate / Seat (5F) Leon ST Cupra / Audi (8V) S3 Convertible / Skoda (5E) Octavia

SKU: 35282016
Sale price$4,340.55 Regular price$4,569.00
Save $228.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the VW (MK7) Golf R Estate / Seat (5F) Leon ST Cupra / Audi (8V) S3 Convertible / Skoda (5E) Octavia.

Key Features

  • Rebound damping adjustable in 16 clicks
  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 30–55 mm
  • Rear lowering: 40–65 mm
  • Front axle load: up to 1,140 kg
  • Rear axle load: up to 1,130 kg
  • Front strut diameter (vehicle): 55 mm

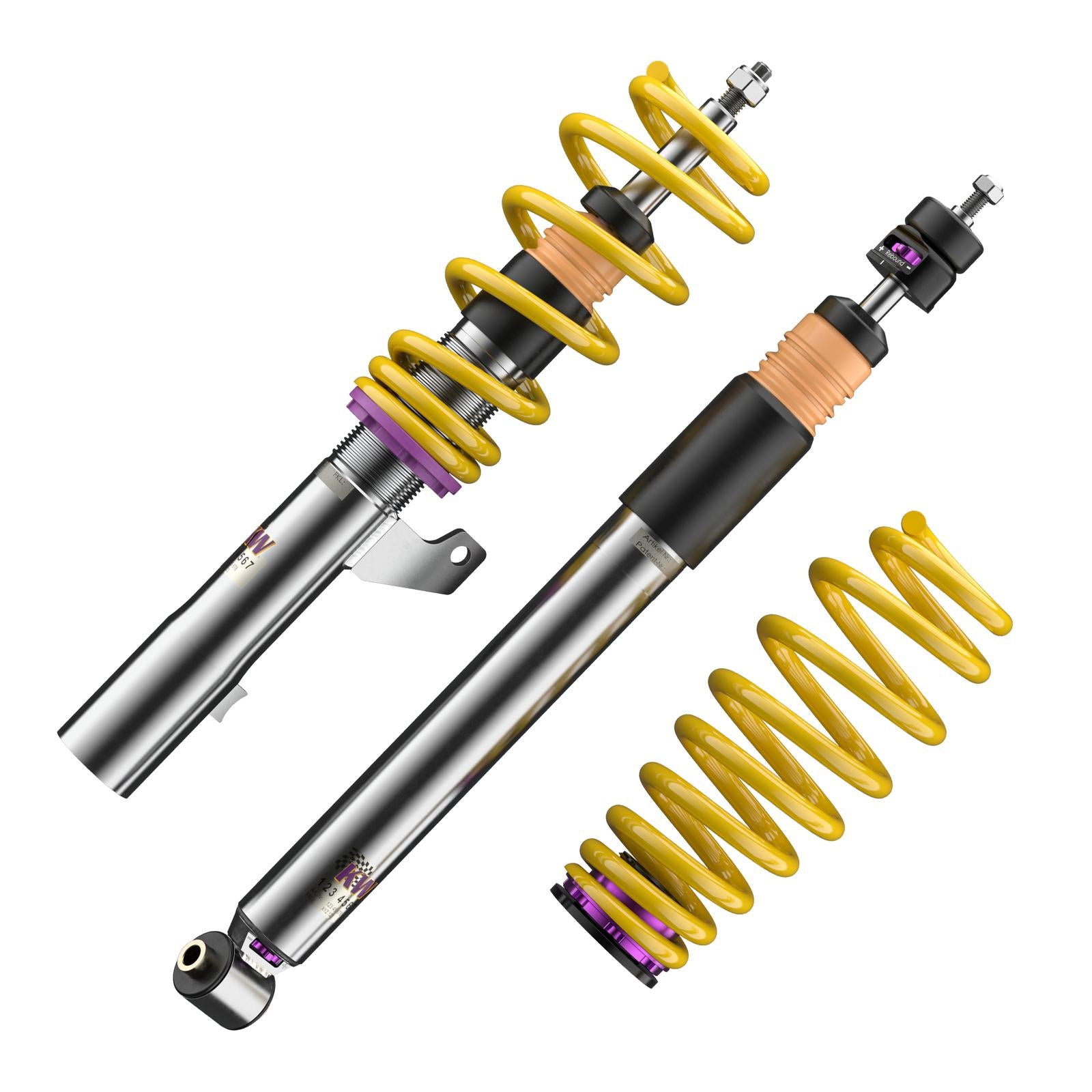

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 1,140 kg; Rear axle load up to 1,130 kg.

For vehicles without electronic damper control.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveNotesRefs
2013–2021AudiA3 Convertible (8V) 8V7, 8VE1.8 TFSI quattroPetrol · 132 kW · 1.8L · 4-cylAll-Wheel Drive2, 37, 57, 67
2013–2021AudiA3 Convertible (8V) 8V7, 8VE2.0 TDI quattroDiesel · 110 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57, 67
2013–2021AudiA3 Convertible (8V) 8V7, 8VE2.0 TDI quattroDiesel · 135 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57, 67
2013–2021AudiA3 Convertible (8V) 8V7, 8VE2.0 TFSI quattroPetrol · 140 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57, 67
2013–2021AudiA3 Convertible (8V) 8V7, 8VE2.0 TFSI quattroPetrol · 162 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57, 67
2013–2021AudiA3 Convertible (8V) 8V7, 8VE40 TFSI quattroPetrol · 140 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57, 67
2013–2021AudiA3 Convertible (8V) 8V7, 8VES3 quattroPetrol · 210 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57, 67
2013–2021AudiA3 Convertible (8V) 8V7, 8VES3 quattroPetrol · 213 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57, 67
2013–2021AudiA3 Convertible (8V) 8V7, 8VES3 quattroPetrol · 221 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57, 67
2013–2021AudiA3 Convertible (8V) 8V7, 8VES3 quattroPetrol · 228 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 57, 67
2012–2021AudiA3 Sportback (8V) 8VA, 8VF1.4 TFSI e-tronPetrol/Electric · 150 kW · 1.4L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 57, 67
2012–2021AudiA3 Sportback (8V) 8VA, 8VF40 e-tronPetrol/Electric · 150 kW · 1.4L · 4-cylFront-Wheel DriveFor cars without electronic damping2, 57, 67
2012–2020SeatLeon ST (5F8)2.0 Cupra 4DrivePetrol · 221 kW · 2.0L · 4-cylAll-Wheel DriveWithout cancellation kit electronic damping2, 37, 57, 67
2012–2021SkodaOctavia III (5E3, NL3, NR3)1.6 TDI 4x4Diesel · 77 kW · 1.6L · 4-cylAll-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021SkodaOctavia III (5E3, NL3, NR3)1.6 TDI 4x4Diesel · 81 kW · 1.6L · 4-cylAll-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021SkodaOctavia III (5E3, NL3, NR3)1.6 TDI 4x4Diesel · 85 kW · 1.6L · 4-cylAll-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021SkodaOctavia III (5E3, NL3, NR3)1.8 TSI 4x4Petrol · 132 kW · 1.8L · 4-cylAll-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021SkodaOctavia III (5E3, NL3, NR3)2.0 TDI / TDI RS 4x4Diesel · 135 kW · 2.0L · 4-cylAll-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021SkodaOctavia III (5E3, NL3, NR3)2.0 TDI 4x4Diesel · 110 kW · 2.0L · 4-cylAll-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2021SkodaOctavia III (5E3, NL3, NR3)2.0 TSI 4x4Petrol · 140 kW · 2.0L · 4-cylAll-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2020SkodaOctavia III Combi (5E5, 5E6)1.6 TDI 4x4Diesel · 77 kW · 1.6L · 4-cylAll-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2020SkodaOctavia III Combi (5E5, 5E6)1.6 TDI 4x4Diesel · 81 kW · 1.6L · 4-cylAll-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2020SkodaOctavia III Combi (5E5, 5E6)1.6 TDI 4x4Diesel · 85 kW · 1.6L · 4-cylAll-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2020SkodaOctavia III Combi (5E5, 5E6)1.8 TSI 4x4Petrol · 132 kW · 1.8L · 4-cylAll-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2020SkodaOctavia III Combi (5E5, 5E6)2.0 TDI / TDI RS 4x4Diesel · 135 kW · 2.0L · 4-cylAll-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2020SkodaOctavia III Combi (5E5, 5E6)2.0 TDI 4x4Diesel · 110 kW · 2.0L · 4-cylAll-Wheel DriveFor cars without DCC2, 37, 57, 67
2012–2020SkodaOctavia III Combi (5E5, 5E6)2.0 TSI 4x4Petrol · 140 kW · 2.0L · 4-cylAll-Wheel DriveFor cars without DCC2, 37, 57, 67
2013–2022VWGolf VII Estate (AUV, BA5, BV5)2.0 R 360S 4motionPetrol · 265 kW · 2.0L · 4-cylAll-Wheel DriveFor cars without DCC2, 37, 57, 67
2013–2022VWGolf VII Estate (AUV, BA5, BV5)2.0 R 4motionPetrol · 206 kW · 2.0L · 4-cylAll-Wheel DriveFor cars without DCC2, 37, 57, 67
2013–2022VWGolf VII Estate (AUV, BA5, BV5)2.0 R 4motionPetrol · 213 kW · 2.0L · 4-cylAll-Wheel DriveFor cars without DCC2, 37, 57, 67
2013–2022VWGolf VII Estate (AUV, BA5, BV5)2.0 R 4motionPetrol · 221 kW · 2.0L · 4-cylAll-Wheel DriveFor cars without DCC2, 37, 57, 67
2013–2022VWGolf VII Estate (AUV, BA5, BV5)2.0 R 4motionPetrol · 228 kW · 2.0L · 4-cylAll-Wheel DriveFor cars without DCC2, 37, 57, 67
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
  • Note 57: Only for cars with a clamp diameter of 55mm on the front axle.
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
