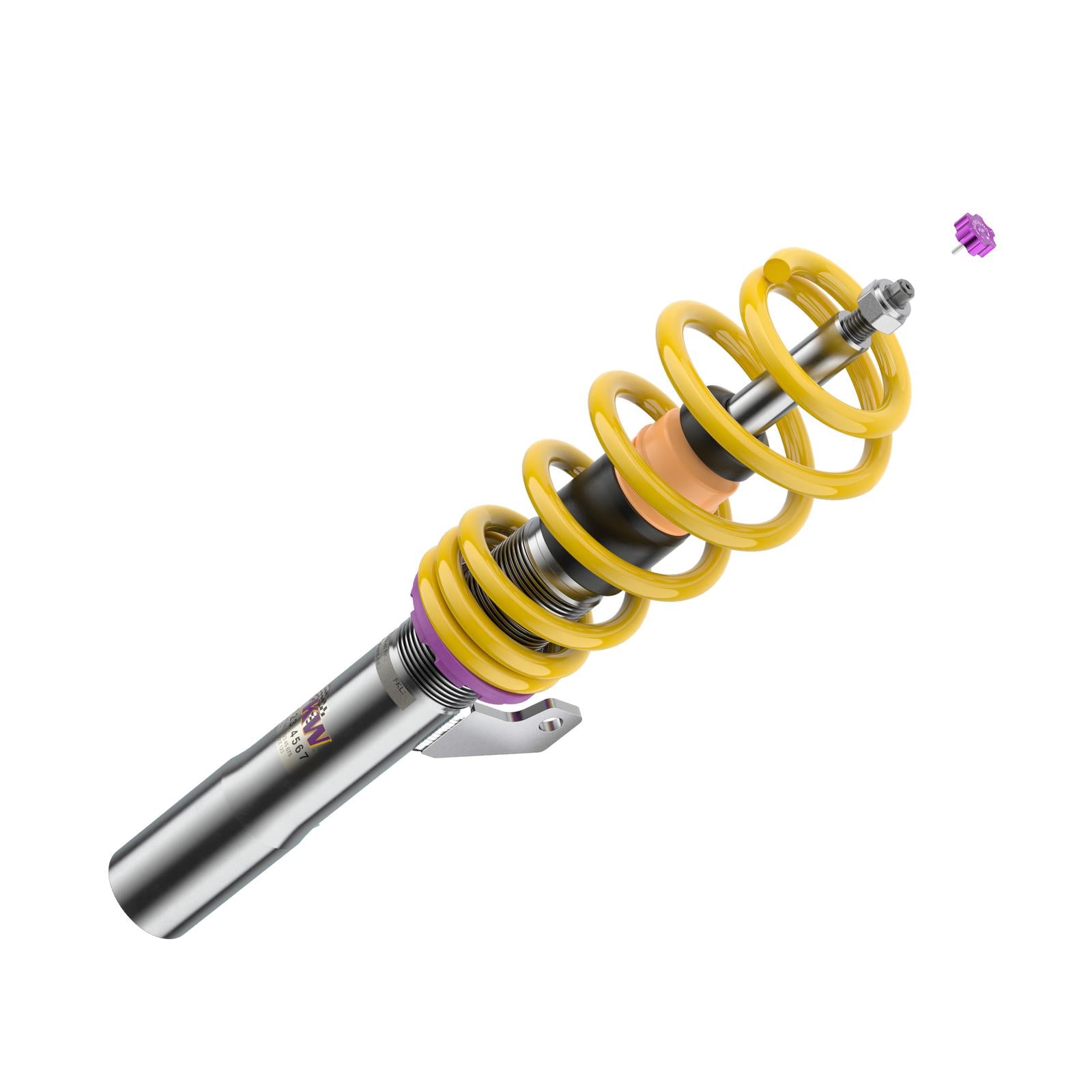

KW Coilover Kit V3 for Audi (B9) A4 / A5 - 48.5mm Front Strut

SKU: 352100BK
Sale price$4,863.05 Regular price$5,119.00
Save $255.95

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Audi A4 / A5 (B9).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 40–65 mm
  • Rear lowering: 40–65 mm
  • Front axle load: up to 1,135 kg
  • Rear axle load: up to 1,100 kg
  • Front strut diameter (vehicle): 48.5 mm

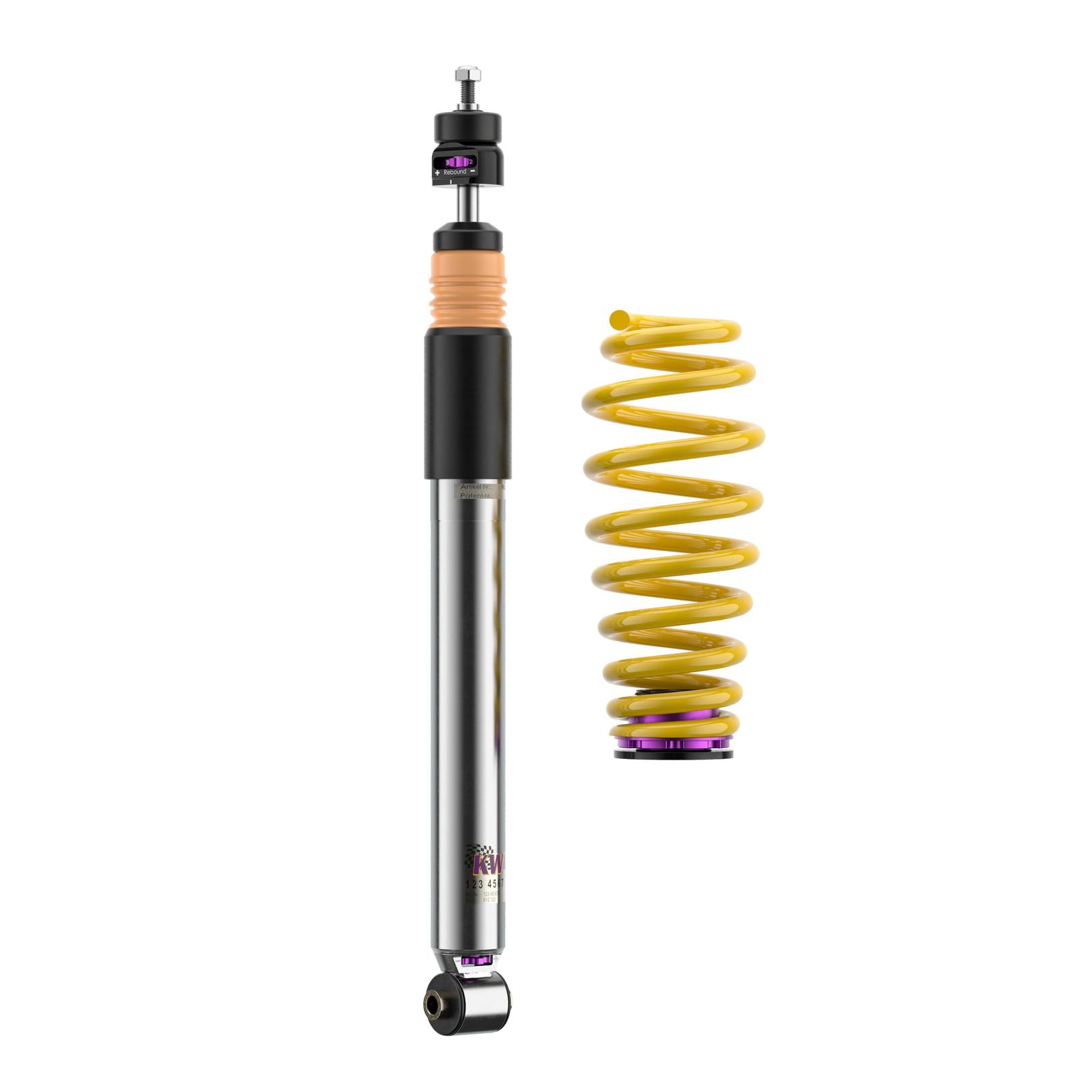

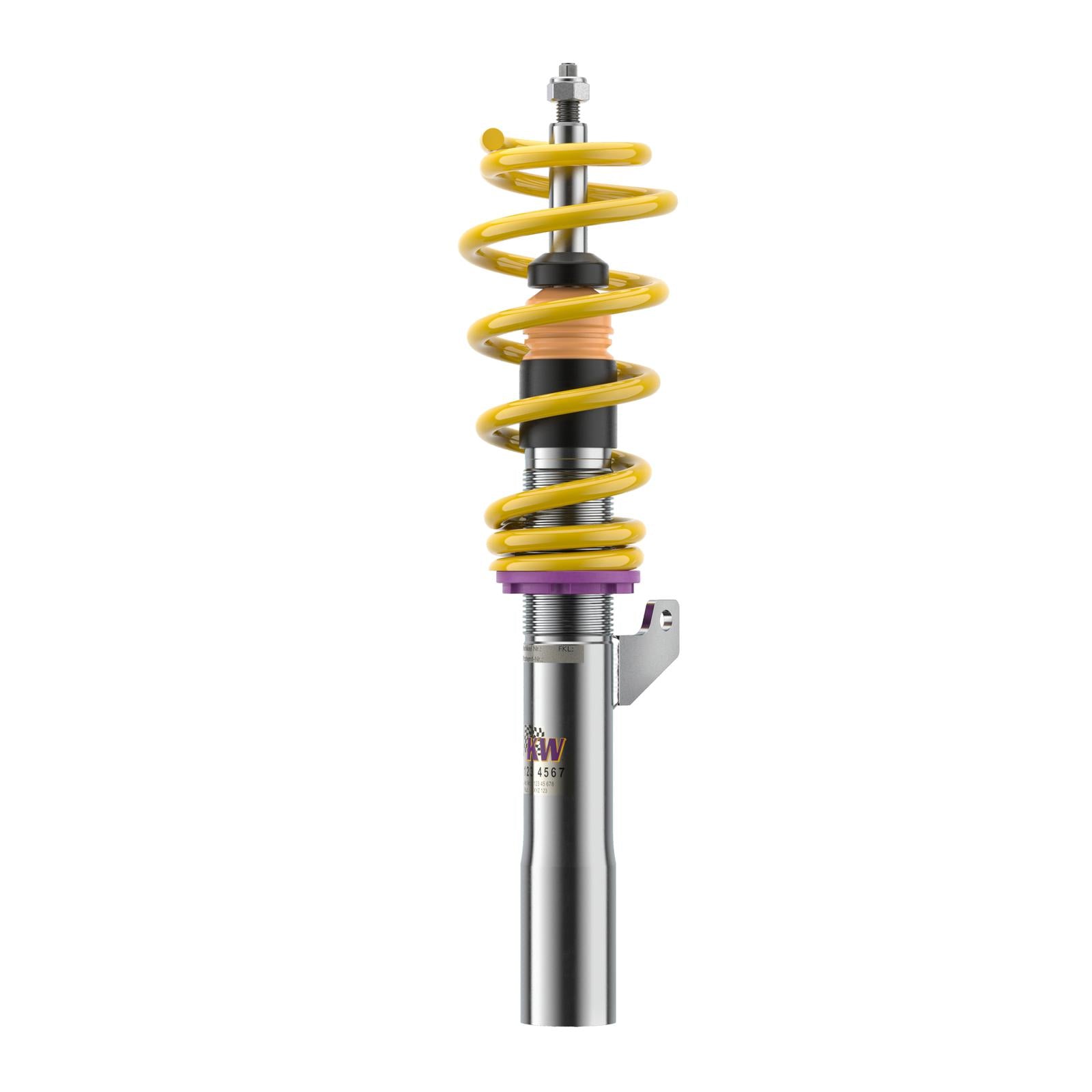

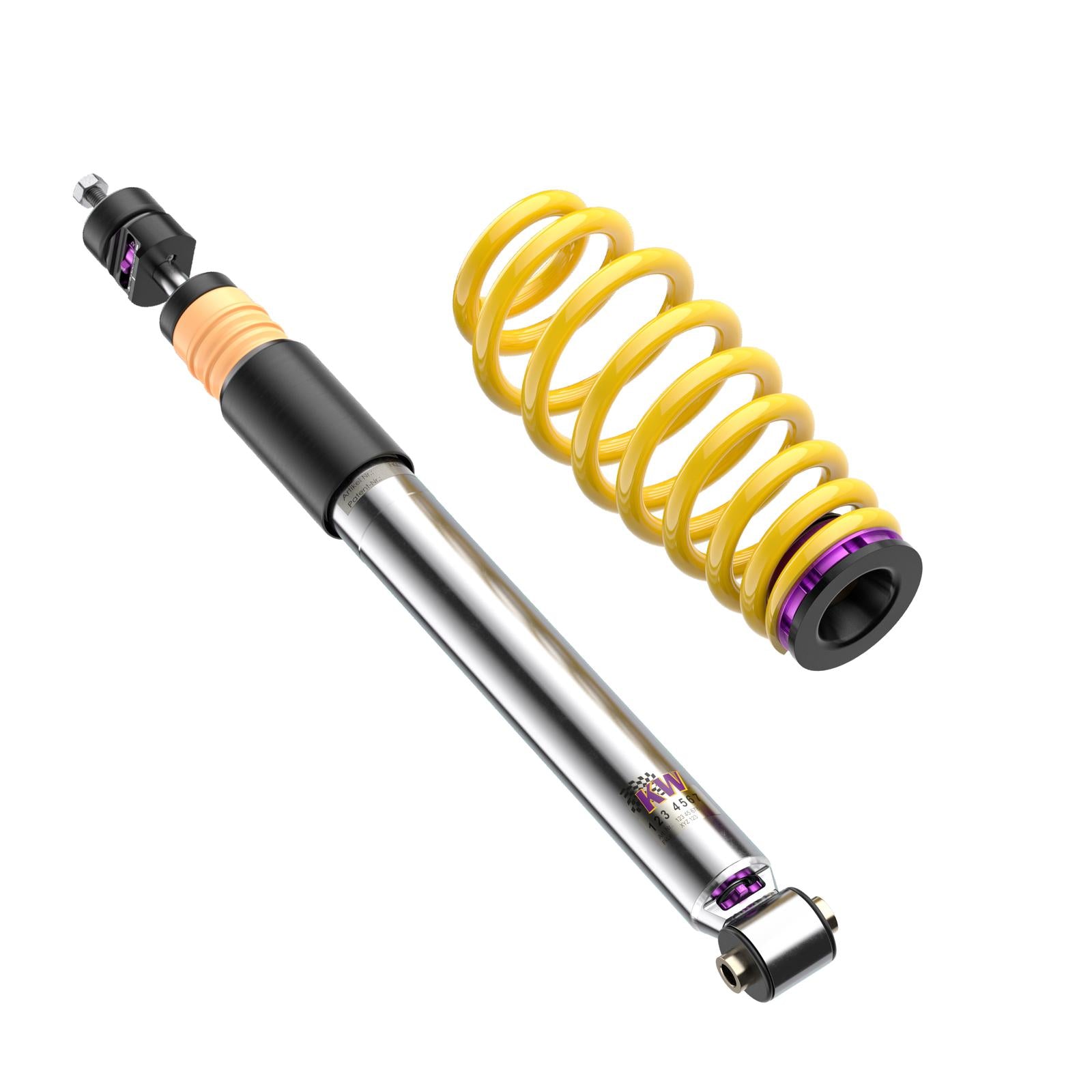

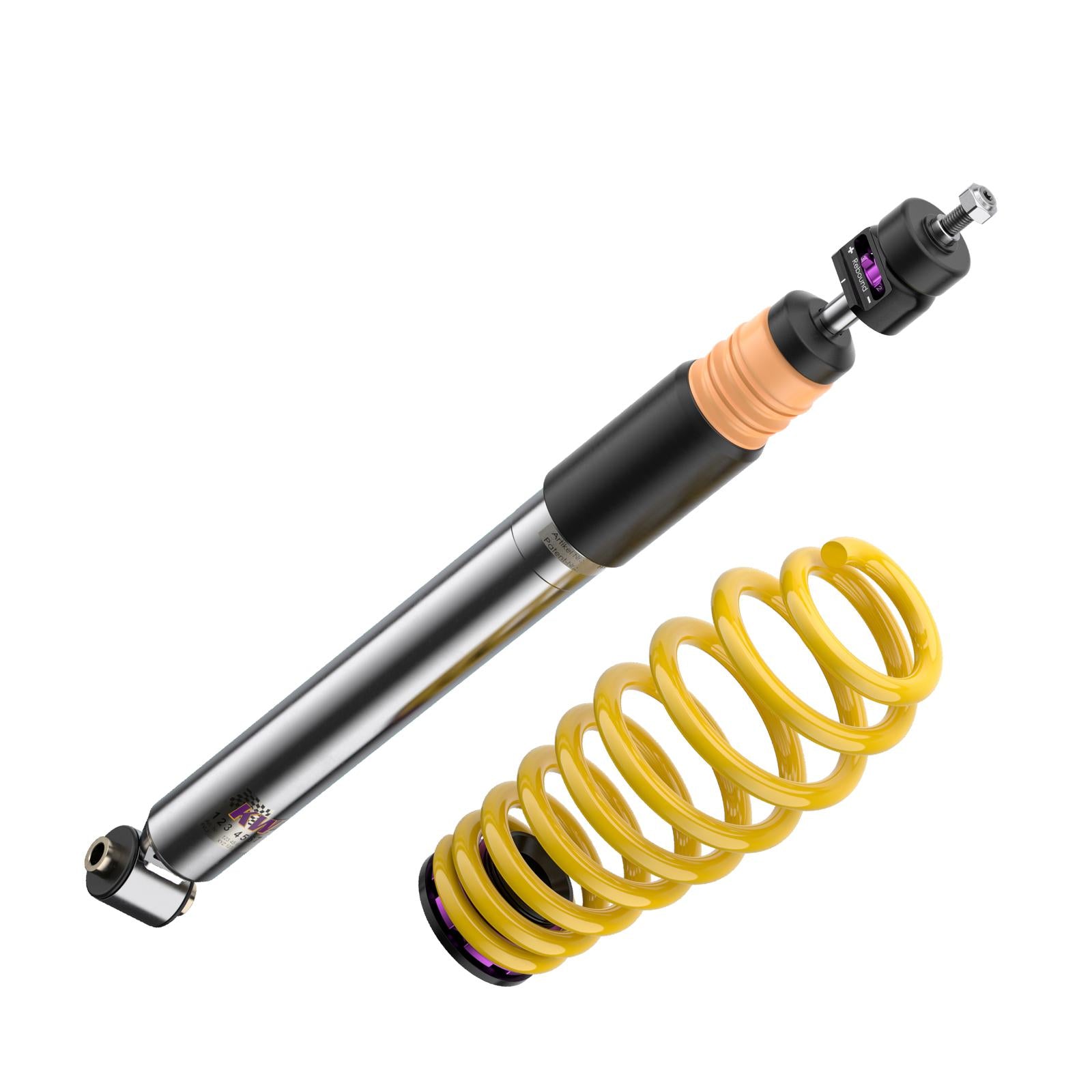

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 1,135 kg; Rear axle load up to 1,100 kg.

For vehicles without electronic damper control.

References 2, 37, 67, 409. See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2015+AudiA4 (B9) 8W2, B81.4 TFSIPetrol · 110 kW · 1.4L · 4-cylFront-Wheel Drive2, 37, 67, 409
2015+AudiA4 (B9) 8W2, B82.0 TDIDiesel · 90 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2015+AudiA4 (B9) 8W2, B82.0 TDIDiesel · 100 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2015+AudiA4 (B9) 8W2, B82.0 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2015+AudiA4 (B9) 8W2, B82.0 TDIDiesel · 140 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2015+AudiA4 (B9) 8W2, B82.0 TFSIPetrol · 140 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2015+AudiA4 (B9) 8W2, B82.0 TFSIPetrol · 183 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2015+AudiA4 (B9) 8W2, B82.0 TFSIPetrol · 185 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2015+AudiA4 (B9) 8W2, B82.0 TFSI Mild HybridPetrol/Electric · 185 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2015+AudiA4 (B9) 8W2, B83.0 TDIDiesel · 160 kW · 3.0L · 6-cylFront-Wheel Drive2, 37, 67, 409
2015+AudiA4 (B9) 8W2, B830 TDIDiesel · 90 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2015+AudiA4 (B9) 8W2, B830 TDI Mild HybridDiesel/Electric · 100 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2015+AudiA4 (B9) 8W2, B835 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2015+AudiA4 (B9) 8W2, B835 TDI Mild HybridDiesel/Electric · 120 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2015+AudiA4 (B9) 8W2, B835 TFSI Mild HybridPetrol/Electric · 110 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2015+AudiA4 (B9) 8W2, B840 TDIDiesel · 140 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2015+AudiA4 (B9) 8W2, B840 TDI Mild HybridDiesel/Electric · 150 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2015+AudiA4 (B9) 8W2, B840 TFSI Mild HybridPetrol/Electric · 140 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2015+AudiA4 (B9) 8W2, B840 TFSI Mild HybridPetrol/Electric · 150 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2015+AudiA4 (B9) 8W2, B845 TFSI Mild HybridPetrol/Electric · 180 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2016+AudiA5 (B9) F531.4 TFSIPetrol · 110 kW · 1.4L · 4-cylFront-Wheel Drive2, 37, 67, 409
2016+AudiA5 (B9) F532.0 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2016+AudiA5 (B9) F532.0 TDIDiesel · 140 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2016+AudiA5 (B9) F532.0 TFSIPetrol · 140 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2016+AudiA5 (B9) F532.0 TFSIPetrol · 185 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2016+AudiA5 (B9) F532.0 TFSI Mild HybridPetrol/Electric · 185 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2016+AudiA5 (B9) F533.0 TDIDiesel · 160 kW · 3.0L · 6-cylFront-Wheel Drive2, 37, 67, 409
2016+AudiA5 (B9) F5330 TDI Mild HybridDiesel/Electric · 100 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2016+AudiA5 (B9) F5335 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2016+AudiA5 (B9) F5335 TDIDiesel · 120 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2016+AudiA5 (B9) F5335 TFSIPetrol · 110 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2016+AudiA5 (B9) F5335 TFSI Mild HybridPetrol/Electric · 110 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2016+AudiA5 (B9) F5340 TDIDiesel · 140 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2016+AudiA5 (B9) F5340 TDI Mild HybridDiesel/Electric · 150 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2016+AudiA5 (B9) F5340 TFSIPetrol · 150 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2016+AudiA5 (B9) F5340 TFSI Mild HybridPetrol/Electric · 140 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2016+AudiA5 (B9) F5340 TFSI Mild HybridPetrol/Electric · 150 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
2016+AudiA5 (B9) F5345 TFSI Mild HybridPetrol/Electric · 180 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 409
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
  • Note 409: Only for cars with damper diameter 48,5mm (not 50mm) on the front axle.
