KW Coilover Kit V3 for Audi (B8) RS4 Avant / S4 Avant / A4 Allroad / (4G) A7

SKU: 35210078
Sale price$4,692.05 Regular price$4,939.00
Save $246.95

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Audi RS4 Avant / S4 Avant / A4 Allroad (B8) / A7 (4G).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 25–55 mm
  • Rear lowering: 25–50 mm
  • Front axle load: 1,081–1,225 kg
  • Rear axle load: up to 1,250 kg

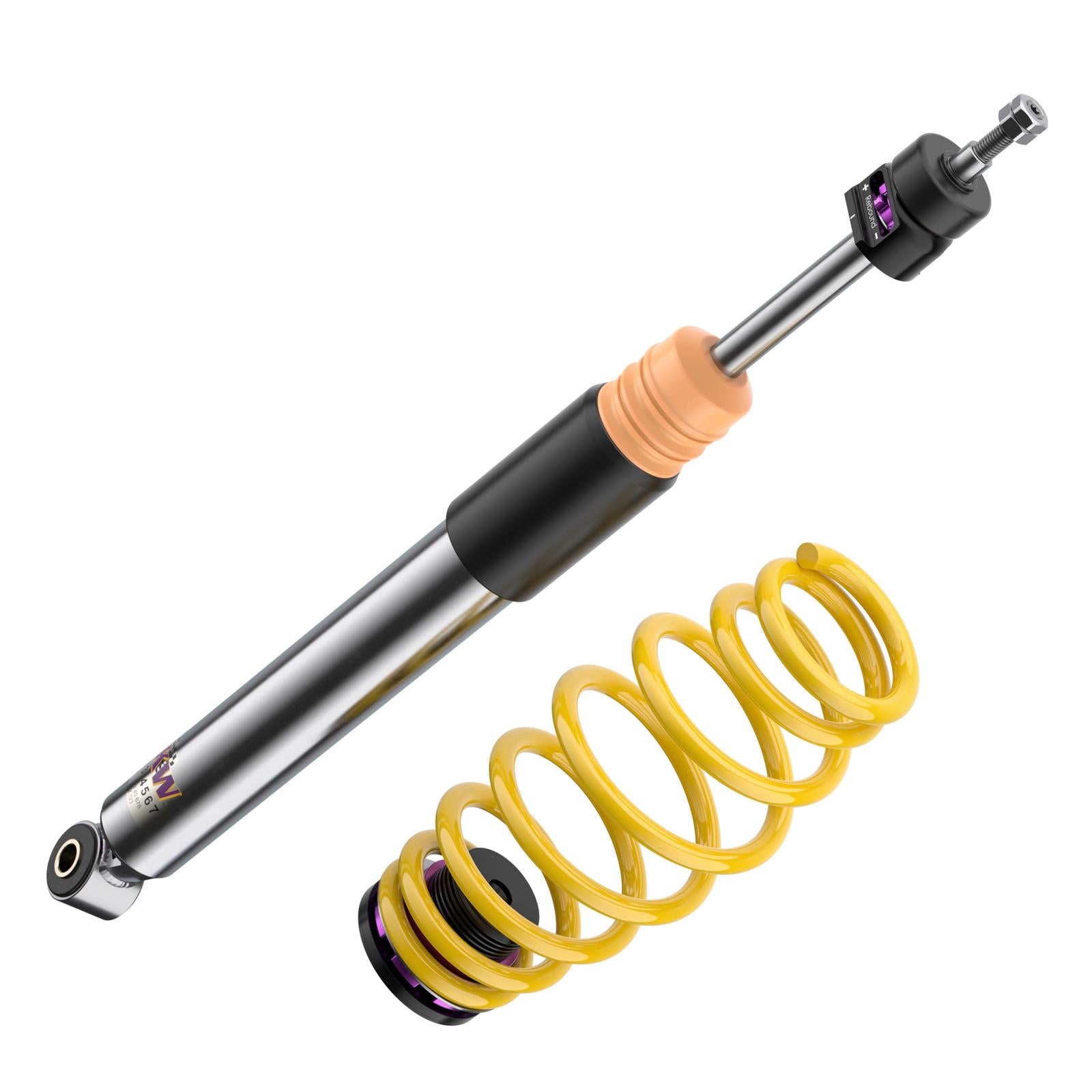

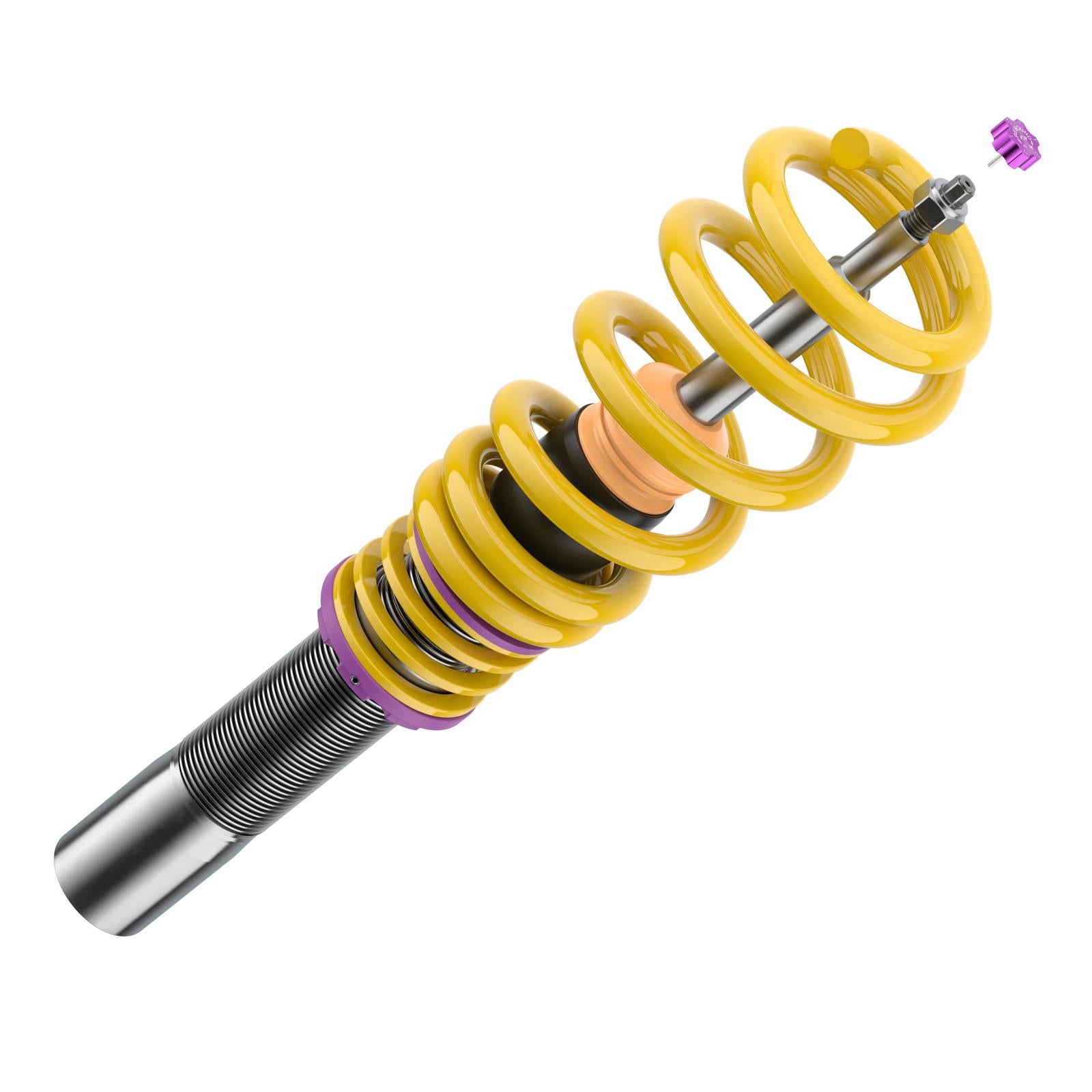

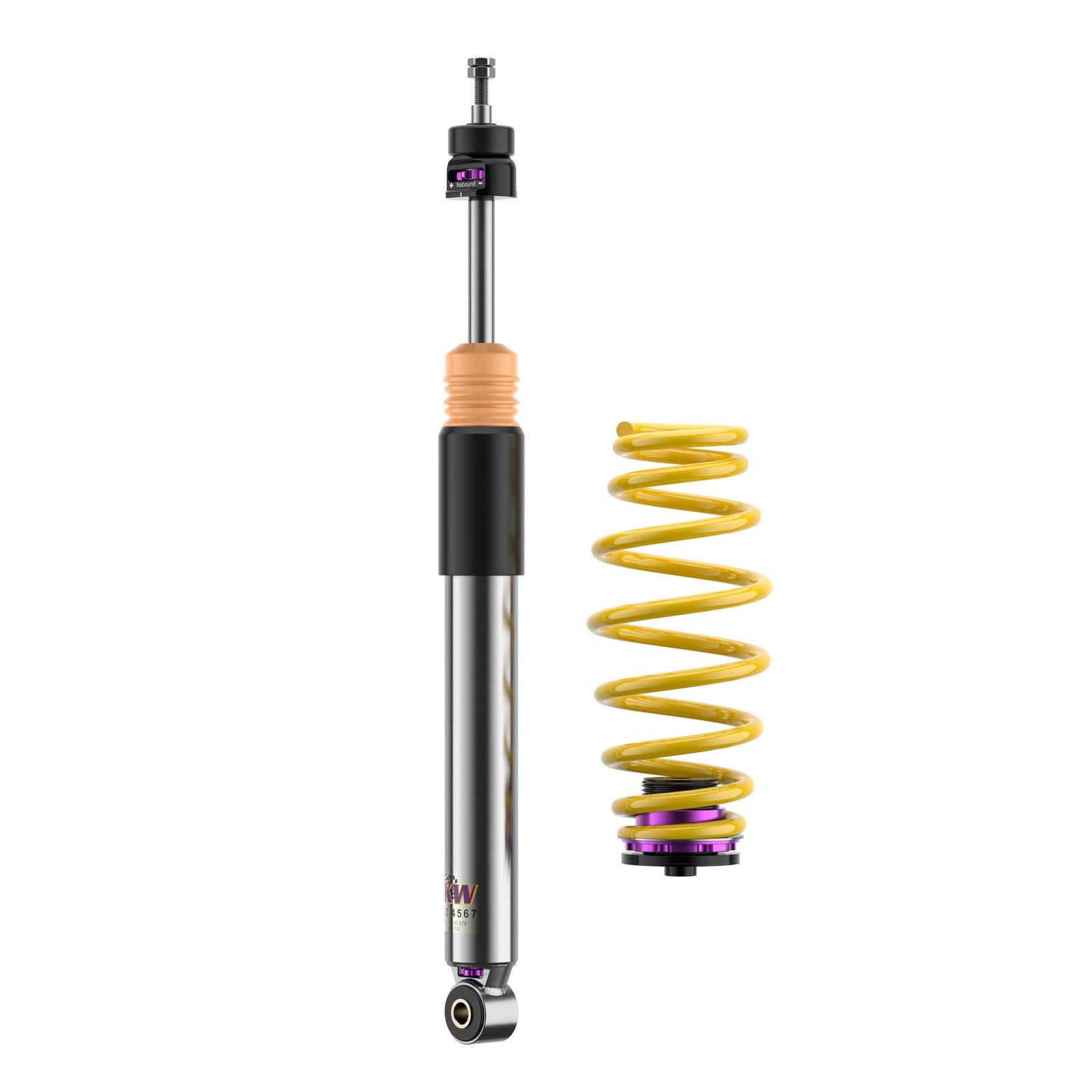

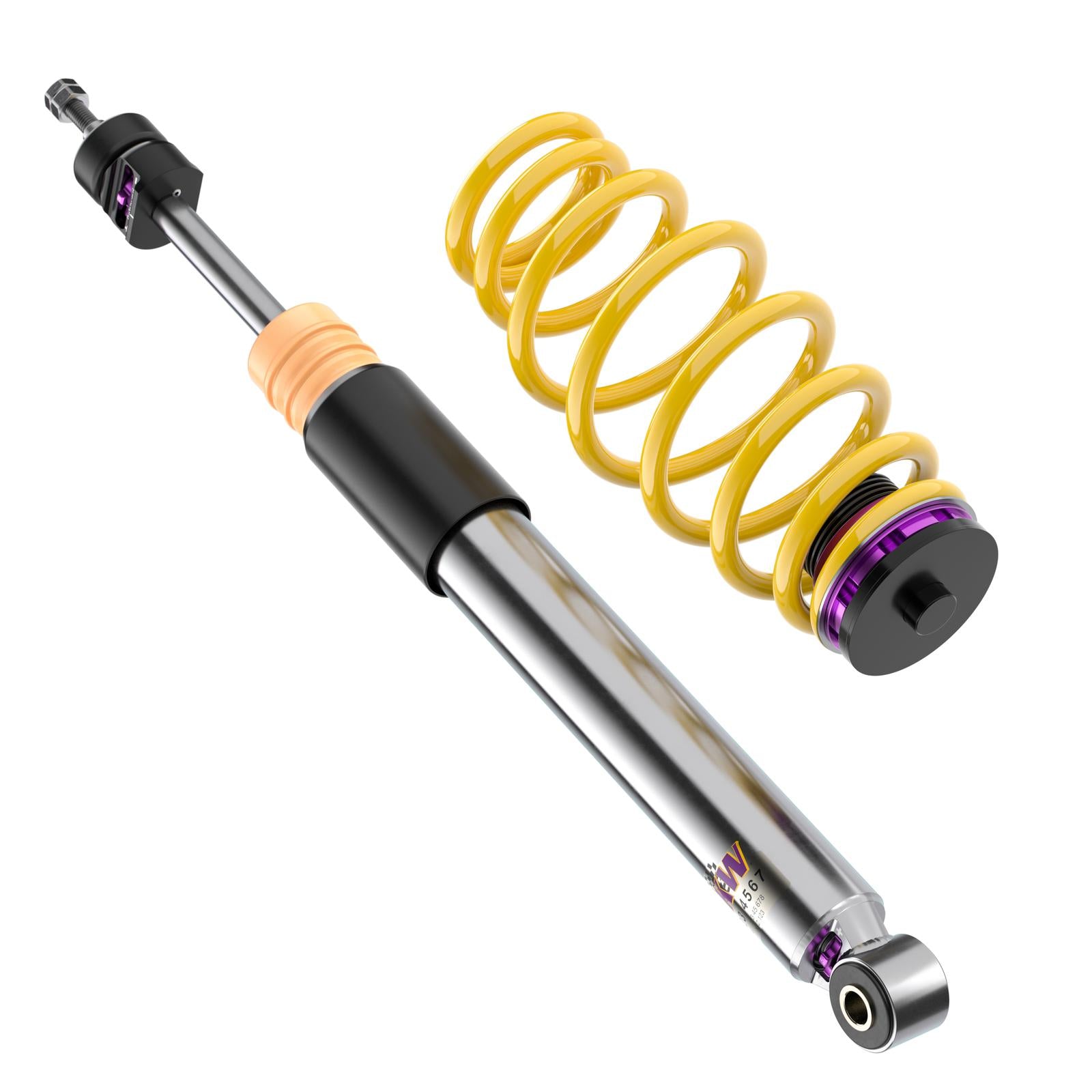

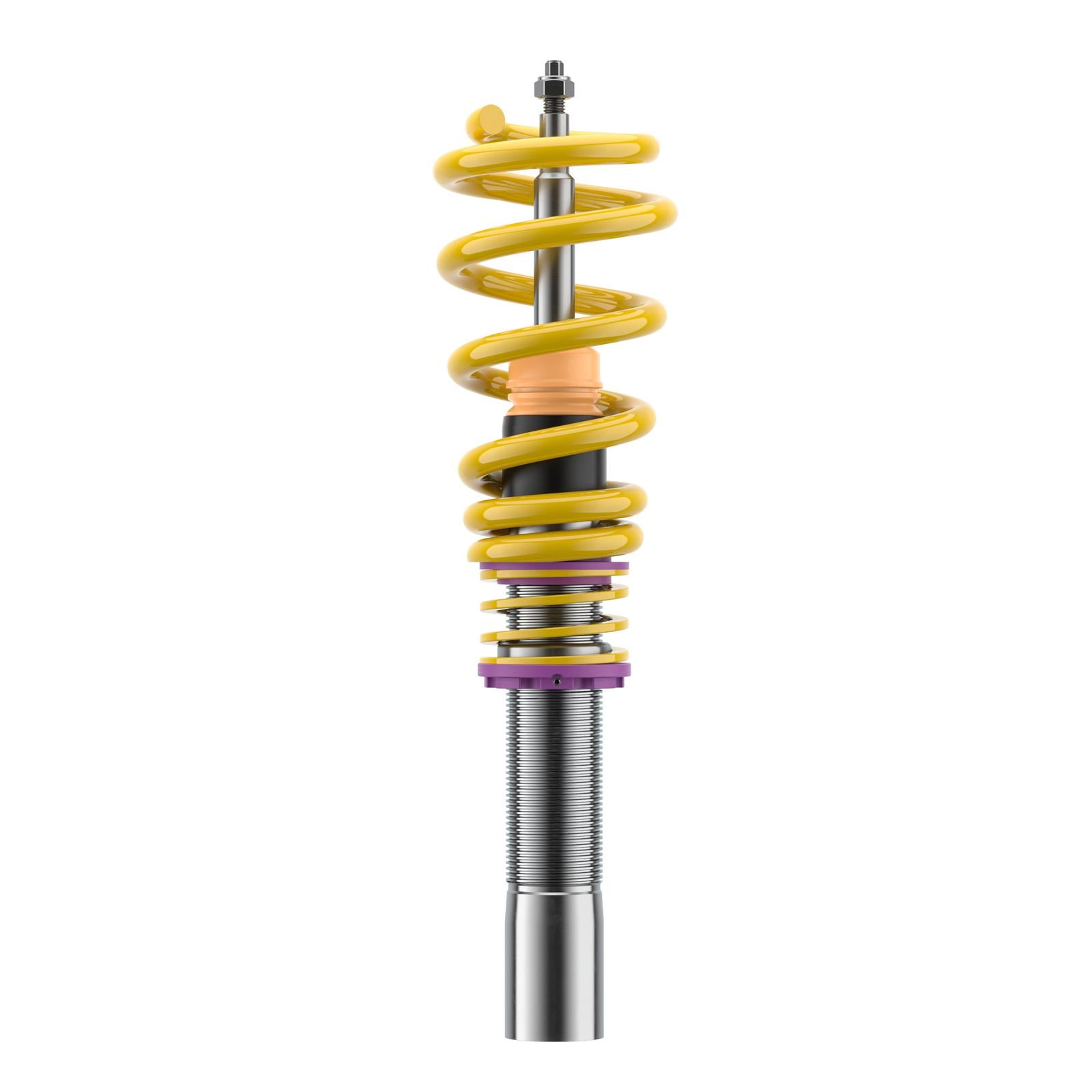

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load 1,081–1,225 kg; Rear axle load up to 1,250 kg.

For vehicles without electronic damper control.

References 2, 10, 37, 67. See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2009–2017AudiA4 Allroad (B8) 8KH2.0 TDI quattroDiesel · 100 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37, 67
2009–2017AudiA4 Allroad (B8) 8KH2.0 TDI quattroDiesel · 105 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37, 67
2009–2017AudiA4 Allroad (B8) 8KH2.0 TDI quattroDiesel · 110 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37, 67
2009–2017AudiA4 Allroad (B8) 8KH2.0 TDI quattroDiesel · 120 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37, 67
2009–2017AudiA4 Allroad (B8) 8KH2.0 TDI quattroDiesel · 125 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37, 67
2009–2017AudiA4 Allroad (B8) 8KH2.0 TDI quattroDiesel · 130 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37, 67
2009–2017AudiA4 Allroad (B8) 8KH2.0 TDI quattroDiesel · 140 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37, 67
2009–2017AudiA4 Allroad (B8) 8KH2.0 TFSI quattroPetrol · 155 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37, 67
2009–2017AudiA4 Allroad (B8) 8KH2.0 TFSI quattroPetrol · 162 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37, 67
2009–2017AudiA4 Allroad (B8) 8KH2.0 TFSI quattroPetrol · 165 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37, 67
2009–2017AudiA4 Allroad (B8) 8KH3.0 TDI quattroDiesel · 176 kW · 3.0L · 6-cylAll-Wheel Drive2, 10, 37, 67
2009–2017AudiA4 Allroad (B8) 8KH3.0 TDI quattroDiesel · 180 kW · 3.0L · 6-cylAll-Wheel Drive2, 10, 37, 67
2007–2017AudiA4 Avant (B8) 8K52.0 TDIDiesel · 100 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37, 67
2007–2017AudiA4 Avant (B8) 8K52.0 TDIDiesel · 105 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37, 67
2007–2017AudiA4 Avant (B8) 8K52.0 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37, 67
2007–2017AudiA4 Avant (B8) 8K52.0 TDIDiesel · 120 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37, 67
2007–2017AudiA4 Avant (B8) 8K52.0 TDIDiesel · 130 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37, 67
2007–2017AudiA4 Avant (B8) 8K52.0 TDIDiesel · 140 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 37, 67
2007–2017AudiA4 Avant (B8) 8K52.0 TDI quattroDiesel · 105 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37, 67
2007–2017AudiA4 Avant (B8) 8K52.0 TDI quattroDiesel · 110 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37, 67
2007–2017AudiA4 Avant (B8) 8K52.0 TDI quattroDiesel · 125 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37, 67
2007–2017AudiA4 Avant (B8) 8K52.0 TDI quattroDiesel · 130 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37, 67
2007–2017AudiA4 Avant (B8) 8K52.0 TDI quattroDiesel · 140 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37, 67
2007–2017AudiA4 Avant (B8) 8K52.0 TFSI quattroPetrol · 155 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37, 67
2007–2017AudiA4 Avant (B8) 8K52.0 TFSI quattroPetrol · 165 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 37, 67
2007–2017AudiA4 Avant (B8) 8K52.7 TDIDiesel · 120 kW · 2.7L · 6-cylFront-Wheel Drive2, 10, 37, 67
2007–2017AudiA4 Avant (B8) 8K52.7 TDIDiesel · 140 kW · 2.7L · 6-cylFront-Wheel Drive2, 10, 37, 67
2007–2017AudiA4 Avant (B8) 8K53.0 TDIDiesel · 150 kW · 3.0L · 6-cylFront-Wheel Drive2, 10, 37, 67
2007–2017AudiA4 Avant (B8) 8K53.0 TDI quattroDiesel · 155 kW · 3.0L · 6-cylAll-Wheel Drive2, 10, 37, 67
2007–2017AudiA4 Avant (B8) 8K53.0 TDI quattroDiesel · 176 kW · 3.0L · 6-cylAll-Wheel Drive2, 10, 37, 67
2007–2017AudiA4 Avant (B8) 8K53.0 TDI quattroDiesel · 180 kW · 3.0L · 6-cylAll-Wheel Drive2, 10, 37, 67
2007–2017AudiA4 Avant (B8) 8K53.0 TFSI quattroPetrol · 200 kW · 3.0L · 6-cylAll-Wheel Drive2, 10, 37, 67
2007–2017AudiA4 Avant (B8) 8K53.2 FSIPetrol · 195 kW · 3.2L · 6-cylFront-Wheel Drive2, 10, 37, 67
2007–2017AudiA4 Avant (B8) 8K53.2 FSI quattroPetrol · 195 kW · 3.2L · 6-cylAll-Wheel Drive2, 10, 37, 67
2007–2017AudiA4 Avant (B8) 8K5RS4 quattroPetrol · 331 kW · 4.2L · 8-cylAll-Wheel Drive2, 10, 37, 67
2007–2017AudiA4 Avant (B8) 8K5S4 quattroPetrol · 245 kW · 3.0L · 6-cylAll-Wheel Drive2, 10, 37, 67
2010–2019AudiA7 Sportback (4G) 4GA, 4GF1.8 TFSIPetrol · 140 kW · 1.8L · 4-cylFront-Wheel Drive2, 10, 67
2010–2019AudiA7 Sportback (4G) 4GA, 4GF2.0 TFSIPetrol · 185 kW · 2.0L · 4-cylFront-Wheel Drive2, 10, 67
2010–2019AudiA7 Sportback (4G) 4GA, 4GF2.0 TFSI quattroPetrol · 183 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 67
2010–2019AudiA7 Sportback (4G) 4GA, 4GF2.0 TFSI quattroPetrol · 185 kW · 2.0L · 4-cylAll-Wheel Drive2, 10, 67
2010–2019AudiA7 Sportback (4G) 4GA, 4GF2.5 FSIPetrol · 150 kW · 2.5L · 6-cylFront-Wheel Drive2, 10, 67
2010–2019AudiA7 Sportback (4G) 4GA, 4GF2.8 FSIPetrol · 150 kW · 2.8L · 6-cylFront-Wheel Drive2, 10, 67
2010–2019AudiA7 Sportback (4G) 4GA, 4GF2.8 FSI quattroPetrol · 150 kW · 2.8L · 6-cylAll-Wheel Drive2, 10, 67
2010–2019AudiA7 Sportback (4G) 4GA, 4GF2.8 FSI quattroPetrol · 162 kW · 2.8L · 6-cylAll-Wheel Drive2, 10, 67
2010–2019AudiA7 Sportback (4G) 4GA, 4GF3.0 TDIDiesel · 140 kW · 3.0L · 6-cylFront-Wheel Drive2, 10, 67
2010–2019AudiA7 Sportback (4G) 4GA, 4GF3.0 TDIDiesel · 150 kW · 3.0L · 6-cylFront-Wheel Drive2, 10, 67
2010–2019AudiA7 Sportback (4G) 4GA, 4GF3.0 TDIDiesel · 155 kW · 3.0L · 6-cylFront-Wheel Drive2, 10, 67
2010–2019AudiA7 Sportback (4G) 4GA, 4GF3.0 TDIDiesel · 160 kW · 3.0L · 6-cylFront-Wheel Drive2, 10, 67
2010–2019AudiA7 Sportback (4G) 4GA, 4GF3.0 TDI quattroDiesel · 140 kW · 3.0L · 6-cylAll-Wheel Drive2, 10, 67
2010–2019AudiA7 Sportback (4G) 4GA, 4GF3.0 TDI quattroDiesel · 150 kW · 3.0L · 6-cylAll-Wheel Drive2, 10, 67
2010–2019AudiA7 Sportback (4G) 4GA, 4GF3.0 TDI quattroDiesel · 155 kW · 3.0L · 6-cylAll-Wheel Drive2, 10, 67
2010–2019AudiA7 Sportback (4G) 4GA, 4GF3.0 TDI quattroDiesel · 160 kW · 3.0L · 6-cylAll-Wheel Drive2, 10, 67
2010–2019AudiA7 Sportback (4G) 4GA, 4GF3.0 TDI quattroDiesel · 176 kW · 3.0L · 6-cylAll-Wheel Drive2, 10, 67
2010–2019AudiA7 Sportback (4G) 4GA, 4GF3.0 TDI quattroDiesel · 180 kW · 3.0L · 6-cylAll-Wheel Drive2, 10, 67
2010–2019AudiA7 Sportback (4G) 4GA, 4GF3.0 TDI quattroDiesel · 200 kW · 3.0L · 6-cylAll-Wheel Drive2, 10, 67
2010–2019AudiA7 Sportback (4G) 4GA, 4GF3.0 TDI quattroDiesel · 230 kW · 3.0L · 6-cylAll-Wheel Drive2, 10, 67
2010–2019AudiA7 Sportback (4G) 4GA, 4GF3.0 TDI quattroDiesel · 235 kW · 3.0L · 6-cylAll-Wheel Drive2, 10, 67
2010–2019AudiA7 Sportback (4G) 4GA, 4GF3.0 TDI quattroDiesel · 240 kW · 3.0L · 6-cylAll-Wheel Drive2, 10, 67
2010–2019AudiA7 Sportback (4G) 4GA, 4GF3.0 TFSI QUATTROPetrol · 250 kW · 3.0L · 6-cylAll-Wheel Drive2, 10, 67
2010–2019AudiA7 Sportback (4G) 4GA, 4GF3.0 TFSI quattroPetrol · 220 kW · 3.0L · 6-cylAll-Wheel Drive2, 10, 67
2010–2019AudiA7 Sportback (4G) 4GA, 4GF3.0 TFSI quattroPetrol · 228 kW · 3.0L · 6-cylAll-Wheel Drive2, 10, 67
2010–2019AudiA7 Sportback (4G) 4GA, 4GF3.0 TFSI quattroPetrol · 245 kW · 3.0L · 6-cylAll-Wheel Drive2, 10, 67
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 8: Not for vehicles with automatic self levelling control / air suspension.
  • Note 10: In Variant 2, hardness adjustment for front axle only in not installed condition possible.
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
  • Note 62: Not for cars with electronic damping.
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
