KW Coilover Kit V3 for Audi (B7) A4 Avant V6 / (B6) A4 Avant

SKU: 35210058
Sale price$4,521.06 Regular price$4,759.00
Save $237.94

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

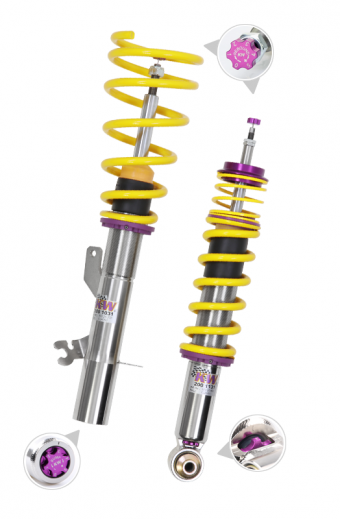

KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Audi A4 Avant V6 quattro (B7) / A4 Avant quattro (B6).

Key Features

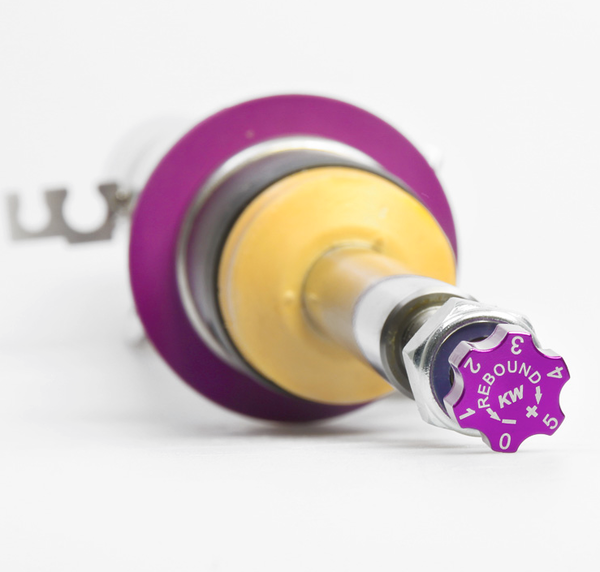

  • Rebound damping adjustable in 16 clicks

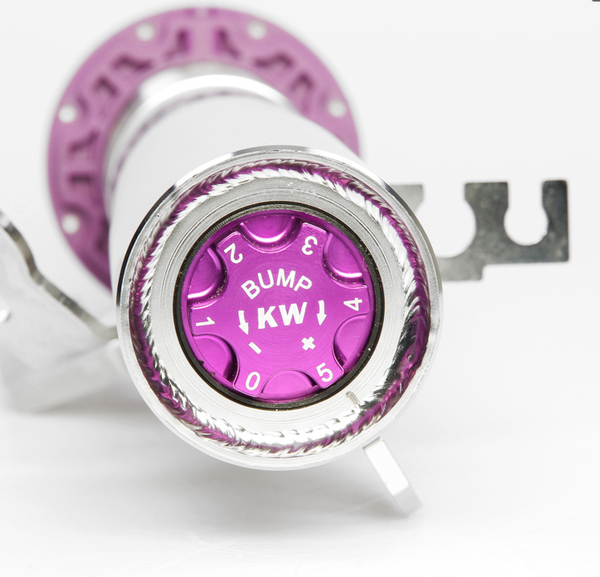

  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression

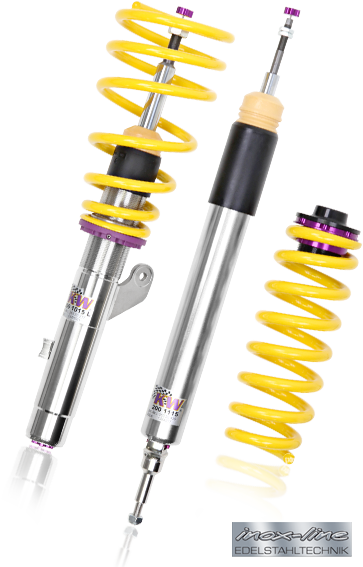

  • Material: Stainless steel
  • Front lowering: 35–65 mm
  • Rear lowering: 35–60 mm
  • Front axle load: 1,081–1,250 kg
  • Rear axle load: up to 1,165 kg

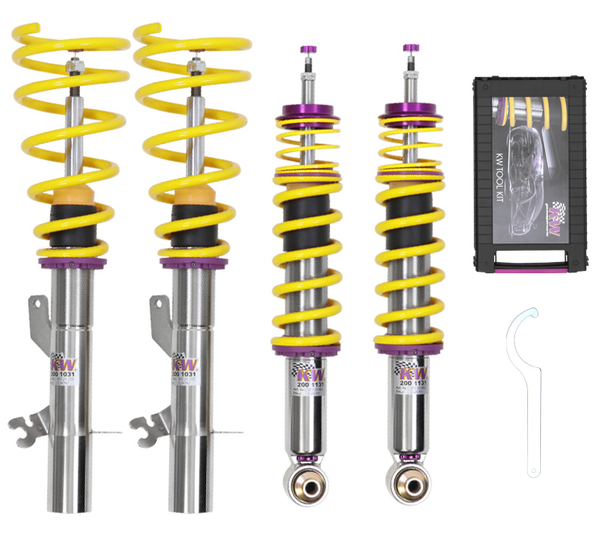

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load 1,081–1,250 kg; Rear axle load up to 1,165 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2000–2005AudiA4 Avant (8E) 8E5, B63.0 quattroPetrol · 164 kW · 3.0L · 6-cylAll-Wheel Drive2, 8, 10
2000–2005AudiA4 Avant (8E) 8E5, B61.8 T quattroPetrol · 127 kW · 1.8L · 4-cylAll-Wheel Drive2, 8, 10
2000–2005AudiA4 Avant (8E) 8E5, B62.5 TDI quattroDiesel · 132 kW · 2.5L · 6-cylAll-Wheel Drive2, 8, 10
2000–2005AudiA4 Avant (8E) 8E5, B63.0 quattroPetrol · 162 kW · 3.0L · 6-cylAll-Wheel Drive2, 8, 10
2000–2005AudiA4 Avant (8E) 8E5, B61.9 TDI quattroDiesel · 96 kW · 1.9L · 4-cylAll-Wheel Drive2, 8, 10
2000–2005AudiA4 Avant (8E) 8E5, B61.8 T quattroPetrol · 140 kW · 1.8L · 4-cylAll-Wheel Drive2, 8, 10
2002–2009AudiA4 Convertible (8H) QB6, 8H7, B6, 8HE, B71.8 T quattroPetrol · 120 kW · 1.8L · 4-cylAll-Wheel Drive2, 8, 10
2002–2009AudiA4 Convertible (8H) QB6, 8H7, B6, 8HE, B73.0 quattroPetrol · 162 kW · 3.0L · 6-cylAll-Wheel Drive2, 8, 10
2000–2005AudiA4 Avant (8E) 8E5, B61.8 T quattroPetrol · 125 kW · 1.8L · 4-cylAll-Wheel Drive2, 8, 10
2000–2005AudiA4 Avant (8E) 8E5, B63.0 quattroPetrol · 160 kW · 3.0L · 6-cylAll-Wheel Drive2, 8, 10
2004–2008AudiA4 Avant (8E) 8ED, QB6, B72.0 TFSI quattroPetrol · 147 kW · 2.0L · 4-cylAll-Wheel Drive2, 8, 10
2004–2008AudiA4 Avant (8E) 8ED, QB6, B73.2 FSI quattroPetrol · 188 kW · 3.1L · 6-cylAll-Wheel Drive2, 8, 10
2004–2008AudiA4 Avant (8E) 8ED, QB6, B73.0 TDI quattroDiesel · 150 kW · 3.0L · 6-cylAll-Wheel Drive2, 8, 10
2002–2010AudiA4 B7 Convertible (8HE)3.2 FSI quattroPetrol · 188 kW · 3.1L · 6-cylAll-Wheel Drive2, 8, 10
2002–2010AudiA4 B7 Convertible (8HE)3.0 TDI quattroDiesel · 171 kW · 3.0L · 6-cylAll-Wheel Drive2, 8, 10
2004–2008AudiA4 Avant (8E) 8ED, QB6, B72.0 TDI quattroDiesel · 103 kW · 2.0L · 4-cylAll-Wheel Drive2, 8, 10
2004–2008AudiA4 Avant (8E) 8ED, QB6, B72.0 TFSI quattroPetrol · 162 kW · 2.0L · 4-cylAll-Wheel Drive2, 8, 10
2004–2008AudiA4 Avant (8E) 8ED, QB6, B72.0 TDI quattroDiesel · 125 kW · 2.0L · 4-cylAll-Wheel Drive2, 8, 10
2004–2008AudiA4 Avant (8E) 8ED, QB6, B73.0 TDI quattroDiesel · 171 kW · 3.0L · 6-cylAll-Wheel Drive2, 8, 10
2002–2010AudiA4 B7 Convertible (8HE)3.0 TDI quattroDiesel · 150 kW · 3.0L · 6-cylAll-Wheel Drive2, 8, 10
2004–2008AudiA4 Avant (8E) 8ED, QB6, B73.0 quattroPetrol · 160 kW · 3.0L · 6-cylAll-Wheel Drive2, 8, 10
2004–2008AudiA4 Avant (8E) 8ED, QB6, B72.0 TDI quattroDiesel · 120 kW · 2.0L · 4-cylAll-Wheel Drive2, 8, 10
2002–2010AudiA4 B7 Convertible (8HE)2.0 TFSI quattroPetrol · 147 kW · 2.0L · 4-cylAll-Wheel Drive2, 8, 10
2002–2009AudiA4 Convertible (8H) QB6, 8H7, B6, 8HE, B71.8 T quattroPetrol · 127 kW · 1.8L · 4-cylAll-Wheel Drive2, 8, 10
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 8: Not for vehicles with automatic self levelling control / air suspension.
  • Note 10: In Variant 2, hardness adjustment for front axle only in not installed condition possible.
