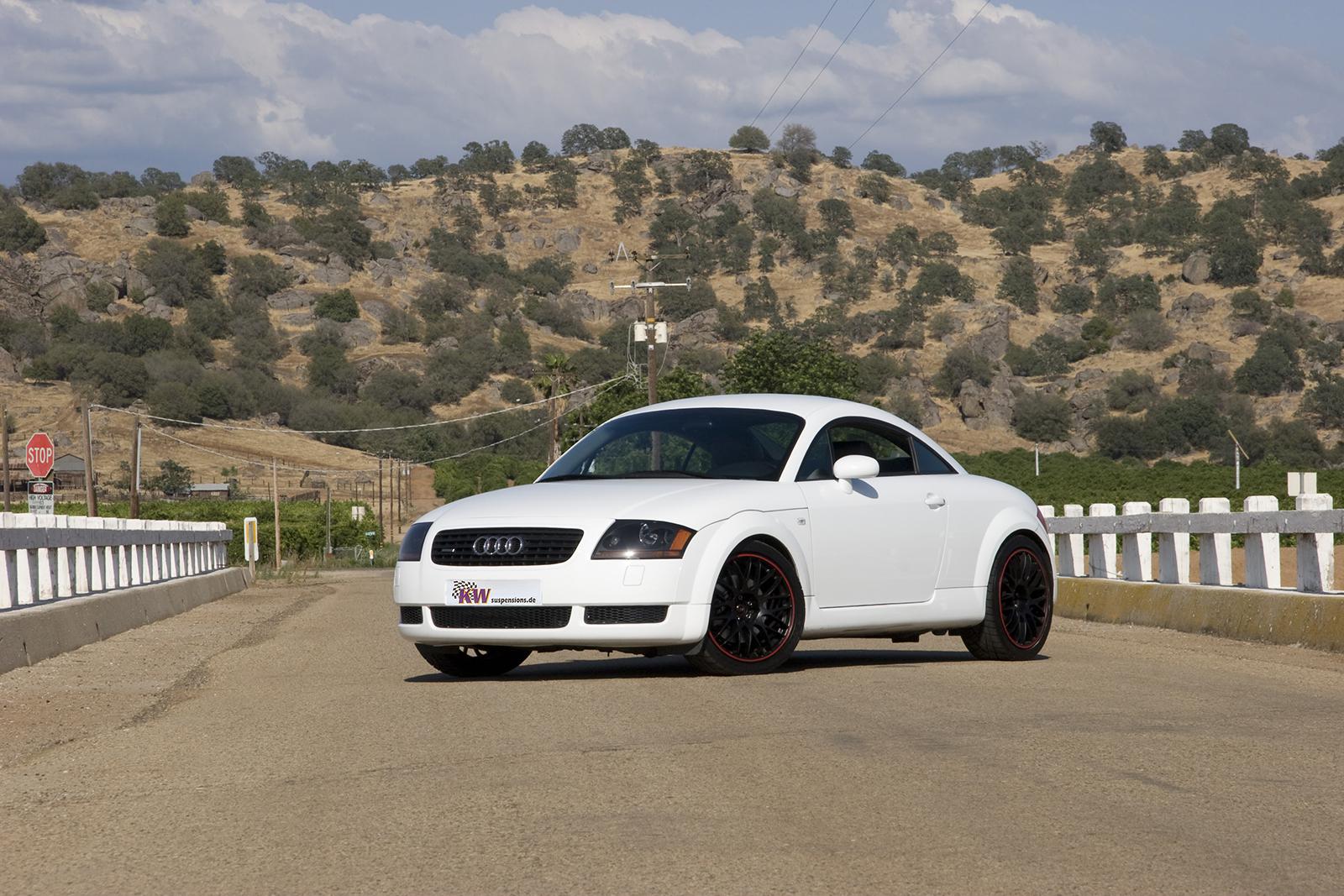

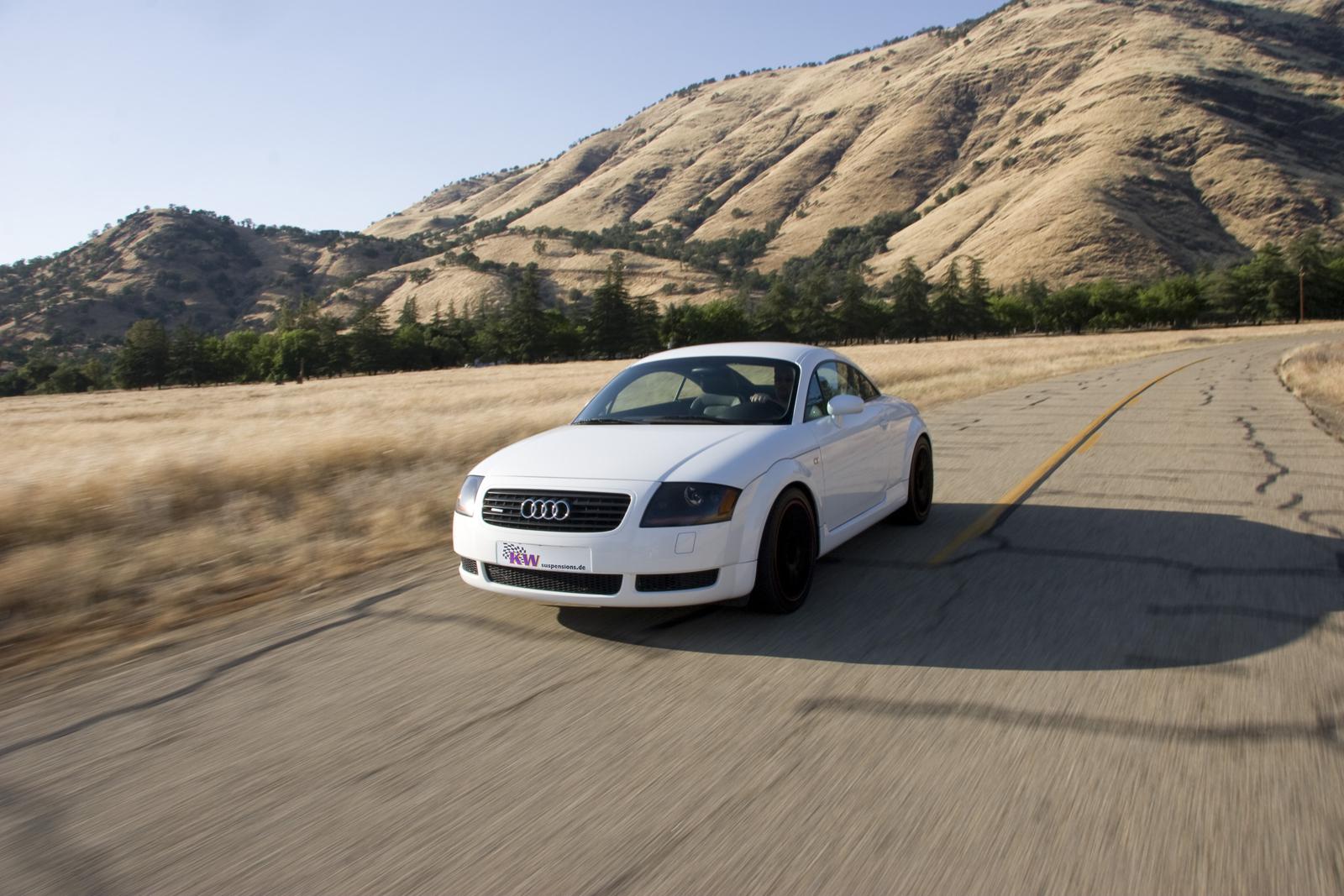

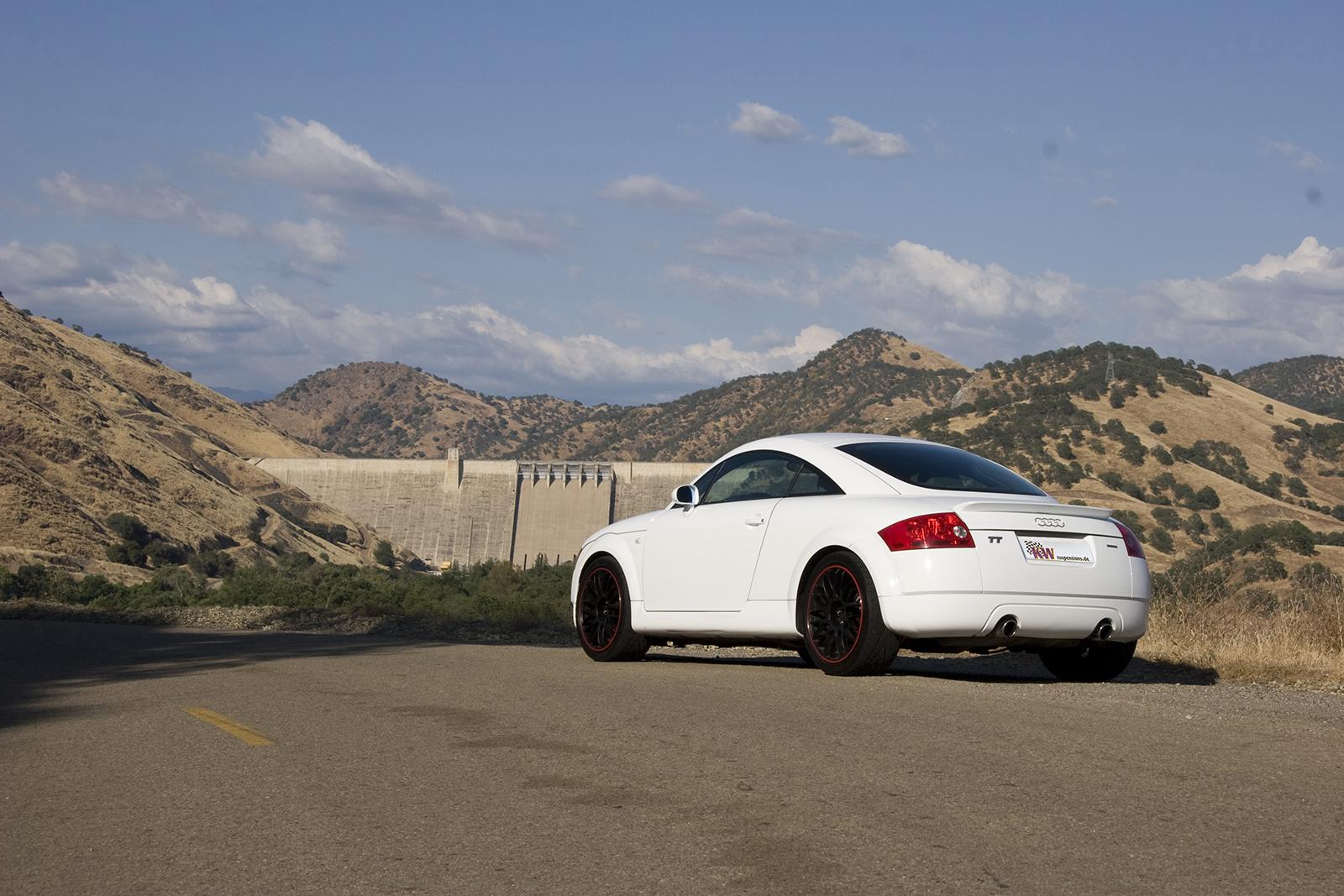

KW Coilover Kit V3 for Audi (8N) TT 1.8L Turbo / TT Roadster 1.8L Turbo

SKU: 35210041
Sale price$3,884.55 Regular price$4,089.00
Save $204.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Audi TT 1.8T / TT Roadster 1.8T (8N) quattro.

Key Features

  • Rebound damping adjustable in 16 clicks
  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 25–50 mm
  • Rear lowering: 25–50 mm
  • Front axle load: up to 1,040 kg
  • Rear axle load: up to 900 kg
  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 1,040 kg; Rear axle load up to 900 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
1998–2007AudiTT (8N) 8N31.8 T quattroPetrol · 168 kW · 1.8L · 4-cylAll-Wheel Drive2, 6, 14, 67, 85
1999–2007AudiTT Roadster (8N) 8N91.8 T quattroPetrol · 168 kW · 1.8L · 4-cylAll-Wheel Drive2, 6, 14, 67, 85
1999–2007AudiTT Roadster (8N) 8N91.8 T quattroPetrol · 132 kW · 1.8L · 4-cylAll-Wheel Drive2, 6, 14, 67, 85
1999–2007AudiTT Roadster (8N) 8N91.8 T quattroPetrol · 165 kW · 1.8L · 4-cylAll-Wheel Drive2, 6, 14, 67, 85
1998–2007AudiTT (8N) 8N31.8 T quattroPetrol · 134 kW · 1.8L · 4-cylAll-Wheel Drive2, 6, 14, 67, 85
1998–2007AudiTT (8N) 8N31.8 T quattroPetrol · 180 kW · 1.8L · 4-cylAll-Wheel Drive2, 6, 14, 67, 85
1998–2007AudiTT (8N) 8N31.8 T quattroPetrol · 140 kW · 1.8L · 4-cylAll-Wheel Drive2, 6, 14, 67, 85
1999–2007AudiTT Roadster (8N) 8N91.8 T quattroPetrol · 140 kW · 1.8L · 4-cylAll-Wheel Drive2, 6, 14, 67, 85
1999–2007AudiTT Roadster (8N) 8N91.8 T quattroPetrol · 134 kW · 1.8L · 4-cylAll-Wheel Drive2, 6, 14, 67, 85
1998–2007AudiTT (8N) 8N31.8 T quattroPetrol · 132 kW · 1.8L · 4-cylAll-Wheel Drive2, 6, 14, 67, 85
1998–2007AudiTT (8N) 8N31.8 T quattroPetrol · 165 kW · 1.8L · 4-cylAll-Wheel Drive2, 6, 14, 67, 85
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 6: When using original tyres, wheel offset spacers may be required.
  • Note 14: Only for vehicles with ESP.
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
  • Note 85: For rear axle camber adjustment we recommend the installation of the car specific adjustable control arm set from KW. The part number for the control arm set is mention in the accessories list.
