KW Coilover Kit V3 for BMW (E88) 135i / 1 Series

SKU: 35220062
Sale price$4,635.05 Regular price$4,879.00
Save $243.95

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

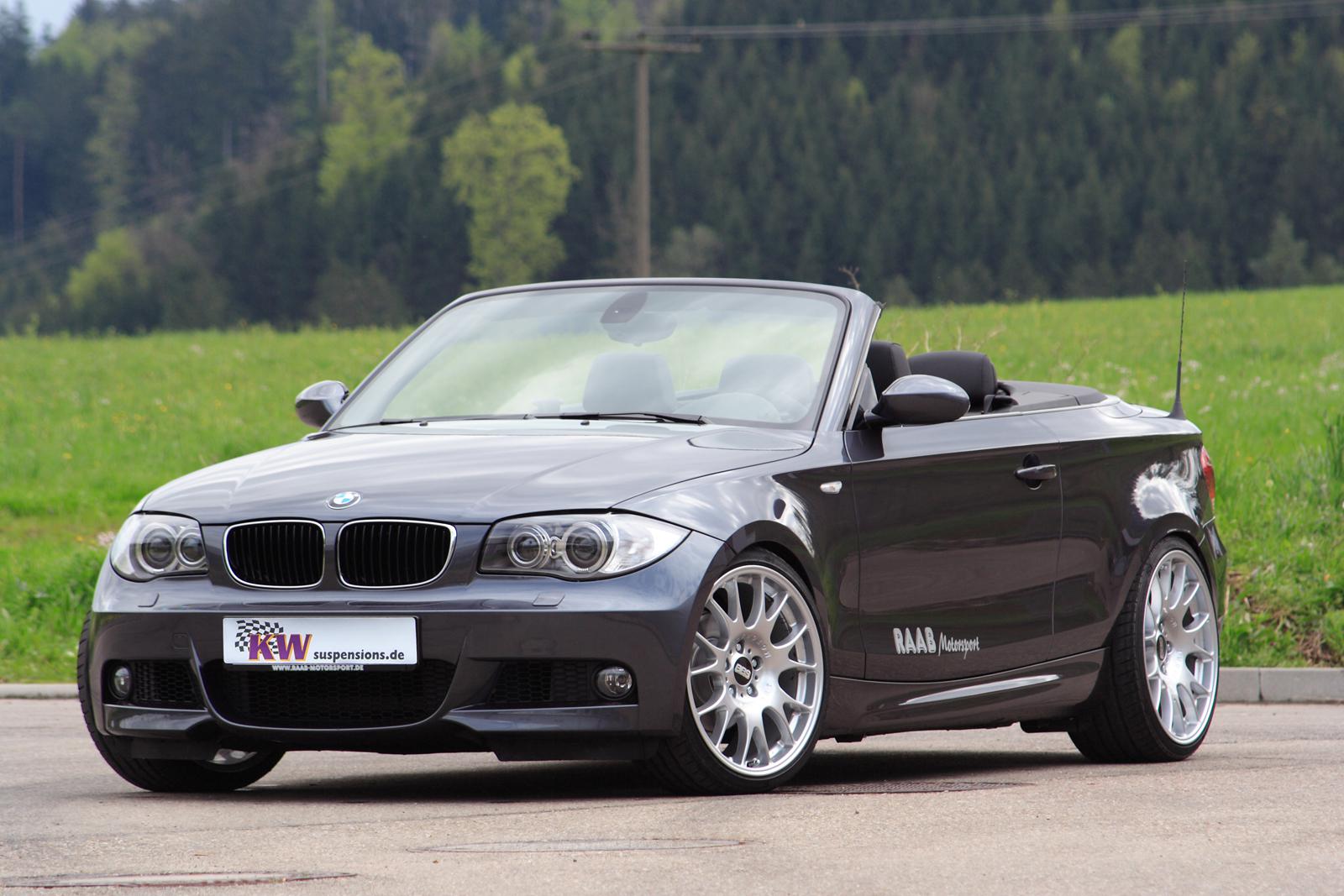

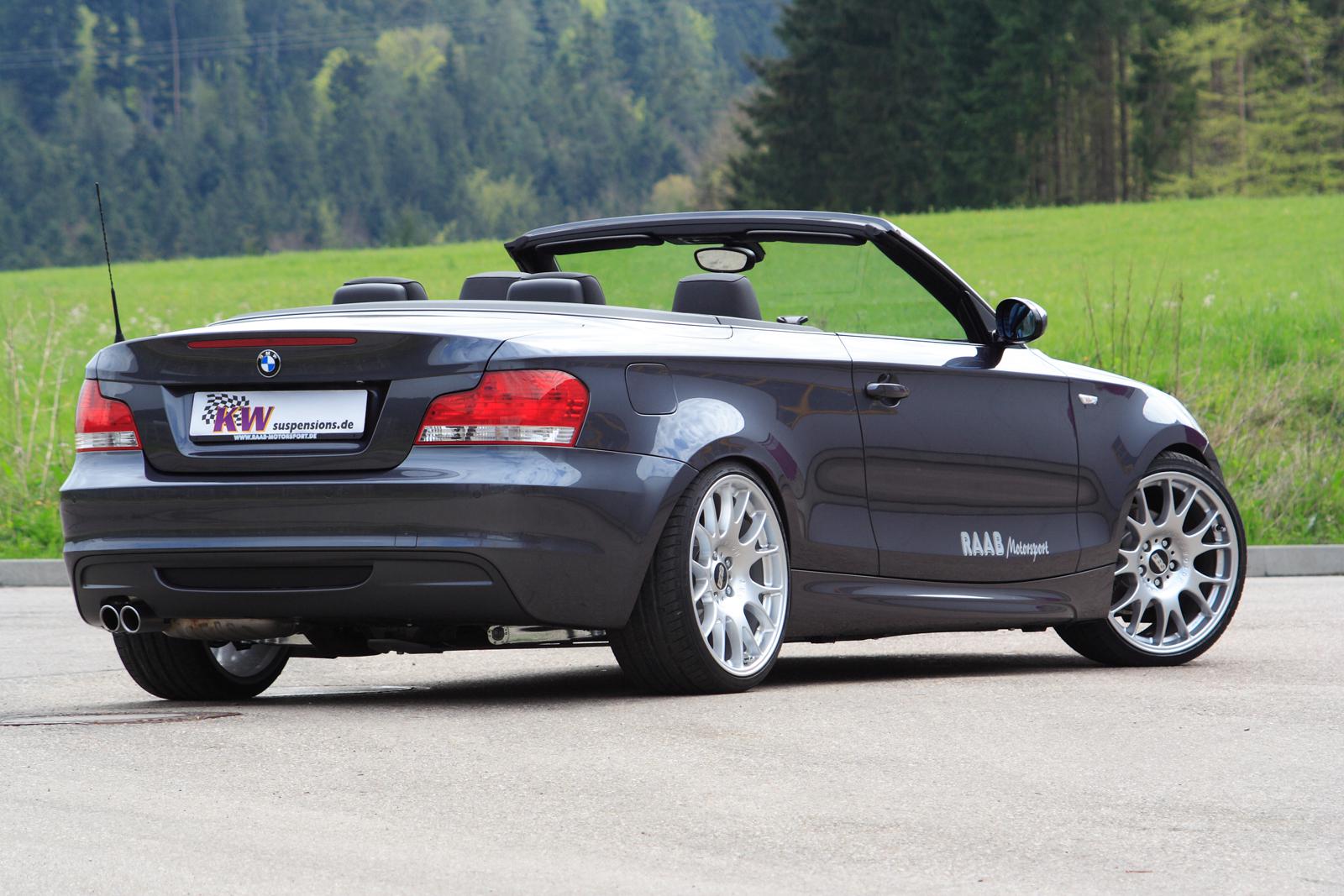

KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the BMW 135i Convertible / 1 Series Convertible (E88).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 30–55 mm
  • Rear lowering: 25–50 mm
  • Front axle load: up to 965 kg
  • Rear axle load: up to 1,120 kg
  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 965 kg; Rear axle load up to 1,120 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2007–2013BMW1 Convertible (E88) 182, 1C118 dDiesel · 100 kW · 2.0L · 4-cylRear-Wheel Drive2, 6, 67
2007–2013BMW1 Convertible (E88) 182, 1C118 dDiesel · 105 kW · 2.0L · 4-cylRear-Wheel Drive2, 6, 67
2007–2013BMW1 Convertible (E88) 182, 1C118 iPetrol · 100 kW · 2.0L · 4-cylRear-Wheel Drive2, 6, 67
2007–2013BMW1 Convertible (E88) 182, 1C118 iPetrol · 105 kW · 2.0L · 4-cylRear-Wheel Drive2, 6, 67
2007–2013BMW1 Convertible (E88) 182, 1C120 dDiesel · 120 kW · 2.0L · 4-cylRear-Wheel Drive2, 6, 67
2007–2013BMW1 Convertible (E88) 182, 1C120 dDiesel · 130 kW · 2.0L · 4-cylRear-Wheel Drive2, 6, 67
2007–2013BMW1 Convertible (E88) 182, 1C120 dDiesel · 145 kW · 2.0L · 4-cylRear-Wheel Drive2, 6, 67
2007–2013BMW1 Convertible (E88) 182, 1C120 iPetrol · 115 kW · 2.0L · 4-cylRear-Wheel Drive2, 6, 67
2007–2013BMW1 Convertible (E88) 182, 1C120 iPetrol · 120 kW · 2.0L · 4-cylRear-Wheel Drive2, 6, 67
2007–2013BMW1 Convertible (E88) 182, 1C120 iPetrol · 125 kW · 2.0L · 4-cylRear-Wheel Drive2, 6, 67
2007–2013BMW1 Convertible (E88) 182, 1C123 dDiesel · 150 kW · 2.0L · 4-cylRear-Wheel Drive2, 6, 67
2007–2013BMW1 Convertible (E88) 182, 1C125 iPetrol · 160 kW · 3.0L · 6-cylRear-Wheel Drive2, 6, 67
2007–2013BMW1 Convertible (E88) 182, 1C128 iPetrol · 172 kW · 3.0L · 6-cylRear-Wheel Drive2, 6, 67
2007–2013BMW1 Convertible (E88) 182, 1C135 iPetrol · 225 kW · 3.0L · 6-cylRear-Wheel Drive2, 6, 67
2007–2013BMW1 Convertible (E88) 182, 1C135 iPetrol · 240 kW · 3.0L · 6-cylRear-Wheel Drive2, 6, 67
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 6: When using original tyres, wheel offset spacers may be required.
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
