KW Coilover Kit V3 for BMW (E46) 325ti Compact

SKU: 35220002
Sale price$4,160.05 Regular price$4,379.00
Save $218.95

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the BMW 325ti Compact (E46).

Key Features

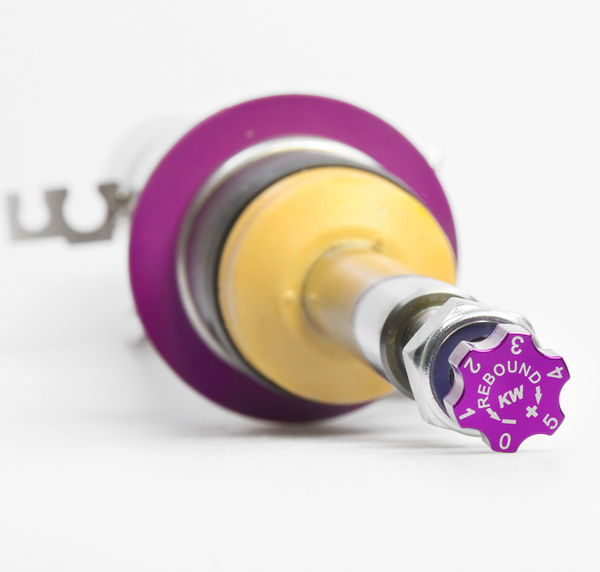

  • Rebound damping adjustable in 16 clicks

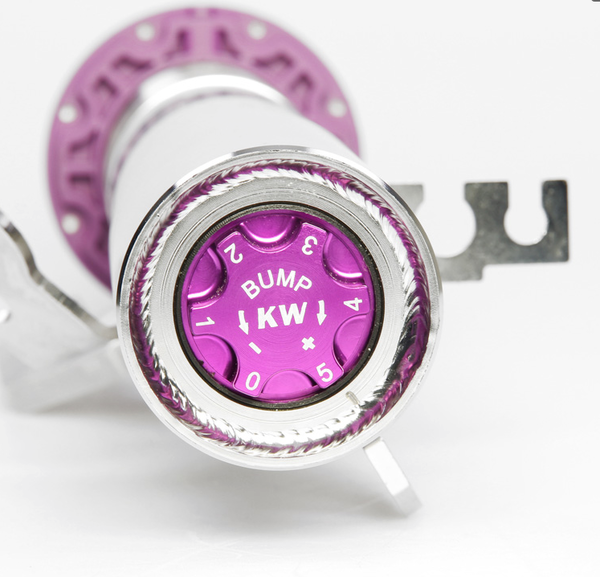

  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 30–60 mm
  • Rear lowering: 30–50 mm
  • Front axle load: up to 935 kg
  • Rear axle load: up to 1,050 kg

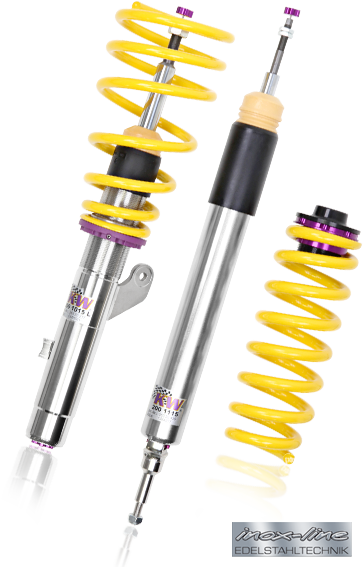

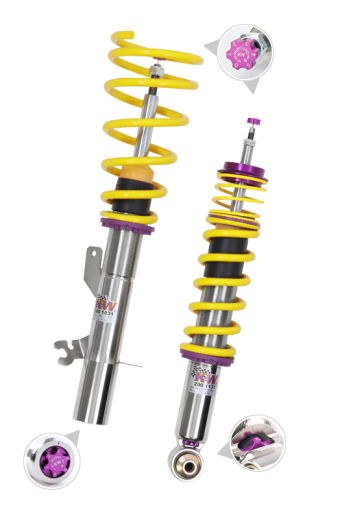

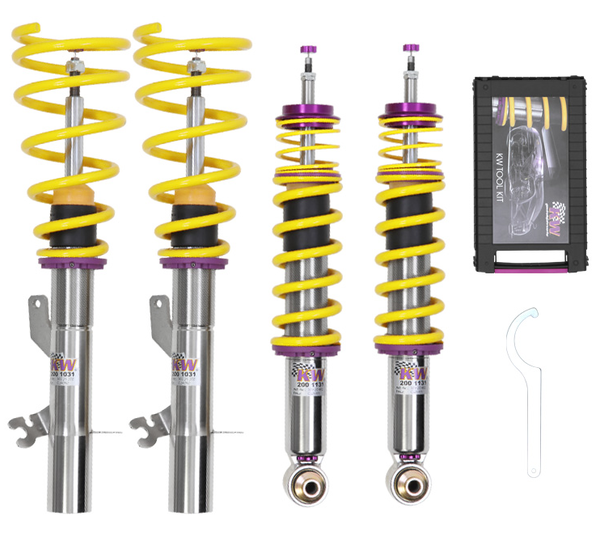

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 935 kg; Rear axle load up to 1,050 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2001–2005BMW3 Compact (E46) 346K316 tiPetrol · 77 kW · 1.6L · 4-cylRear-Wheel Drive2, 6
2001–2005BMW3 Compact (E46) 346K316 tiPetrol · 85 kW · 1.6L · 4-cylRear-Wheel Drive2, 6
2001–2005BMW3 Compact (E46) 346K316 tiPetrol · 85 kW · 1.8L · 4-cylRear-Wheel Drive2, 6
2001–2005BMW3 Compact (E46) 346K318 tdDiesel · 85 kW · 2.0L · 4-cylRear-Wheel Drive2, 6
2001–2005BMW3 Compact (E46) 346K318 tiPetrol · 100 kW · 2.0L · 4-cylRear-Wheel Drive2, 6
2001–2005BMW3 Compact (E46) 346K318 tiPetrol · 105 kW · 2.0L · 4-cylRear-Wheel Drive2, 6
2001–2005BMW3 Compact (E46) 346K320 tdDiesel · 100 kW · 2.0L · 4-cylRear-Wheel Drive2, 6
2001–2005BMW3 Compact (E46) 346K320 tdDiesel · 110 kW · 2.0L · 4-cylRear-Wheel Drive2, 6
2001–2005BMW3 Compact (E46) 346K325 tiPetrol · 141 kW · 2.5L · 6-cylRear-Wheel Drive2, 6
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 6: When using original tyres, wheel offset spacers may be required.
