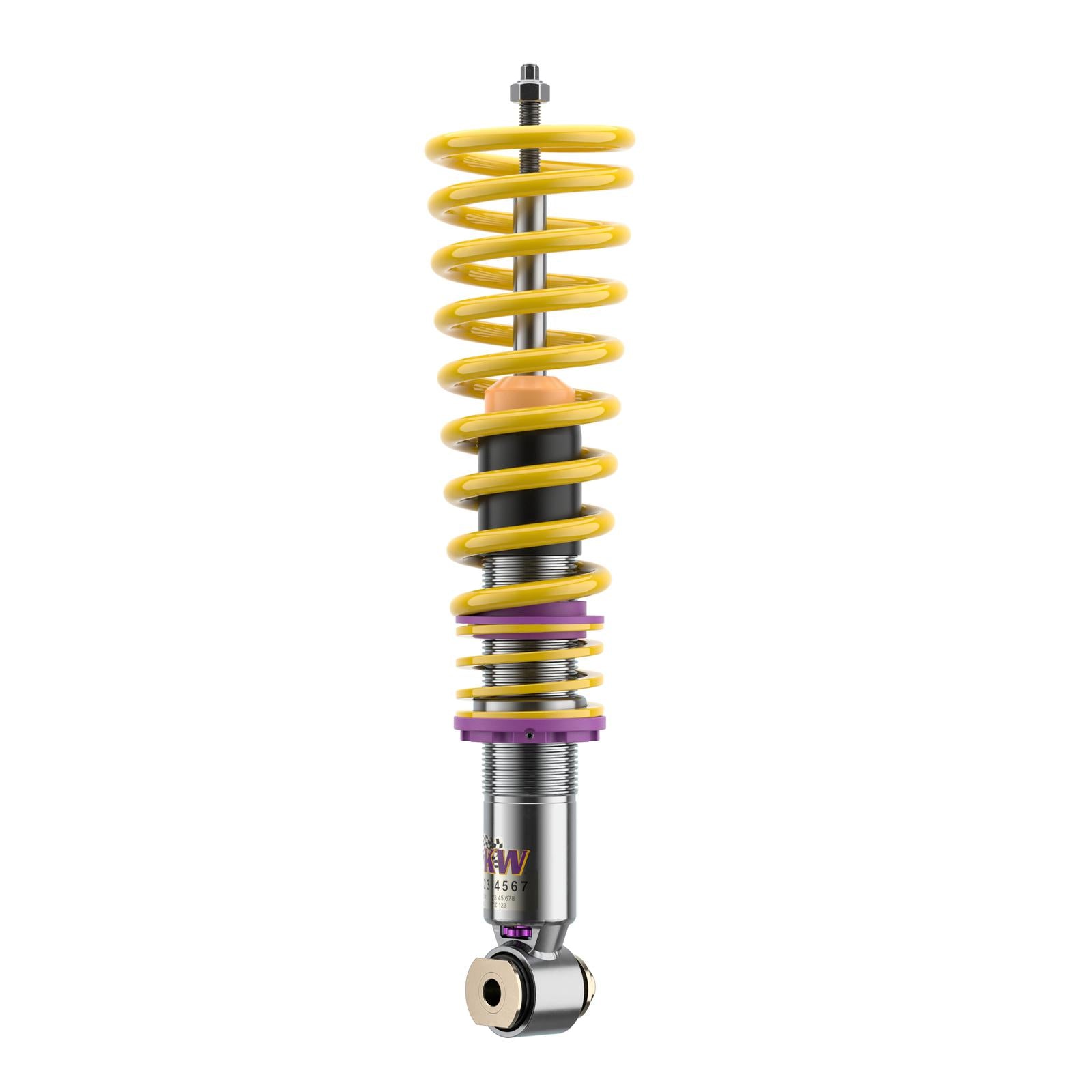

KW Coilover Kit V3 for BMW (E63/E64) 650i

SKU: 35220006
Sale price$4,929.55 Regular price$5,189.00
Save $259.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the BMW 650i (E63) / 650i Convertible (E64).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 10–40 mm
  • Rear lowering: 20–50 mm
  • Front axle load: up to 1,100 kg
  • Rear axle load: up to 1,270 kg

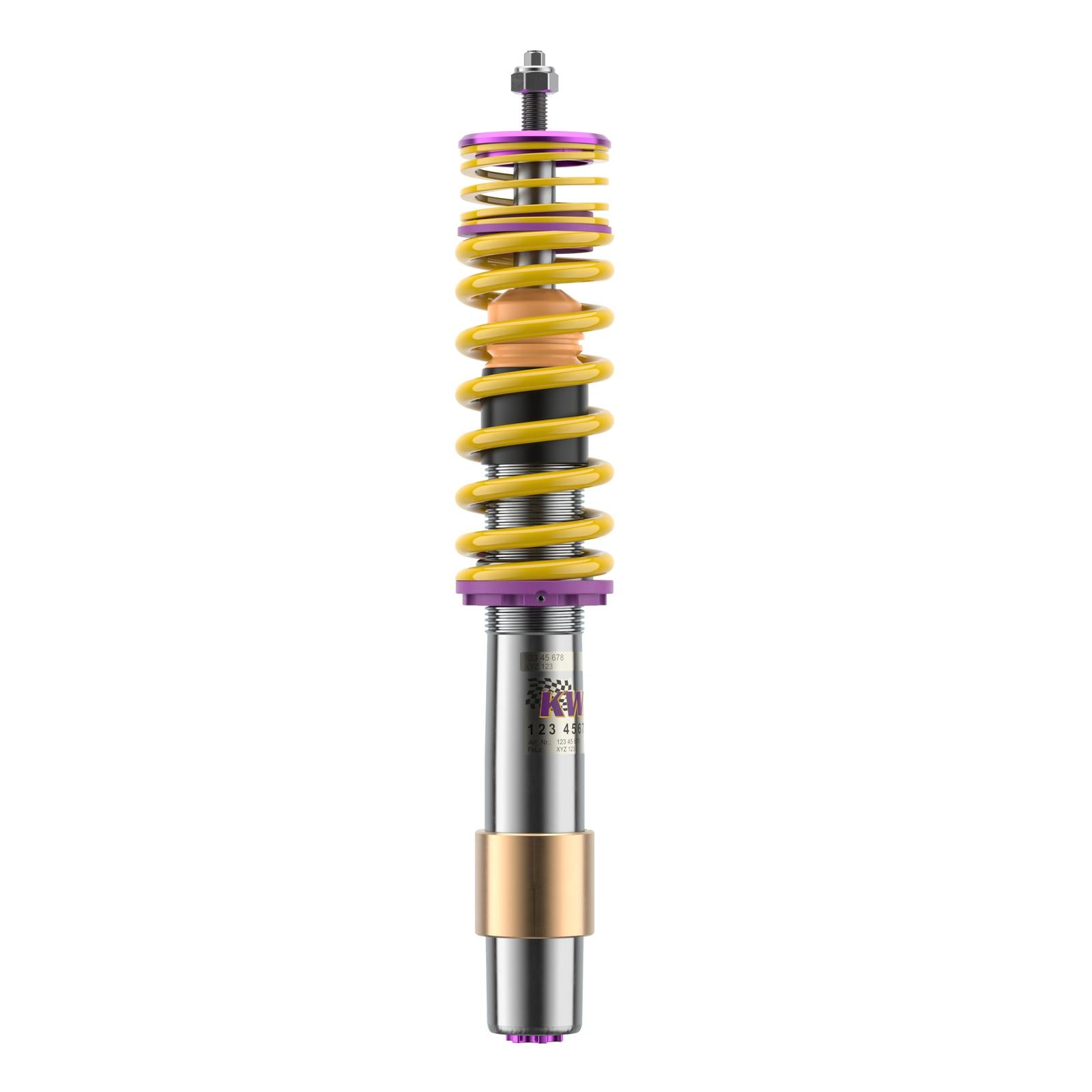

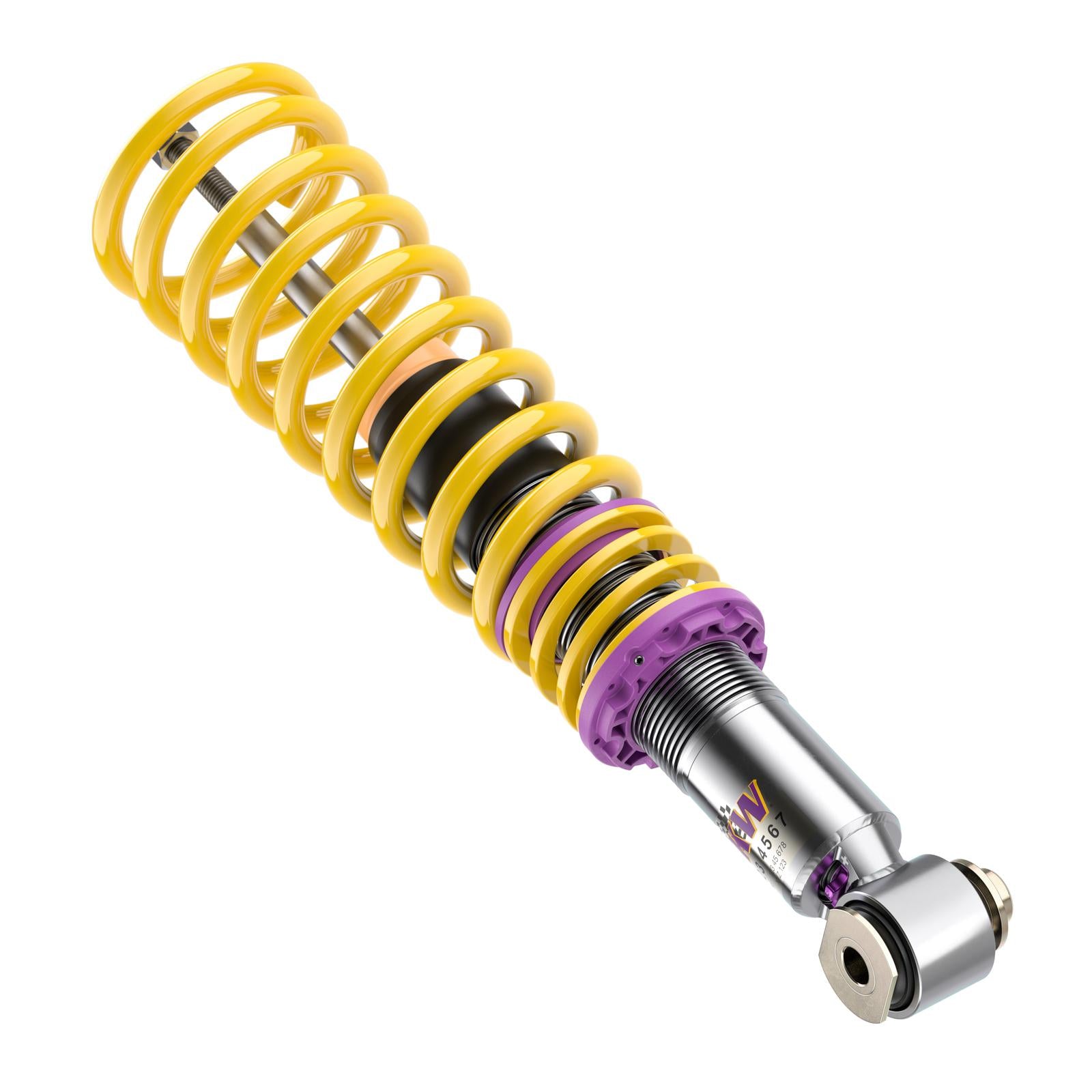

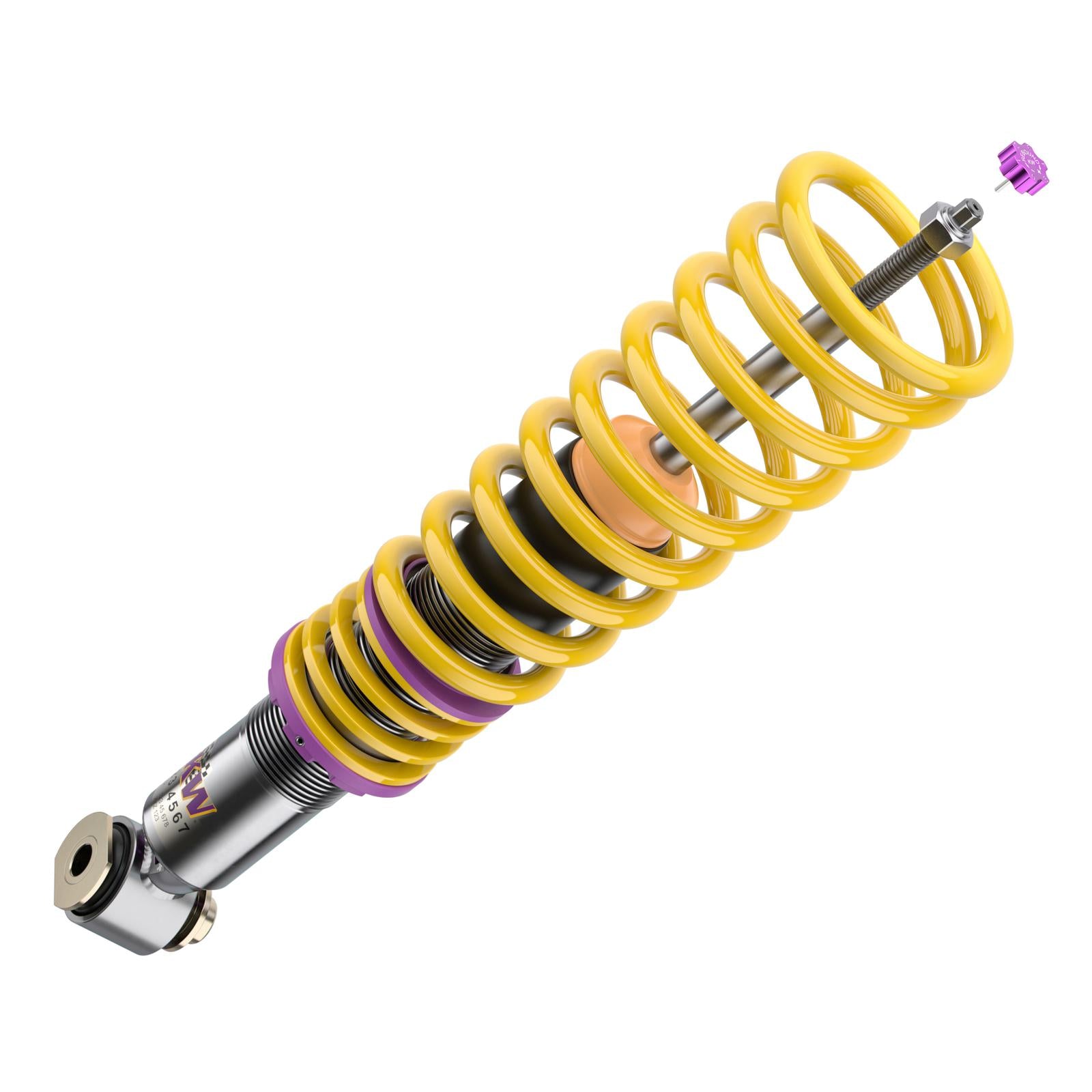

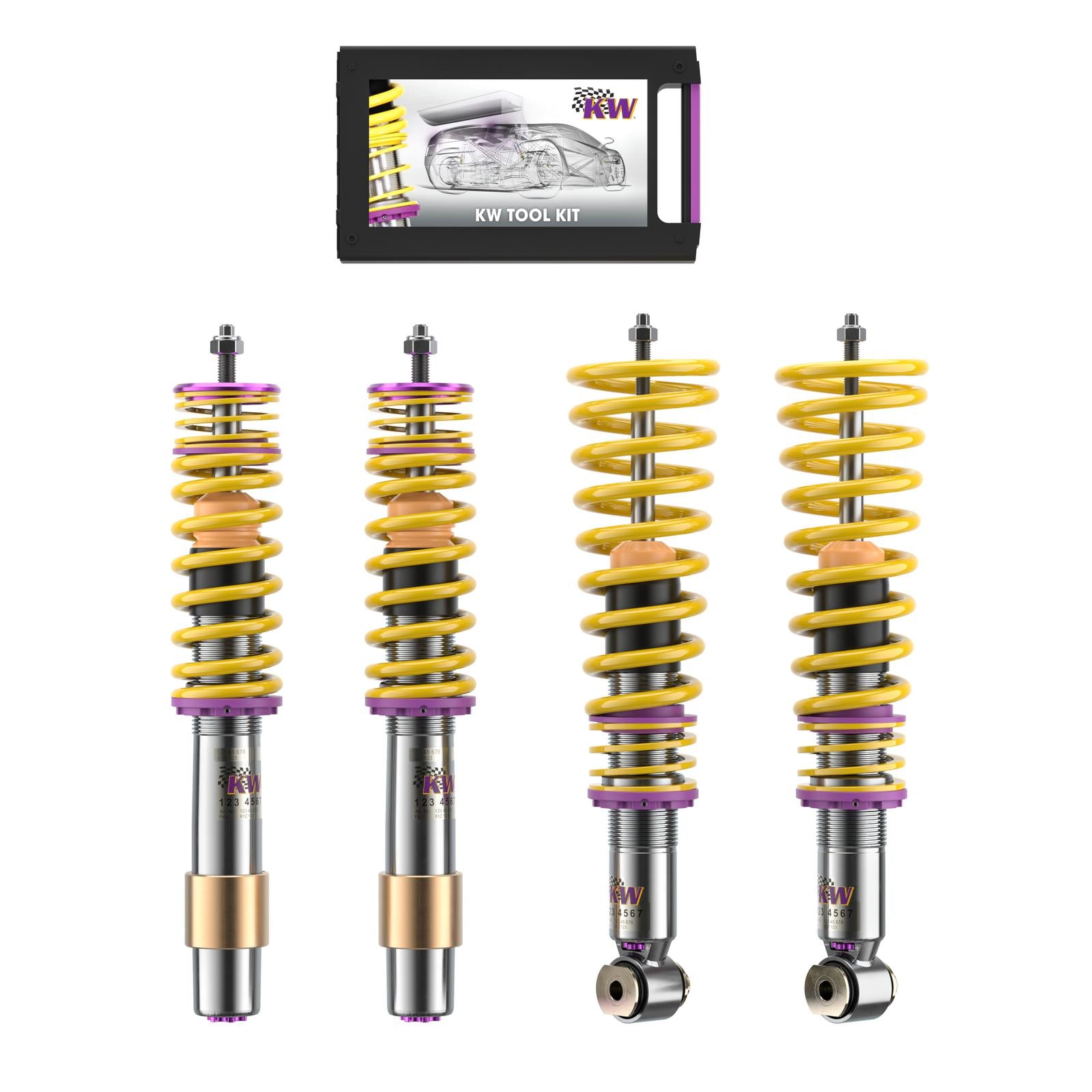

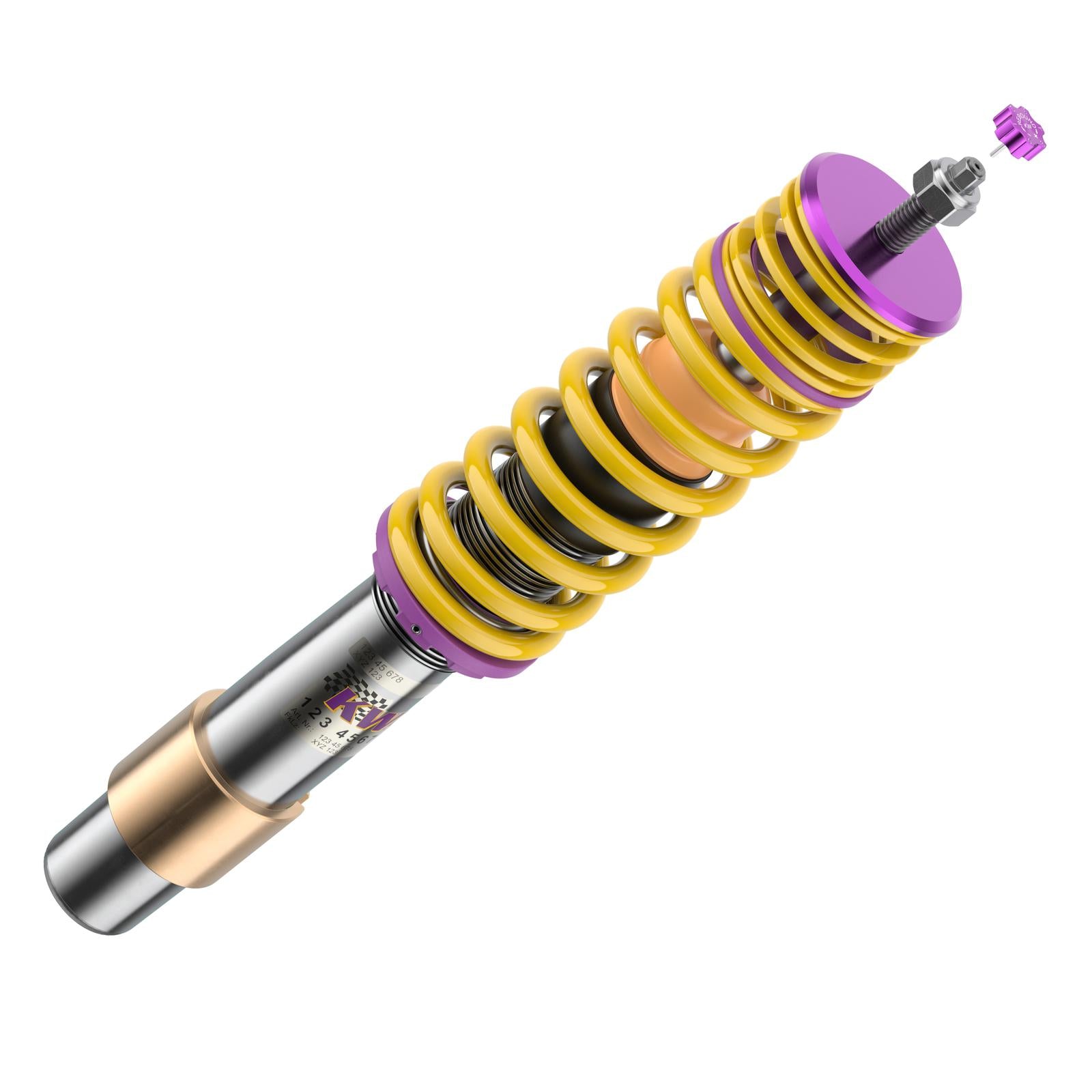

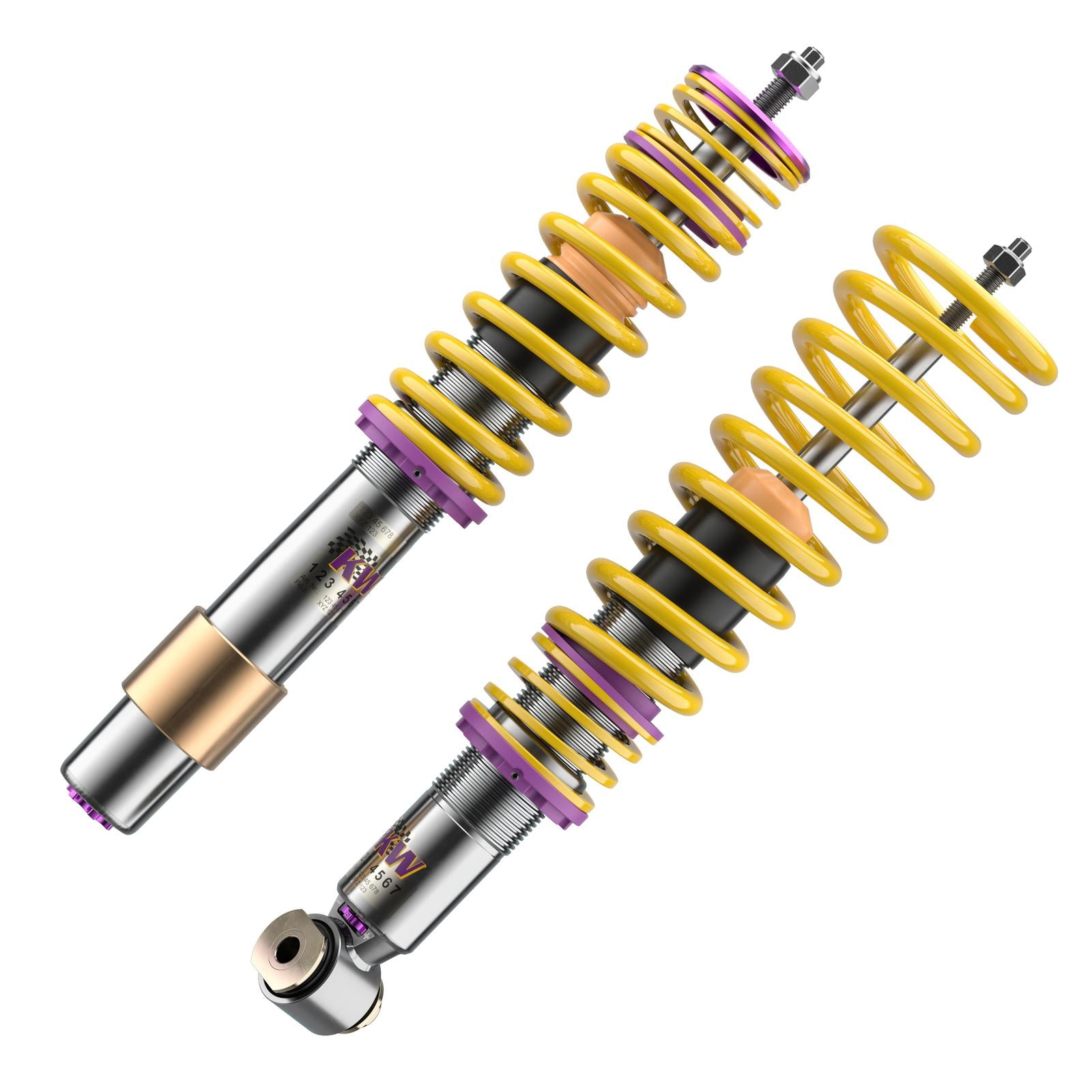

  • Supplied as: Front axle + rear axle coilover struts

Front axle load up to 1,100 kg; Rear axle load up to 1,270 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2003–2013BMW6 (E63) 663C, M5/M6, M560630 iPetrol · 190 kW · 3.0L · 6-cylRear-Wheel Drive1, 6, 8, 67
2003–2013BMW6 (E63) 663C, M5/M6, M560630 iPetrol · 200 kW · 3.0L · 6-cylRear-Wheel Drive1, 6, 8, 67
2003–2013BMW6 (E63) 663C, M5/M6, M560635 dDiesel · 210 kW · 3.0L · 6-cylRear-Wheel Drive1, 6, 8, 67
2003–2013BMW6 (E63) 663C, M5/M6, M560645 CiPetrol · 242 kW · 4.4L · 8-cylRear-Wheel Drive1, 6, 8, 67
2003–2013BMW6 (E63) 663C, M5/M6, M560645 CiPetrol · 245 kW · 4.4L · 8-cylRear-Wheel Drive1, 6, 8, 67
2003–2013BMW6 (E63) 663C, M5/M6, M560650 iPetrol · 270 kW · 4.8L · 8-cylRear-Wheel Drive1, 6, 8, 67
2004–2010BMW6 Convertible (E64) 663C, M5/M6, M560630 iPetrol · 190 kW · 3.0L · 6-cylRear-Wheel Drive1, 6, 8, 67
2004–2010BMW6 Convertible (E64) 663C, M5/M6, M560630 iPetrol · 200 kW · 3.0L · 6-cylRear-Wheel Drive1, 6, 8, 67
2004–2010BMW6 Convertible (E64) 663C, M5/M6, M560635 dDiesel · 210 kW · 3.0L · 6-cylRear-Wheel Drive1, 6, 8, 67
2004–2010BMW6 Convertible (E64) 663C, M5/M6, M560645 CiPetrol · 242 kW · 4.4L · 8-cylRear-Wheel Drive1, 6, 8, 67
2004–2010BMW6 Convertible (E64) 663C, M5/M6, M560645 CiPetrol · 245 kW · 4.4L · 8-cylRear-Wheel Drive1, 6, 8, 67
2004–2010BMW6 Convertible (E64) 663C, M5/M6, M560650 iPetrol · 270 kW · 4.8L · 8-cylRear-Wheel Drive1, 6, 8, 67
  • Note 1: Height adjustable on the front and rear axles (threaded strut housings).
  • Note 6: When using original tyres, wheel offset spacers may be required.
  • Note 8: Not for vehicles with automatic self levelling control / air suspension.
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
