KW Coilover Kit V3 for Hyundai (PD) i30 N / (PDE) i30 Fastback N
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Hyundai i30 N (PD) / i30 Fastback N (PDE).
Key Features
- Rebound damping adjustable in 16 clicks
- Compression damping adjustable in 12 clicks
- Continuous ride height adjustment within the tested range
Specifications
- Version: V3
- Damping: Adjustable rebound and compression
- Material: Stainless steel
- Front lowering: 20–40 mm
- Rear lowering: 20–40 mm
- Front axle load: up to 1,120 kg
- Rear axle load: up to 1,010 kg

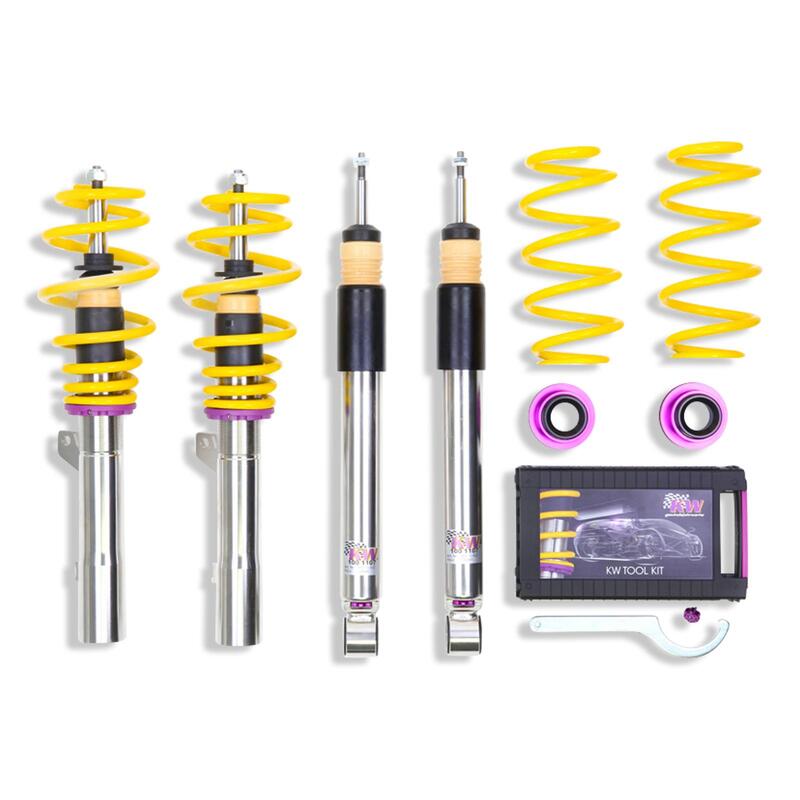

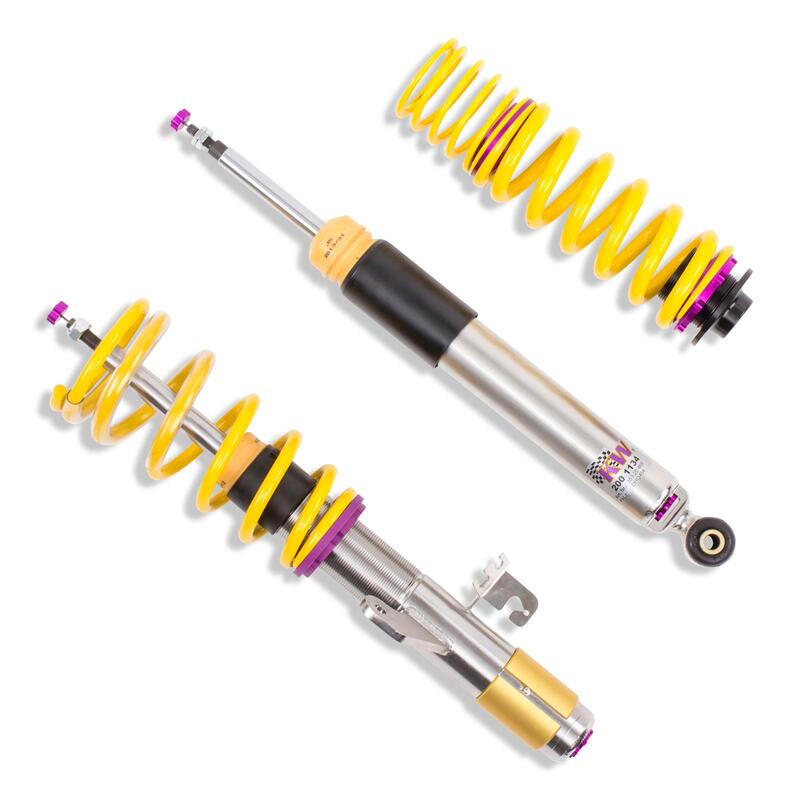

- Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Front axle load up to 1,120 kg; Rear axle load up to 1,010 kg.
For vehicles without electronic damper control.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Notes | Refs |
|---|---|---|---|---|---|---|---|
| 2016+ | Hyundai | i30 (PDE, PD, PDEN) | 2.0 N | Petrol · 184 kW · 2.0L · 4-cyl | Front-Wheel Drive | Without cancellation kit electronic damping | 2, 37, 67 |
| 2016+ | Hyundai | i30 (PDE, PD, PDEN) | 2.0 N | Petrol · 202 kW · 2.0L · 4-cyl | Front-Wheel Drive | Without cancellation kit electronic damping | 2, 37, 67 |
| 2017+ | Hyundai | i30 Fastback (PDE, PDEN) | 2.0 N | Petrol · 184 kW · 2.0L · 4-cyl | Front-Wheel Drive | Without cancellation kit electronic damping | 2, 37, 67 |
| 2017+ | Hyundai | i30 Fastback (PDE, PDEN) | 2.0 N | Petrol · 202 kW · 2.0L · 4-cyl | Front-Wheel Drive | Without cancellation kit electronic damping | 2, 37, 67 |
| 2016+ | Hyundai | i30 (PDE, PD, PDEN) | 2.0 N | Petrol · 206 kW · 2.0L · 4-cyl | Front-Wheel Drive | Without cancellation kit electronic damping | 2, 37, 67 |
| 2017+ | Hyundai | i30 Fastback (PDE, PDEN) | 2.0 N | Petrol · 206 kW · 2.0L · 4-cyl | Front-Wheel Drive | Without cancellation kit electronic damping | 2, 37, 67 |
- Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
- Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
- Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
