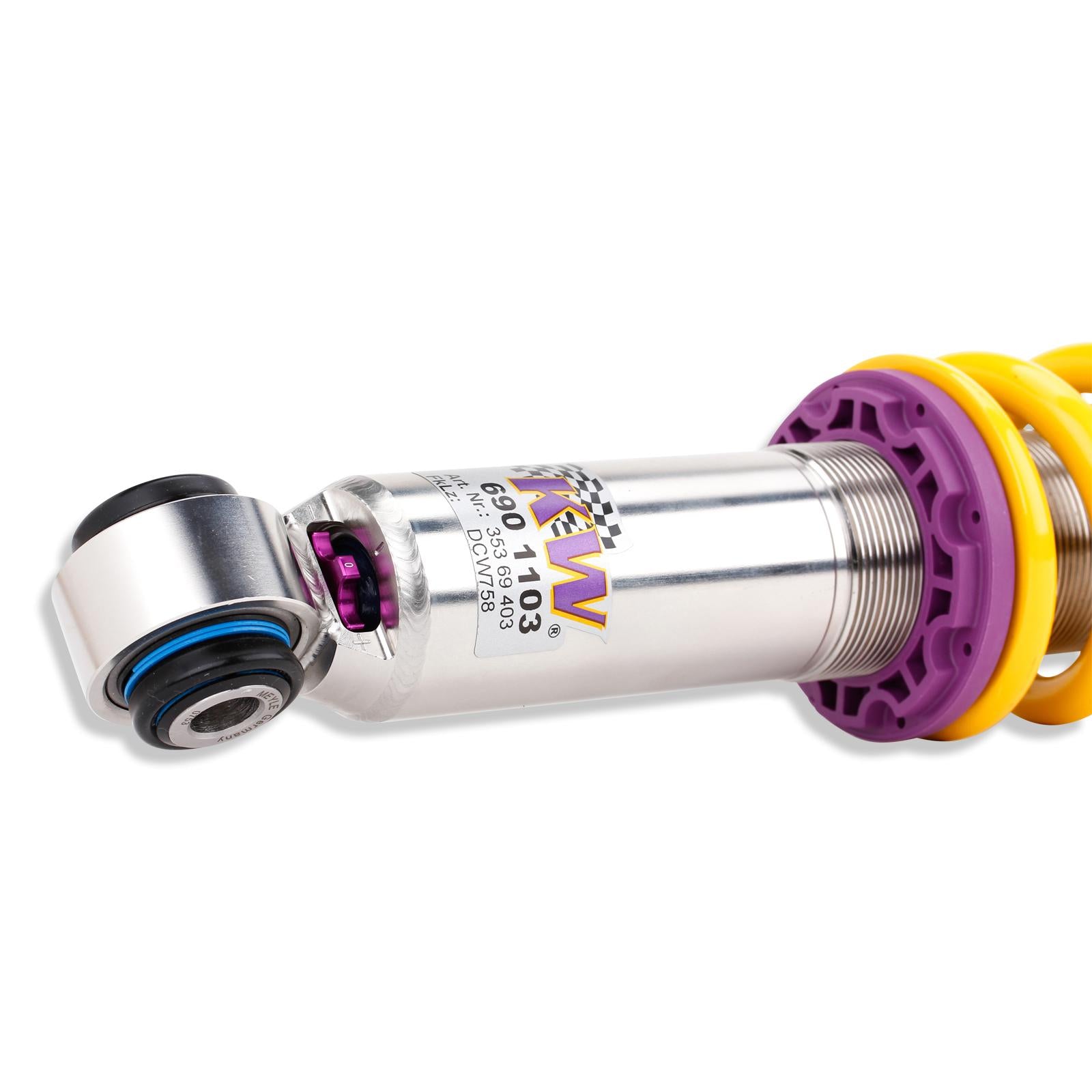

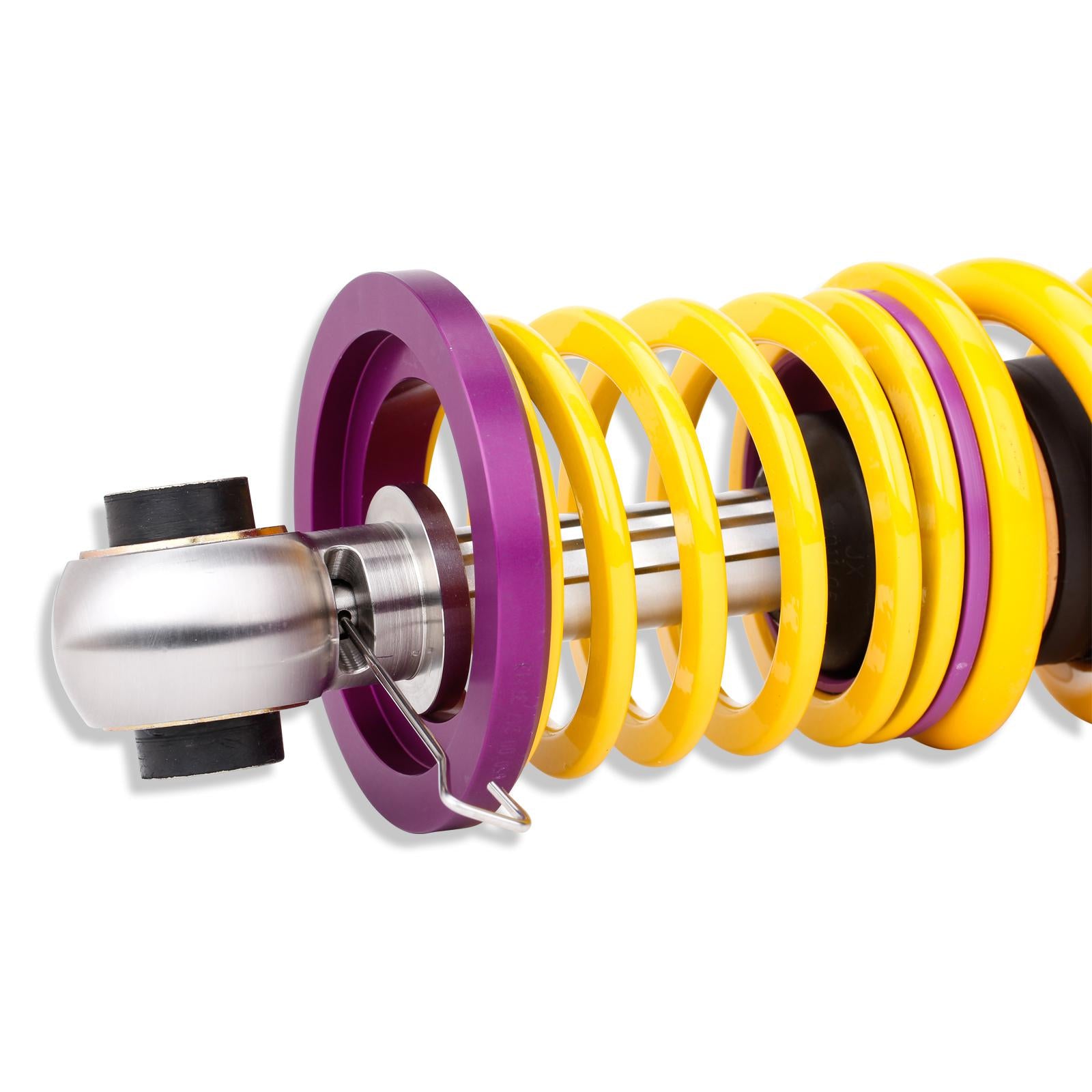

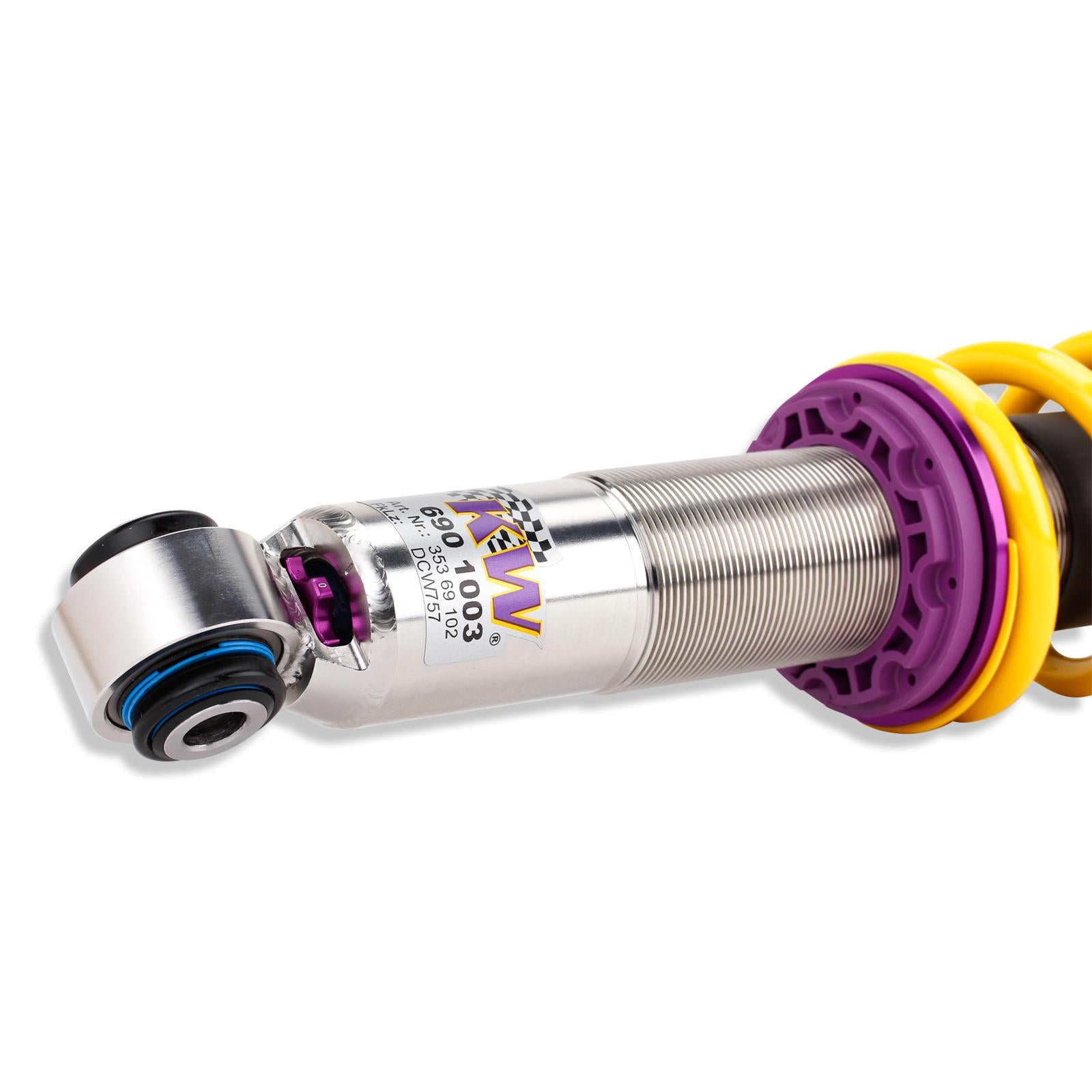

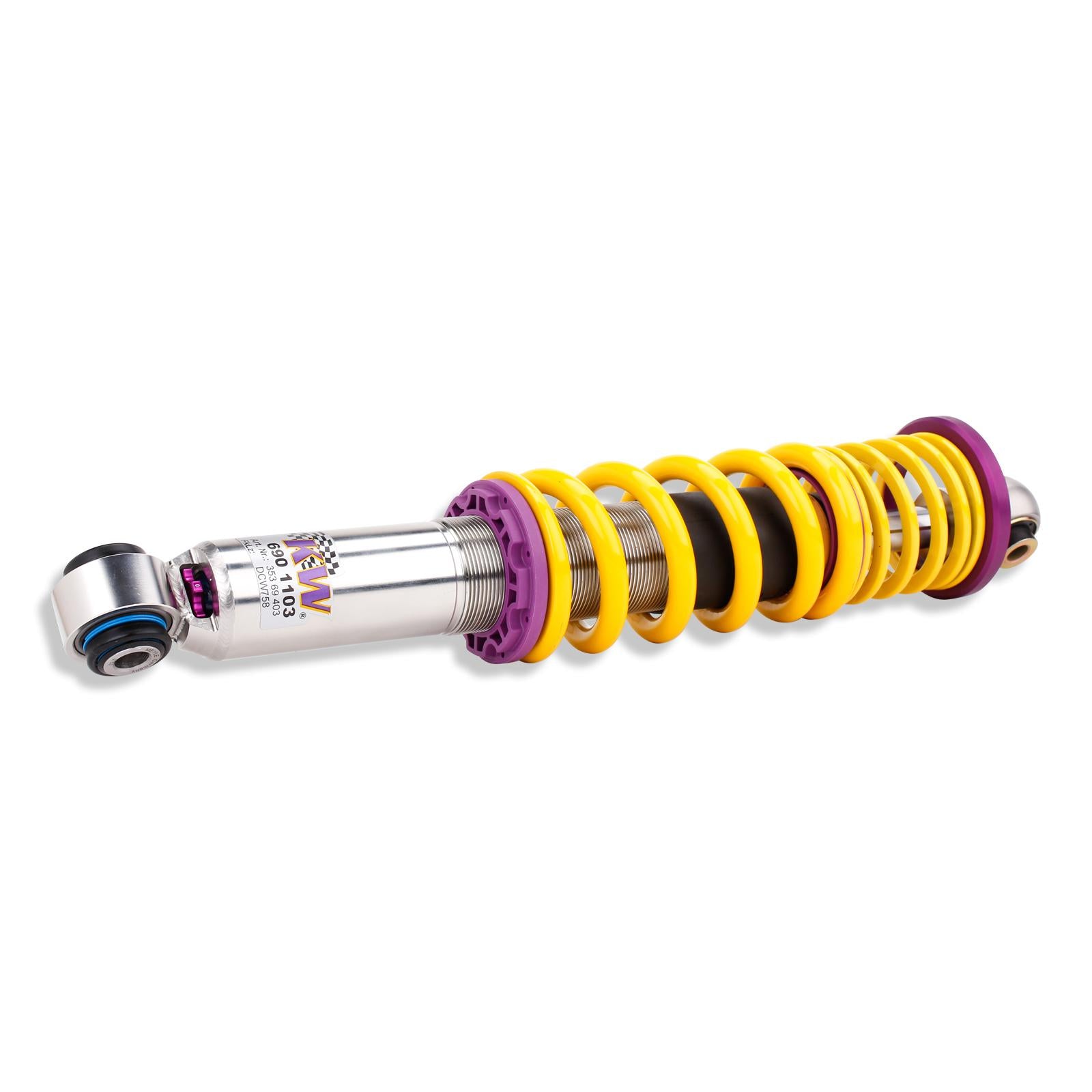

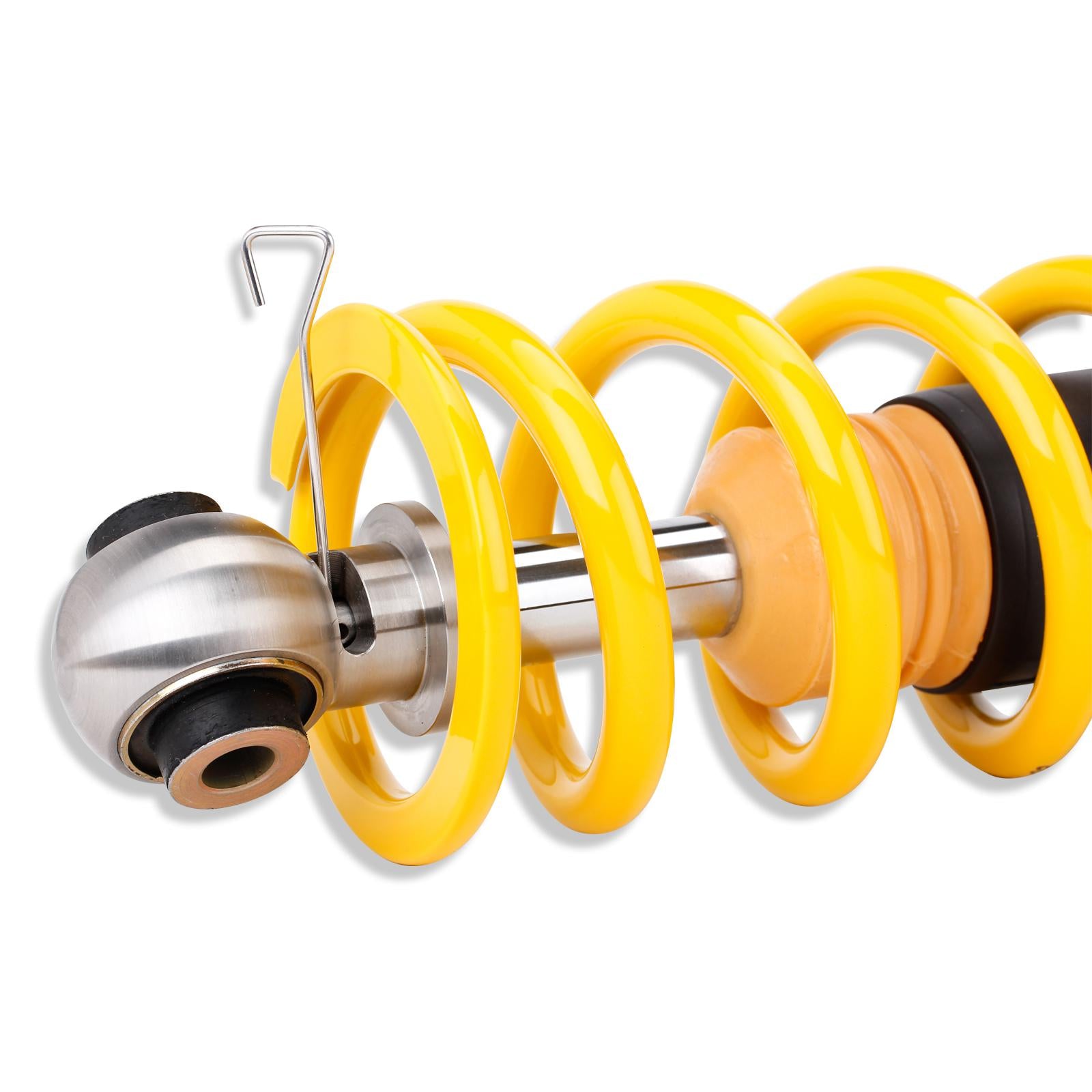

KW Coilover Kit V3 for Lotus Evora 430 / 410 / 400 / Evora S

SKU: 35269004
Sale price$5,176.55 Regular price$5,449.00
Save $272.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Lotus Evora 430 / 410 / 400 / Evora S.

Key Features

  • Rebound damping adjustable in 16 clicks
  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 10–35 mm
  • Rear lowering: 15–45 mm
  • Front axle load: up to 718 kg
  • Rear axle load: up to 1,157 kg
  • Supplied as: Front axle + rear axle coilover struts

Front axle load up to 718 kg; Rear axle load up to 1,157 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2009+LotusEvora3.5 400Petrol · 298 kW · 3.5L · 6-cylRear-Wheel Drive1, 67
2009+LotusEvora3.5 410Petrol · 306 kW · 3.5L · 6-cylRear-Wheel Drive1, 67
2009+LotusEvora3.5 430Petrol · 321 kW · 3.5L · 6-cylRear-Wheel Drive1, 67
2009+LotusEvora3.5Petrol · 206 kW · 3.5L · 6-cylRear-Wheel Drive1, 67
2009+LotusEvora3.5 SPetrol · 258 kW · 3.5L · 6-cylRear-Wheel Drive1, 67
  • Note 1: Height adjustable on the front and rear axles (threaded strut housings).
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
