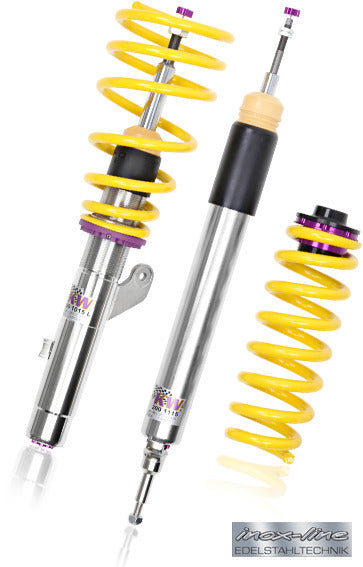

KW Coilover Kit V3 for Suzuki (AZ) Swift Sport

SKU: 35276007
Sale price$4,103.06 Regular price$4,319.00
Save $215.94

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Suzuki Swift Sport (AZ).

Key Features

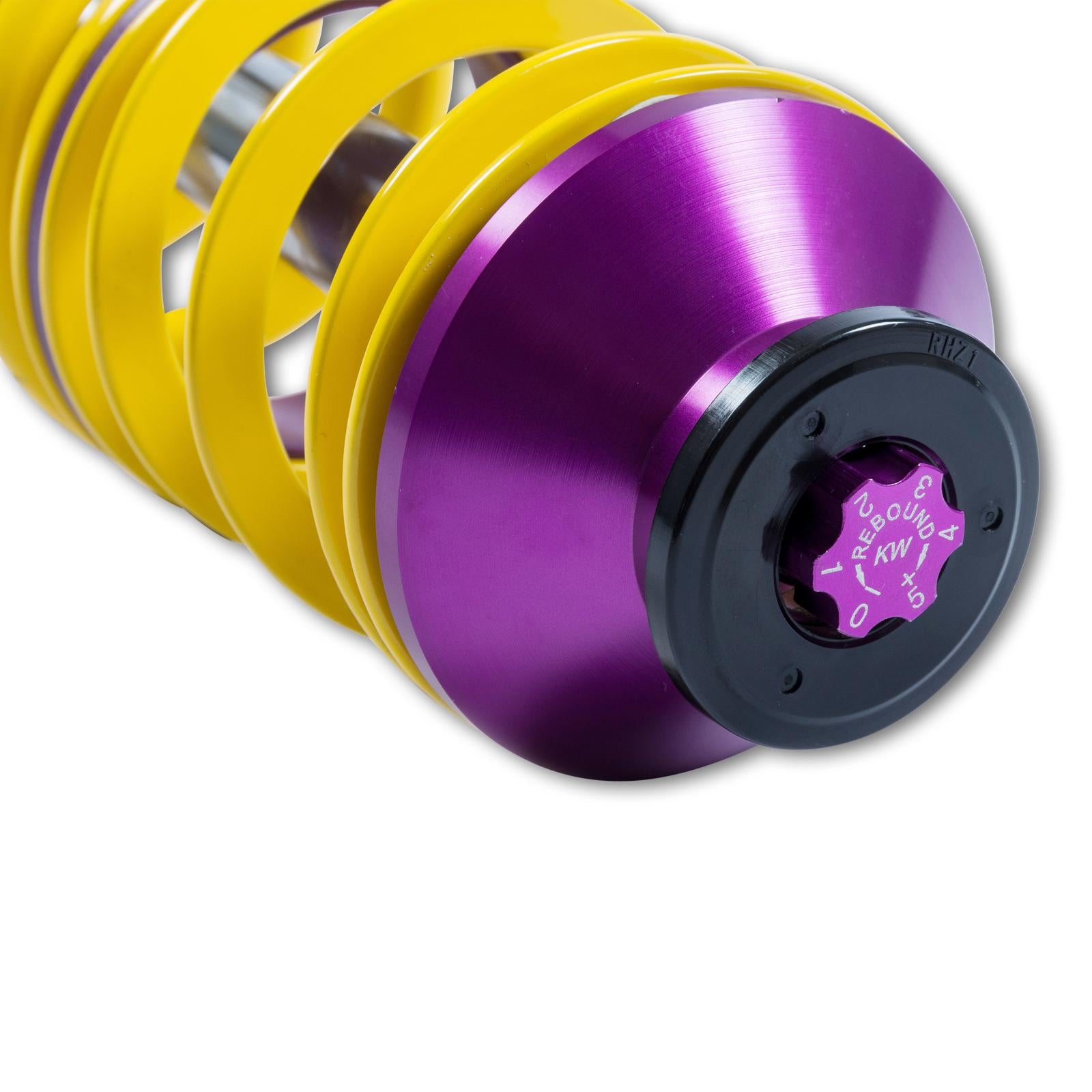

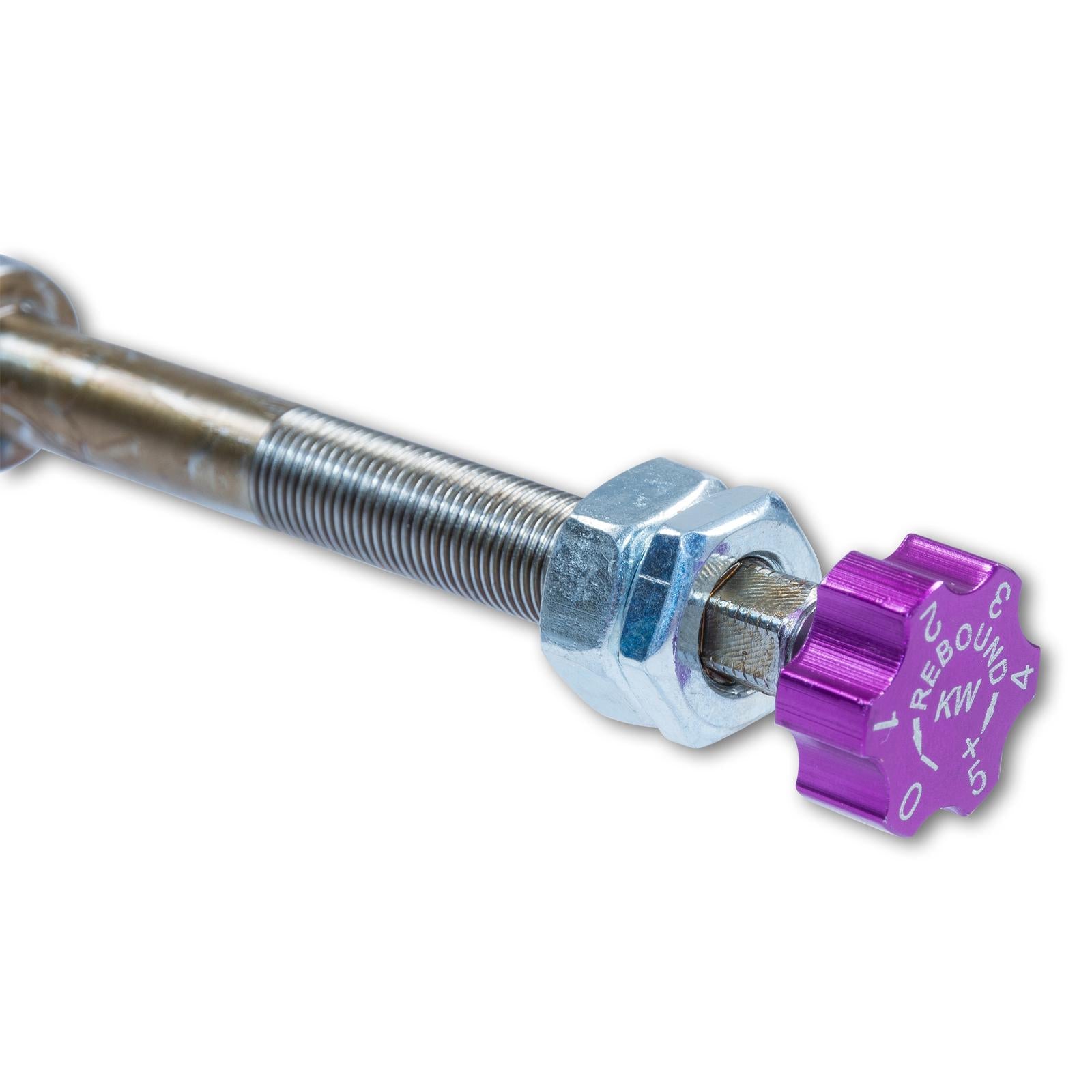

  • Rebound damping adjustable in 16 clicks

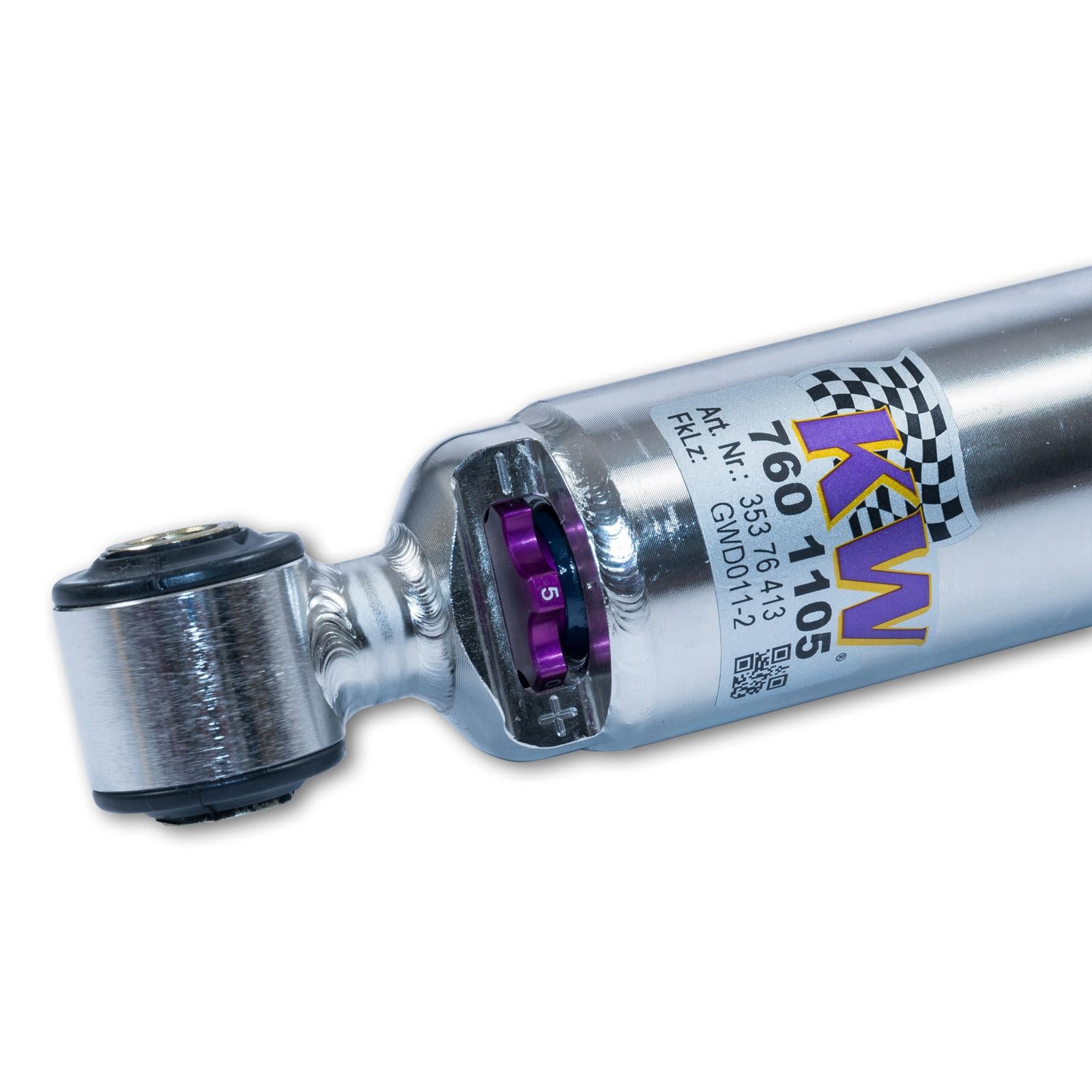

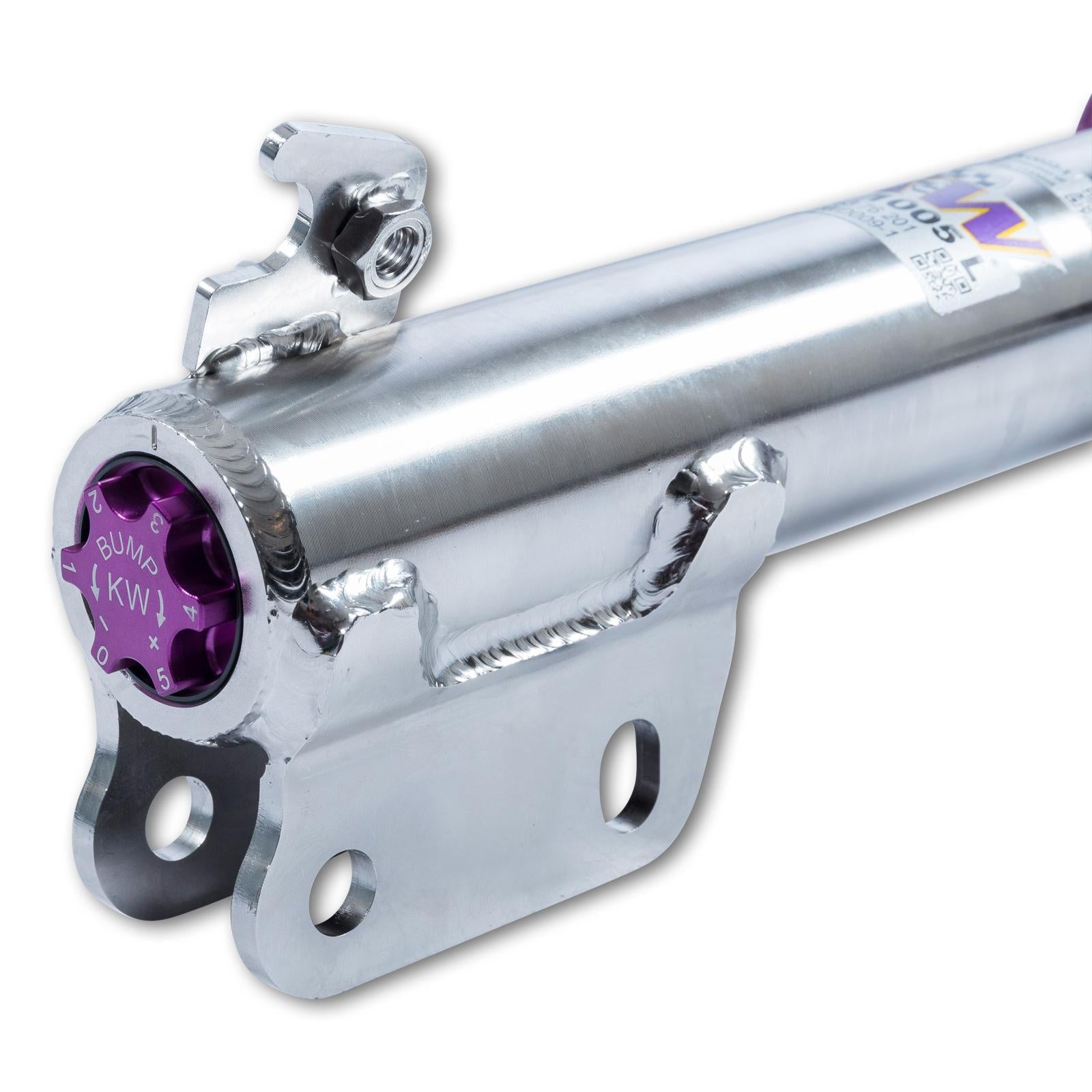

  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound
  • Material: Stainless steel
  • Front lowering: 25–45 mm
  • Rear lowering: 30–50 mm
  • Front axle load: up to 790 kg
  • Rear axle load: up to 760 kg

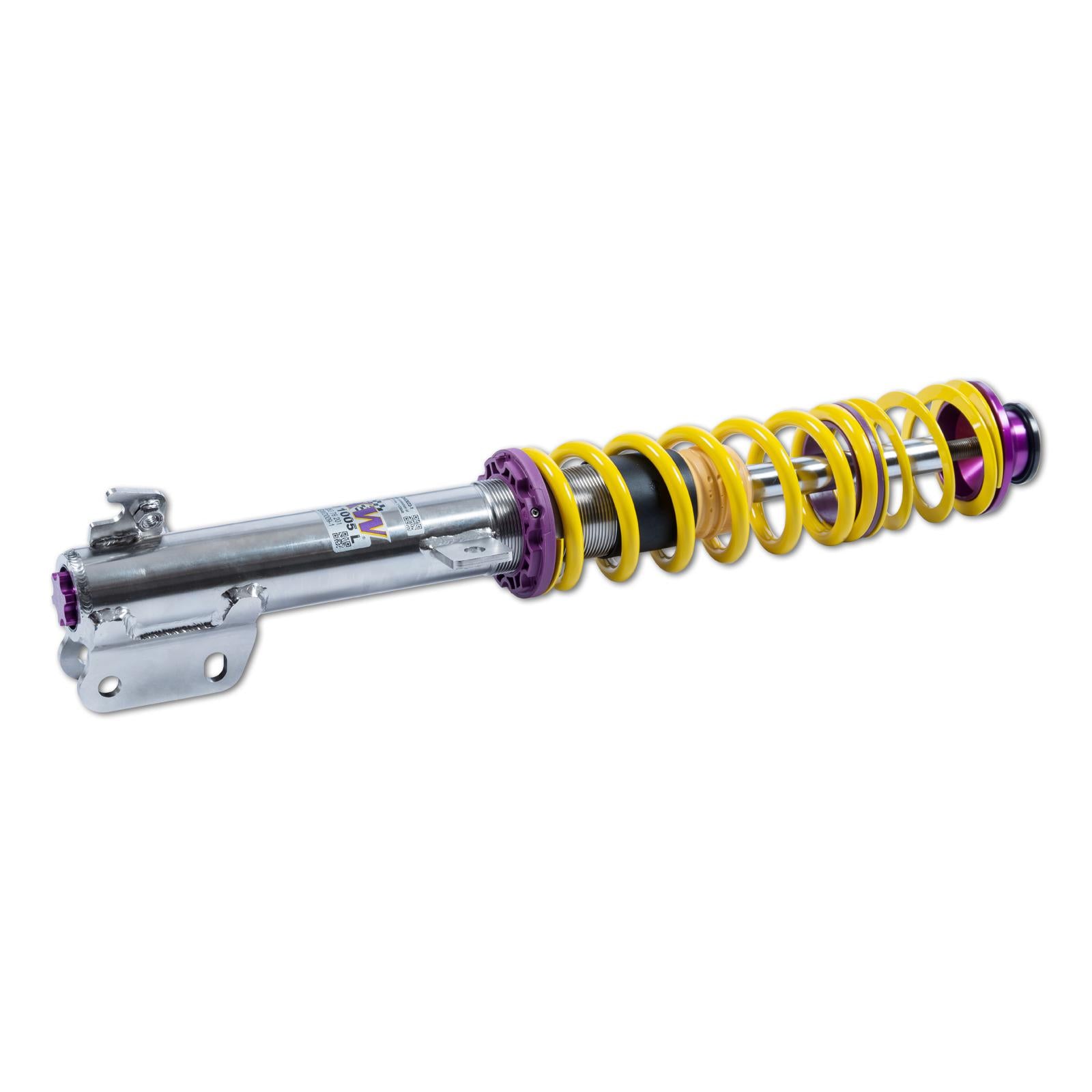

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 790 kg; Rear axle load up to 760 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2017+SuzukiSwift V (AZ)1.0 (A2L310)Petrol · 82 kW · 1.0L · 3-cylFront-Wheel Drive2, 67
2017+SuzukiSwift V (AZ)1.0 (ZC13S)Petrol · 75 kW · 1.0L · 3-cylFront-Wheel Drive2, 67
2017+SuzukiSwift V (AZ)1.0 SHVS (A2L310)Petrol/Electric · 82 kW · 1.0L · 3-cylFront-Wheel Drive2, 67
2017+SuzukiSwift V (AZ)1.2 (A2L412, ZC83S)Petrol · 66 kW · 1.2L · 4-cylFront-Wheel Drive2, 67
2017+SuzukiSwift V (AZ)1.2 (ZC83S)Petrol · 67 kW · 1.2L · 4-cylFront-Wheel Drive2, 67
2017+SuzukiSwift V (AZ)1.2 Hybrid (Mild Hybrid) (A2L412)Petrol/Electric · 61 kW · 1.2L · 4-cylFront-Wheel Drive2, 67
2017+SuzukiSwift V (AZ)1.2 SHVS (A2L412)Petrol/Electric · 66 kW · 1.2L · 4-cylFront-Wheel Drive2, 67
2017+SuzukiSwift V (AZ)1.2 SHVS (ZC53S, ZC43S)Petrol/Electric · 67 kW · 1.2L · 4-cylFront-Wheel Drive2, 67
2017+SuzukiSwift V (AZ)1.4 Sport (A2L414, ZC33S)Petrol · 103 kW · 1.4L · 4-cylFront-Wheel Drive2, 67
2017+SuzukiSwift V (AZ)1.4 Sport SHVSPetrol/Electric · 95 kW · 1.4L · 4-cylFront-Wheel Drive2, 67
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
