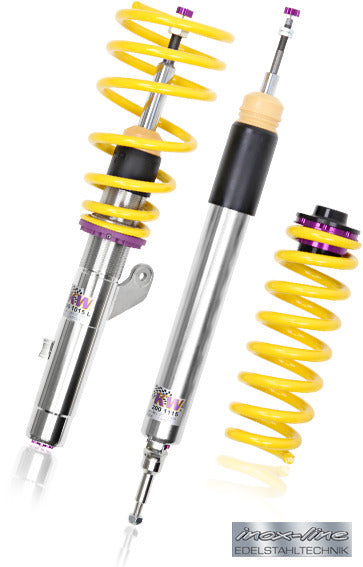

KW Coilover Kit V3 for VW (MK8) Golf GTD / Audi (8Y) A3 TDI / A3 Sportback TDI

SKU: 352800CJ
Sale price$4,340.55 Regular price$4,569.00
Save $228.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

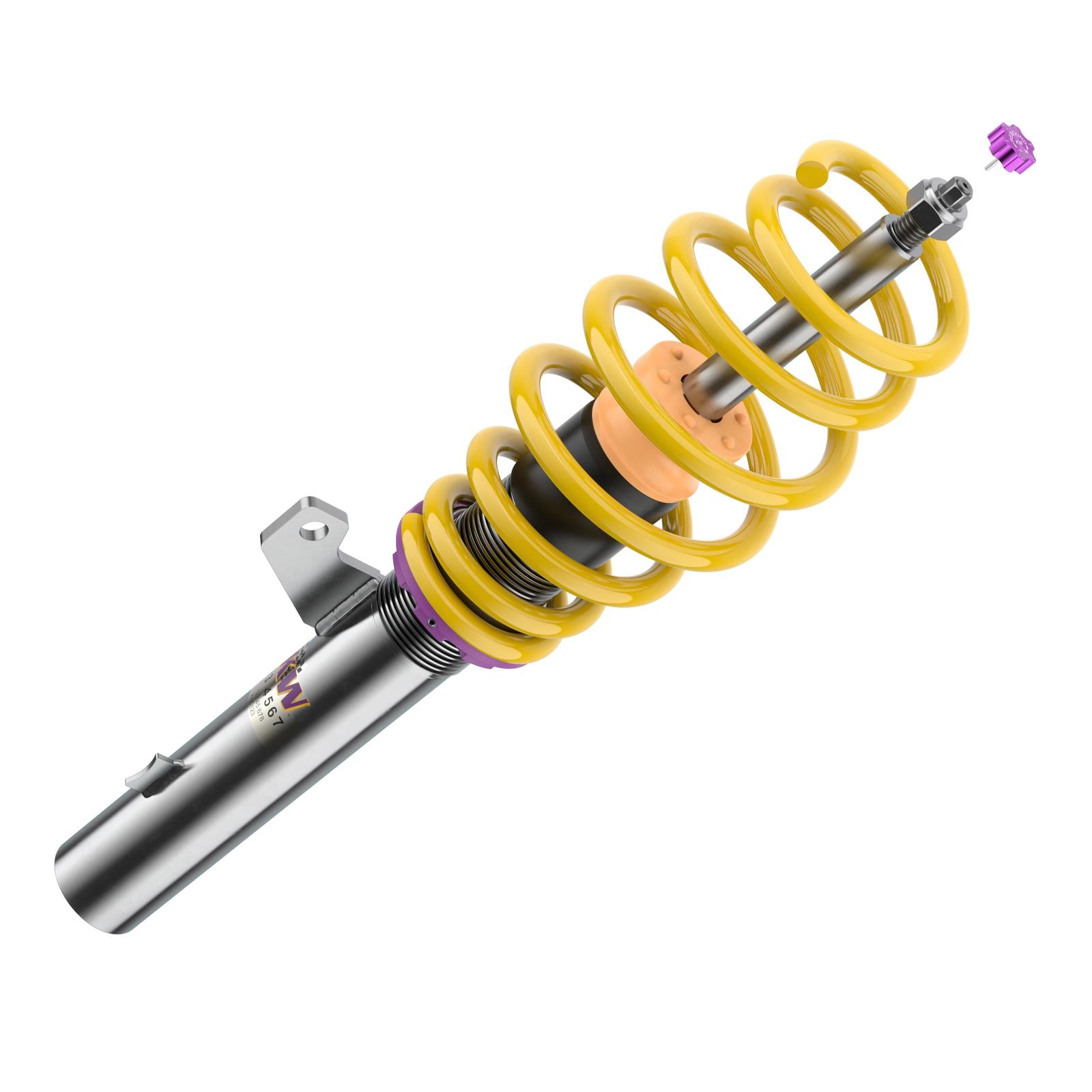

KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the VW Golf GTD (MK8) / Audi A3 TDI / A3 Sportback TDI (8Y).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 35–60 mm
  • Rear lowering: 35–60 mm
  • Front axle load: 1,036–1,100 kg
  • Rear axle load: up to 975 kg
  • Front strut diameter (vehicle): 50 mm

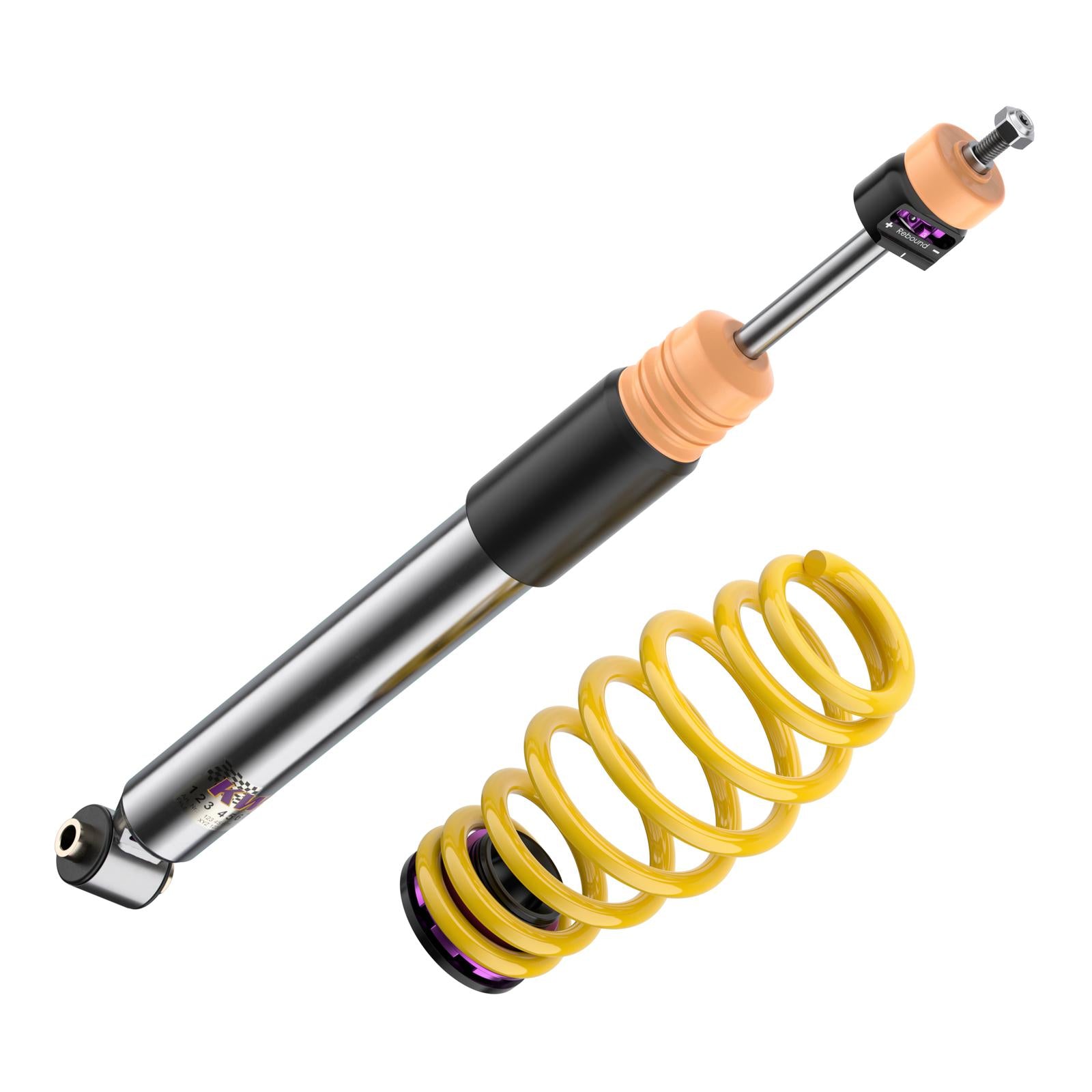

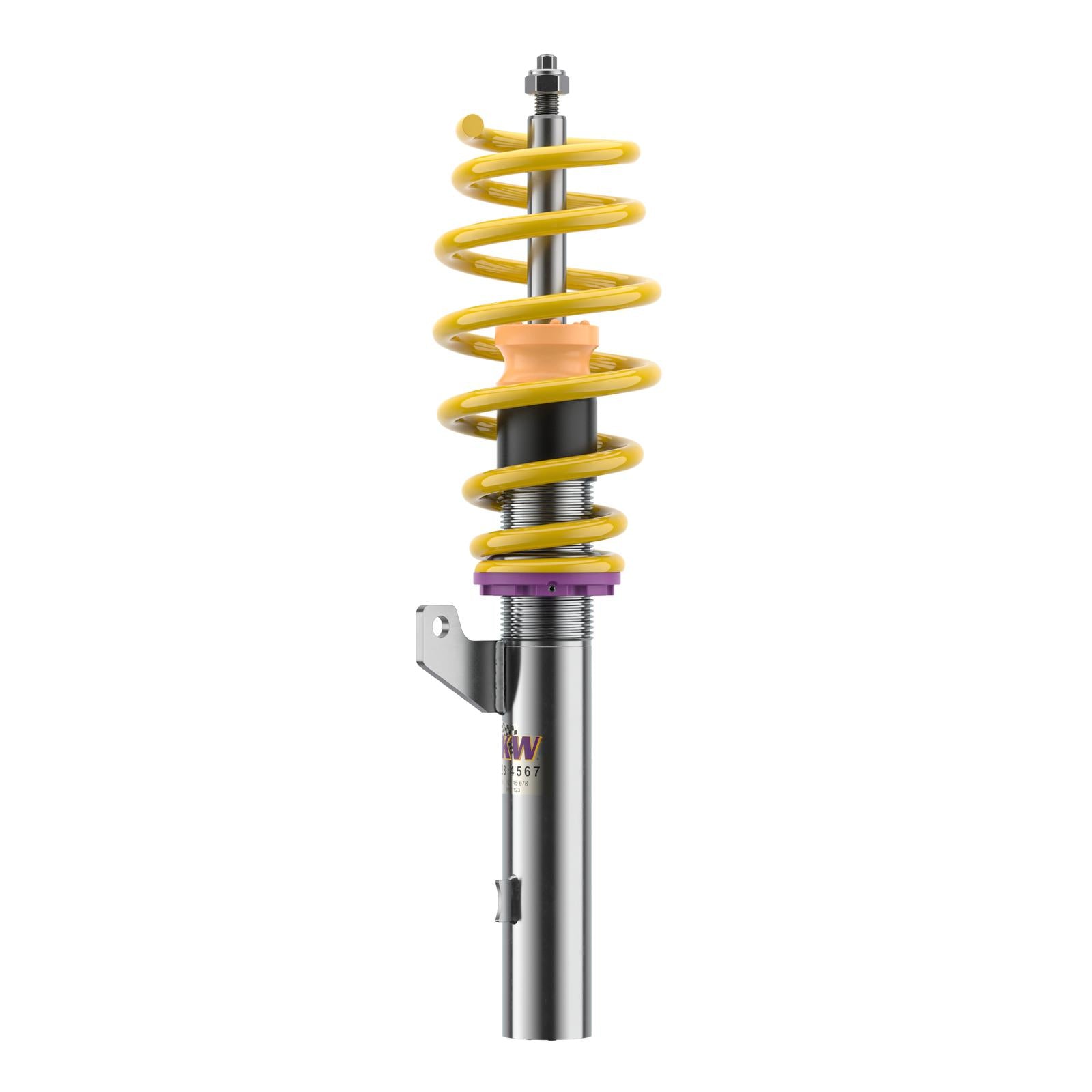

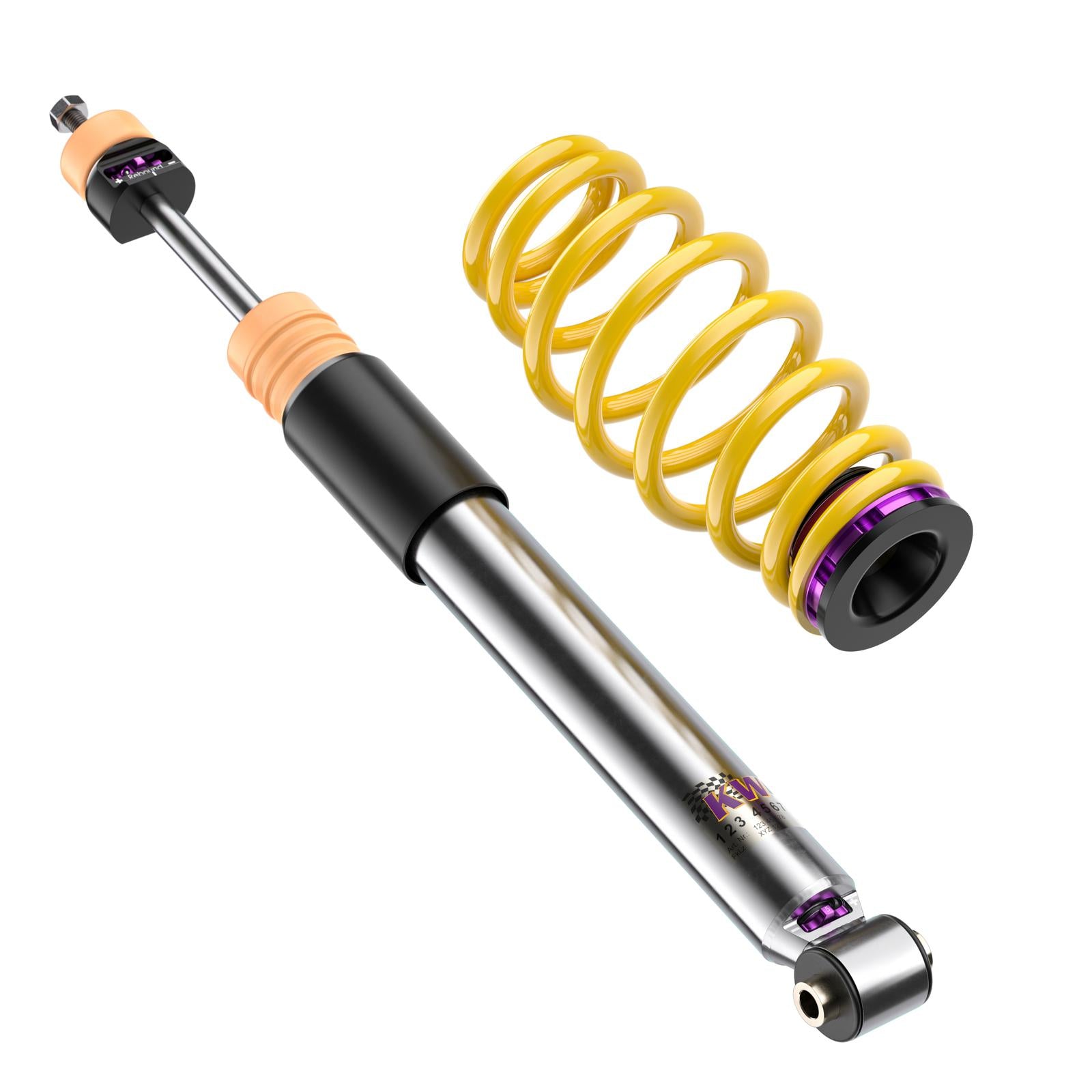

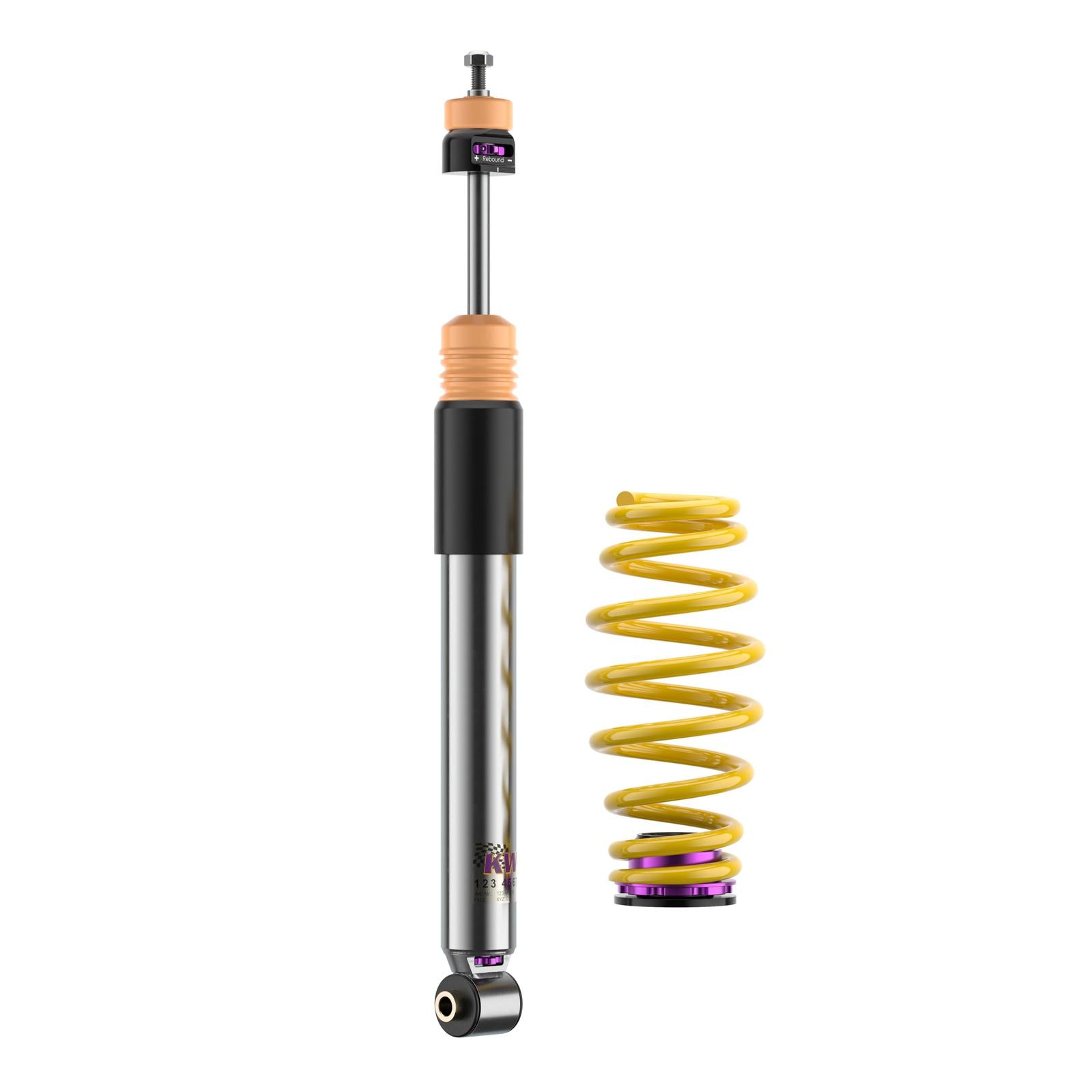

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Note For cars without DCC.

Front axle load 1,036–1,100 kg; Rear axle load up to 975 kg.

For vehicles without electronic damper control.

For cars without DCC.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveNotesRefs
2019+VWGolf VIII (CD1, DA1)2.0 TDIDiesel · 85 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 58, 62, 67
2019+VWGolf VIII (CD1, DA1)2.0 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 58, 62, 67
2019+AudiA3 Sportback (GY) 8YA30 TDIDiesel · 85 kW · 2.0L · 4-cylFront-Wheel Drive2, 58, 62, 67
2019+AudiA3 Sportback (GY) 8YA35 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel Drive2, 58, 62, 67
2020+AudiA3 Saloon (GY) 8YS30 TDIDiesel · 85 kW · 2.0L · 4-cylFront-Wheel Drive2, 58, 62, 67
2020+AudiA3 Saloon (GY) 8YS35 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel Drive2, 58, 62, 67
2019+VWGolf VIII (CD1, DA1)2.0 TDI GTDDiesel · 147 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 58, 62, 67
2019+VWGolf VIII (CD1, DA1)2.0 TSIPetrol · 140 kW · 2.0L · 4-cylFront-Wheel DriveFor cars without DCC2, 58, 62, 67
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 58: Only for cars with a clamp diameter of 50mm on the front axle.
  • Note 62: Not for cars with electronic damping.
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
