KW Coilover Kit V3 for VW (B5) Passat

SKU: 35280009
Sale price$3,979.55 Regular price$4,189.00
Save $209.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the VW Passat (B5).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 40–75 mm
  • Rear lowering: 40–75 mm
  • Front axle load: up to 1,100 kg
  • Rear axle load: up to 1,080 kg

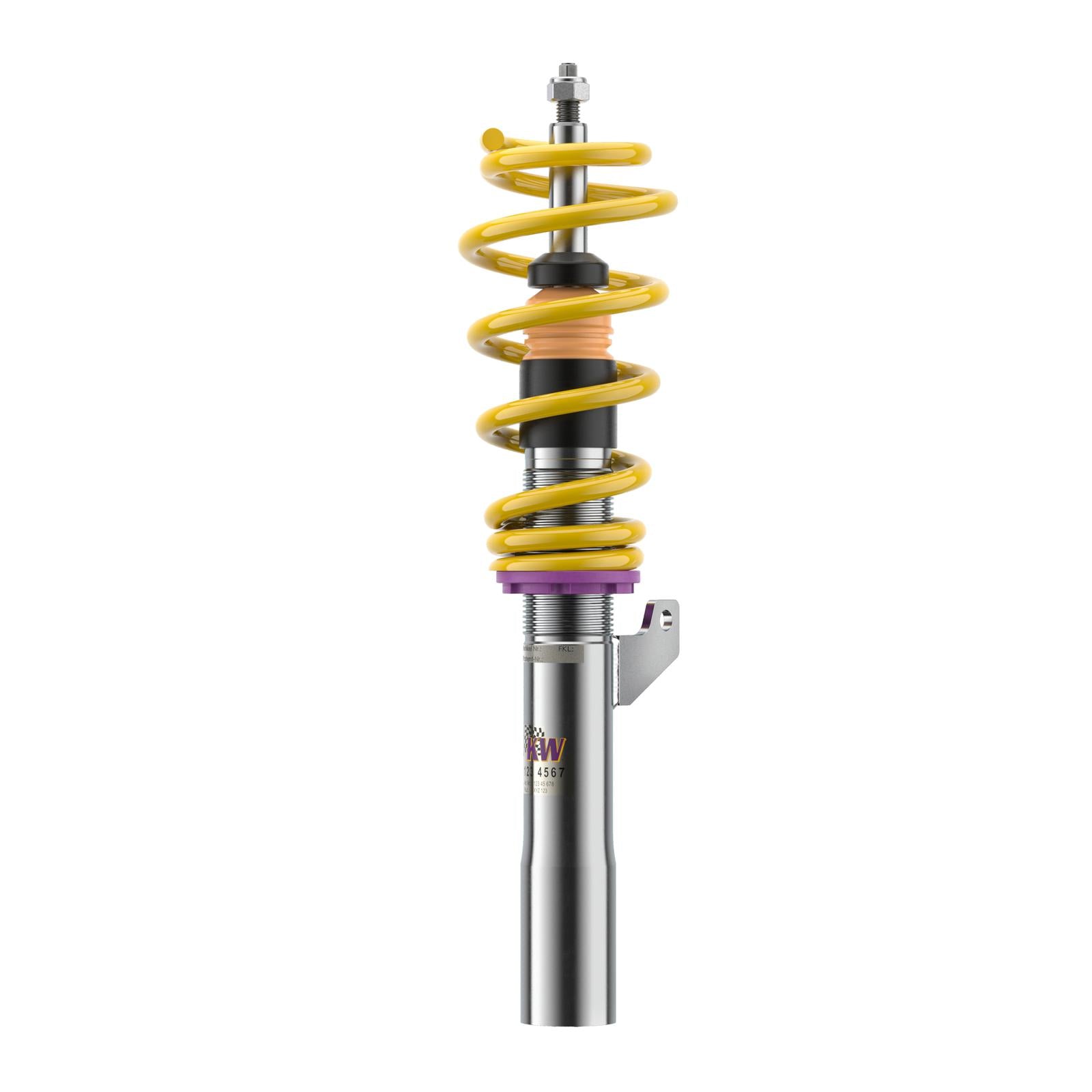

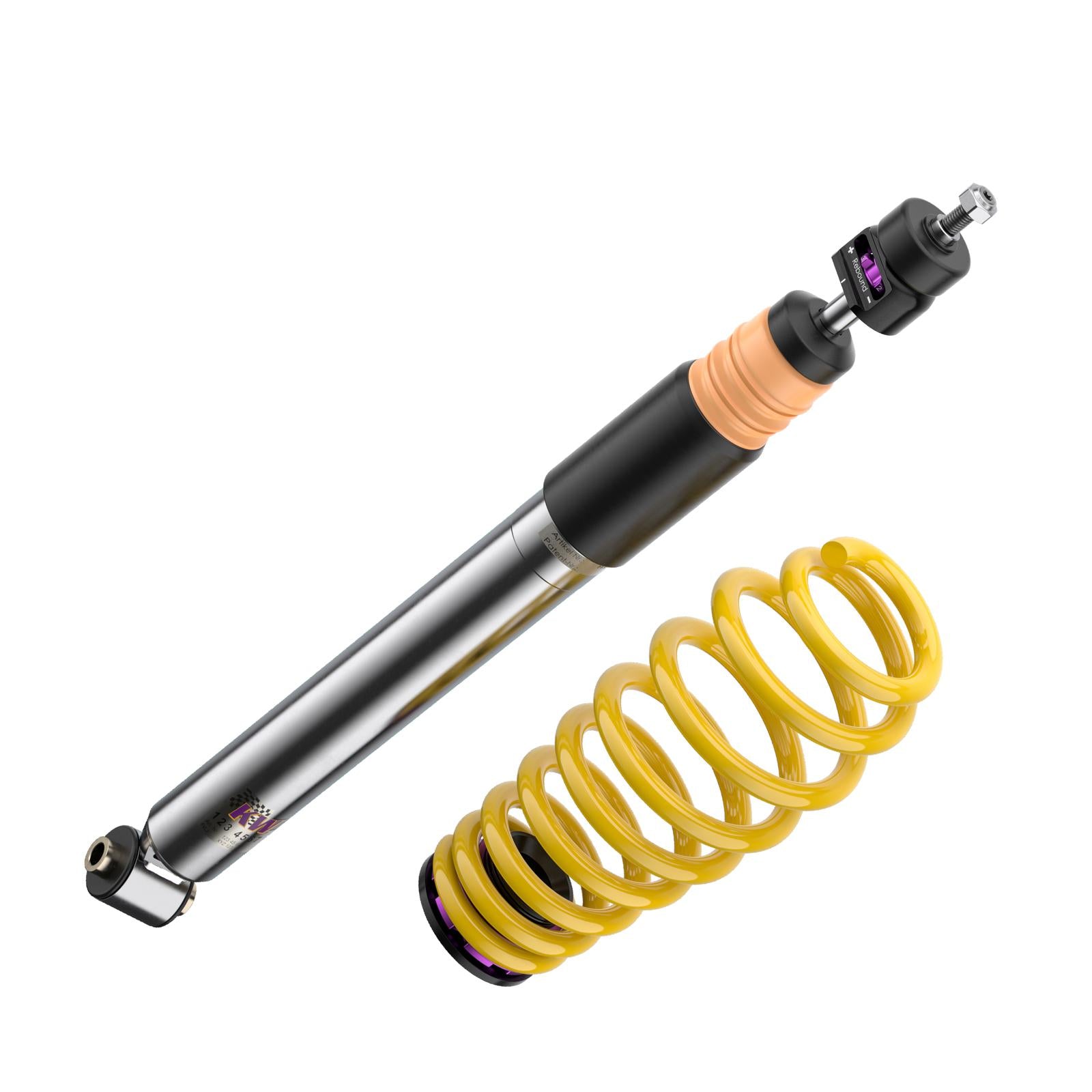

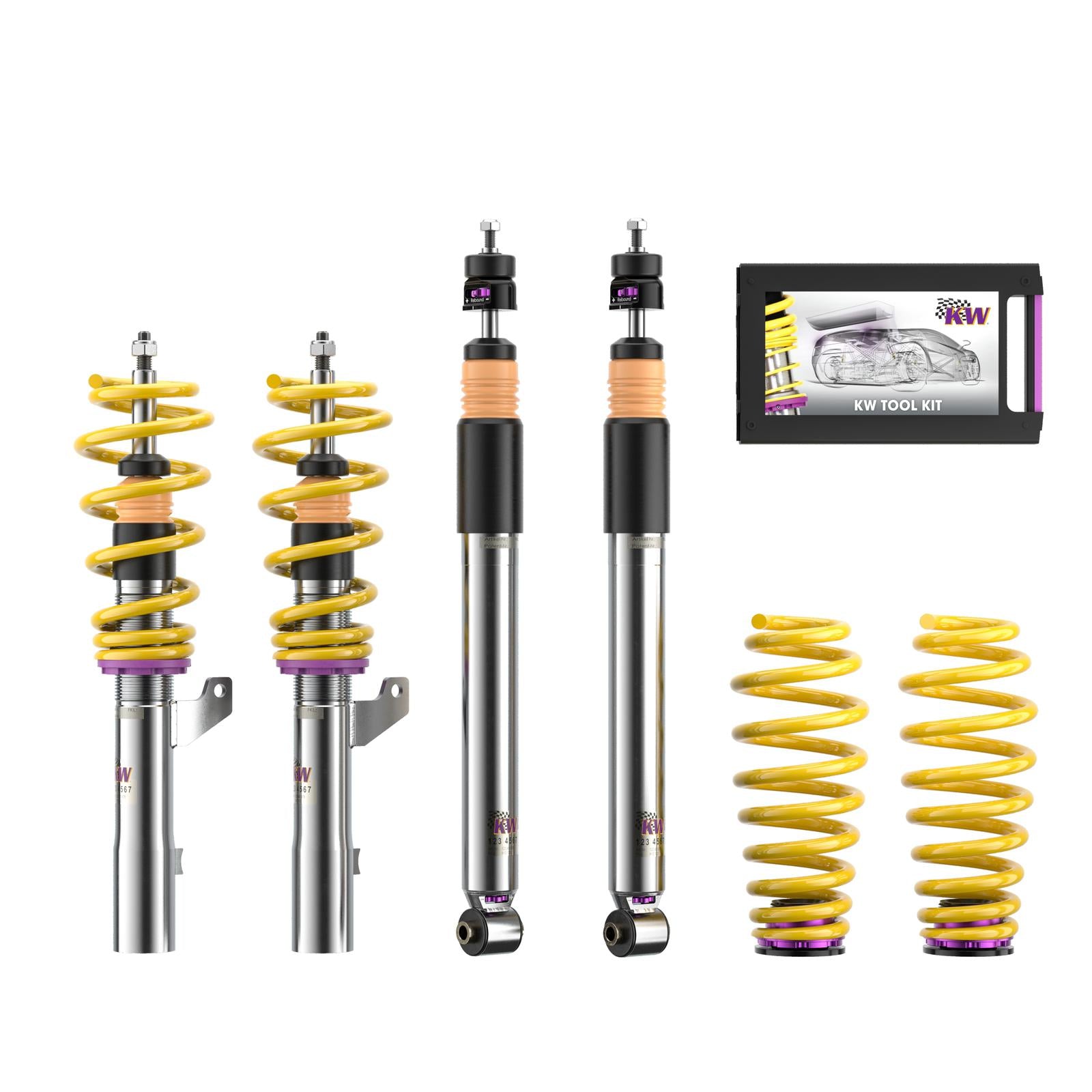

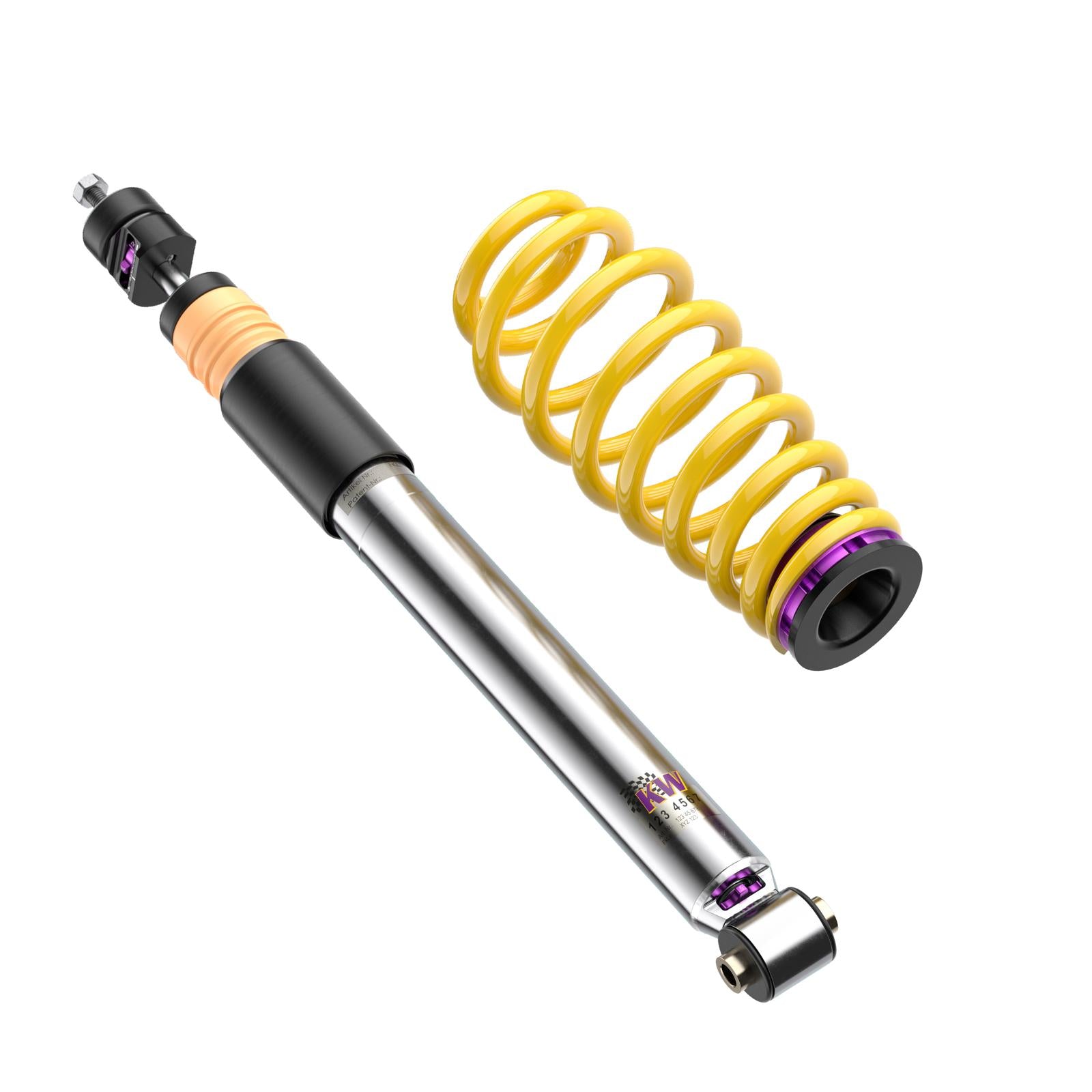

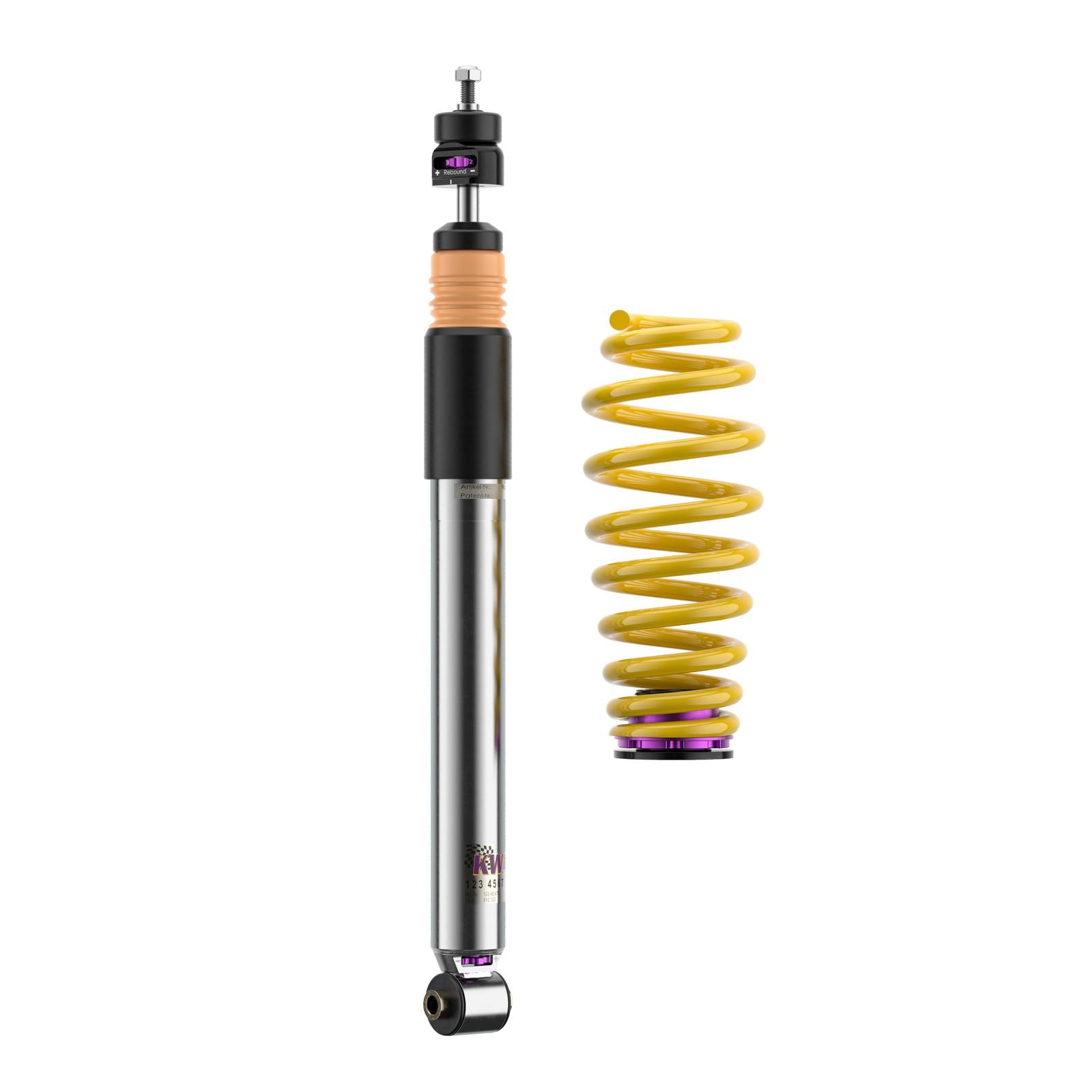

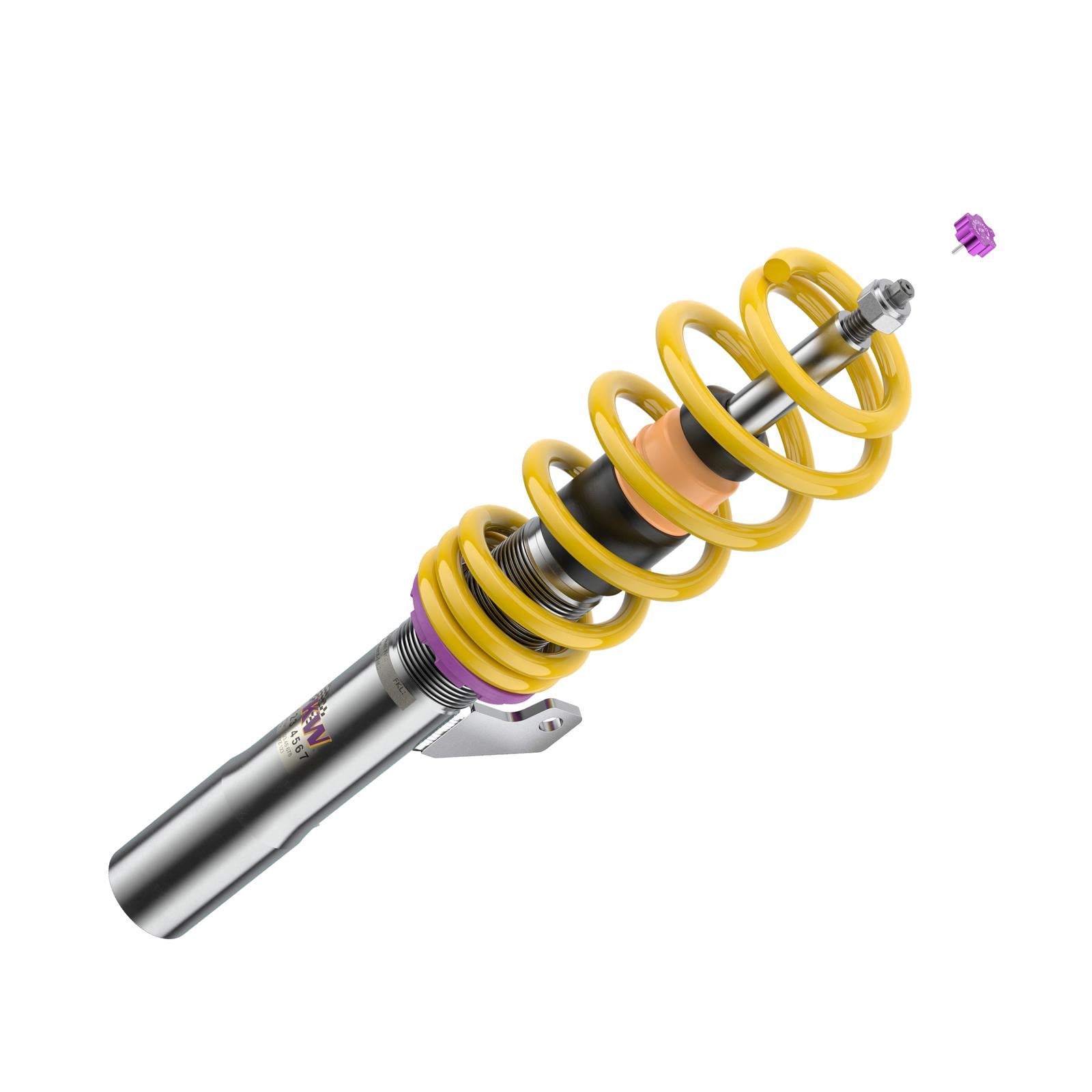

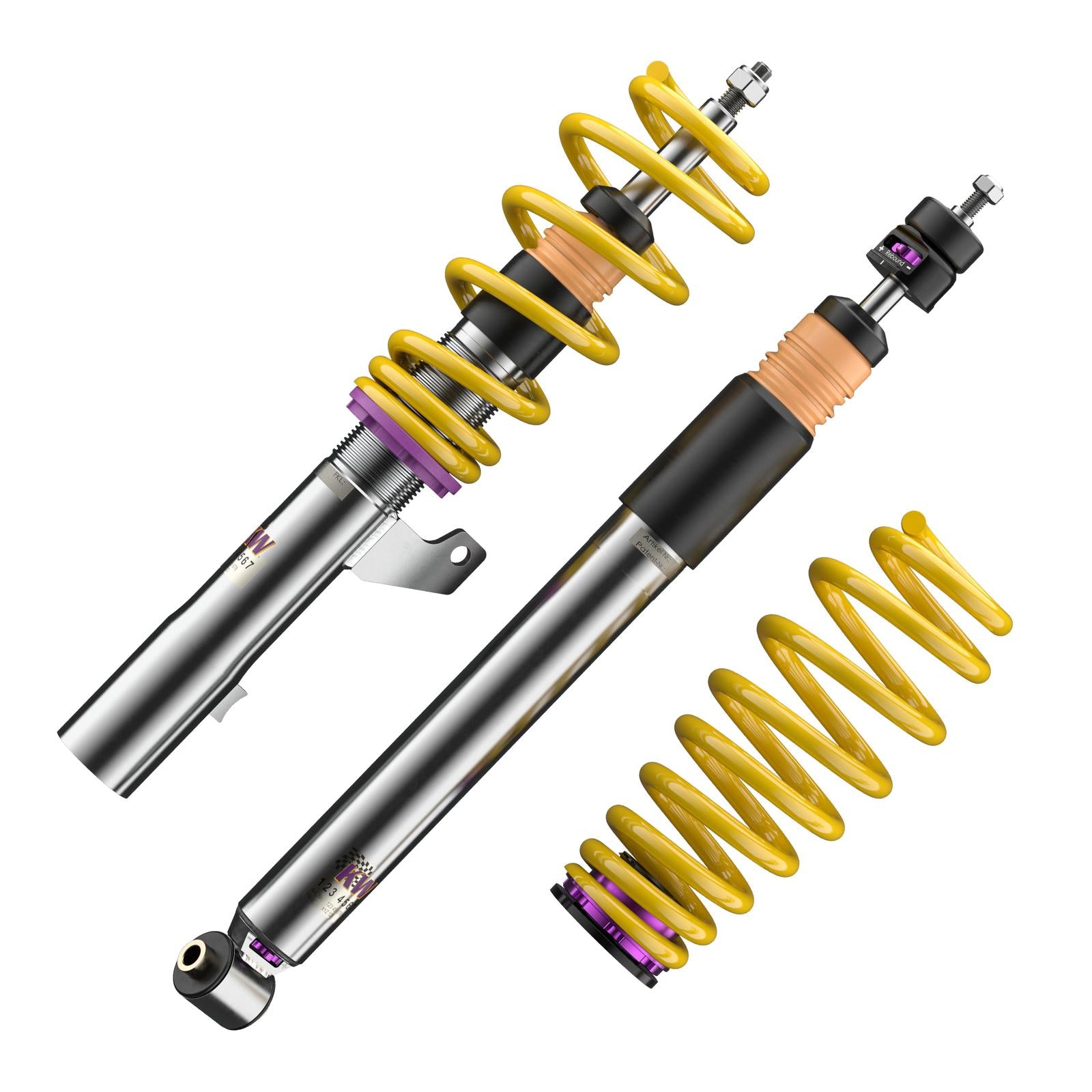

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 1,100 kg; Rear axle load up to 1,080 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
1996–2001VWPassat 3B2 (3B)1.9 TDIDiesel · 85 kW · 1.9L · 4-cylFront-Wheel Drive2, 8, 10
1997–2001VWPassat Estate 3B5 (3B)1.9 TDIDiesel · 85 kW · 1.9L · 4-cylFront-Wheel Drive2, 8, 10
2000–2005VWPassat Estate 3B6 (3BG, 3BS)2.8Petrol · 140 kW · 2.8L · 6-cylFront-Wheel Drive2, 8, 10
2000–2005VWPassat 3B3 (3BG|3BL|3BS)2.8Petrol · 140 kW · 2.8L · 6-cylFront-Wheel Drive2, 8, 10
2000–2005VWPassat 3B3 (3BG|3BL|3BS)1.6Petrol · 75 kW · 1.6L · 4-cylFront-Wheel Drive2, 8, 10
2000–2005VWPassat 3B3 (3BG|3BL|3BS)1.9 TDIDiesel · 74 kW · 1.9L · 4-cylFront-Wheel Drive2, 8, 10
2000–2005VWPassat Estate 3B6 (3BG, 3BS)1.9 TDIDiesel · 74 kW · 1.9L · 4-cylFront-Wheel Drive2, 8, 10
2000–2005VWPassat 3B3 (3BG|3BL|3BS)1.9 TDIDiesel · 96 kW · 1.9L · 4-cylFront-Wheel Drive2, 8, 10
2000–2005VWPassat Estate 3B6 (3BG, 3BS)1.9 TDIDiesel · 96 kW · 1.9L · 4-cylFront-Wheel Drive2, 8, 10
2000–2005VWPassat 3B3 (3BG|3BL|3BS)2.3 V5Petrol · 125 kW · 2.3L · 5-cylFront-Wheel Drive2, 8, 10
2000–2005VWPassat 3B3 (3BG|3BL|3BS)2.0Petrol · 85 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 10
2000–2005VWPassat Estate 3B6 (3BG, 3BS)1.6Petrol · 75 kW · 1.6L · 4-cylFront-Wheel Drive2, 8, 10
2000–2005VWPassat Estate 3B6 (3BG, 3BS)2.0Petrol · 85 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 10
2000–2005VWPassat Estate 3B6 (3BG, 3BS)2.3 VR5Petrol · 125 kW · 2.3L · 5-cylFront-Wheel Drive2, 8, 10
2000–2005VWPassat 3B3 (3BG|3BL|3BS)1.8 T 20VPetrol · 110 kW · 1.8L · 4-cylFront-Wheel Drive2, 8, 10
2000–2005VWPassat Estate 3B6 (3BG, 3BS)1.8 T 20VPetrol · 110 kW · 1.8L · 4-cylFront-Wheel Drive2, 8, 10
1996–2001VWPassat 3B2 (3B)2.0Petrol · 88 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 10
1996–2001VWPassat 3B2 (3B)1.9 TDIDiesel · 74 kW · 1.9L · 4-cylFront-Wheel Drive2, 8, 10
1997–2001VWPassat Estate 3B5 (3B)1.9 TDIDiesel · 74 kW · 1.9L · 4-cylFront-Wheel Drive2, 8, 10
1997–2001VWPassat Estate 3B5 (3B)2.0Petrol · 88 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 10
1996–2001VWPassat 3B2 (3B)1.8Petrol · 85 kW · 1.8L · 4-cylFront-Wheel Drive2, 8, 10
1996–2001VWPassat 3B2 (3B)2.8 V6Petrol · 132 kW · 2.8L · 6-cylFront-Wheel Drive2, 8, 10
1996–2001VWPassat 3B2 (3B)2.8 V6Petrol · 140 kW · 2.8L · 6-cylFront-Wheel Drive2, 8, 10
1997–2001VWPassat Estate 3B5 (3B)1.8Petrol · 85 kW · 1.8L · 4-cylFront-Wheel Drive2, 8, 10
1997–2001VWPassat Estate 3B5 (3B)2.8 V6Petrol · 132 kW · 2.8L · 6-cylFront-Wheel Drive2, 8, 10
1997–2001VWPassat Estate 3B5 (3B)2.8 V6Petrol · 140 kW · 2.8L · 6-cylFront-Wheel Drive2, 8, 10
2000–2005VWPassat 3B3 (3BG|3BL|3BS)2.0Petrol · 96 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 10
2000–2005VWPassat Estate 3B6 (3BG, 3BS)2.0Petrol · 96 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 10
2000–2005VWPassat 3B3 (3BG|3BL|3BS)1.8 TPetrol · 125 kW · 1.8L · 4-cylFront-Wheel Drive2, 8, 10
2000–2005VWPassat 3B3 (3BG|3BL|3BS)2.0 TDIDiesel · 100 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 10
2000–2005VWPassat Estate 3B6 (3BG, 3BS)2.0 TDIDiesel · 100 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 10
2000–2005VWPassat Estate 3B6 (3BG, 3BS)1.8 TPetrol · 125 kW · 1.8L · 4-cylFront-Wheel Drive2, 8, 10
2000–2005VWPassat 3B3 (3BG|3BL|3BS)2.8Petrol · 142 kW · 2.8L · 6-cylFront-Wheel Drive2, 8, 10
2000–2005VWPassat Estate 3B6 (3BG, 3BS)2.8Petrol · 142 kW · 2.8L · 6-cylFront-Wheel Drive2, 8, 10
1996–2001VWPassat 3B2 (3B)1.6Petrol · 74 kW · 1.6L · 4-cylFront-Wheel Drive2, 8, 10
1996–2001VWPassat 3B2 (3B)1.8Petrol · 92 kW · 1.8L · 4-cylFront-Wheel Drive2, 8, 10
1996–2001VWPassat 3B2 (3B)1.8 TPetrol · 110 kW · 1.8L · 4-cylFront-Wheel Drive2, 8, 10
1996–2001VWPassat 3B2 (3B)2.3 VR5Petrol · 110 kW · 2.3L · 5-cylFront-Wheel Drive2, 8, 10
1996–2001VWPassat 3B2 (3B)1.9 TDIDiesel · 66 kW · 1.9L · 4-cylFront-Wheel Drive2, 8, 10
1996–2001VWPassat 3B2 (3B)1.9 TDIDiesel · 81 kW · 1.9L · 4-cylFront-Wheel Drive2, 8, 10
1997–2001VWPassat Estate 3B5 (3B)1.6Petrol · 74 kW · 1.6L · 4-cylFront-Wheel Drive2, 8, 10
1997–2001VWPassat Estate 3B5 (3B)1.8Petrol · 92 kW · 1.8L · 4-cylFront-Wheel Drive2, 8, 10
1997–2001VWPassat Estate 3B5 (3B)1.8 TPetrol · 110 kW · 1.8L · 4-cylFront-Wheel Drive2, 8, 10
1997–2001VWPassat Estate 3B5 (3B)2.3 VR5Petrol · 110 kW · 2.3L · 5-cylFront-Wheel Drive2, 8, 10
1997–2001VWPassat Estate 3B5 (3B)2.8 V6Petrol · 142 kW · 2.8L · 6-cylFront-Wheel Drive2, 8, 10
1997–2001VWPassat Estate 3B5 (3B)1.9 TDIDiesel · 66 kW · 1.9L · 4-cylFront-Wheel Drive2, 8, 10
1997–2001VWPassat Estate 3B5 (3B)1.9 TDIDiesel · 81 kW · 1.9L · 4-cylFront-Wheel Drive2, 8, 10
1996–2001VWPassat 3B2 (3B)2.8 V6Petrol · 142 kW · 2.8L · 6-cylFront-Wheel Drive2, 8, 10
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 8: Not for vehicles with automatic self levelling control / air suspension.
  • Note 10: In Variant 2, hardness adjustment for front axle only in not installed condition possible.
