KW Coilover Kit V3 for Seat (6K) Ibiza Cupra R / Cordoba / VW (6N) Polo GTI
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Seat Ibiza Cupra R / Cordoba (6K) / VW Polo GTI (6N).
Key Features
- Rebound damping adjustable in 16 clicks
- Compression damping adjustable in 12 clicks
- Continuous ride height adjustment within the tested range
Specifications
- Version: V3
- Damping: Adjustable rebound and compression
- Material: Stainless steel
- Front lowering: 40–70 mm
- Rear lowering: 40–70 mm
- Front axle load: up to 900 kg
- Rear axle load: up to 810 kg

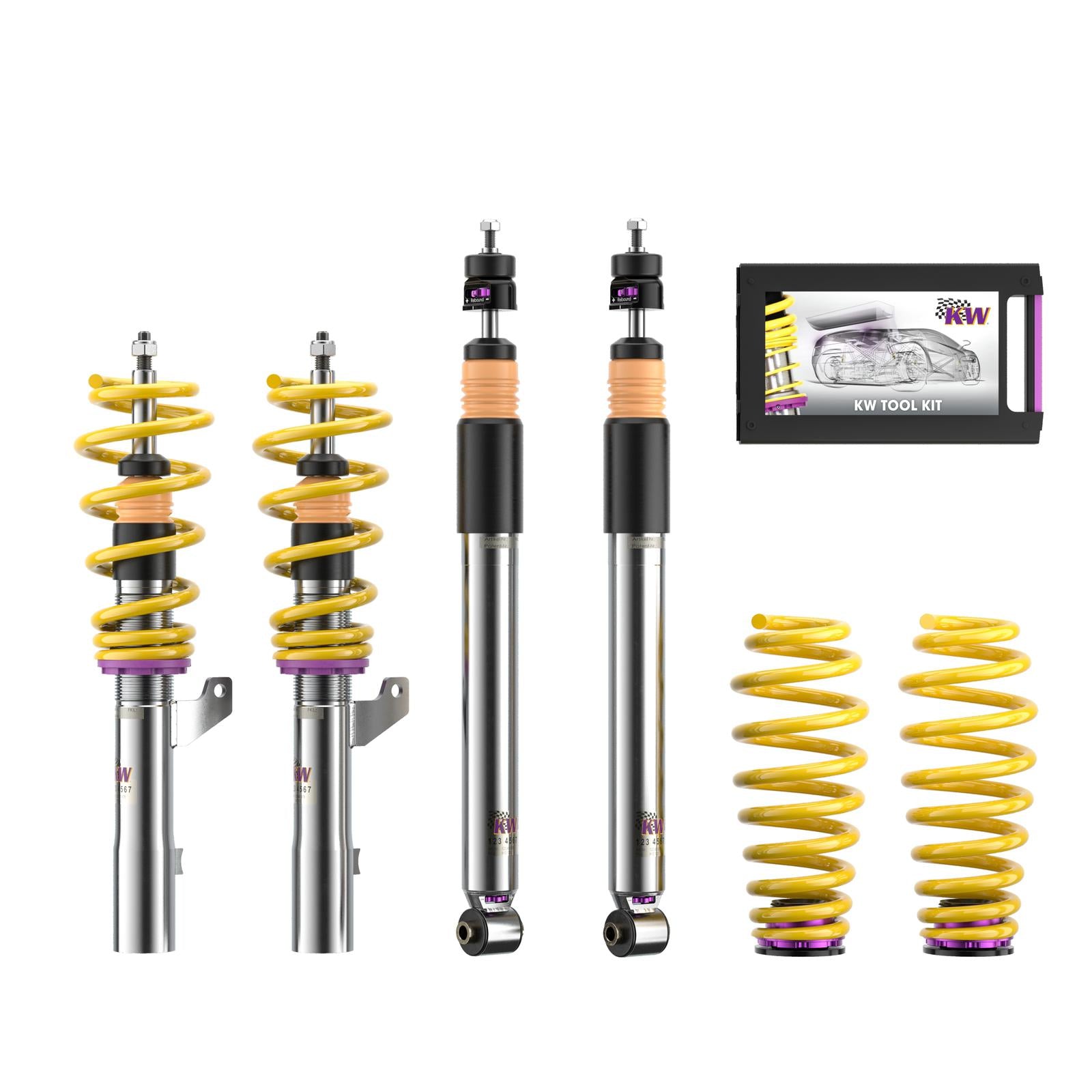

- Supplied as: Front axle + rear axle coilover struts
Front axle load up to 900 kg; Rear axle load up to 810 kg.
References 1, 46, 67. See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 1993–2002 | Seat | Cordoba (6K1, 6K2) | 1.0 | Petrol · 51 kW · 1.0L · 4-cyl | Front-Wheel Drive | 1, 67 |
| 1993–2002 | Seat | Cordoba (6K1, 6K2) | 1.0 i | Petrol · 37 kW · 1.0L · 4-cyl | Front-Wheel Drive | 1, 67 |
| 1993–2002 | Seat | Cordoba (6K1, 6K2) | 1.4 16V | Petrol · 55 kW · 1.4L · 4-cyl | Front-Wheel Drive | 1, 67 |
| 1993–2002 | Seat | Cordoba (6K1, 6K2) | 1.4 i | Petrol · 44 kW · 1.4L · 4-cyl | Front-Wheel Drive | 1, 67 |
| 1993–2002 | Seat | Cordoba (6K1, 6K2) | 1.4 i 16V | Petrol · 74 kW · 1.4L · 4-cyl | Front-Wheel Drive | 1, 67 |
| 1993–2002 | Seat | Cordoba (6K1, 6K2) | 1.6 i | Petrol · 55 kW · 1.6L · 4-cyl | Front-Wheel Drive | 1, 67 |
| 1993–2002 | Seat | Cordoba (6K1, 6K2) | 1.6 i | Petrol · 74 kW · 1.6L · 4-cyl | Front-Wheel Drive | 1, 67 |
| 1993–2002 | Seat | Cordoba (6K1, 6K2) | 1.8 T 20V Cupra | Petrol · 115 kW · 1.8L · 4-cyl | Front-Wheel Drive | 1, 67 |
| 1993–2002 | Seat | Cordoba (6K1, 6K2) | 1.8 i | Petrol · 66 kW · 1.8L · 4-cyl | Front-Wheel Drive | 1, 67 |
| 1993–2002 | Seat | Cordoba (6K1, 6K2) | 1.9 SDI | Diesel · 50 kW · 1.9L · 4-cyl | Front-Wheel Drive | 1, 67 |
| 1993–2002 | Seat | Cordoba (6K1, 6K2) | 1.9 TDI | Diesel · 66 kW · 1.9L · 4-cyl | Front-Wheel Drive | 1, 67 |
| 1993–2002 | Seat | Cordoba (6K1, 6K2) | 1.9 TDI | Diesel · 81 kW · 1.9L · 4-cyl | Front-Wheel Drive | 1, 67 |
| 1996–2002 | Seat | Cordoba Vario (6K5) | 1.4 | Petrol · 74 kW · 1.4L · 4-cyl | Front-Wheel Drive | 1, 67 |
| 1996–2002 | Seat | Cordoba Vario (6K5) | 1.4 16V | Petrol · 55 kW · 1.4L · 4-cyl | Front-Wheel Drive | 1, 67 |
| 1996–2002 | Seat | Cordoba Vario (6K5) | 1.4 i | Petrol · 44 kW · 1.4L · 4-cyl | Front-Wheel Drive | 1, 67 |
| 1996–2002 | Seat | Cordoba Vario (6K5) | 1.6 i | Petrol · 55 kW · 1.6L · 4-cyl | Front-Wheel Drive | 1, 67 |
| 1996–2002 | Seat | Cordoba Vario (6K5) | 1.6 i | Petrol · 74 kW · 1.6L · 4-cyl | Front-Wheel Drive | 1, 67 |
| 1996–2002 | Seat | Cordoba Vario (6K5) | 1.9 SDI | Diesel · 50 kW · 1.9L · 4-cyl | Front-Wheel Drive | 1, 67 |
| 1996–2002 | Seat | Cordoba Vario (6K5) | 1.9 TDI | Diesel · 66 kW · 1.9L · 4-cyl | Front-Wheel Drive | 1, 67 |
| 1996–2002 | Seat | Cordoba Vario (6K5) | 1.9 TDI | Diesel · 81 kW · 1.9L · 4-cyl | Front-Wheel Drive | 1, 67 |
| 1993–2002 | Seat | Ibiza Mk II (6K1) | 1.0 16V | Petrol · 51 kW · 1.0L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1993–2002 | Seat | Ibiza Mk II (6K1) | 1.0 i | Petrol · 37 kW · 1.0L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1993–2002 | Seat | Ibiza Mk II (6K1) | 1.4 16V | Petrol · 55 kW · 1.4L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1993–2002 | Seat | Ibiza Mk II (6K1) | 1.4 i | Petrol · 44 kW · 1.4L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1993–2002 | Seat | Ibiza Mk II (6K1) | 1.4 i 16V | Petrol · 74 kW · 1.4L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1993–2002 | Seat | Ibiza Mk II (6K1) | 1.6 i | Petrol · 55 kW · 1.6L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1993–2002 | Seat | Ibiza Mk II (6K1) | 1.6 i | Petrol · 74 kW · 1.6L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1993–2002 | Seat | Ibiza Mk II (6K1) | 1.8 T 20V Cupra | Petrol · 115 kW · 1.8L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1993–2002 | Seat | Ibiza Mk II (6K1) | 1.8 T 20V Cupra R | Petrol · 132 kW · 1.8L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1993–2002 | Seat | Ibiza Mk II (6K1) | 1.9 SDI | Diesel · 50 kW · 1.9L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1993–2002 | Seat | Ibiza Mk II (6K1) | 1.9 TDI | Diesel · 66 kW · 1.9L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1993–2002 | Seat | Ibiza Mk II (6K1) | 1.9 TDI | Diesel · 81 kW · 1.9L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1995–2009 | VW | Polo Classic III (6V2, 6KV) | 1.4 | Petrol · 62 kW · 1.4L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1995–2009 | VW | Polo Classic III (6V2, 6KV) | 1.6 | Petrol · 74 kW · 1.6L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1995–2009 | VW | Polo Classic III (6V2, 6KV) | 1.8 | Petrol · 82 kW · 1.8L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1995–2009 | VW | Polo Classic III (6V2, 6KV) | 100 1.6 | Petrol · 74 kW · 1.6L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1995–2009 | VW | Polo Classic III (6V2, 6KV) | 110 1.9 TDI | Diesel · 81 kW · 1.9L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1995–2009 | VW | Polo Classic III (6V2, 6KV) | 54 1.4 | Petrol · 40 kW · 1.4L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1995–2009 | VW | Polo Classic III (6V2, 6KV) | 57 1.7 SDI | Diesel · 44 kW · 1.7L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1995–2009 | VW | Polo Classic III (6V2, 6KV) | 60 1.4 | Petrol · 44 kW · 1.4L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1995–2009 | VW | Polo Classic III (6V2, 6KV) | 68 1.9 SDI | Diesel · 50 kW · 1.9L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1995–2009 | VW | Polo Classic III (6V2, 6KV) | 75 1.4 16V | Petrol · 55 kW · 1.4L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1995–2009 | VW | Polo Classic III (6V2, 6KV) | 75 1.6 | Petrol · 55 kW · 1.6L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1995–2009 | VW | Polo Classic III (6V2, 6KV) | 90 1.8 | Petrol · 66 kW · 1.8L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1995–2009 | VW | Polo Classic III (6V2, 6KV) | 90 1.9 TDI | Diesel · 66 kW · 1.9L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1997–2001 | VW | Polo Estate III (6V5, 6KV) | 1.4 | Petrol · 40 kW · 1.4L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1997–2001 | VW | Polo Estate III (6V5, 6KV) | 1.4 | Petrol · 44 kW · 1.4L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1997–2001 | VW | Polo Estate III (6V5, 6KV) | 1.4 16V | Petrol · 55 kW · 1.4L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1997–2001 | VW | Polo Estate III (6V5, 6KV) | 1.6 | Petrol · 55 kW · 1.6L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1997–2001 | VW | Polo Estate III (6V5, 6KV) | 1.6 | Petrol · 74 kW · 1.6L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1997–2001 | VW | Polo Estate III (6V5, 6KV) | 1.7 SDI | Diesel · 44 kW · 1.7L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1997–2001 | VW | Polo Estate III (6V5, 6KV) | 1.8 | Petrol · 66 kW · 1.8L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1997–2001 | VW | Polo Estate III (6V5, 6KV) | 1.9 SDI | Diesel · 47 kW · 1.9L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1997–2001 | VW | Polo Estate III (6V5, 6KV) | 1.9 SDI | Diesel · 50 kW · 1.9L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1997–2001 | VW | Polo Estate III (6V5, 6KV) | 1.9 TDI | Diesel · 66 kW · 1.9L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1997–2001 | VW | Polo Estate III (6V5, 6KV) | 1.9 TDI | Diesel · 81 kW · 1.9L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1999–2001 | VW | Polo III (6N2, 6N) | 1.0 | Petrol · 37 kW · 1.0L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1999–2001 | VW | Polo III (6N2, 6N) | 1.4 | Petrol · 40 kW · 1.4L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1999–2001 | VW | Polo III (6N2, 6N) | 1.4 | Petrol · 44 kW · 1.4L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1999–2001 | VW | Polo III (6N2, 6N) | 1.4 16V | Petrol · 55 kW · 1.4L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1999–2001 | VW | Polo III (6N2, 6N) | 1.4 16V | Petrol · 74 kW · 1.4L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1999–2001 | VW | Polo III (6N2, 6N) | 1.4 TDI | Diesel · 55 kW · 1.4L · 3-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1999–2001 | VW | Polo III (6N2, 6N) | 1.4 TDi | Diesel · 66 kW · 1.4L · 3-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1999–2001 | VW | Polo III (6N2, 6N) | 1.6 16V GTI | Petrol · 92 kW · 1.6L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1999–2001 | VW | Polo III (6N2, 6N) | 1.7 SDI | Diesel · 44 kW · 1.7L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1999–2001 | VW | Polo III (6N2, 6N) | 1.9 D | Diesel · 47 kW · 1.9L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
| 1999–2001 | VW | Polo III (6N2, 6N) | 1.9 SDI | Diesel · 47 kW · 1.9L · 4-cyl | Front-Wheel Drive | 1, 46, 67 |
- Note 1: Height adjustable on the front and rear axles (threaded strut housings).
- Note 46: The upper spring perch is fastened to the vehicle, a) beginning Model year 2000 and up with three fasteners to the body, b) via the support bearing that is centrally fastened through the piston rod of the shock absorber.
- Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
