KW Coilover Kit V3 for VW (MK3) Scirocco R / Scirocco
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the VW Scirocco R / Scirocco (MK3).
Key Features
- Rebound damping adjustable in 16 clicks
- Compression damping adjustable in 12 clicks
- Continuous ride height adjustment within the tested range
Specifications
- Version: V3
- Damping: Adjustable rebound and compression
- Material: Stainless steel
- Front lowering: 20–55 mm
- Rear lowering: 20–55 mm
- Front axle load: 1,001–1,090 kg
- Rear axle load: up to 780 kg
- Front strut diameter (vehicle): 55 mm

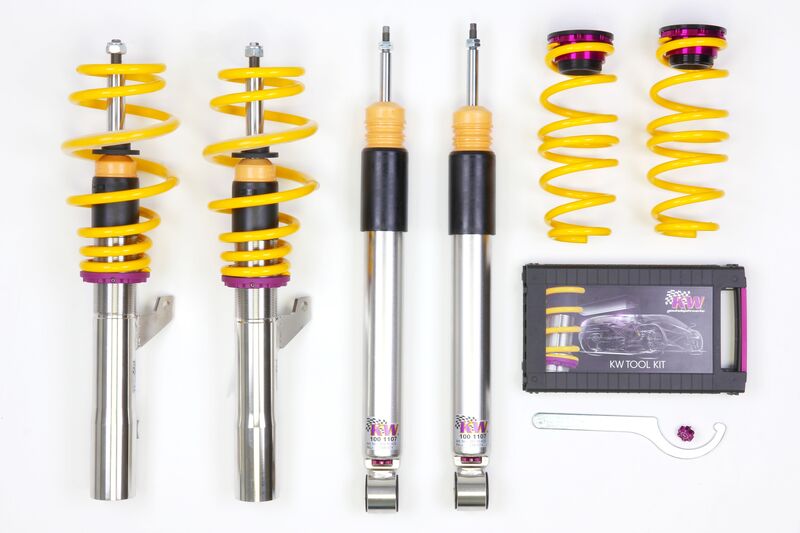

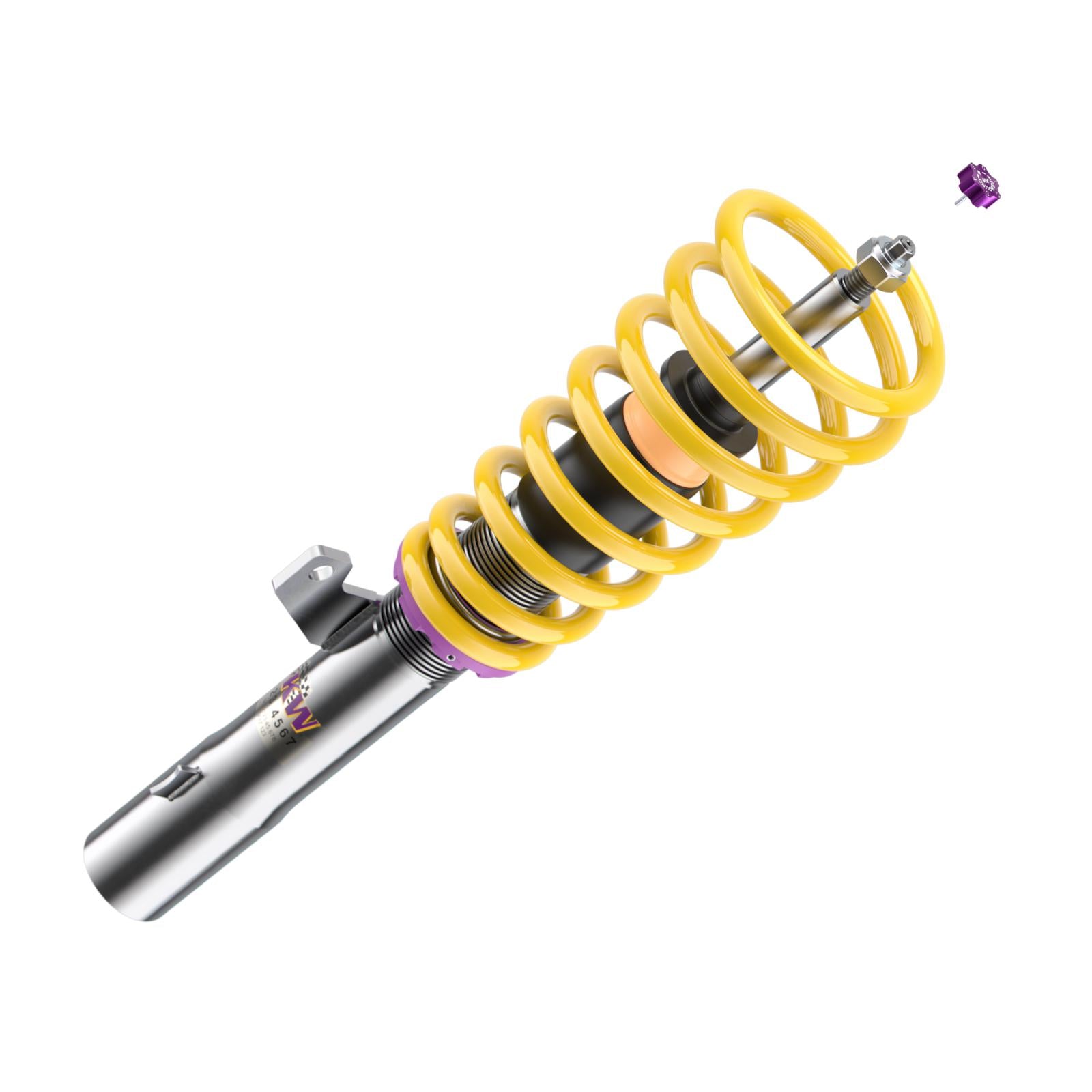

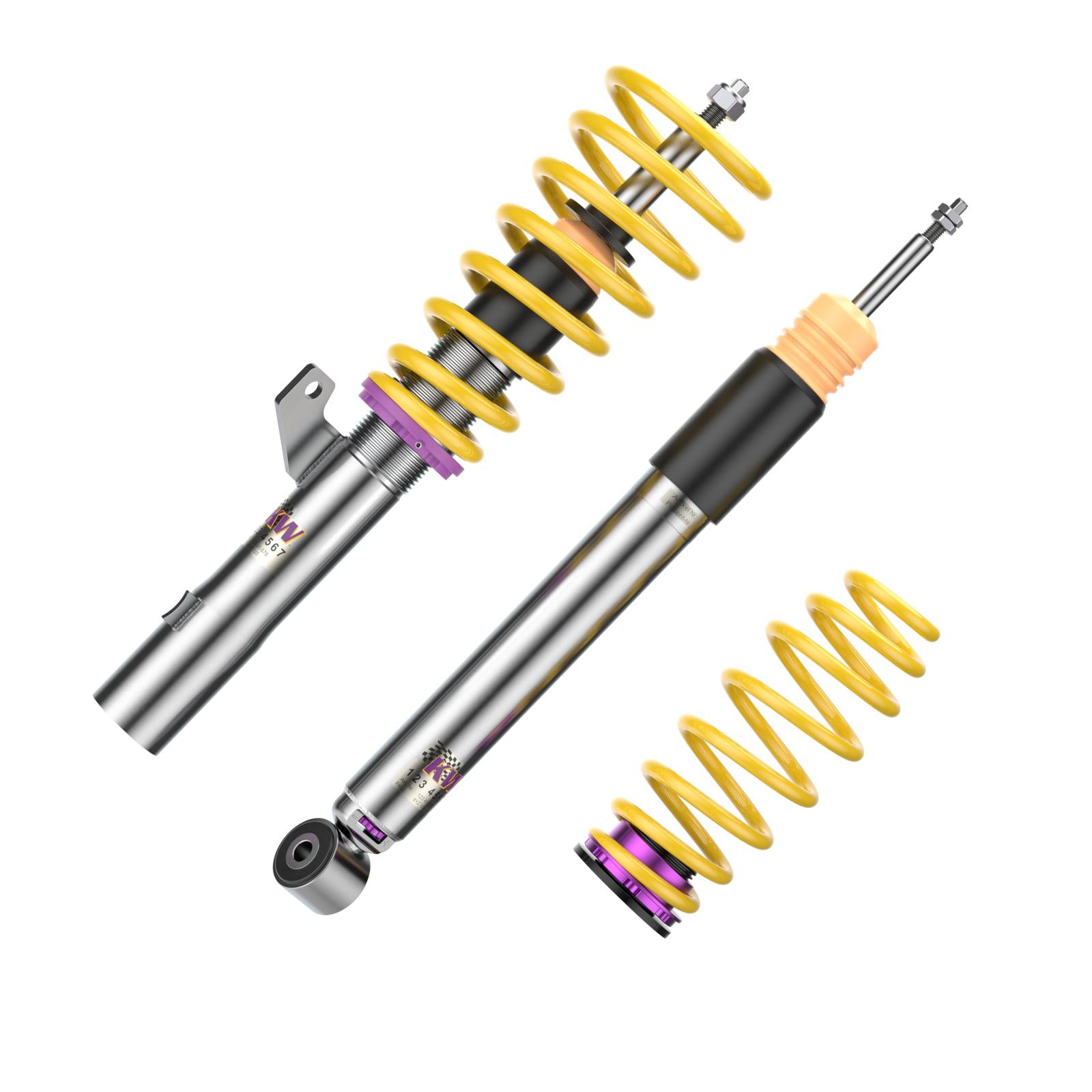

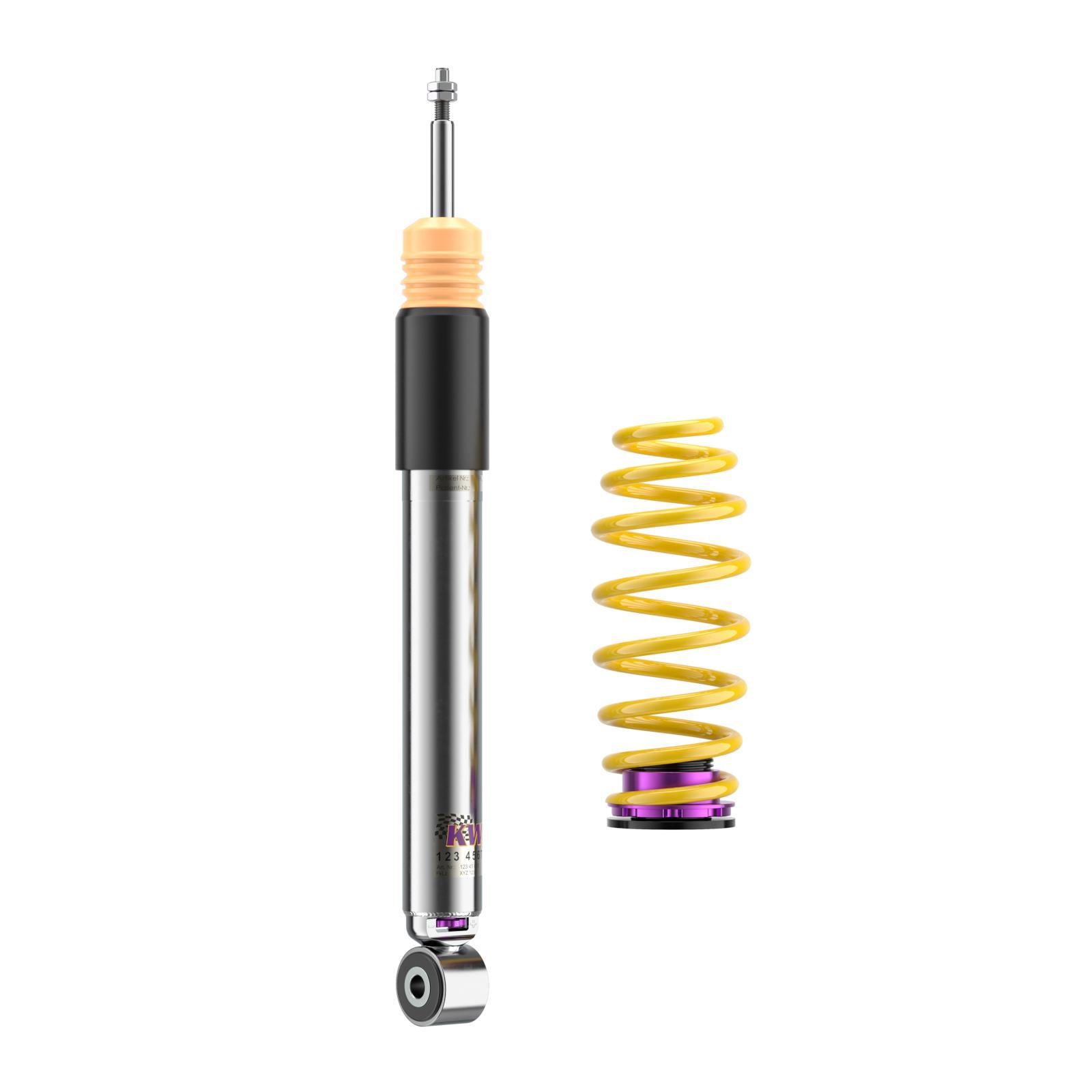

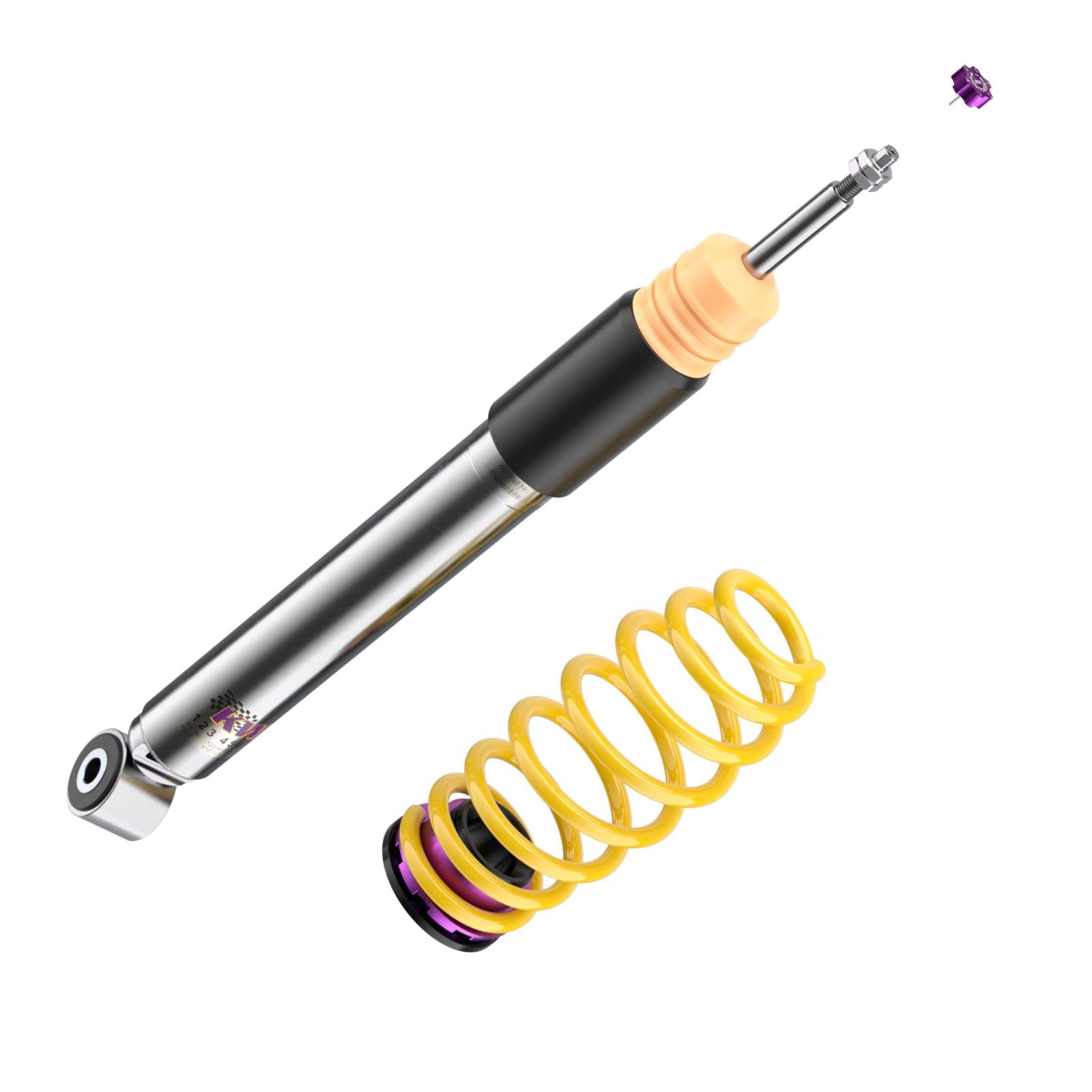

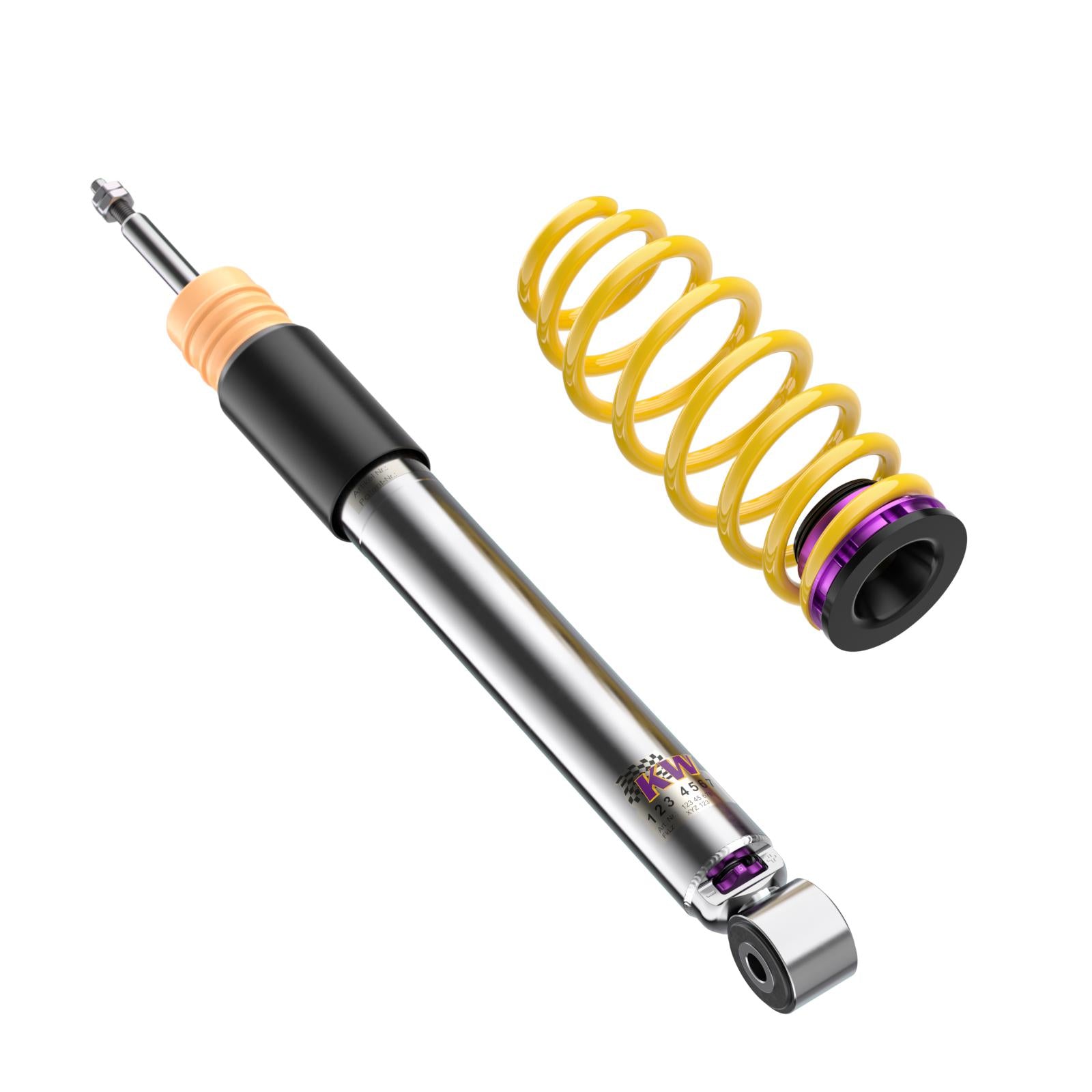

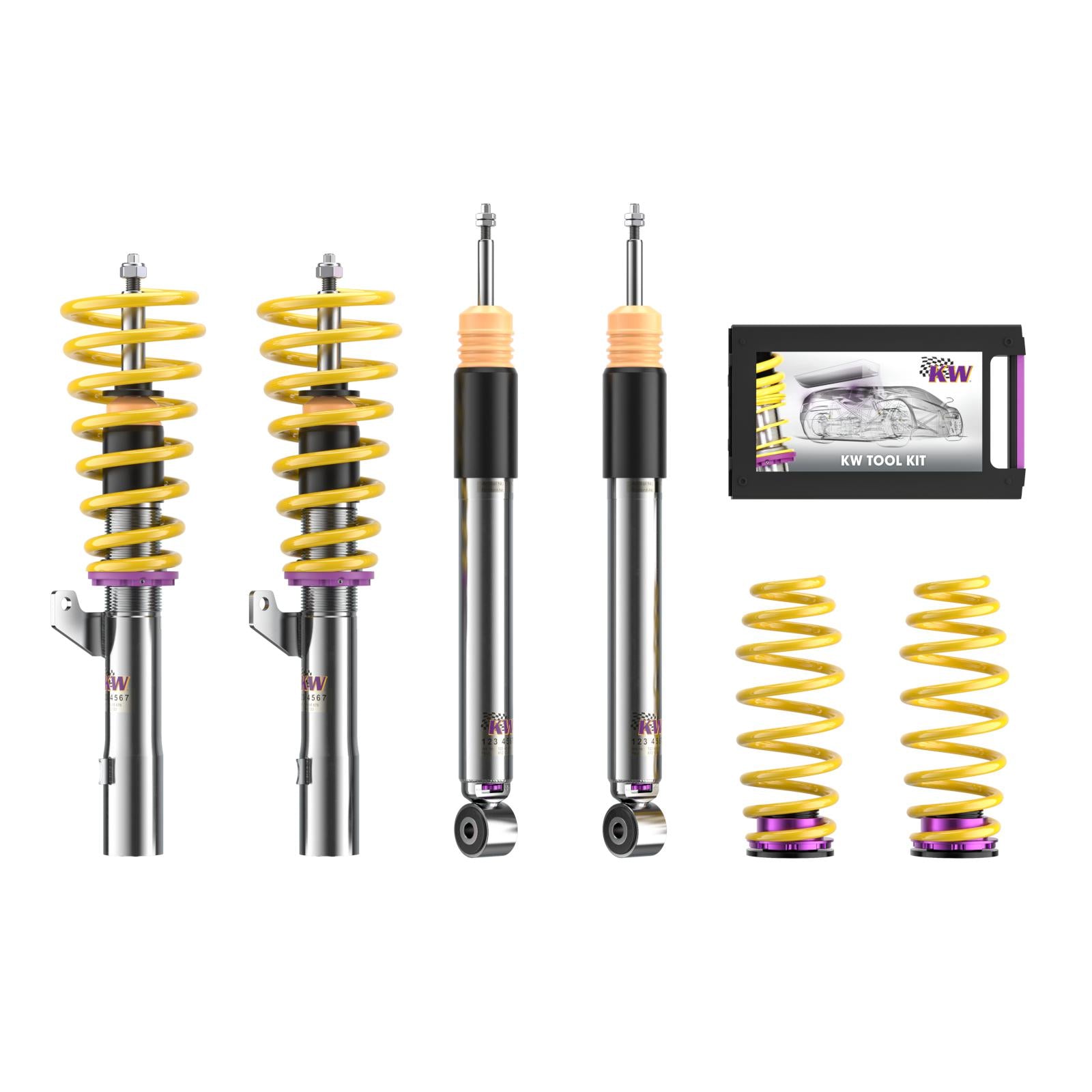

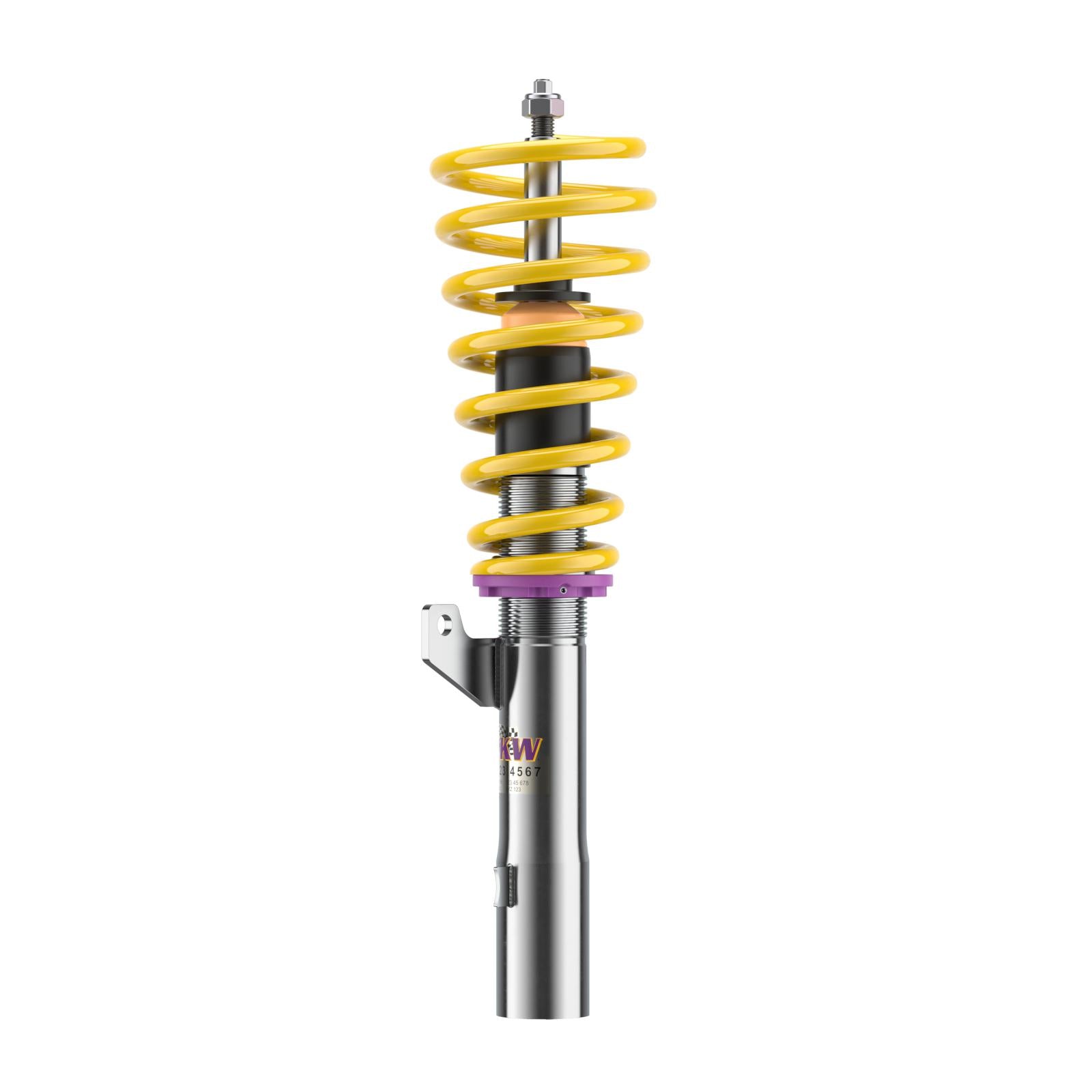

- Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Front axle load 1,001–1,090 kg; Rear axle load up to 780 kg.
For vehicles without electronic damper control.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 2008–2018 | VW | Scirocco III (13, 137, 138) | 2.0 TDI | Diesel · 110 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57, 67, 93 |
| 2008–2018 | VW | Scirocco III (13, 137, 138) | 2.0 TSI | Petrol · 132 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57, 67, 93 |
| 2008–2018 | VW | Scirocco III (13, 137, 138) | 2.0 TSI | Petrol · 162 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57, 67, 93 |
| 2008–2018 | VW | Scirocco III (13, 137, 138) | 2.0 TDI | Diesel · 135 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57, 67, 93 |
| 2008–2018 | VW | Scirocco III (13, 137, 138) | 2.0 R | Petrol · 206 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57, 67, 93 |
| 2008–2018 | VW | Scirocco III (13, 137, 138) | 2.0 R | Petrol · 188 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57, 67, 93 |
| 2008–2018 | VW | Scirocco III (13, 137, 138) | 2.0 TDI | Diesel · 100 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57, 67, 93 |
| 2008–2018 | VW | Scirocco III (13, 137, 138) | 1.4 TSI | Petrol · 96 kW · 1.4L · 4-cyl | Front-Wheel Drive | 2, 37, 57, 67, 93 |
| 2008–2018 | VW | Scirocco III (13, 137, 138) | 1.4 TSI | Petrol · 118 kW · 1.4L · 4-cyl | Front-Wheel Drive | 2, 37, 57, 67, 93 |
| 2008–2018 | VW | Scirocco III (13, 137, 138) | 2.0 TDI | Diesel · 103 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57, 67, 93 |
| 2008–2018 | VW | Scirocco III (13, 137, 138) | 2.0 TFSI | Petrol · 147 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57, 67, 93 |
| 2008–2018 | VW | Scirocco III (13, 137, 138) | 2.0 TDI | Diesel · 125 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57, 67, 93 |
| 2008–2018 | VW | Scirocco III (13, 137, 138) | 2.0 TSI | Petrol · 155 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57, 67, 93 |
| 2008–2018 | VW | Scirocco III (13, 137, 138) | 2.0 R | Petrol · 195 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57, 67, 93 |
| 2008–2018 | VW | Scirocco III (13, 137, 138) | 2.0 TDI | Diesel · 130 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 37, 57, 67, 93 |
- Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
- Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
- Note 57: Only for cars with a clamp diameter of 55mm on the front axle.
- Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
- Note 93: To guarantee at maximum lowering the minimum clearance of the FA indicator light (350 mm) and day headlight (250 mm) beyond STVZO, they have to be modified.
