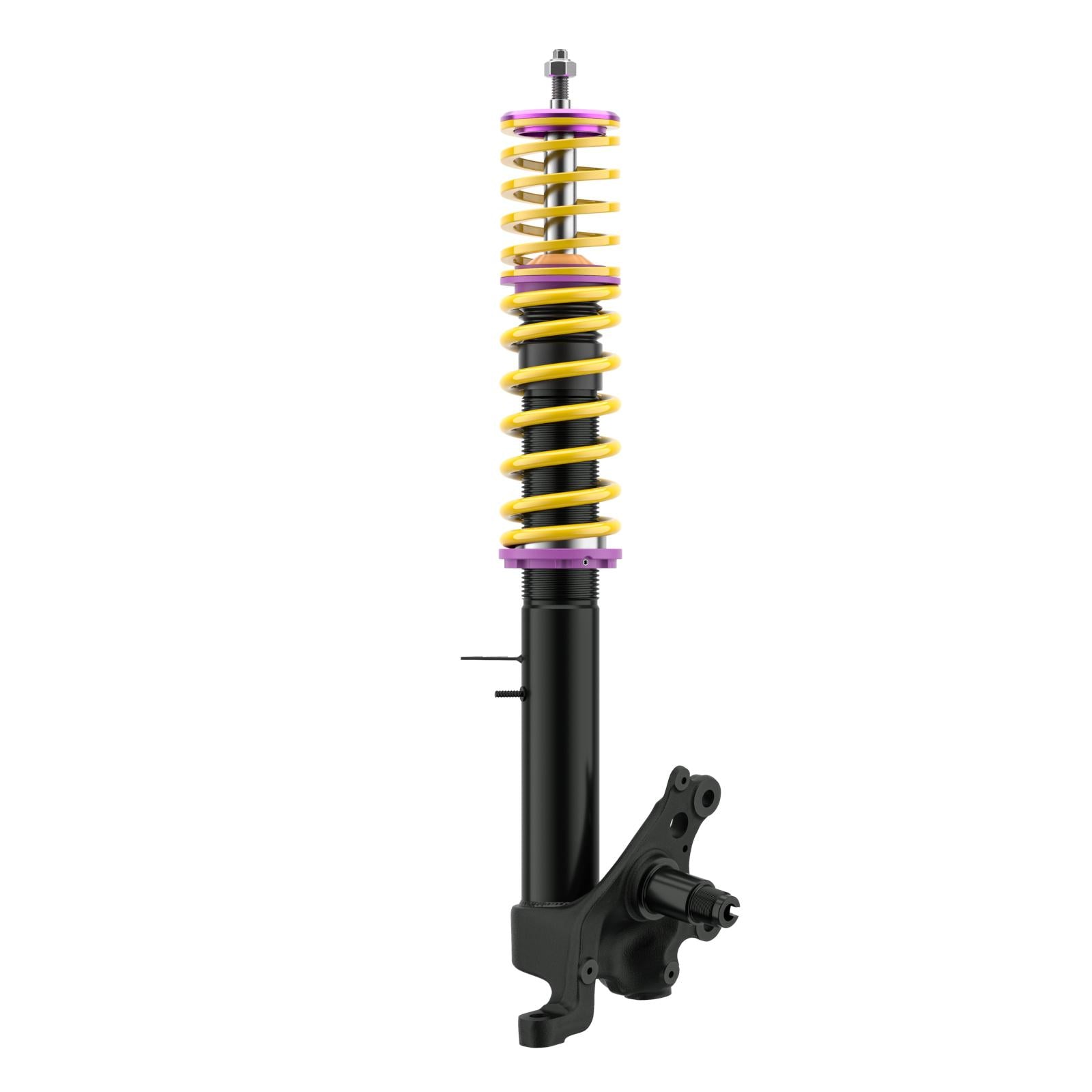

KW Coilover Kit V3 for BMW (E24) M635CSi - Front Strut Housing Modification

SKU: 352200CP
Sale price$6,354.55 Regular price$6,689.00
Save $334.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the BMW M635CSi (E24).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Galvanised steel
  • Front lowering: 45–60 mm
  • Rear lowering: 40–60 mm
  • Front axle load: up to 980 kg
  • Rear axle load: up to 1,000 kg

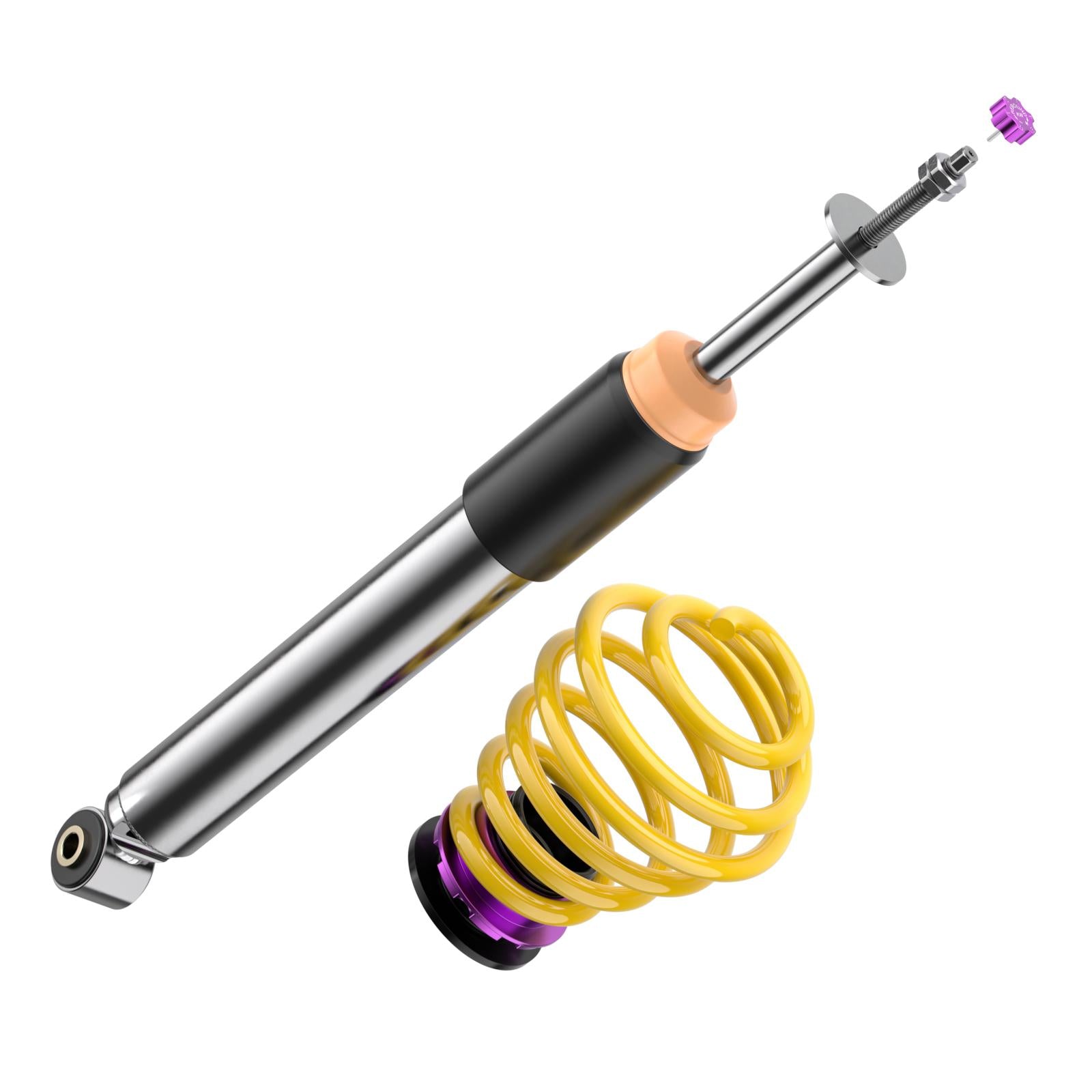

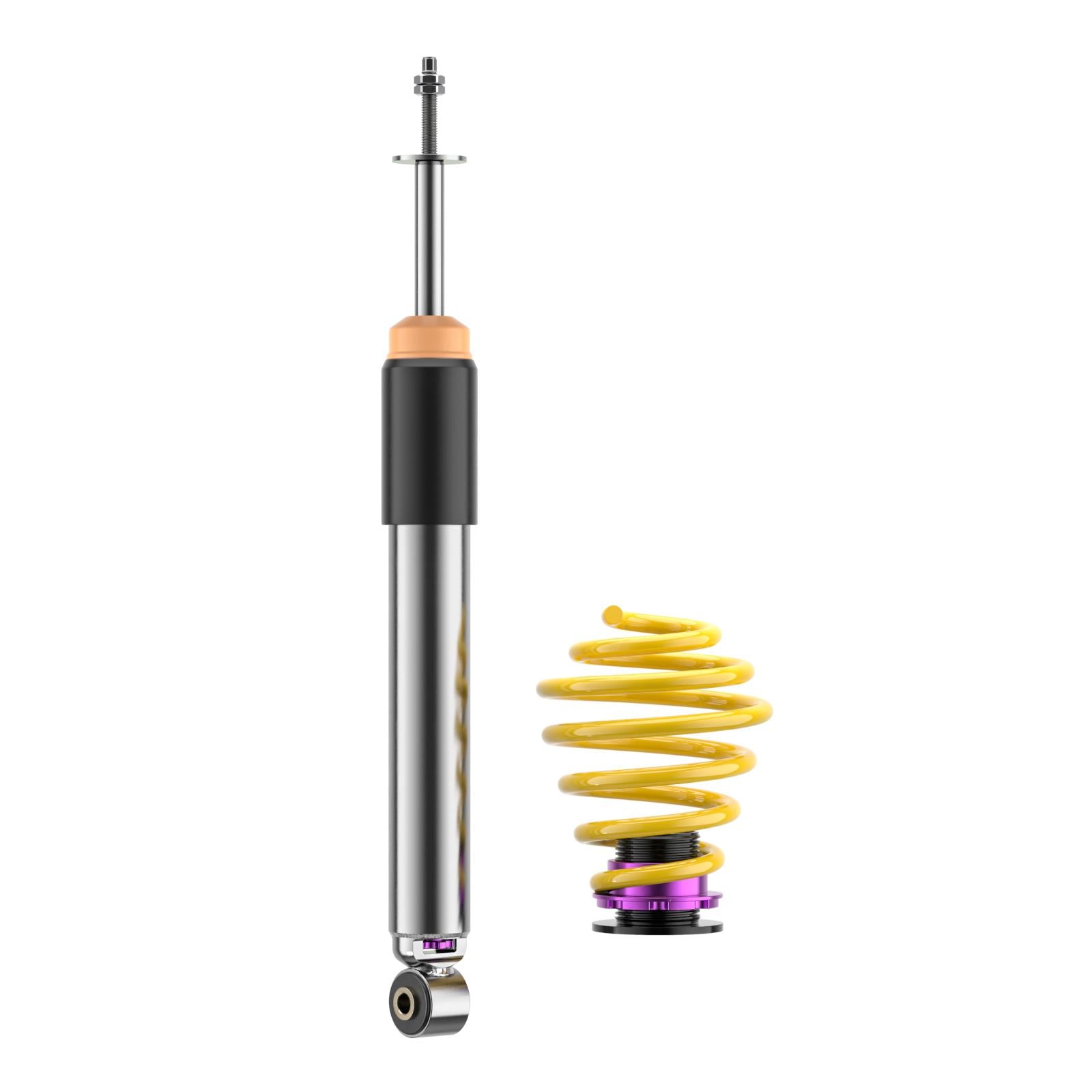

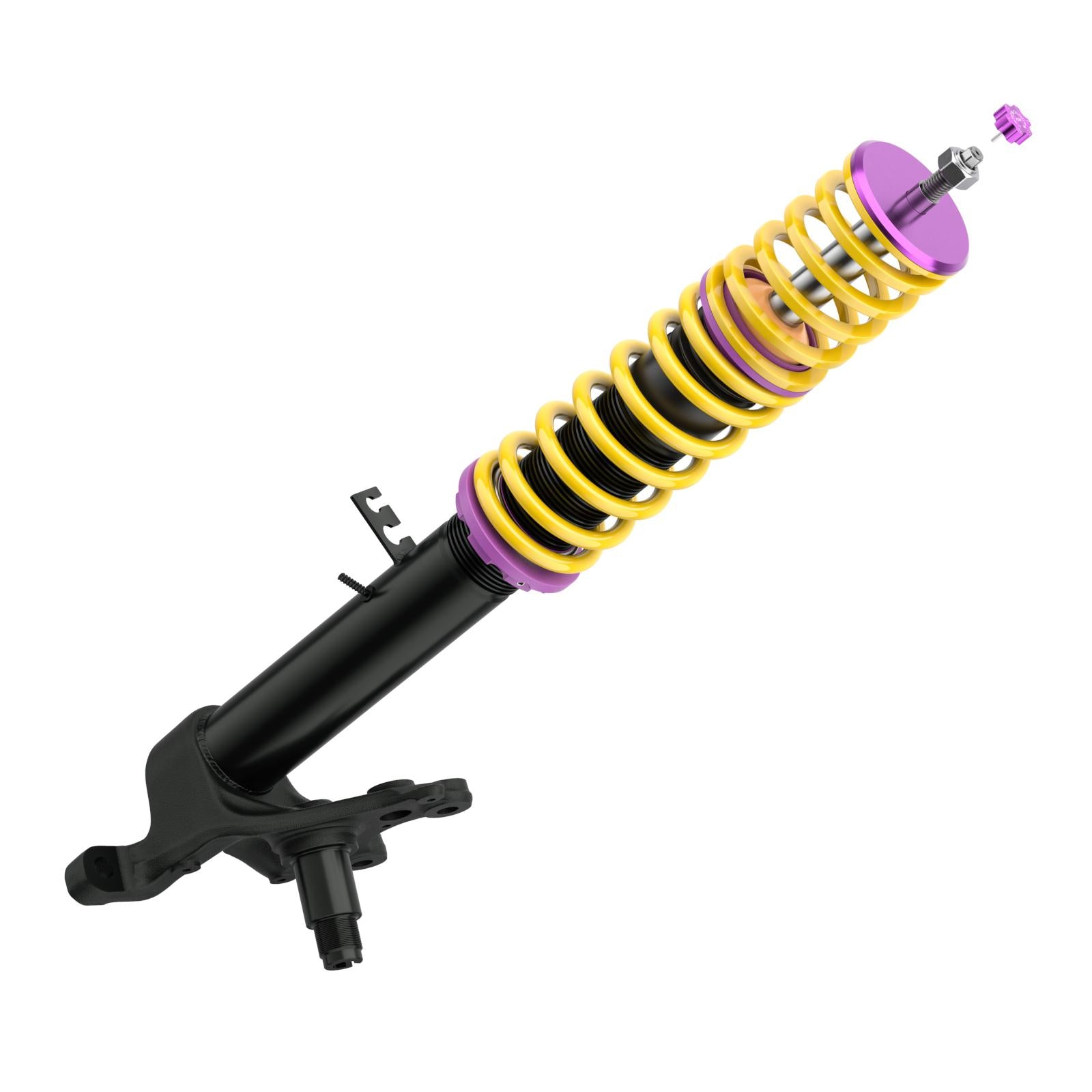

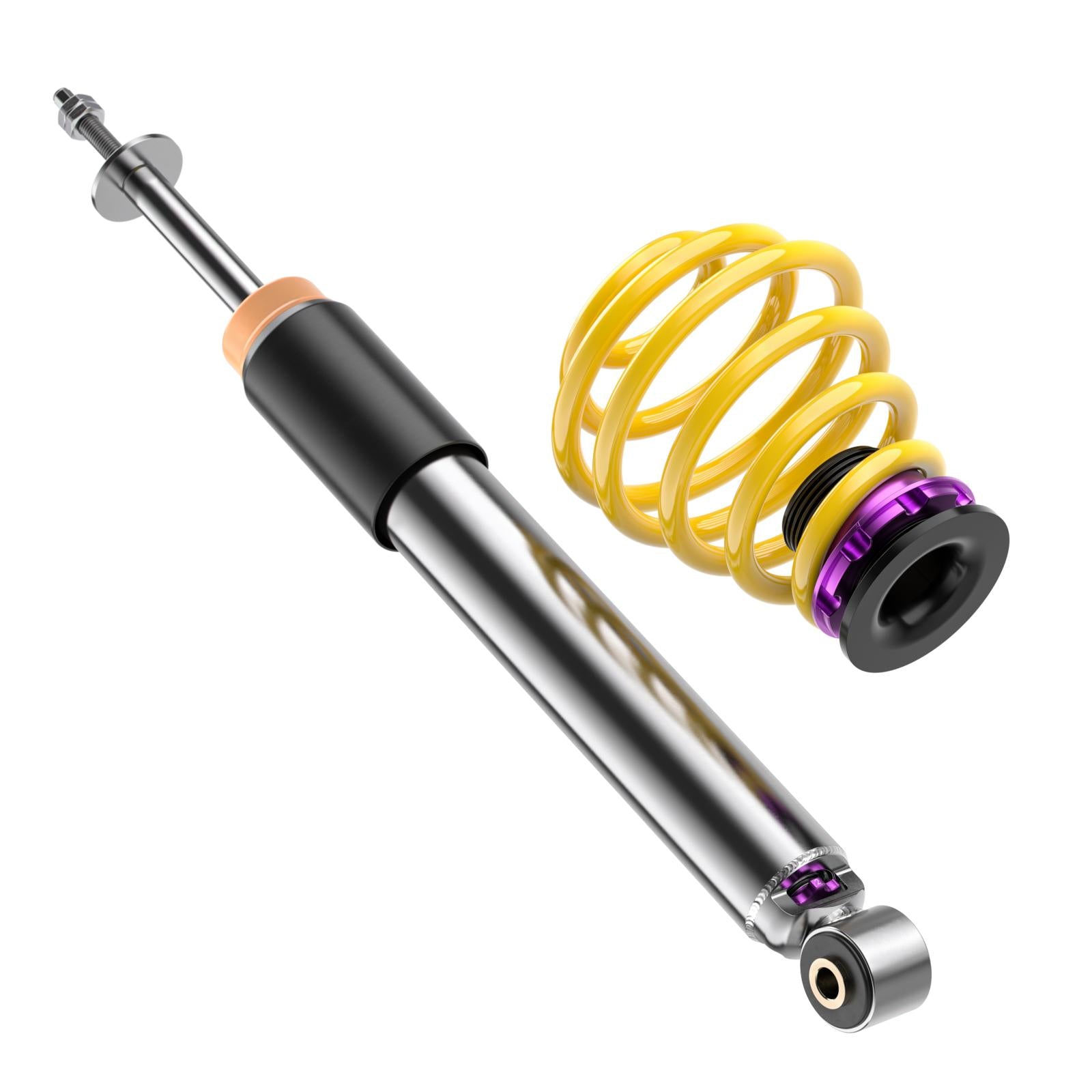

  • Supplied as: Front axle + rear axle coilover struts (Original front axle strut housings modified)
Note The original front strut housings are modified by KW and must be sent in advance.

Front axle load up to 980 kg; Rear axle load up to 1,000 kg.

Raab coilover made by KW.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveNotesRefs
1975–1989BMW6 (E24) BMW 6 CS, BMW 6 CS/1635 CSiPetrol · 162 kW · 3.4L · 6-cylRear-Wheel DriveFacelift models (from 05/1982)1, 6, 8, 40, 41, 62, 82, 420
1975–1989BMW6 (E24) BMW 6 CS, BMW 6 CS/1635 CSiPetrol · 160 kW · 3.4L · 6-cylRear-Wheel DriveFacelift models (from 05/1982)1, 6, 8, 40, 41, 62, 82, 420
1975–1989BMW6 (E24) BMW 6 CS, BMW 6 CS/1628 CSiPetrol · 135 kW · 2.8L · 6-cylRear-Wheel DriveFacelift models (from 05/1982)1, 6, 8, 40, 41, 62, 82, 420
1975–1989BMW6 (E24) BMW 6 CS, BMW 6 CS/1M 635 CSiPetrol · 210 kW · 3.5L · 6-cylRear-Wheel DriveFacelift models (from 05/1982)1, 6, 8, 40, 41, 62, 82, 420
1975–1989BMW6 (E24) BMW 6 CS, BMW 6 CS/1635 CSiPetrol · 155 kW · 3.4L · 6-cylRear-Wheel DriveFacelift models (from 05/1982)1, 6, 8, 40, 41, 62, 82, 420
1975–1989BMW6 (E24) BMW 6 CS, BMW 6 CS/1633 CSiPetrol · 145 kW · 3.2L · 6-cylRear-Wheel DriveFacelift models (from 05/1982)1, 6, 8, 40, 41, 62, 82, 420
1975–1989BMW6 (E24) BMW 6 CS, BMW 6 CS/1635 CSiPetrol · 136 kW · 3.4L · 6-cylRear-Wheel DriveFacelift models (from 05/1982)1, 6, 8, 40, 41, 62, 82, 420
1975–1989BMW6 (E24) BMW 6 CS, BMW 6 CS/1633 CSiPetrol · 135 kW · 3.2L · 6-cylRear-Wheel DriveFacelift models (from 05/1982)1, 6, 8, 40, 41, 62, 82, 420
1975–1989BMW6 (E24) BMW 6 CS, BMW 6 CS/1635 CSiPetrol · 141 kW · 3.4L · 6-cylRear-Wheel DriveFacelift models (from 05/1982)1, 6, 8, 40, 41, 62, 82, 420
1975–1989BMW6 (E24) BMW 6 CS, BMW 6 CS/1M 635 CSiPetrol · 191 kW · 3.5L · 6-cylRear-Wheel DriveFacelift models (from 05/1982)1, 6, 8, 40, 41, 62, 82, 420
  • Note 1: Height adjustable on the front and rear axles (threaded strut housings).
  • Note 6: When using original tyres, wheel offset spacers may be required.
  • Note 8: Not for vehicles with automatic self levelling control / air suspension.
  • Note 40: Original struts need to be sent in advance for modification.
  • Note 41: Coilover kits where the strut housings are being modified are only available in galvanised finish.
  • Note 62: Not for cars with electronic damping.
  • Note 82: Production on demand. Please ask for delivery time.
  • Note 420: All vehicles manufactured after 05/82 require rear axle dome bearings: (BMW Part No.: dome bearing 33 52 1 126 987 + spring pad 33 52 1 117 671 + sealing washer 33 52 1 118 480 + washer 33 52 1 125 651 + plate 33 52 6 762 325).
