KW Coilover Kit V4 for Audi (42) R8 / Lamborghini (140) Gallardo LP560-4
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

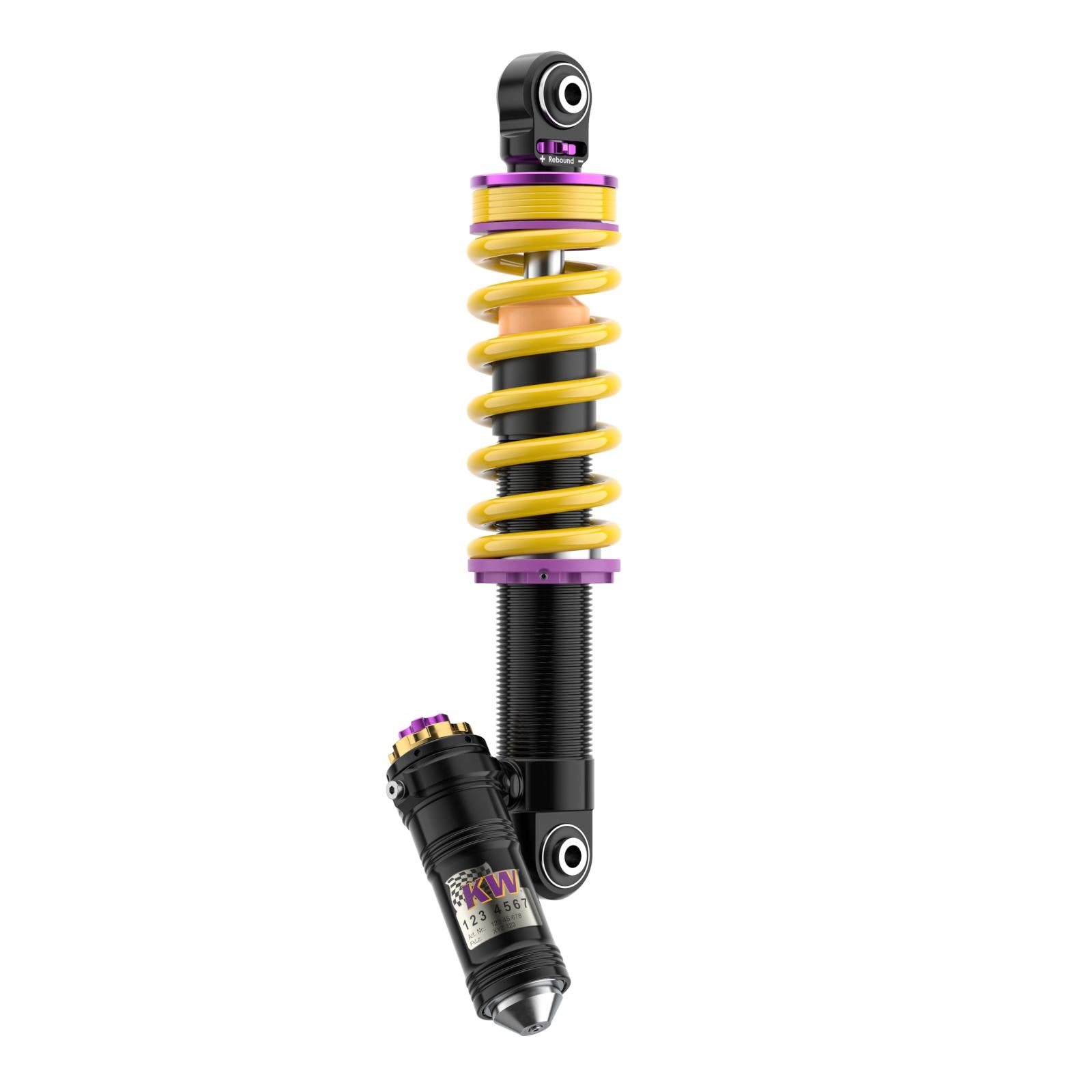

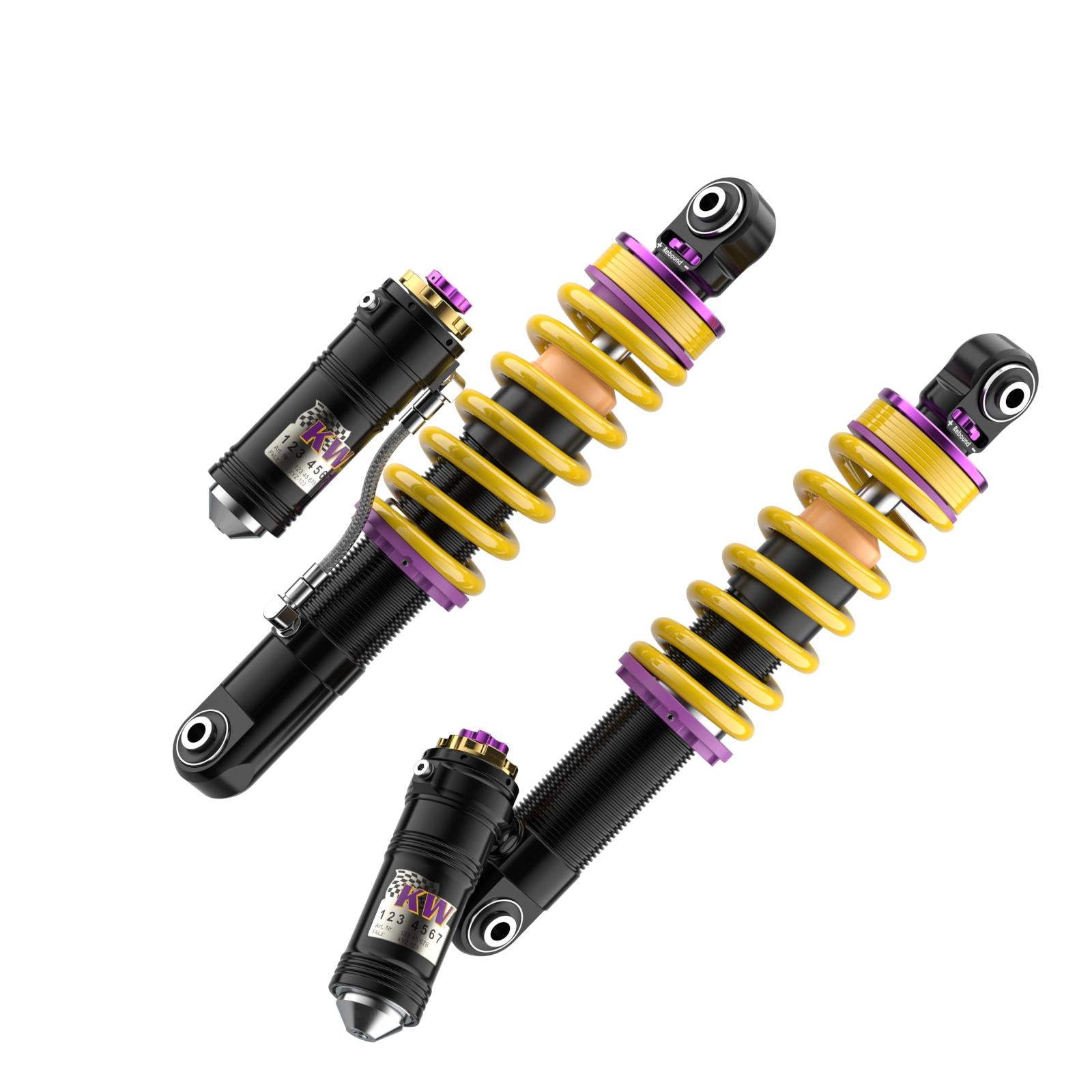

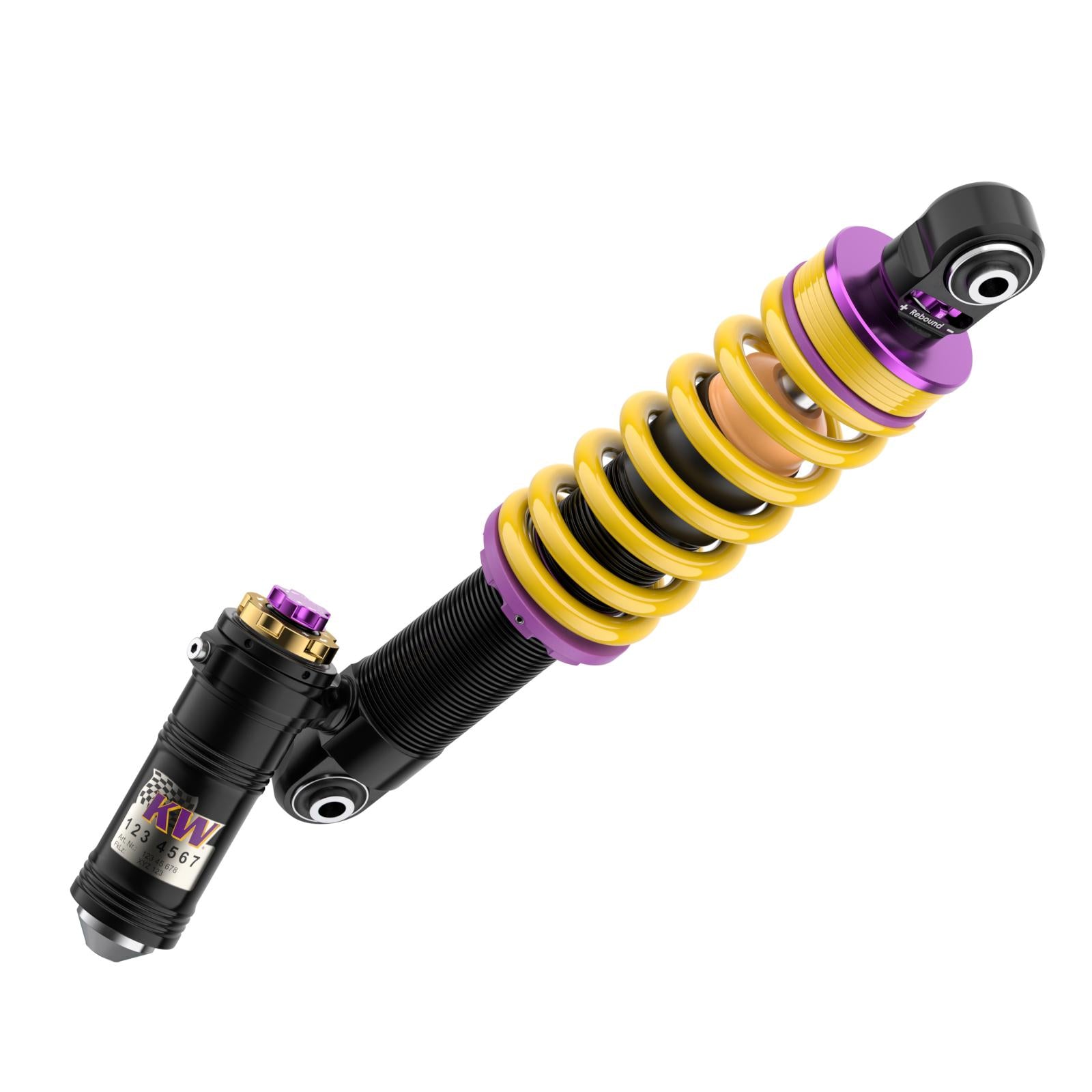

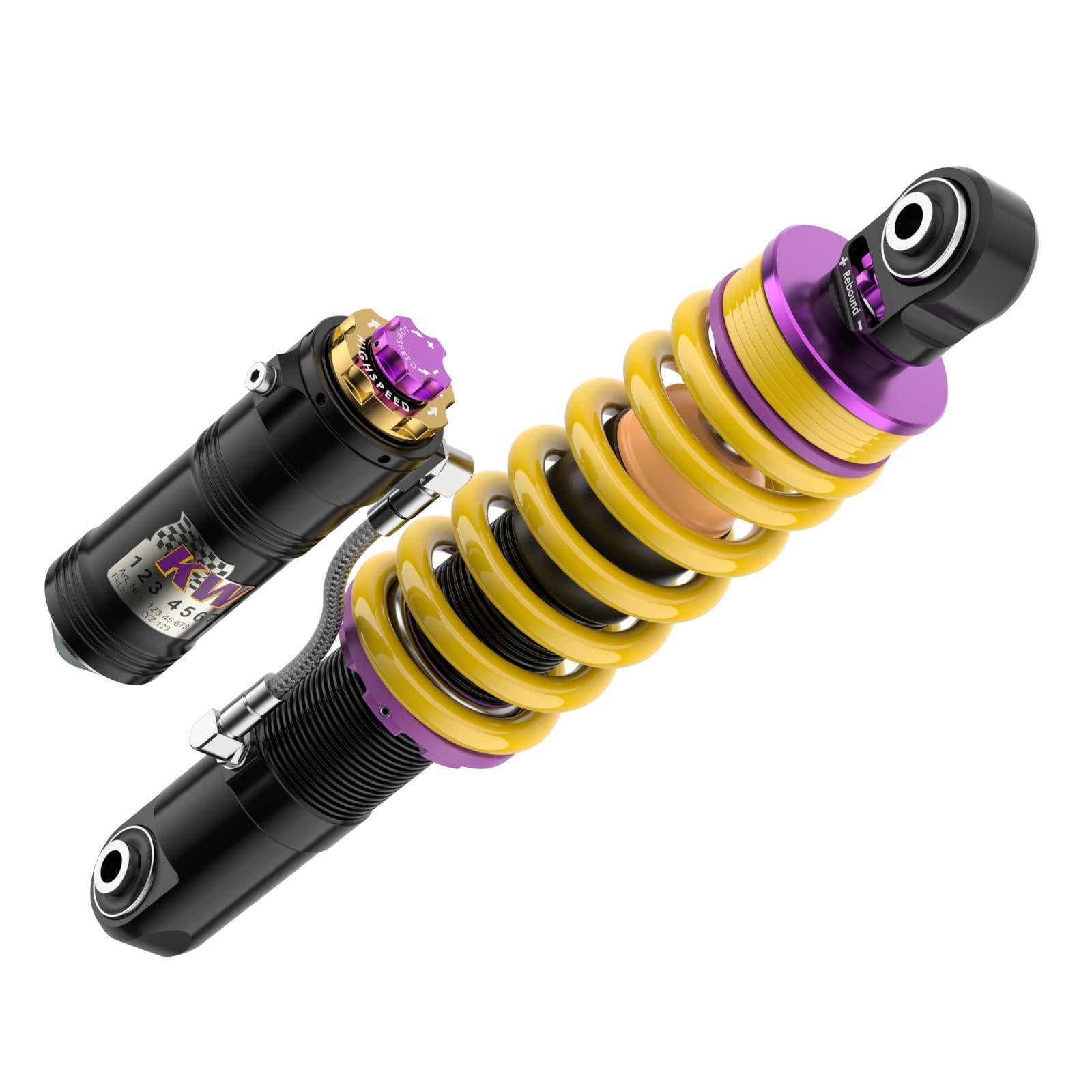

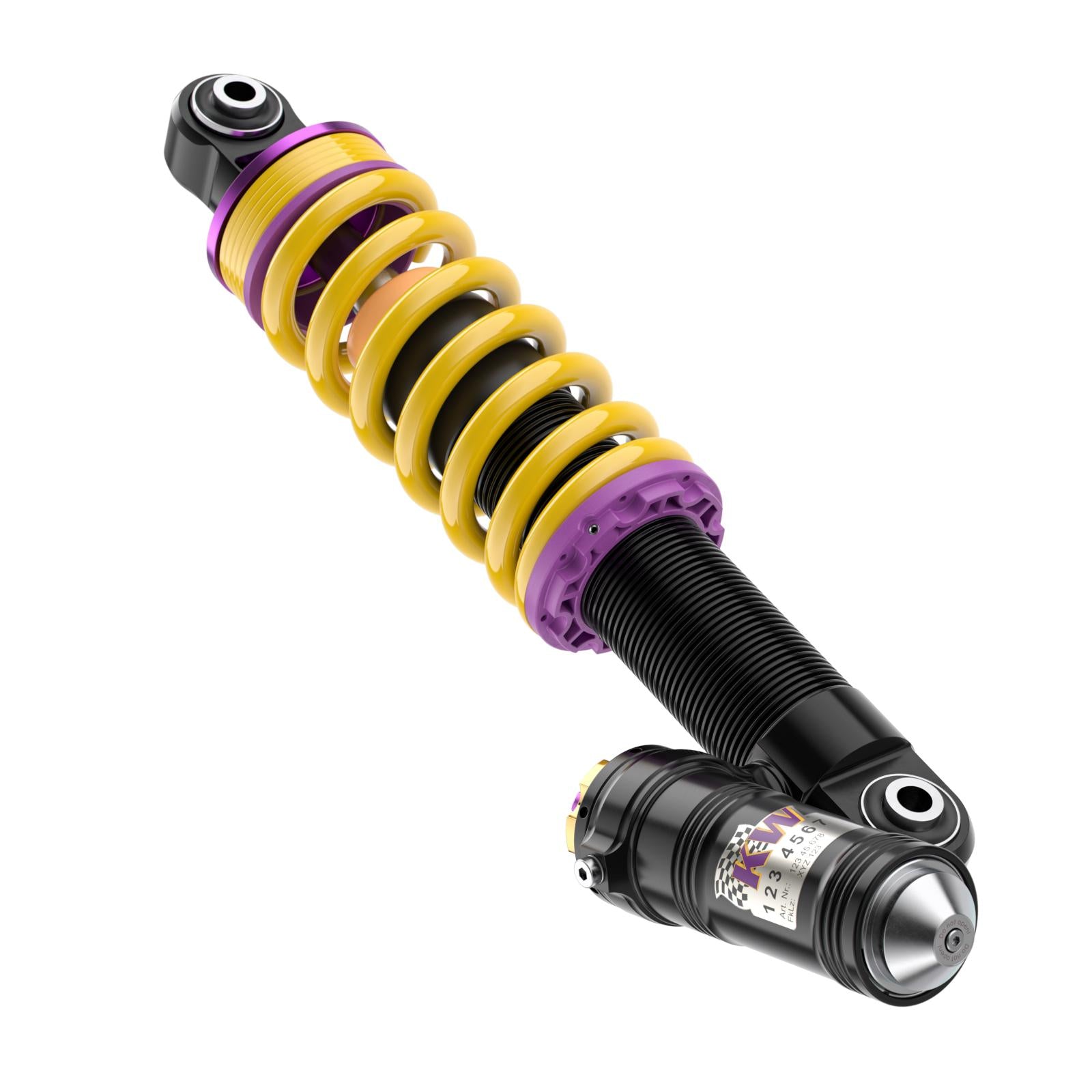

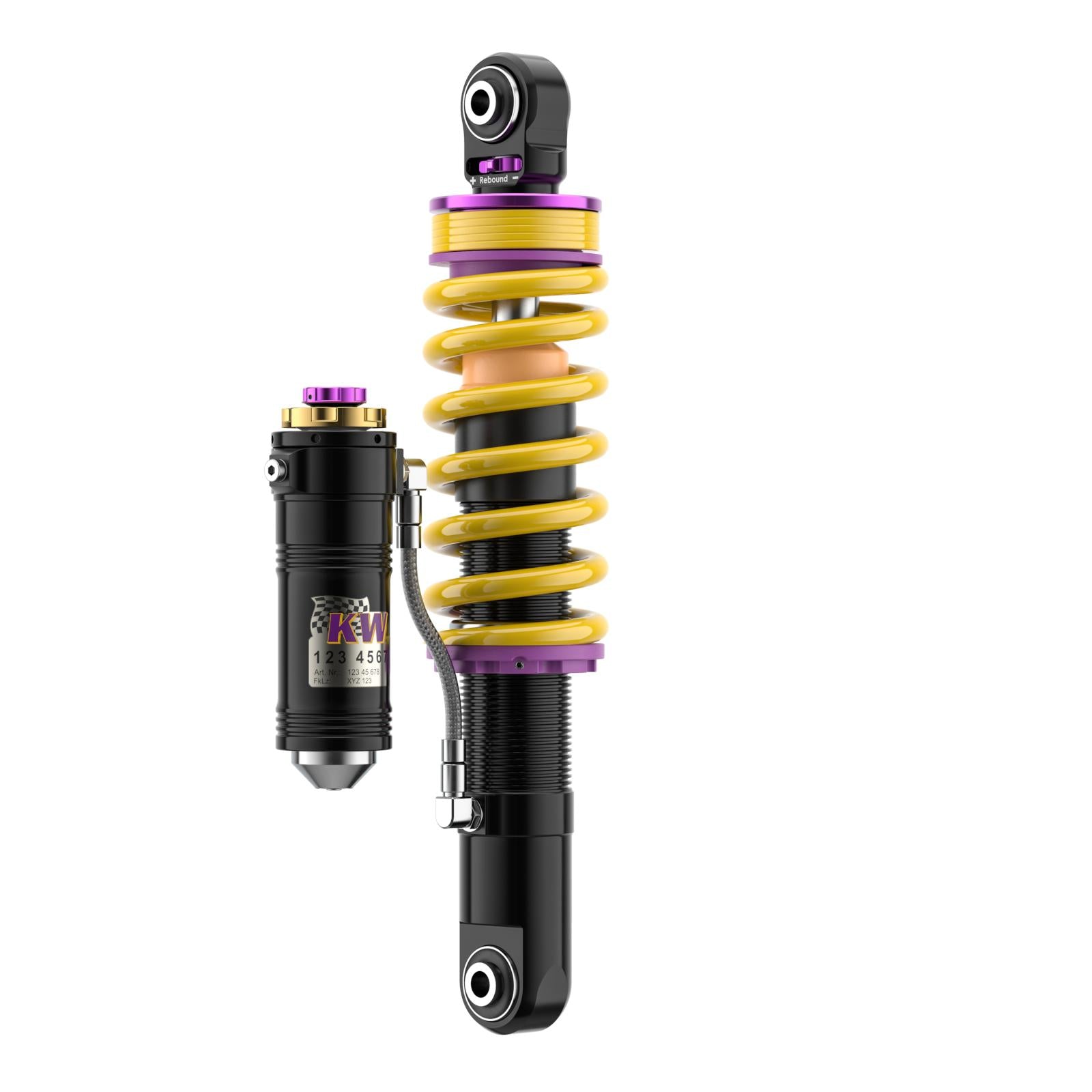

KW's V4 is a three-way adjustable coilover for high-performance vehicles, with independent adjustment of rebound (16 clicks), low-speed compression (6 clicks) and high-speed compression (14 clicks). The dampers are based on KW's racing technology, and depending on the vehicle, aluminium top mounts are included. This kit is developed for the Audi R8 (Type 42) / Lamborghini Gallardo LP560-4.
Key Features
- Three-way adjustable dampers
- Rebound 16 clicks, low-speed compression 6 clicks, high-speed compression 14 clicks
Specifications
- Version: V4
- Damping: Adjustable rebound and compression
- Material: Aluminium
- Front lowering: 5–25 mm
- Rear lowering: 5–25 mm
- Front axle load: up to 970 kg
- Rear axle load: up to 1,160 kg

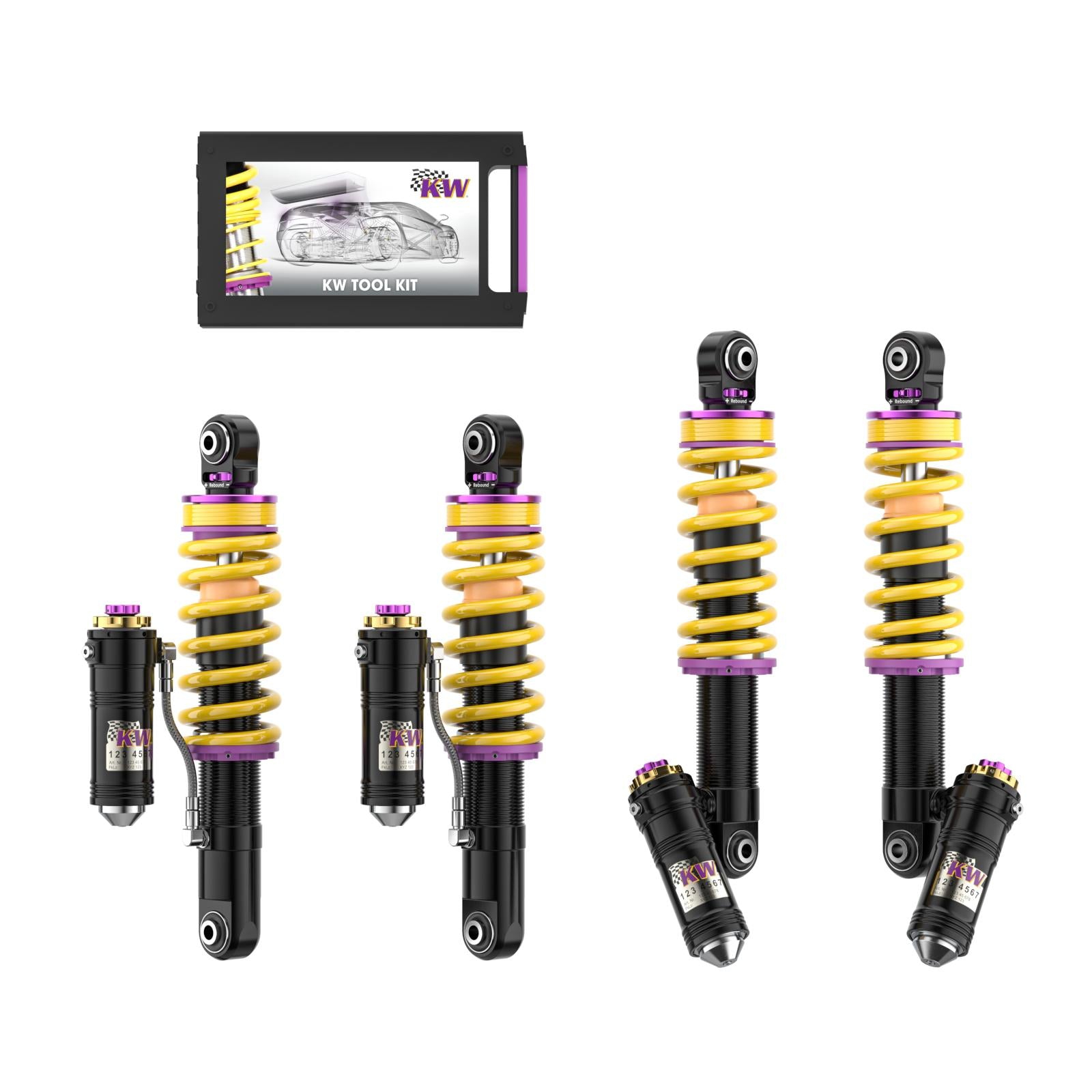

- Supplied as: Front axle + rear axle coilover struts
Front axle load up to 970 kg; Rear axle load up to 1,160 kg.
For vehicles without electronic damper control.
For cars without magnetic ride control.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Notes | Refs |
|---|---|---|---|---|---|---|---|
| 2007–2016 | Audi | R8 (42) 42A, 422, 423 | 5.2 FSI quattro | Petrol · 419 kW · 5.2L · 10-cyl | All-Wheel Drive | 1, 37, 67, 90 | |
| 2007–2016 | Audi | R8 (42) 42A, 422, 423 | 5.2 FSI quattro | Petrol · 412 kW · 5.2L · 10-cyl | All-Wheel Drive | 1, 37, 67, 90 | |
| 2010–2016 | Audi | R8 (42) Spyder 42A, 427, 429 | 5.2 FSI quattro | Petrol · 412 kW · 5.2L · 10-cyl | All-Wheel Drive | 1, 37, 67, 90 | |
| 2010–2016 | Audi | R8 (42) Spyder 42A, 427, 429 | 5.2 FSI | Petrol · 419 kW · 5.2L · 10-cyl | All-Wheel Drive | 1, 37, 67, 90 | |
| 2010–2016 | Audi | R8 (42) Spyder 42A, 427, 429 | 5.2 FSI | Petrol · 404 kW · 5.2L · 10-cyl | All-Wheel Drive | 1, 37, 67, 90 | |
| 2007–2016 | Audi | R8 (42) 42A, 422, 423 | 5.2 FSI quattro | Petrol · 404 kW · 5.2L · 10-cyl | All-Wheel Drive | 1, 37, 67, 90 | |
| 2007–2016 | Audi | R8 (42) 42A, 422, 423 | 4.2 FSI quattro | Petrol · 309 kW · 4.2L · 8-cyl | All-Wheel Drive | 1, 37, 67, 90 | |
| 2005+ | Lamborghini | Gallardo Spyder (140) | 5.2 LP560-4 | Petrol · 412 kW · 5.2L · 10-cyl | All-Wheel Drive | For cars without original Lift-System | 1, 67, 90 |
| 2007–2016 | Audi | R8 (42) 42A, 422, 423 | 5.2 FSI quattro | Petrol · 386 kW · 5.2L · 10-cyl | All-Wheel Drive | 1, 37, 67, 90 | |
| 2010–2016 | Audi | R8 (42) Spyder 42A, 427, 429 | 5.2 FSI quattro | Petrol · 386 kW · 5.2L · 10-cyl | All-Wheel Drive | 1, 37, 67, 90 | |
| 2007–2016 | Audi | R8 (42) 42A, 422, 423 | 4.2 FSI quattro | Petrol · 316 kW · 4.2L · 8-cyl | All-Wheel Drive | 1, 37, 67, 90 | |
| 2010–2016 | Audi | R8 (42) Spyder 42A, 427, 429 | 4.2 FSI quattro | Petrol · 316 kW · 4.2L · 8-cyl | All-Wheel Drive | 1, 37, 67, 90 | |
| 2003+ | Lamborghini | Gallardo (140) | 5.2 LP560-4 | Petrol · 412 kW · 5.2L · 10-cyl | All-Wheel Drive | For cars without original Lift-System | 1, 67, 90 |
- Note 1: Height adjustable on the front and rear axles (threaded strut housings).
- Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
- Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
- Note 90: Aluminium suspensions struts.
