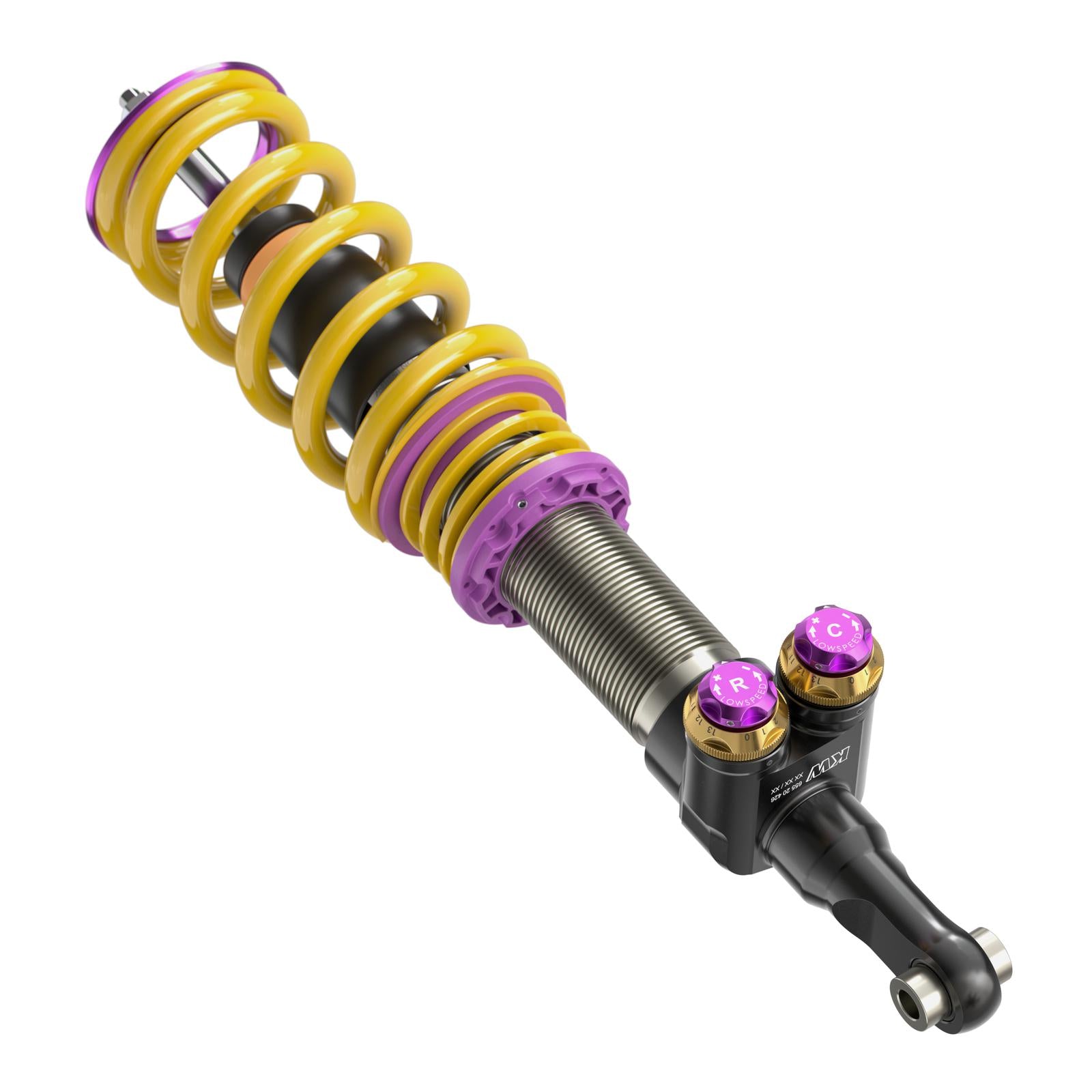

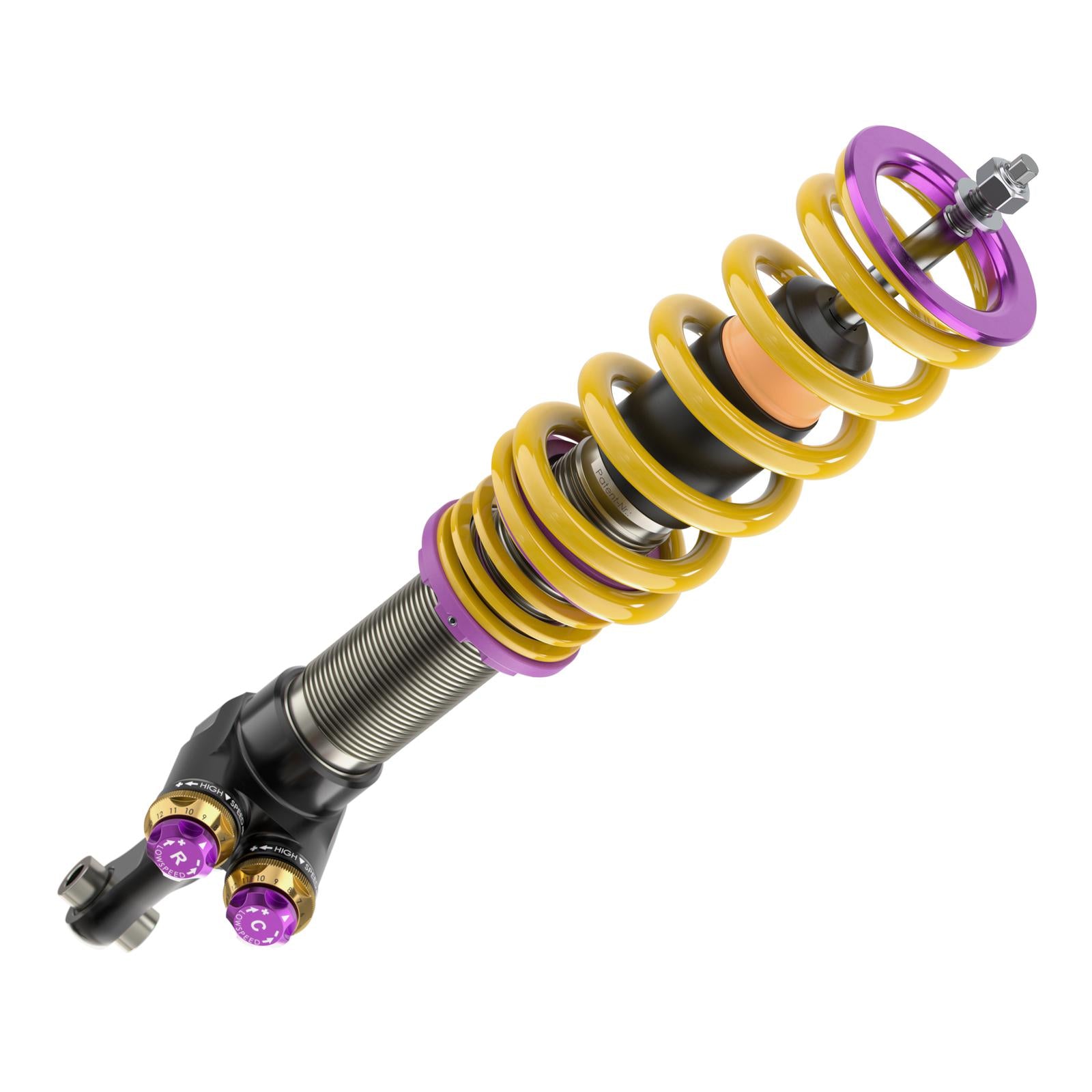

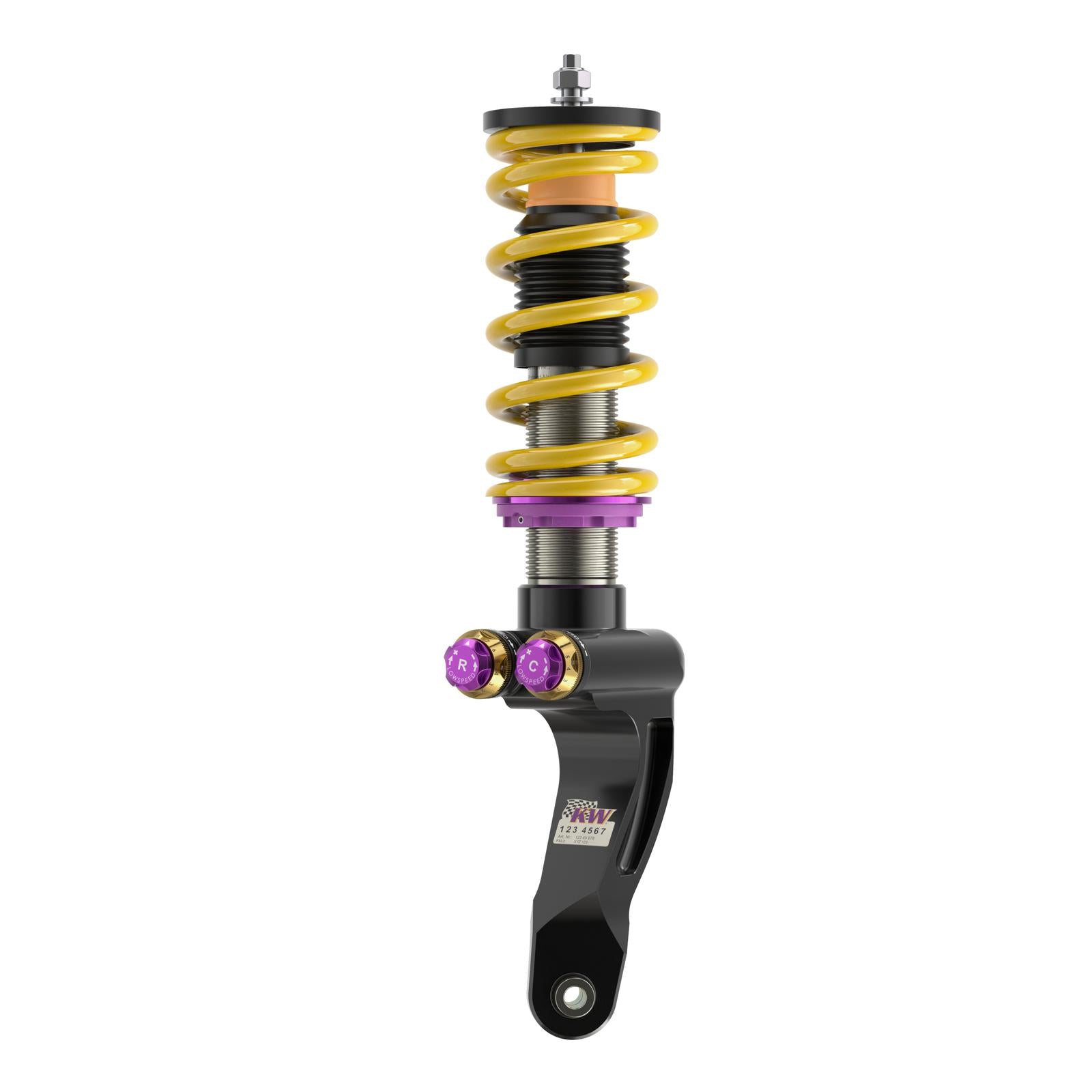

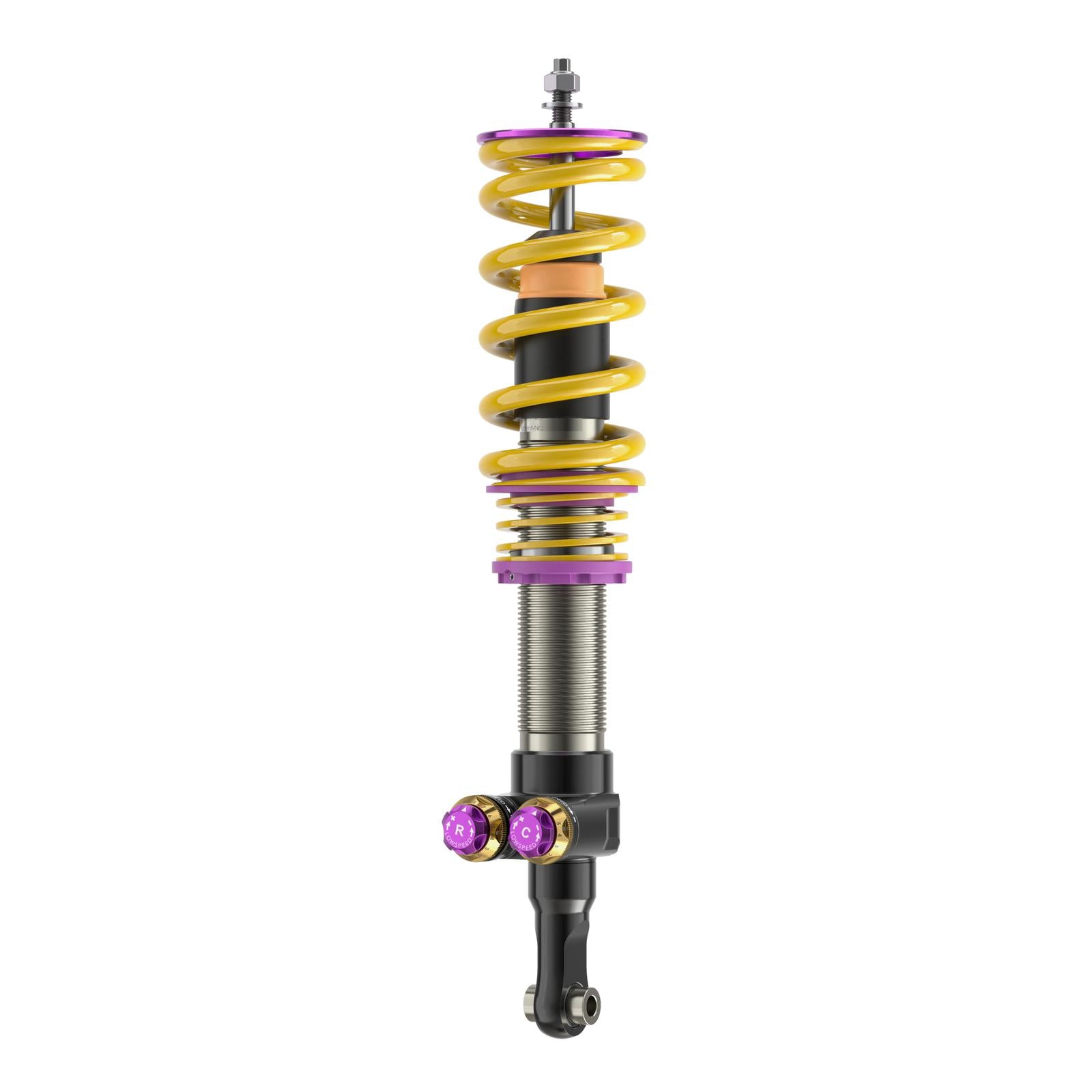

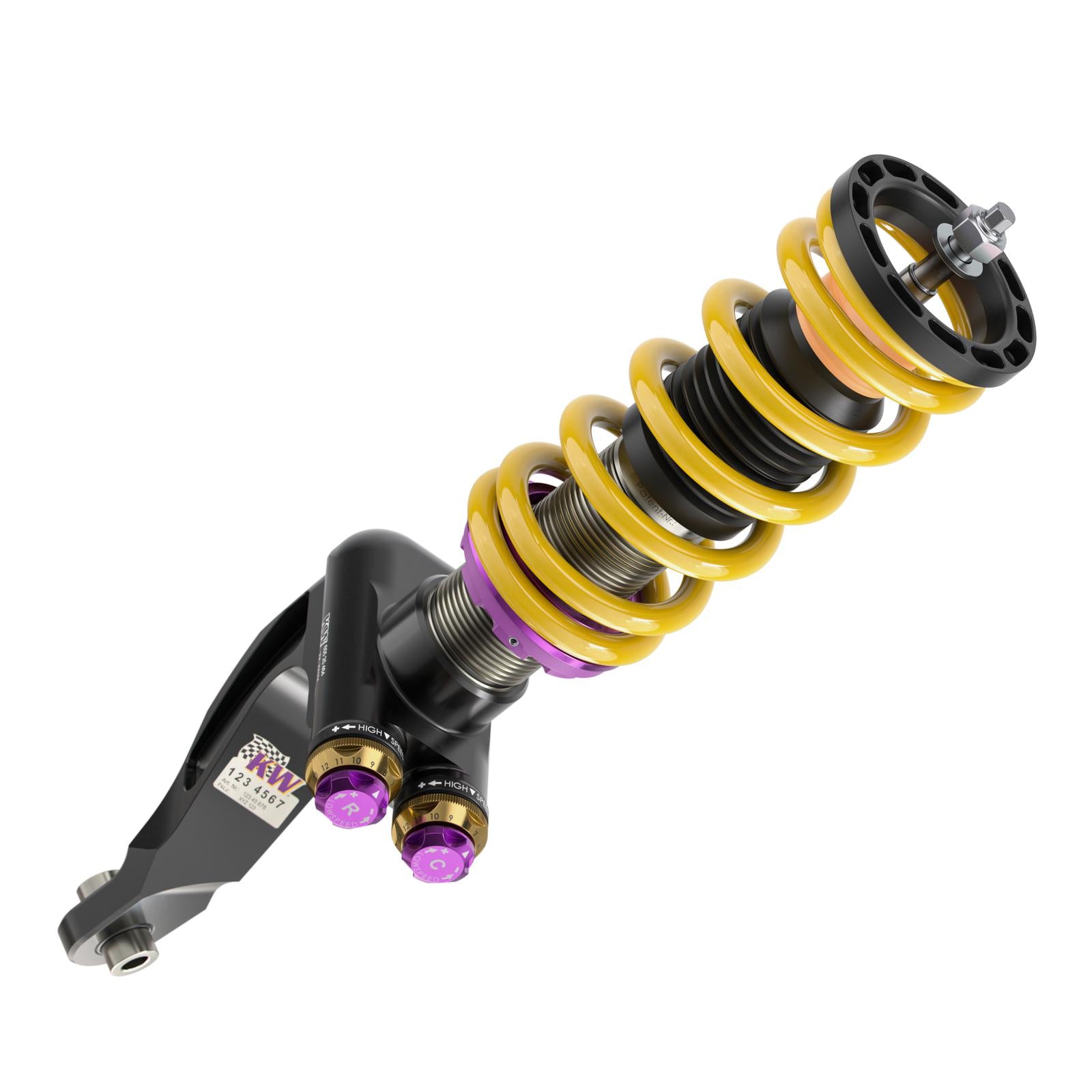

KW Coilover Kit V5 for Ferrari SF90 Stradale / SF90 Spider
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW's V5 uses KW Solid Piston technology, with low- and high-speed valve units connected in series and mounted separately from the damper inner tube and piston rod. Compression and rebound are each adjustable in 14 clicks in both the low- and high-speed range, and the dampers respond without delay to small inputs, giving more platform support than a conventional damper. This kit is developed for the Ferrari SF90 Stradale / SF90 Spider.
Key Features
- Four-way adjustable dampers
- KW Solid Piston technology
- 14 clicks each for low- and high-speed compression and rebound
Specifications
- Version: V5
- Damping: Adjustable rebound and compression
- Material: Aluminium
- Front lowering: 15–30 mm
- Rear lowering: 15–30 mm
- Front axle load: up to 975 kg
- Rear axle load: up to 1,160 kg
- Supplied as: Front axle + rear axle coilover struts
Front axle load up to 975 kg; Rear axle load up to 1,160 kg.
For vehicles without electronic damper control.
For vehicles without standard lift system.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Notes | Refs |
|---|---|---|---|---|---|---|---|
| 2019+ | Ferrari | SF90 | Stradale PHEV 4WD | Petrol/Electric · 735 kW · 4.0L · 8-cyl | All-Wheel Drive | Not XX Stradale | 1, 37, 67, 90, 403 |
| 2019+ | Ferrari | SF90 | Stradale PHEV 4WD | Petrol/Electric · 574 kW · 4.0L · 8-cyl | All-Wheel Drive | Not XX Stradale | 1, 37, 67, 90, 403 |
| 2018+ | Ferrari | SF90 Spider Convertible | Spider PHEV 4WD | Petrol/Electric · 735 kW · 4.0L · 8-cyl | All-Wheel Drive | Not XX Stradale | 1, 37, 67, 90, 403 |
- Note 1: Height adjustable on the front and rear axles (threaded strut housings).
- Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
- Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
- Note 90: Aluminium suspensions struts.
- Note 403: Not for cars with original lift system.
