KW Coilover Kit V5 for Audi (4S) R8 V10 Plus / R8 Spyder w/ Deactivation for Electronic Dampers
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

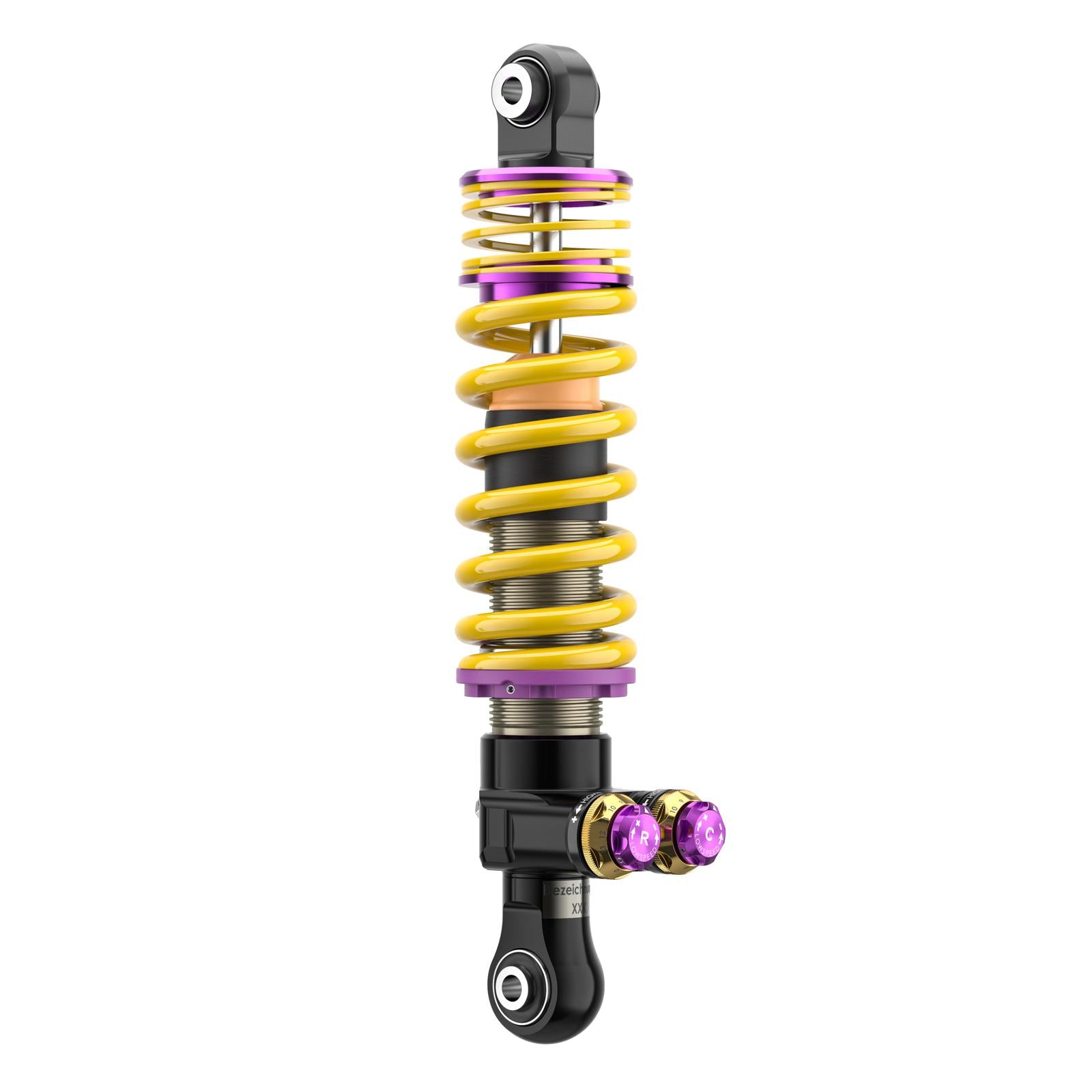

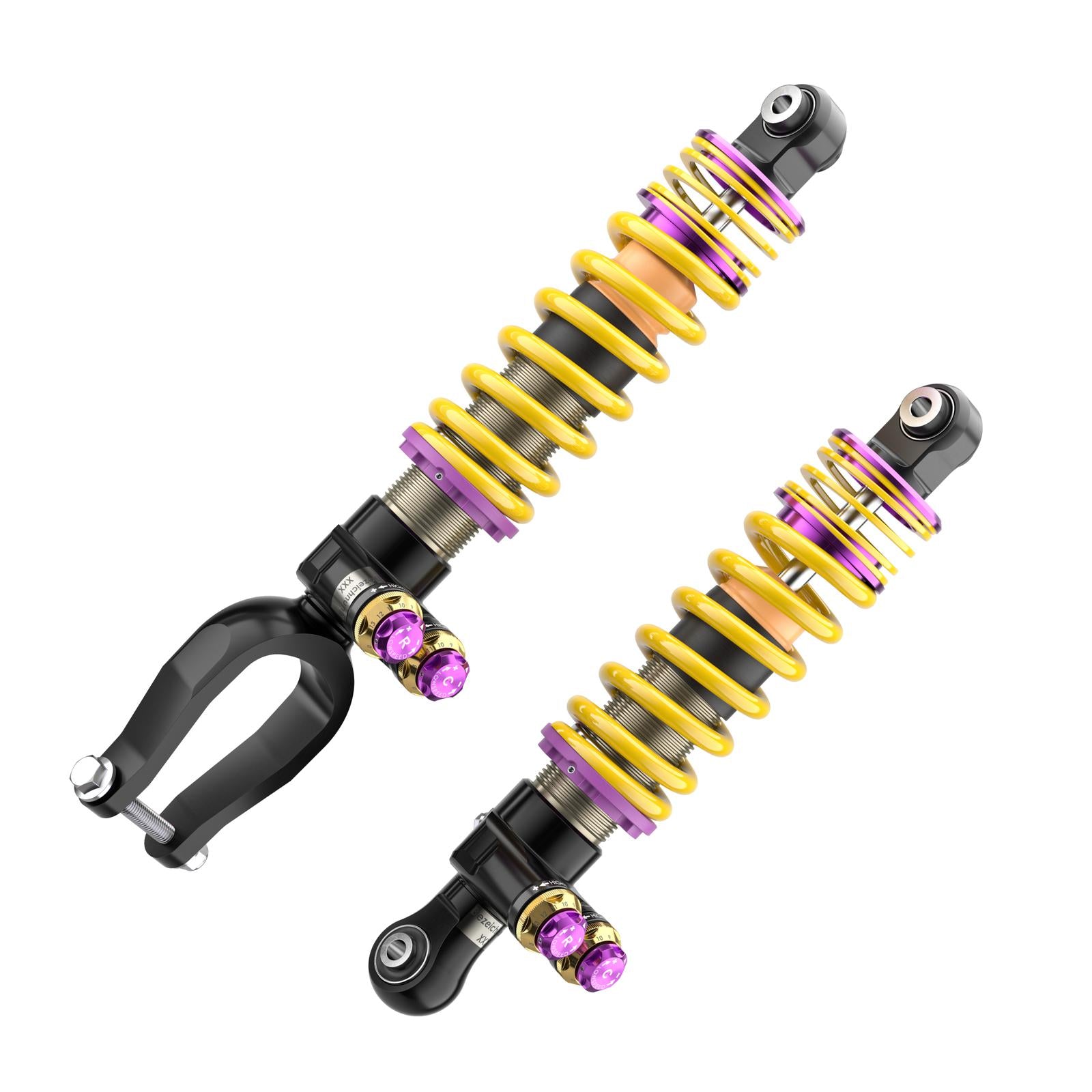

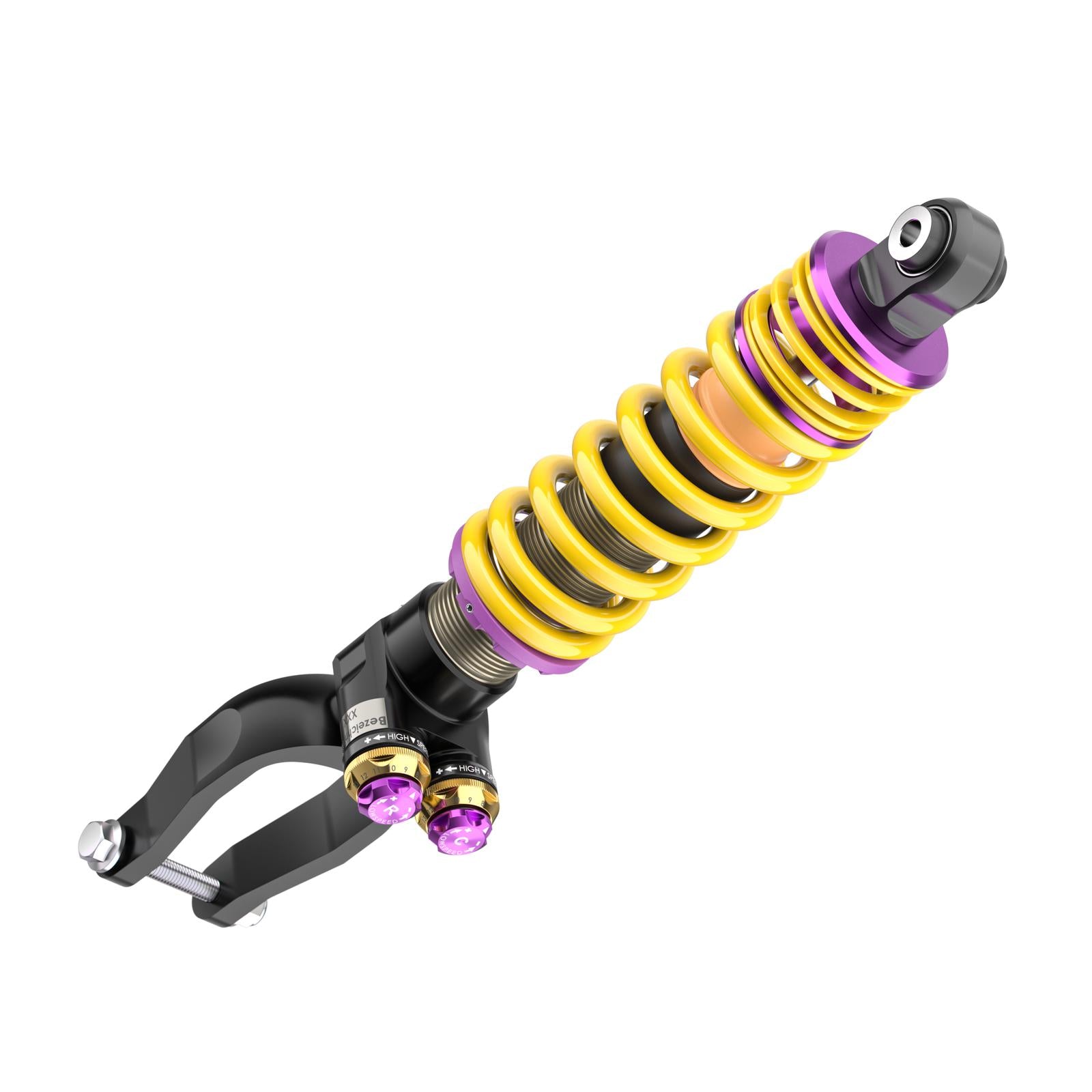

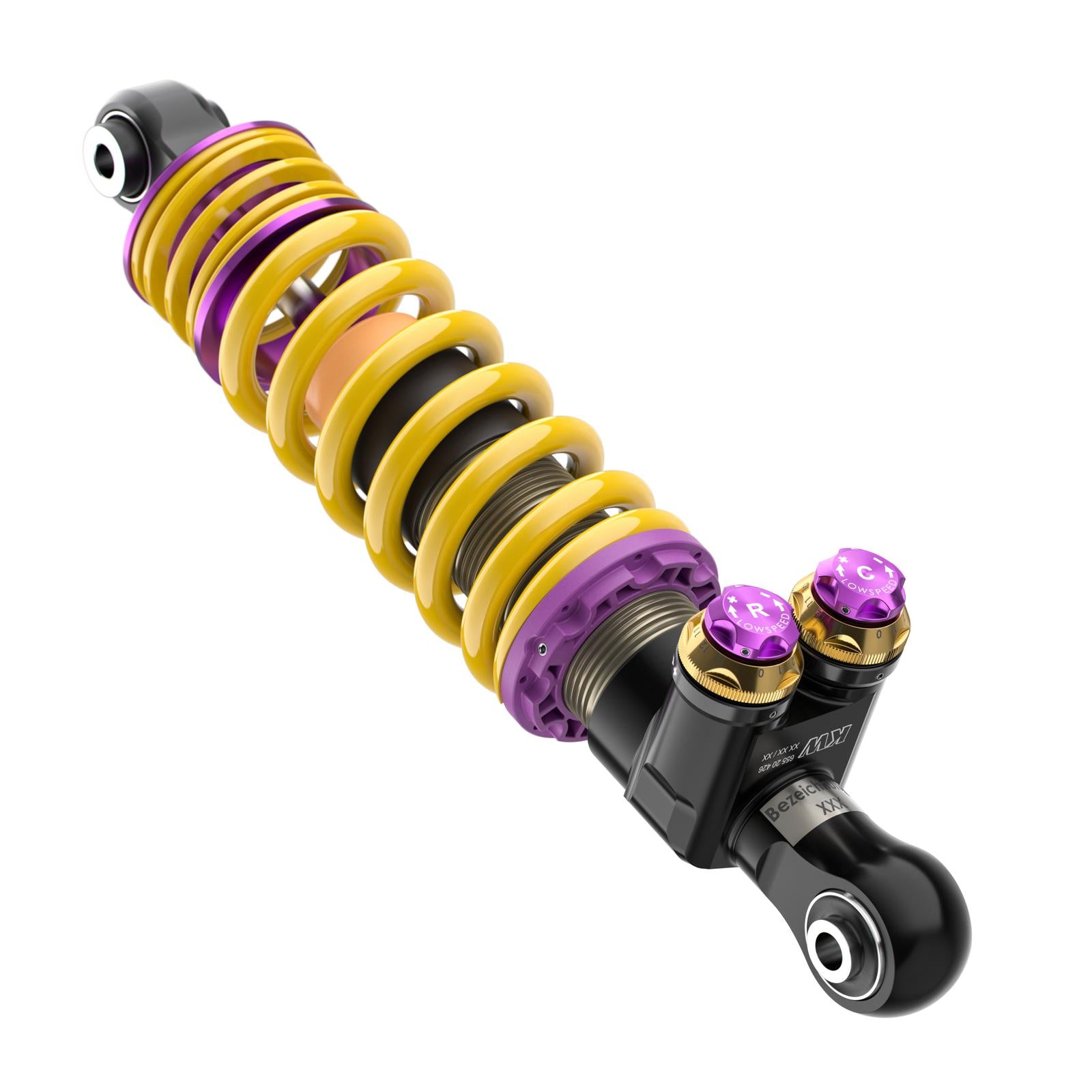

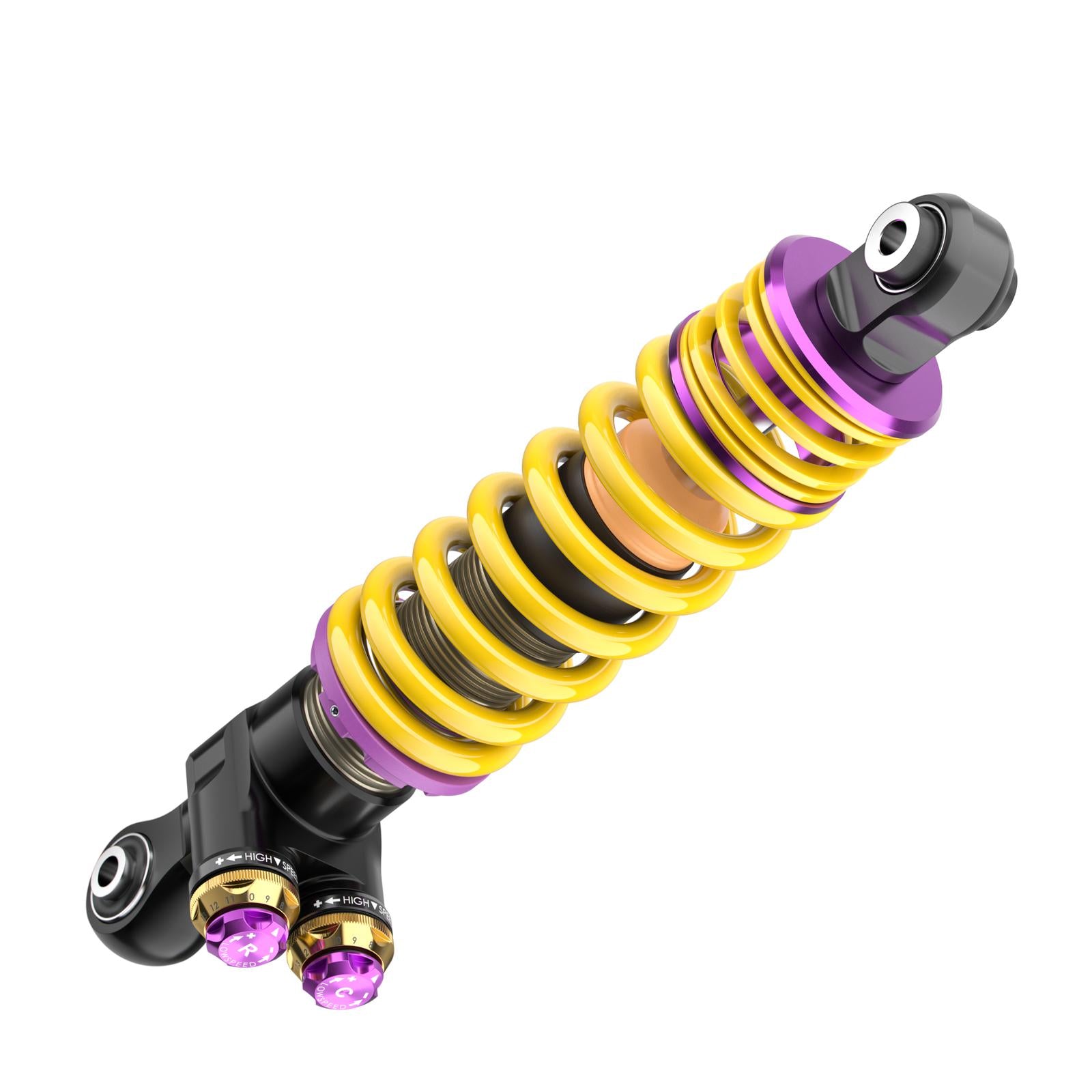

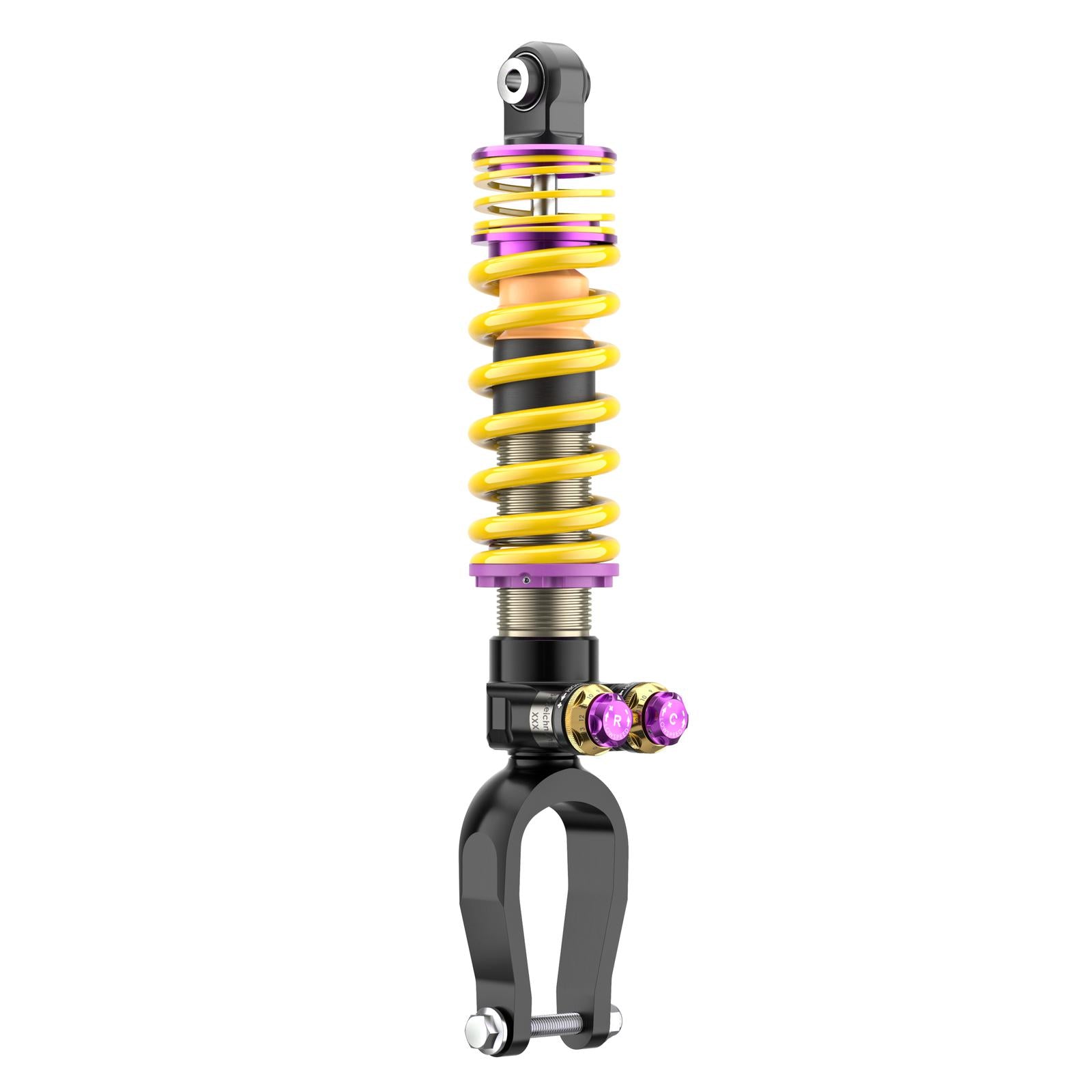

KW's V5 uses KW Solid Piston technology, with low- and high-speed valve units connected in series and mounted separately from the damper inner tube and piston rod. Compression and rebound are each adjustable in 14 clicks in both the low- and high-speed range, and the dampers respond without delay to small inputs, giving more platform support than a conventional damper. This kit is developed for the Audi R8 V10 Plus / R8 Spyder (4S) Quattro.
Key Features
- Four-way adjustable dampers
- KW Solid Piston technology
- 14 clicks each for low- and high-speed compression and rebound
Specifications
- Version: V5
- Damping: Adjustable rebound and compression
- Material: Aluminium
- Front lowering: 5–25 mm
- Rear lowering: 15–35 mm
- Front axle load: up to 960 kg
- Rear axle load: up to 1,195 kg

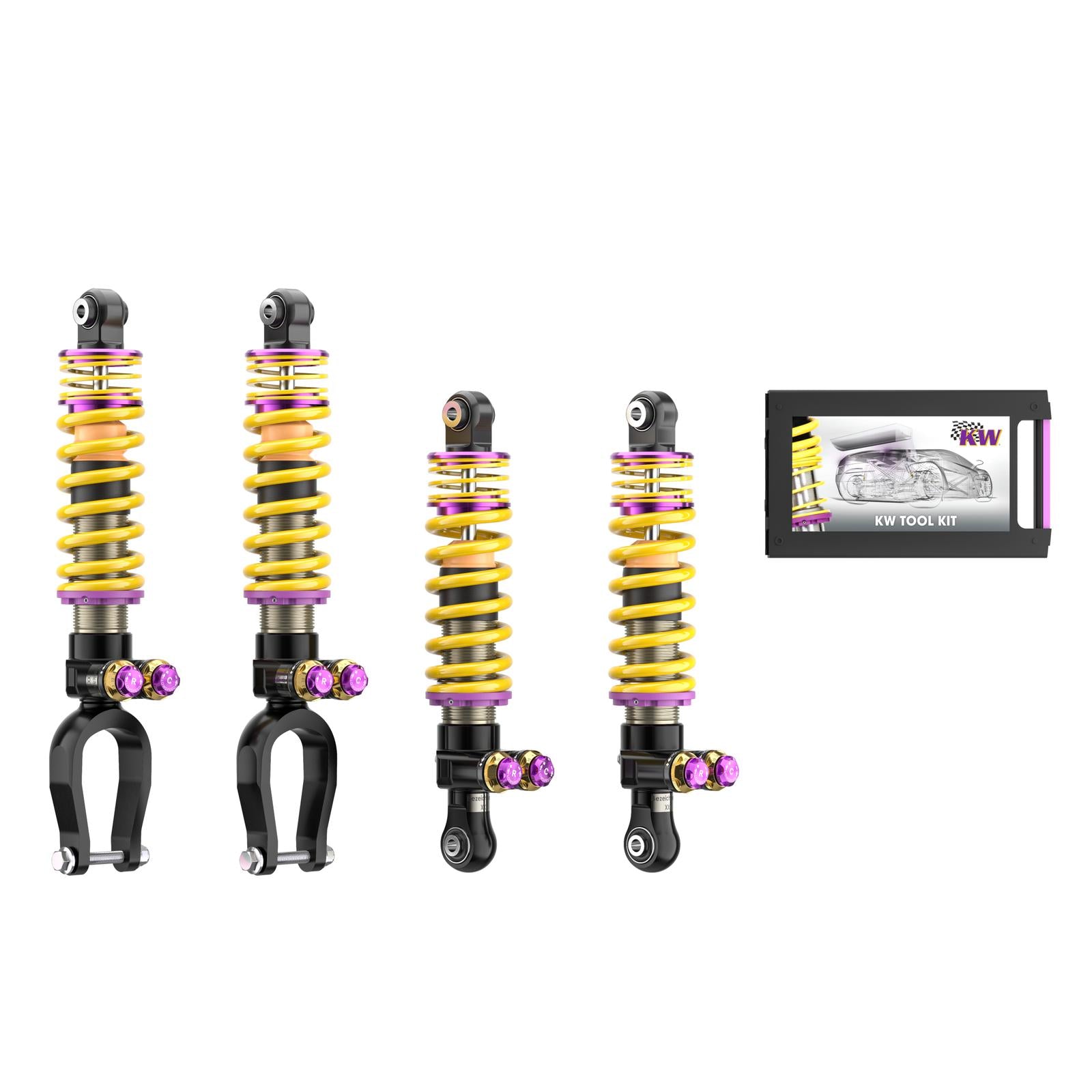

- Supplied as: Front axle + rear axle coilover struts including cancellation kit for electronic damper control
Front axle load up to 960 kg; Rear axle load up to 1,195 kg.
For vehicles with electronic damper control.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Notes | Refs |
|---|---|---|---|---|---|---|---|
| 2015+ | Audi | R8 (4S) 4S3, 42 | 5.2 FSI quattro | Petrol · 397 kW · 5.2L · 10-cyl | All-Wheel Drive | For vehicles with magnetic ride | 1, 67, 88, 90 |
| 2015+ | Audi | R8 (4S) 4S3, 42 | 5.2 FSI Plus quattro | Petrol · 449 kW · 5.2L · 10-cyl | All-Wheel Drive | For vehicles with magnetic ride | 1, 67, 88, 90 |
| 2016+ | Audi | R8 (4S) Spyder 4S9, 42 | 5.2 FSI quattro | Petrol · 397 kW · 5.2L · 10-cyl | All-Wheel Drive | For vehicles with magnetic ride | 1, 67, 88, 90 |
| 2016+ | Audi | R8 (4S) Spyder 4S9, 42 | 5.2 FSI quattro | Petrol · 449 kW · 5.2L · 10-cyl | All-Wheel Drive | For vehicles with magnetic ride | 1, 67, 88, 90 |
| 2016+ | Audi | R8 (4S) Spyder 4S9, 42 | 5.2 FSI quattro | Petrol · 456 kW · 5.2L · 10-cyl | All-Wheel Drive | For vehicles with magnetic ride | 1, 67, 88, 90 |
| 2015+ | Audi | R8 (4S) 4S3, 42 | 5.2 FSI quattro | Petrol · 456 kW · 5.2L · 10-cyl | All-Wheel Drive | For vehicles with magnetic ride | 1, 67, 88, 90 |
| 2015+ | Audi | R8 (4S) 4S3, 42 | 5.2 FSI quattro | Petrol · 419 kW · 5.2L · 10-cyl | All-Wheel Drive | For vehicles with magnetic ride | 1, 67, 88, 90 |
| 2016+ | Audi | R8 (4S) Spyder 4S9, 42 | 5.2 FSI quattro | Petrol · 419 kW · 5.2L · 10-cyl | All-Wheel Drive | For vehicles with magnetic ride | 1, 67, 88, 90 |
- Note 1: Height adjustable on the front and rear axles (threaded strut housings).
- Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
- Note 88: Electronic damping control has to be deactivated. Deactivation kit is included in the delivery.
- Note 90: Aluminium suspensions struts.
