KW Coilover Kit DDC - ECU for VW (MK3) Scirocco 1.4L TSI

SKU: 39080022
Sale price$6,392.55 Regular price$6,729.00
Save $336.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

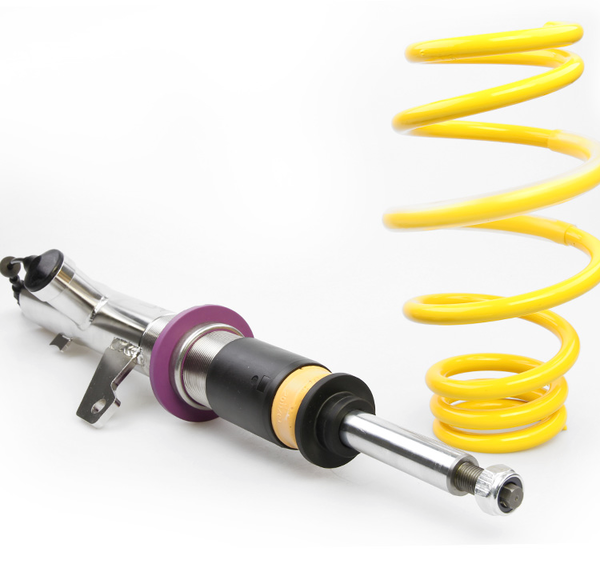

KW DDC ECU coilovers are part of KW's iSuspension range, combining electronically adjustable damping with a vehicle-specific height-adjustable coilover. Damping modes are selected at the push of a button, while ride height is set within the tested range via the trapezoidal thread and composite spring collar. This kit is developed for the VW Scirocco 1.4 TSI (MK3).

Key Features

  • Electronic damper adjustment
  • Height adjustable within the tested range

Specifications

  • Version: DDC ECU
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 20–55 mm
  • Rear lowering: 20–55 mm
  • Front axle load: up to 1,000 kg
  • Rear axle load: up to 780 kg
  • Front strut diameter (vehicle): 55 mm

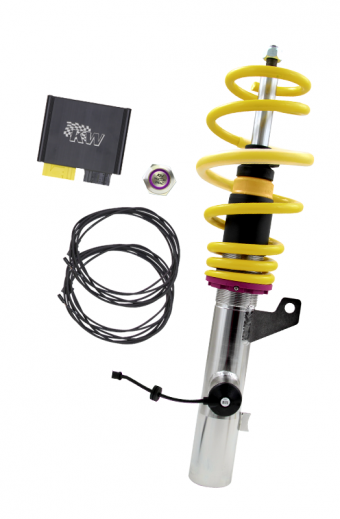

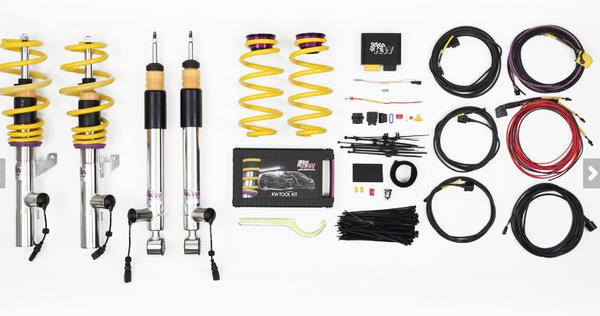

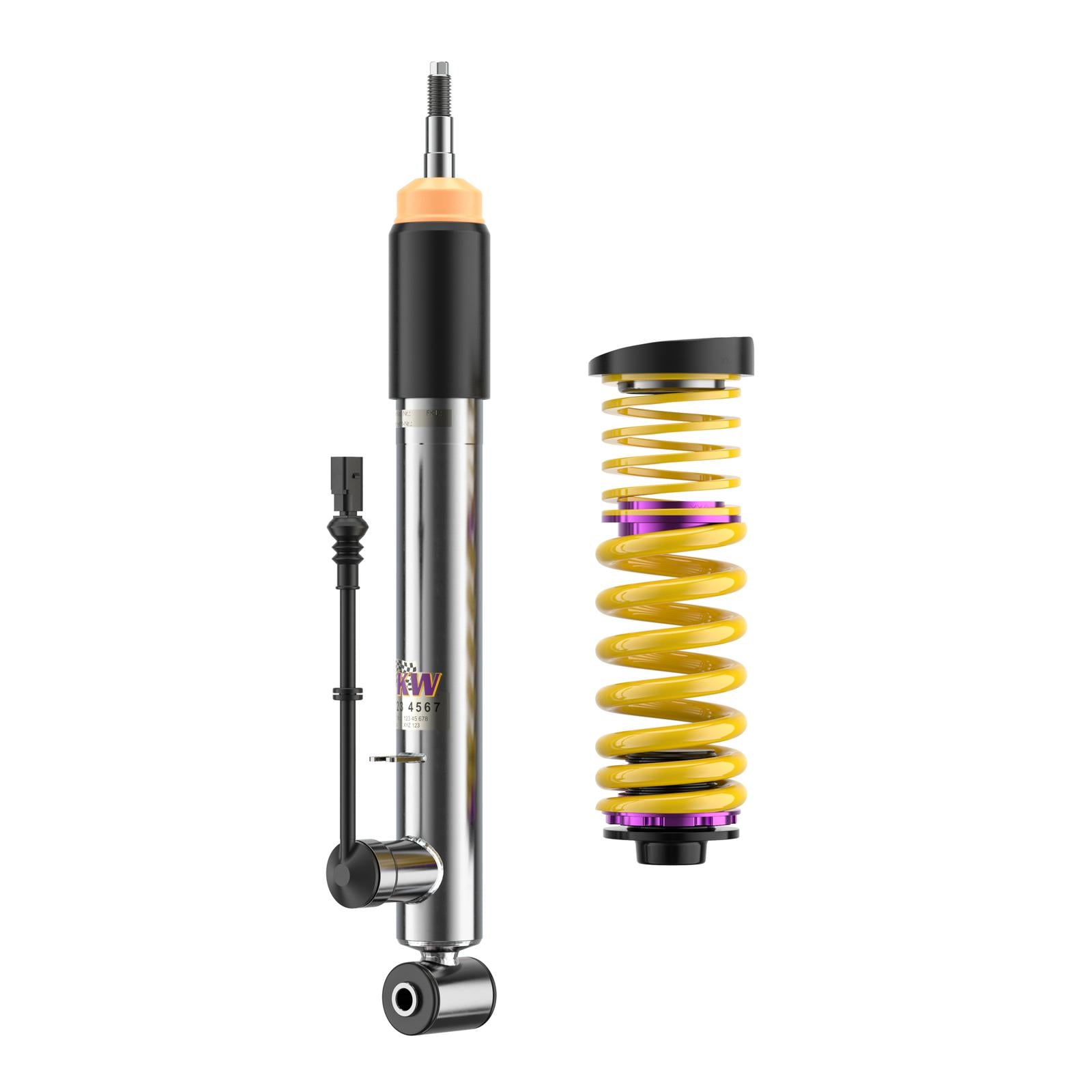

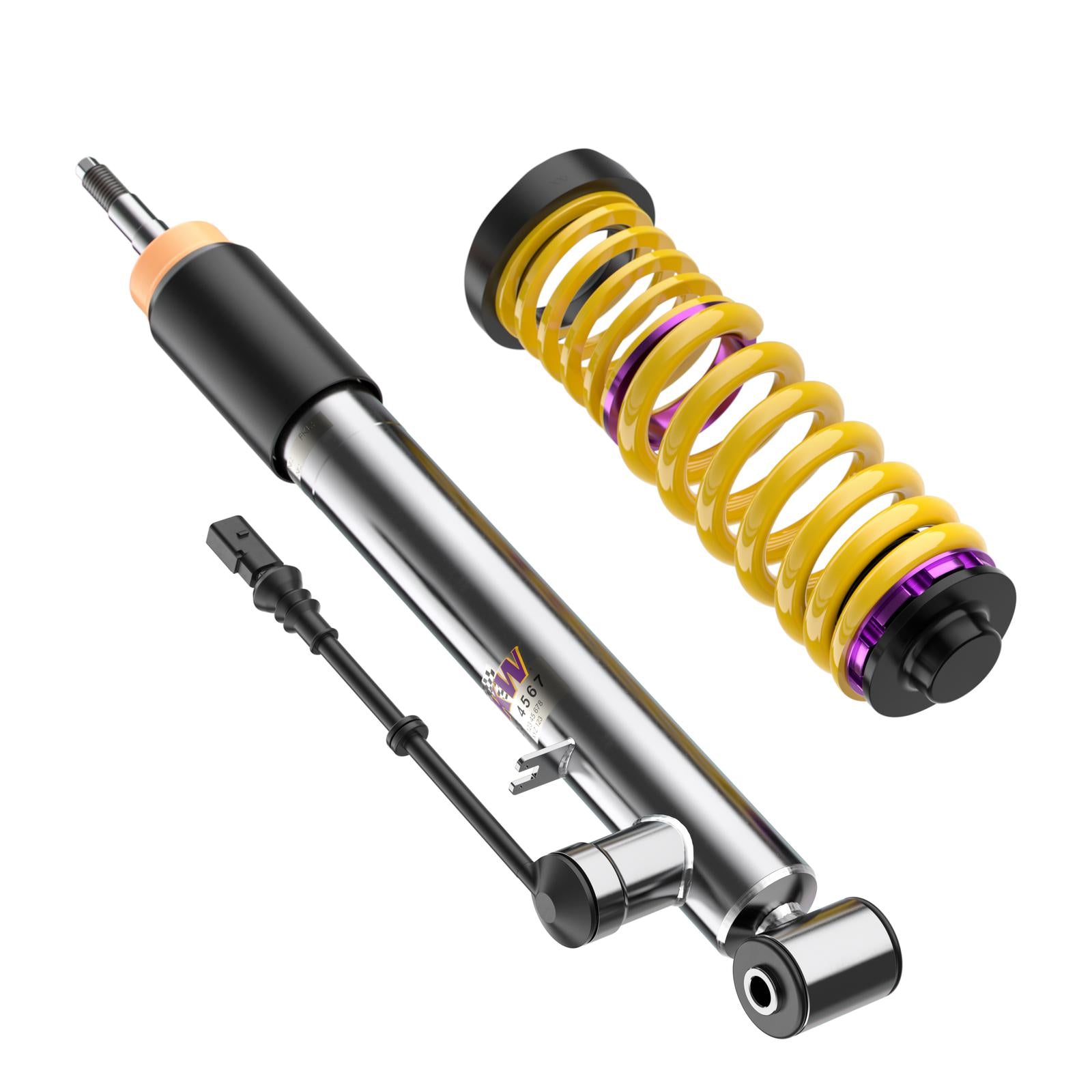

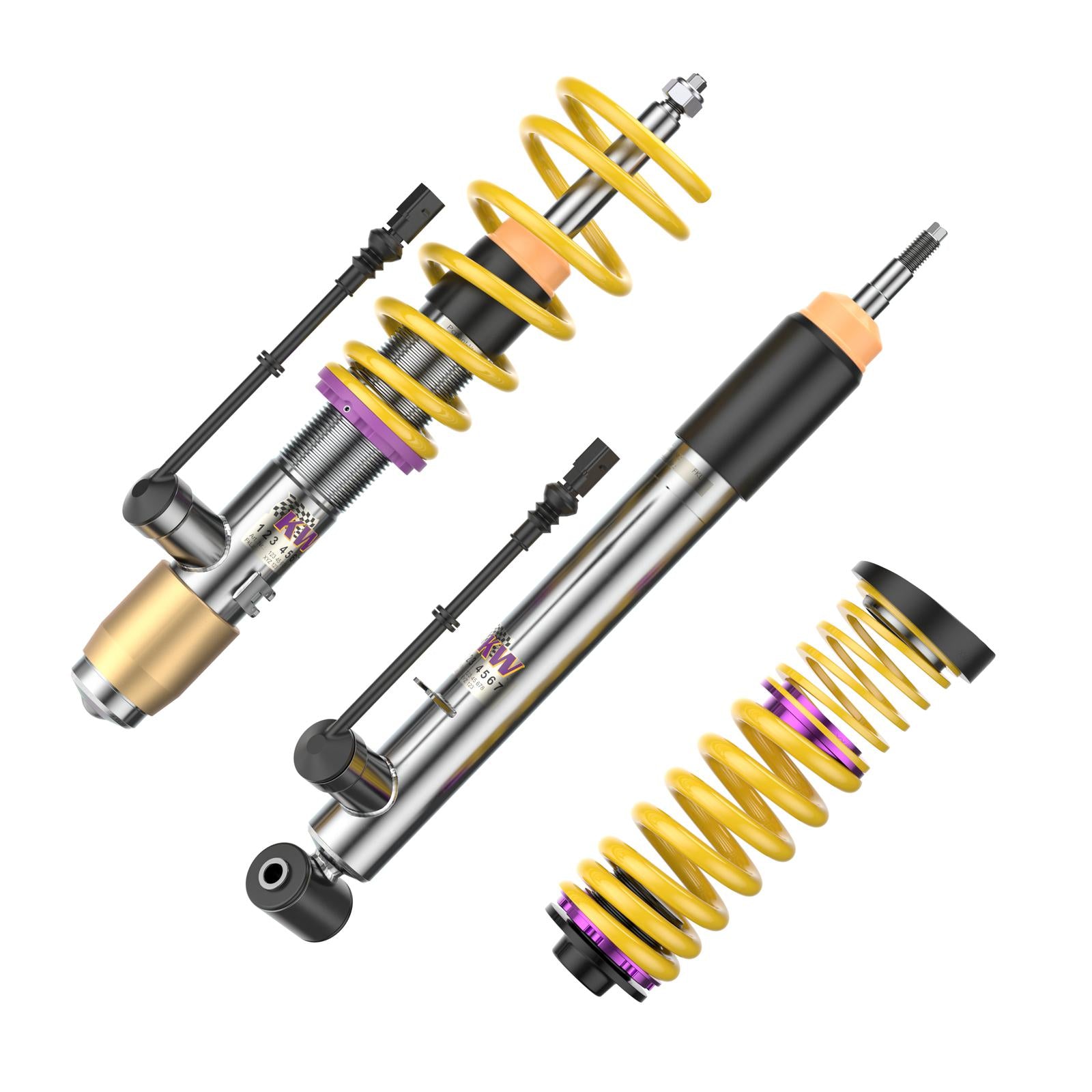

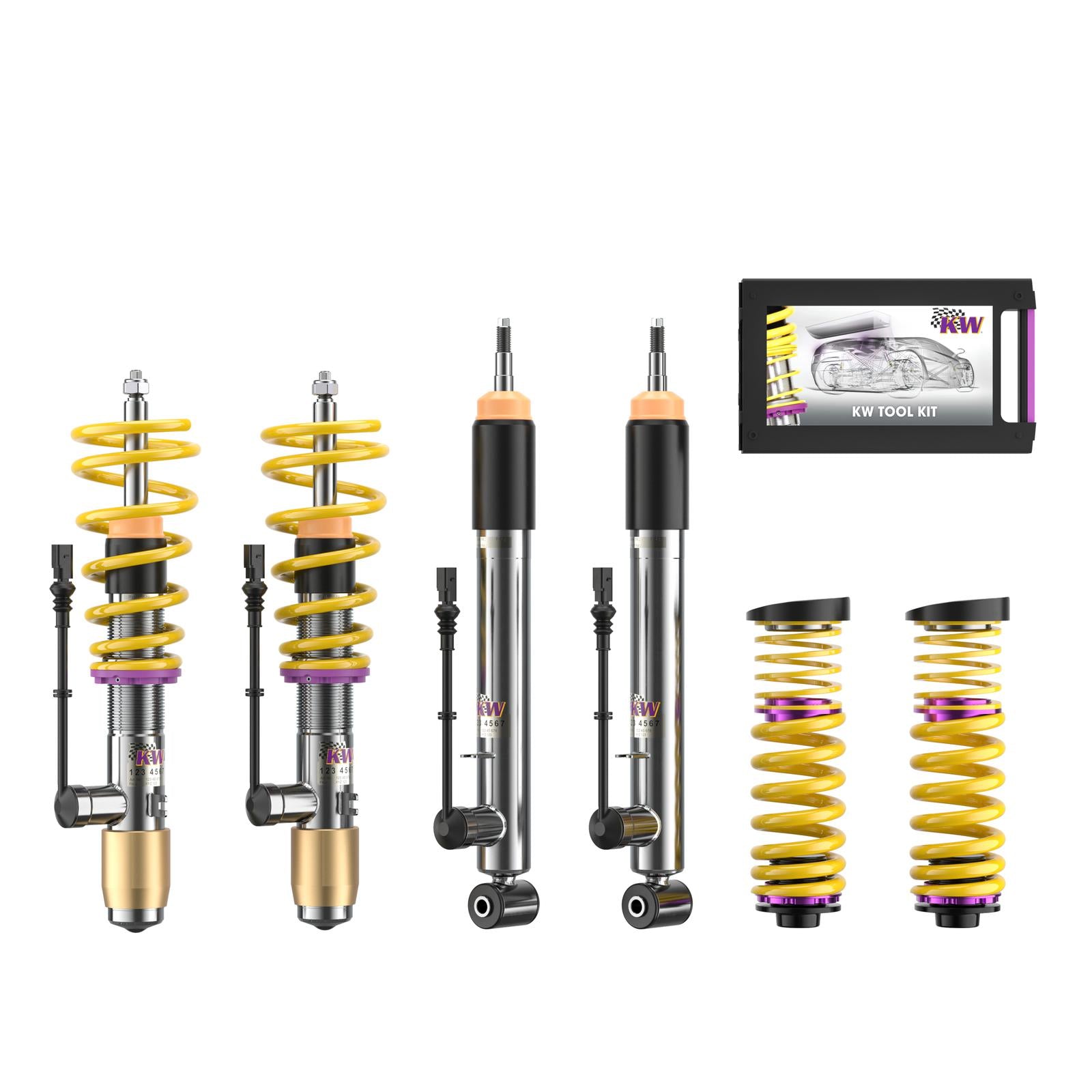

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers + control unit

Front axle load up to 1,000 kg; Rear axle load up to 780 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2008–2018VWScirocco III (13, 137, 138)1.4 TSIPetrol · 92 kW · 1.4L · 4-cylFront-Wheel Drive2, 37, 57, 93
2008–2018VWScirocco III (13, 137, 138)1.4 TSIPetrol · 110 kW · 1.4L · 4-cylFront-Wheel Drive2, 37, 57, 93
2008–2018VWScirocco III (13, 137, 138)1.4 TSIPetrol · 96 kW · 1.4L · 4-cylFront-Wheel Drive2, 37, 57, 93
2008–2018VWScirocco III (13, 137, 138)1.4 TSIPetrol · 118 kW · 1.4L · 4-cylFront-Wheel Drive2, 37, 57, 93
2008–2018VWScirocco III (13, 137, 138)1.4 TSIPetrol · 90 kW · 1.4L · 4-cylFront-Wheel Drive2, 37, 57, 93

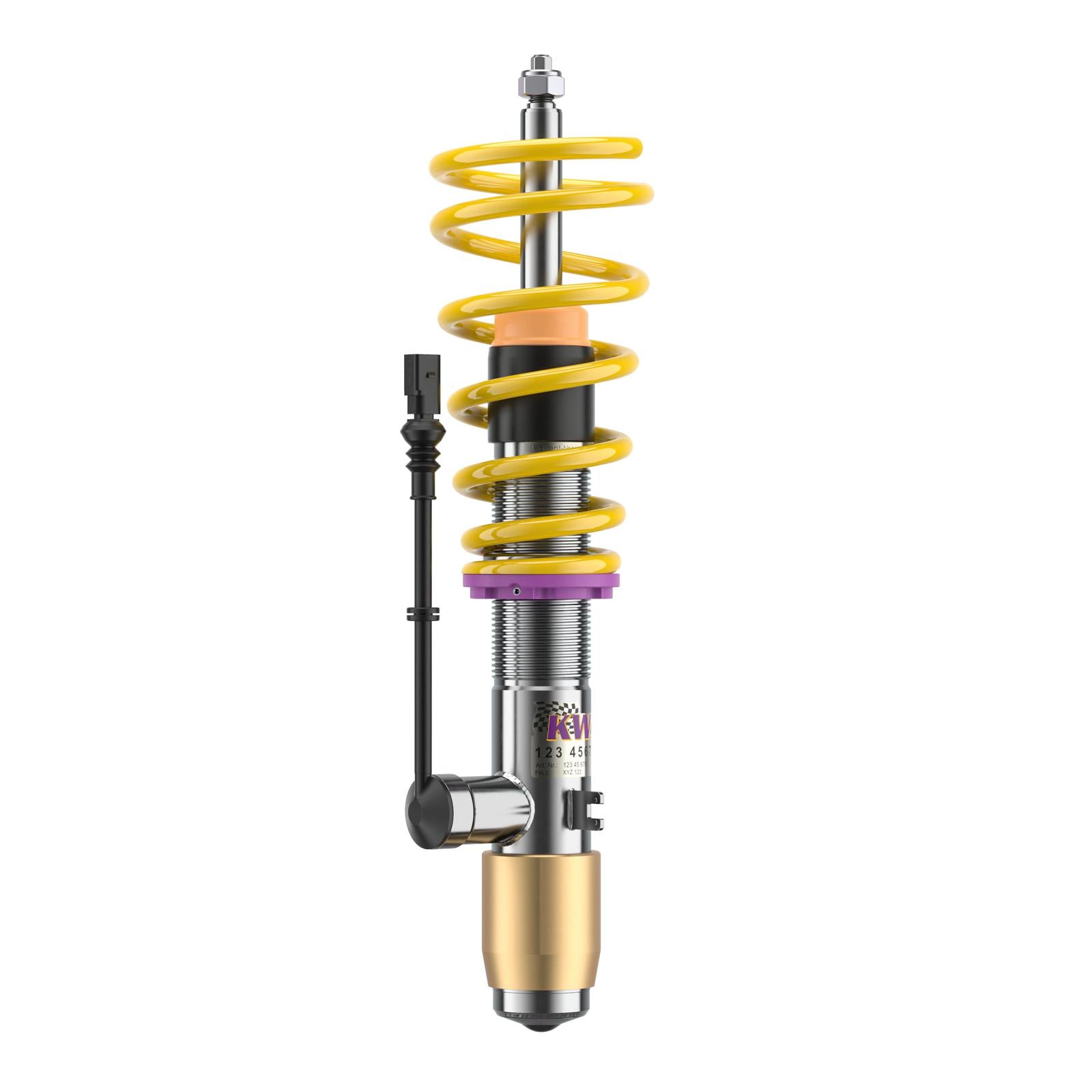

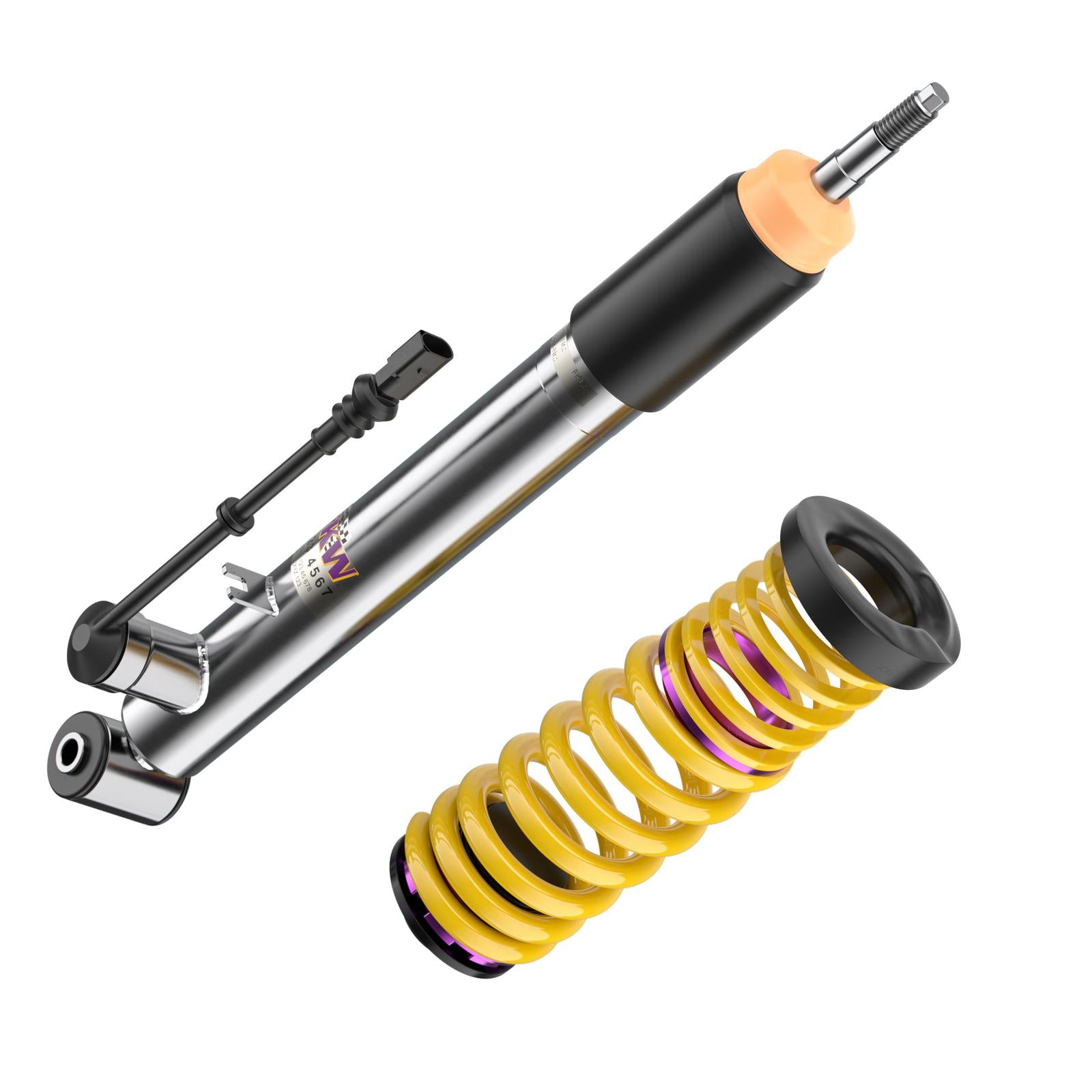

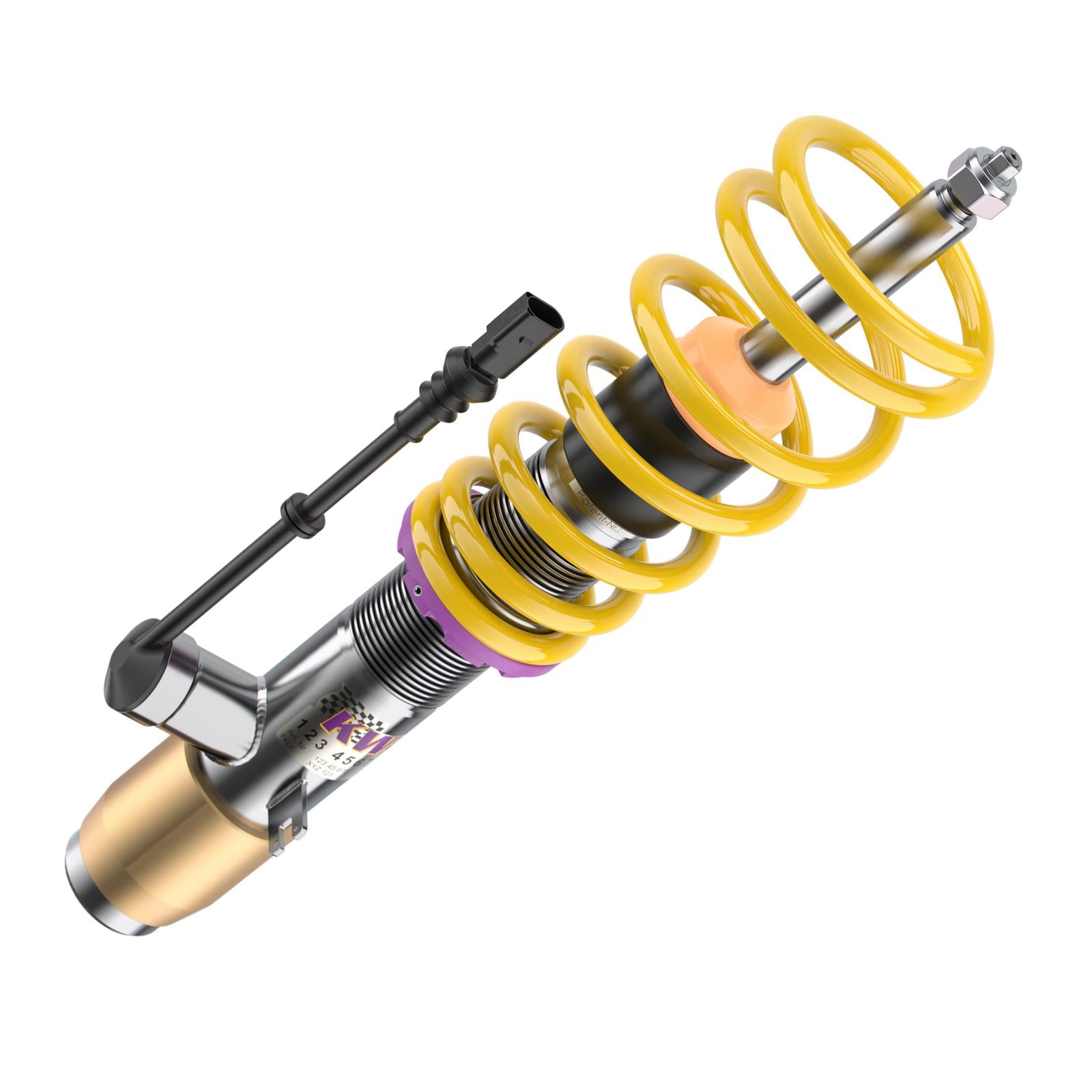

  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
  • Note 57: Only for cars with a clamp diameter of 55mm on the front axle.
  • Note 93: To guarantee at maximum lowering the minimum clearance of the FA indicator light (350 mm) and day headlight (250 mm) beyond STVZO, they have to be modified.
