KW Coilover Kit V3 Leveling for Audi (C8) A6 Avant - 48.6mm Front Strut - AWD
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW Leveling suspension is aimed at drivers who want the handling and comfort of a KW coilover while keeping close to factory ground clearance. Progressive springs and a comfort-oriented base damper setting suit poor roads and urban speed humps, and the ride height can be set slightly below or above standard. The V3 dampers adjust separately in rebound and compression. This kit is developed for the Audi A6 Avant quattro (C8).
Key Features
- Near-factory ride height
- Separately adjustable rebound and compression damping
- Progressive comfort springs
Specifications
- Version: V3 Leveling
- Damping: Adjustable rebound and compression
- Material: Stainless steel
- Front height change: -30 to -5 mm
- Rear height change: -30 to -5 mm
- Front axle load: up to 1,305 kg
- Rear axle load: up to 1,430 kg
- Front strut diameter (vehicle): 48.6 mm

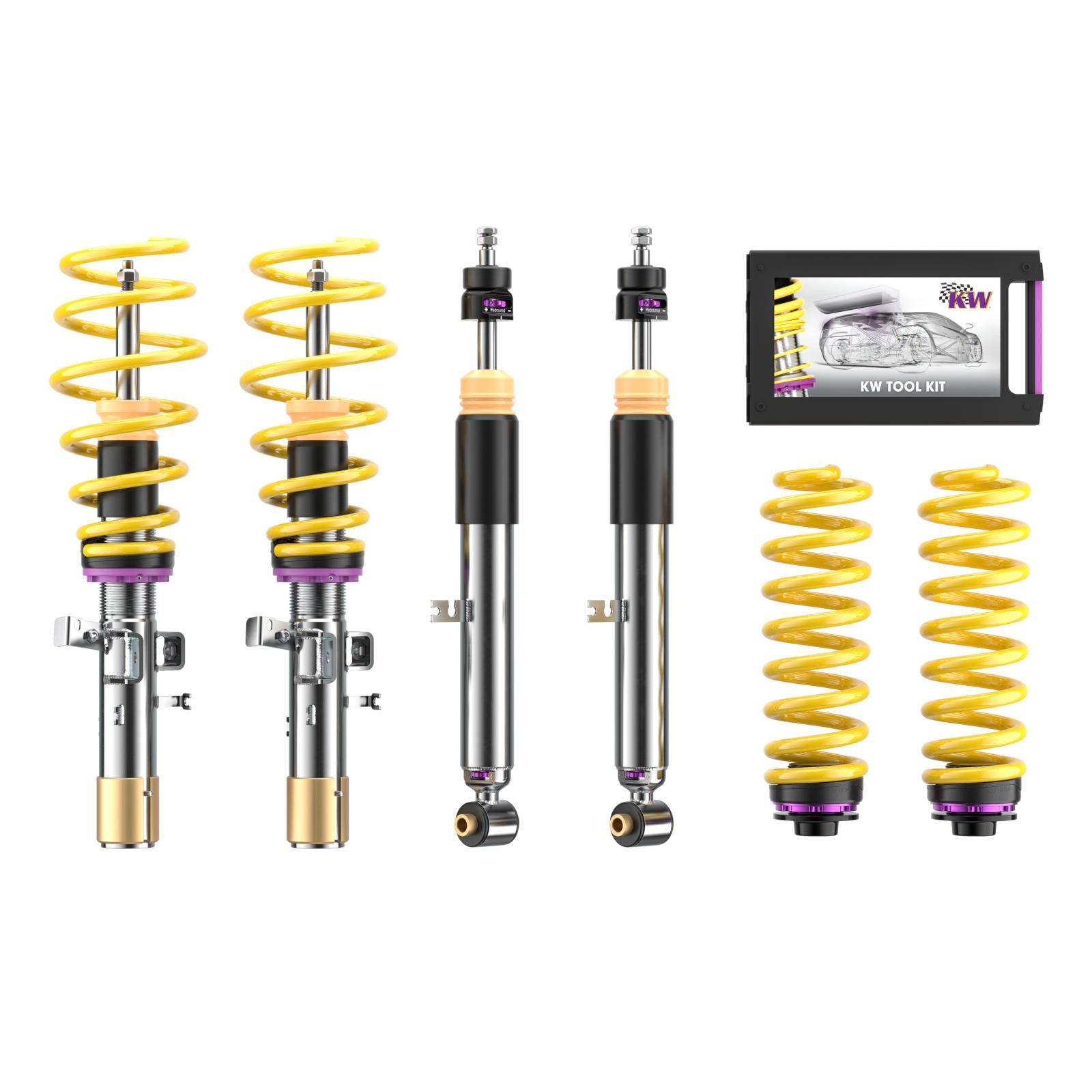

- Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Front axle load up to 1,305 kg; Rear axle load up to 1,430 kg.
For vehicles without electronic damper control.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 2018+ | Audi | A6 Avant (F2) C8, 4A5 | 40 TDI Mild Hybrid quattro | Diesel/Electric · 150 kW · 2.0L · 4-cyl | All-Wheel Drive | 2, 8, 62, 67, 417 |
| 2018+ | Audi | A6 Avant (F2) C8, 4A5 | 45 TDI Mild Hybrid quattro | Diesel/Electric · 155 kW · 3.0L · 6-cyl | All-Wheel Drive | 2, 8, 62, 67, 417 |
| 2018+ | Audi | A6 Avant (F2) C8, 4A5 | 45 TDI Mild Hybrid quattro | Diesel/Electric · 170 kW · 3.0L · 6-cyl | All-Wheel Drive | 2, 8, 62, 67, 417 |
| 2018+ | Audi | A6 Avant (F2) C8, 4A5 | 45 TDI Mild Hybrid quattro | Diesel/Electric · 180 kW · 3.0L · 6-cyl | All-Wheel Drive | 2, 8, 62, 67, 417 |
| 2018+ | Audi | A6 Avant (F2) C8, 4A5 | 45 TDI quattro | Diesel · 183 kW · 3.0L · 6-cyl | All-Wheel Drive | 2, 8, 62, 67, 417 |
| 2018+ | Audi | A6 Avant (F2) C8, 4A5 | 45 TFSI Mild Hybrid quattro | Petrol/Electric · 180 kW · 2.0L · 4-cyl | All-Wheel Drive | 2, 8, 62, 67, 417 |
| 2018+ | Audi | A6 Avant (F2) C8, 4A5 | 45 TFSI Mild Hybrid quattro | Petrol/Electric · 195 kW · 2.0L · 4-cyl | All-Wheel Drive | 2, 8, 62, 67, 417 |
| 2018+ | Audi | A6 Avant (F2) C8, 4A5 | 45 TFSI quattro | Petrol · 195 kW · 2.0L · 4-cyl | All-Wheel Drive | 2, 8, 62, 67, 417 |
| 2018+ | Audi | A6 Avant (F2) C8, 4A5 | 50 TDI Mild Hybrid quattro | Diesel/Electric · 210 kW · 3.0L · 6-cyl | All-Wheel Drive | 2, 8, 62, 67, 417 |
| 2018+ | Audi | A6 Avant (F2) C8, 4A5 | 55 TFSI Mild Hybrid quattro | Petrol/Electric · 250 kW · 3.0L · 6-cyl | All-Wheel Drive | 2, 8, 62, 67, 417 |
- Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
- Note 8: Not for vehicles with automatic self levelling control / air suspension.
- Note 62: Not for cars with electronic damping.
- Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
- Note 417: Only for cars with a clamp diameter of 48,6mm on the front axle.
