KW Coilover Kit V3 Leveling for Audi (C8) A6 Avant - 53mm Front Strut - FWD
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW Coilover Kit V3 Leveling for Audi (C8) A6 Avant - 53mm Front Strut - FWD
Sale price$4,758.55
Regular price$5,009.00 (/)
KW Leveling suspension is aimed at drivers who want the handling and comfort of a KW coilover while keeping close to factory ground clearance. Progressive springs and a comfort-oriented base damper setting suit poor roads and urban speed humps, and the ride height can be set slightly below or above standard. The V3 dampers adjust separately in rebound and compression. This kit is developed for the Audi A6 Avant (C8) FWD.
Key Features
- Near-factory ride height
- Separately adjustable rebound and compression damping
- Progressive comfort springs
Specifications
- Version: V3 Leveling
- Damping: Adjustable rebound and compression
- Material: Stainless steel
- Front height change: -30 to -5 mm
- Rear height change: -30 to -5 mm
- Front axle load: up to 1,160 kg
- Rear axle load: up to 1,280 kg
- Front strut diameter (vehicle): 53 mm

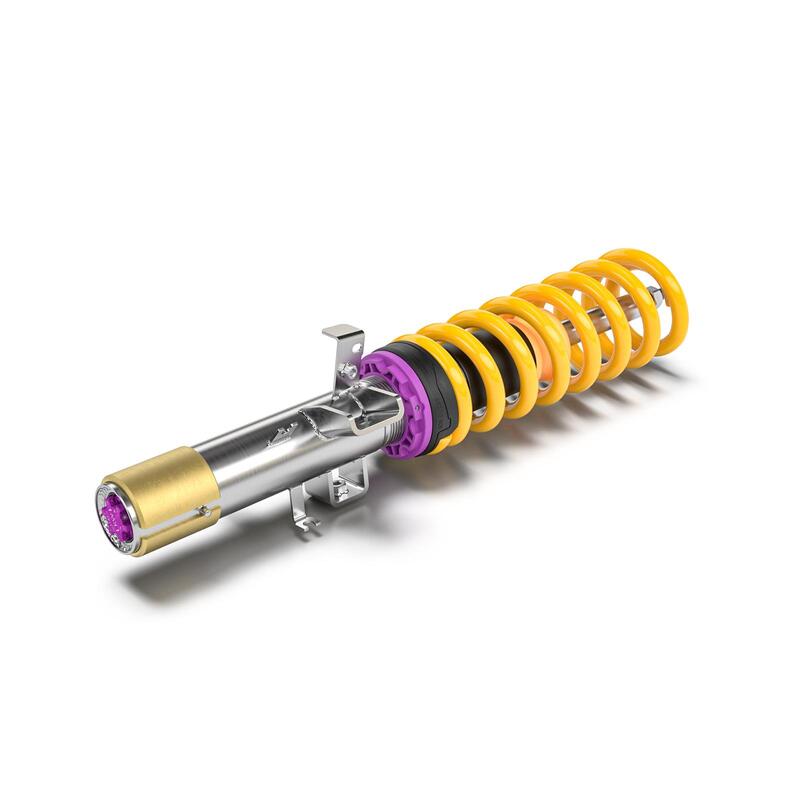

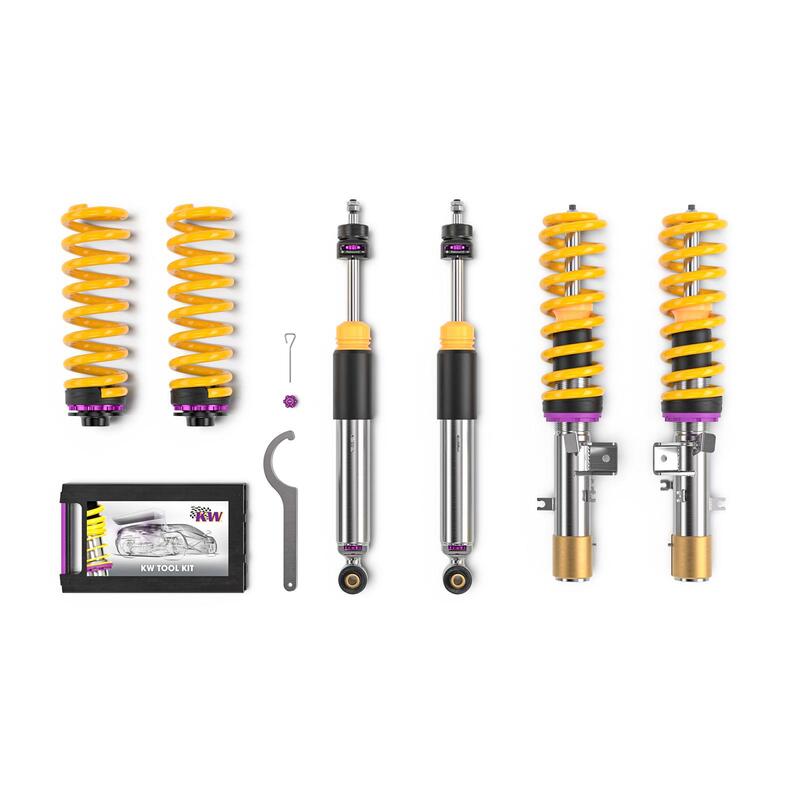

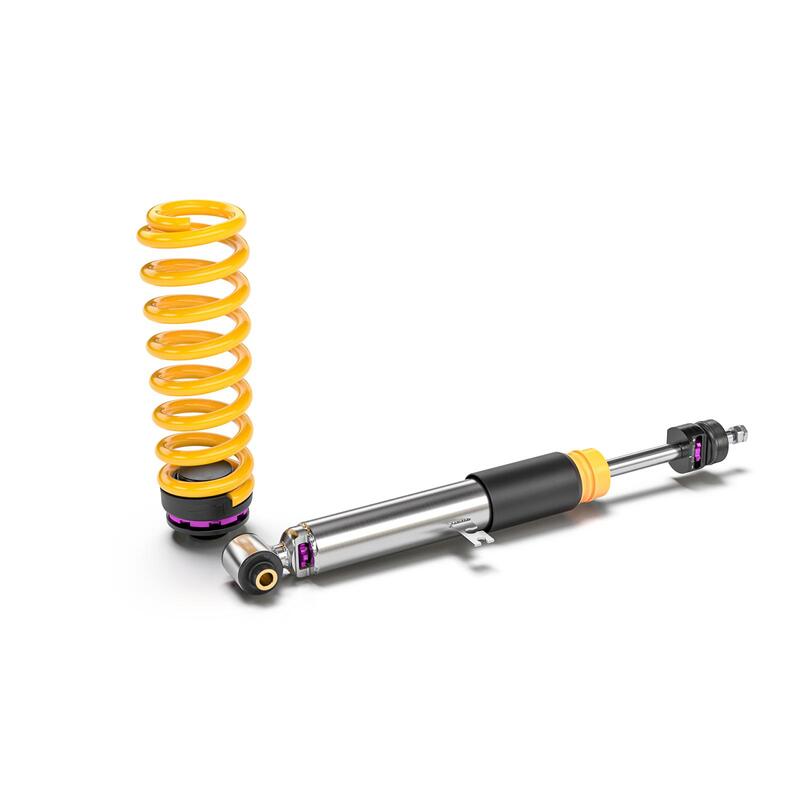

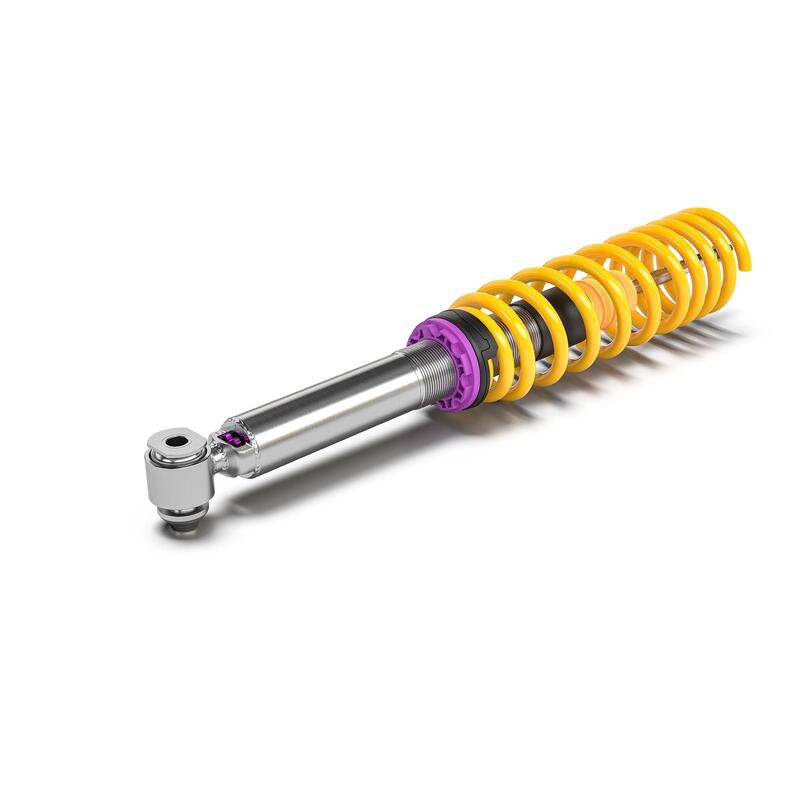

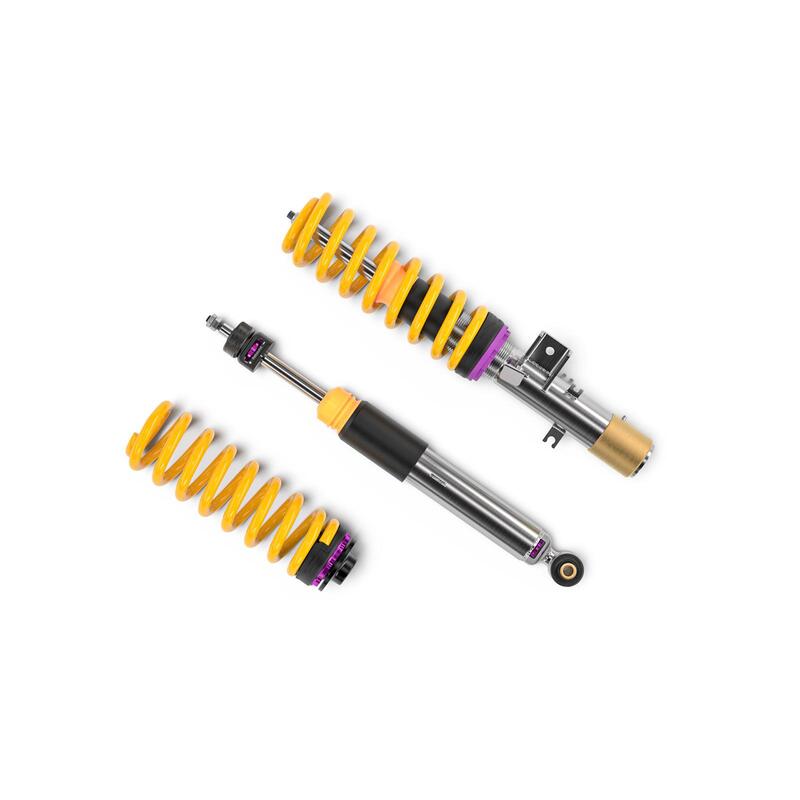

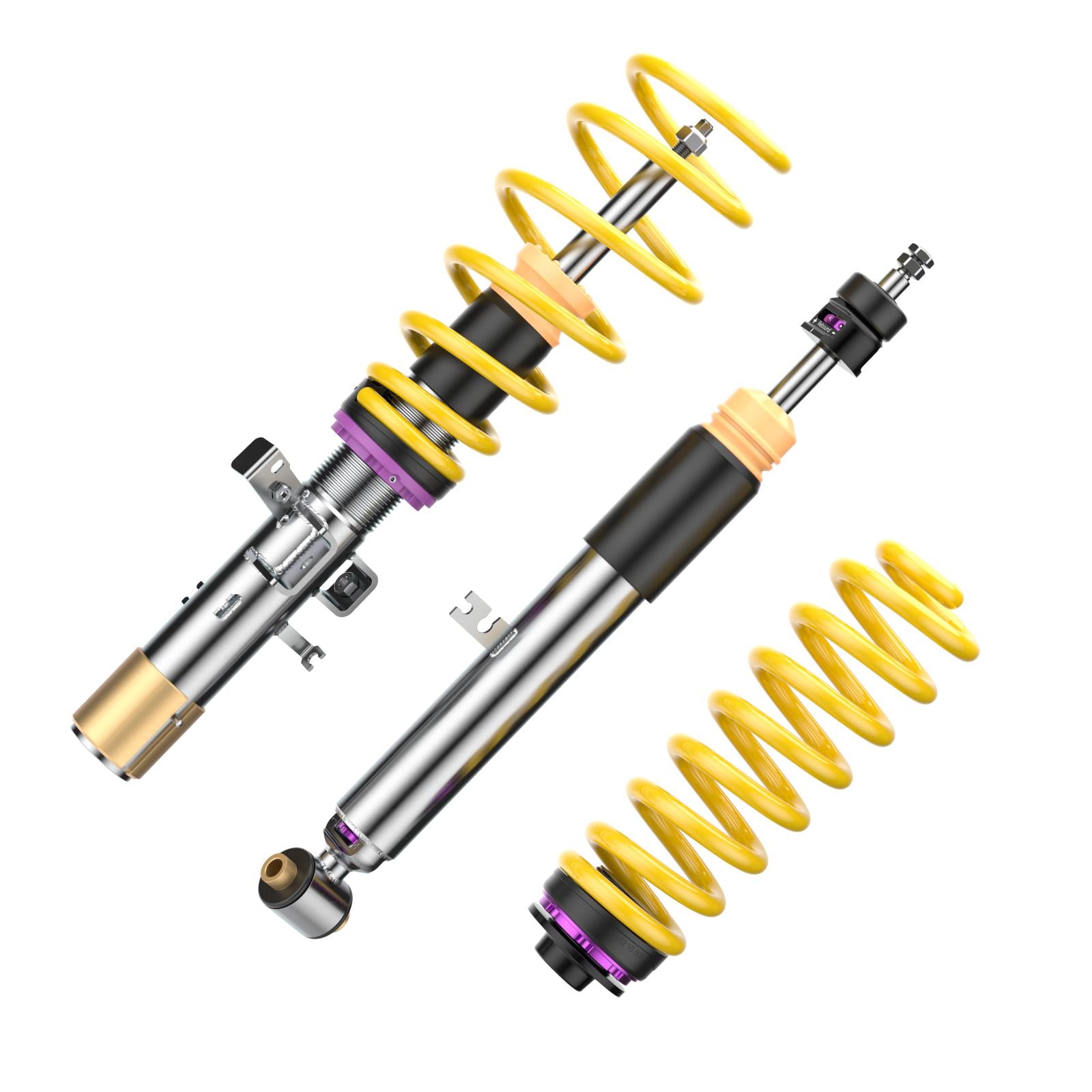

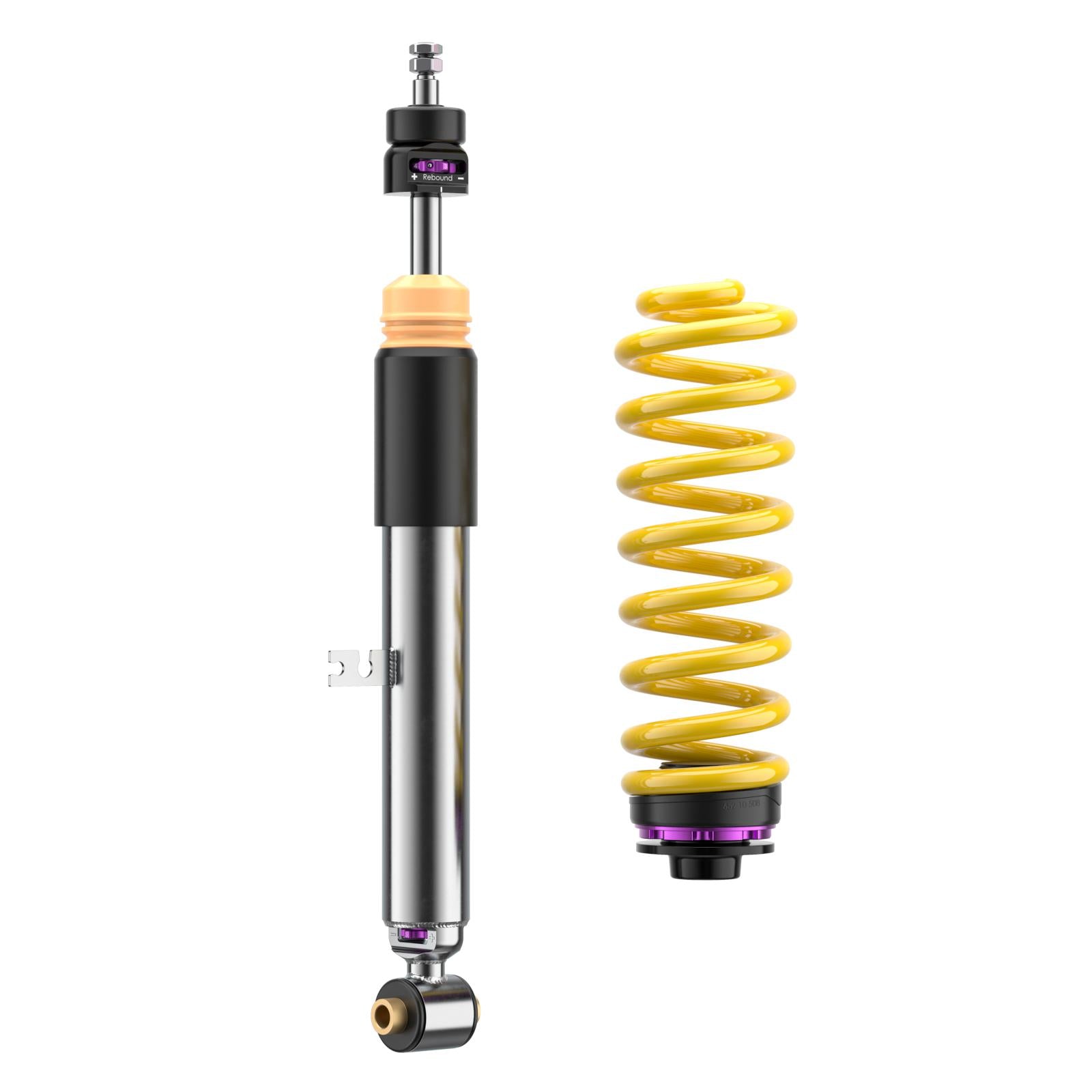

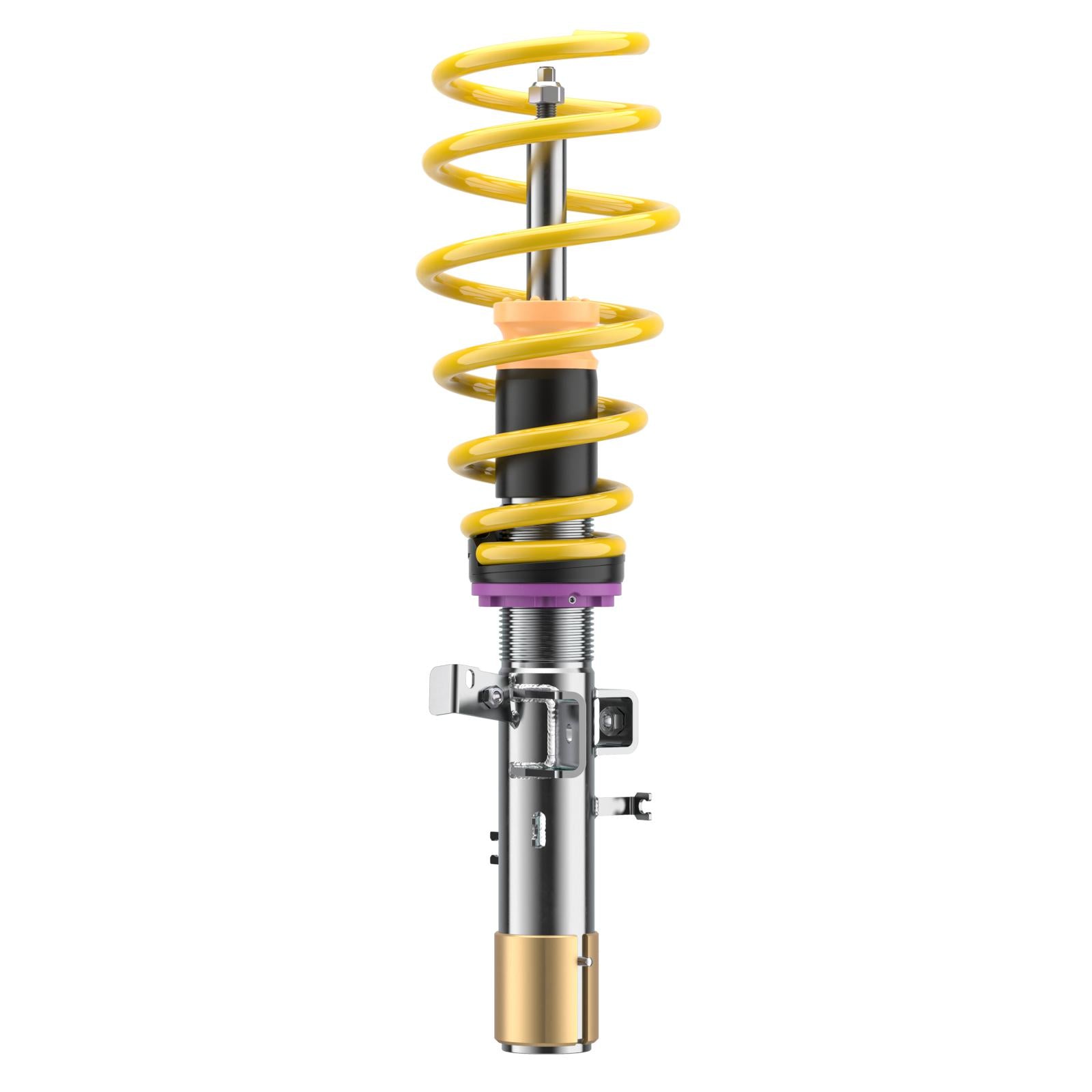

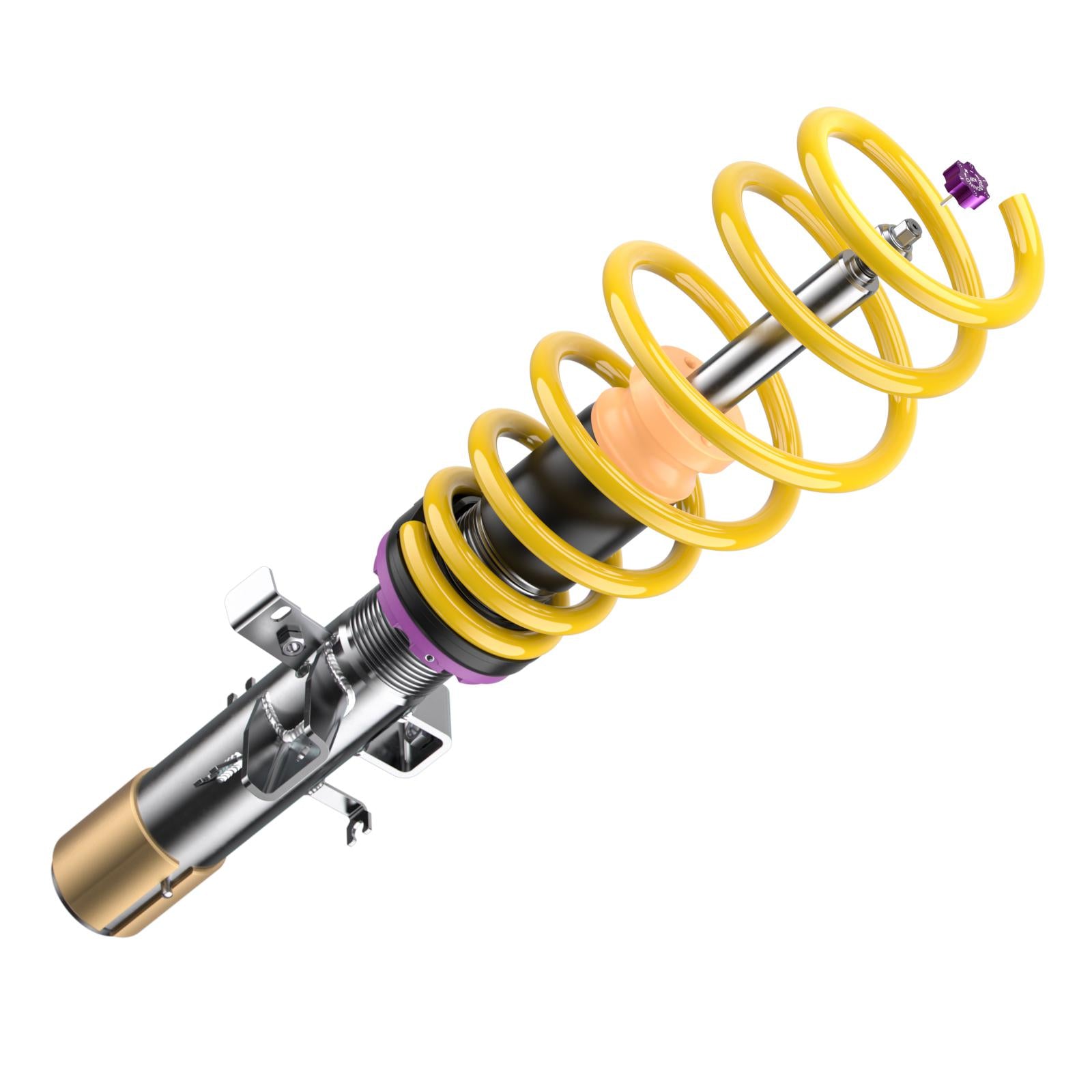

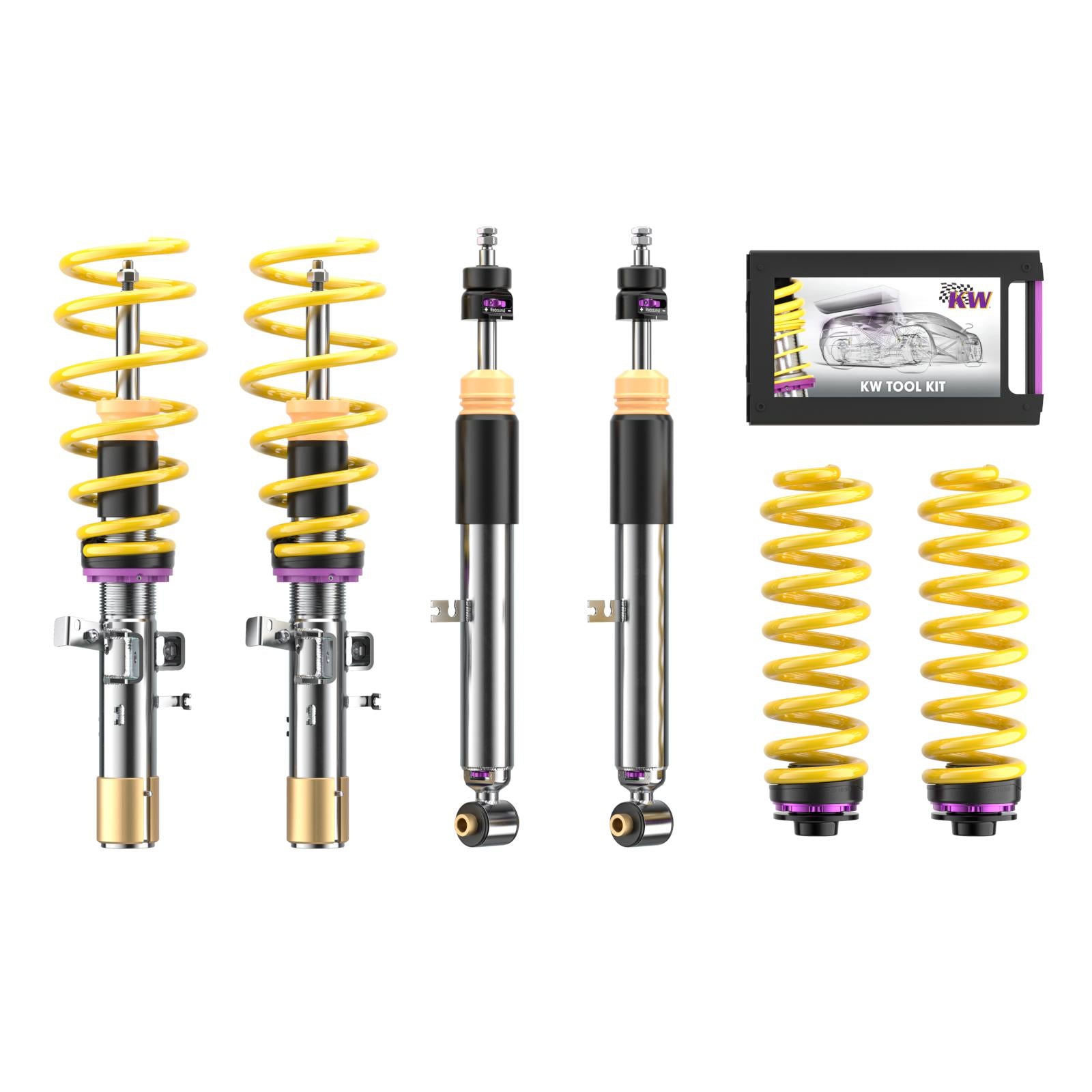

- Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Front axle load up to 1,160 kg; Rear axle load up to 1,280 kg.
For vehicles without electronic damper control.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 2018+ | Audi | A6 Avant (F2) C8, 4A5 | 30 TDI Mild Hybrid | Diesel/Electric · 100 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 8, 37, 67, 418 |
| 2018+ | Audi | A6 Avant (F2) C8, 4A5 | 35 TDI Mild Hybrid | Diesel/Electric · 120 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 8, 37, 67, 418 |
| 2018+ | Audi | A6 Avant (F2) C8, 4A5 | 40 TDI Mild Hybrid | Diesel/Electric · 140 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 8, 37, 67, 418 |
| 2018+ | Audi | A6 Avant (F2) C8, 4A5 | 40 TDI Mild Hybrid | Diesel/Electric · 150 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 8, 37, 67, 418 |
| 2018+ | Audi | A6 Avant (F2) C8, 4A5 | 40 TFSI | Petrol · 150 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 8, 37, 67, 418 |
| 2018+ | Audi | A6 Avant (F2) C8, 4A5 | 40 TFSI 12V | Petrol · 140 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 8, 37, 67, 418 |
| 2018+ | Audi | A6 Avant (F2) C8, 4A5 | 40 TFSI Mild Hybrid | Petrol/Electric · 150 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 8, 37, 67, 418 |
| 2018+ | Audi | A6 Avant (F2) C8, 4A5 | 45 TFSI | Petrol · 180 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 8, 37, 67, 418 |
| 2018+ | Audi | A6 Avant (F2) C8, 4A5 | 45 TFSI Mild Hybrid | Petrol/Electric · 180 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 8, 37, 67, 418 |
| 2018+ | Audi | A6 Avant (F2) C8, 4A5 | 45 TFSI Mild Hybrid | Petrol/Electric · 195 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 8, 37, 67, 418 |

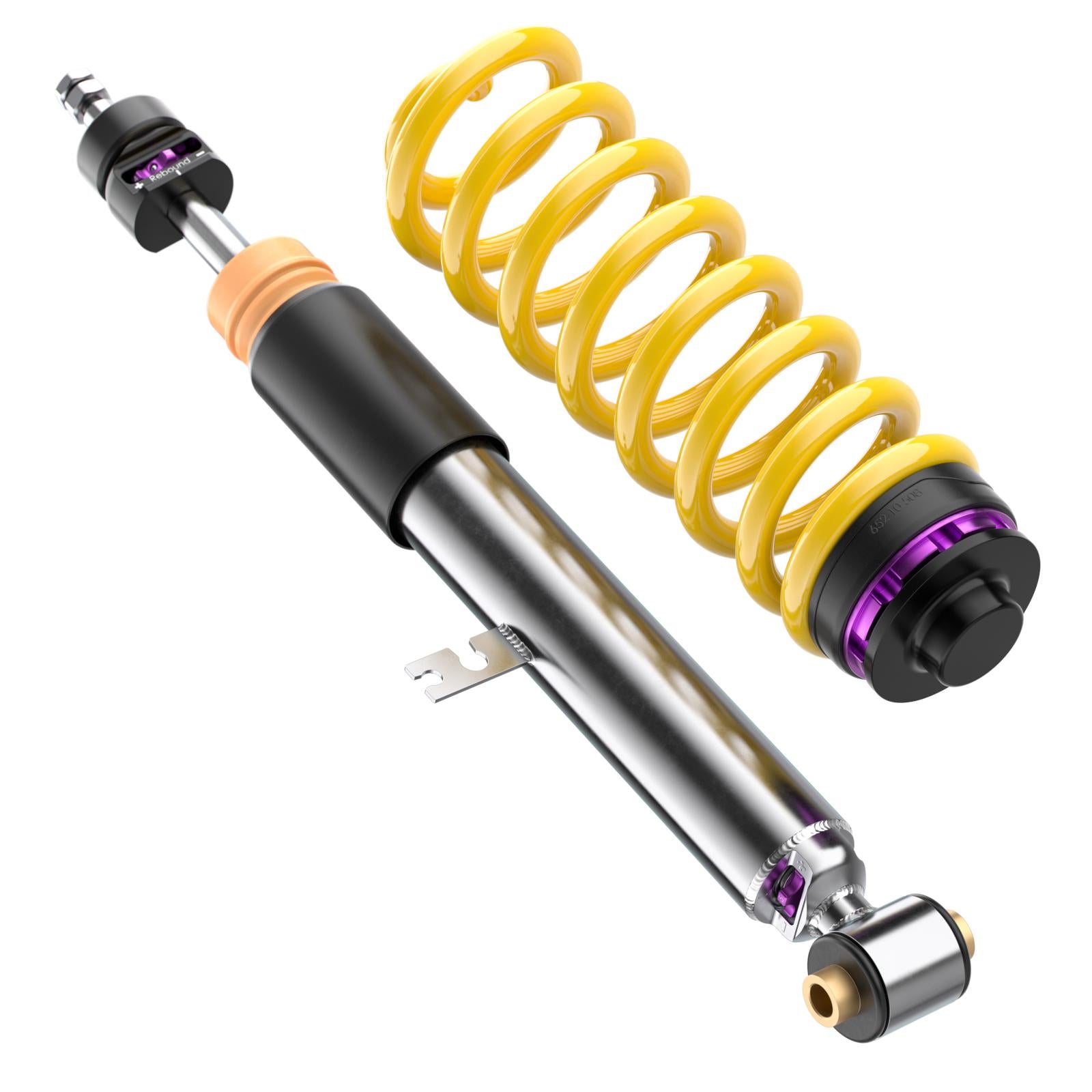

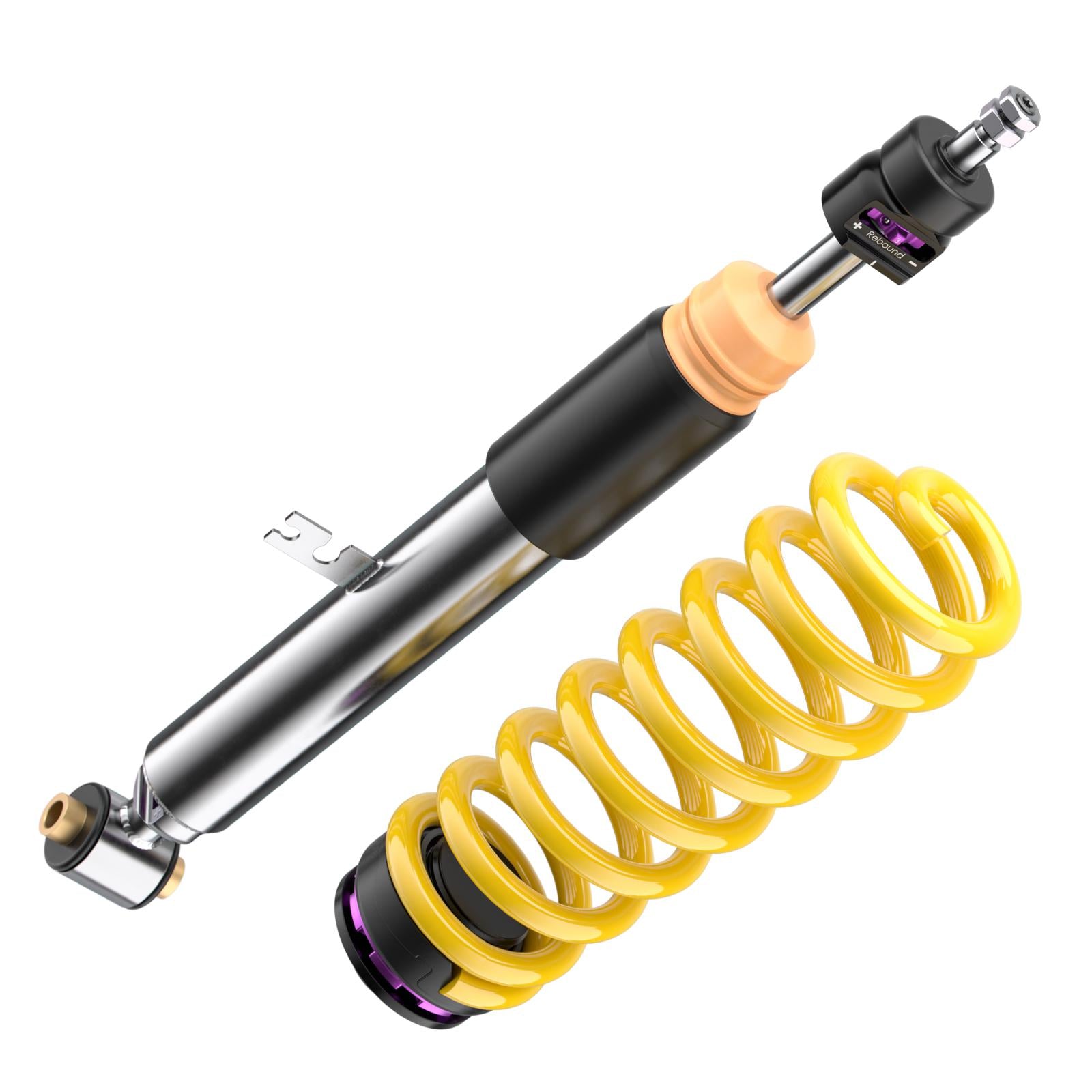

- Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
- Note 8: Not for vehicles with automatic self levelling control / air suspension.
- Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
- Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
- Note 418: Only for cars with a clamp diameter of 53mm on the front axle.
