KW Coilover Kit V3 Leveling for Audi (FY) SQ5 / Q5 / (FYT) SQ5
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW Leveling suspension is aimed at drivers who want the handling and comfort of a KW coilover while keeping close to factory ground clearance. Progressive springs and a comfort-oriented base damper setting suit poor roads and urban speed humps, and the ride height can be set slightly below or above standard. The V3 dampers adjust separately in rebound and compression. This kit is developed for the Audi SQ5 (FY) / SQ5 Sportback (FYT) / Q5 (FY).
Key Features
- Near-factory ride height
- Separately adjustable rebound and compression damping
- Progressive comfort springs
Specifications
- Version: V3 Leveling
- Damping: Adjustable rebound and compression
- Material: Stainless steel
- Front height change: -35 to -10 mm
- Rear height change: -30 to 0 mm
- Front axle load: 1,251–1,355 kg
- Rear axle load: up to 1,390 kg

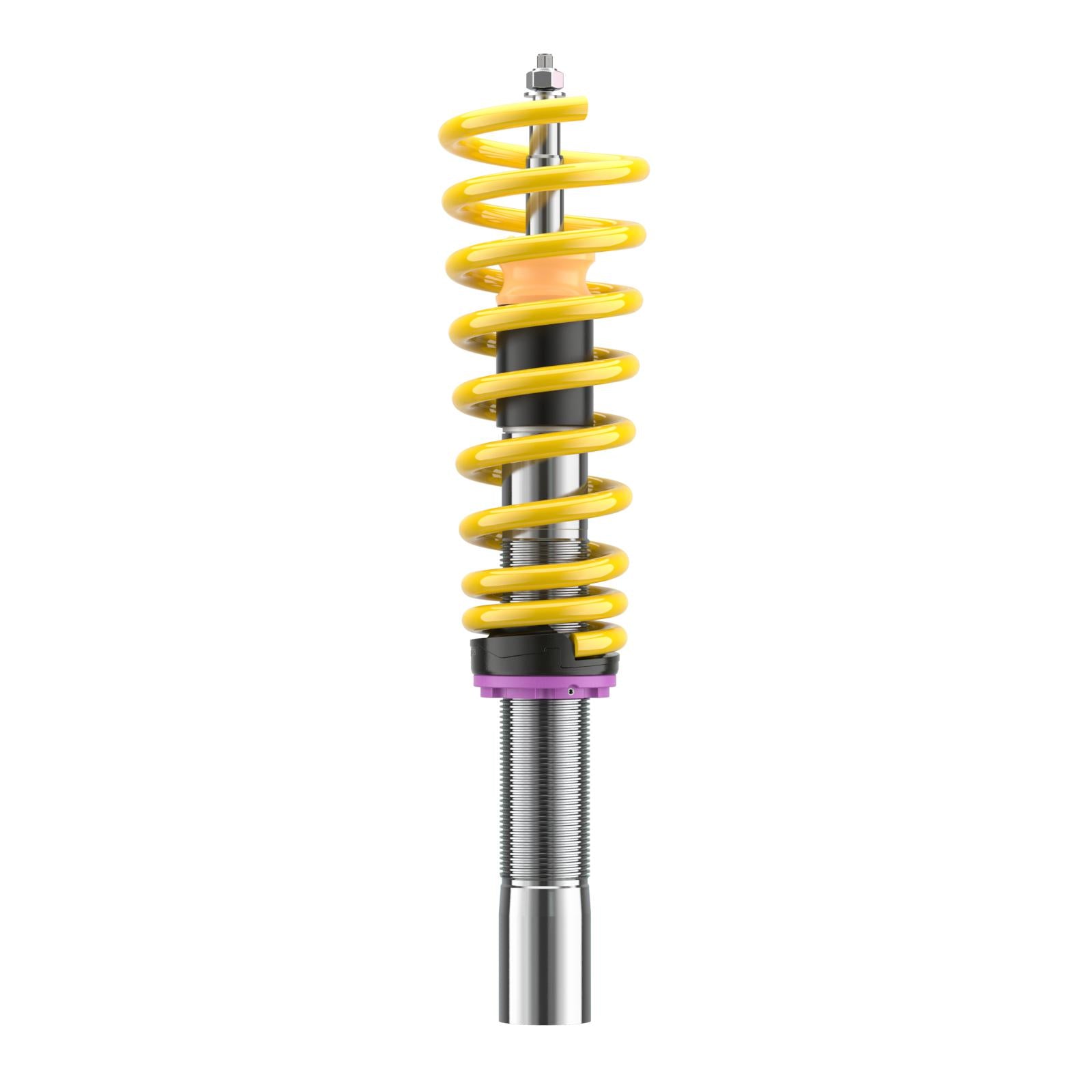

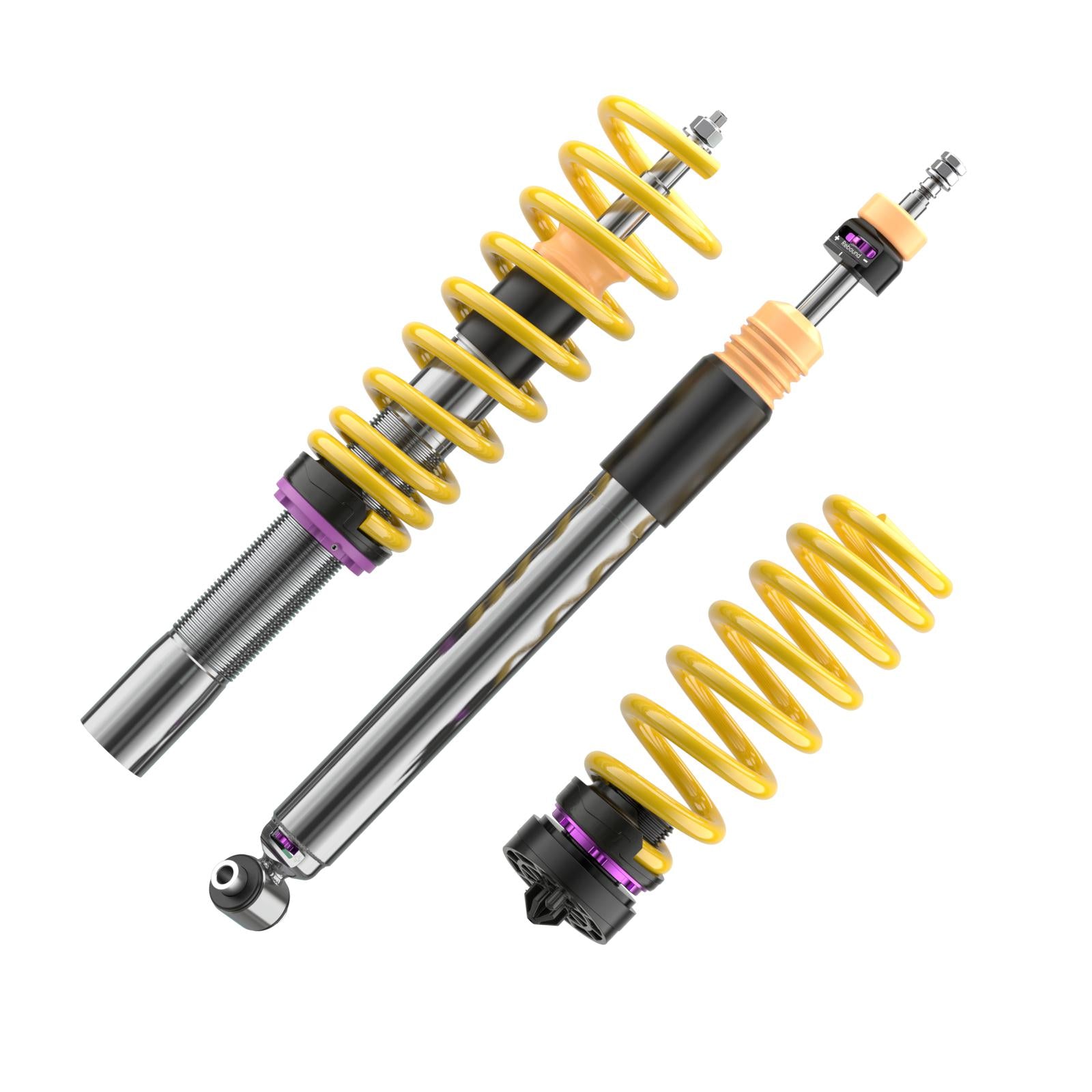

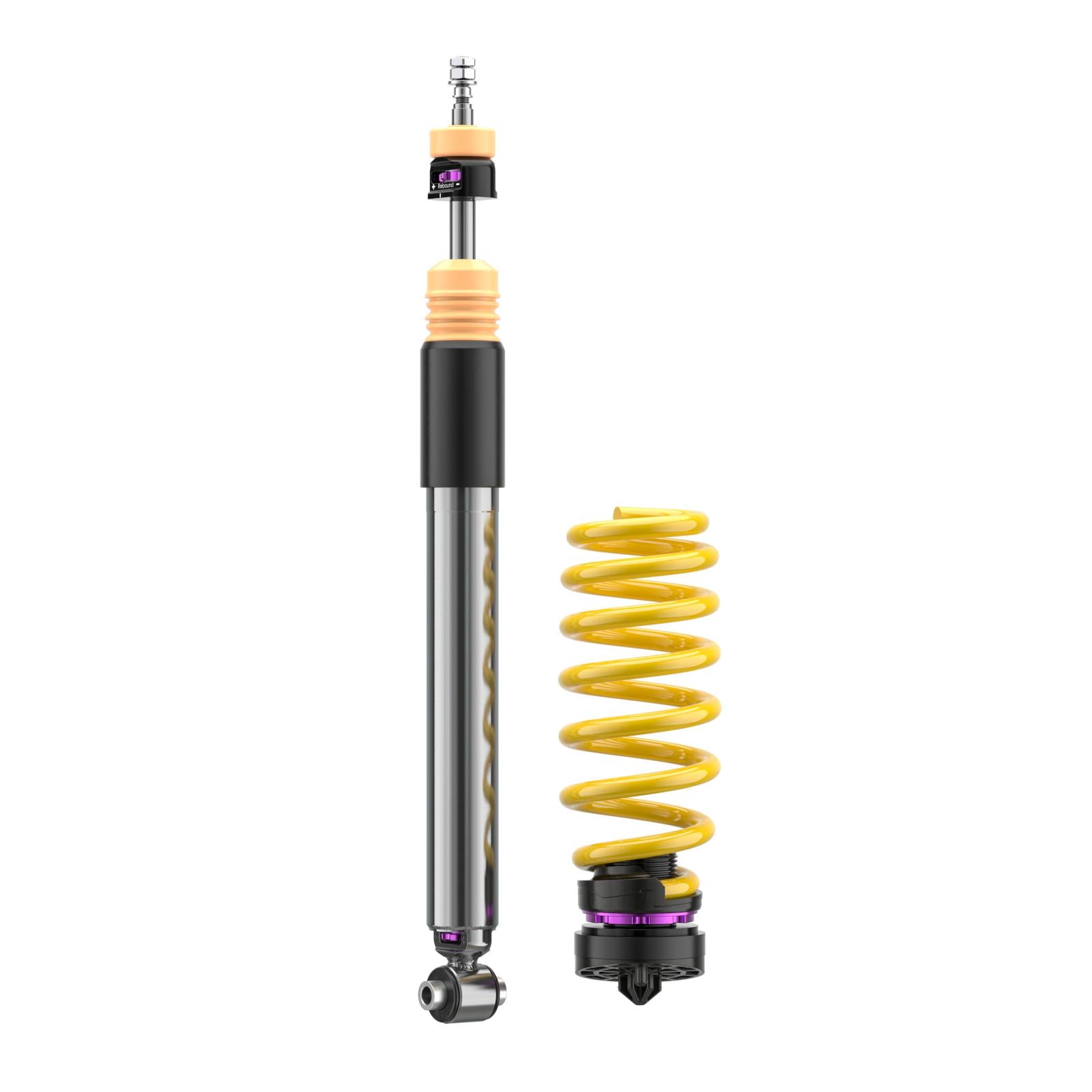

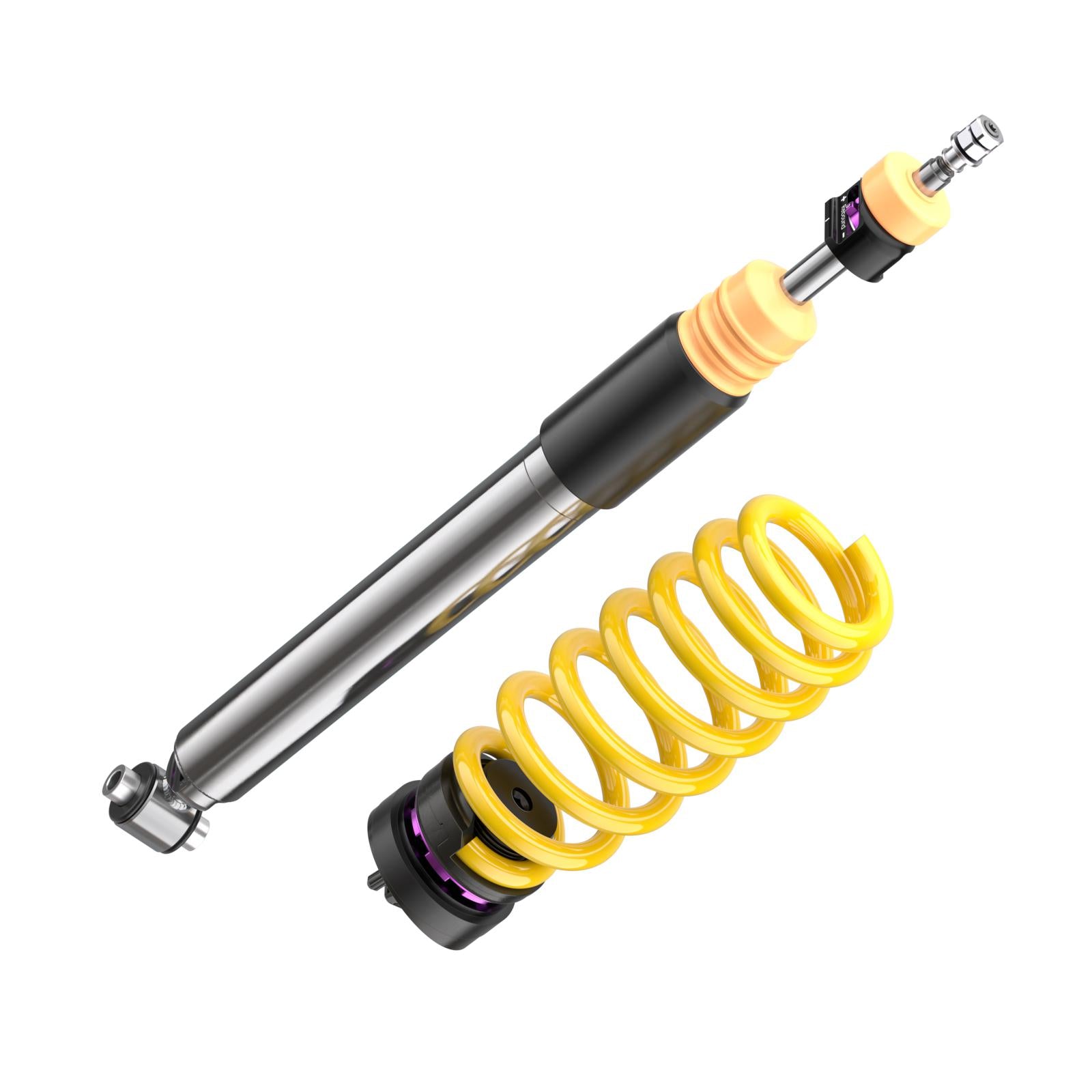

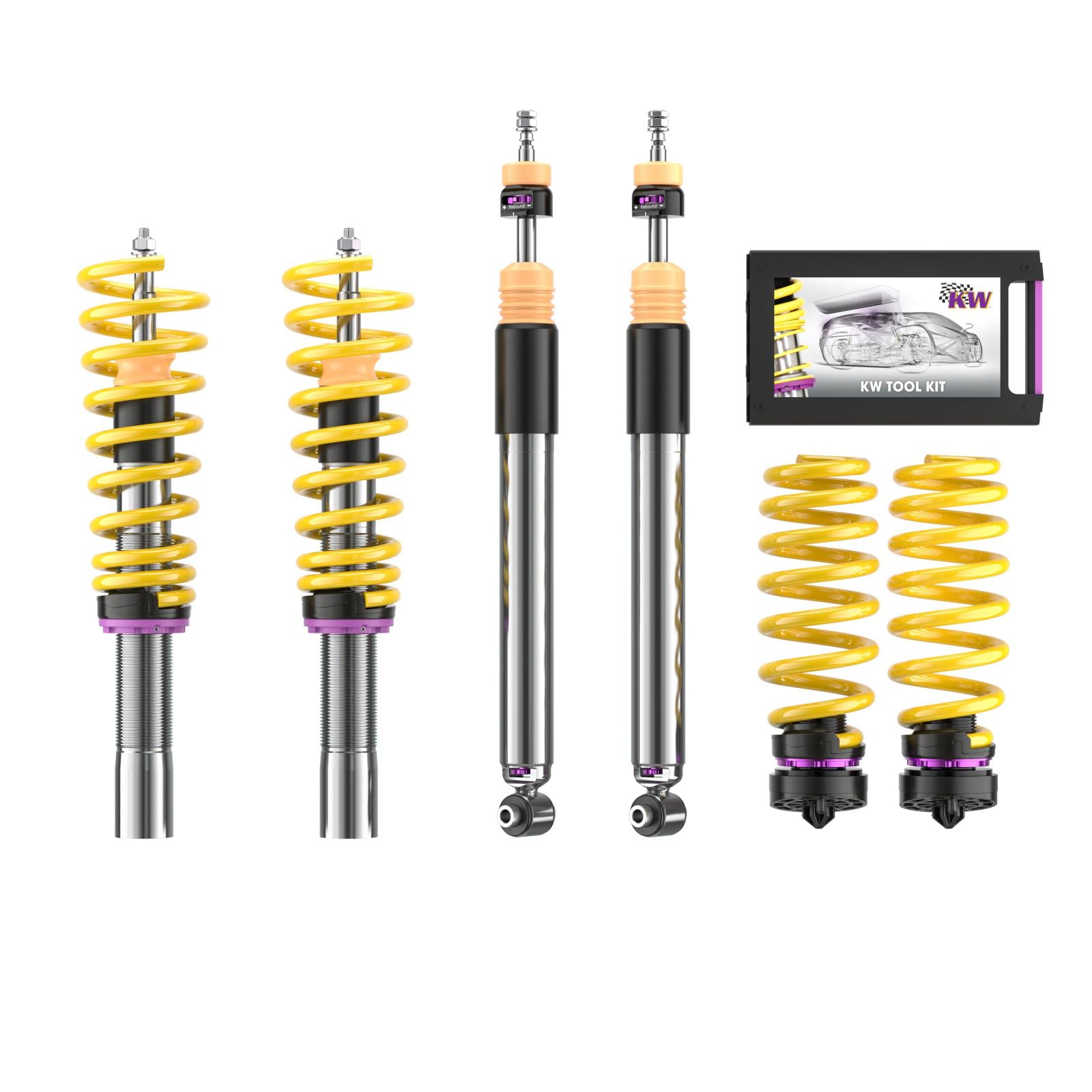

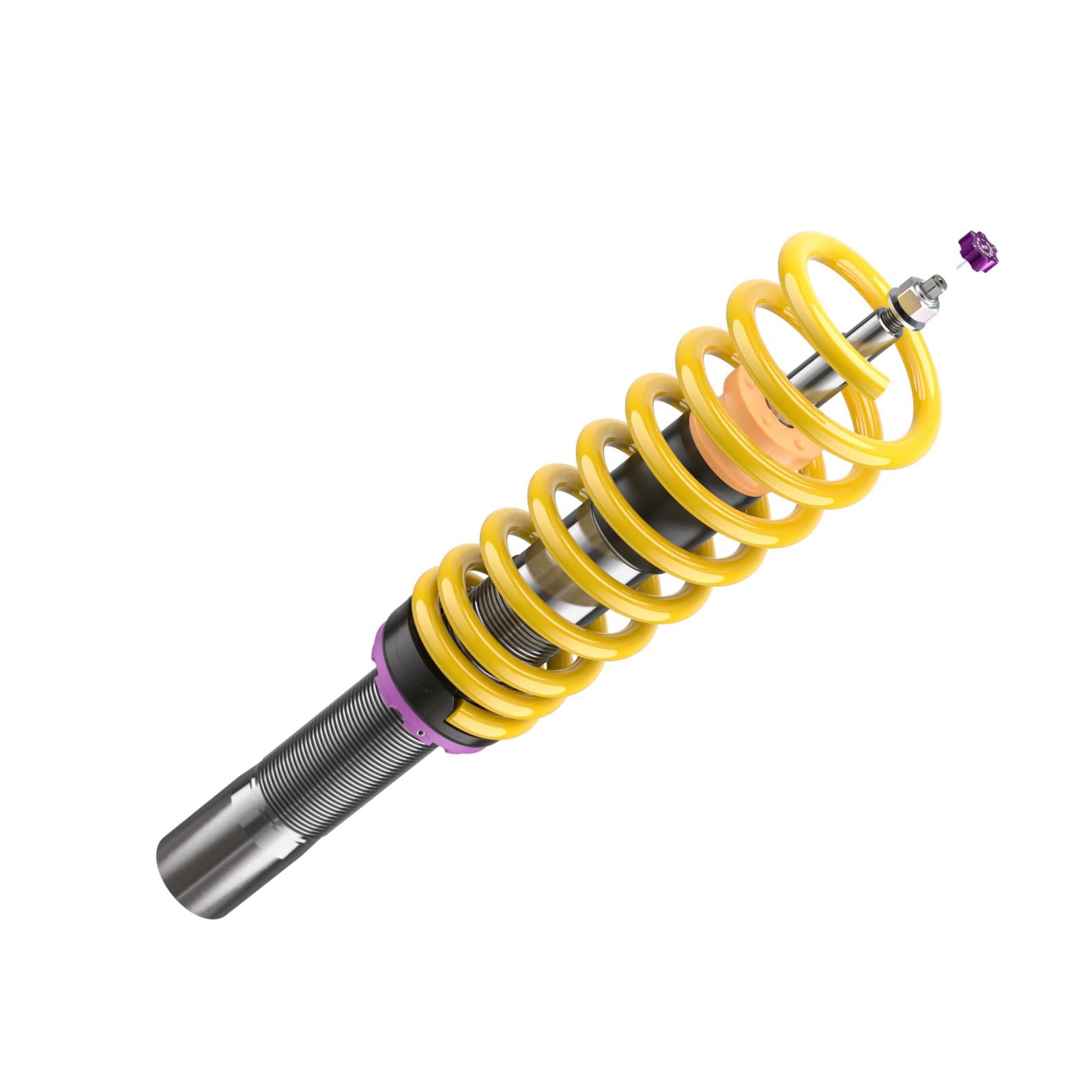

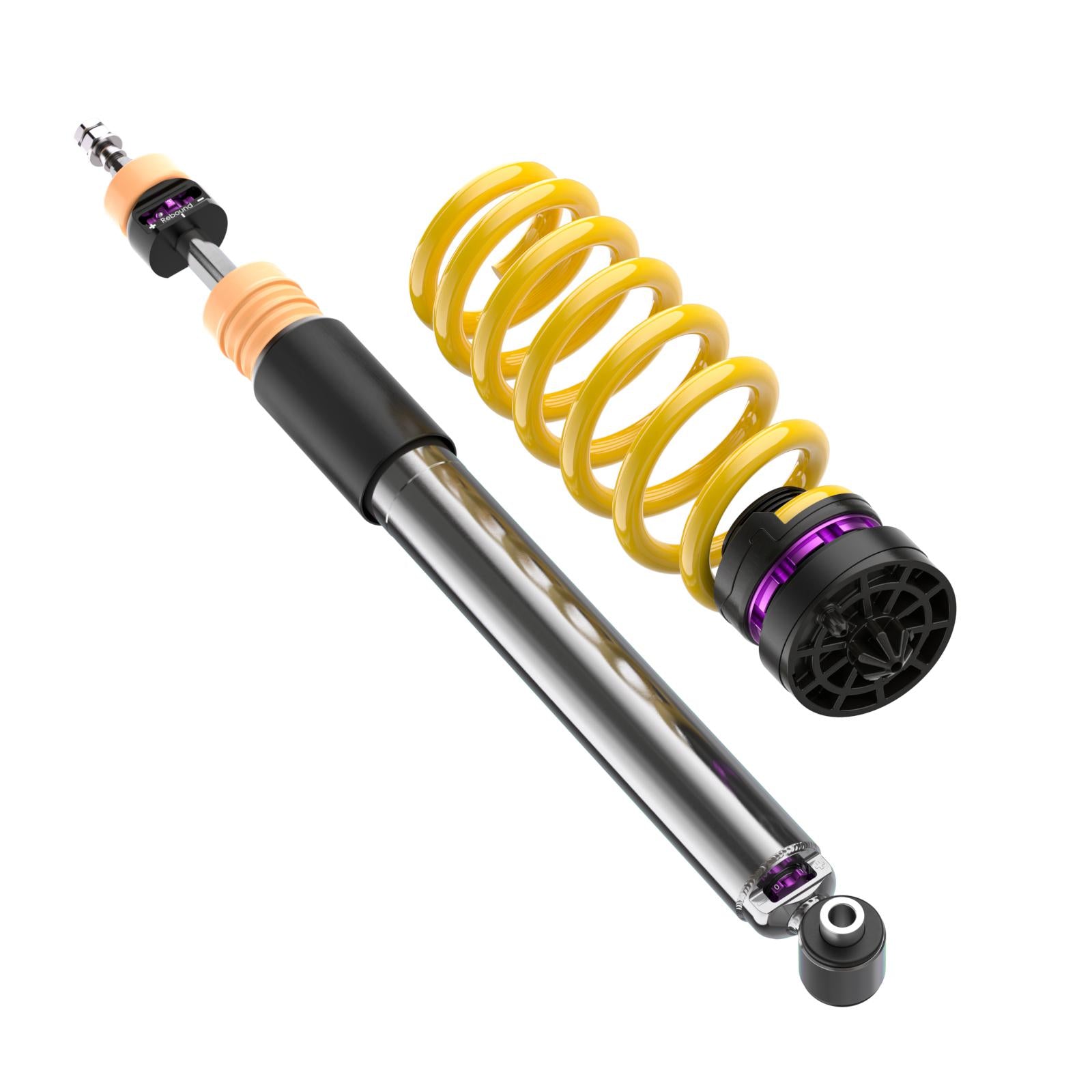

- Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Front axle load 1,251–1,355 kg; Rear axle load up to 1,390 kg.
For vehicles without electronic damper control.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Notes | Refs |
|---|---|---|---|---|---|---|---|
| 2016+ | Audi | Q5 (FY) FYB | 2.0 TFSI quattro | Petrol · 185 kW · 2.0L · 4-cyl | All-Wheel Drive | Not for vehicle class M1G | 2, 8, 62 |
| 2016+ | Audi | Q5 (FY) FYB | 3.0 TDI quattro | Diesel · 210 kW · 3.0L · 6-cyl | All-Wheel Drive | Not for vehicle class M1G | 2, 8, 62 |
| 2016+ | Audi | Q5 (FY) FYB | 45 TDI quattro | Diesel · 170 kW · 3.0L · 6-cyl | All-Wheel Drive | Not for vehicle class M1G | 2, 8, 62 |
| 2016+ | Audi | Q5 (FY) FYB | 50 TDI Mild Hybrid quattro | Diesel/Electric · 210 kW · 3.0L · 6-cyl | All-Wheel Drive | Not for vehicle class M1G | 2, 8, 62 |
| 2016+ | Audi | Q5 (FY) FYB | 50 TDI quattro | Diesel · 210 kW · 3.0L · 6-cyl | All-Wheel Drive | Not for vehicle class M1G | 2, 8, 62 |
| 2016+ | Audi | Q5 (FY) FYB | SQ5 TDI Mild Hybrid quattro | Diesel/Electric · 251 kW · 3.0L · 6-cyl | All-Wheel Drive | Not for vehicle class M1G | 2, 8, 62 |
| 2016+ | Audi | Q5 (FY) FYB | SQ5 TDI Mild Hybrid quattro | Diesel/Electric · 255 kW · 3.0L · 6-cyl | All-Wheel Drive | Not for vehicle class M1G | 2, 8, 62 |
| 2016+ | Audi | Q5 (FY) FYB | SQ5 TFSI Mild Hybrid quattro | Petrol/Electric · 260 kW · 3.0L · 6-cyl | All-Wheel Drive | Not for vehicle class M1G | 2, 8, 62 |
| 2016+ | Audi | Q5 (FY) FYB | SQ5 TFSI quattro | Petrol · 260 kW · 3.0L · 6-cyl | All-Wheel Drive | Not for vehicle class M1G | 2, 8, 62 |
| 2020+ | Audi | Q5 Sportback (FYT) | 50 TDI Mild Hybrid quattro | Diesel/Electric · 210 kW · 3.0L · 6-cyl | All-Wheel Drive | Not for vehicle class M1G | 2, 8, 62 |
| 2020+ | Audi | Q5 Sportback (FYT) | SQ5 TDI Mild Hybrid quattro | Diesel/Electric · 251 kW · 3.0L · 6-cyl | All-Wheel Drive | Not for vehicle class M1G | 2, 8, 62 |
| 2020+ | Audi | Q5 Sportback (FYT) | SQ5 TFSI quattro | Petrol · 260 kW · 3.0L · 6-cyl | All-Wheel Drive | Not for vehicle class M1G | 2, 8, 62 |
| 2020+ | Audi | Q5 Sportback (FYT) | SQ5 TFSI quattro | Petrol/Electric · 260 kW · 3.0L · 6-cyl | All-Wheel Drive | Not for vehicle class M1G | 2, 8, 62 |
- Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
- Note 8: Not for vehicles with automatic self levelling control / air suspension.
- Note 62: Not for cars with electronic damping.
