KW Coilover Kit V3 for Lamborghini (140) Gallardo 5.2L / Gallardo Spyder 5.2L w/ HLS 2 Hydraulic Lift System

SKU: 35211206
Sale price$13,536.55 Regular price$14,249.00
Save $712.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

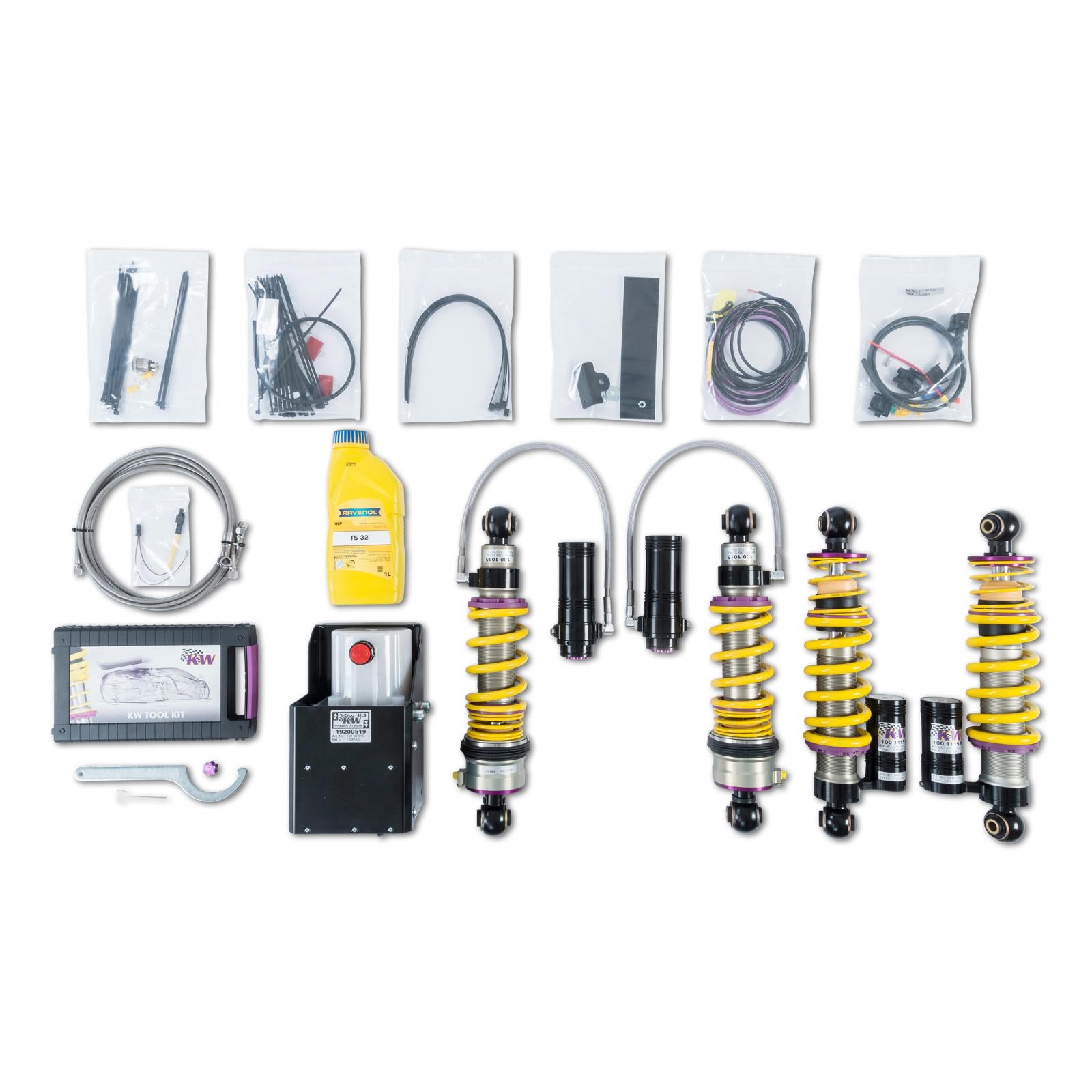

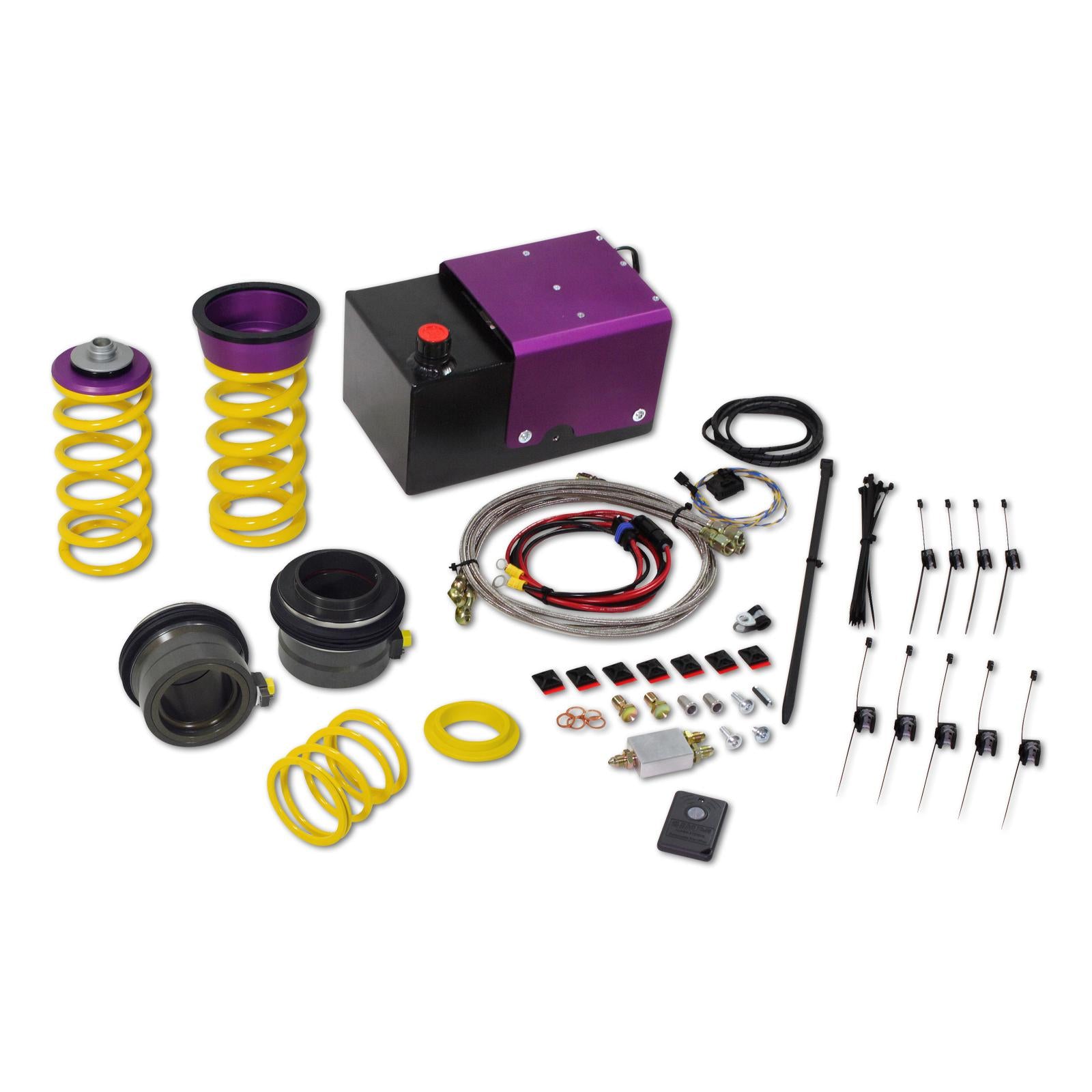

This kit combines a KW coilover suspension with KW's Hydraulic Lift System (HLS). At the push of a button the HLS raises the front axle (HLS 2) or both axles (HLS 4), depending on version, by up to 45 mm, helping the car clear speed humps, steep driveways and car park ramps without damage to splitters, underbody panels or the sump. Hydraulic lines and pump are matched to the vehicle. This kit is developed for the Lamborghini Gallardo 5.2 (140) / Gallardo Spyder 5.2 AWD.

Key Features

  • Hydraulic lift at the push of a button

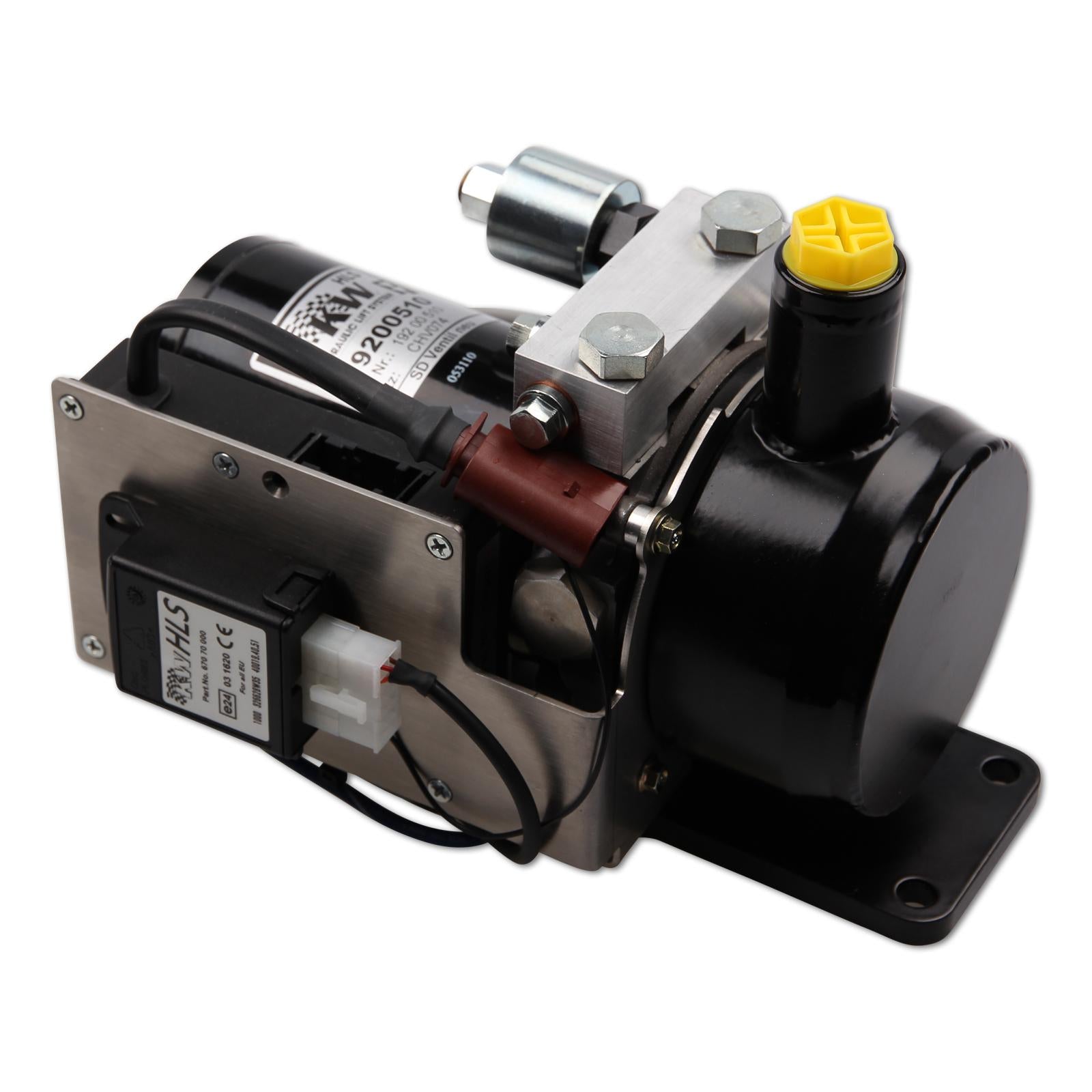

  • Vehicle-specific hydraulic lines and pump

Specifications

  • Version: HLS 2
  • Lift axle(s): Front axle
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 5–25 mm
  • Rear lowering: 5–30 mm
  • Front axle load: up to 1,000 kg
  • Rear axle load: up to 1,200 kg
  • Supplied as: Set (front + rear axle) with HLS 2
Note Only for cars with original Lift-System.

Front axle load up to 1,000 kg; Rear axle load up to 1,200 kg.

Only for cars with original Lift-System.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2005+LamborghiniGallardo Spyder (140)5.2 AWDPetrol · 419 kW · 5.2L · 10-cylAll-Wheel Drive1, 90
2003+LamborghiniGallardo (140)5.2 AWDPetrol · 419 kW · 5.2L · 10-cylAll-Wheel Drive1, 90
  • Note 1: Height adjustable on the front and rear axles (threaded strut housings).
  • Note 90: Aluminium suspensions struts.
