ST Coilover X Kit for VW (AD1) Tiguan / Skoda (NS) Kodiaq / (NU) Karoq / Seat Ateca

SKU: 132800BB
Sale price$1,630.30 Regular price$2,329.00
Save $698.70

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

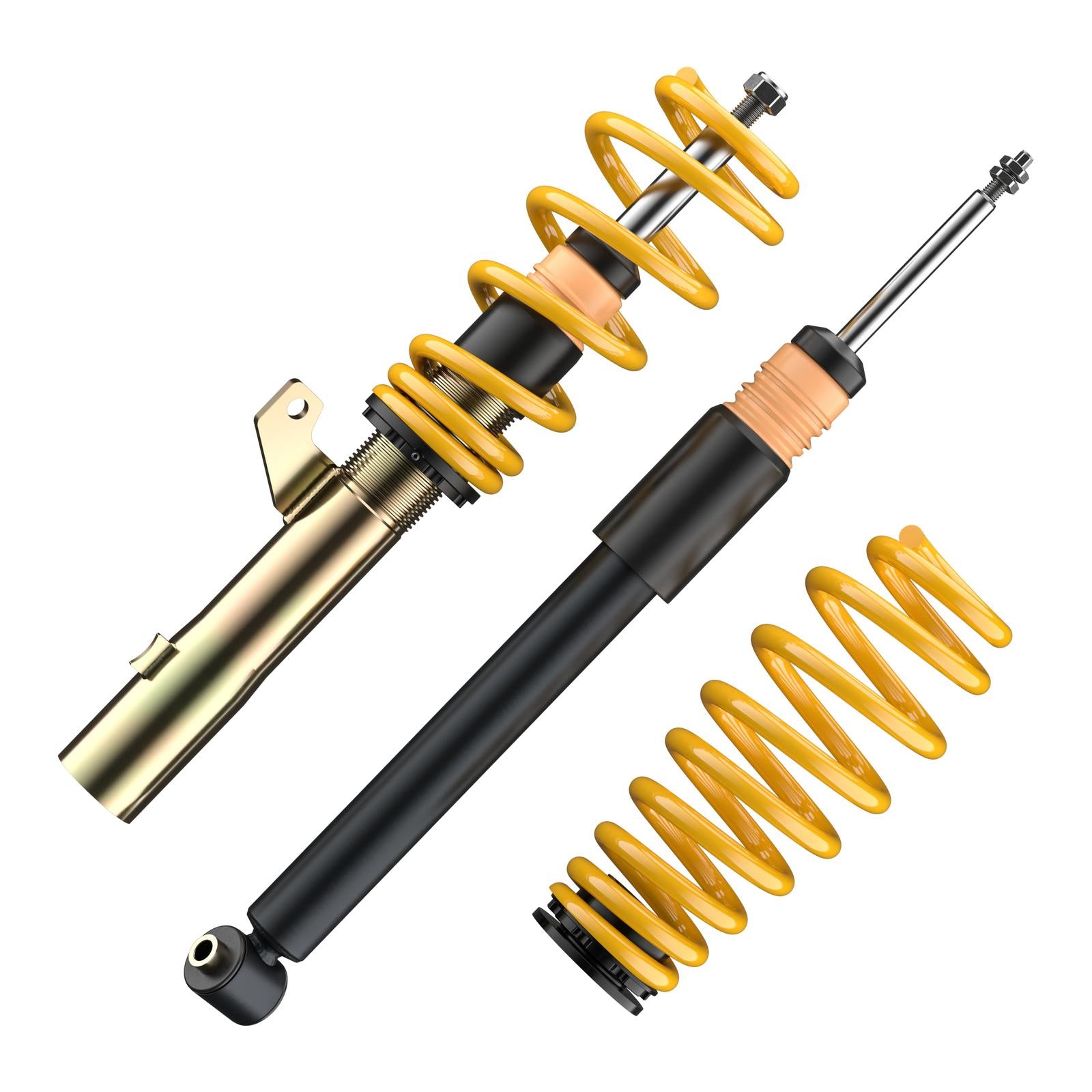

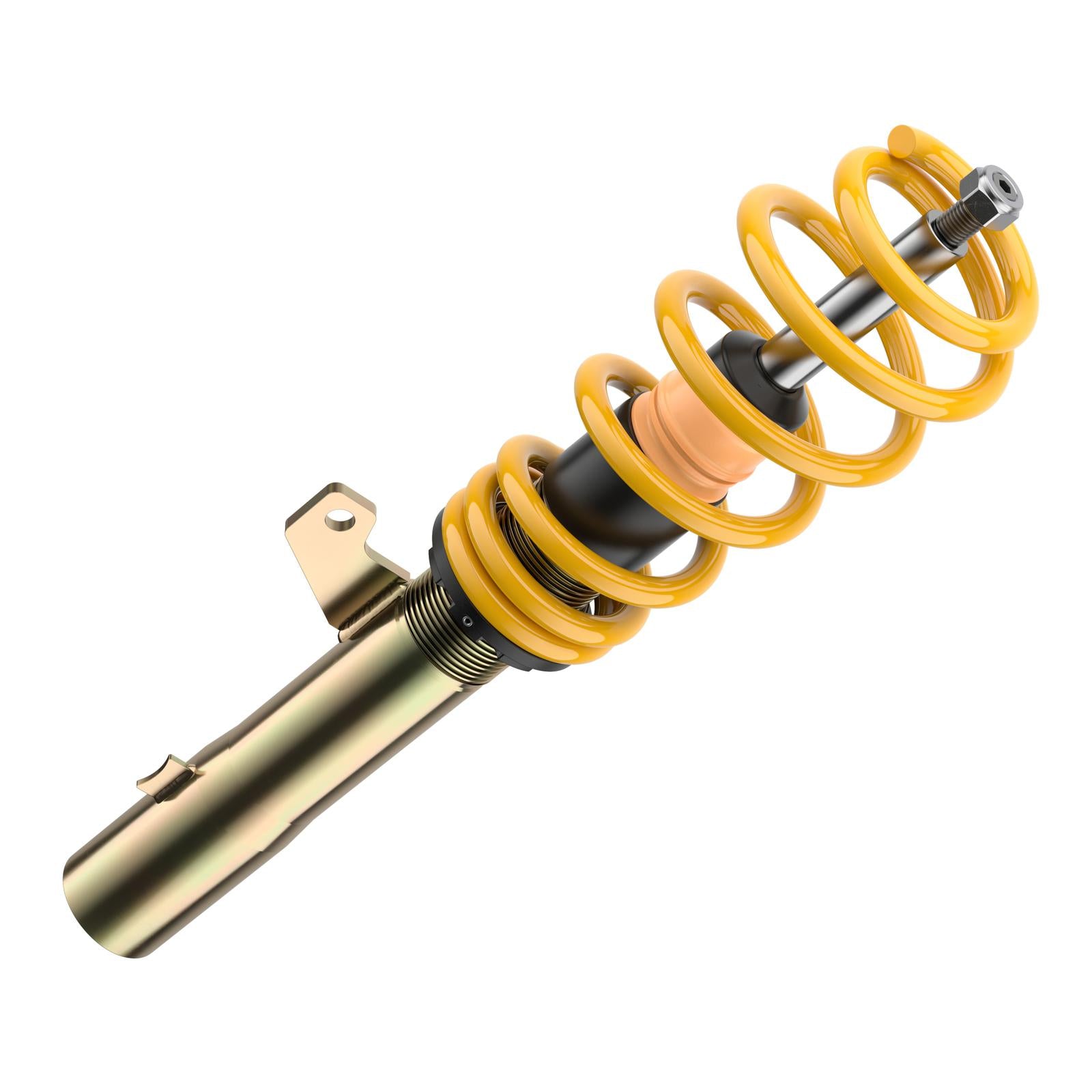

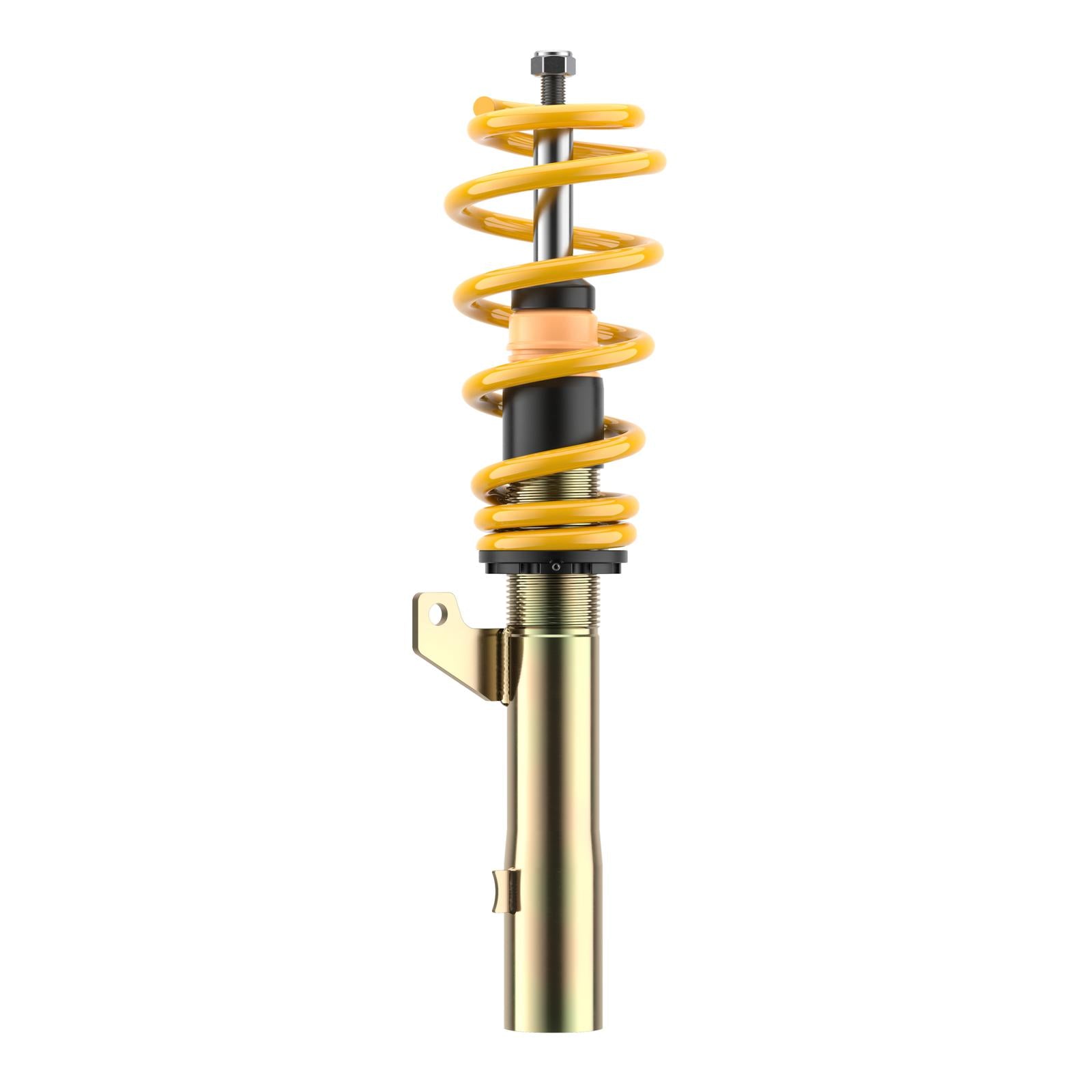

ST X coilovers give continuous ride height adjustment on galvanised, multi-sealed struts via a polyamide adjuster ring. Manufactured by KW Automotive, they use twin-tube dampers with a fixed, vehicle-specific setting, a low-friction pressure-resistant housing, chrome-plated piston rod and a monobloc guide with ST seal package to keep dirt out in all weather.

Key Features

  • Galvanised coilover struts
  • Fixed, vehicle-specific damping
  • Manufactured by KW Automotive

Specifications

  • Version: X
  • Damping: Fixed, vehicle-specific setting
  • Material: Galvanised steel
  • Front lowering: 35–55 mm
  • Rear lowering: 30–55 mm
  • Front axle load: 1,101–1,230 kg
  • Rear axle load: up to 1,400 kg
  • Front strut diameter (vehicle): 55 mm

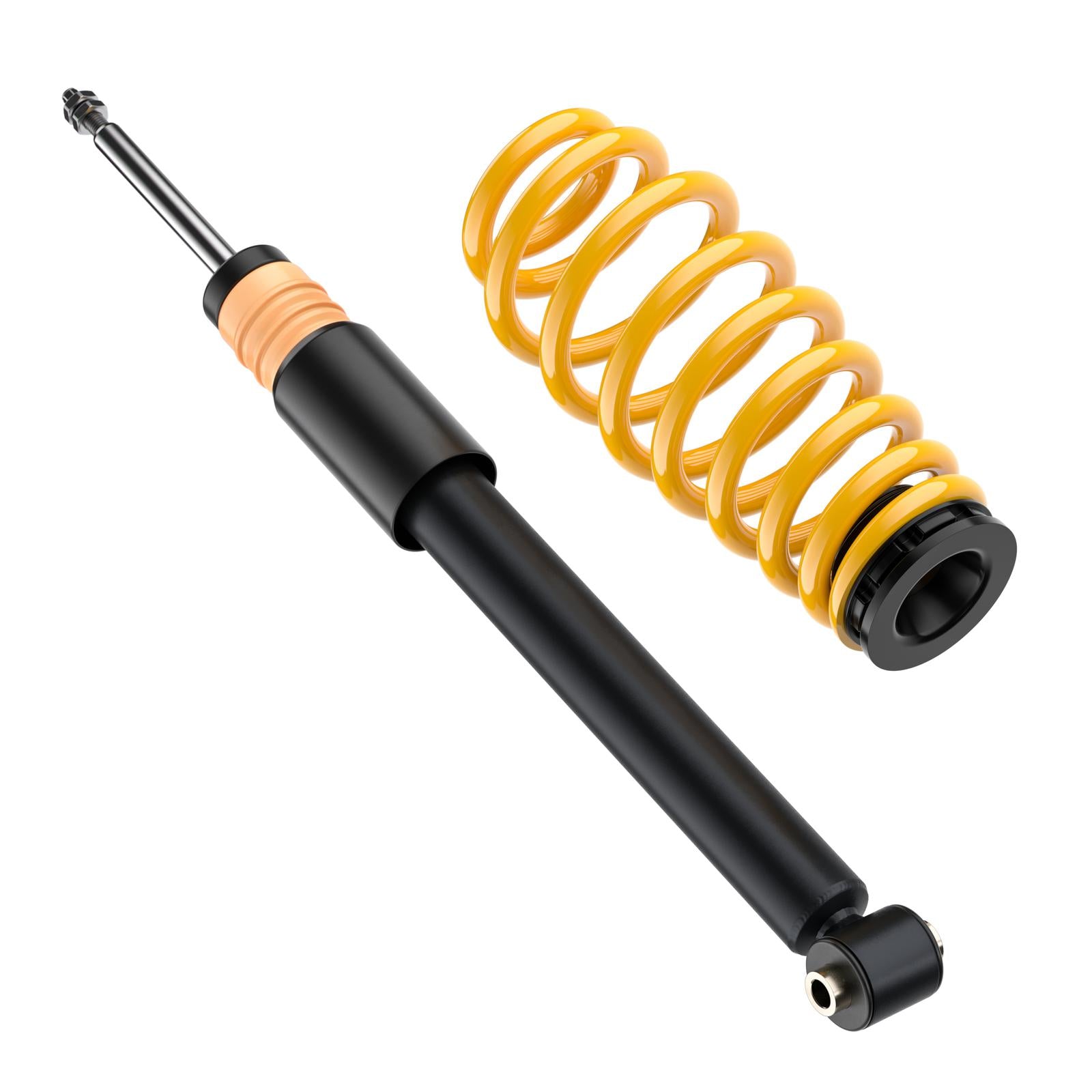

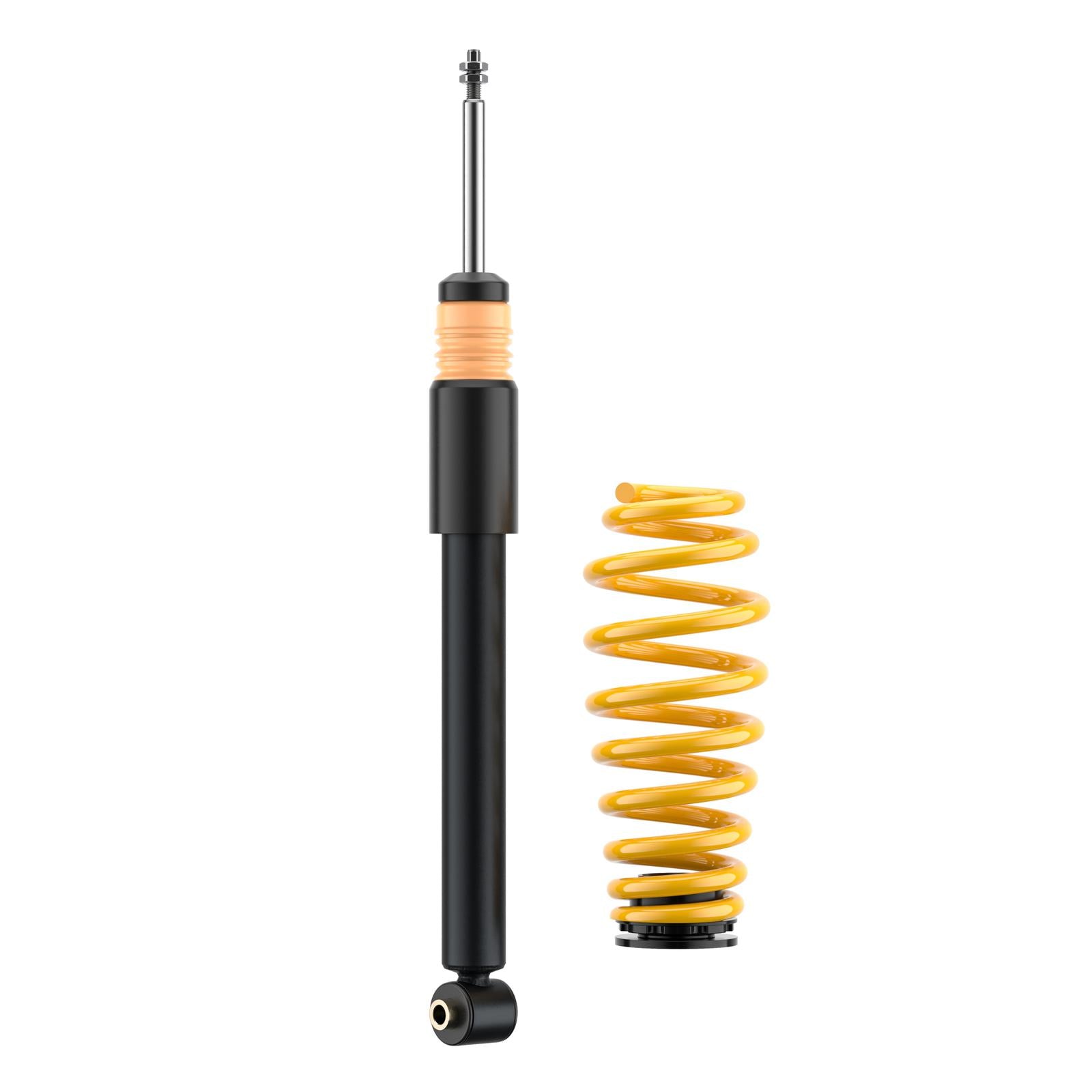

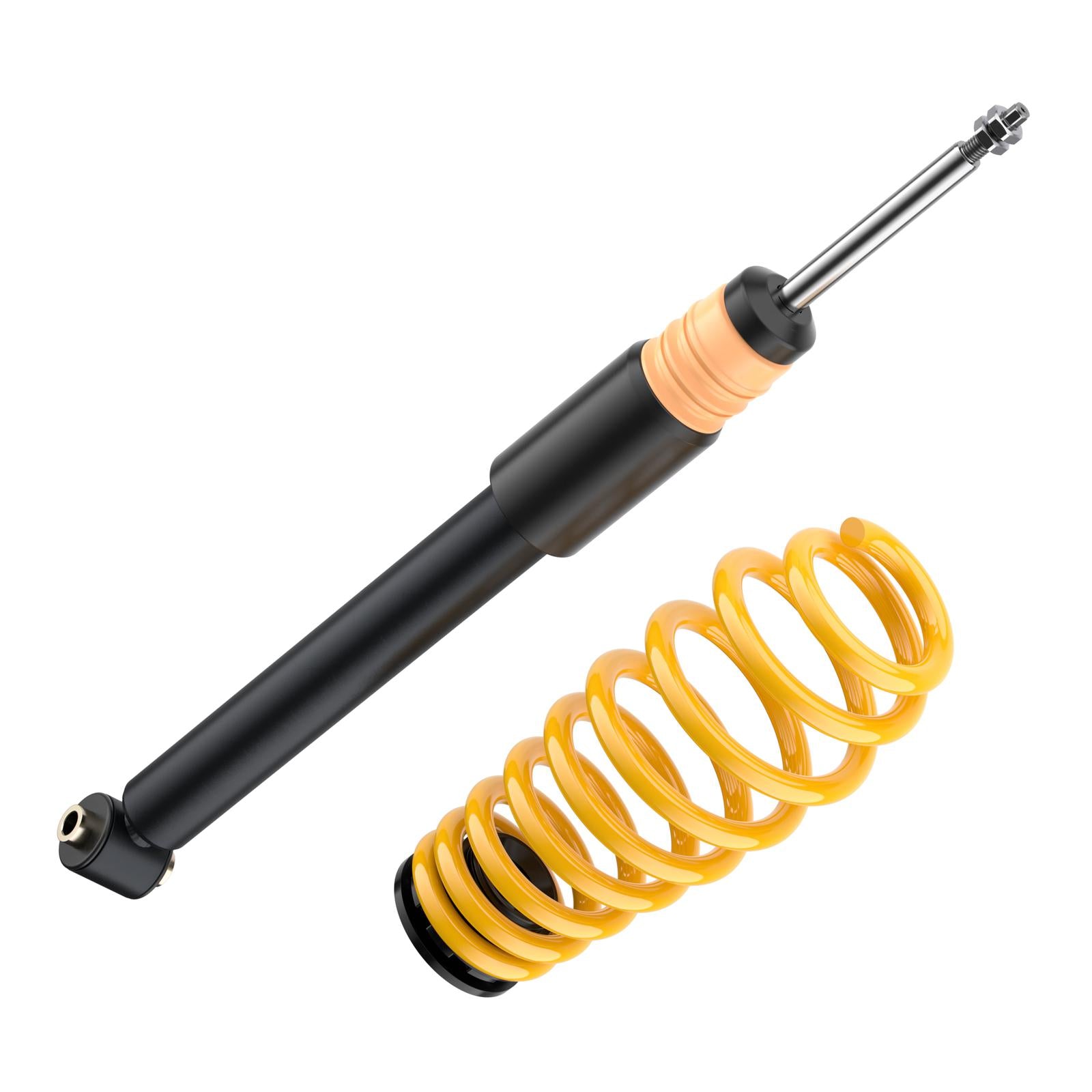

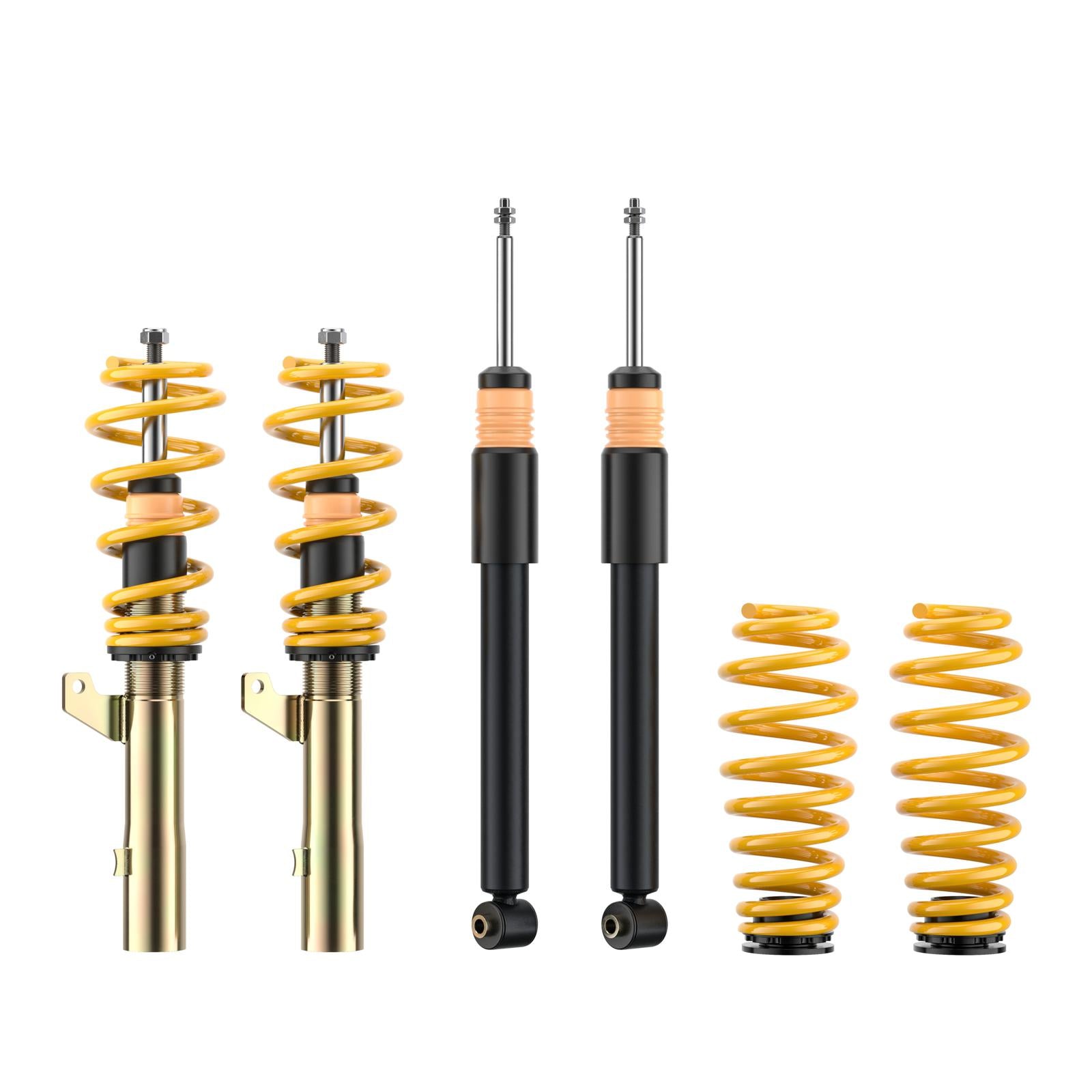

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load 1,101–1,230 kg; Rear axle load up to 1,400 kg.

References 71, 209, 261. See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2019+AudiQ3 Sportback (F3N)45 TFSI ePetrol/Electric · 180 kW · 1.4L · 4-cylFront-Wheel Drive71, 209, 261
2018+CupraAteca (KH7) 5FP2.0 TSI 4DrivePetrol · 140 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2016+SeatAteca (5FP, KH7)2.0 TDI 4DriveDiesel · 110 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2016+SeatAteca (5FP, KH7)2.0 TDI 4DriveDiesel · 140 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2016+SeatAteca (5FP, KH7)2.0 TSI 4DrivePetrol · 140 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2018–2024SeatTarraco (KN2)2.0 TDI 4DriveDiesel · 110 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2018–2024SeatTarraco (KN2)2.0 TDI 4DriveDiesel · 140 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2018–2024SeatTarraco (KN2)2.0 TDI 4DriveDiesel · 147 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2018–2024SeatTarraco (KN2)2.0 TFSI 4DrivePetrol · 180 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2018–2024SeatTarraco (KN2)2.0 TSI 4DrivePetrol · 140 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2017+SkodaKaroq (NU7, ND7)1.5 TSI 4x4Petrol · 110 kW · 1.5L · 4-cylAll-Wheel Drive71, 209, 261
2017+SkodaKaroq (NU7, ND7)2.0 TDI 4x4Diesel · 110 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2017+SkodaKaroq (NU7, ND7)2.0 TDI 4x4Diesel · 140 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2017+SkodaKaroq (NU7, ND7)2.0 TSI 4x4Petrol · 140 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2016+SkodaKodiaq I (NS6, NS7, NV7)1.5 TSI 4x4Petrol · 110 kW · 1.5L · 4-cylAll-Wheel Drive71, 209, 261
2016+SkodaKodiaq I (NS6, NS7, NV7)2.0 RS 4x4Petrol · 180 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2016+SkodaKodiaq I (NS6, NS7, NV7)2.0 RS Bi-TDI 4x4Diesel · 176 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2016+SkodaKodiaq I (NS6, NS7, NV7)2.0 TDI 4x4Diesel · 110 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2016+SkodaKodiaq I (NS6, NS7, NV7)2.0 TDI 4x4Diesel · 140 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2016+SkodaKodiaq I (NS6, NS7, NV7)2.0 TDI 4x4Diesel · 147 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2016+SkodaKodiaq I (NS6, NS7, NV7)2.0 TSI 4x4Petrol · 132 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2016+SkodaKodiaq I (NS6, NS7, NV7)2.0 TSI 4x4Petrol · 140 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2017+VWTiguan Allspace (BW2, 5N)2.0 TDI 4motionDiesel · 110 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2017+VWTiguan Allspace (BW2, 5N)2.0 TDI 4motionDiesel · 140 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2017+VWTiguan Allspace (BW2, 5N)2.0 TDI 4motionDiesel · 147 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2017+VWTiguan Allspace (BW2, 5N)2.0 TDI 4motionDiesel · 176 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2017+VWTiguan Allspace (BW2, 5N)2.0 TSI 4motionPetrol · 132 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2017+VWTiguan Allspace (BW2, 5N)2.0 TSI 4motionPetrol · 137 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2017+VWTiguan Allspace (BW2, 5N)2.0 TSI 4motionPetrol · 140 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2017+VWTiguan Allspace (BW2, 5N)2.0 TSI 4motionPetrol · 162 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2017+VWTiguan Allspace (BW2, 5N)2.0 TSI 4motionPetrol · 169 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2017+VWTiguan Allspace (BW2, 5N)2.0 TSI 4motionPetrol · 180 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2016–2024VWTiguan II (AD1, 5N)2.0 TDI 4motionDiesel · 105 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2016–2024VWTiguan II (AD1, 5N)2.0 TDI 4motionDiesel · 110 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2016–2024VWTiguan II (AD1, 5N)2.0 TDI 4motionDiesel · 130 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2016–2024VWTiguan II (AD1, 5N)2.0 TDI 4motionDiesel · 140 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2016–2024VWTiguan II (AD1, 5N)2.0 TDI 4motionDiesel · 147 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2016–2024VWTiguan II (AD1, 5N)2.0 TDI 4motionDiesel · 176 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2016–2024VWTiguan II (AD1, 5N)2.0 TSI 4motionPetrol · 132 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2016–2024VWTiguan II (AD1, 5N)2.0 TSI 4motionPetrol · 140 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2016–2024VWTiguan II (AD1, 5N)2.0 TSI 4motionPetrol · 162 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2016–2024VWTiguan II (AD1, 5N)2.0 TSI 4motionPetrol · 169 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2016–2024VWTiguan II (AD1, 5N)2.0 TSI 4motionPetrol · 180 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
2016–2024VWTiguan II (AD1, 5N)2.0 TSI R 4motionPetrol · 235 kW · 2.0L · 4-cylAll-Wheel Drive71, 209, 261
  • Note 71: Only for cars with a clamp diameter of 55 mm on the front axle.
  • Note 209: At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510342.
  • Note 261: Vehicles in car classification M1G / N1G (1.5 times the towing capacity of the permitted total mass of the towing vehicle) are reclassified to car classification M1 / N1 after lowering (towing capacity corresponds to the permitted total mass of the towing vehicle).
