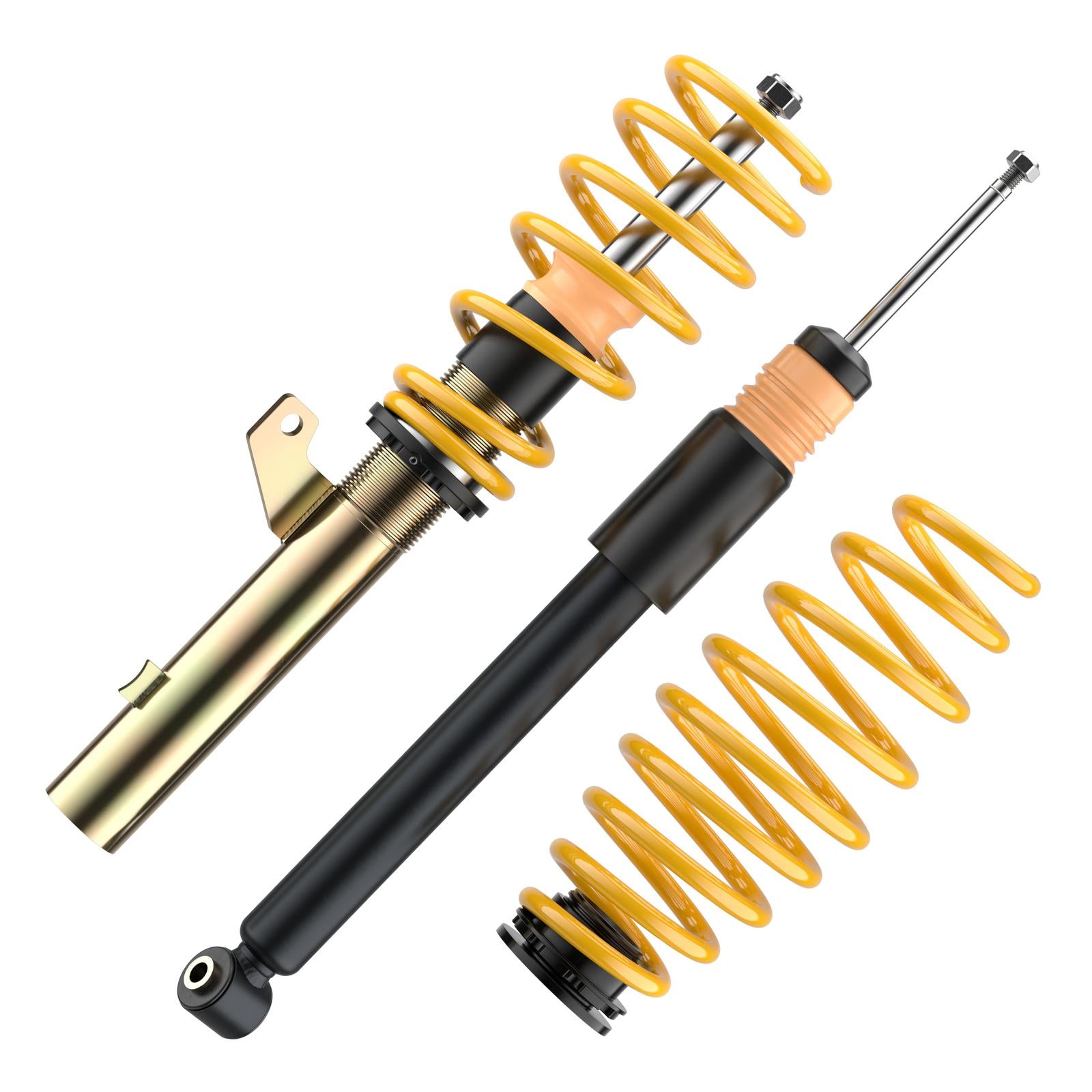

ST Coilover X Kit for Audi (8V) A3 2.0L TFSI / Seat (5F) Leon / Skoda (5E) Octavia
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

ST X coilovers give continuous ride height adjustment on galvanised, multi-sealed struts via a polyamide adjuster ring. Manufactured by KW Automotive, they use twin-tube dampers with a fixed, vehicle-specific setting, a low-friction pressure-resistant housing, chrome-plated piston rod and a monobloc guide with ST seal package to keep dirt out in all weather. This kit is developed for the Audi A3 2.0 TFSI (8V) / Seat Leon (5F) / Skoda Octavia (5E).
Key Features
- Galvanised coilover struts
- Fixed, vehicle-specific damping
- Manufactured by KW Automotive
Specifications
- Version: X
- Damping: Fixed, vehicle-specific setting
- Material: Galvanised steel
- Front lowering: 30–60 mm
- Rear lowering: 30–55 mm
- Front axle load: up to 1,080 kg
- Rear axle load: up to 1,050 kg
- Front strut diameter (vehicle): 55 mm

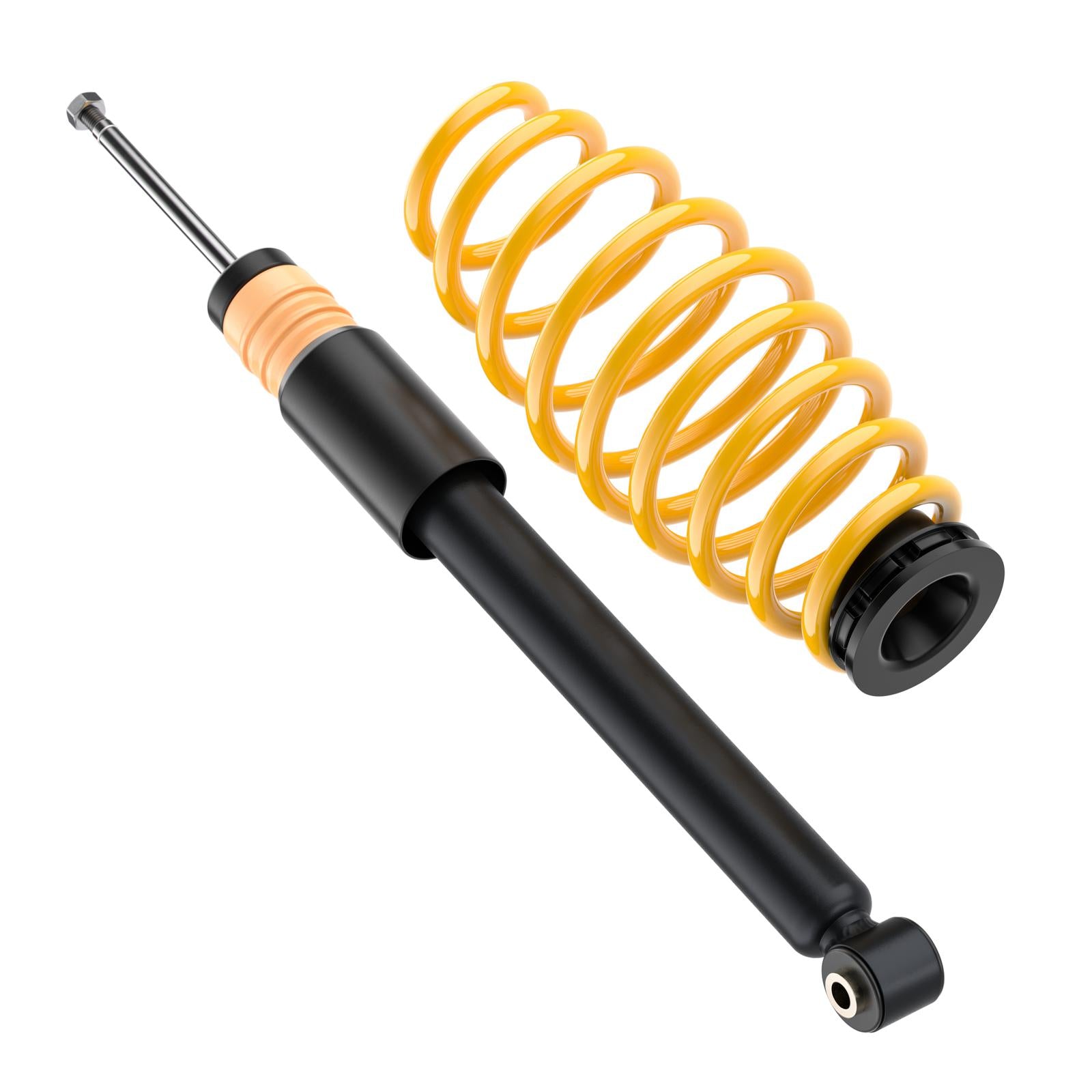

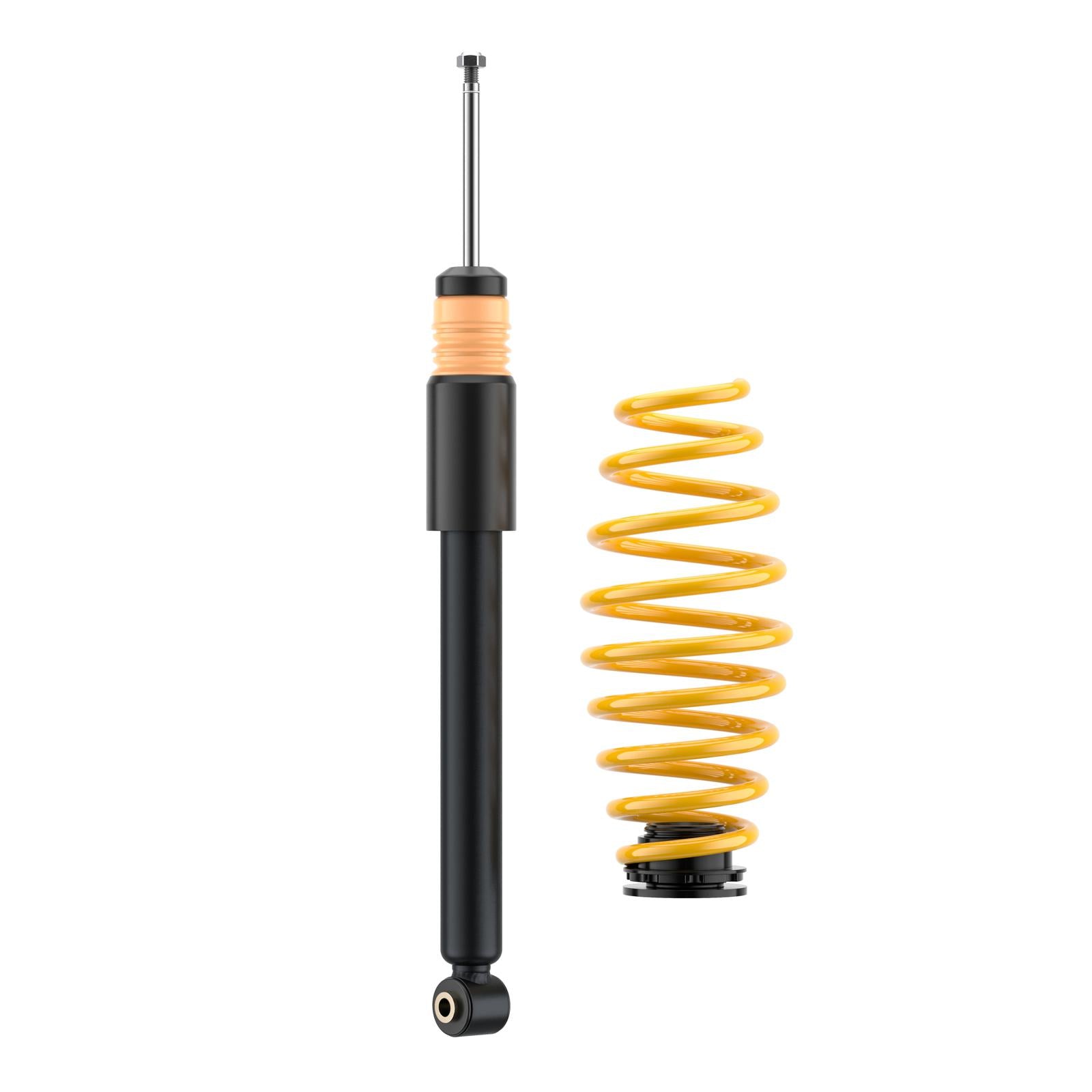

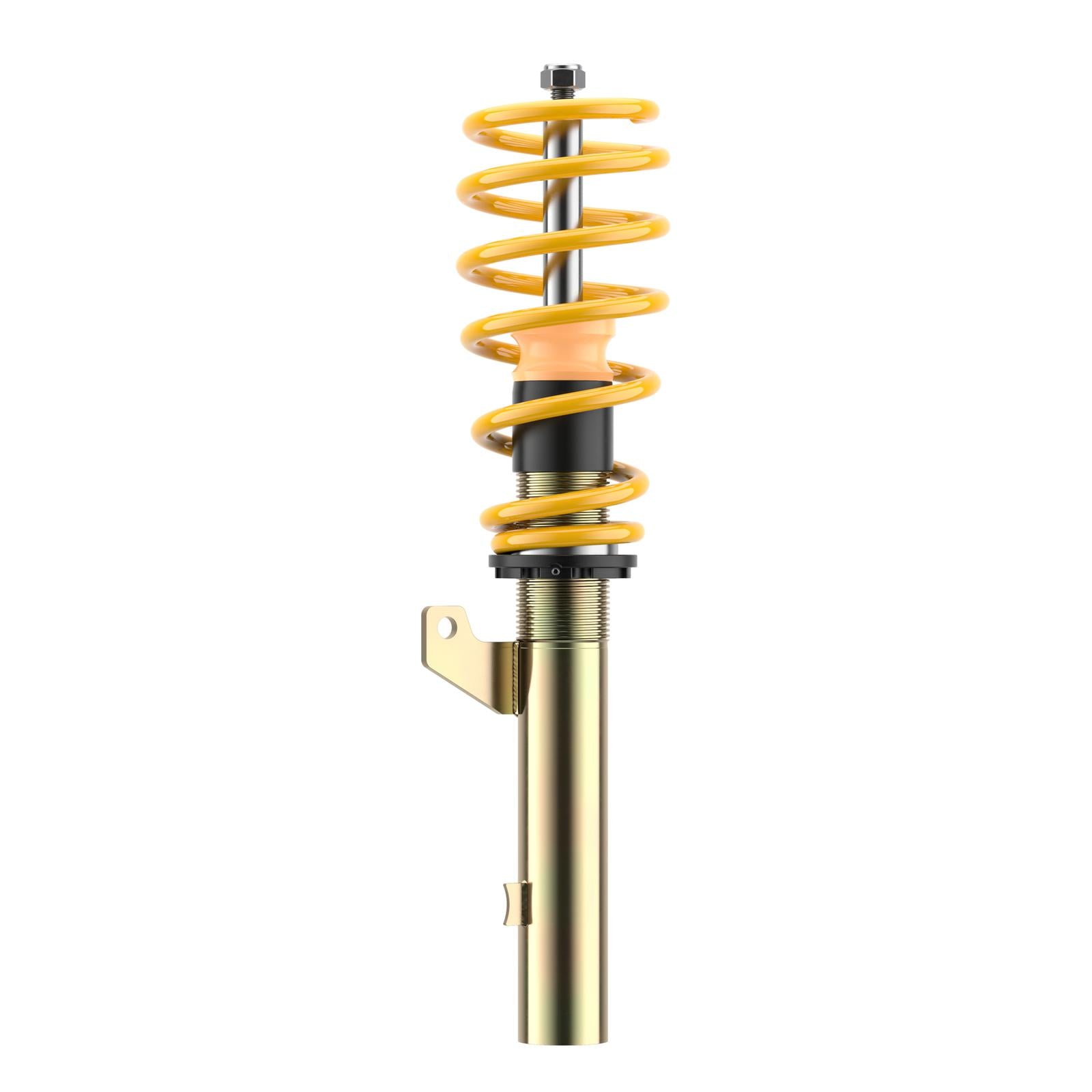

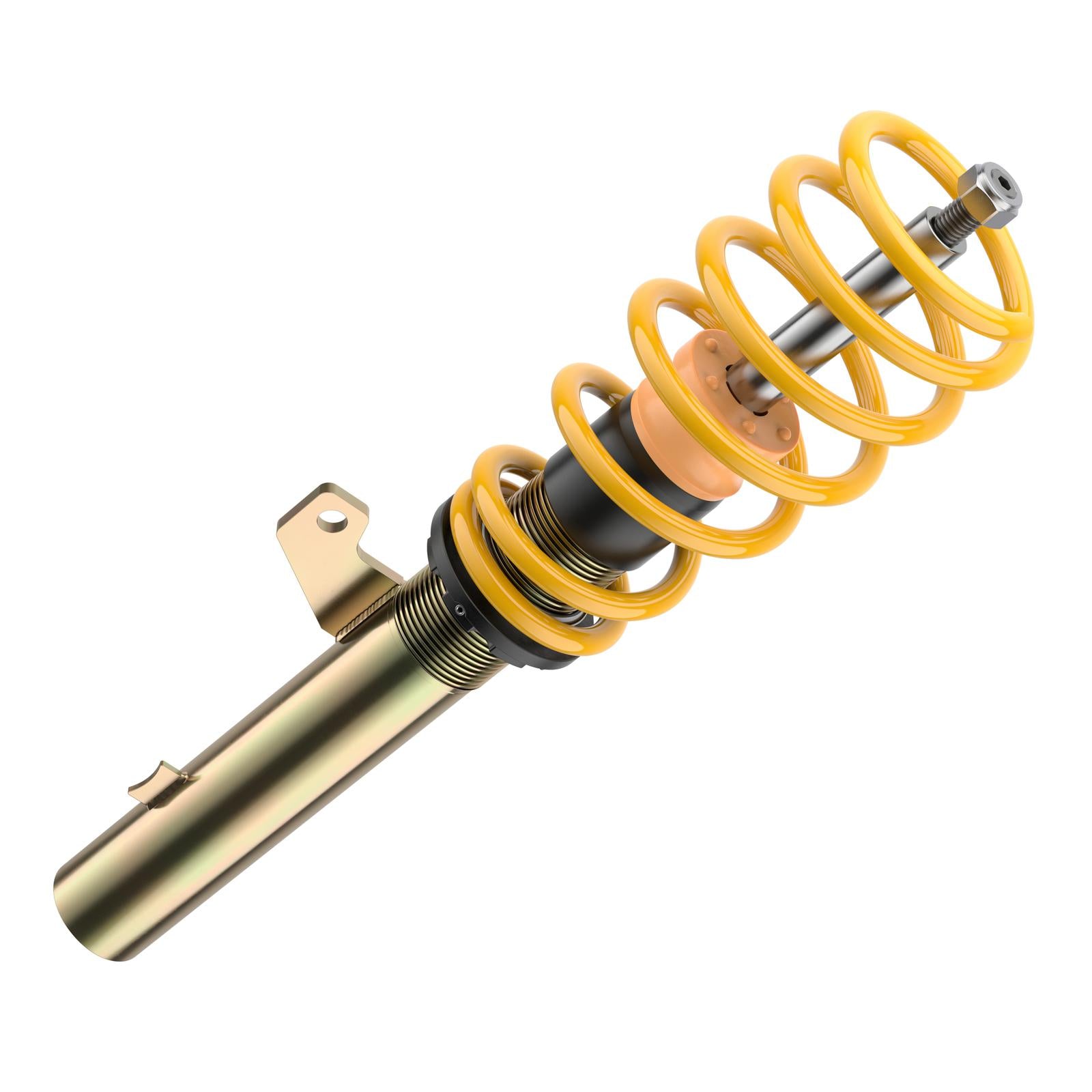

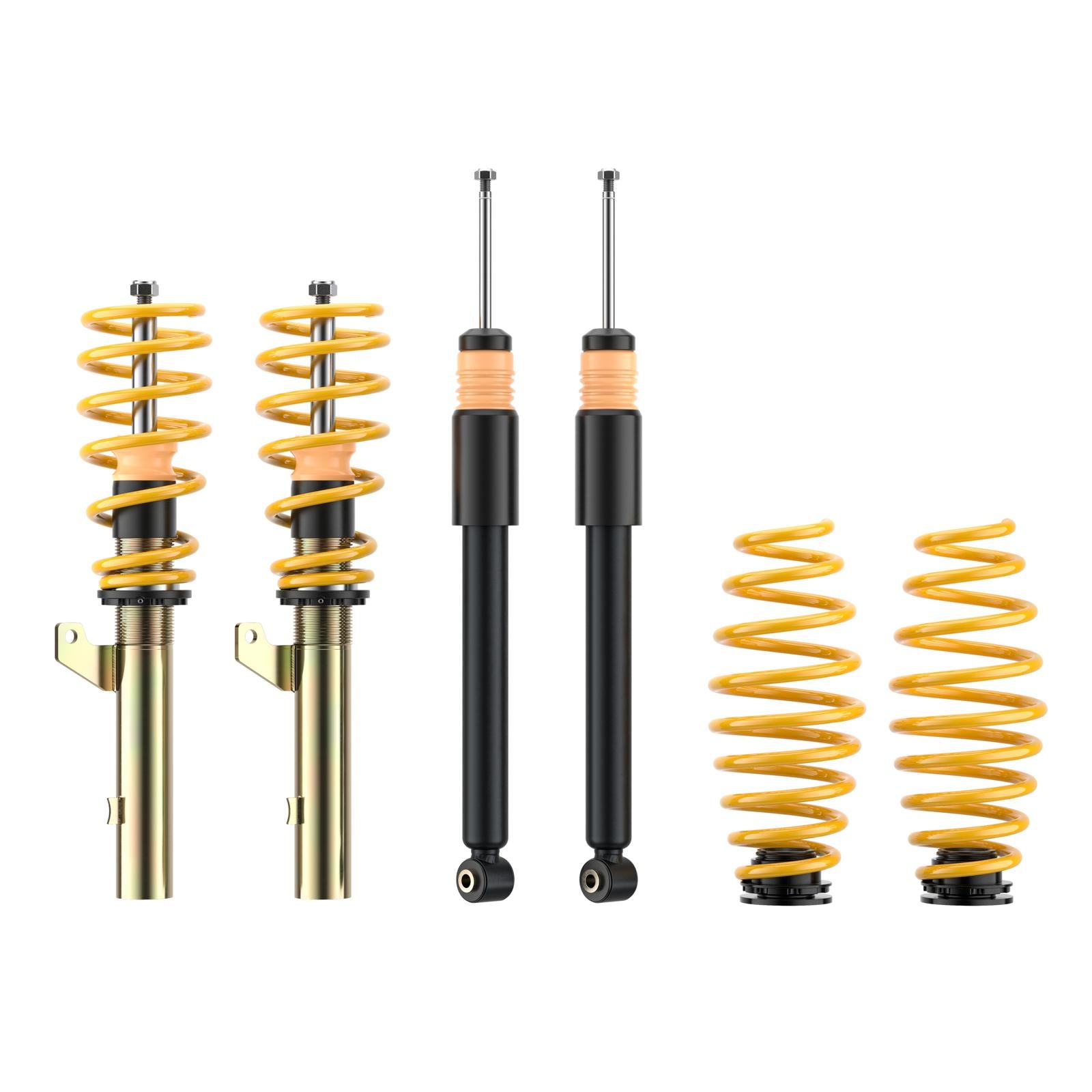

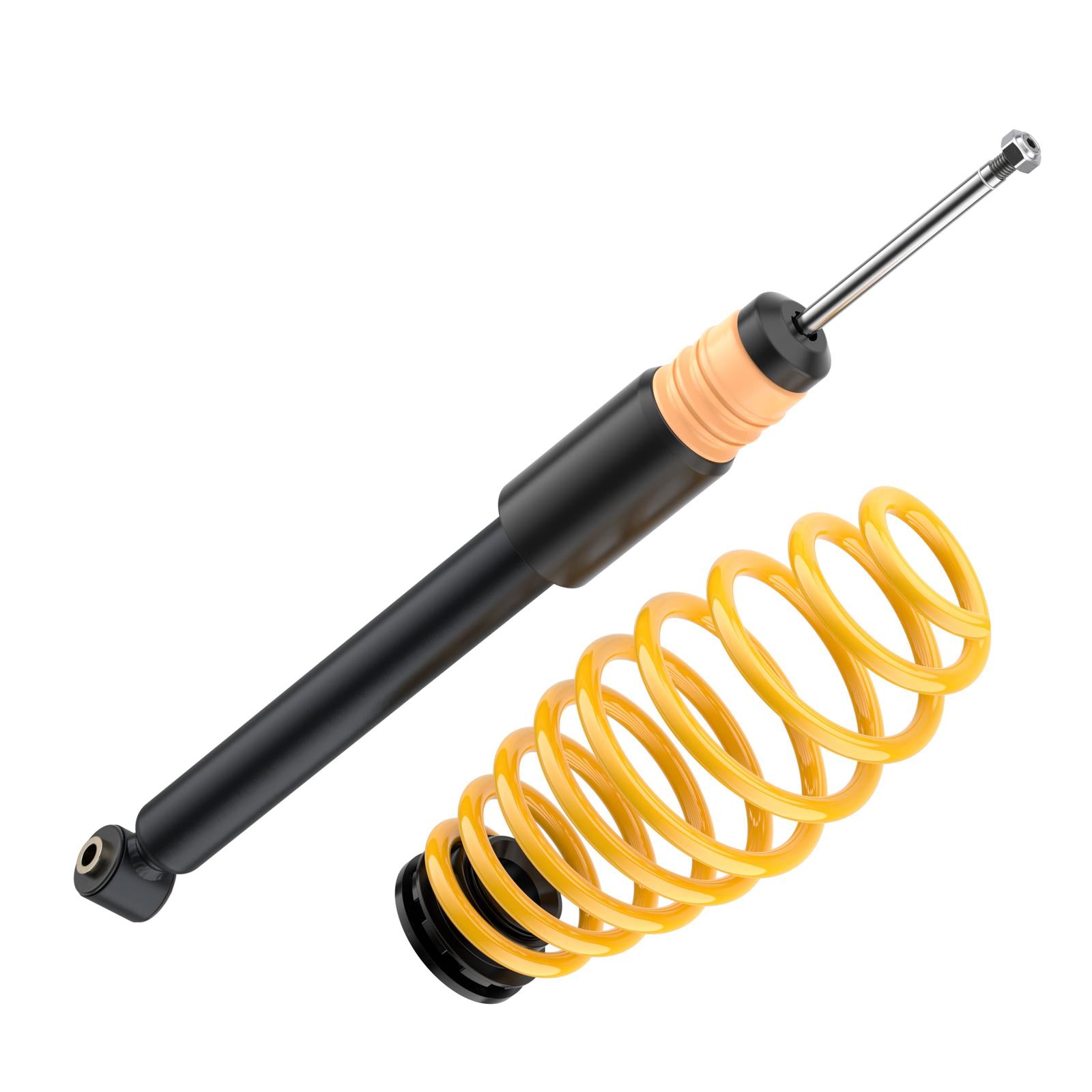

- Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Front axle load up to 1,080 kg; Rear axle load up to 1,050 kg.
References 71, 226. See the Disclaimer tab for reference notes.
| Year | Make | Model | Drive | Variants | Refs |
|---|---|---|---|---|---|
| 2012–2020 | Audi | A3 (8V) 8V1, 8VK | Front-Wheel Drive | 1.0 TFSI, 1.2 TFSI, 1.4 TFSI, 1.4 TSI, 1.5 TFSI, 1.6 TDI, 1.8 TFSI, 2.0 TDI, 2.0 TFSI | 71, 226 |
| 2013–2021 | Audi | A3 Saloon (8V) 8VS, 8VM | Front-Wheel Drive | 1.0 TFSI, 1.2 TFSI, 1.4 TFSI, 1.4 TSI, 1.5 TFSI, 1.6 TDI, 1.8 TFSI, 2.0 TDI, 2.0 TFSI, 30 TDI, 30 TFSI, 35 TDI, 35 TFSI, 40 TFSI | 71, 226 |
| 2012–2021 | Audi | A3 Sportback (8V) 8VA, 8VF | Front-Wheel Drive | 1.0 TFSI, 1.2 TFSI, 1.4 TFSI, 1.4 TSI, 1.5 TFSI, 1.6 TDI, 1.8 TFSI, 2.0 TDI, 2.0 TFSI, 30 TDI, 30 TFSI, 35 TDI, 35 TFSI, 40 TFSI | 71, 226 |
| 2012–2021 | Seat | Leon (5F1) | Front-Wheel Drive | 1.0 TSI, 1.0 TSi, 1.2 TSI, 1.4 TSI, 1.5 TSI, 1.6 TDI, 1.8 TSI, 2.0 TDI, 2.0 TSI | 71 |
| 2013–2018 | Seat | Leon SC (5F5) | Front-Wheel Drive | 1.0 TSI, 1.2 TSI, 1.4 TSI, 1.6 TDI, 1.8 TSI, 2.0 TDI | 71, 226 |
| 2012–2021 | Skoda | Octavia III (5E3, NL3, NR3) | Front-Wheel Drive | 1.0 TSI, 1.2 TSI, 1.4 TSI, 1.5 TSI, 1.6, 1.6 TDI, 1.8 TSI, 2.0 TDI, 2.0 TSI | 71, 226 |
| 2012–2020 | Skoda | Octavia III Combi (5E5, 5E6) | Front-Wheel Drive | 1.0 TSI, 1.2 TSI, 1.4 TSI, 1.5 TSI, 1.6 SRE, 1.6 TDI, 1.8 TSI, 2.0 TDI, 2.0 TSI | 71, 226 |
| 2012–2021 | VW | Golf VII (5G1, BQ1, BE1, BE2, AU) | Front-Wheel Drive | 1.0 TSI, 1.2 TSI, 1.4 TSI, 1.5 TSI, 1.6, 1.6 TDI, 1.8 TSI, 2.0 GTD, 2.0 TDI | 71, 226 |
- Note 71: Only for cars with a clamp diameter of 55 mm on the front axle.
- Note 209: At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510342.
- Note 226: At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510424.
