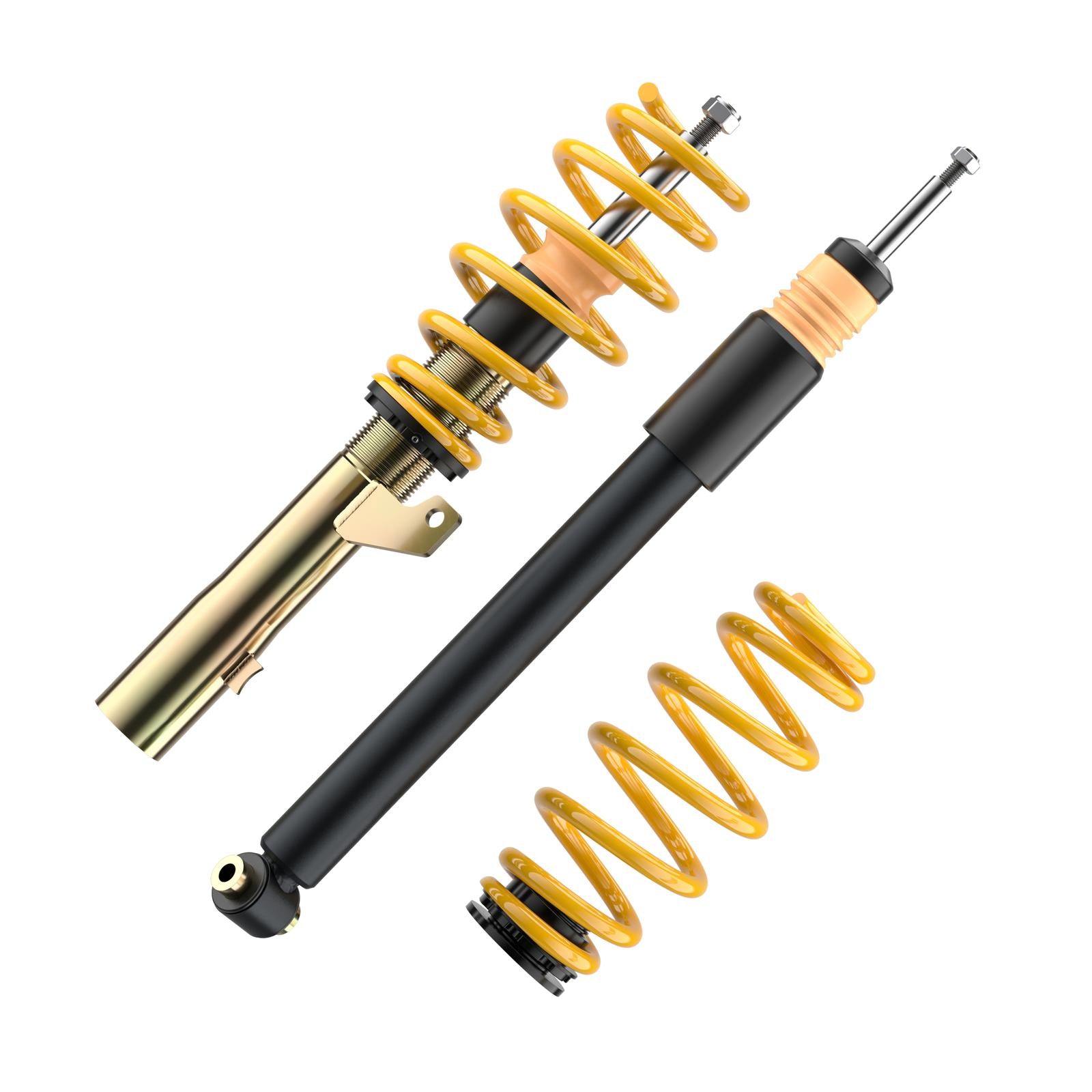

ST Coilover X Kit for Audi (GA) SQ2 / Q2 / VW (B8) Passat / Skoda (3V) Superb

SKU: 132800AF
Sale price$1,630.30 Regular price$2,329.00
Save $698.70

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


ST X coilovers give continuous ride height adjustment on galvanised, multi-sealed struts via a polyamide adjuster ring. Manufactured by KW Automotive, they use twin-tube dampers with a fixed, vehicle-specific setting, a low-friction pressure-resistant housing, chrome-plated piston rod and a monobloc guide with ST seal package to keep dirt out in all weather. This kit is developed for the Audi SQ2 / Q2 quattro (GA) / VW Passat (B8) / Superb (3V).

Key Features

  • Galvanised coilover struts
  • Fixed, vehicle-specific damping
  • Manufactured by KW Automotive

Specifications

  • Version: X
  • Damping: Fixed, vehicle-specific setting
  • Material: Galvanised steel
  • Front lowering: 30–55 mm
  • Rear lowering: 30–55 mm
  • Front axle load: 1,031–1,200 kg
  • Rear axle load: up to 1,250 kg
  • Front strut diameter (vehicle): 55 mm

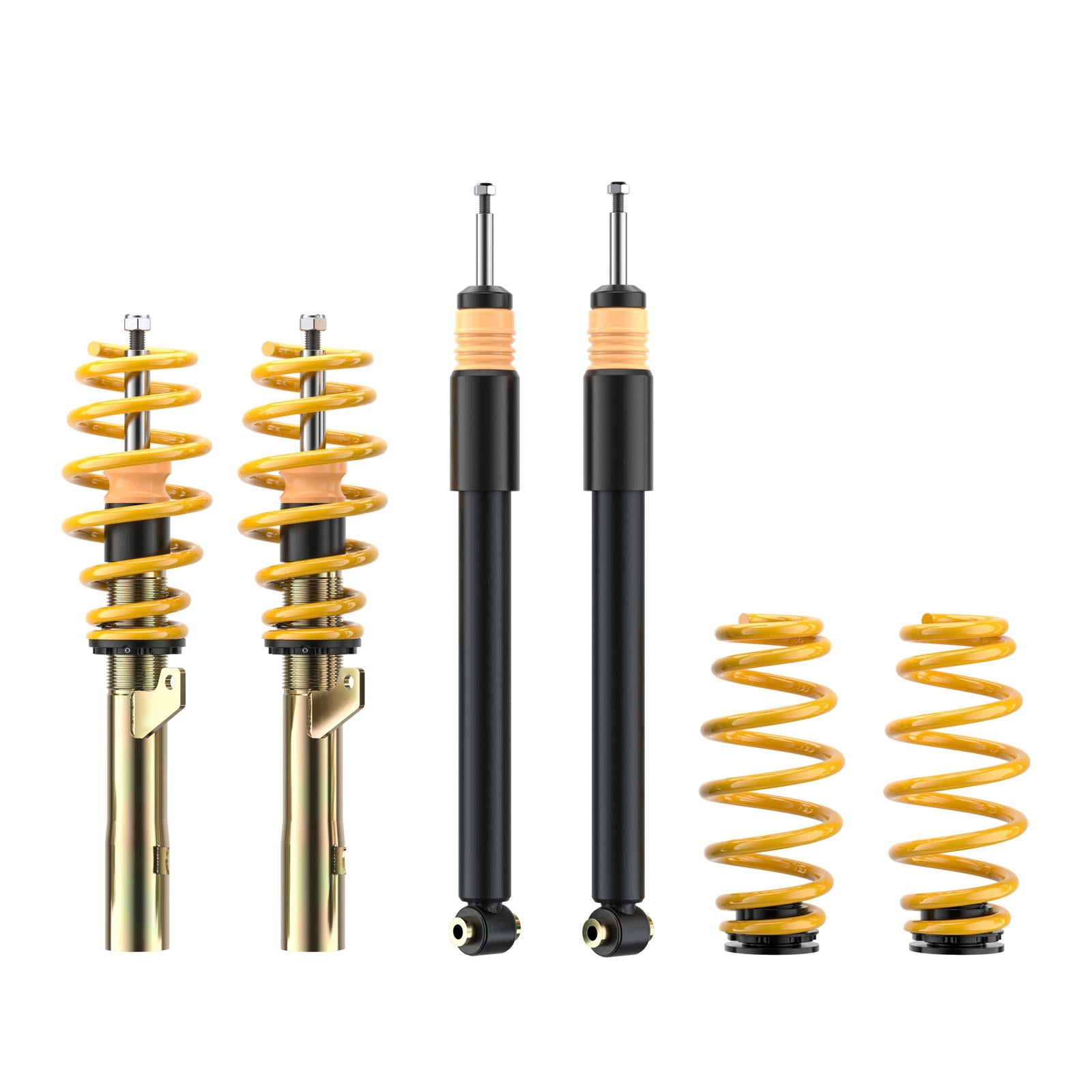

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load 1,031–1,200 kg; Rear axle load up to 1,250 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveNotesRefs
2016+AudiQ2 (GA) GAB2.0 TDI quattroDiesel · 110 kW · 2.0L · 4-cylAll-Wheel DriveFor cars without electronic damping71, 209
2016+AudiQ2 (GA) GAB2.0 TDI quattroDiesel · 140 kW · 2.0L · 4-cylAll-Wheel DriveFor cars without electronic damping71, 209
2016+AudiQ2 (GA) GAB2.0 TFSI quattroPetrol · 140 kW · 2.0L · 4-cylAll-Wheel DriveFor cars without electronic damping71, 209
2016+AudiQ2 (GA) GAB35 TDI quattroDiesel · 110 kW · 2.0L · 4-cylAll-Wheel DriveFor cars without electronic damping71, 209
2016+AudiQ2 (GA) GAB40 TFSI quattroPetrol · 140 kW · 2.0L · 4-cylAll-Wheel DriveFor cars without electronic damping71, 209
2016+AudiQ2 (GA) GABSQ2 TFSI quattroPetrol · 221 kW · 2.0L · 4-cylAll-Wheel DriveFor cars without electronic damping71, 209
2020+CupraLeon Sportstourer (KL8, KU8, KUD)2.0 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel DriveFor cars with multi-link rear axle (independent wheel suspension)71, 209
2020+CupraLeon Sportstourer (KL8, KU8, KUD)2.0 TSIPetrol · 140 kW · 2.0L · 4-cylFront-Wheel DriveFor cars with multi-link rear axle (independent wheel suspension)71, 209
2020+CupraLeon Sportstourer (KL8, KU8, KUD)2.0 TSIPetrol · 180 kW · 2.0L · 4-cylFront-Wheel DriveFor cars with multi-link rear axle (independent wheel suspension)71, 209
2020+CupraLeon Sportstourer (KL8, KU8, KUD)2.0 TSIPetrol · 221 kW · 2.0L · 4-cylFront-Wheel DriveFor cars with multi-link rear axle (independent wheel suspension)71, 209
2020+SeatLeon Sportstourer (KL8, KLD)2.0 TDIDiesel · 85 kW · 2.0L · 4-cylFront-Wheel DriveFor cars with multi-link rear axle (independent wheel suspension)71, 209
2020+SeatLeon Sportstourer (KL8, KLD)2.0 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel DriveFor cars with multi-link rear axle (independent wheel suspension)71, 209
2020+SeatLeon Sportstourer (KL8, KLD)2.0 TFSIPetrol · 140 kW · 2.0L · 4-cylFront-Wheel DriveFor cars with multi-link rear axle (independent wheel suspension)71, 209
2015–2024SkodaSuperb III (3V3, 3T)1.4 TSIPetrol · 92 kW · 1.4L · 4-cylFront-Wheel Drive71, 209
2015–2024SkodaSuperb III (3V3, 3T)1.6 TDIDiesel · 88 kW · 1.6L · 4-cylFront-Wheel Drive71, 209
2015–2024SkodaSuperb III (3V3, 3T)1.8 TSIPetrol · 132 kW · 1.8L · 4-cylFront-Wheel Drive71, 209
2015–2024SkodaSuperb III (3V3, 3T)2.0 TDIDiesel · 90 kW · 2.0L · 4-cylFront-Wheel Drive71, 209
2015–2024SkodaSuperb III (3V3, 3T)2.0 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel Drive71, 209
2015–2024SkodaSuperb III (3V3, 3T)2.0 TDIDiesel · 130 kW · 2.0L · 4-cylFront-Wheel Drive71, 209
2015–2024SkodaSuperb III (3V3, 3T)2.0 TDIDiesel · 140 kW · 2.0L · 4-cylFront-Wheel Drive71, 209
2015–2024SkodaSuperb III (3V3, 3T)2.0 TDIDiesel · 147 kW · 2.0L · 4-cylFront-Wheel Drive71, 209
2015–2024SkodaSuperb III (3V3, 3T)2.0 TFSIPetrol · 162 kW · 2.0L · 4-cylFront-Wheel Drive71, 209
2015–2024SkodaSuperb III (3V3, 3T)2.0 TSIPetrol · 140 kW · 2.0L · 4-cylFront-Wheel Drive71, 209
2014+VWPassat 3G2 (3C)1.6 TDIDiesel · 88 kW · 1.6L · 4-cylFront-Wheel Drive71, 209
2014+VWPassat 3G2 (3C)1.8 TSIPetrol · 132 kW · 1.8L · 4-cylFront-Wheel Drive71, 209
2014+VWPassat 3G2 (3C)2.0 TDIDiesel · 81 kW · 2.0L · 4-cylFront-Wheel Drive71, 209
2014+VWPassat 3G2 (3C)2.0 TDIDiesel · 90 kW · 2.0L · 4-cylFront-Wheel Drive71, 209
2014+VWPassat 3G2 (3C)2.0 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel Drive71, 209
2014+VWPassat 3G2 (3C)2.0 TDIDiesel · 130 kW · 2.0L · 4-cylFront-Wheel Drive71, 209
2014+VWPassat 3G2 (3C)2.0 TDIDiesel · 135 kW · 2.0L · 4-cylFront-Wheel Drive71, 209
2014+VWPassat 3G2 (3C)2.0 TDIDiesel · 140 kW · 2.0L · 4-cylFront-Wheel Drive71, 209
2014+VWPassat 3G2 (3C)2.0 TDIDiesel · 147 kW · 2.0L · 4-cylFront-Wheel Drive71, 209
2014+VWPassat 3G2 (3C)2.0 TSIPetrol · 140 kW · 2.0L · 4-cylFront-Wheel Drive71, 209
2014+VWPassat 3G2 (3C)2.0 TSIPetrol · 162 kW · 2.0L · 4-cylFront-Wheel Drive71, 209
  • Note 71: Only for cars with a clamp diameter of 55 mm on the front axle.
  • Note 209: At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510342.
