ST Coilover X Kit for VW (B8) Passat 1.4L / Skoda (3V) Superb

SKU: 132800AP
Sale price$1,630.30 Regular price$2,329.00
Save $698.70

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


ST X coilovers give continuous ride height adjustment on galvanised, multi-sealed struts via a polyamide adjuster ring. Manufactured by KW Automotive, they use twin-tube dampers with a fixed, vehicle-specific setting, a low-friction pressure-resistant housing, chrome-plated piston rod and a monobloc guide with ST seal package to keep dirt out in all weather. This kit is developed for the VW Passat 1.4 4Motion (B8) / Skoda Superb (3V).

Key Features

  • Galvanised coilover struts
  • Fixed, vehicle-specific damping
  • Manufactured by KW Automotive

Specifications

  • Version: X
  • Damping: Fixed, vehicle-specific setting
  • Material: Galvanised steel
  • Front lowering: 35–60 mm
  • Rear lowering: 35–60 mm
  • Front axle load: up to 1,030 kg
  • Rear axle load: up to 1,250 kg
  • Front strut diameter (vehicle): 55 mm

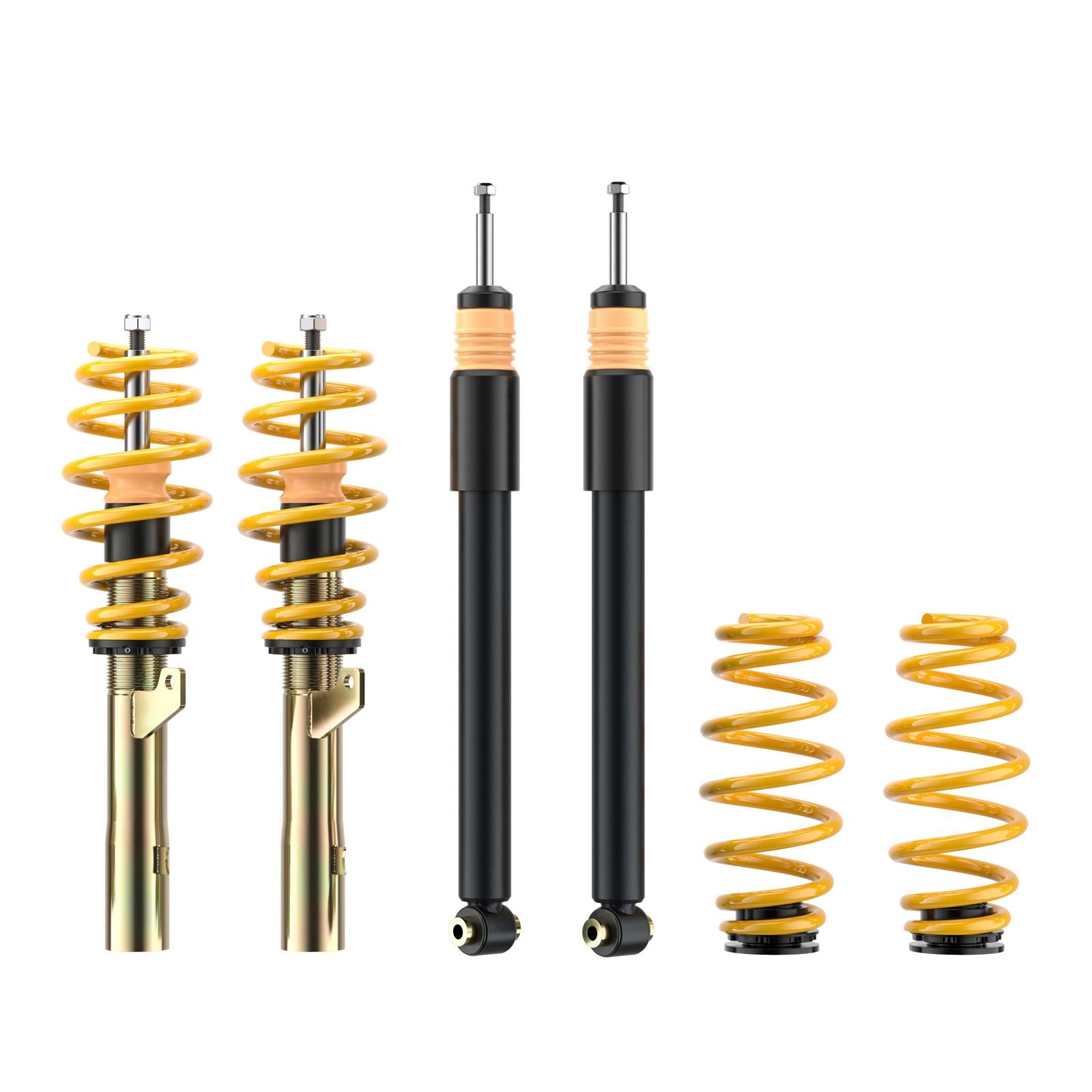

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 1,030 kg; Rear axle load up to 1,250 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2014+VWPassat Estate 3G5 (3C)1.4 TSIPetrol · 110 kW · 1.4L · 4-cylFront-Wheel Drive11, 71, 209
2014+VWPassat Estate 3G5 (3C)1.4 TSIPetrol · 92 kW · 1.4L · 4-cylFront-Wheel Drive11, 71, 209
2014+VWPassat Estate 3G5 (3C)1.6 TDIDiesel · 88 kW · 1.6L · 4-cylFront-Wheel Drive11, 71, 209
2014+VWPassat 3G2 (3C)1.4 TSI 4motionPetrol · 110 kW · 1.4L · 4-cylAll-Wheel Drive71, 209
2014+VWPassat Estate 3G5 (3C)1.8 TSIPetrol · 132 kW · 1.8L · 4-cylFront-Wheel Drive11, 71, 209
2014+VWPassat Estate 3G5 (3C)2.0 TSIPetrol · 162 kW · 2.0L · 4-cylFront-Wheel Drive11, 71, 209
2015–2024SkodaSuperb III Estate (3V5, 3T)1.4 TSIPetrol · 92 kW · 1.4L · 4-cylFront-Wheel Drive71, 209
2015–2024SkodaSuperb III Estate (3V5, 3T)1.4 TSIPetrol · 110 kW · 1.4L · 4-cylFront-Wheel Drive71, 209
2015–2024SkodaSuperb III Estate (3V5, 3T)1.6 TDIDiesel · 88 kW · 1.6L · 4-cylFront-Wheel Drive71, 209
2015–2024SkodaSuperb III (3V3, 3T)1.4 TSI 4x4Petrol · 110 kW · 1.4L · 4-cylAll-Wheel Drive71, 209
2015–2024SkodaSuperb III Estate (3V5, 3T)1.8 TSIPetrol · 132 kW · 1.8L · 4-cylFront-Wheel Drive71, 209
2014+VWPassat Estate 3G5 (3C)2.0 TDIDiesel · 135 kW · 2.0L · 4-cylFront-Wheel Drive11, 71, 209
2015–2024SkodaSuperb III Estate (3V5, 3T)1.5 TSiPetrol · 110 kW · 1.5L · 4-cylFront-Wheel Drive71, 209
2014+VWPassat Estate 3G5 (3C)1.5 TSIPetrol · 110 kW · 1.5L · 4-cylFront-Wheel Drive11, 71, 209
2014+VWPassat Estate 3G5 (3C)2.0 TDIDiesel · 81 kW · 2.0L · 4-cylFront-Wheel Drive11, 71, 209
  • Note 11: Excluding models with automatic level control, or automatic level system can be adjusted.
  • Note 71: Only for cars with a clamp diameter of 55 mm on the front axle.
  • Note 209: At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510342.
