ST Coilovers ST X galvanized steel (with fixed damping) HONDA CIVIC MK IV Hatchback (EC, ED, EE) 09/1987-10/1993

SKU: 13250001
Sale price$2,049.00

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


Description

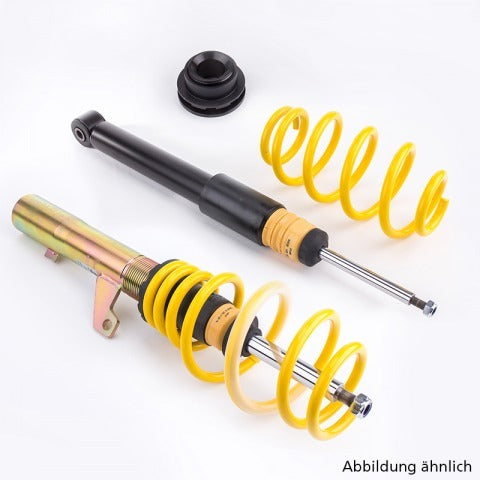

Coilovers ST X galvanized steel (with fixed damping)

Need to get low? ST coilovers feature a continuous thread construction for height adjustment from moderate to eXtreme! Each coilover is manufactured by KW Automotive and their expertise and know how ensures maximum quality and fantastic driving dynamics.

Once installed, the ST X coilover can be easily adjusted using a polyamide ring on the galvanized, multiple-sealed strut. Adjustment is different for each car, but typically you can expect between 35 and 65mm of lowering on both the front and rear axles. For lowered cars as standard (such as the BMW E9x 3-series) the ST X coilover features a range of 30 to 60mm (front axle) and 25-55mm (rear axle).


Improved driving dynamics and handling
Designed in conjunction with KW Germany, ST X coilovers deliver a sporty handling by reducing the carÕs bodyroll during compression as well as improving agility when driving fast. The high-quality production of each ST X coilover includes a low-friction and pressure resistant housing alongside a chrome-plated piston rod for maximum longevity. A mono block guide and ST seal package ensures the twin-tube dampers remain free of dirt particles in all weather conditions.

Lowering with St\Tyle: the ST X coilovers
- Individual lowering within the tested adjustment range
- Front and rear axle thread adjustment (when possible)
- Galvanized coilover struts with additional coating for optimized corrosion protection
- Complete solution with adjustable spring plate, spring system and bumpers with dust protection
- Powerful twin-tube dampers with high-quality components for maximum longevity


Product Disclaimers:

  • Note 77: Rear shock absorbers with fork-mounting
  • Note 112: Because of the construction of the car the damping adjustment can only made when the damper is not mounted. By modifying the interior trim this problem can be avoided

Fitments

Make Model Type Body Type Aspiration KW CCM Cyl Drivetrain
HONDA CIVIC MK IV Hatchback (EC, ED, EE) 09/1987-10/1993 1.3 (EC8) Hatchback Petrol 55 1343 4 Front Wheel Drive
HONDA CIVIC MK IV Hatchback (EC, ED, EE) 09/1987-10/1993 1.3 16V Cat (EC8) Hatchback Petrol 55 1343 4 Front Wheel Drive
HONDA CIVIC MK IV Hatchback (EC, ED, EE) 09/1987-10/1993 1.4 L (EC9) Hatchback Petrol 66 1396 4 Front Wheel Drive
HONDA CIVIC MK IV Hatchback (EC, ED, EE) 09/1987-10/1993 1.5 Hatchback Petrol 60 1493 4 Front Wheel Drive
HONDA CIVIC MK IV Hatchback (EC, ED, EE) 09/1987-10/1993 1.5 i 16V Hatchback Petrol 52 1493 4 Front Wheel Drive
HONDA CIVIC MK IV Hatchback (EC, ED, EE) 09/1987-10/1993 1.5 i 16V Hatchback Petrol 66 1493 4 Front Wheel Drive
HONDA CIVIC MK IV Hatchback (EC, ED, EE) 09/1987-10/1993 1.5 i 16V Hatchback Petrol 72 1493 4 Front Wheel Drive
HONDA CIVIC MK IV Hatchback (EC, ED, EE) 09/1987-10/1993 1.5 i 16V (ED6) Hatchback Petrol 69 1493 4 Front Wheel Drive
HONDA CIVIC MK IV Hatchback (EC, ED, EE) 09/1987-10/1993 1.6 i 16V Hatchback Petrol 91 1590 4 Front Wheel Drive
HONDA CIVIC MK IV Hatchback (EC, ED, EE) 09/1987-10/1993 1.6 i 16V Hatchback Petrol 96 1590 4 Front Wheel Drive
HONDA CIVIC MK IV Hatchback (EC, ED, EE) 09/1987-10/1993 1.6 i 16V (ED7) Hatchback Petrol 80 1590 4 Front Wheel Drive
HONDA CIVIC MK IV Hatchback (EC, ED, EE) 09/1987-10/1993 1.6 i 16V (ED7) Hatchback Petrol 81 1590 4 Front Wheel Drive
HONDA CIVIC MK IV Hatchback (EC, ED, EE) 09/1987-10/1993 1.6 i 16V Vtec (EE9) Hatchback Petrol 110 1595 4 Front Wheel Drive
HONDA CIVIC MK IV Saloon (ED) 09/1987-10/1993 1.2 Saloon Petrol 41 1187 4 Front Wheel Drive
HONDA CIVIC MK IV Saloon (ED) 09/1987-10/1993 1.3 Saloon Petrol 55 1343 4 Front Wheel Drive
HONDA CIVIC MK IV Saloon (ED) 09/1987-10/1993 1.4 L (ED2) Saloon Petrol 66 1396 4 Front Wheel Drive
HONDA CIVIC MK IV Saloon (ED) 09/1987-10/1993 1.5 Saloon Petrol 56 1488 4 Front Wheel Drive
HONDA CIVIC MK IV Saloon (ED) 09/1987-10/1993 1.5 Saloon Petrol 60 1493 4 Front Wheel Drive
HONDA CIVIC MK IV Saloon (ED) 09/1987-10/1993 1.5 Saloon Petrol 74 1488 4 Front Wheel Drive
HONDA CIVIC MK IV Saloon (ED) 09/1987-10/1993 1.5 i 16V Saloon Petrol 66 1493 4 Front Wheel Drive
HONDA CIVIC MK IV Saloon (ED) 09/1987-10/1993 1.5 i 16V Saloon Petrol 72 1493 4 Front Wheel Drive
HONDA CIVIC MK IV Saloon (ED) 09/1987-10/1993 1.5 i 16V (ED3) Saloon Petrol 69 1493 4 Front Wheel Drive
HONDA CIVIC MK IV Saloon (ED) 09/1987-10/1993 1.6 Saloon Petrol 91 1590 4 Front Wheel Drive
HONDA CIVIC MK IV Saloon (ED) 09/1987-10/1993 1.6 i 16V Saloon Petrol 96 1590 4 Front Wheel Drive
HONDA CIVIC MK IV Saloon (ED) 09/1987-10/1993 1.6 i 16V (ED4) Saloon Petrol 80 1590 4 Front Wheel Drive
HONDA CIVIC MK IV Saloon (ED) 09/1987-10/1993 1.6 i 16V (ED4) Saloon Petrol 81 1590 4 Front Wheel Drive
HONDA CRX Mk II (ED, EE) 10/1987-02/1992 1.4 GL Coupe Petrol 66 1396 4 Front Wheel Drive
HONDA CRX Mk II (ED, EE) 10/1987-02/1992 1.5 Coupe Petrol 46 1493 4 Front Wheel Drive
HONDA CRX Mk II (ED, EE) 10/1987-02/1992 1.5 Coupe Petrol 69 1493 4 Front Wheel Drive
HONDA CRX Mk II (ED, EE) 10/1987-02/1992 1.6 i 16V Coupe Petrol 79 1590 4 Front Wheel Drive
HONDA CRX Mk II (ED, EE) 10/1987-02/1992 1.6 i 16V (ED9) Coupe Petrol 91 1590 4 Front Wheel Drive
HONDA CRX Mk II (ED, EE) 10/1987-02/1992 1.6 i 16V (ED9) Coupe Petrol 96 1590 4 Front Wheel Drive
HONDA CRX Mk II (ED, EE) 10/1987-02/1992 1.6 i 16V Vtec (EE8) Coupe Petrol 110 1595 4 Front Wheel Drive
HONDA CRX Mk II (ED, EE) 10/1987-02/1992 1.6 Si Coupe Petrol 81 1590 4 Front Wheel Drive

Parts Approval: PDF

Installation Instruction: PDF
