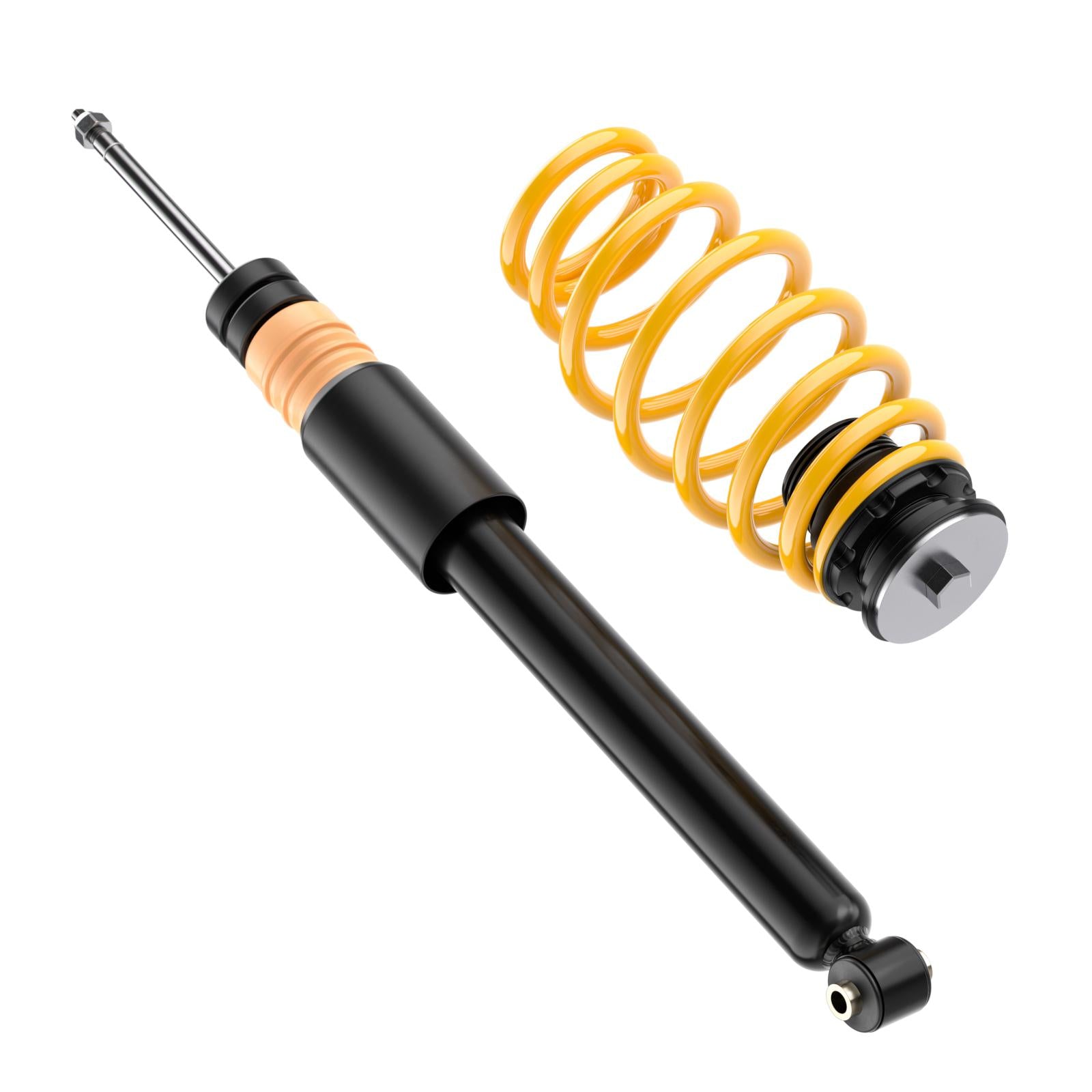

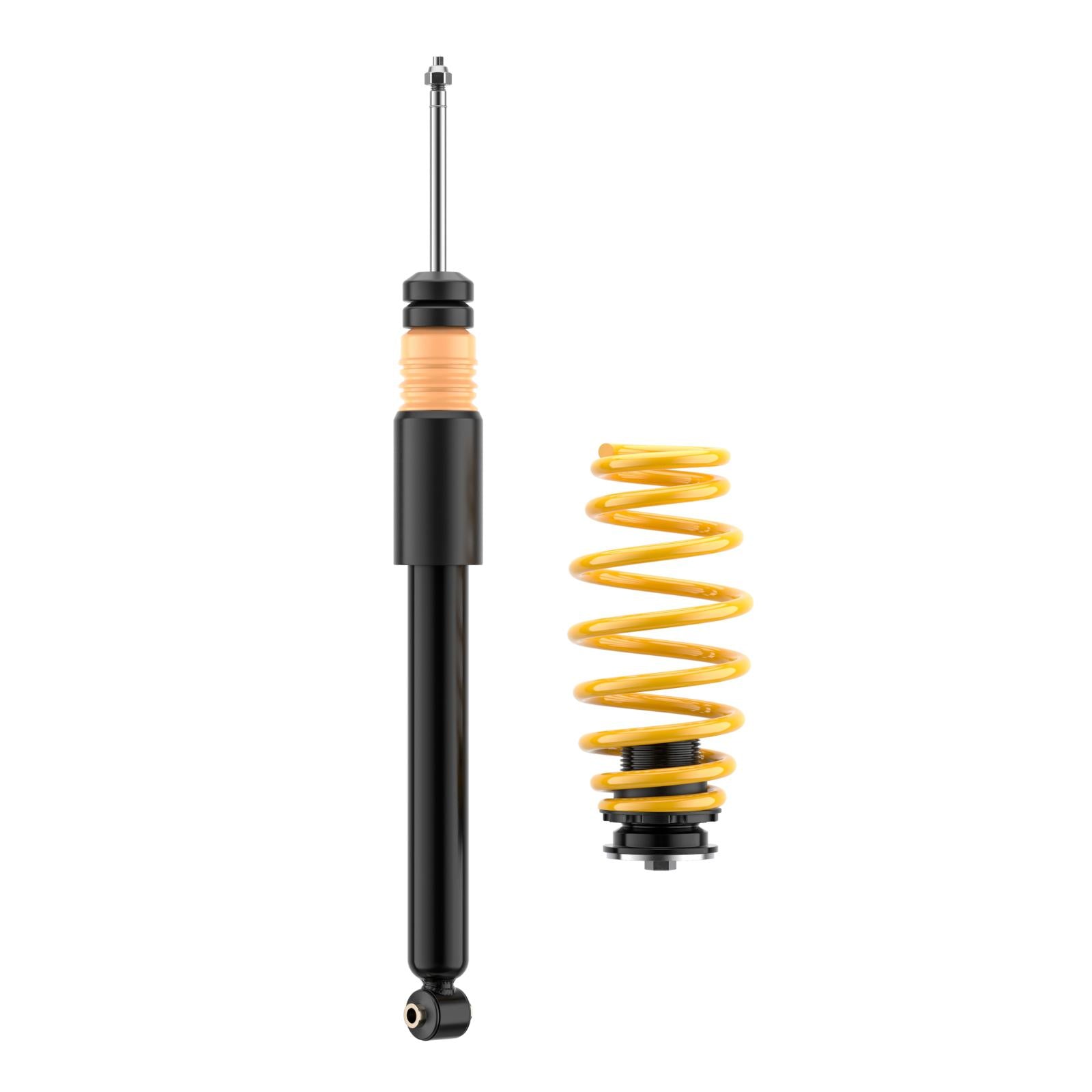

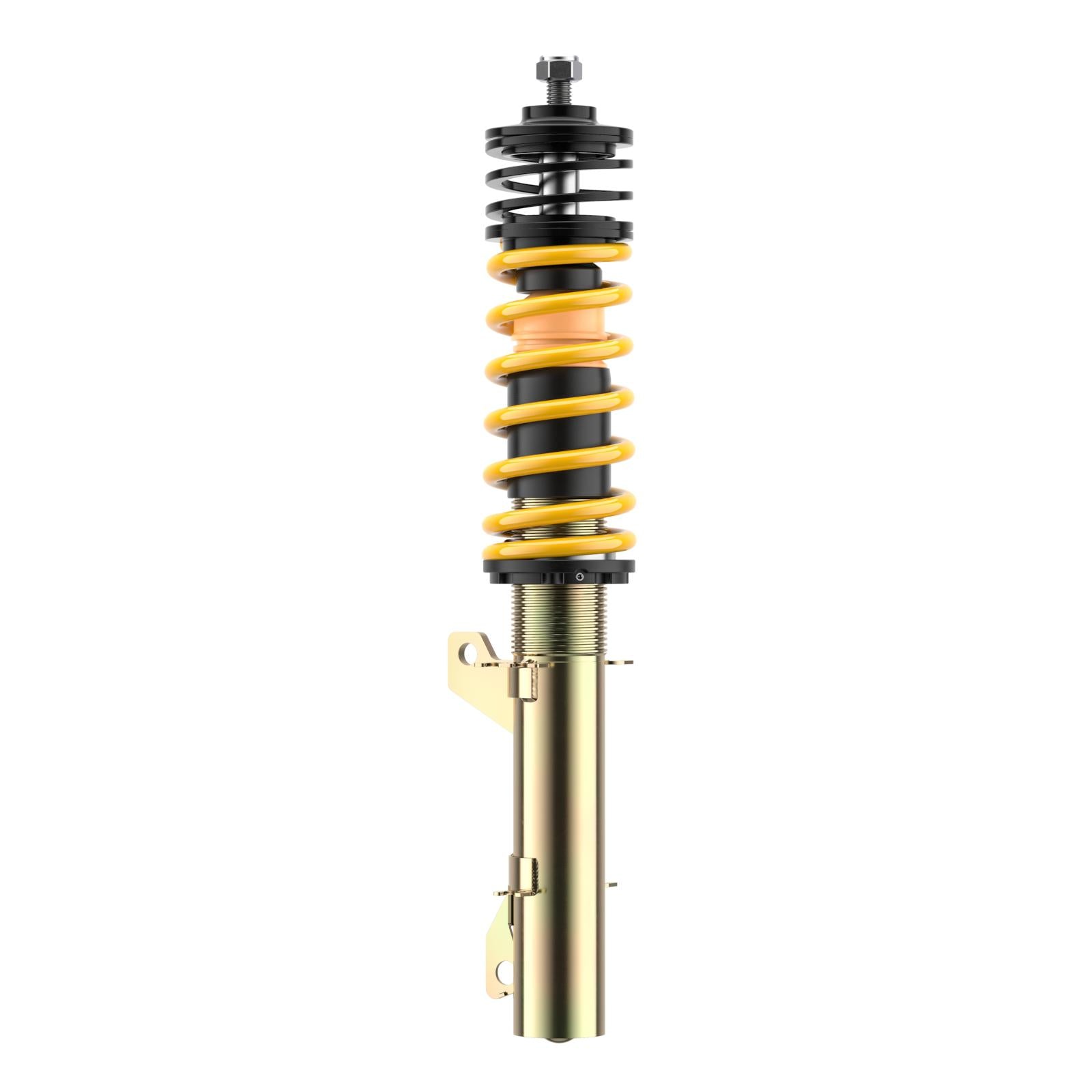

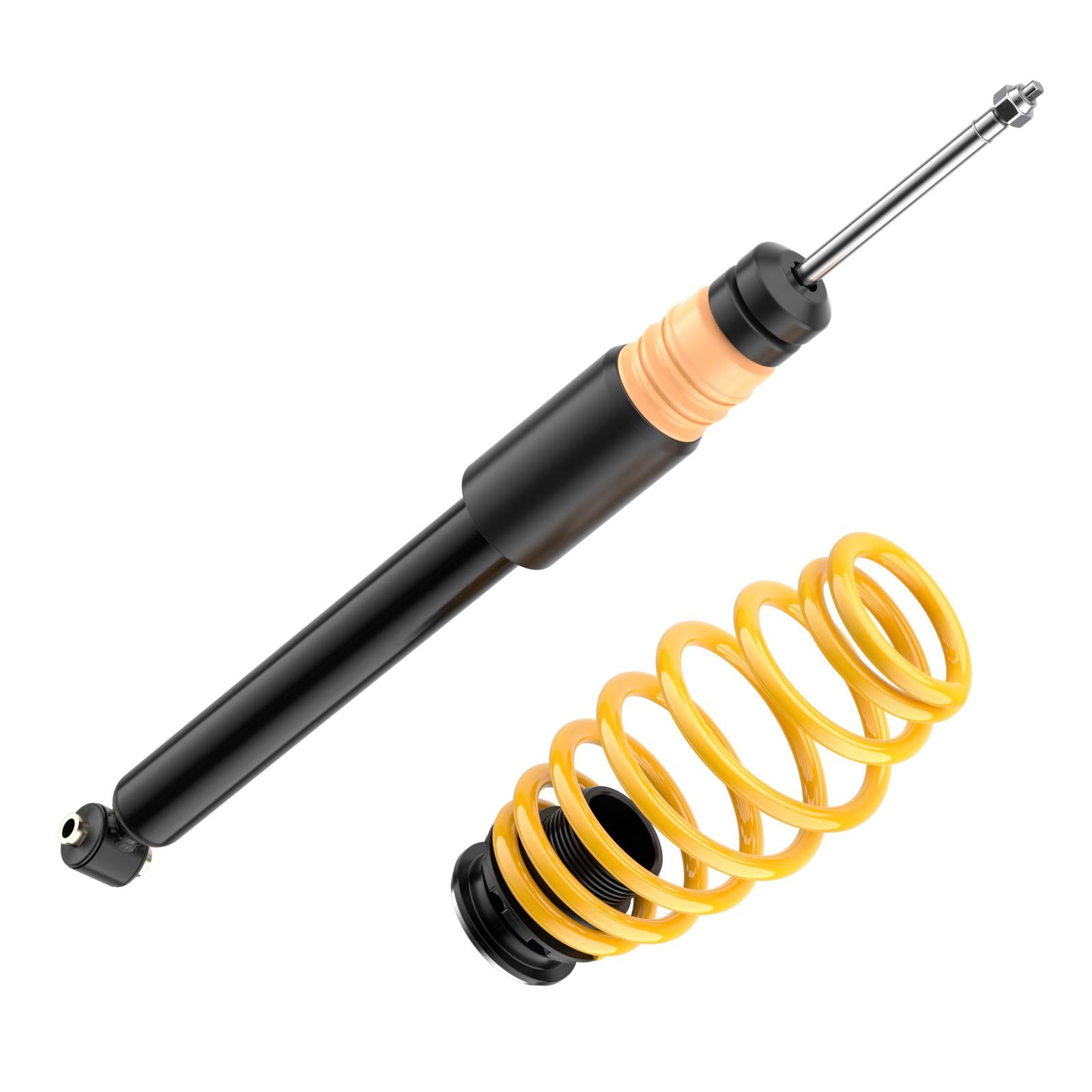

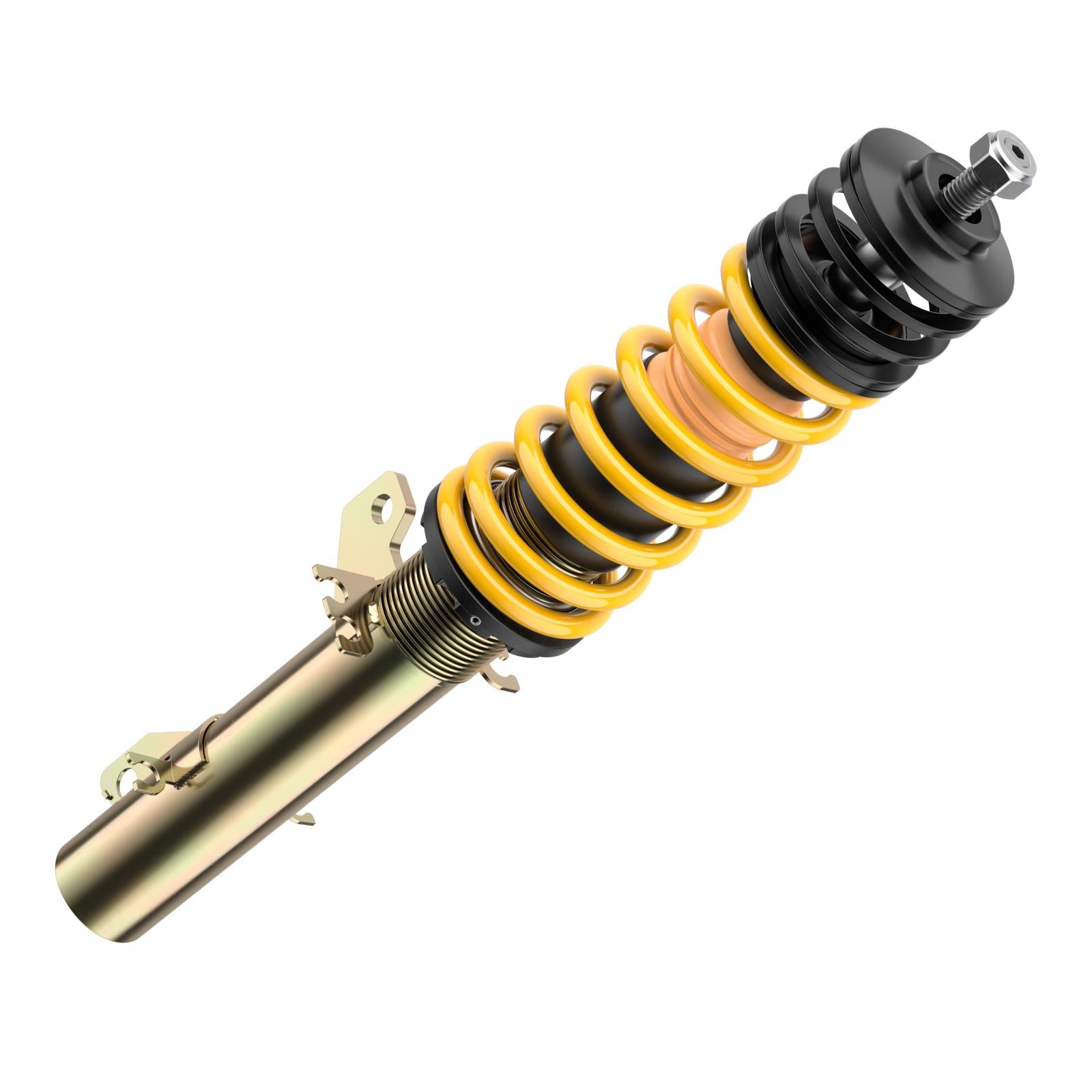

ST Coilovers ST X galvanized steel (with fixed damping) VW GOLF IV (1J1) 08/1997-12/2007 (13210005)

SKU: 13210005
Sale price$1,434.30 Regular price$2,049.00
Save $614.70

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


Description

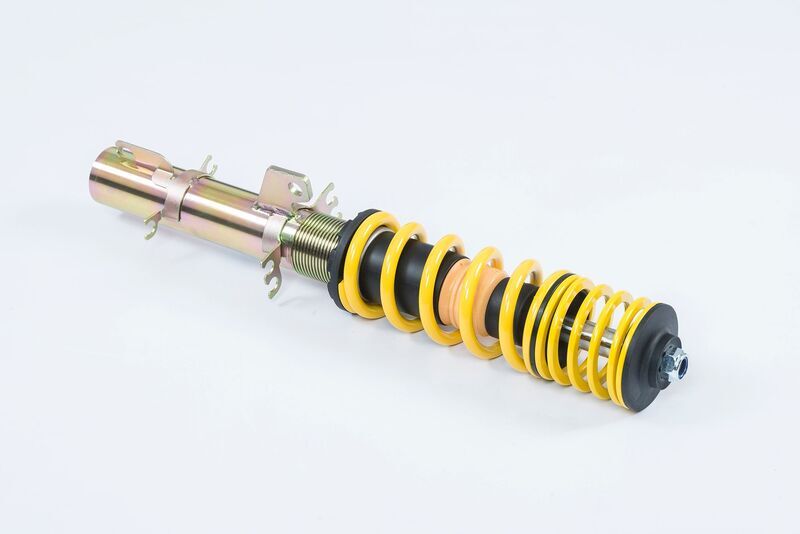

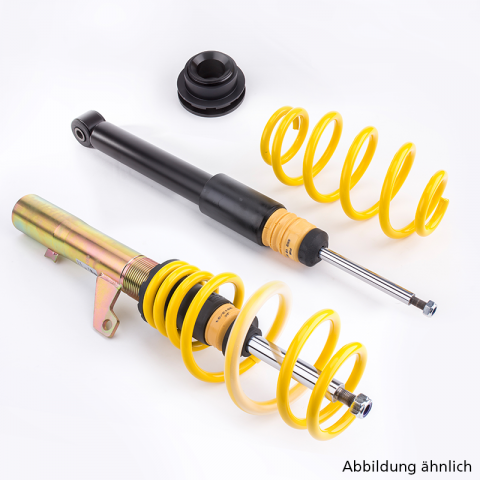

Coilovers ST X galvanized steel (with fixed damping)

Need to get low? ST coilovers feature a continuous thread construction for height adjustment from moderate to eXtreme! Each coilover is manufactured by KW Automotive and their expertise and know how ensures maximum quality and fantastic driving dynamics.

Once installed, the ST X coilover can be easily adjusted using a polyamide ring on the galvanized, multiple-sealed strut. Adjustment is different for each car, but typically you can expect between 35 and 65mm of lowering on both the front and rear axles. For lowered cars as standard (such as the BMW E9x 3-series) the ST X coilover features a range of 30 to 60mm (front axle) and 25-55mm (rear axle).


Improved driving dynamics and handling
Designed in conjunction with KW Germany, ST X coilovers deliver a sporty handling by reducing the carÕs bodyroll during compression as well as improving agility when driving fast. The high-quality production of each ST X coilover includes a low-friction and pressure resistant housing alongside a chrome-plated piston rod for maximum longevity. A mono block guide and ST seal package ensures the twin-tube dampers remain free of dirt particles in all weather conditions.

Lowering with St\Tyle: the ST X coilovers
- Individual lowering within the tested adjustment range
- Front and rear axle thread adjustment (when possible)
- Galvanized coilover struts with additional coating for optimized corrosion protection
- Complete solution with adjustable spring plate, spring system and bumpers with dust protection
- Powerful twin-tube dampers with high-quality components for maximum longevity


Product Disclaimers:

  • Note 4: Excluding four wheel drive models
  • Note 42: In combination with orginal wheels and tyres, wheelspacers might be necessary
  • Note 2: Not for station wagon models (Estate/ Avant/ Turnier/ Variant/ T-modell...)
  • Note 91: We recommend a special anti roll bar kit (part no. 680 50 008) for models with a drive shaft diameter of min. 50mm. This is for improving the clearance of the right hand side drive shaft. Because of car specific differences a clearance is not always given
  • Note 156: Only for vehicles with ESP-system
  • Note 121: Please replace the anti-sway bar kit on max. tested lowering. This is for enough clearance of the right drive shaft. Anti-sway bar kit for cars without Xenon headlights: part no. 685 50 000 / Anti-sway bar kit for cars with Xenon headlights: part no. 685 50 005

Fitments

Make Model Type Body Type Aspiration KW CCM Cyl Drivetrain
AUDI A3 (8L) 8L1 09/1996-09/2006 1.6 Hatchback Petrol 74 1595 4 Front Wheel Drive
AUDI A3 (8L) 8L1 09/1996-09/2006 1.6 Hatchback Petrol 75 1595 4 Front Wheel Drive
AUDI A3 (8L) 8L1 09/1996-09/2006 1.8 Hatchback Petrol 92 1781 4 Front Wheel Drive
AUDI A3 (8L) 8L1 09/1996-09/2006 1.8 T Hatchback Petrol 110 1781 4 Front Wheel Drive
AUDI A3 (8L) 8L1 09/1996-09/2006 1.8 T Hatchback Petrol 132 1781 4 Front Wheel Drive
AUDI A3 (8L) 8L1 09/1996-09/2006 1.9 TDI Hatchback Diesel 66 1896 4 Front Wheel Drive
AUDI A3 (8L) 8L1 09/1996-09/2006 1.9 TDI Hatchback Diesel 74 1896 4 Front Wheel Drive
AUDI A3 (8L) 8L1 09/1996-09/2006 1.9 TDI Hatchback Diesel 81 1896 4 Front Wheel Drive
AUDI A3 (8L) 8L1 09/1996-09/2006 1.9 TDI Hatchback Diesel 96 1896 4 Front Wheel Drive
AUDI TT (8N) 8N3 10/1998-06/2006 1.8 T Coupe Petrol 110 1781 4 Front Wheel Drive
AUDI TT (8N) 8N3 10/1998-06/2006 1.8 T Coupe Petrol 120 1781 4 Front Wheel Drive
AUDI TT (8N) 8N3 10/1998-06/2006 1.8 T Coupe Petrol 132 1781 4 Front Wheel Drive
AUDI TT (8N) 8N3 10/1998-06/2006 1.8 T Coupe Petrol 134 1781 4 Front Wheel Drive
AUDI TT (8N) 8N3 10/1998-06/2006 1.8 T Coupe Petrol 140 1781 4 Front Wheel Drive
AUDI TT Roadster (8N) 8N9 10/1999-06/2006 1.8 T Convertible Petrol 110 1781 4 Front Wheel Drive
AUDI TT Roadster (8N) 8N9 10/1999-06/2006 1.8 T Convertible Petrol 120 1781 4 Front Wheel Drive
AUDI TT Roadster (8N) 8N9 10/1999-06/2006 1.8 T Convertible Petrol 132 1781 4 Front Wheel Drive
AUDI TT Roadster (8N) 8N9 10/1999-06/2006 1.8 T Convertible Petrol 134 1781 4 Front Wheel Drive
AUDI TT Roadster (8N) 8N9 10/1999-06/2006 1.8 T Convertible Petrol 140 1781 4 Front Wheel Drive
SEAT LEON (1M1) 11/1999-06/2006 1.4 16V Hatchback Petrol 55 1390 4 Front Wheel Drive
SEAT LEON (1M1) 11/1999-06/2006 1.6 Hatchback Petrol 74 1595 4 Front Wheel Drive
SEAT LEON (1M1) 11/1999-06/2006 1.6 Hatchback Petrol 75 1595 4 Front Wheel Drive
SEAT LEON (1M1) 11/1999-06/2006 1.6 16 V Hatchback Petrol 77 1598 4 Front Wheel Drive
SEAT LEON (1M1) 11/1999-06/2006 1.8 20V Hatchback Petrol 92 1781 4 Front Wheel Drive
SEAT LEON (1M1) 11/1999-06/2006 1.8 20V T Hatchback Petrol 132 1781 4 Front Wheel Drive
SEAT LEON (1M1) 11/1999-06/2006 1.8 T Cupra R Hatchback Petrol 154 1781 4 Front Wheel Drive
SEAT LEON (1M1) 11/1999-06/2006 1.8 T Cupra R Hatchback Petrol 165 1781 4 Front Wheel Drive
SEAT LEON (1M1) 11/1999-06/2006 1.9 SDI Hatchback Diesel 50 1896 4 Front Wheel Drive
SEAT LEON (1M1) 11/1999-06/2006 1.9 TDI Hatchback Diesel 66 1896 4 Front Wheel Drive
SEAT LEON (1M1) 11/1999-06/2006 1.9 TDI Hatchback Diesel 74 1896 4 Front Wheel Drive
SEAT LEON (1M1) 11/1999-06/2006 1.9 TDI Hatchback Diesel 81 1896 4 Front Wheel Drive
SEAT LEON (1M1) 11/1999-06/2006 1.9 TDI Hatchback Diesel 96 1896 4 Front Wheel Drive
SEAT LEON (1M1) 11/1999-06/2006 1.9 TDI Hatchback Diesel 110 1896 4 Front Wheel Drive
SEAT LEON (1M1) 11/1999-06/2006 2.8 Hatchback Petrol 150 2792 6 Front Wheel Drive
VW GOLF IV (1J_) 08/1997-12/2007 1.4 16V Hatchback Petrol 55 1390 4 Front Wheel Drive
VW GOLF IV (1J_) 08/1997-12/2007 1.6 Hatchback Petrol 74 1595 4 Front Wheel Drive
VW GOLF IV (1J_) 08/1997-12/2007 1.6 Hatchback Petrol 74 1598 4 Front Wheel Drive
VW GOLF IV (1J_) 08/1997-12/2007 1.6 Hatchback Petrol 75 1595 4 Front Wheel Drive
VW GOLF IV (1J_) 08/1997-12/2007 1.6 16V Hatchback Petrol 77 1598 4 Front Wheel Drive
VW GOLF IV (1J_) 08/1997-12/2007 1.6 FSI Hatchback Petrol 81 1598 4 Front Wheel Drive
VW GOLF IV (1J_) 08/1997-12/2007 1.8 Hatchback Petrol 92 1781 4 Front Wheel Drive
VW GOLF IV (1J_) 08/1997-12/2007 1.8 Hatchback Petrol 127 1781 4 Front Wheel Drive
VW GOLF IV (1J_) 08/1997-12/2007 1.8 T Hatchback Petrol 110 1781 4 Front Wheel Drive
VW GOLF IV (1J_) 08/1997-12/2007 1.8 T GTI Hatchback Petrol 132 1781 4 Front Wheel Drive
VW GOLF IV (1J_) 08/1997-12/2007 1.9 SDI Hatchback Diesel 50 1896 4 Front Wheel Drive
VW GOLF IV (1J_) 08/1997-12/2007 1.9 TDI Hatchback Diesel 66 1896 4 Front Wheel Drive
VW GOLF IV (1J_) 08/1997-12/2007 1.9 TDI Hatchback Diesel 74 1896 4 Front Wheel Drive
VW GOLF IV (1J_) 08/1997-12/2007 1.9 TDI Hatchback Diesel 81 1896 4 Front Wheel Drive
VW GOLF IV (1J_) 08/1997-12/2007 1.9 TDI Hatchback Diesel 85 1896 4 Front Wheel Drive
VW GOLF IV (1J_) 08/1997-12/2007 1.9 TDI Hatchback Diesel 96 1896 4 Front Wheel Drive
VW GOLF IV (1J_) 08/1997-12/2007 1.9 TDI Hatchback Diesel 110 1896 4 Front Wheel Drive
VW GOLF IV (1J_) 08/1997-12/2007 2.0 Hatchback Petrol 85 1984 4 Front Wheel Drive
VW GOLF IV (1J_) 08/1997-12/2007 2.3 V5 Hatchback Petrol 110 2324 5 Front Wheel Drive
VW GOLF IV (1J_) 08/1997-12/2007 2.3 V5 Hatchback Petrol 125 2324 5 Front Wheel Drive
VW GOLF IV (1J_) 08/1997-12/2007 2.8 VR6 Hatchback Petrol 130 2792 6 Front Wheel Drive
VW GOLF IV (1J_) 08/1997-12/2007 2.8 VR6 Hatchback Petrol 147 2792 6 Front Wheel Drive
VW NEW BEETLE (9C_, 1C1) 01/1998-11/2010 1.4 Hatchback Petrol 55 1390 4 Front Wheel Drive
VW NEW BEETLE (9C_, 1C1) 01/1998-11/2010 1.6 Hatchback Petrol 74 1595 4 Front Wheel Drive
VW NEW BEETLE (9C_, 1C1) 01/1998-11/2010 1.6 Hatchback Petrol 75 1595 4 Front Wheel Drive
VW NEW BEETLE (9C_, 1C1) 01/1998-11/2010 1.8 T Hatchback Petrol 110 1781 4 Front Wheel Drive
VW NEW BEETLE (9C_, 1C1) 01/1998-11/2010 1.8 T Hatchback Petrol 132 1781 4 Front Wheel Drive
VW NEW BEETLE (9C_, 1C1) 01/1998-11/2010 1.9 TDI Hatchback Diesel 66 1896 4 Front Wheel Drive
VW NEW BEETLE (9C_, 1C1) 01/1998-11/2010 1.9 TDI Hatchback Diesel 74 1896 4 Front Wheel Drive
VW NEW BEETLE (9C_, 1C1) 01/1998-11/2010 1.9 TDI Hatchback Diesel 77 1896 4 Front Wheel Drive
VW NEW BEETLE (9C_, 1C1) 01/1998-11/2010 2.0 Hatchback Petrol 85 1984 4 Front Wheel Drive
VW NEW BEETLE (9C_, 1C1) 01/1998-11/2010 2.3 V5 Hatchback Petrol 125 2324 5 Front Wheel Drive
VW NEW BEETLE (9C_, 1C1) 01/1998-11/2010 2.5 Hatchback Petrol 110 2480 5 Front Wheel Drive

Parts Approval: PDF

Installation Instruction: PDF
