ST Coilover XA Kit for Ford (J2K) Puma

SKU: 18230092
Sale price$2,036.30 Regular price$2,909.00
Save $872.70

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

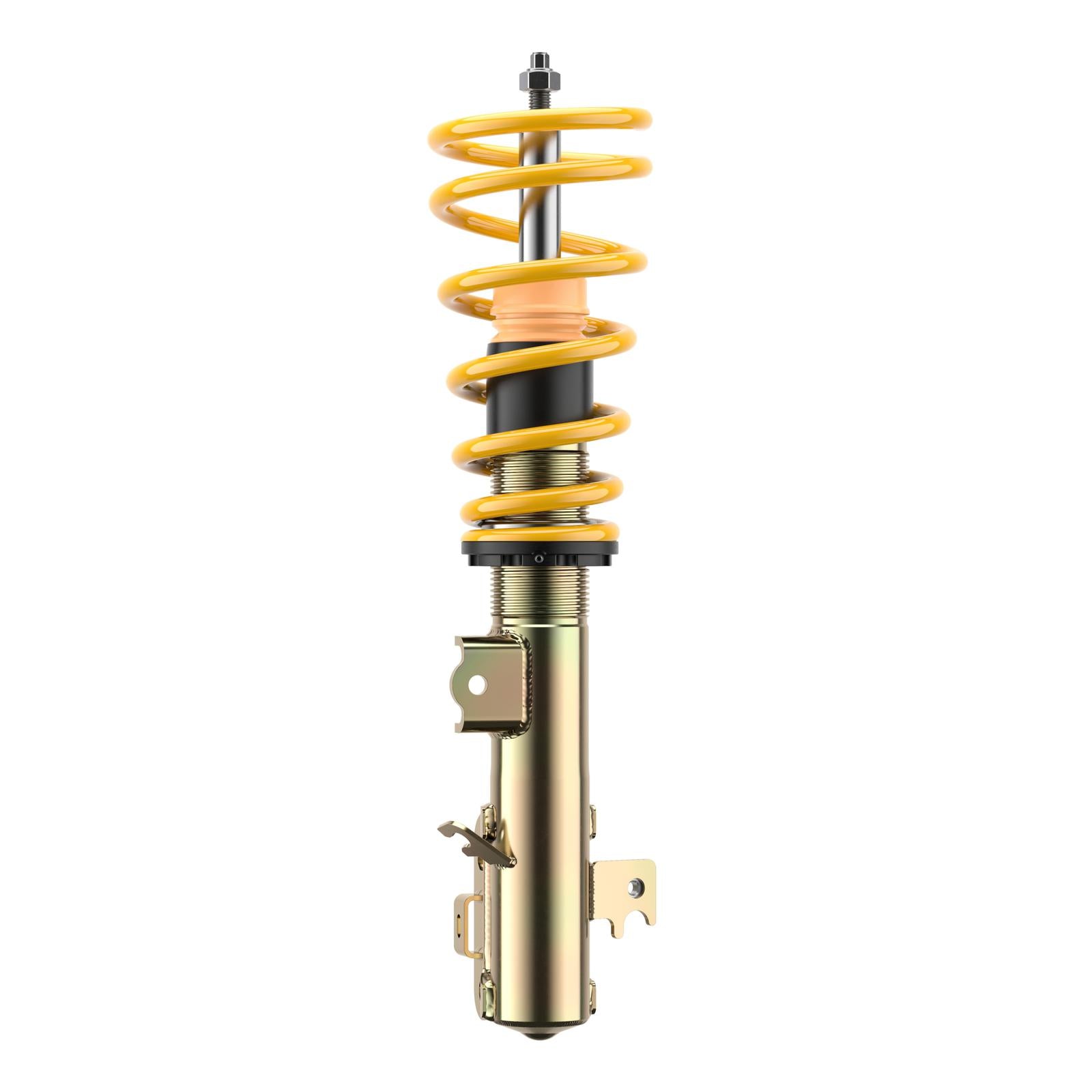

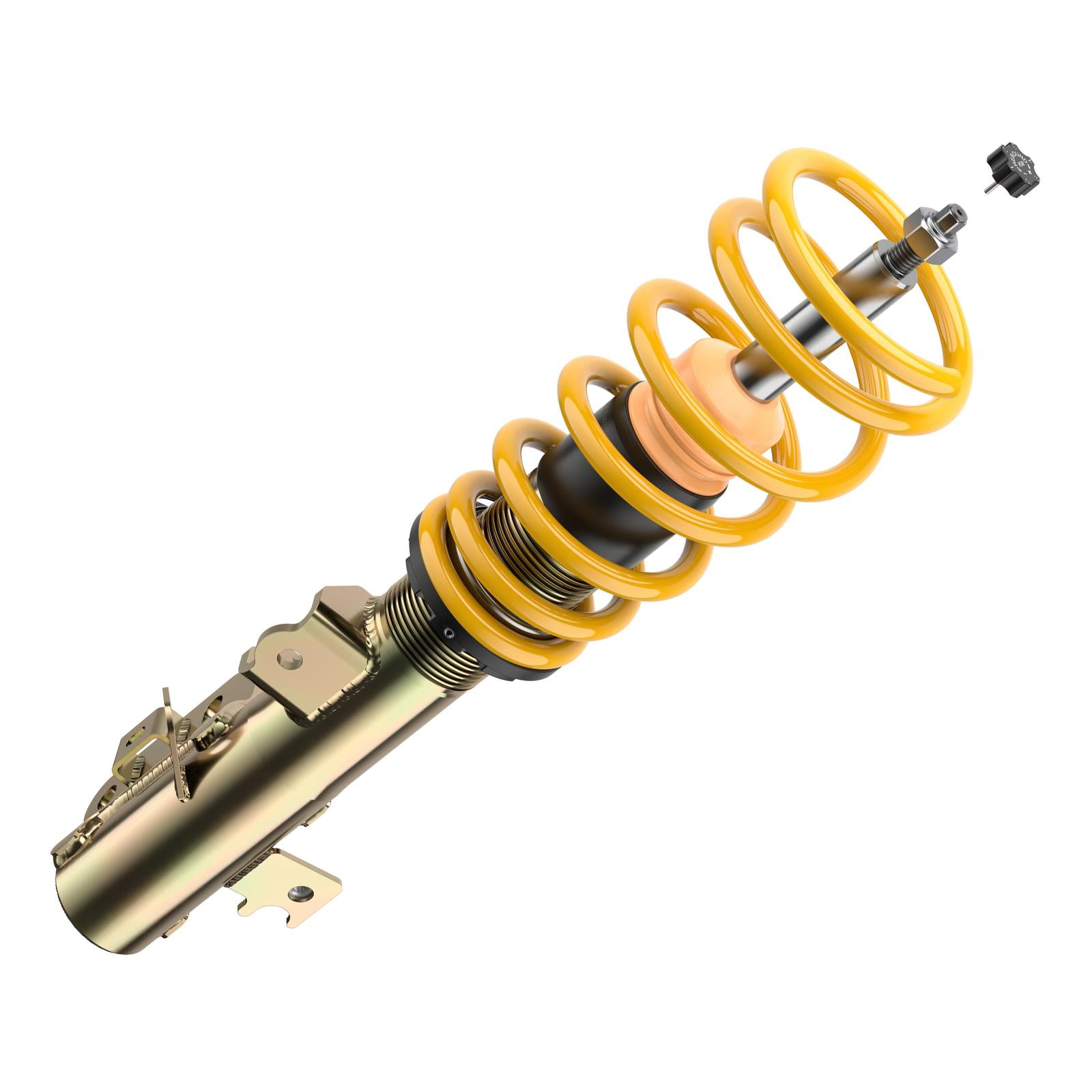

ST XA coilovers add adjustable rebound damping to height-adjustable ST struts, with up to 16 clicks adjusted at the top of the chrome-plated piston rod. More rebound force gives more stability and less body roll; less gives a more comfortable ride. Height is set on a continuous thread on the galvanised strut, and the twin-tube dampers are manufactured by KW Automotive. This kit is developed for the Puma (J2K).

Key Features

  • Rebound damping adjustable in up to 16 clicks
  • Continuous thread height adjustment
  • Galvanised coilover struts

Specifications

  • Version: XA
  • Damping: Adjustable rebound
  • Material: Galvanised steel
  • Front lowering: 35–45 mm
  • Rear lowering: 35–45 mm
  • Front axle load: up to 970 kg
  • Rear axle load: up to 920 kg

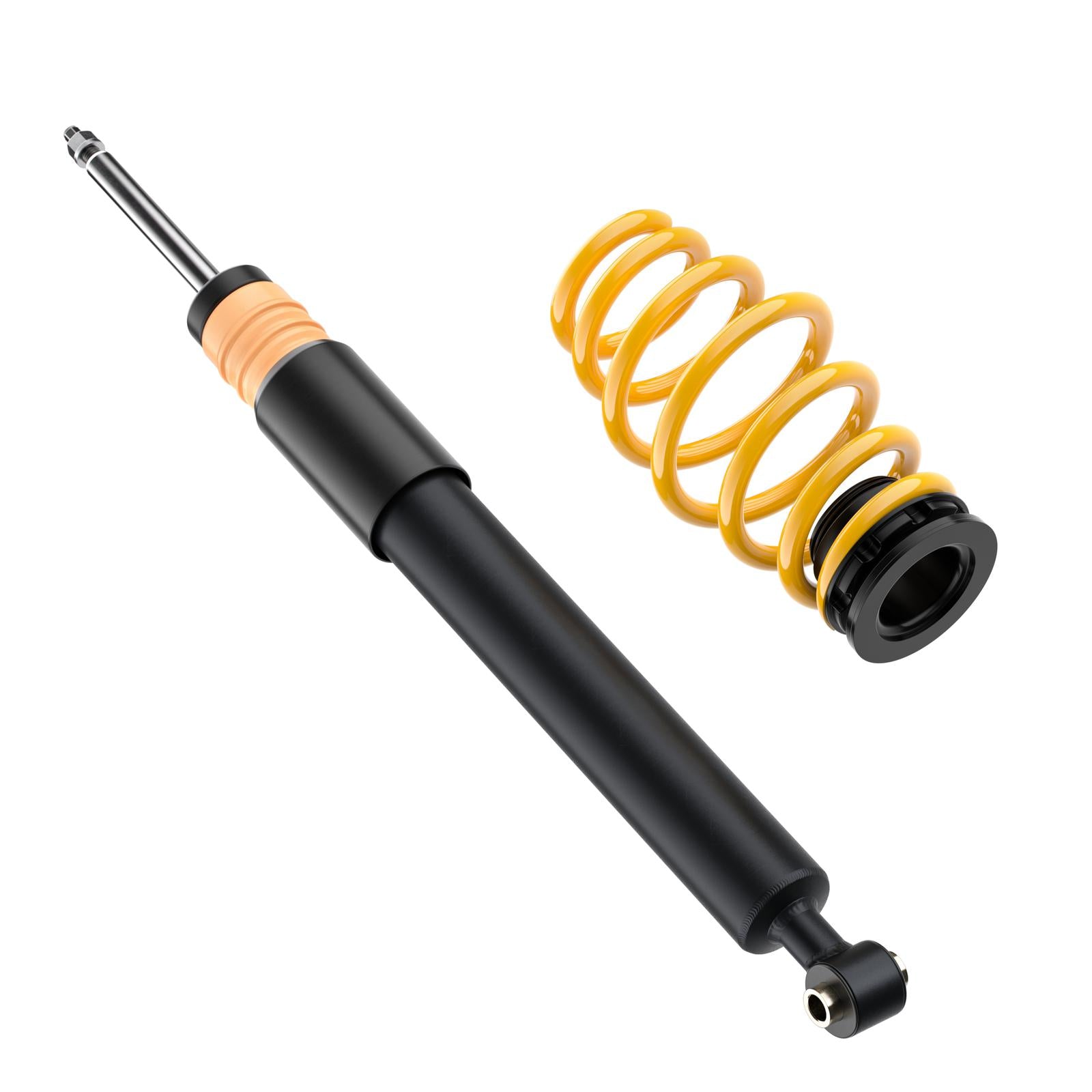

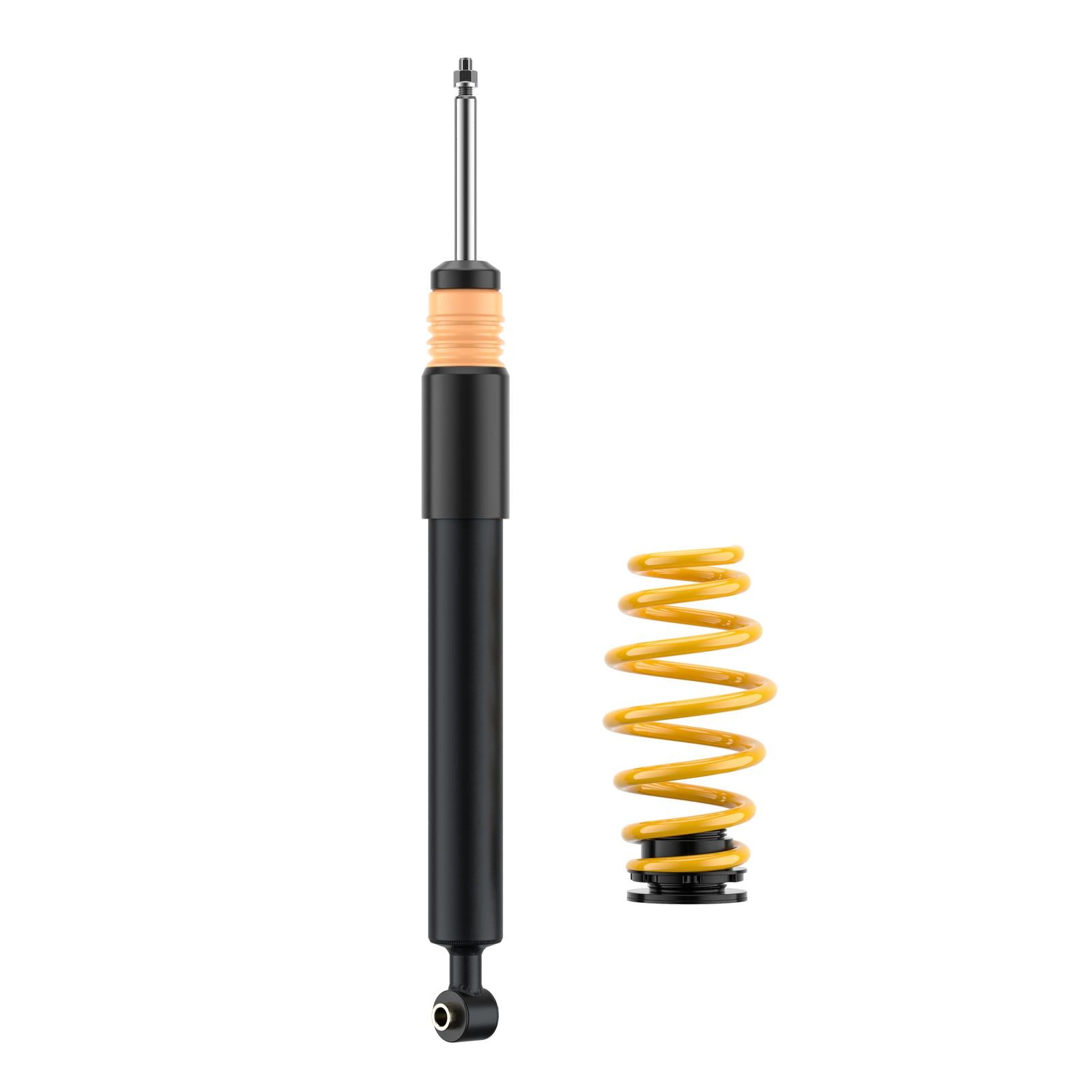

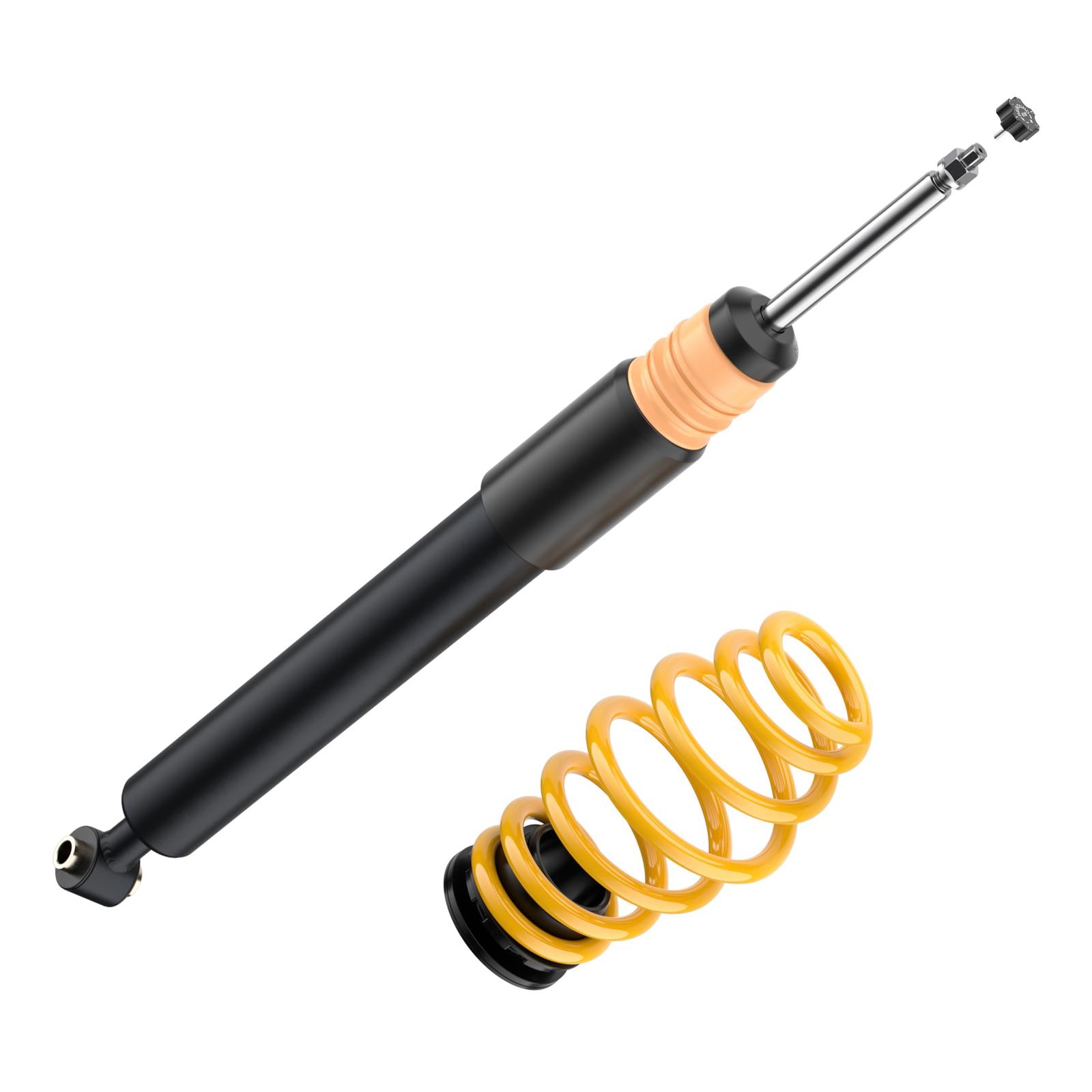

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 970 kg; Rear axle load up to 920 kg.

YearMakeModelVariantEngineDrive
2019+FordPuma (J2K, CF7)1.0 EcoBoostPetrol · 70 kW · 1.0L · 3-cylFront-Wheel Drive
2019+FordPuma (J2K, CF7)1.0 EcoBoostPetrol · 92 kW · 1.0L · 3-cylFront-Wheel Drive
2019+FordPuma (J2K, CF7)1.0 EcoBoost mHEVPetrol/Electric · 92 kW · 1.0L · 3-cylFront-Wheel Drive
2019+FordPuma (J2K, CF7)1.0 EcoBoost mHEVPetrol/Electric · 114 kW · 1.0L · 3-cylFront-Wheel Drive
2019+FordPuma (J2K, CF7)1.0 EcoBoost mHEVPetrol/Electric · 118 kW · 1.0L · 3-cylFront-Wheel Drive
2019+FordPuma (J2K, CF7)1.5 EcoBlueDiesel · 88 kW · 1.5L · 4-cylFront-Wheel Drive
2019+FordPuma (J2K, CF7)1.5 ST EcoBoostPetrol · 147 kW · 1.5L · 3-cylFront-Wheel Drive
