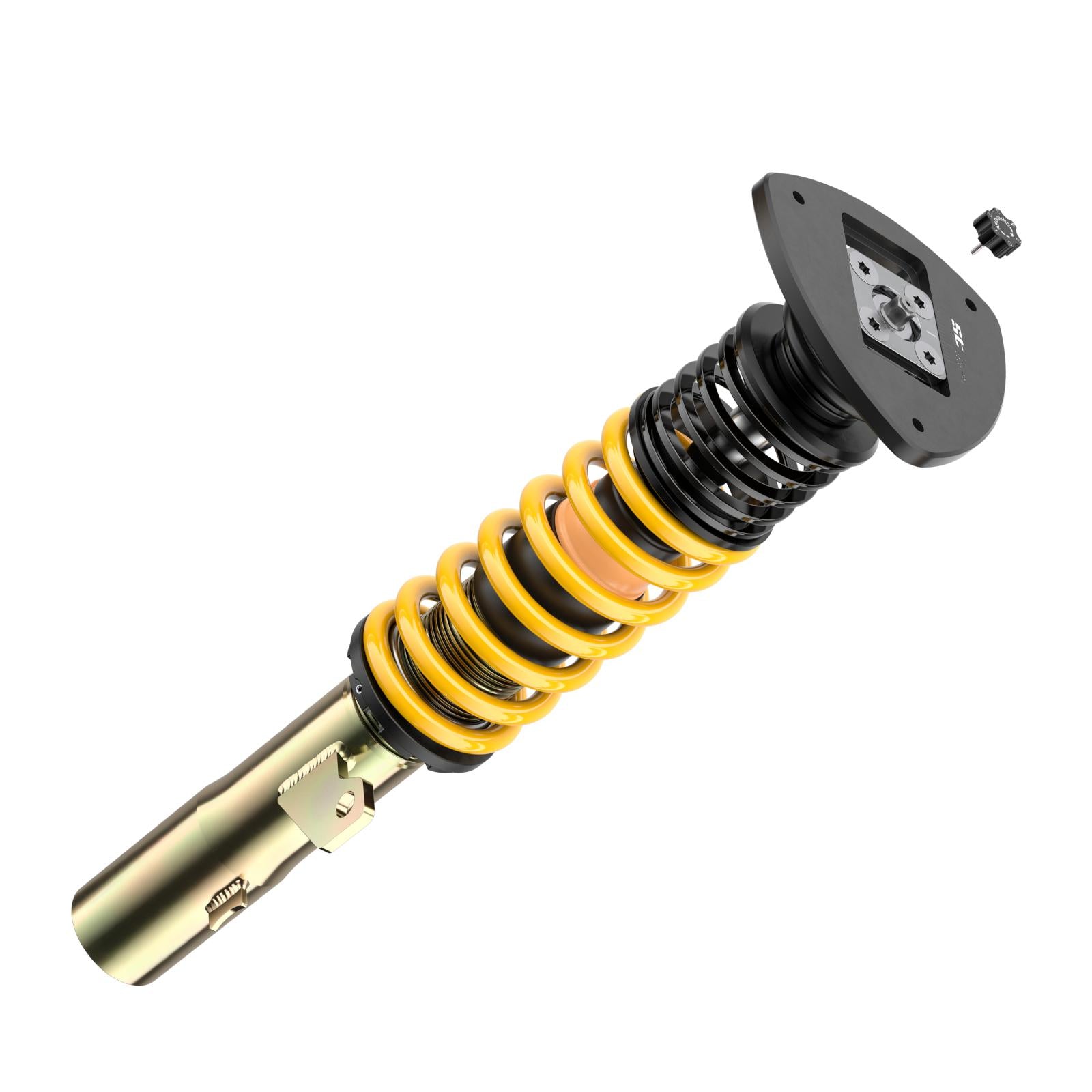

ST Coilover XTA Plus 3 Kit for Audi (8Y) S3 / A3

SKU: 18202108DL
Sale price$3,809.25 Regular price$5,079.00
Save $1,269.75

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


ST's XTA plus 3 uses KW dampers with separately adjustable high-speed compression, low-speed compression (24 clicks each) and rebound (16 clicks), giving the range to suit changes such as a roll cage, stiffer bushings or altered wheel loads. Race springs and aluminium uniball top mounts are included, and height is set on a continuous thread on the galvanised strut. This kit is developed for the Audi S3 / A3 quattro (8Y).

Key Features

  • Three-way adjustable KW dampers
  • Race springs and aluminium uniball top mounts

Specifications

  • Version: XTA plus 3
  • Damping: Adjustable rebound and compression
  • Material: Galvanised steel
  • Front lowering: 35–50 mm
  • Rear lowering: 35–50 mm
  • Front axle load: up to 1,120 kg
  • Rear axle load: up to 1,030 kg
  • Front strut diameter (vehicle): 55 mm

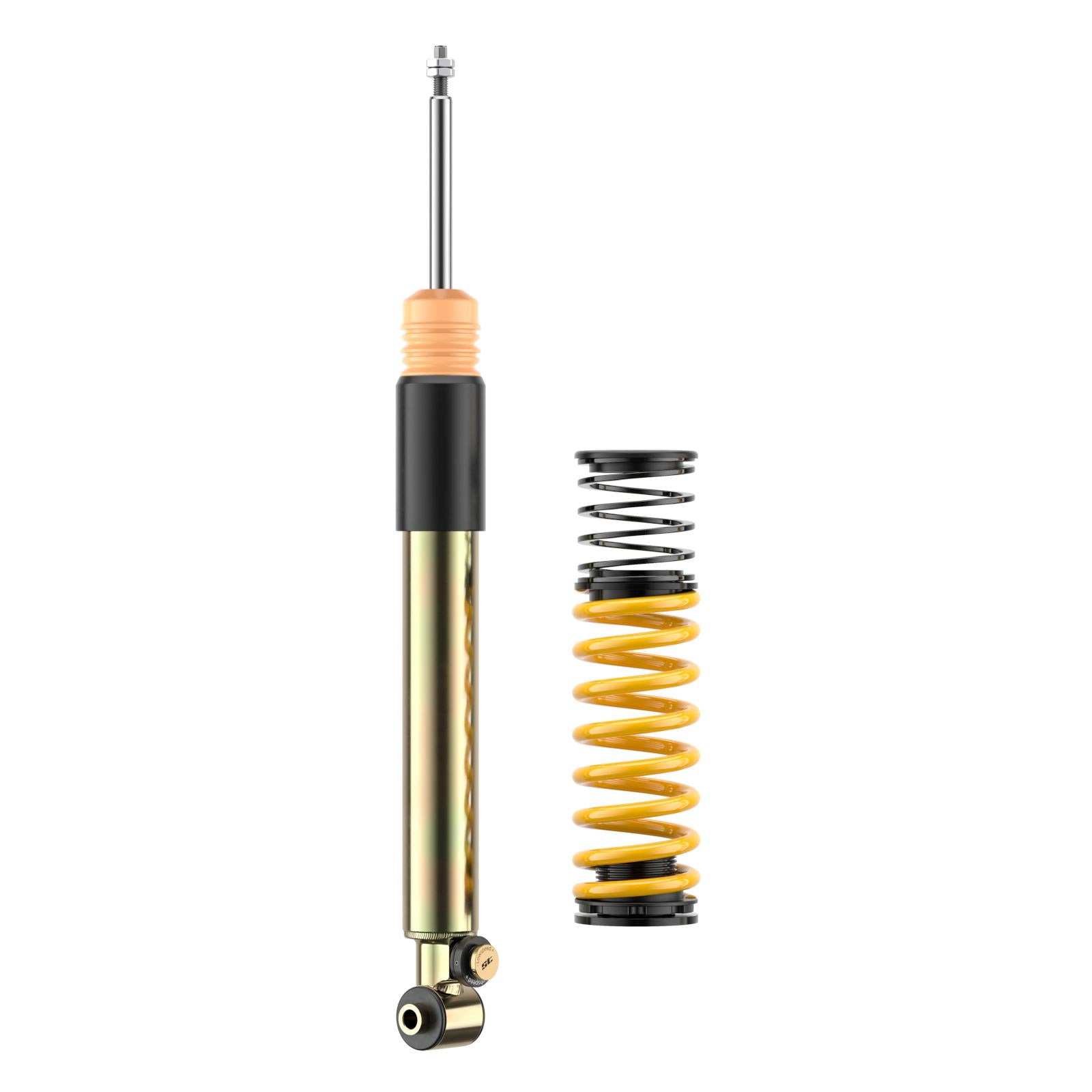

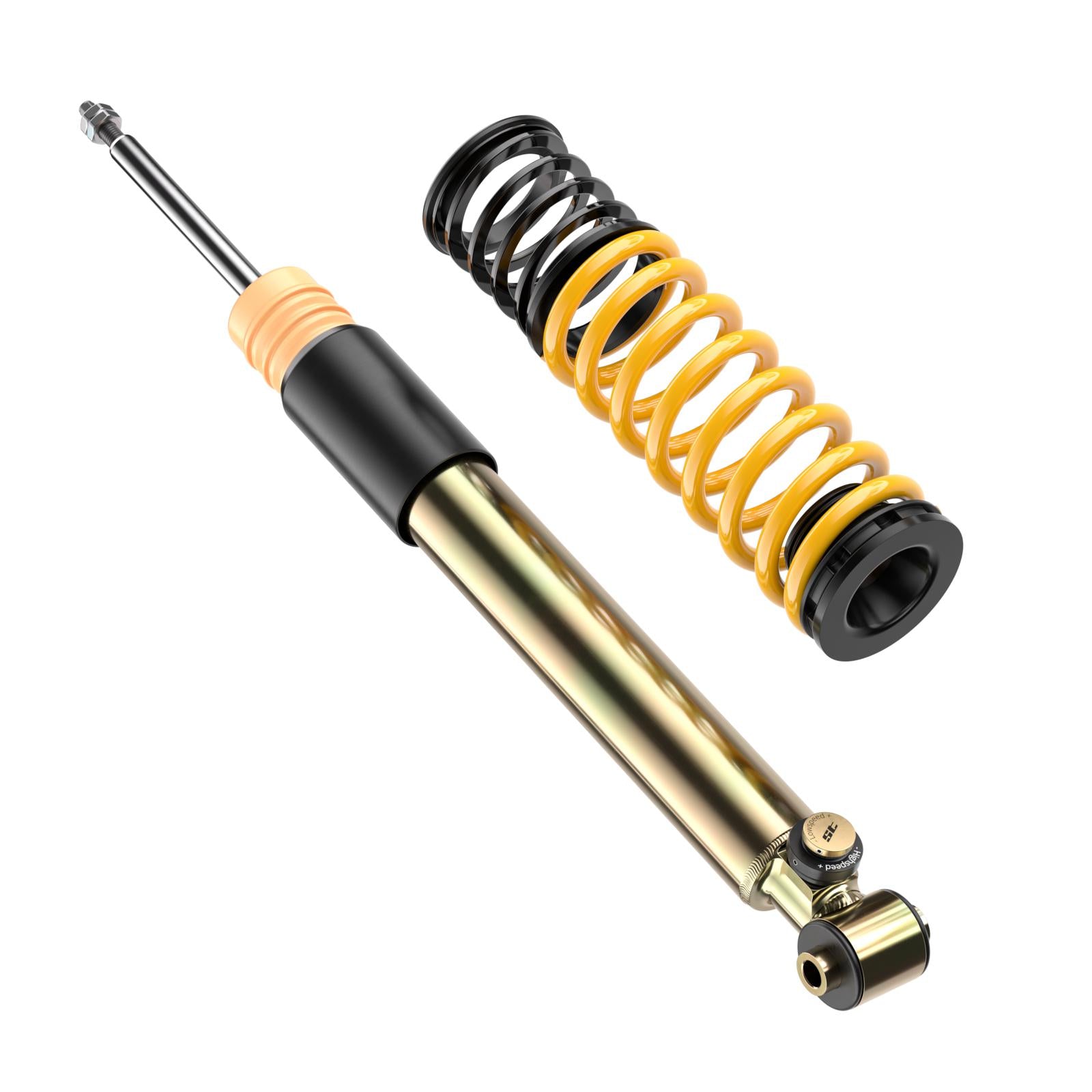

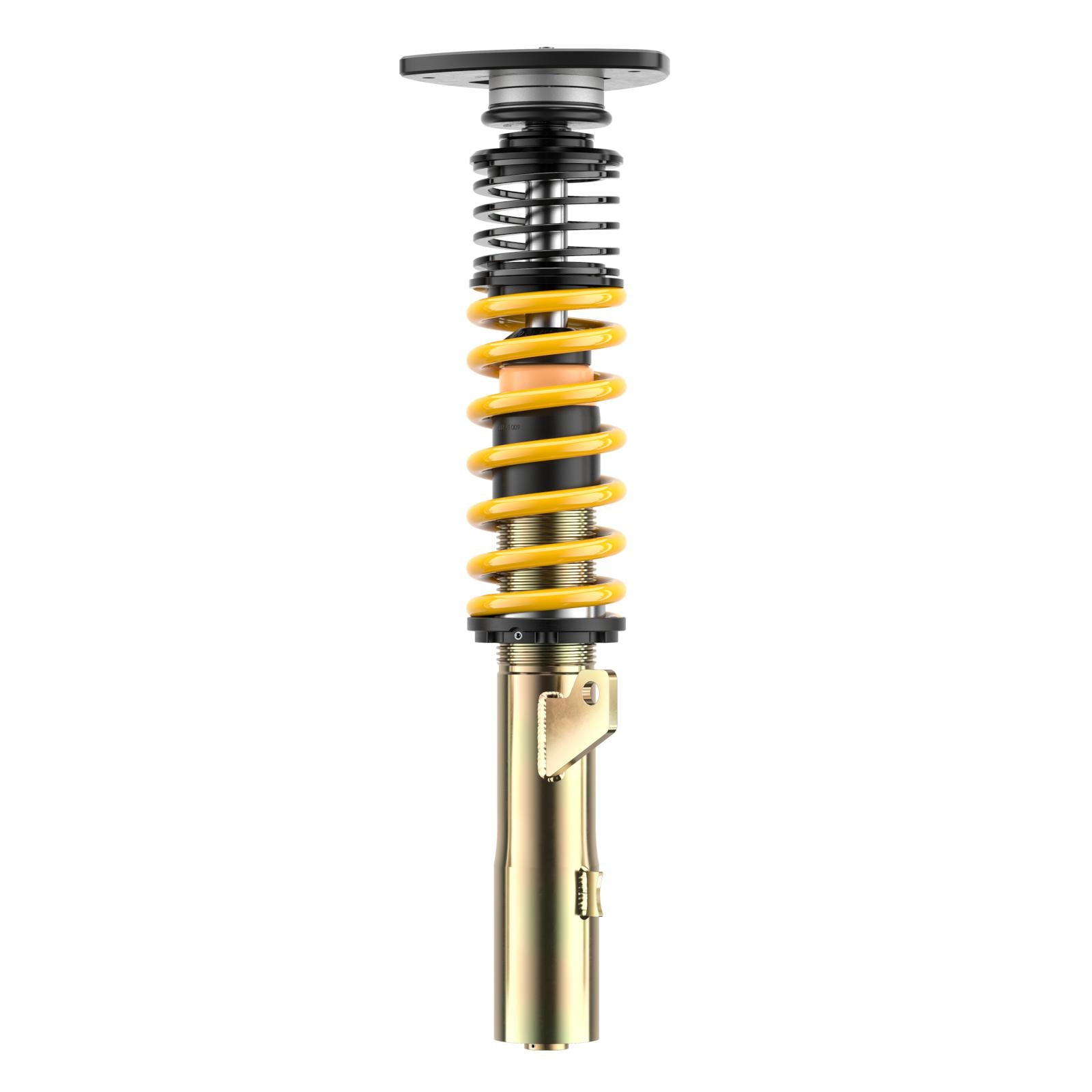

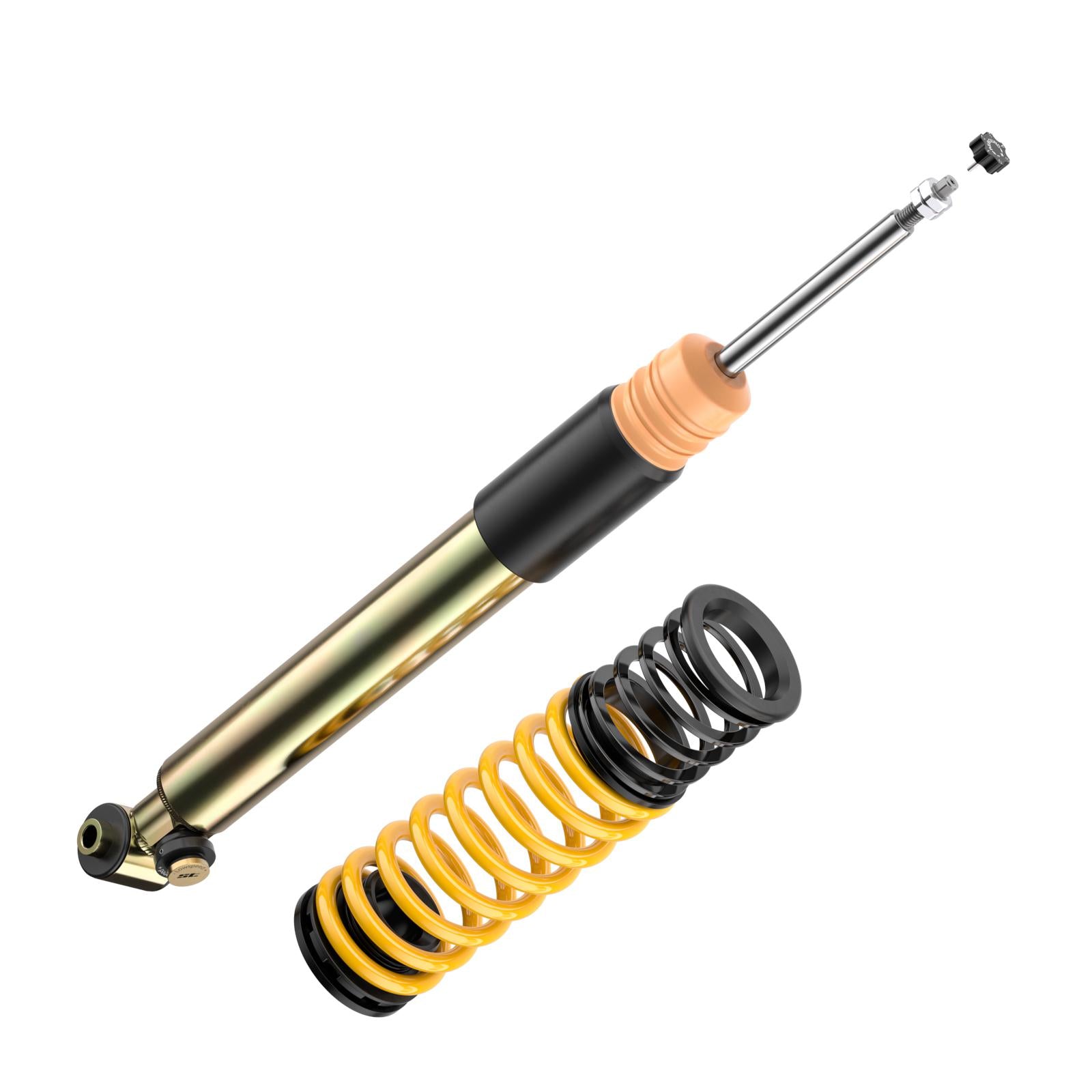

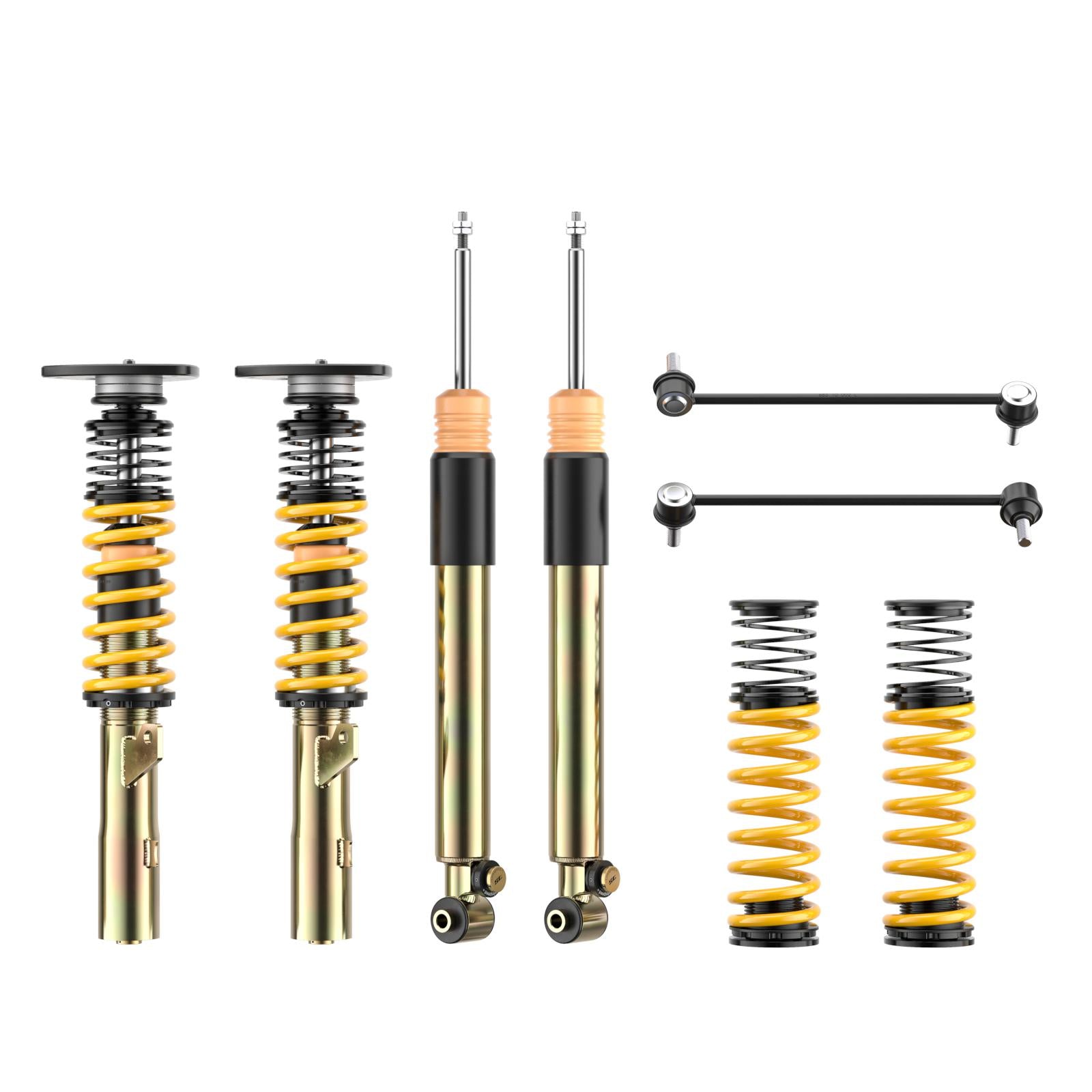

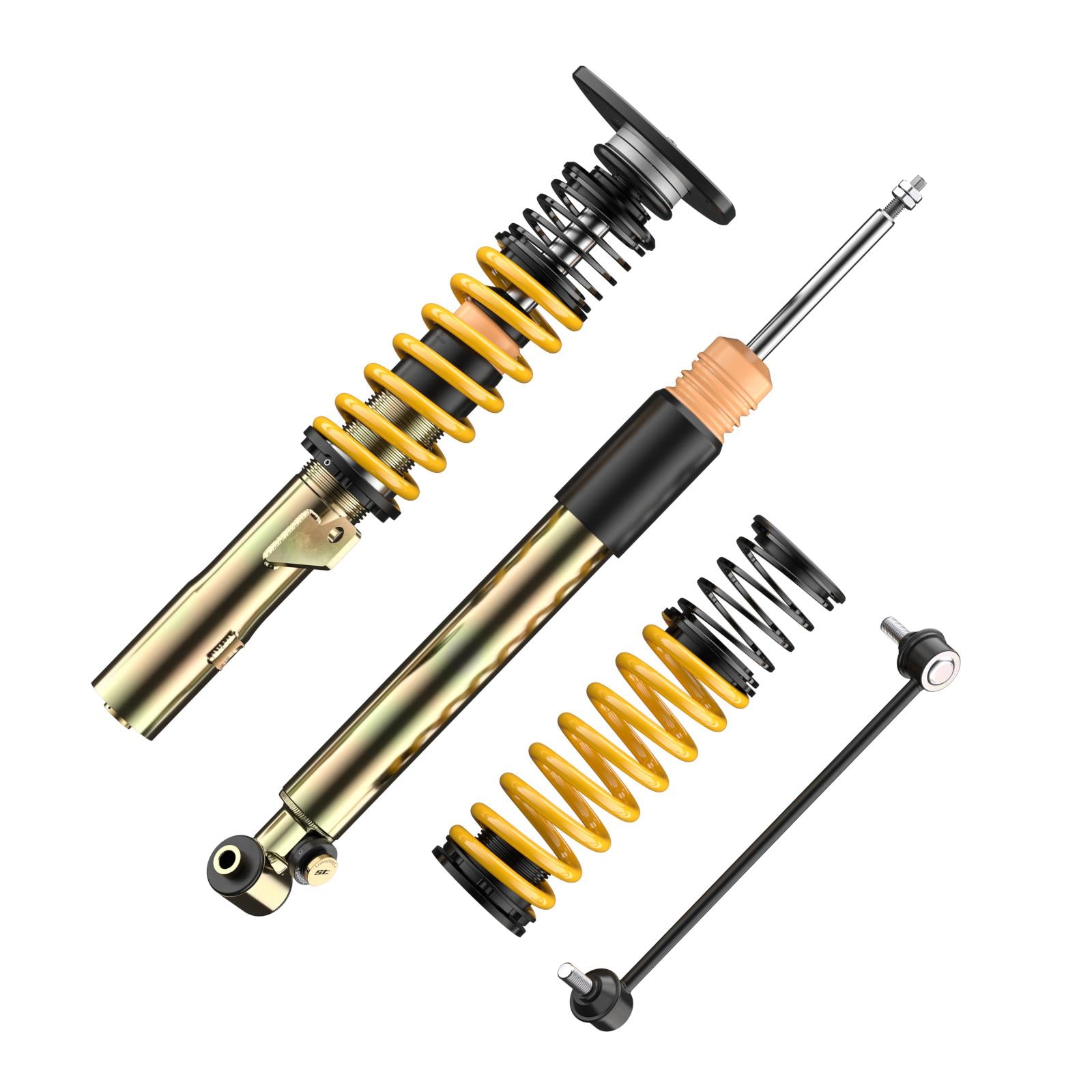

  • Supplied as: Front axle coilover struts including top mounts, rear axle springs with height adjustment + dampers

Front axle load up to 1,120 kg; Rear axle load up to 1,030 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2020+AudiA3 Saloon (GY) 8YS40 TDI quattroDiesel · 147 kW · 2.0L · 4-cylAll-Wheel Drive71, 209
2020+AudiA3 Saloon (GY) 8YS40 TFSI Mild Hybrid quattroPetrol/Electric · 150 kW · 2.0L · 4-cylAll-Wheel Drive71, 209
2020+AudiA3 Saloon (GY) 8YS40 TFSI quattroPetrol · 140 kW · 2.0L · 4-cylAll-Wheel Drive71, 209
2020+AudiA3 Saloon (GY) 8YS40 TFSI quattroPetrol · 150 kW · 2.0L · 4-cylAll-Wheel Drive71, 209
2020+AudiA3 Saloon (GY) 8YSS3 TFSI quattroPetrol · 228 kW · 2.0L · 4-cylAll-Wheel Drive71, 209
2020+AudiA3 Saloon (GY) 8YSS3 TFSI quattroPetrol · 245 kW · 2.0L · 4-cylAll-Wheel Drive71, 209
2019+AudiA3 Sportback (GY) 8YA40 TDI quattroDiesel · 147 kW · 2.0L · 4-cylAll-Wheel Drive
2019+AudiA3 Sportback (GY) 8YA40 TFSI quattroPetrol · 140 kW · 2.0L · 4-cylAll-Wheel Drive
2019+AudiA3 Sportback (GY) 8YA40 TFSI quattroPetrol · 150 kW · 2.0L · 4-cylAll-Wheel Drive
2019+AudiA3 Sportback (GY) 8YAS3 TFSI quattroPetrol · 228 kW · 2.0L · 4-cylAll-Wheel Drive
2019+AudiA3 Sportback (GY) 8YAS3 TFSI quattroPetrol · 245 kW · 2.0L · 4-cylAll-Wheel Drive
  • Note 71: Only for cars with a clamp diameter of 55 mm on the front axle.
  • Note 209: At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510342.
